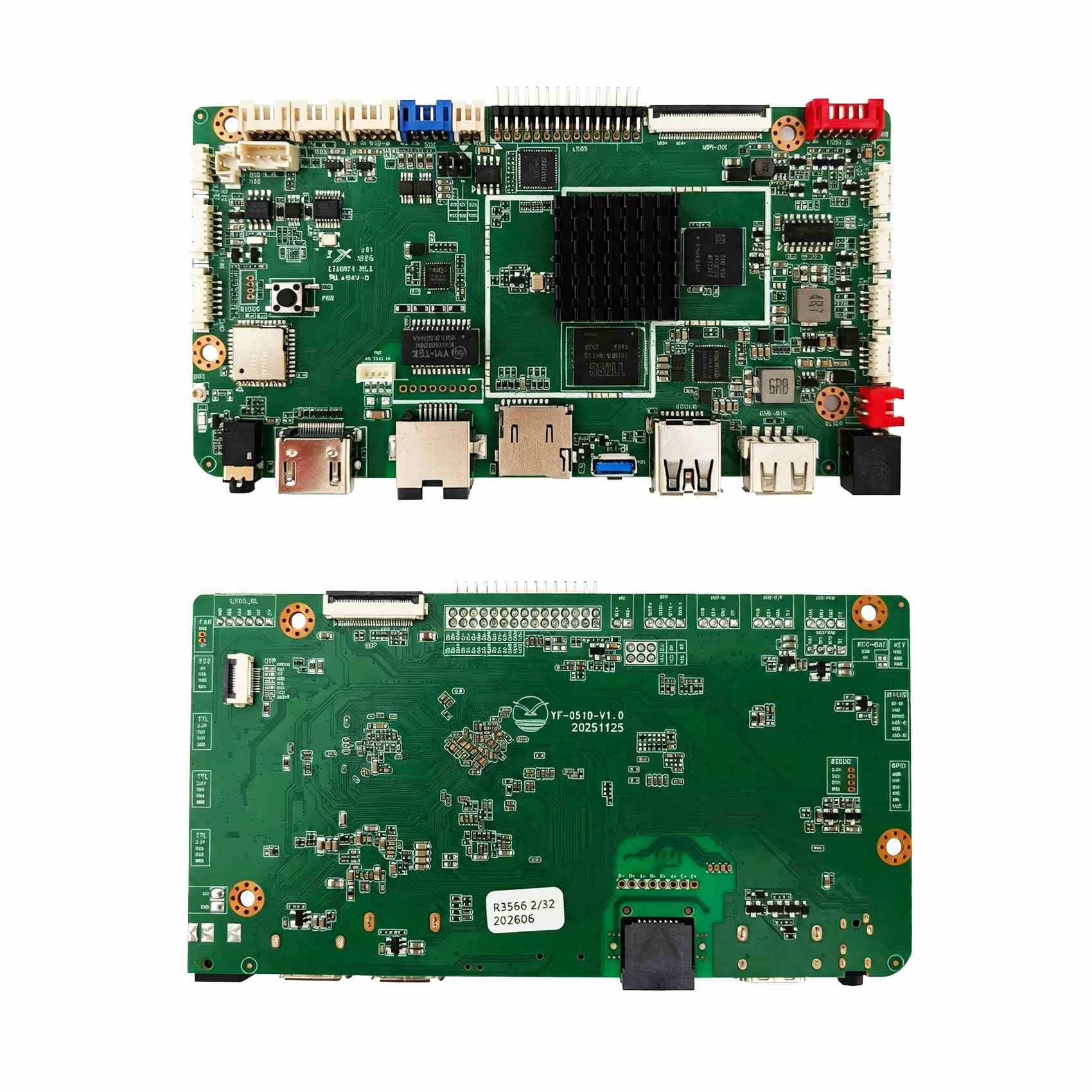

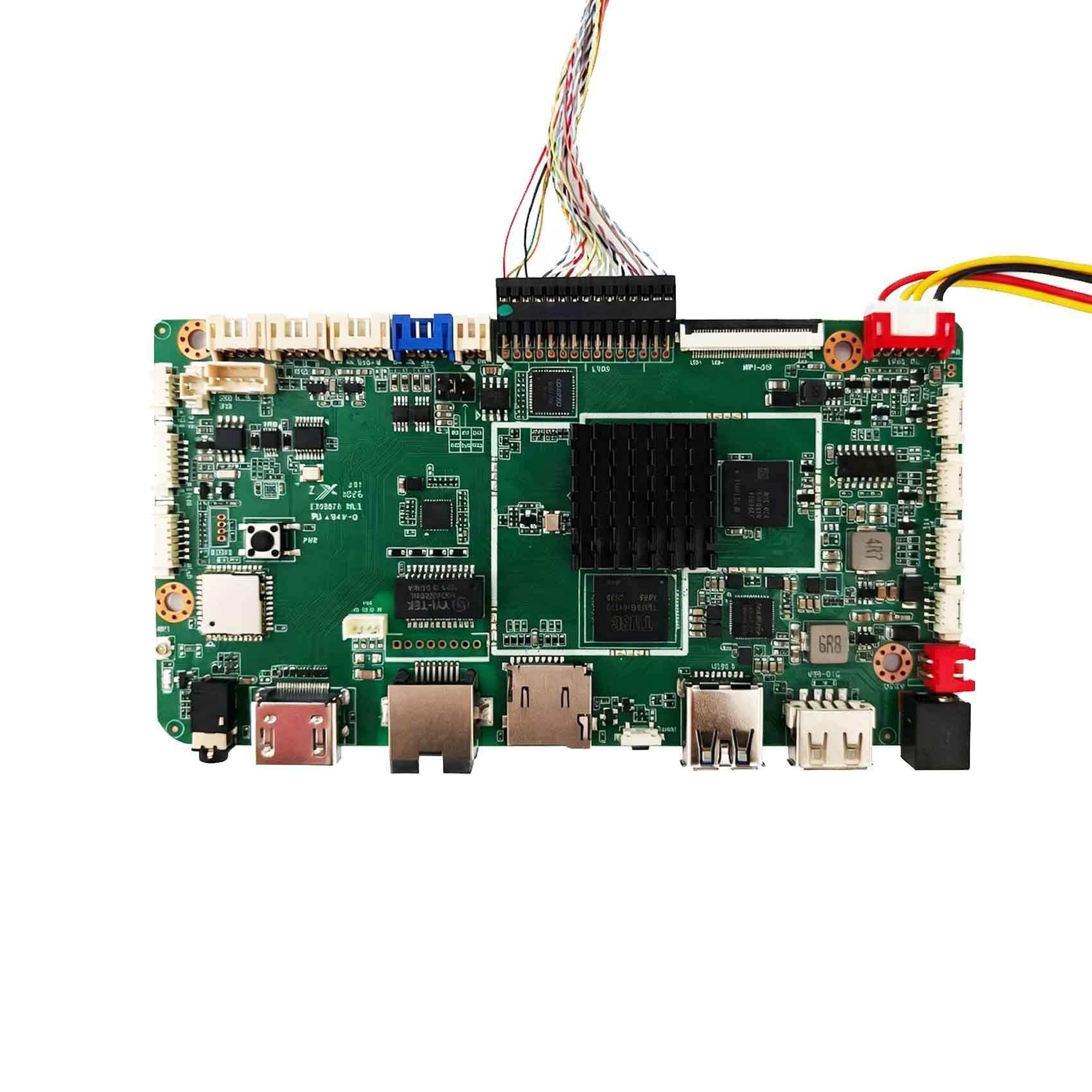

Android LCD Controller Board:
Android 11 Board Compatible With OpenGL ES 1.1/2.0/3.2、OpenCL 2.0 Vulkan 1.1
CPU: RK3566 UP to1.8GHz
GPU: Mali-G52-2EE
NPU: 0.8T
Memory: 2G LPDDR4X/LPDDR4
Built-in Memory: EMMC16G/32G
Decoding Resolution: 1080P/H.265(4K2K)
Operating System: Android 11
USB: 5 x USB2.0 1 x USB3.0
HD：Up to 3840x2160 eDP：Up to 1920x180
LVDS：Up to 1920x180 MIPI：Up to 2560x1440
Audio Output: Speaker 8R/2W
Serial Port：3 x TTL 1 x Debug 1x RS232
Input Power Adapter: 12Vdc more than 2A
Come In Standby Model When Not Input Signal
Standby Model <0.5W

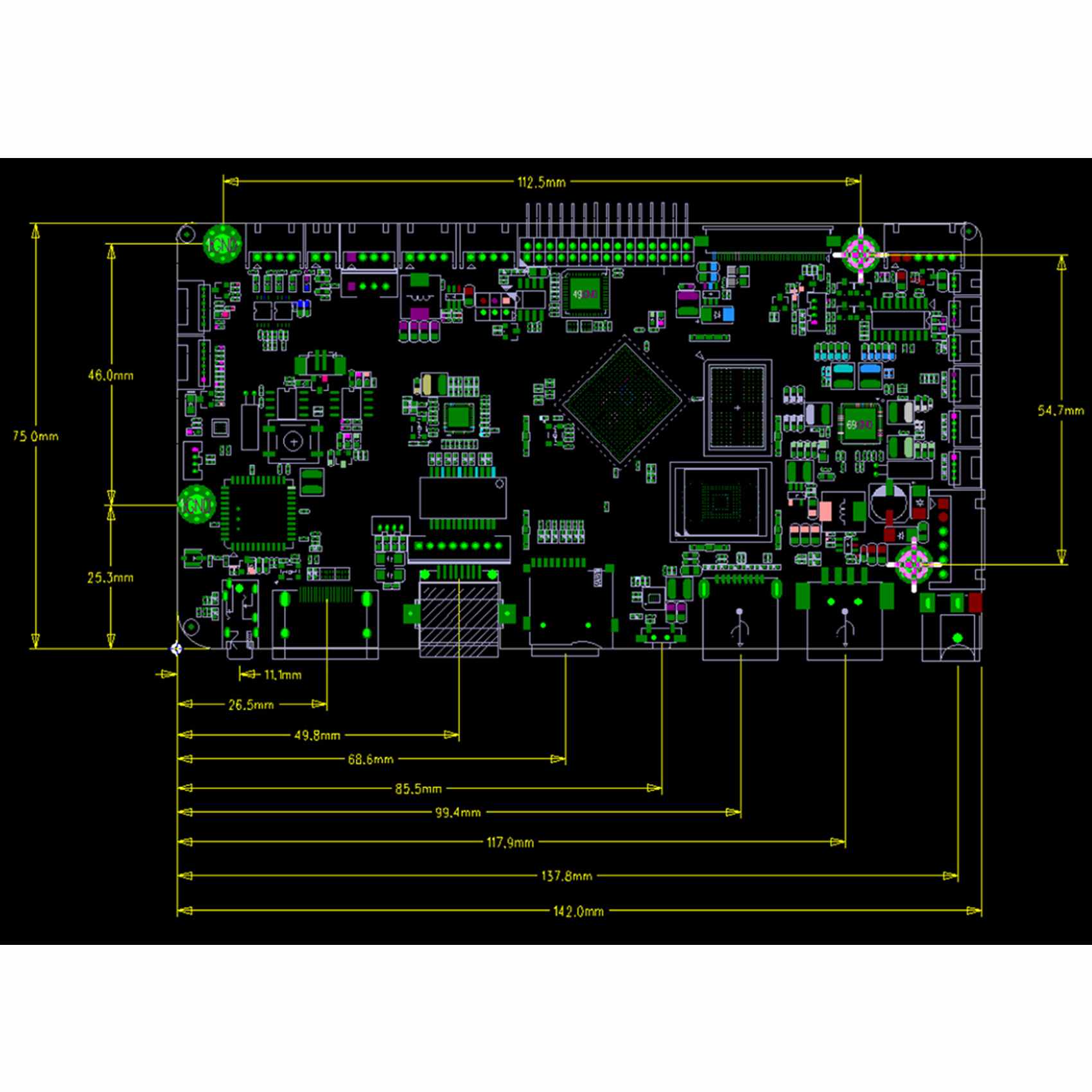

Board Size: 142mm x 75mm x 16mm
12.3" 1920X720 LCD Screen:
Display Mode IPS Pro, Normally Black, Transmissive
Resolution 1920(RGB)×720
Outline Size 308.1 × 130×15.6 (H×V×D)
Display Area 292.032 × 109.512 (H×V)
Brightness 850 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.) (CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch, 8-bit), Connector ,50 pins
Backlight WLED
Input Voltage 3.3V (Typ.)

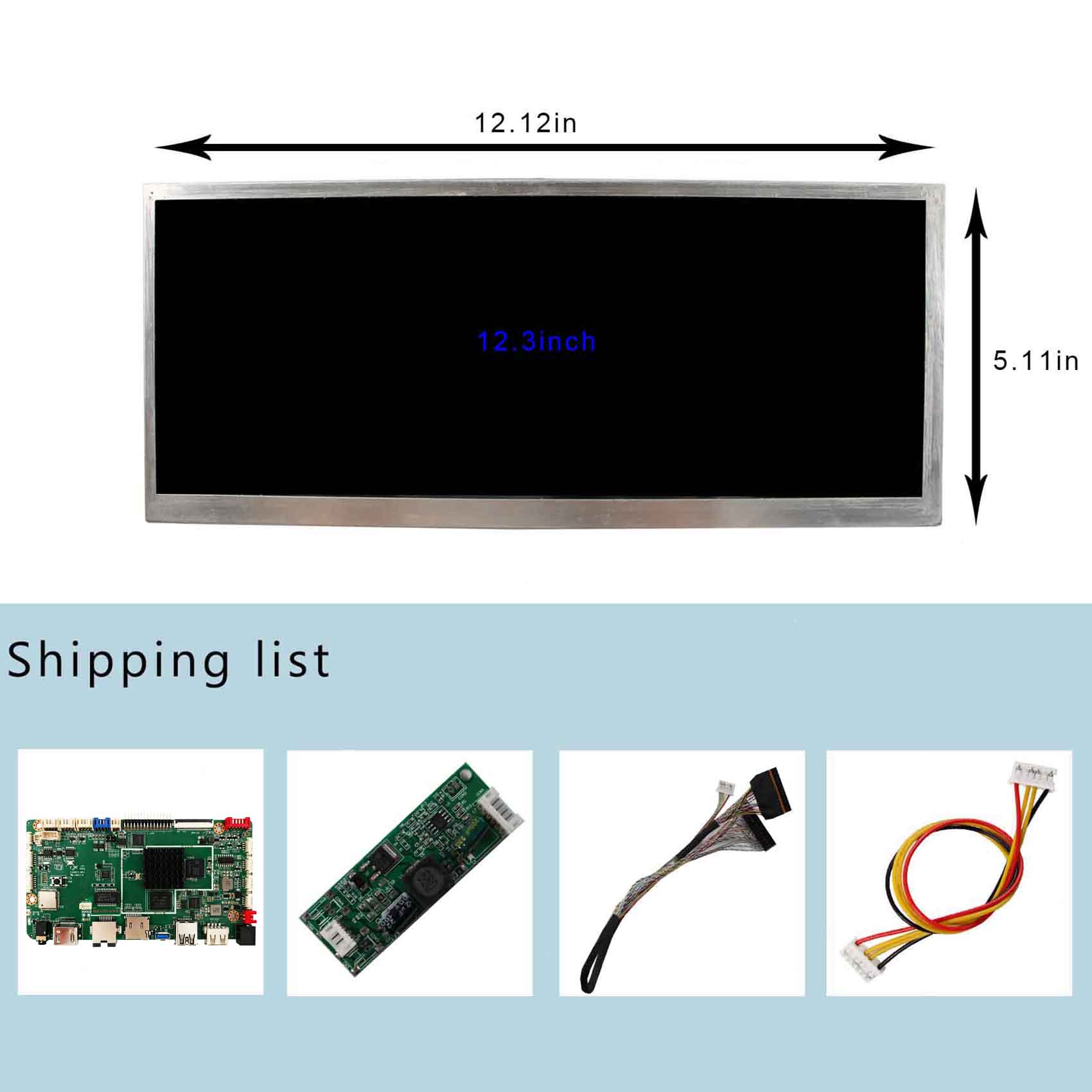

Packing list:
1× Android LCD Controller Board YF-023D Android 11
1×12.3inch 1920X720 LCD Screen
1× Converter Board
1× Signal Cable
1× Keyboard With Cable
