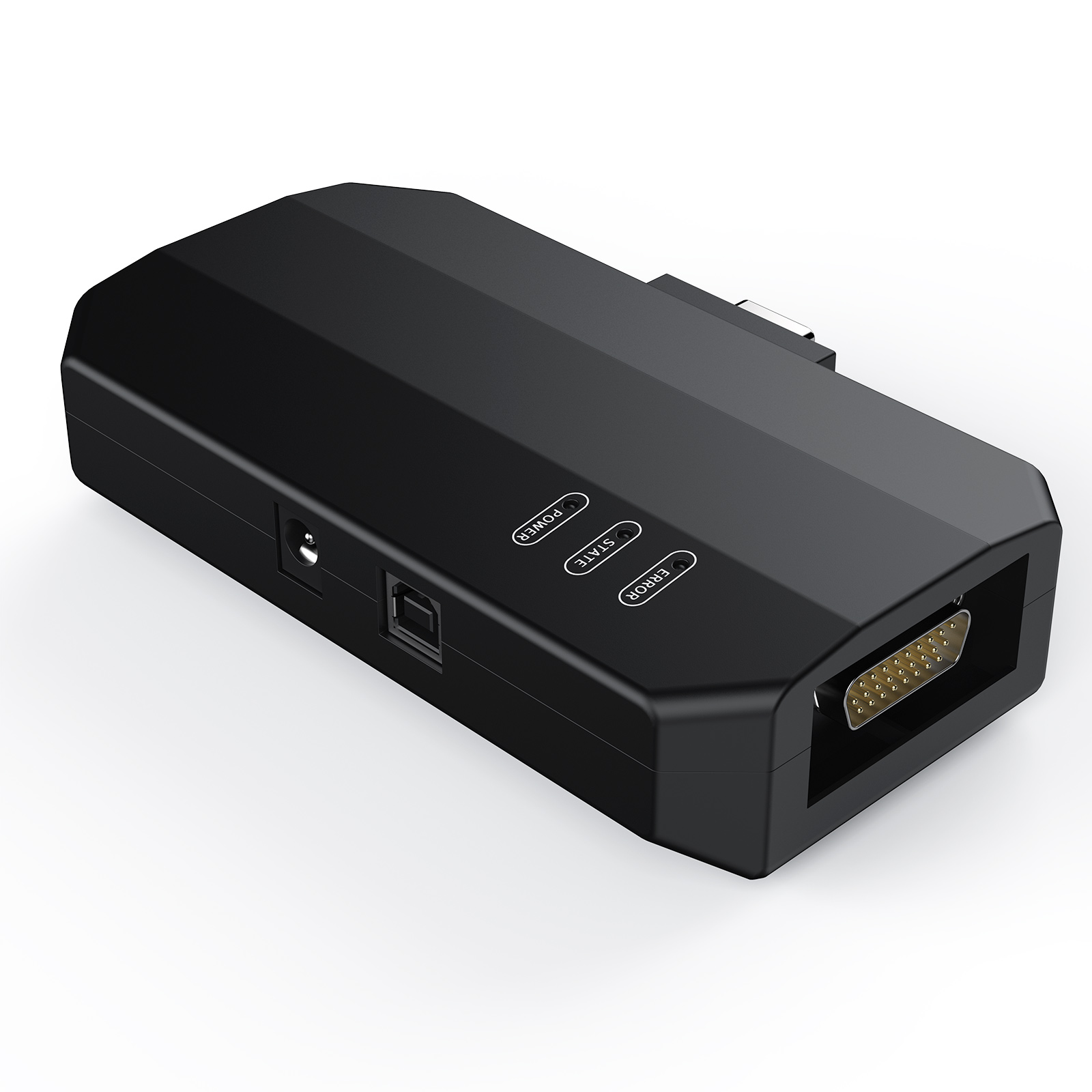

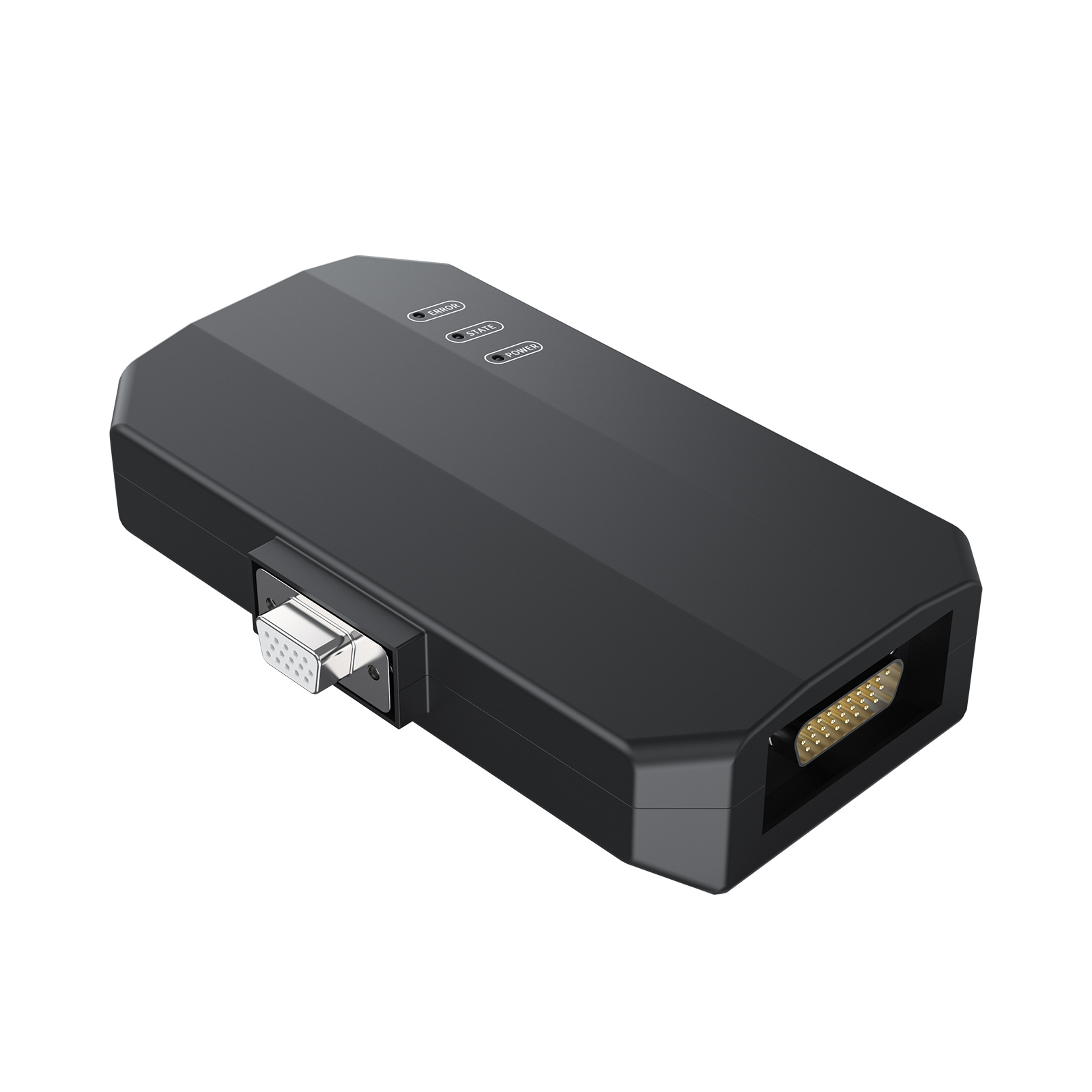

LAUNCH X431 I-MMO Prog-rammer X-PRO G3 PC Adaptor Overseas Online Configuration

Product Features:

1. Used in conjunction with X-PROG3 anti lift matching Progarmmer

2. 2D menu, clear and easy to choose

3. Powerful search function

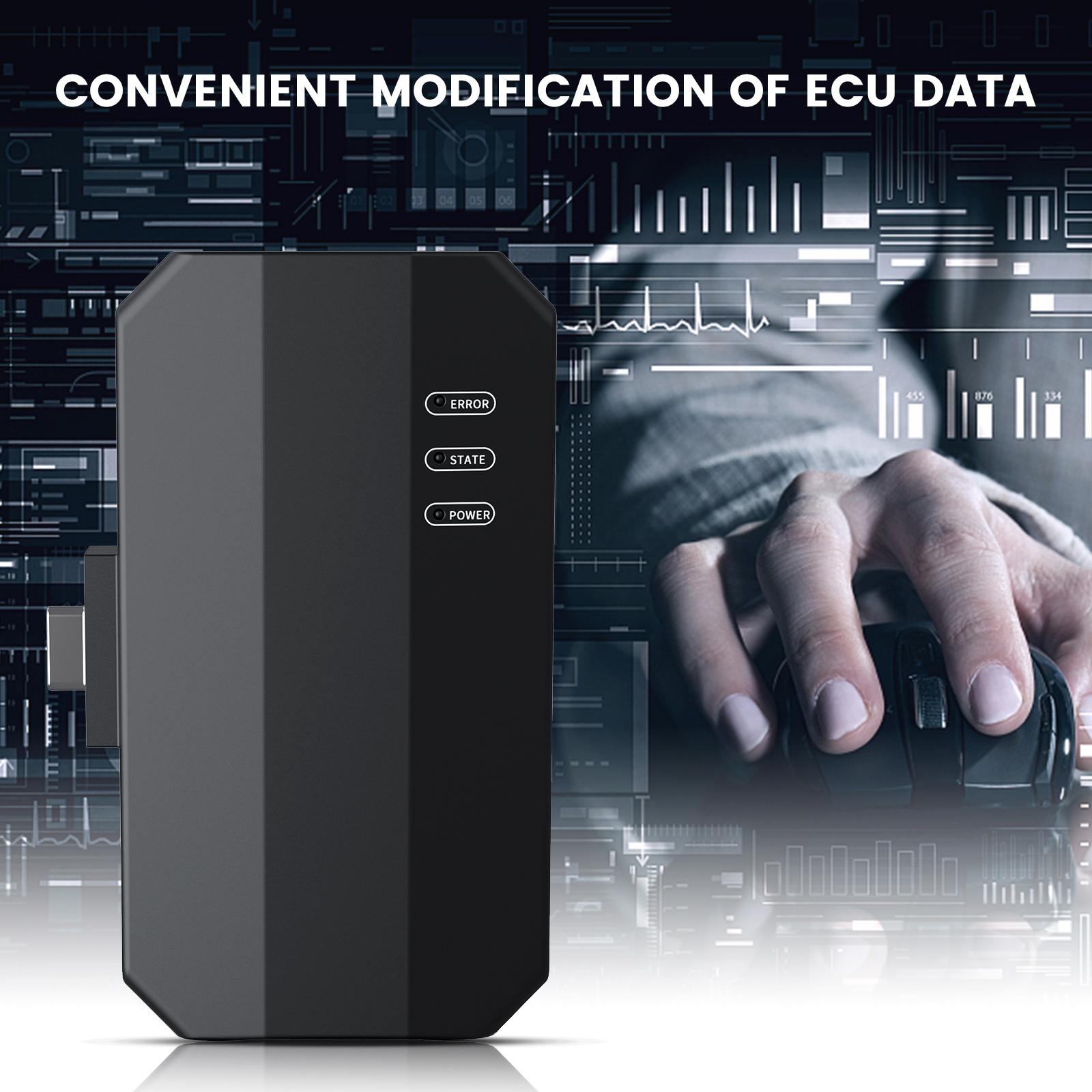

4. Convenient modification of E-C-U data

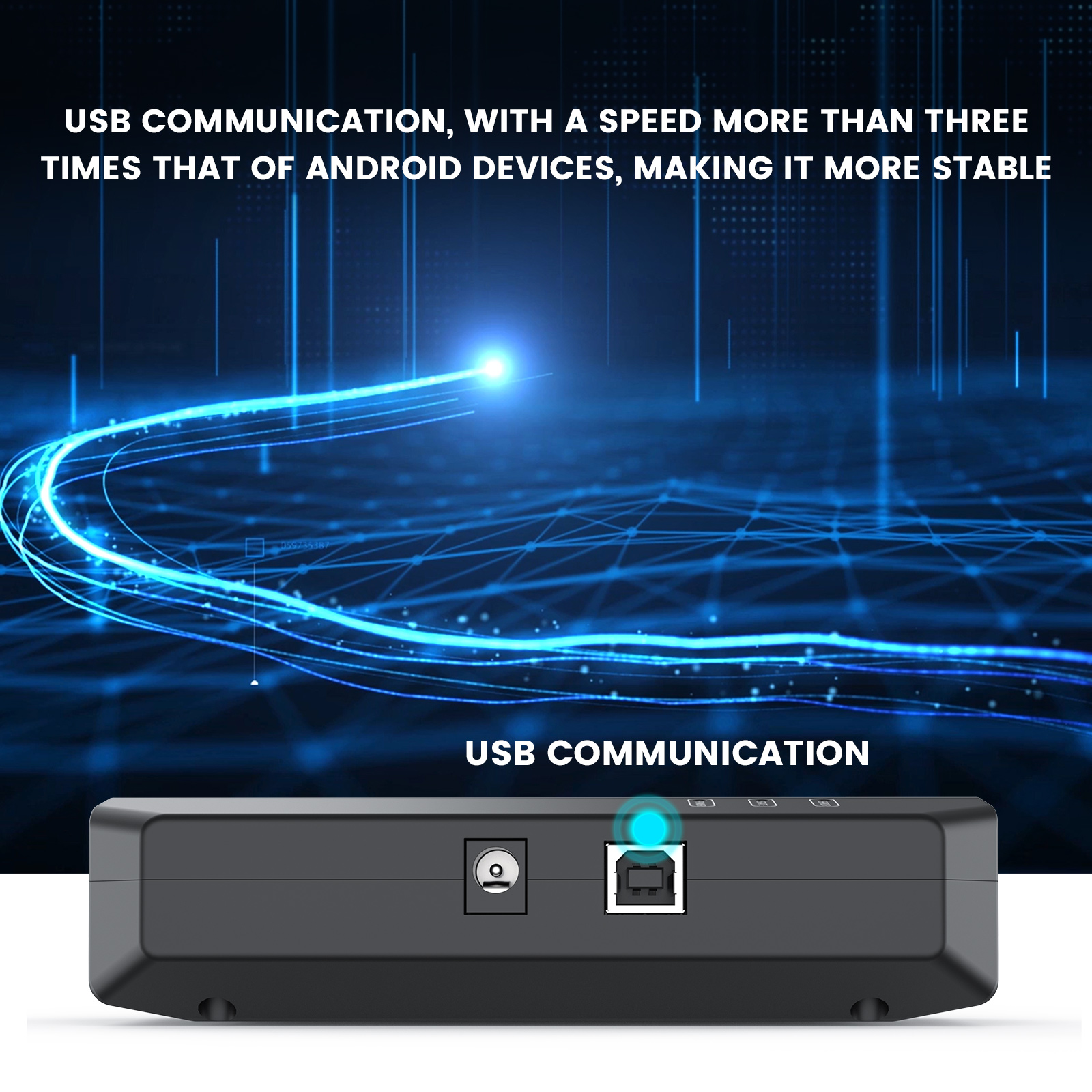

5. USB communication, with a speed more than three times that of Android devices, making it more stable

6. Easy to copy data

7. Support engine data validation function

8. 1 year of free update online, after that, the renewal fee is 249USD/year.

9. Global version, No IP limitation.

*Make sure you buy the GL version of PC adapter, otherwise it has IP limitation.

NOTE: A X-prog3 can only bind with one PC adapter only !!!

Software download link: Download on the official website

Software language: English, German, Japanese, Russian, French, Portuguese, Korean, Italian, Arabic, Traditional Chinese

Select the corresponding language setup to install.

PC Software Interface Description:

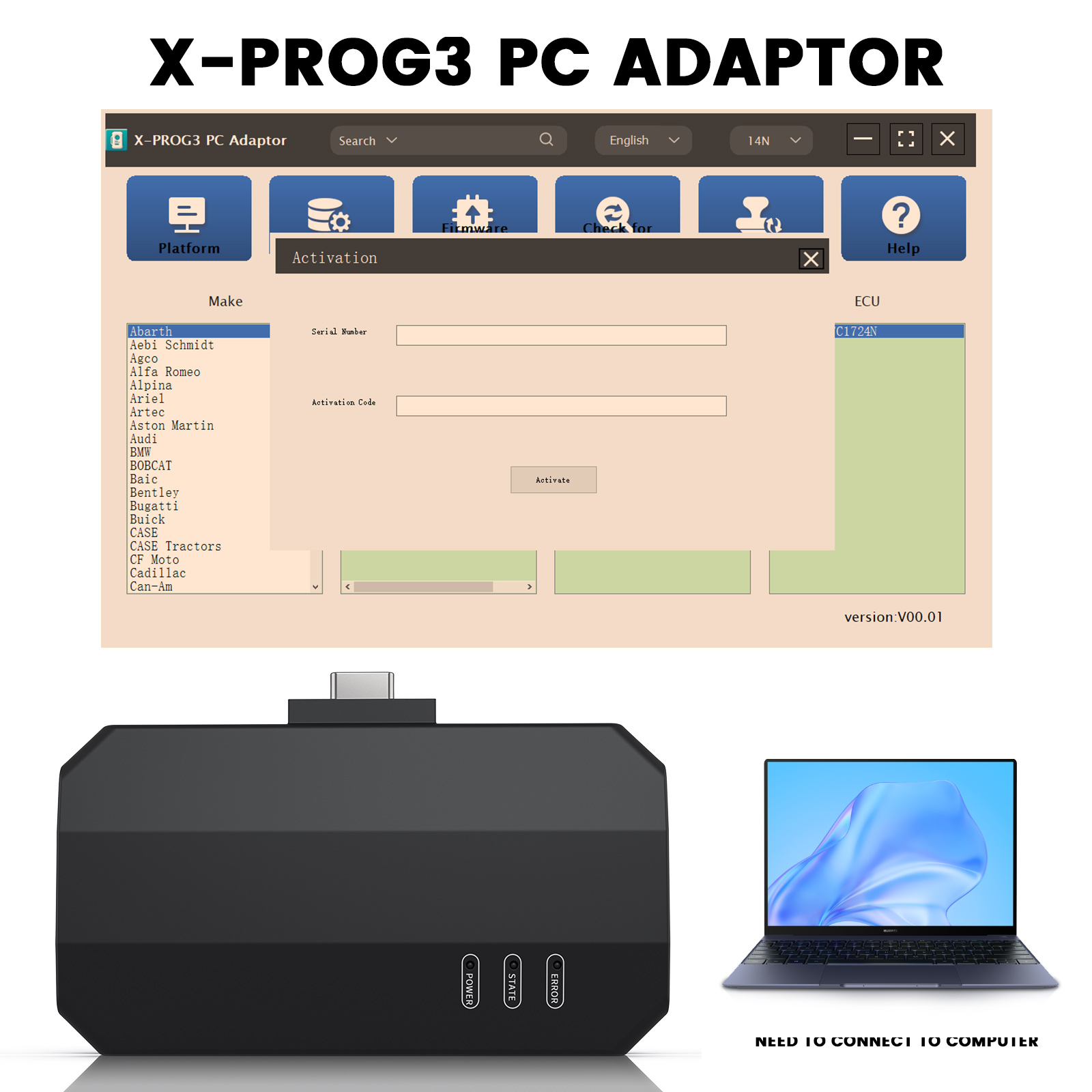

Firstly, connect the X-PRO G3 PC ADAPTOR to the computer using a cable, and then connect the X-PROG3 PC ADAPTOR to G3. Secondly, click to enter the software (without connecting the X-PROG3 PC ADAPTOR and G3, the software cannot be accessed). The serial number will be automatically recognized from the X-PROG3 PC ADAPTOR. The activation code needs to be obtained from the envelope of the X-PROG3 PC ADAPTOR. Thirdly, click [Activation] (only once,    no need to activate it again later), as shown in Figure 1

I.E-C-U Data Reading/Writing

1. Obtain the related E-C-U.

(1) Method 1: Obtain the desired E-C-U type through brand > model > engine > E-C-U in turn, as shown in Figure 2.

(2) Method 2: Query the desired E-C-U by entering a value in the search box. The search categories include brand, Bo-sch number and E-C-U type. For example, search for the MED17.5.25 engine by E-C-U type, as shown in Figure 3.

2. Click [Straight Connection Line Diagram] to obtain the E-C-U connection diagram, as shown in Figure 4.

3. Connection: Connect the E-C-U and PCBOX according to the information provided in the connection diagram. The physical connection diagram of MED17.5.25 (using the BENCH mode line) is shown in Figure 5, and the physical connection diagram using the gearbox adapter is shown in Figure 6.

4. Read the chip ID, as shown in Figure 7.


5. Back up the EEPROM data and save it, as shown in Figure 8 (the figure shows the save page of the read data).

6. Back up the FLASH data and save it, as shown in Figure 9 (the figure shows the process of reading FLASH data).

7. Restore EEPROM/FLASH data, as shown in Figure 10 (the figure shows the file selection page).

II. Data Processing

1. Click the [Data Processing] button on the main page, as shown in Figure 11, and select [Imm0bilizer Shutoff and File Checkout] [Data Cloning] process for Vol/kswa/gen series and Porsche engine data, as shown in Figure 12.

2. File verification and anti-theft shutdown (process: select file > connect network to obtain > save file), as shown in Figure 13.

Support list June 2023:

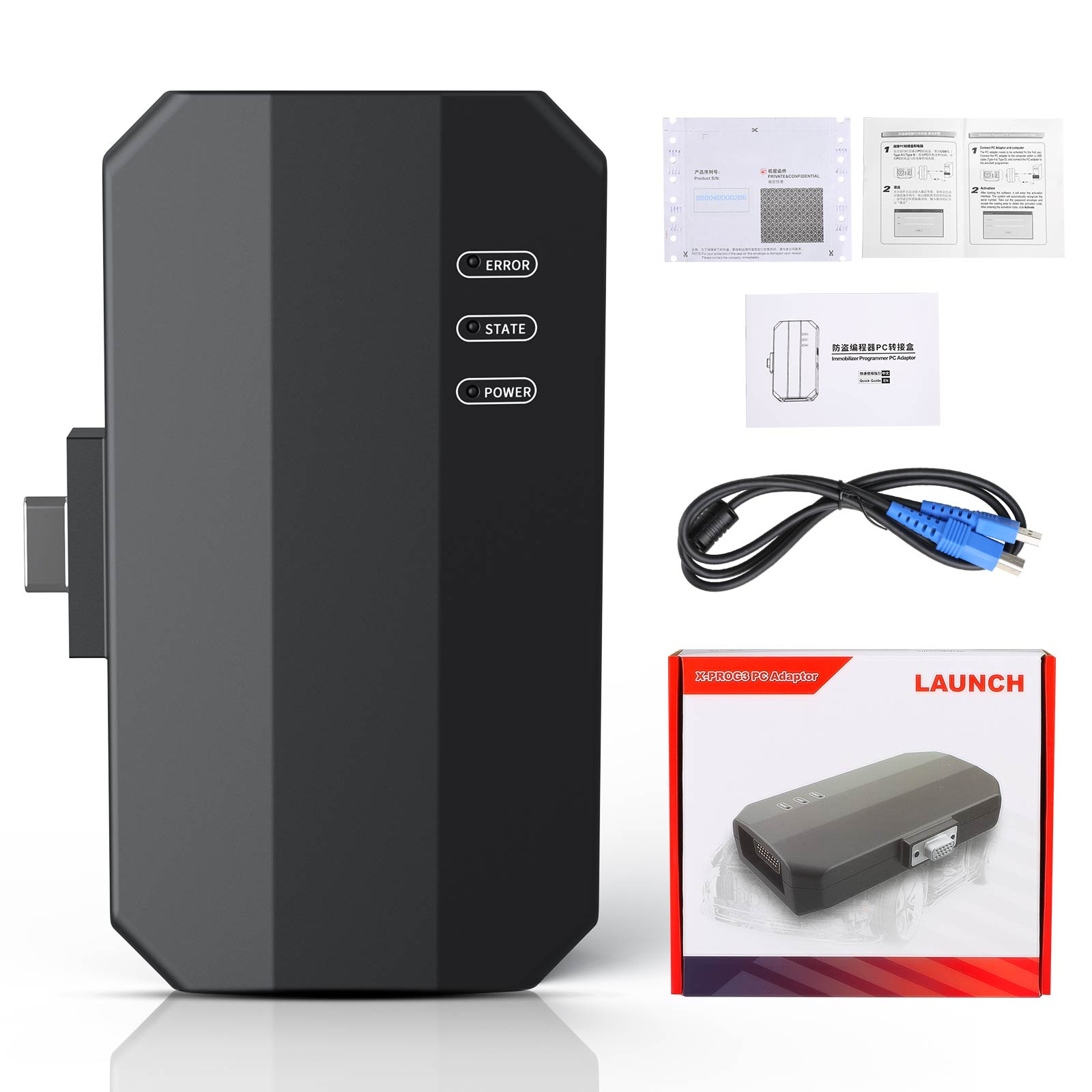

Package Includes:

1pc x Launch X431 IMMO Programmer  X-PROG3 PC Adaptor

1pc x USB Type-B Cable

1pc x quick start guide

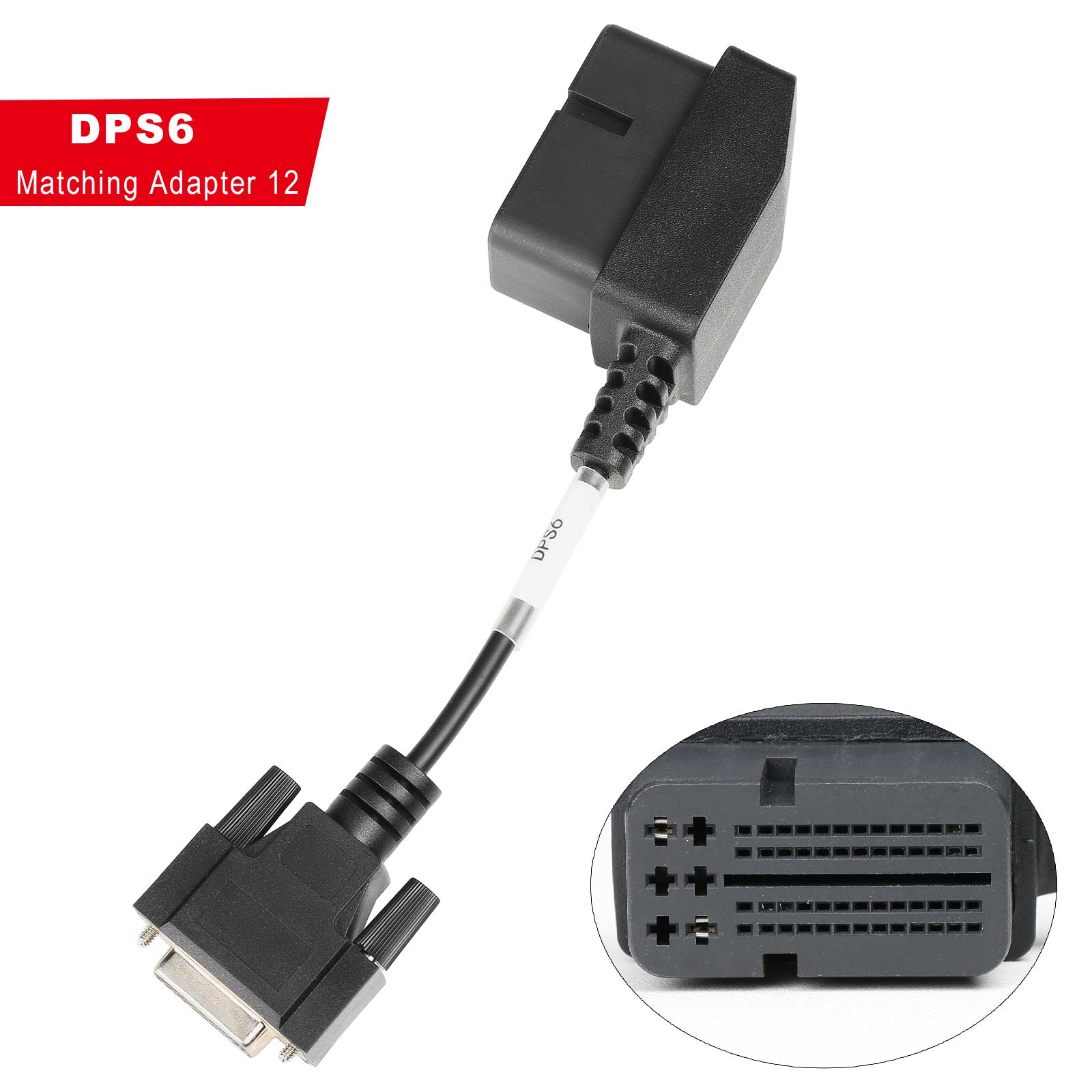

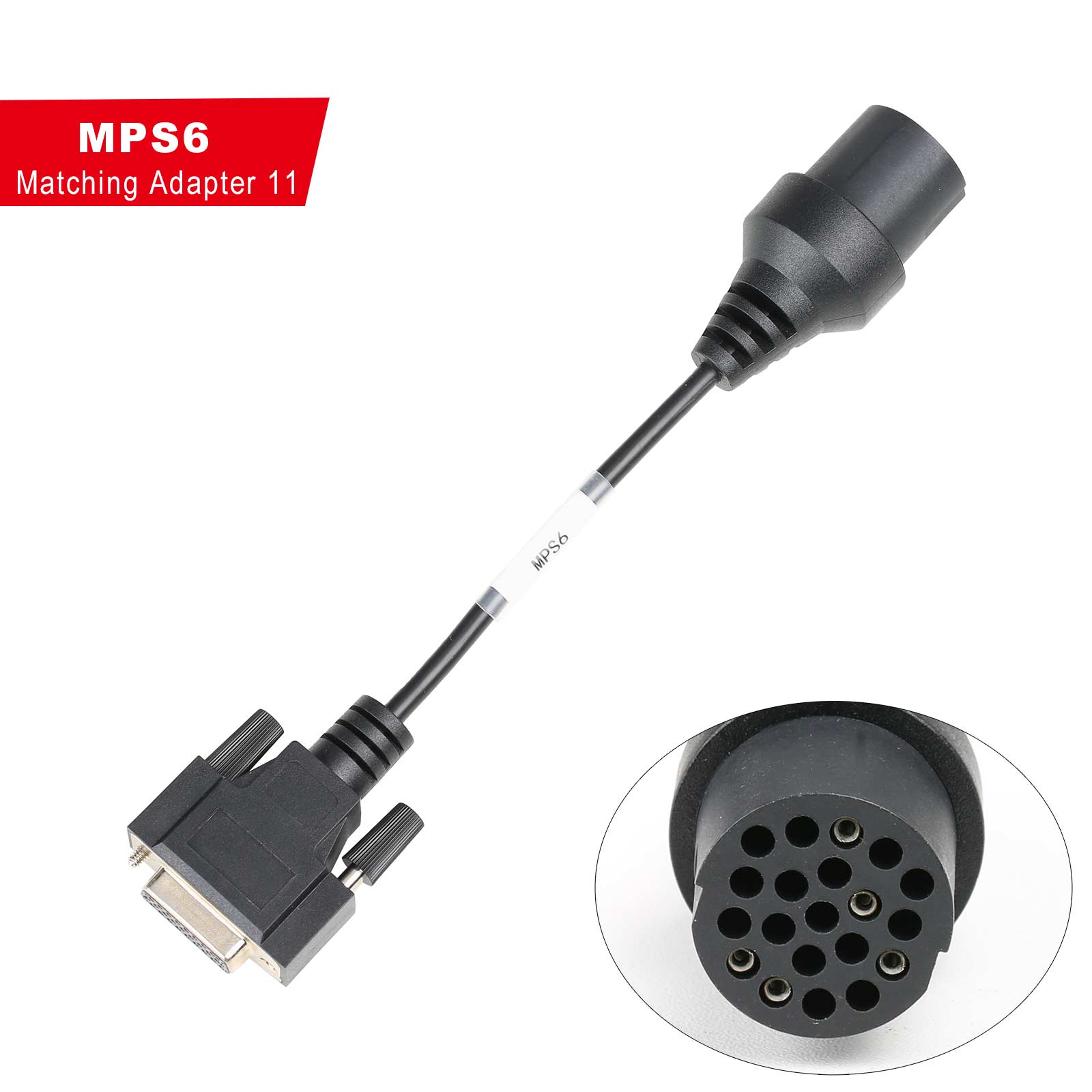

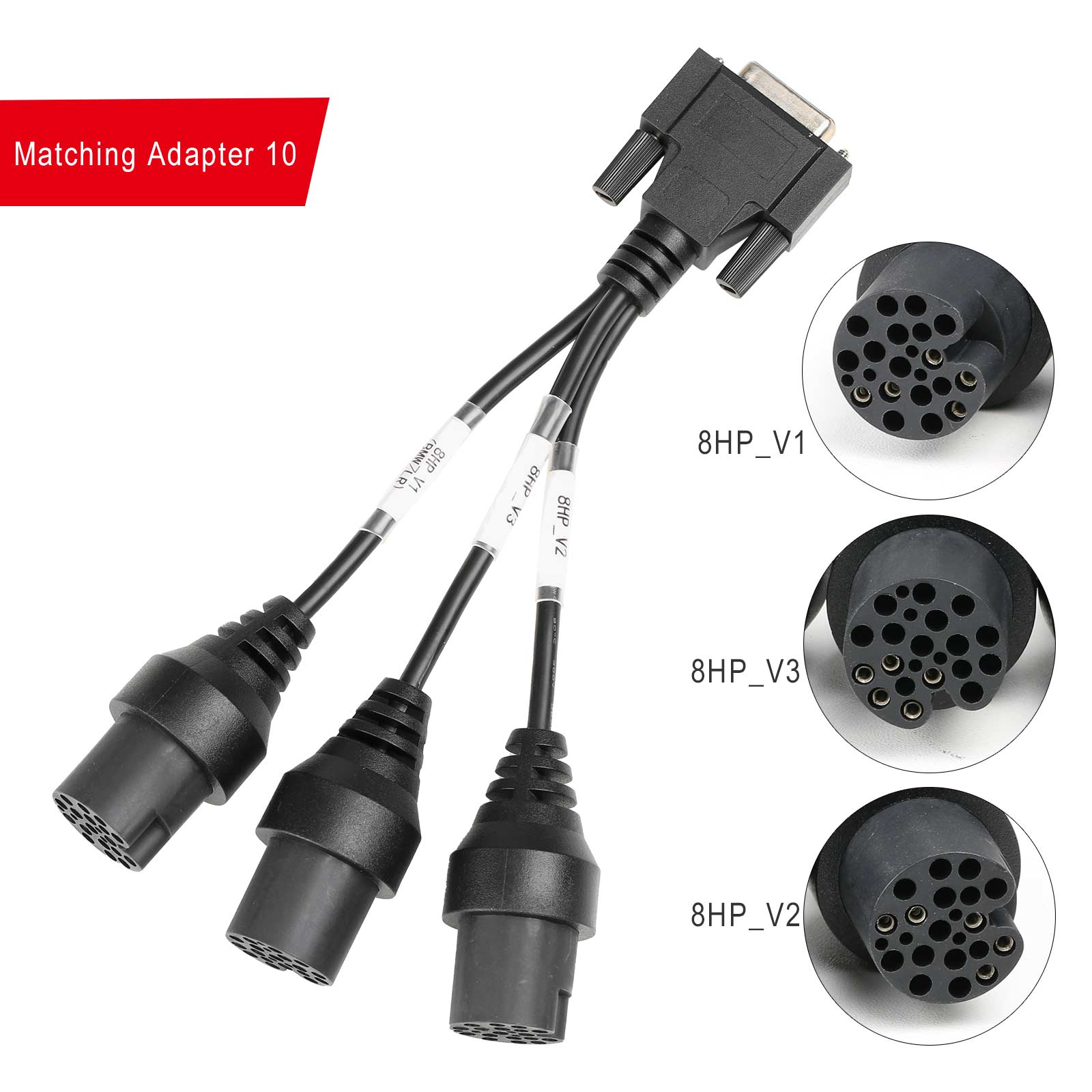

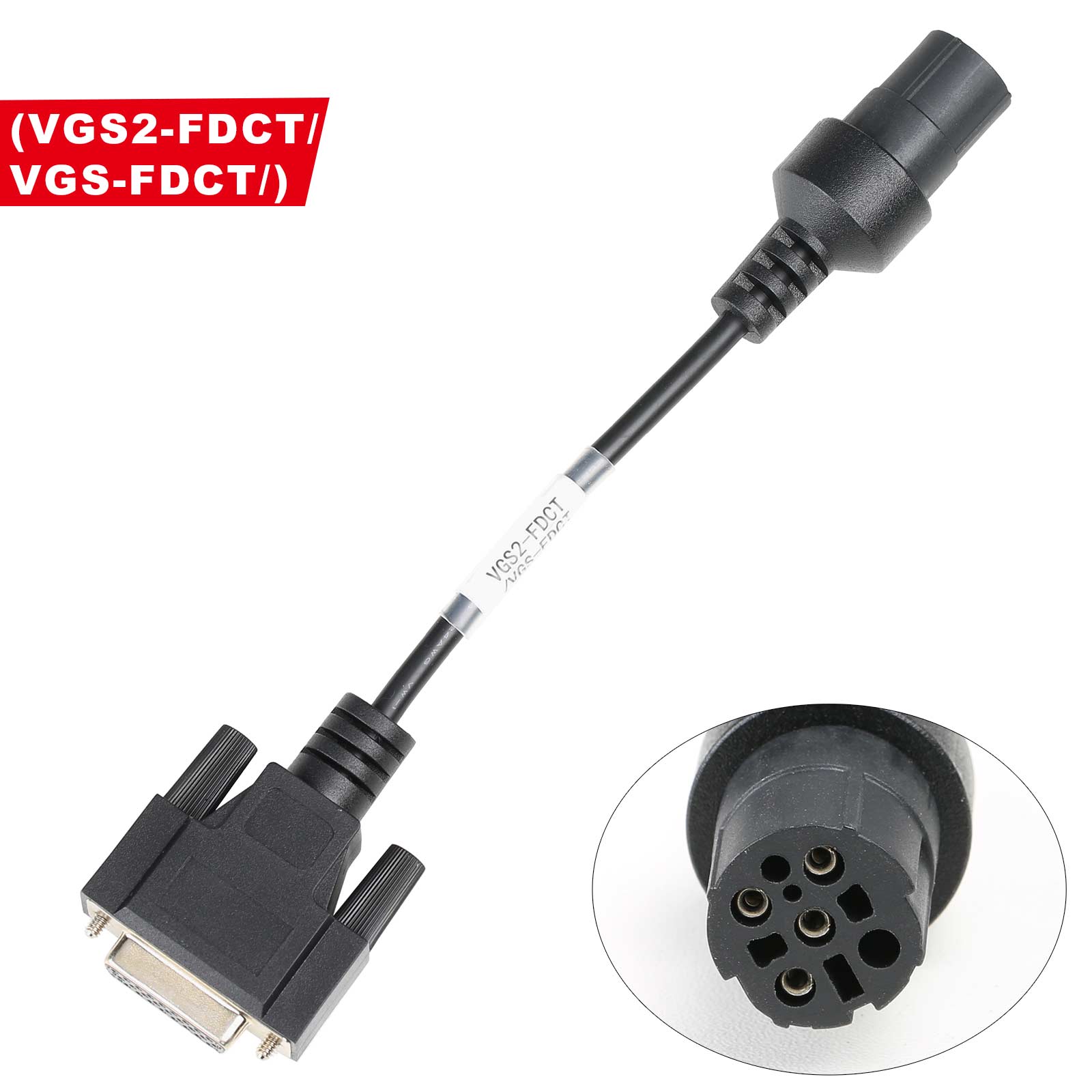

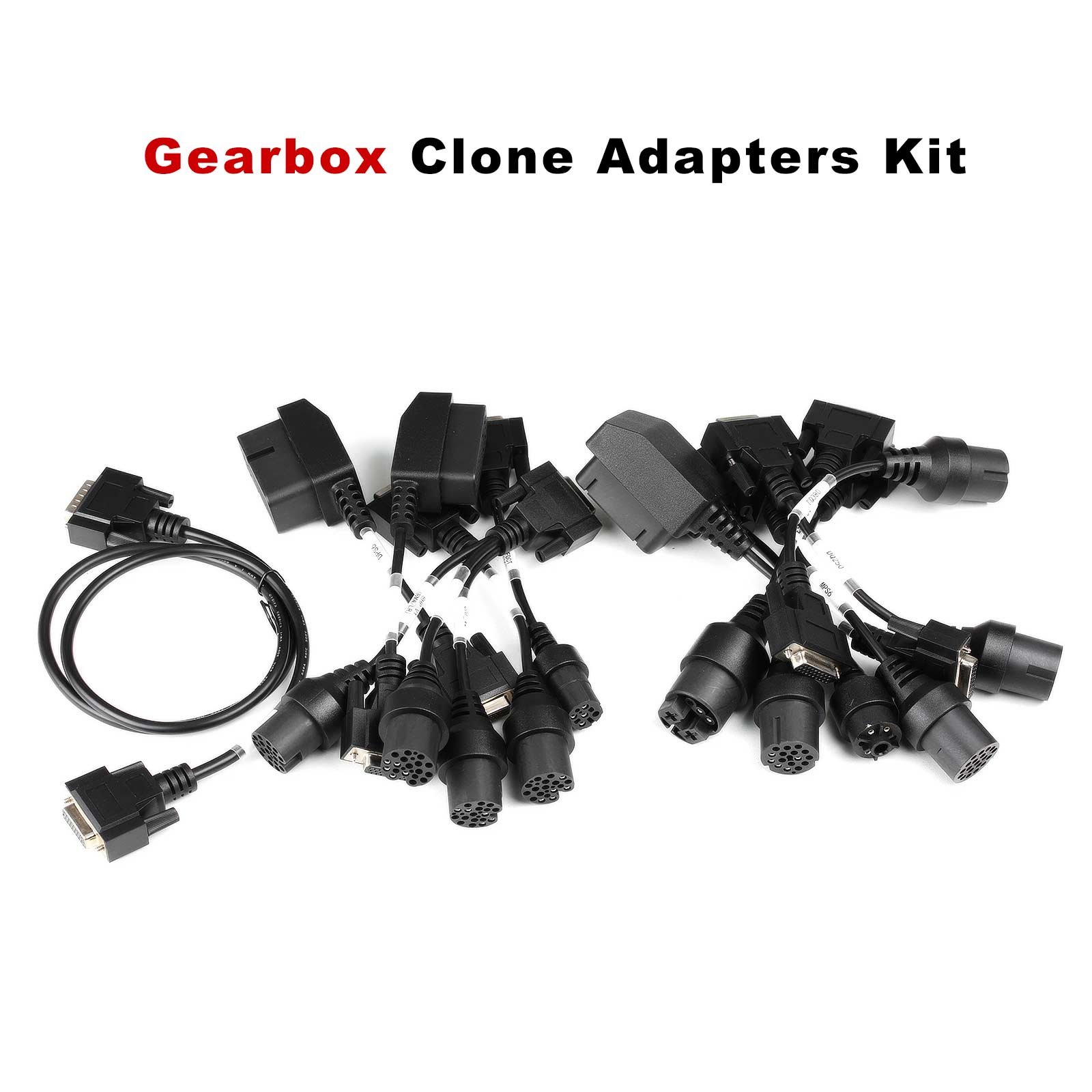

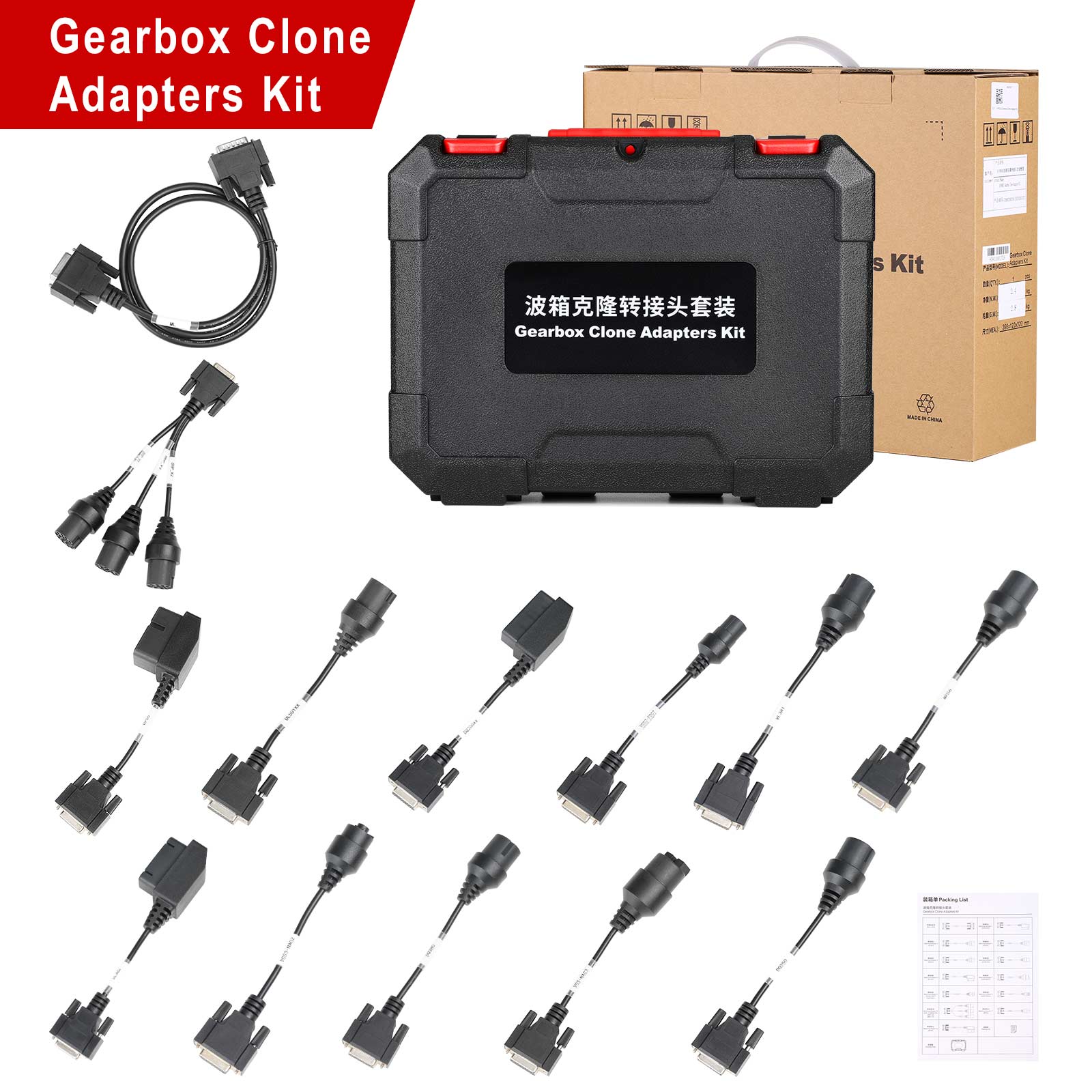

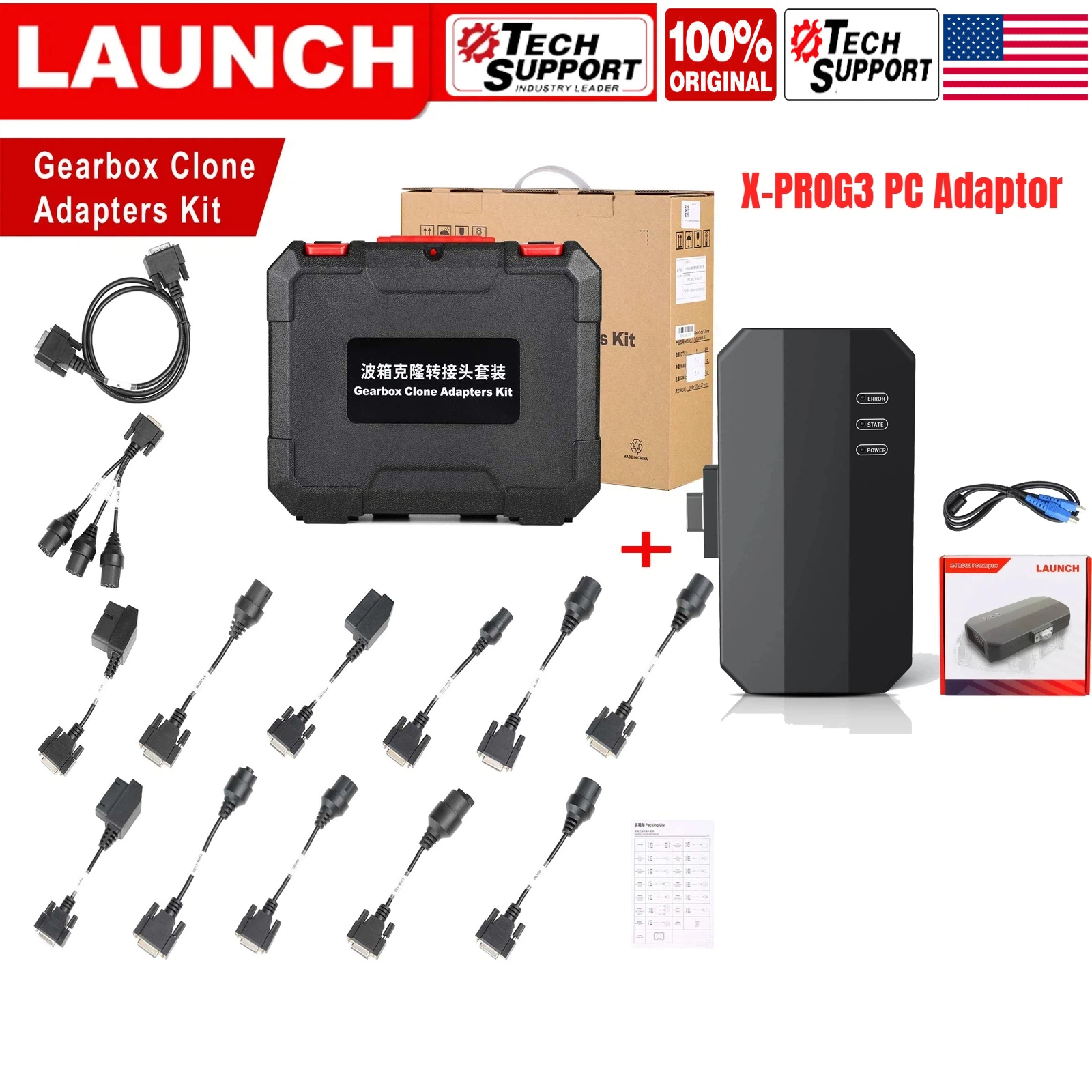

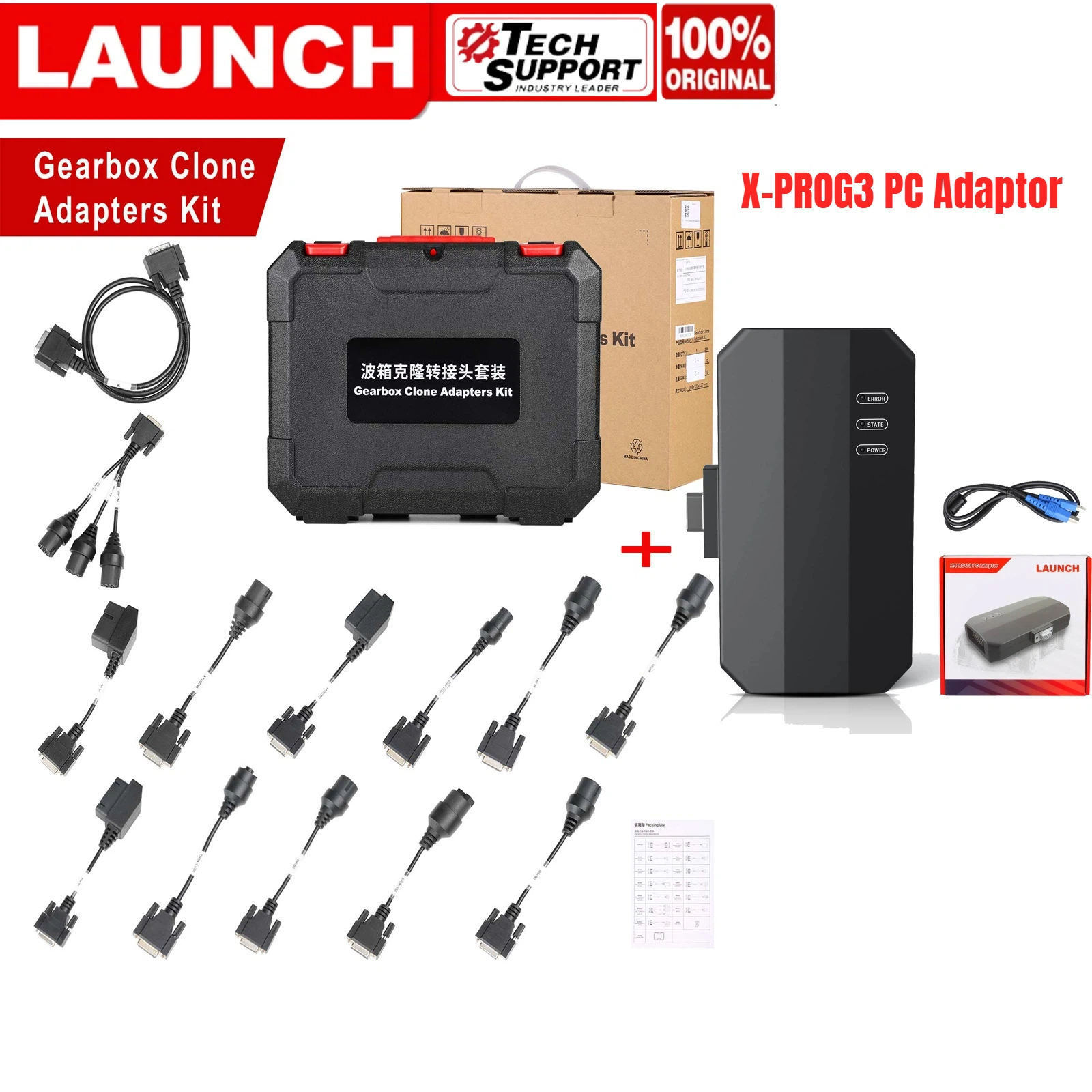

LAUNCH X431 E-C-U Pr0grammer Gearbox Connectors Package, E-C-U Module Cloning Device

The Launch X431 X-PROG3 gearbox clone adapters kit can save the time for customers who use jumper wires to connect to the E-C-U. They only need to find the corresponding cable and plug it into the corresponding E-C-U to clone directly.

Compatible device: X-prog3, X431 E-C-U pr0grammer, PC Adapter for X-prog3

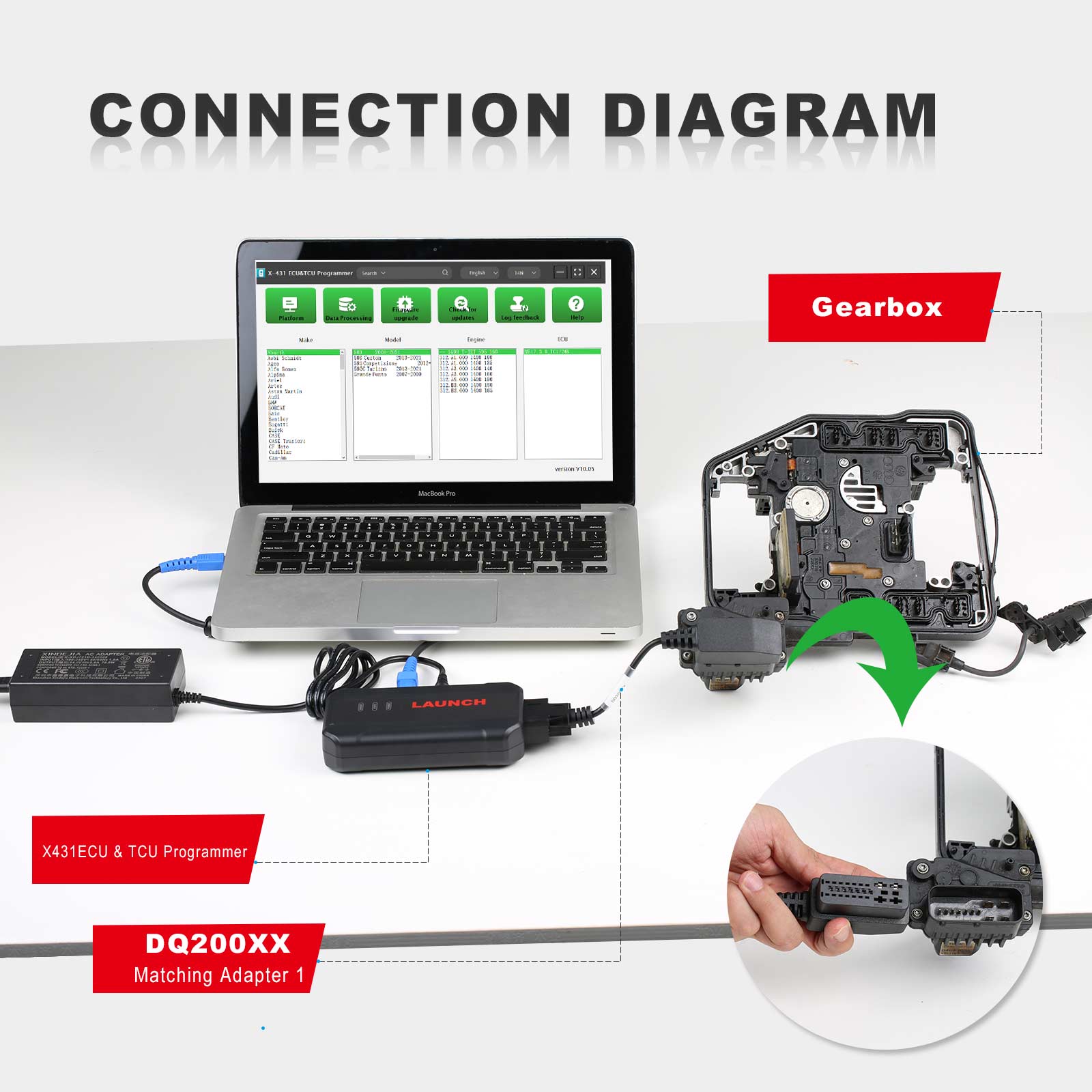

Connection Diagram:

X-prog3 connection


X431 E-C-U Pr0grammer connection


X prog3 PC Adapter Connection

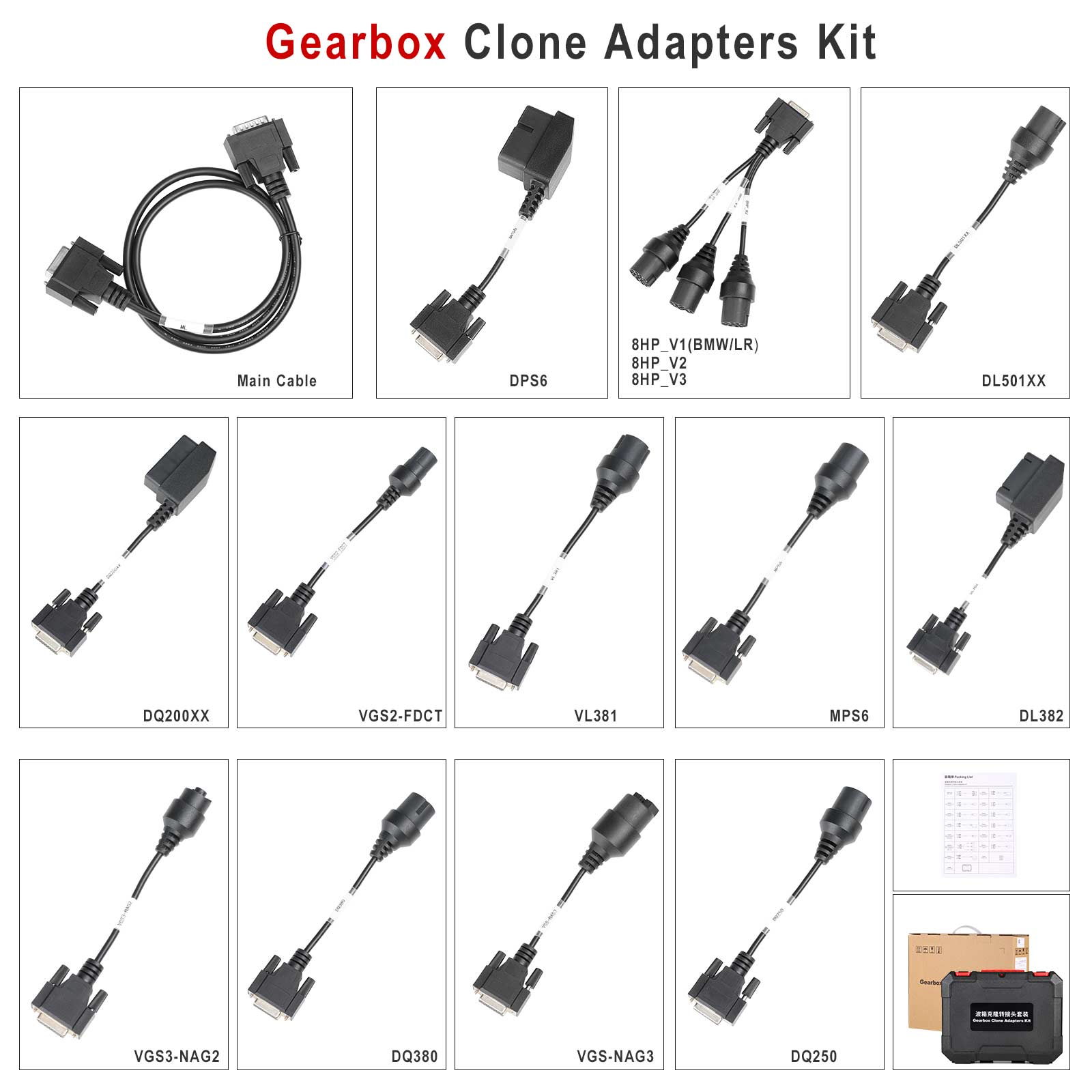

Launch X431 E-C-U Module Cloning Device Connectors Package
