DESCRIPTION:
The advantages of the all-purpose testing jig:
***Save Time: Standardized design and processing, can save you 80% design and processing time.
***Save Money: Can recycling, if you need to test many different size PCB board, no need to change a whole new testing jig. Just need to change the ABC board and processing, this can save you 65% cost here.
***Save Space: The PCB frame rack can recycling, just need to store the three ABC, all would be good.
***Safety:The frame material is the electric wood, the express logistics is very safe
Introductions:

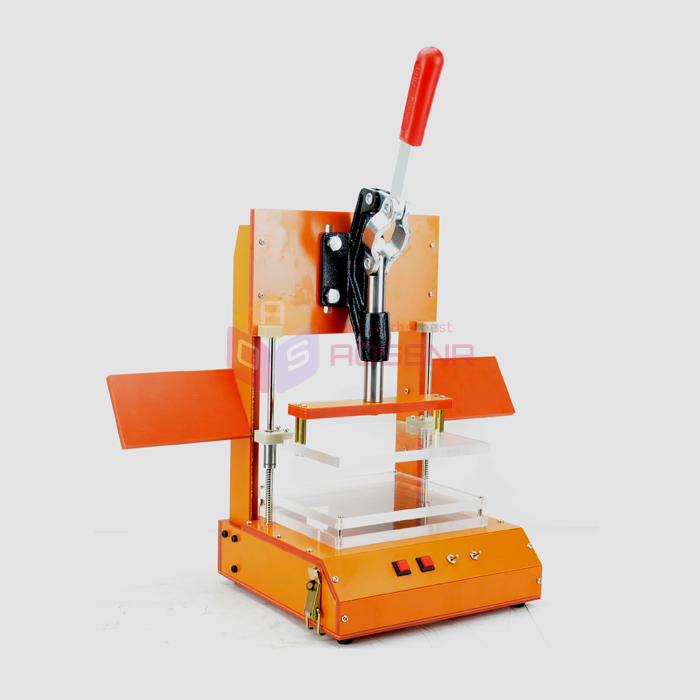

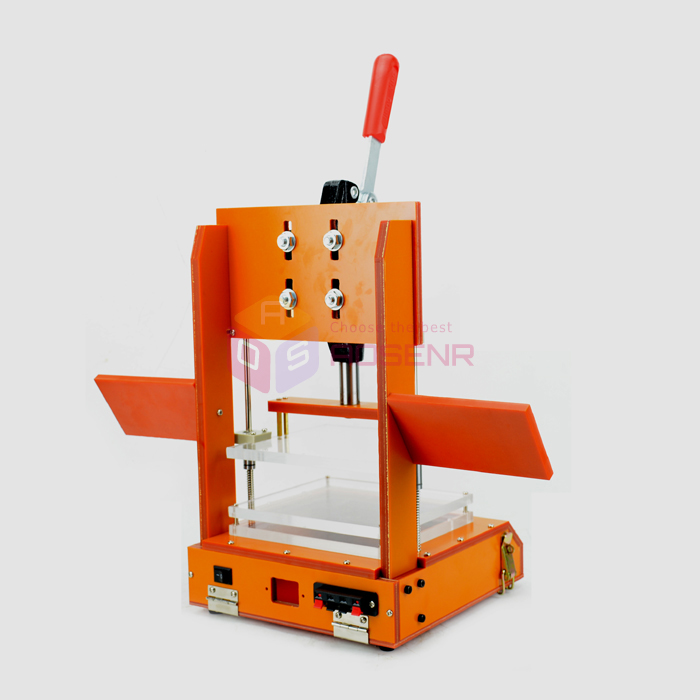

The FC80-50-42 can be tested with a PCB board with a maximum size of 80X50mm, and a PCB board within 80X50mm can be used to select the frame, and 42mm indicates the test schedule.
If you need to test different PCB boards, you can process the ABC board and suggest several sets of ABC boards.
NOTE:

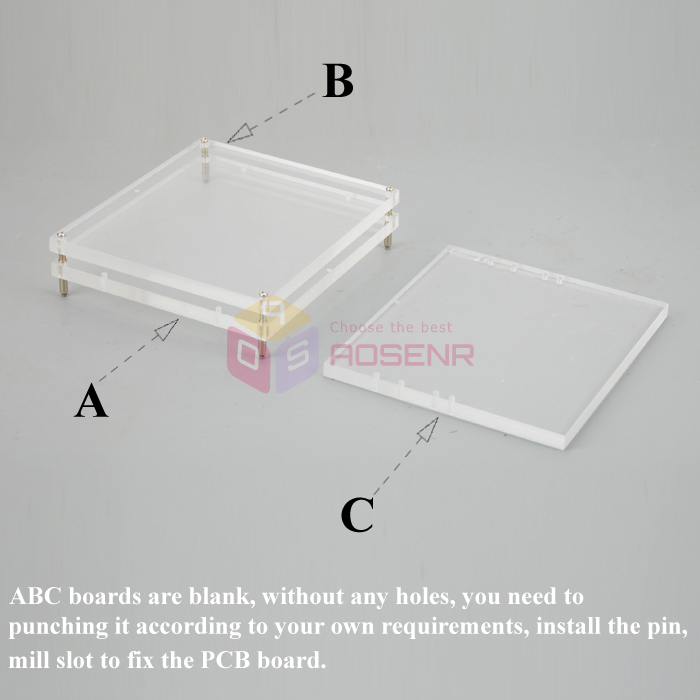

Just so you know that all the ABC boards are blank, without any holes, you need to punching it according to your own requirements, install the pin, mill slot to fix the PCB board.
How to choose the embryo frame

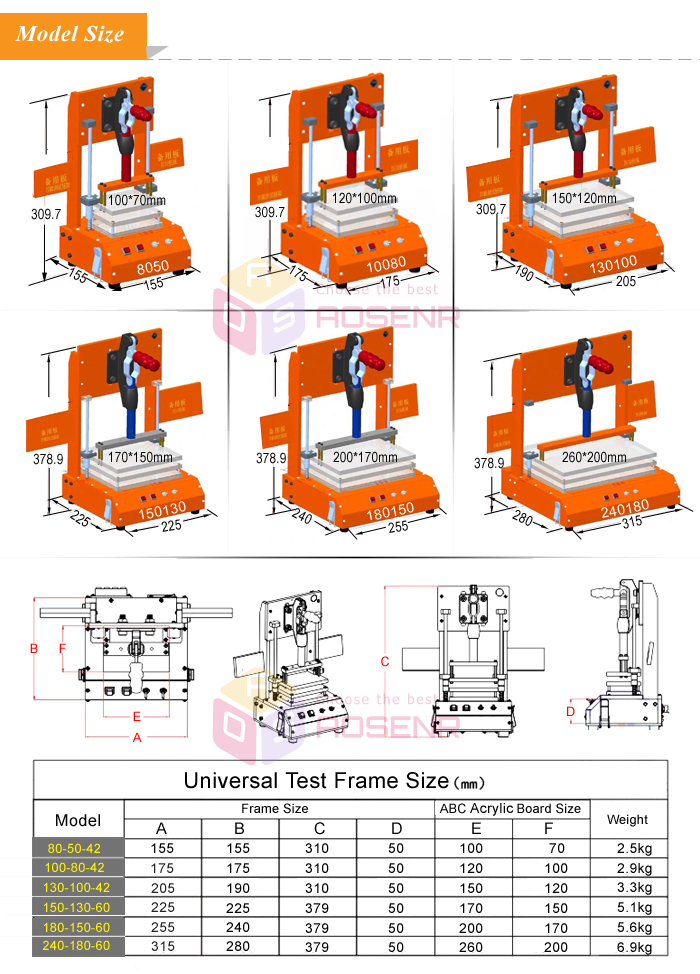

The size of the circuit board is within 80*50mm, and the embryo frame of model 80-50-42 is selected;
Within the size of 100*80mm, select the frame of 100-80-42 type;
Within the size of 130*100mm, select the 130-100-42 type embryo frame;
Within the size of 150*130mm, select the frame of 150-130-60;
Within the size of 180*150mm, choose the 180-150-60 type embryo frame;
Within the size of 240*180mm, choose the 240-180-60 type of embryo frame;
If the size is larger than 240*180mm, contact customer service and give you a private order!
Package included:
1 x PCB Test Frame
1 x English Assembly Manual
1 set of Accessories
|
