Product Description

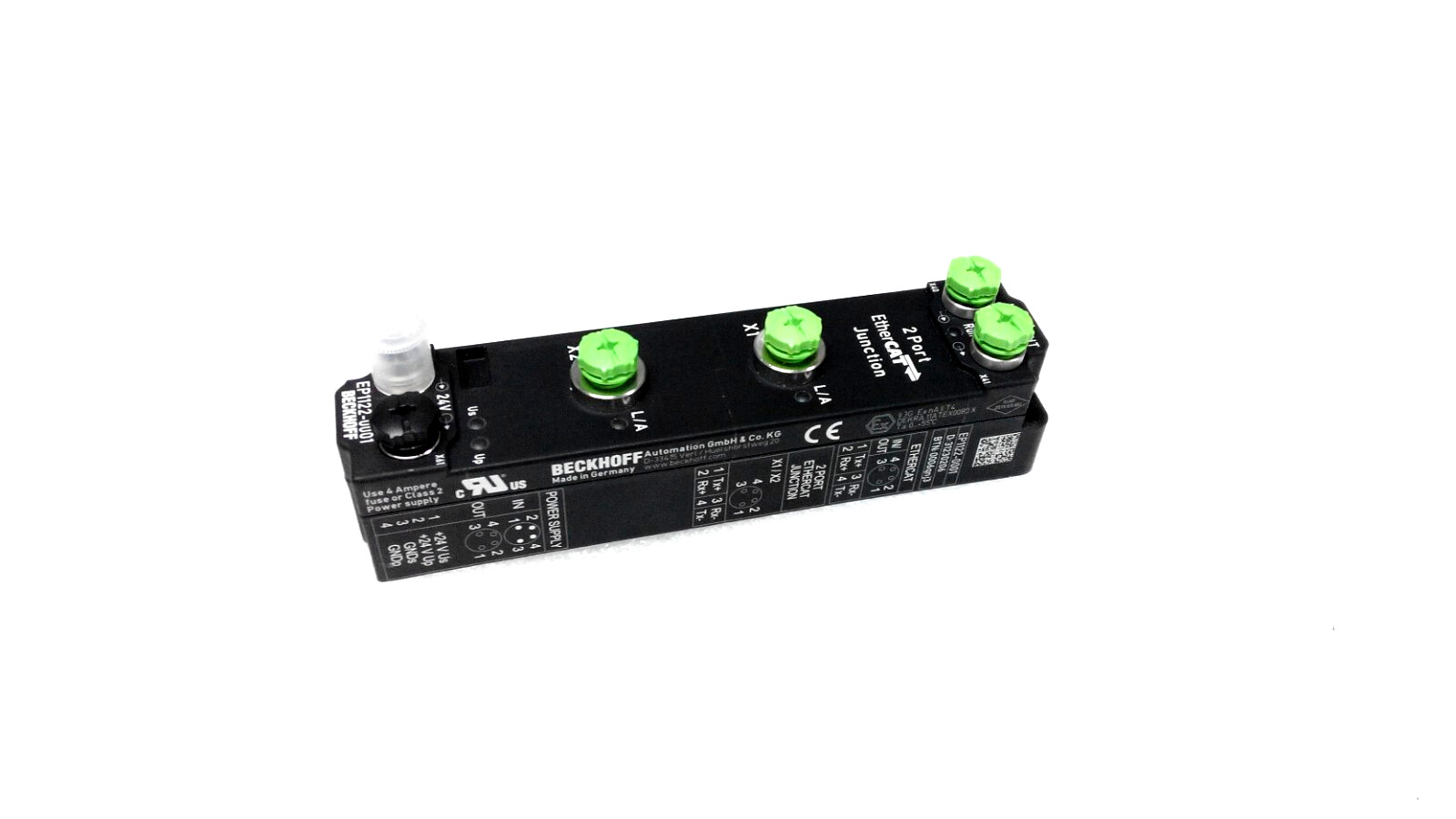

| Category | Item | Specification |
|---|---|---|
| Basic Information | Full Model | EP1122-0001 |
| Product Type | IP67 EtherCAT Box 2-port passive junction splitter (A-coded M8), EtherCAT star topology field expansion moduledocument.b... | |
| Housing Material | PA6 reinforced polyamide industrial plastic | |
| Dimension (W × H × D) | 30 mm × 126 mm × 26.5 mm (excluding connectors) | |
| Net Weight | Approx. 165 g | |
| Protection Class | IP65 / IP66 / IP67 (EN 60529), cabinet-free direct machine mounting | |
| Mechanical Mounting | Fixing Holes | 2 × Ø3.5 mm holes for M3 screws, arbitrary multi-angle installation |
| EtherCAT M8 Bus Interfaces | Port Layout | Total 4 × M8 4-pin A-coded shielded sockets: 1 input IN, 2 branch OUT ports, 1 pass-through daisy-chain portBeckhoff |
| Transmission Standard | 100BASE-TX full-duplex EtherCAT, 100 Mbit/s | |
| Max Cable Length Per Segment | 100 m between two EtherCAT devices | |
| Hot Connect Support | Standard Hot Connect, no Fast Hot Connect function | |
| Power Supply Electrical Spec | Nominal Supply Voltage Us / Up | 24 V DC (-15 % ~ +20 %) SELV safety extra-low voltage |
| Us Static Base Draw | Typ. 120 mA (module internal electronics only) | |
| Max Total Us Output Current | 4 A shared for all downstream field boxes | |
| Max Total Up Output Current | 4 A shared actuator power pass-through | |
| Up Circuit Feature | Pure power pass-through, no internal consumption from Up rail | |
| Galvanic Isolation | Dielectric Withstand Voltage | 500 V AC isolation between each EtherCAT port and power circuit |
| EtherCAT Bus Functions | Distributed Clocks | Not supported |
| Process Image Data | 0 bits (pure bus splitter, no digital/analog I/O channels) | |
| Address Assignment | Auto-detected by EtherCAT master, no DIP switches | |
| LED Diagnostic Indicators | System RUN LED | Green steady = normal EtherCAT communication |
| Per-Port Link/Activity LED | Separate indicator on each M8 port, flashes during data transmission | |
| Power Status LED | Green light when 24V Us supply is present | |
| Environmental Conditions | Operating Temperature | -25 ℃ ~ +60 ℃ full continuous load; 0~+55 ℃ for ATEX certification |
| Storage Temperature | -40 ℃ ~ +85 ℃ | |
| Relative Humidity | ≤ 95 %, non-condensing | |
| Vibration & Shock Compliance | EN 60068-2-6, EN 60068-2-27 industrial standard | |
| EMC & Safety Certifications | EMC Standards | EN 61000-6-2 (industrial immunity), EN 61000-6-4 (industrial emission) |
| Approvals | CE, UL Listed, RoHS compliant | |
| Explosion Protection | ATEX II 3 G Ex ec IIC T4 Gc / II 3 D Ex tc IIIC T135°C Dc; IECEx Ex ec IIC T4 Gc / Ex tc IIIC T135°C Dcdocument.b... | |
| Variant Distinction Note | EP1122-0001 vs EP1122-8001 |
EP1122-0001: Standard Hot Connect, 2 branch ports
|
| EP vs EPP Series |
EP1122: Separate signal + power M8 cables
|
|
| Core Feature Summary | Key Advantages | IP67 waterproof machine-side star topology expansion without cabinet; dual independent branch ports for decentralized field I/O groups; 4A high-current Us/Up power pass-through for multiple EPP/EP modules; full port-to-port galvanic isolation for anti-interference; plug-and-play no parameter configuration; ATEX gas/dust hazardous area certification |
| Typical Application Scenarios | Usage | Packaging/conveyor machine-side EtherCAT star branching layout; robot peripheral multi-group IP67 I/O distribution; metalworking harsh workshop decentralized network split nodes; test equipment multi-station field EtherCAT topology expansion; replace cabinet-mounted switches for machine-side local branching |
