Product Description

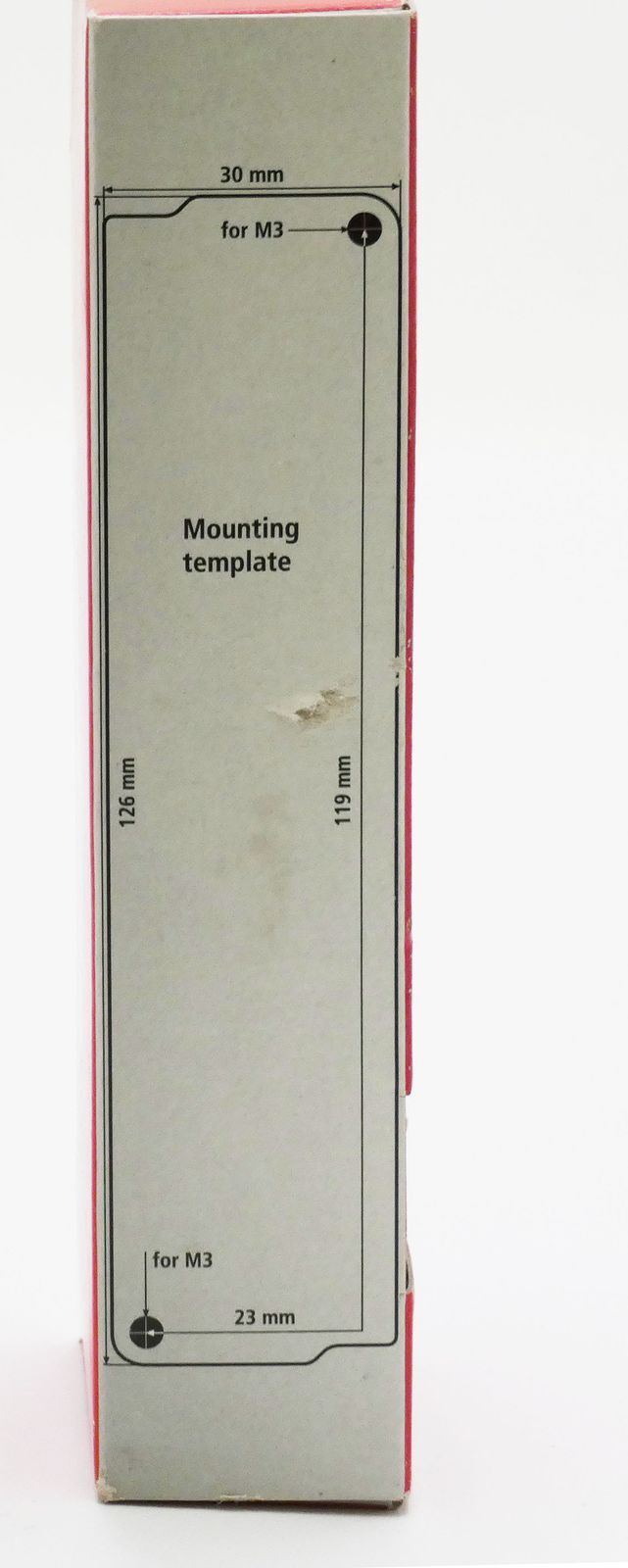

| Category | Item | Specification |
|---|---|---|
| Basic Information | Full Model | EP2816-0010 |
| Product Type | Standard EtherCAT Box, 16-channel 24V DC PNP digital output field module, dual 9-pin D-Sub interface, IP67 industrial field station倍福自动化 | |
| Housing Material | PA6 reinforced polyamide industrial plastic | |
| Dimension (W × H × D) | 30 mm × 126 mm × 26.5 mm | |
| Net Weight | Approx. 165 g | |
| Protection Class | IP65 / IP66 / IP67 (EN 60529), cabinet-free direct machine surface mounting | |
| Mechanical Mounting | Installation Holes | 2 × Ø3.5 mm fixing holes for M3 screws, arbitrary multi-angle installation |
| EtherCAT Bus & Power M8 Interfaces | Bus Ports | 2 × M8 4-pin A-coded shielded sockets (IN / OUT daisy-chain EtherCAT signal) |
| Power Feed Port | M8 4-pin A-coded male plug for Us 24V module logic supply input | |
| Power Pass-Through Port | M8 4-pin A-coded female socket for cascading downstream EtherCAT Boxes | |
| M8 Pin Definition | Pin1:+24V Us; Pin2:+24V Up; Pin3:GND; Pin4:GND | |
| D-Sub Actuator Interface | Output Connectors | 2 × 9-pin D-Sub female sockets (X1: Channels 1–8; X2: Channels 9–16)Beckhoff |
| D-Sub Pinout | Pins 1–8: digital output signals; Pin9: shared Up GND | |
| Digital Output Electrical Spec | Channel Count | 16 independent PNP sourcing output channels, grouped 8ch per D-Sub port |
| Nominal Operating Voltage | 24 V DC (-15 % ~ +20 %) SELV safety extra-low voltage | |
| Rated Current Per Channel | 0.5 A, per-channel independent short-circuit protection | |
| Total Combined Output Limit | Max 4 A total shared load for all 16 channels simultaneouslyBeckhoff | |
| Short-circuit Trip Current | Typ. 1.5 A per channel | |
| Switching Speed | TON ≈ 50 µs, TOFF ≈ 100 µs | |
| Supported Load Types | Resistive loads, inductive solenoid valves, signal indicator lamps | |
| Auxiliary Up Power Supply | Shared Actuator Feed | Short-circuit protected 24V Up power rail for field actuators |
| Static Auxiliary Idle Draw | Typ. 20 mA (excluding external actuator load current) | |
| Module Main Power Consumption | Us Static Base Draw | Typ. 100 mA (module internal electronics only, no field load) |
| Galvanic Isolation | Dielectric Withstand Voltage | 500 V AC isolation between EtherCAT bus logic and field output circuit |
| EtherCAT Bus Functions | Distributed Clocks | Supported for synchronous multi-axis motion control |
| Process Image Data | 16 digital output control bits + per-group short-circuit fault diagnostic bits | |
| Address Assignment | Auto-detected by EtherCAT master, no DIP address switches required | |
| LED Diagnostic Indicators | System Power LEDs | Us (green, module supply normal), Up (green, actuator power normal) |
| Bus Status LEDs | RUN (green, EtherCAT communication active), ERR (red, bus/short-circuit fault alarm) | |
| Channel Group Status LEDs | 2 groups of yellow status LEDs: X1 (Ch1–8), X2 (Ch9–16), lit when channel output ON | |
| Environmental Conditions | Operating Temperature | -25 ℃ ~ +60 ℃ full continuous load |
| Storage Temperature | -40 ℃ ~ +85 ℃ | |
| Relative Humidity | ≤ 95 %, non-condensing | |
| Vibration & Shock Compliance | EN 60068-2-6, EN 60068-2-27 industrial standard | |
| EMC & Safety Certifications | EMC Standards | EN 61000-6-2 (industrial immunity), EN 61000-6-4 (industrial emission) |
| Approvals | CE, UL Listed | |
| Explosion Protection | ATEX II 3 G Ex ec IIC T4 Gc / II 3 D Ex tc IIIC T135°C Dc; IECEx Ex ec IIC T4 Gc / Ex tc IIIC T135°C Dc | |
| Variant Distinction Note | EP vs EPP Series |
EP2816-0010: Separate M8 EtherCAT signal cable + M8 power cable
|
| Suffix -0010 Definition | Dual 9-pin D-Sub high-density multi-pin actuator interface, 2×8 channel grouping design | |
| Core Feature Summary | Key Advantages | IP67 waterproof/dustproof cabinet-free decentralized installation; dual D-Sub high channel density for 8-channel valve islands; independent per-channel short-circuit protection with fault feedback; support Distributed Clocks synchronous output; compact slim housing for machine-side valve terminal connection; ATEX gas/dust hazardous area certification |
| Typical Application Scenarios | Usage | Machine-side multi-pin valve island decentralized control; packaging/conveyor equipment 16-channel solenoid valve field stations; hydraulic/pneumatic actuator centralized distribution nodes; metalworking harsh workshop cabinet-free digital output modules; automated equipment compact multi-channel actuator control nodes |
