Description

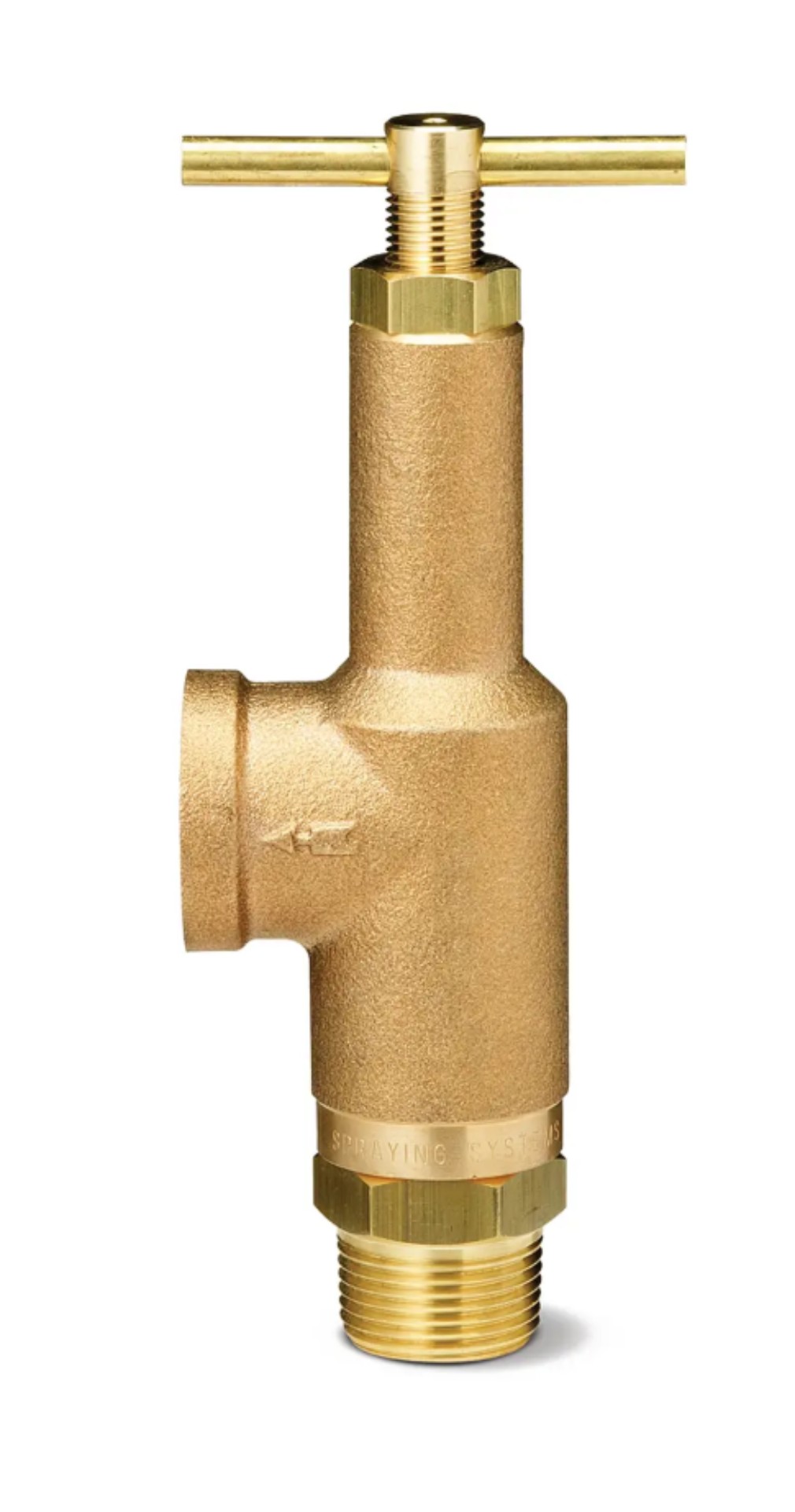

The Spraying Systems (TeeJet) 6815-1/2-50 is a brass piston-type adjustable pressure relief and regulating valve rated 0–50 PSI, with a 1/2" Male NPT inlet and 1/2" Female NPT side outlet that returns excess liquid to tank or pump inlet. The T-handle knob with locknut lets you dial in and lock your target pressure; note that the knob is not factory-set to a specific pressure and may shift slightly in transit. Designed for water service from -30°F to 160°F with extra-large internal passages handling up to 56 GPM.

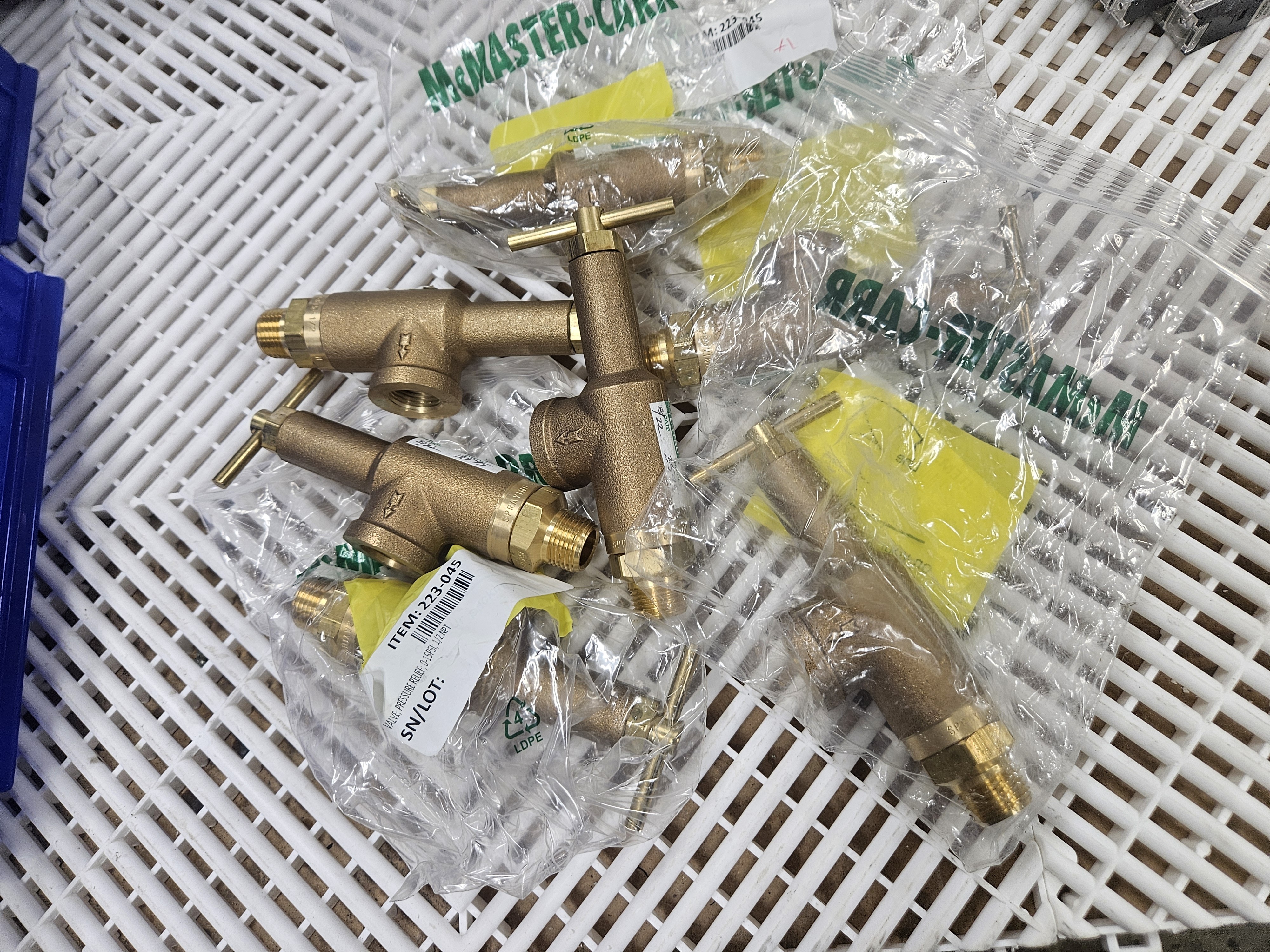

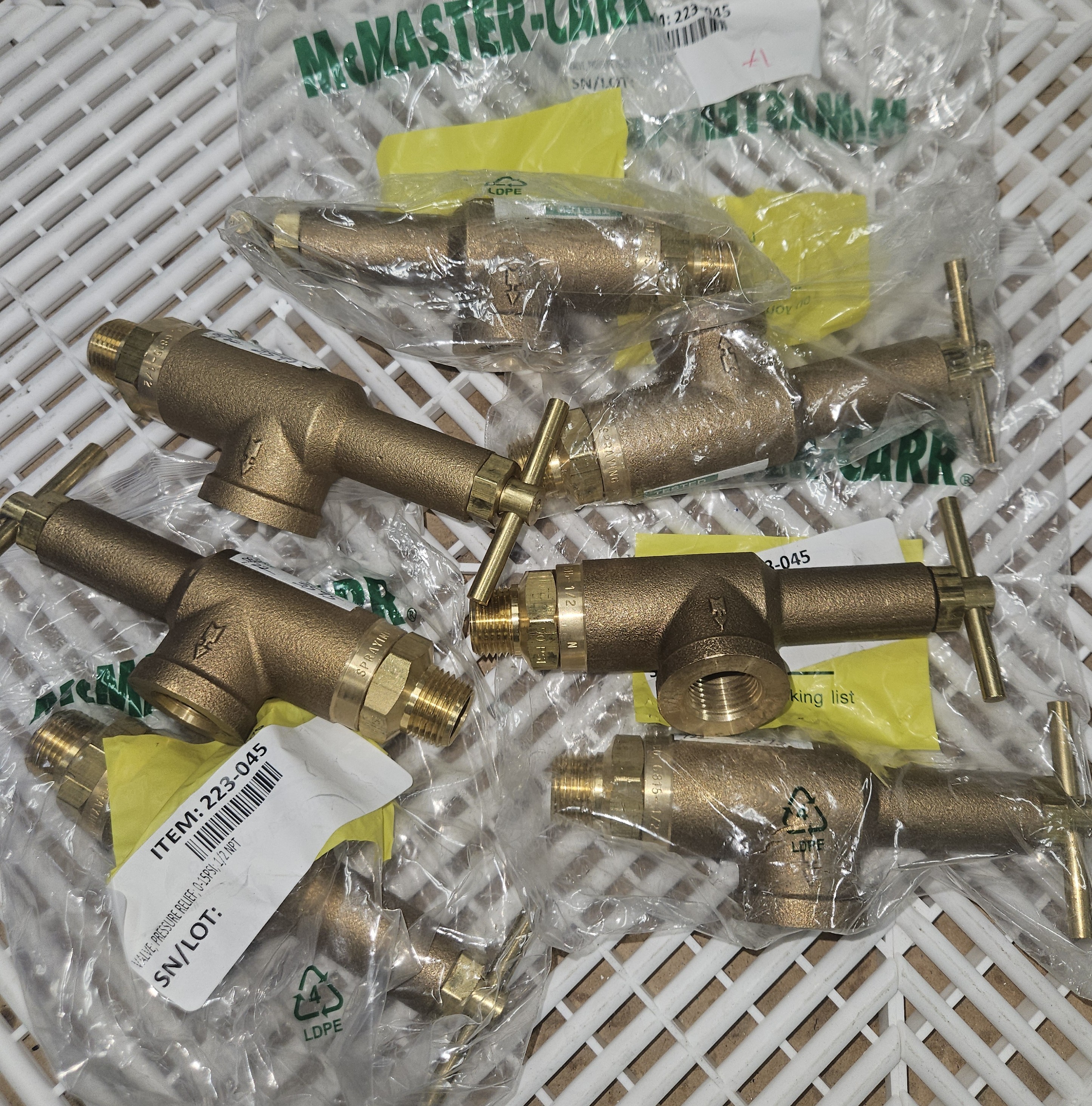

These are new in McMaster Carr packaging as shown. McMaster part number is 9763K49.

LOCATION: C-2102-E

6/26 ND

Technical Specifications
makespraying systems co. (teejet) (mcmaster carr)
part number6815-1/2-50 / mcmaster 9763k49
pressure range0–50 psi (adjustable)
inlet / outlet1/2" male npt in / 1/2" female npt side outlet
mediawater
temperature range-30°f to 160°f
body materialbrass
max flow rate56 gpm
Item Condition:
New
