Features:

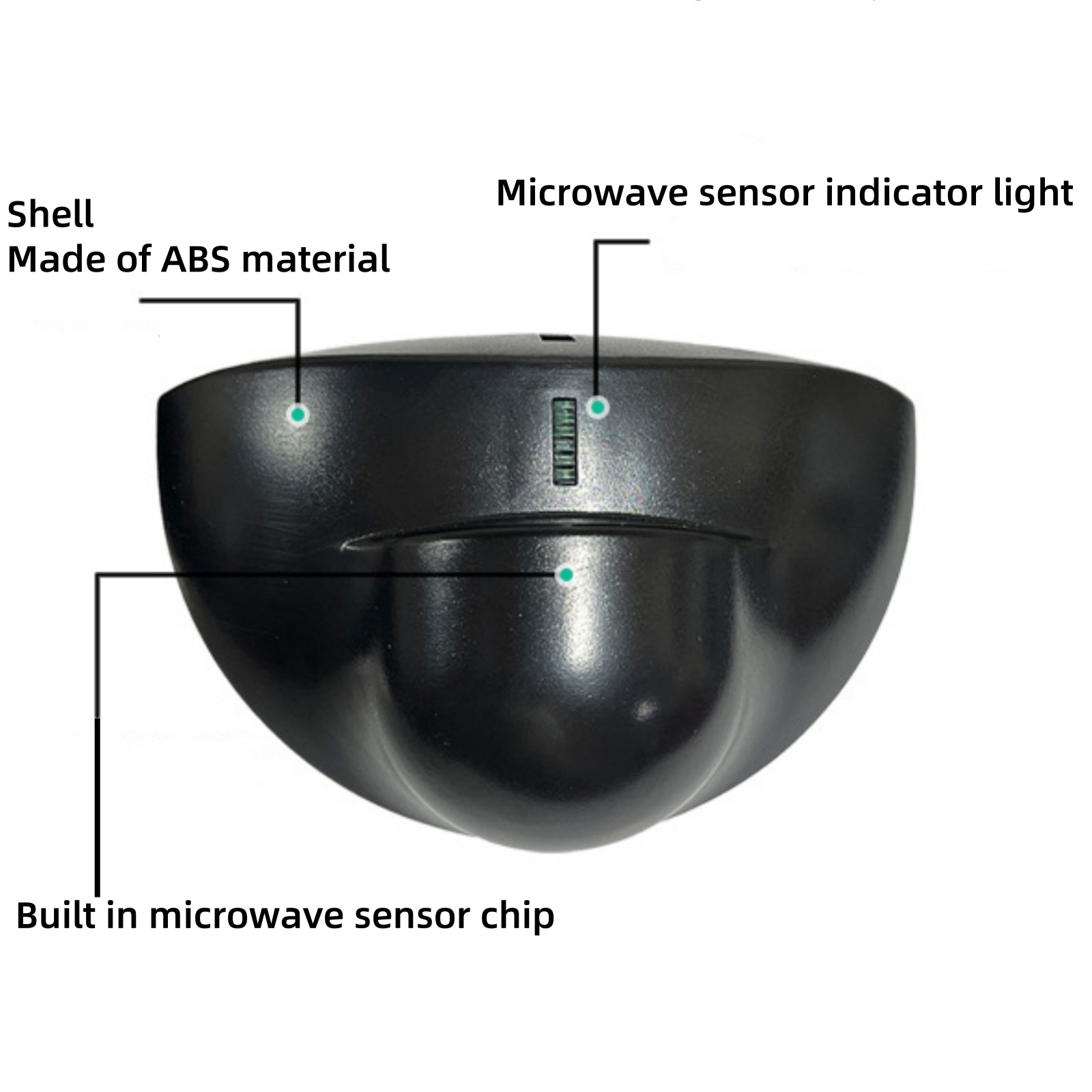

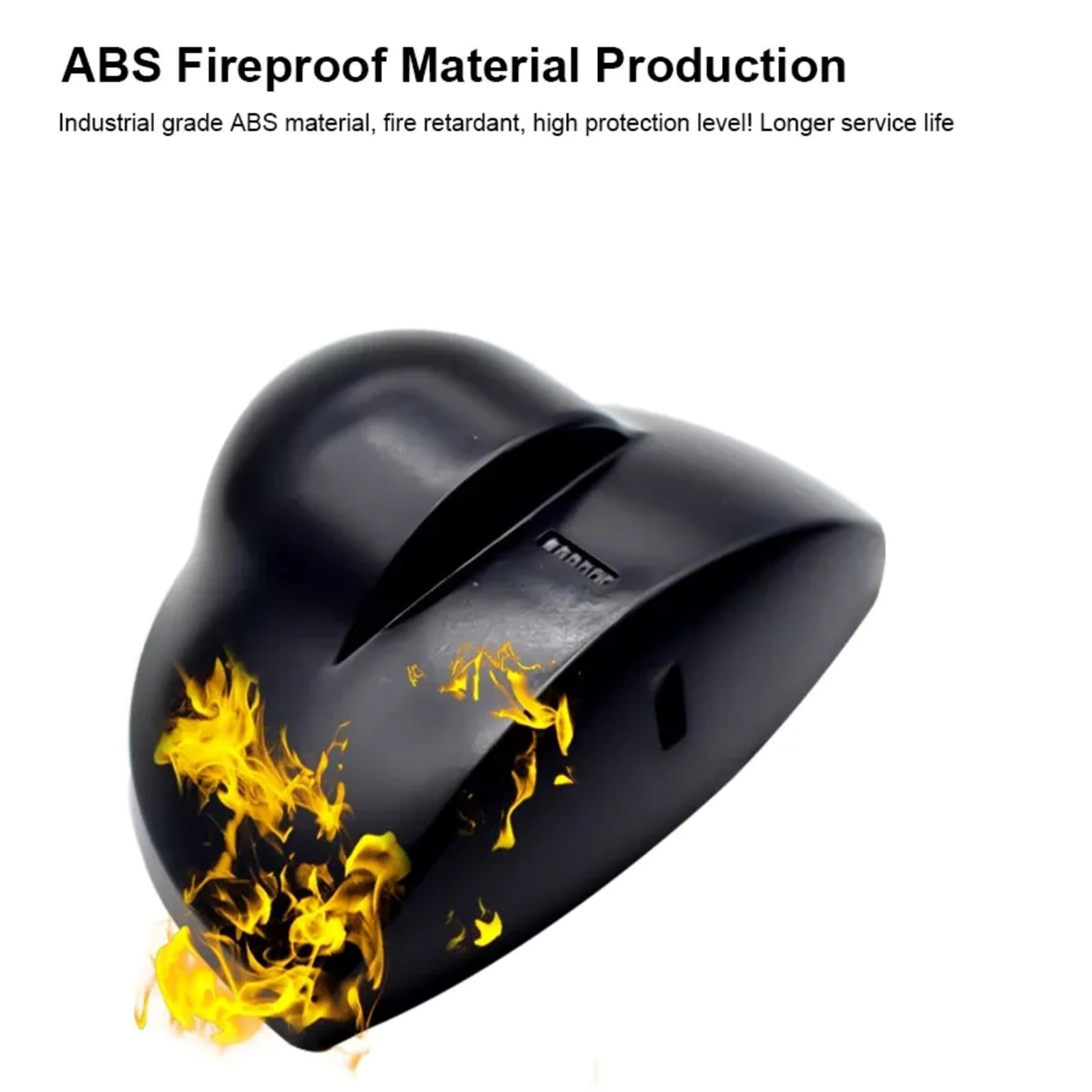

1. High Sensitivity, ABS Flame Retardant Material.
2. X-Y Axis Flexible Antenna Adjustment Mode, Adjustable Sensing Angle.
3. Wall Mounted Installation Design, Can Be Directly Fixed By Ceiling Mounting.

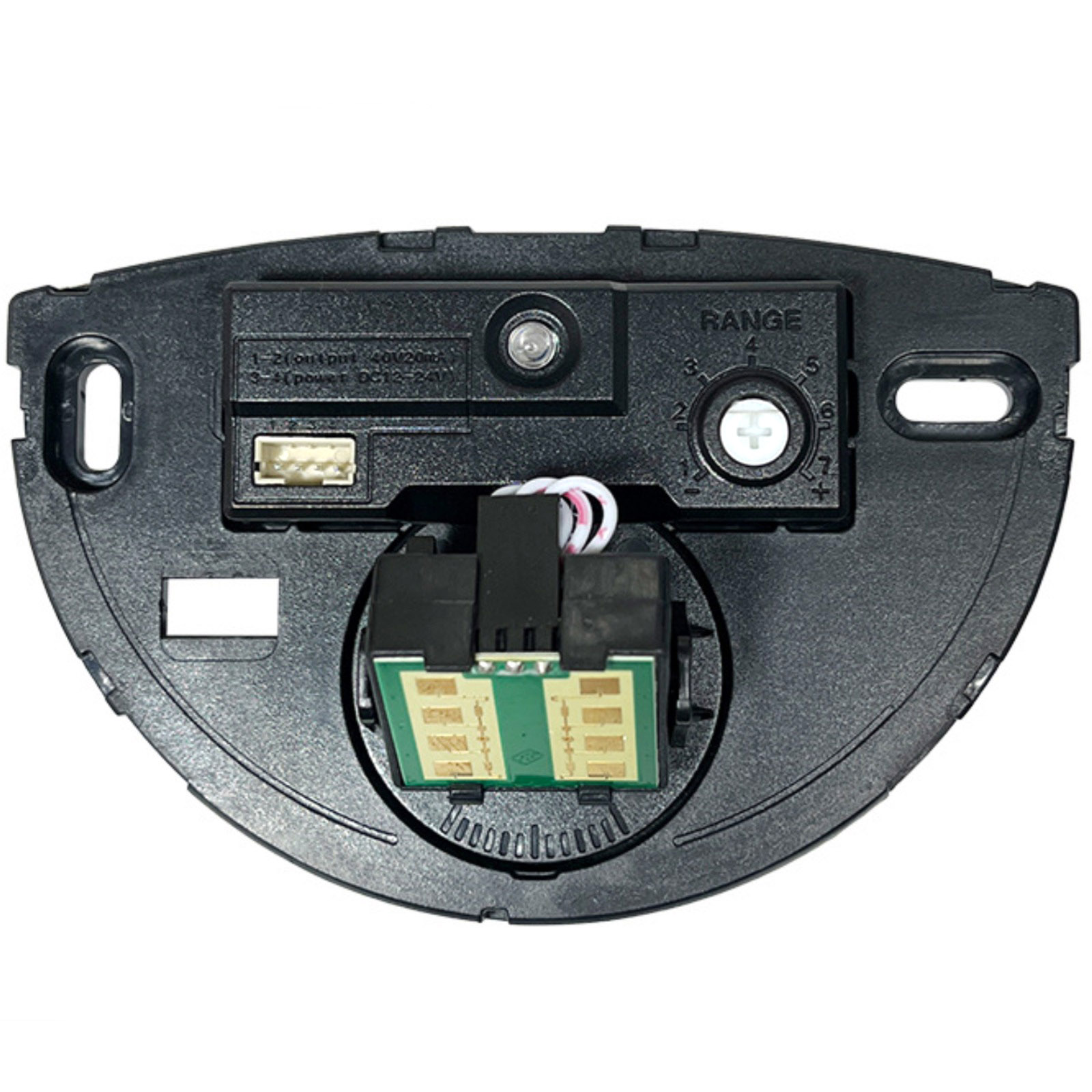

4. The German Microwave Sensing Module Is 24.125ghz, With Stable Transmission Frequency And Is Not Affected By Temperature And Humidity Environmental Factors, And Reliable Working Performance.

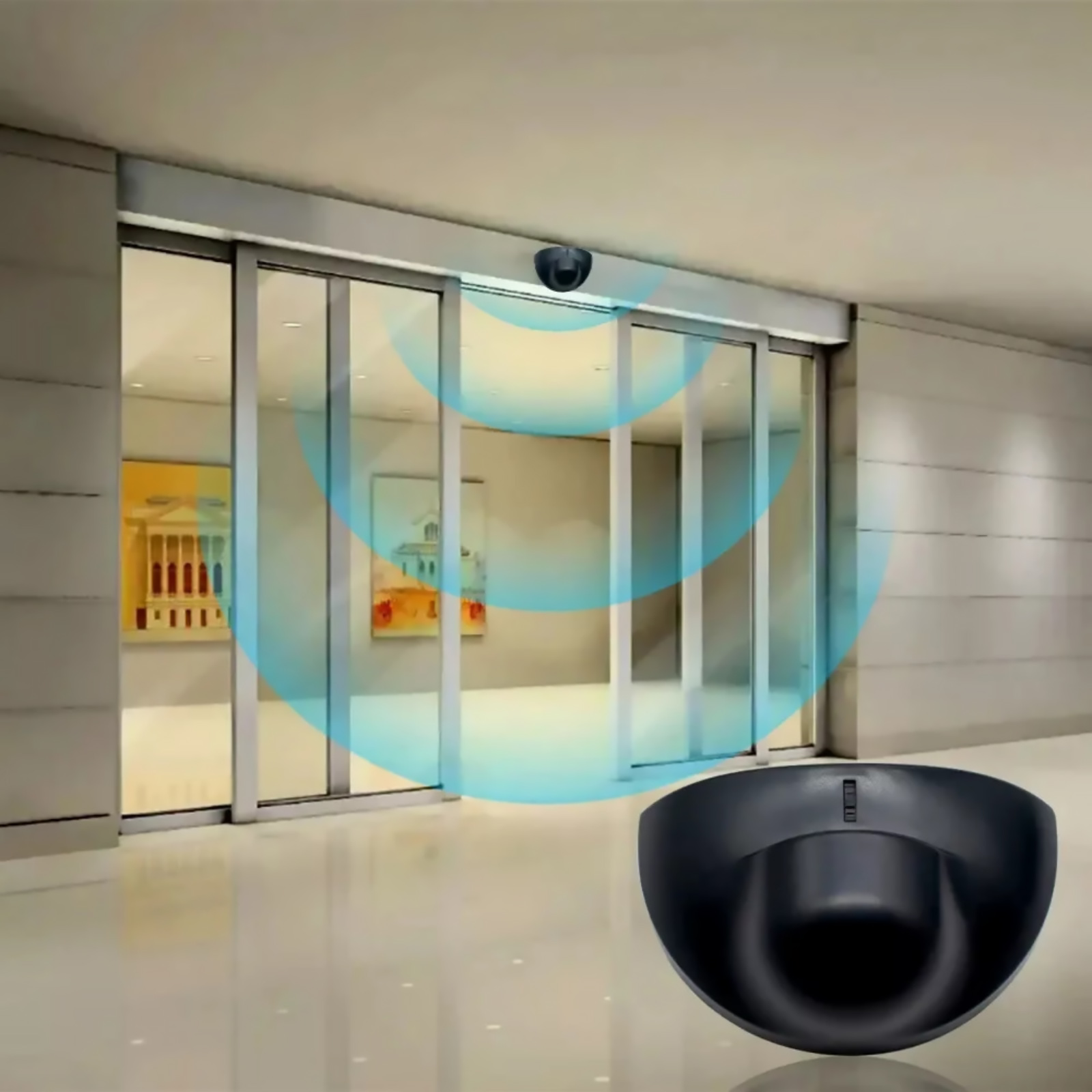

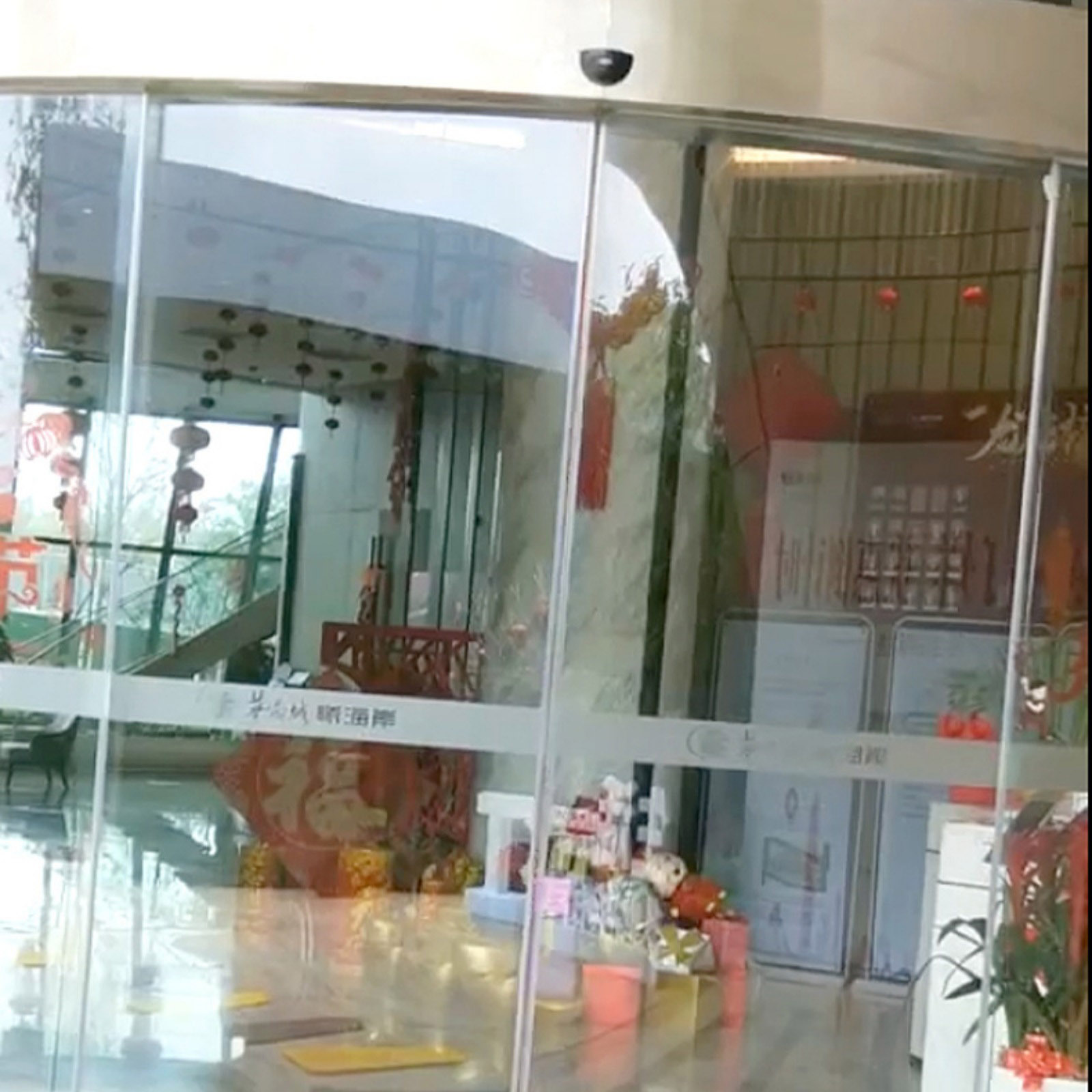

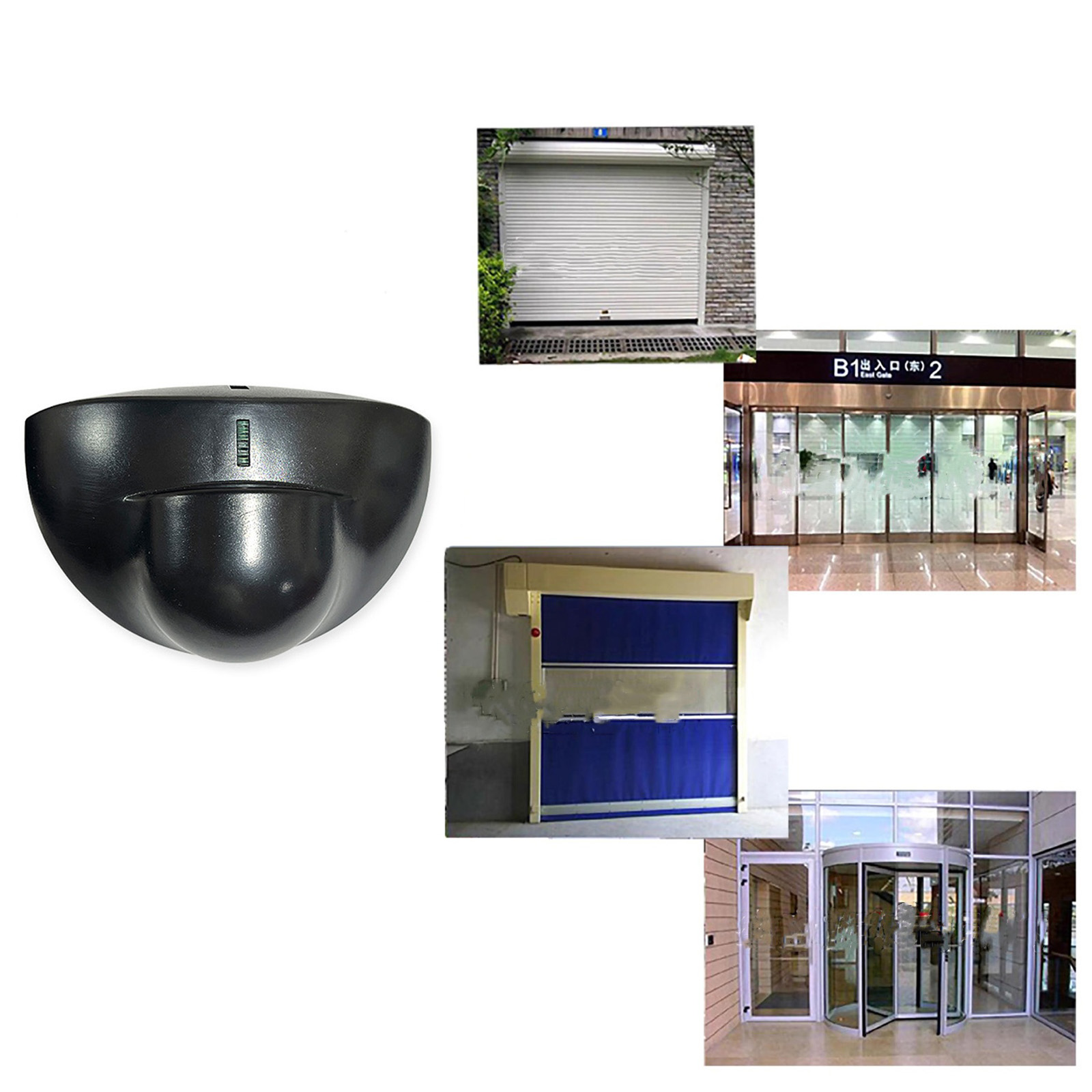

5. It Is Widely Used In Automatic Door And Elevators In Supermarkets, Atms, Airports And Other Public Places. It Has Advanced Motion Tracking Function.
Specifications:
Voltage: 12-24V
Transmission Frequency: 24.125ghz
Transmission Power: <20dbm Eirp
Emission Frequency Density: <5 M W/cm2
Maximum Installation Height: 3.5 Meters

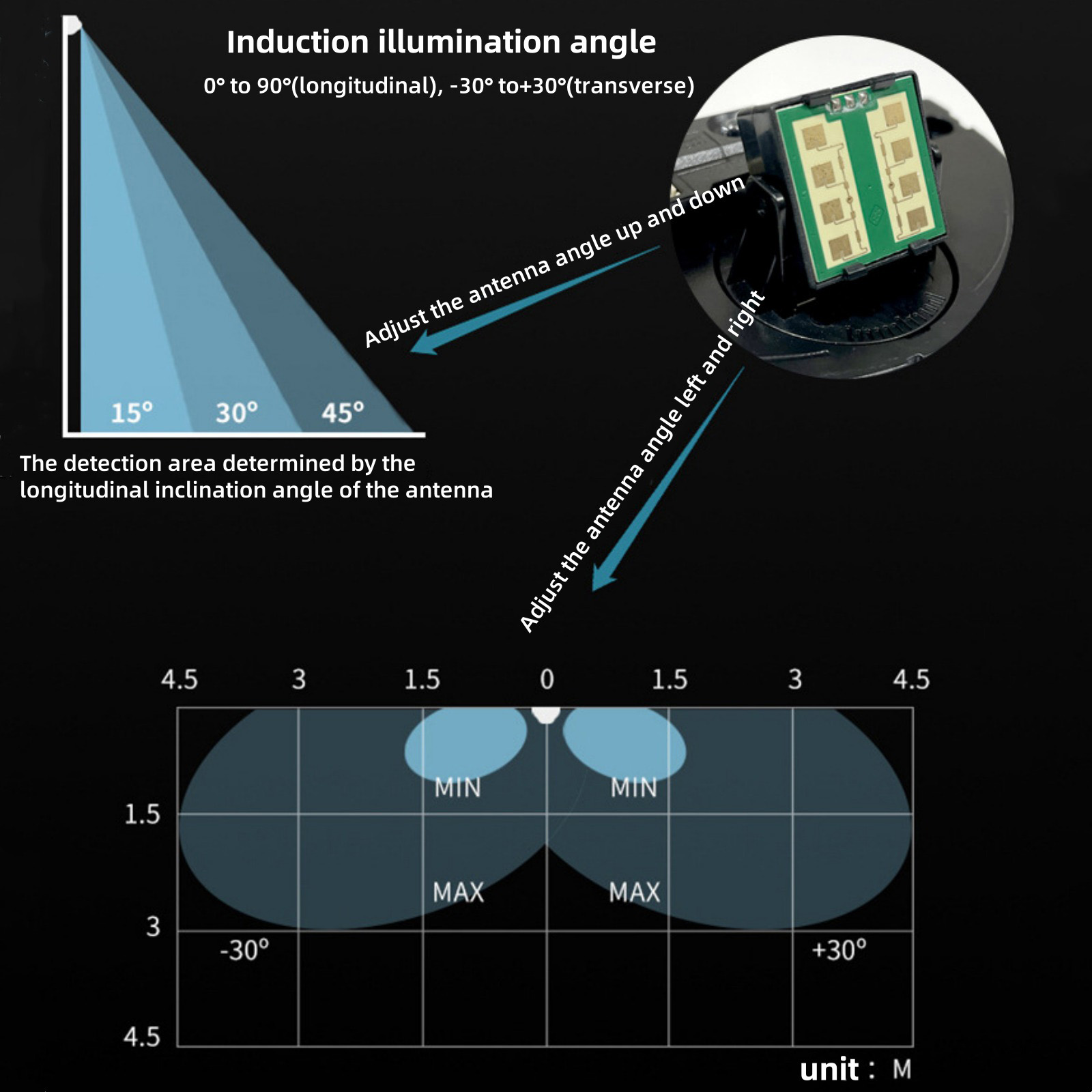

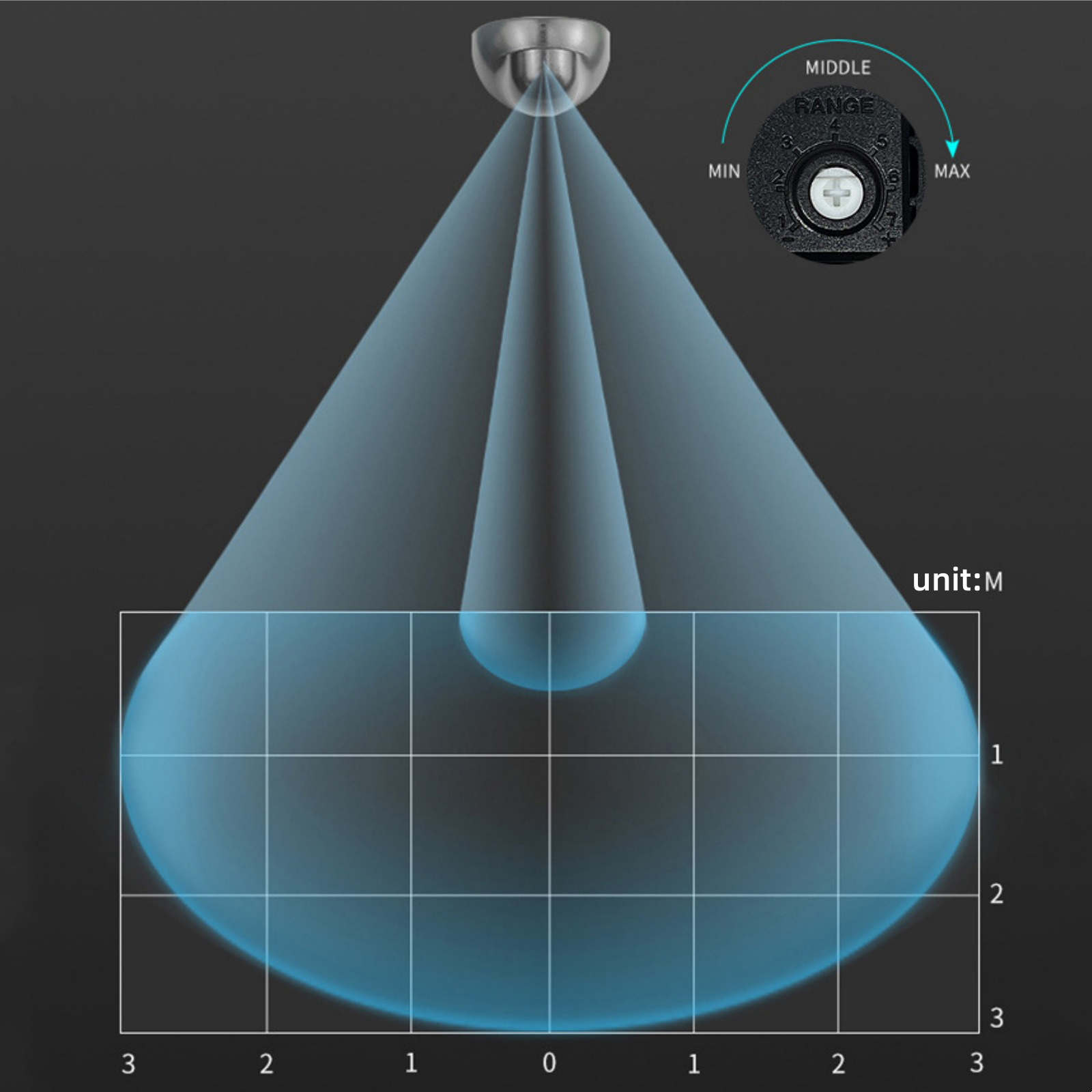

Installation Inclination: 0-90°(Longitudinal) -30-+30°(Horizontal)
Detection Mode: Motion
Power: <2w (VA)

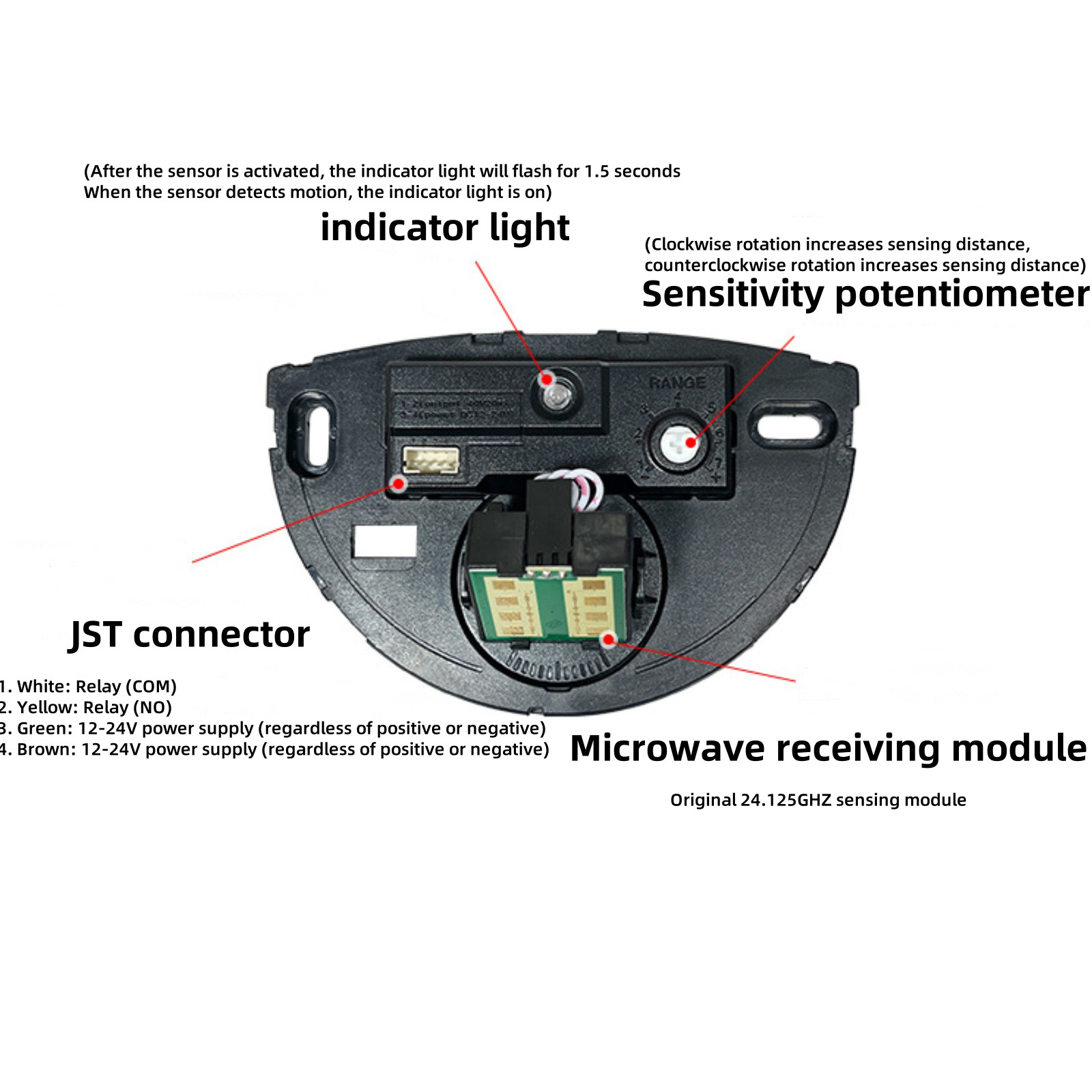

Relay Output: COM ON
Maximum Contact Current: 1A
Shell Color: Black

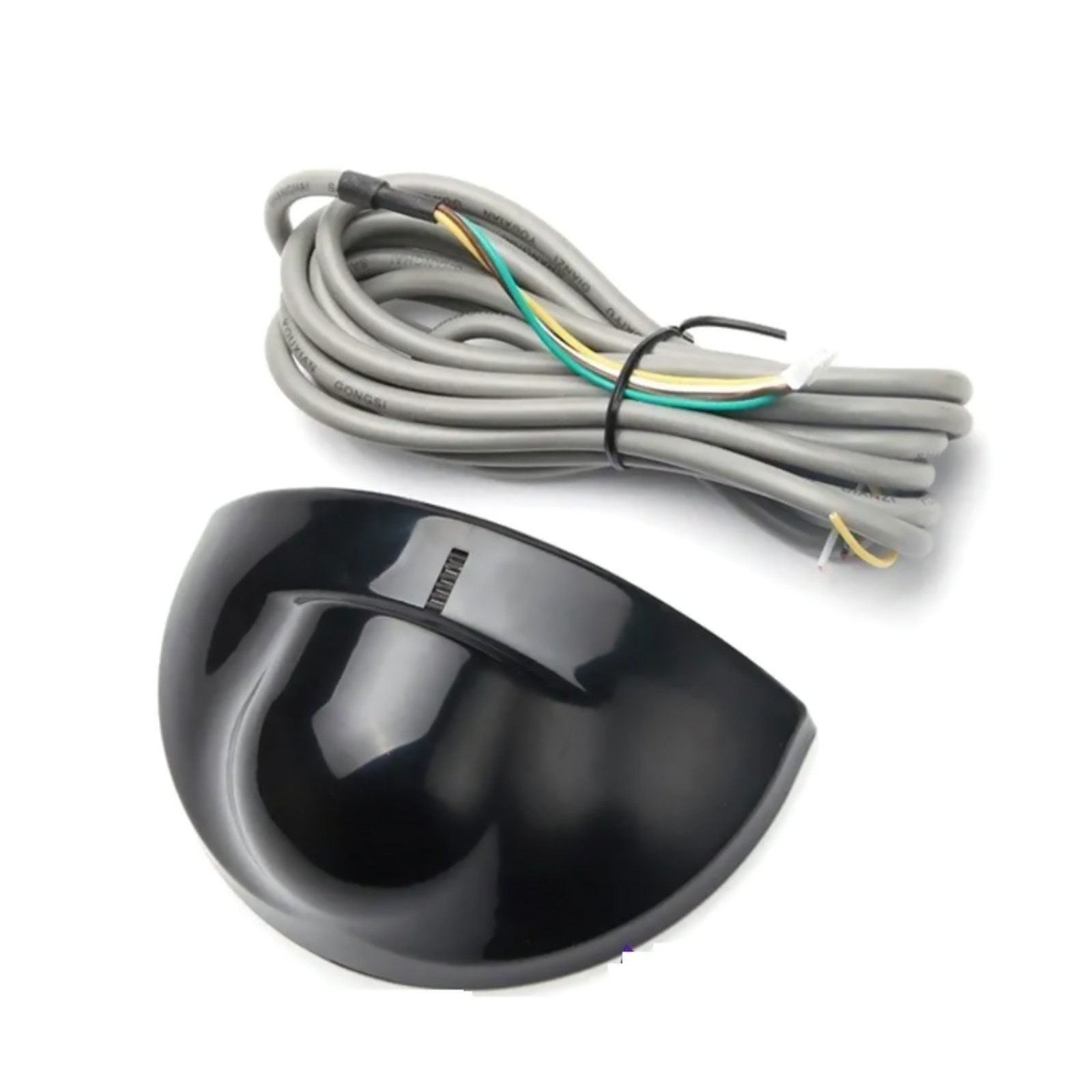

Power Cord Length: 2.2m

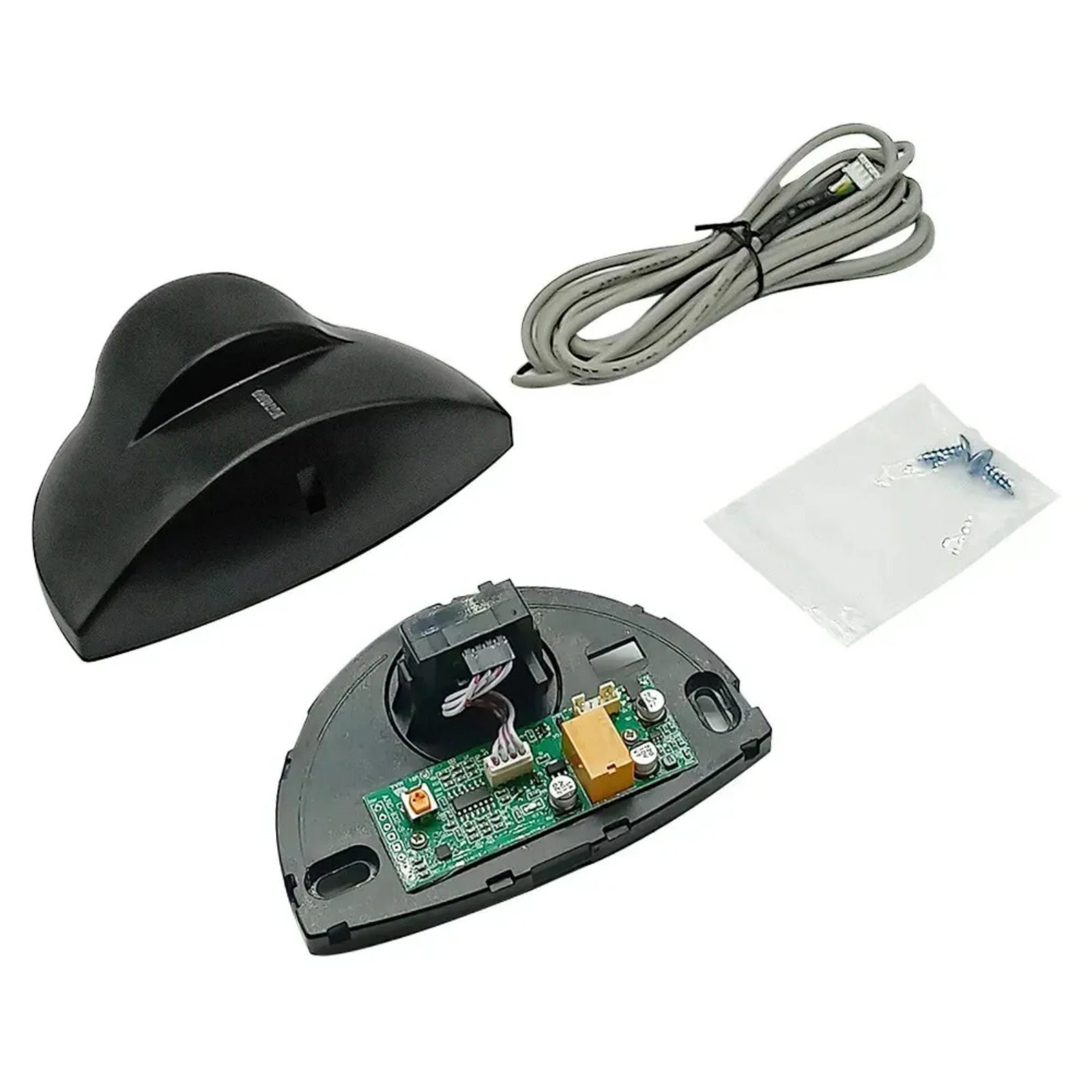

Shipping List:
1* Sensor
2* Screw
1* Power Connection Cable
