Professional installation is highly recommended! Specification: Application: Air-condition
Rated Voltage (V): 12V DC
Current (A): 33A-66A
Rated Power (W): 792W
Rated Cooling Capacity (W): 1800-2000W
Refrigerant：R134A
Refrigerant Oil：POE68
Charging Quantity of Refrigerant ( g)：600g
Power Cord Specification (mm2)：3 meters (8mm²)
Type of heating and cooling: Cooling & heating
Refrigerant: R134a
Compressor cooling:Inhalation refrigerant cooling
Displacement: 12ml/re
Refrigerator oil: EMKARATE RL68H/100ml

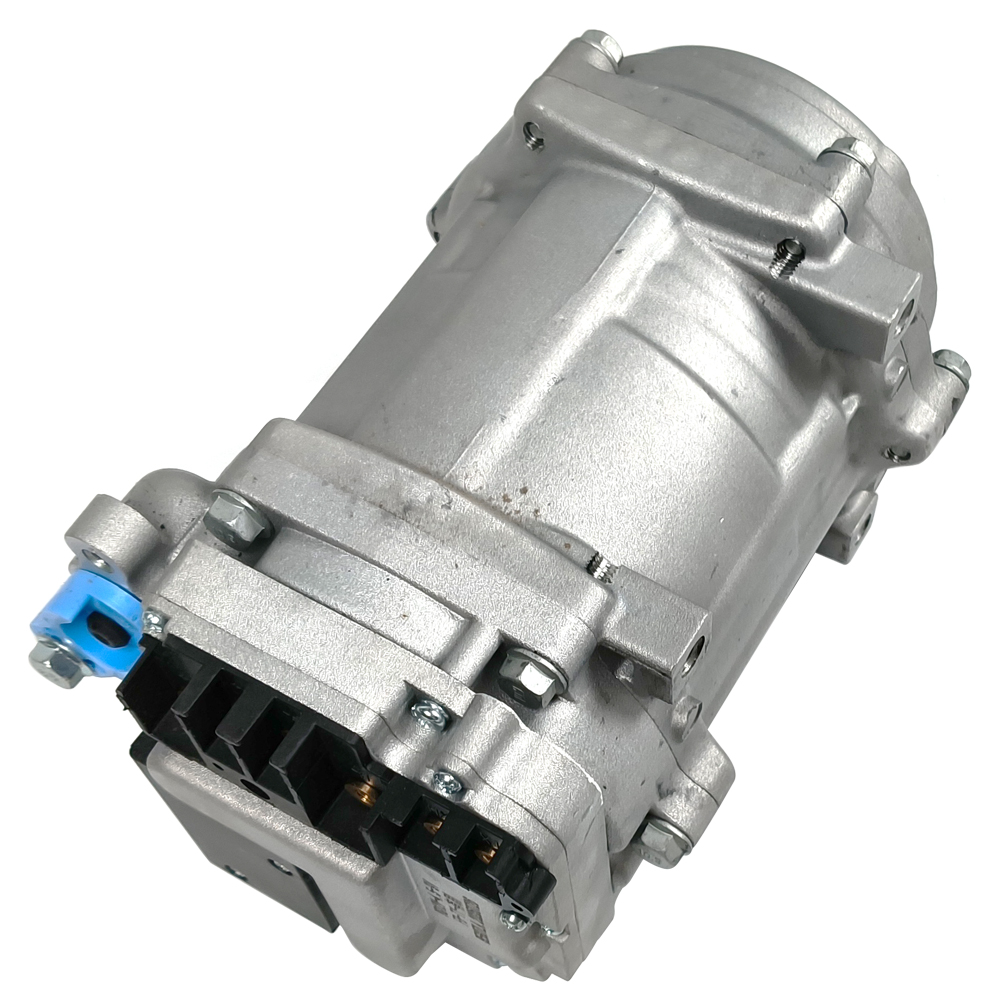

Electric compressor data:
Voltage: DC 12V
Current: 63A
Rated speed: 2100rpm
Speed range: 1500rpm - 2100rpm
cooling capacity:1000-2000W
Rated power: 650w
Condensing temperature range: 26.7℃ - 68℃
Evaporating temperature range: -10℃ - 12.5℃
Oil: RL68H/130ml
Scroll compressor Specification:

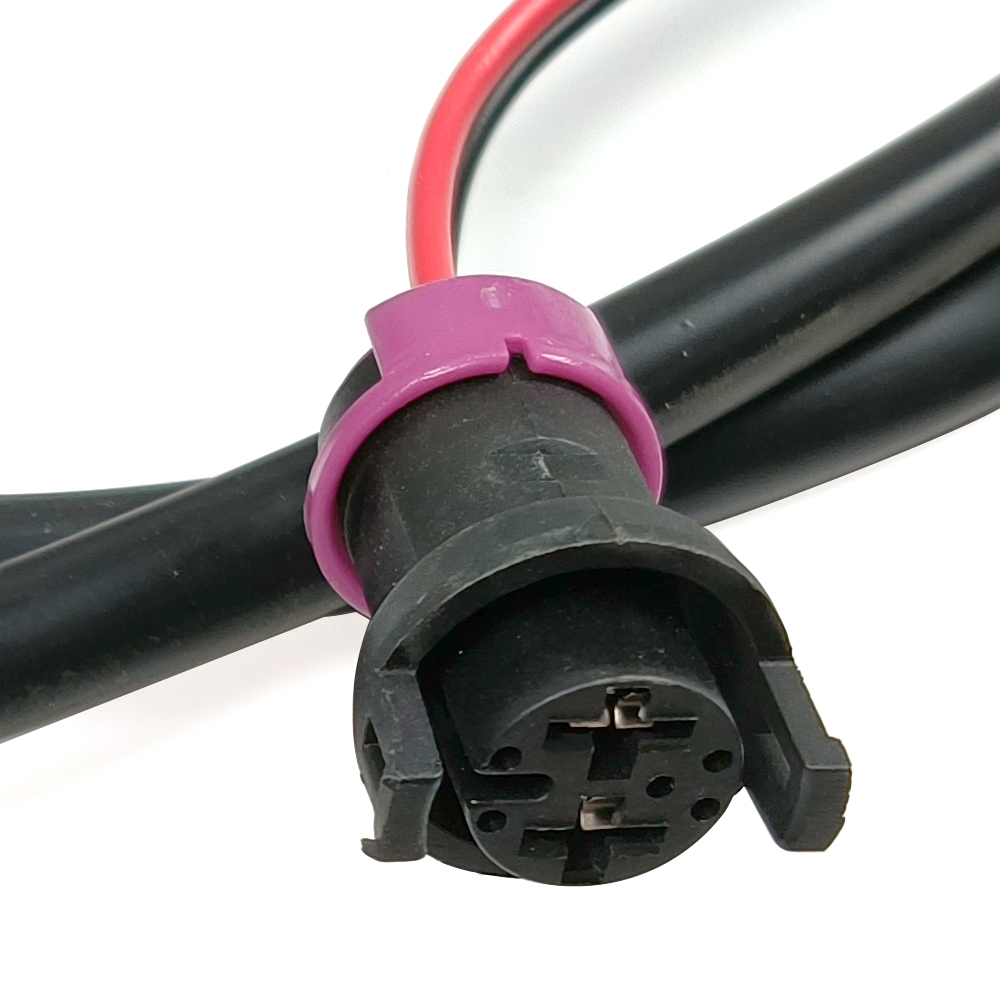

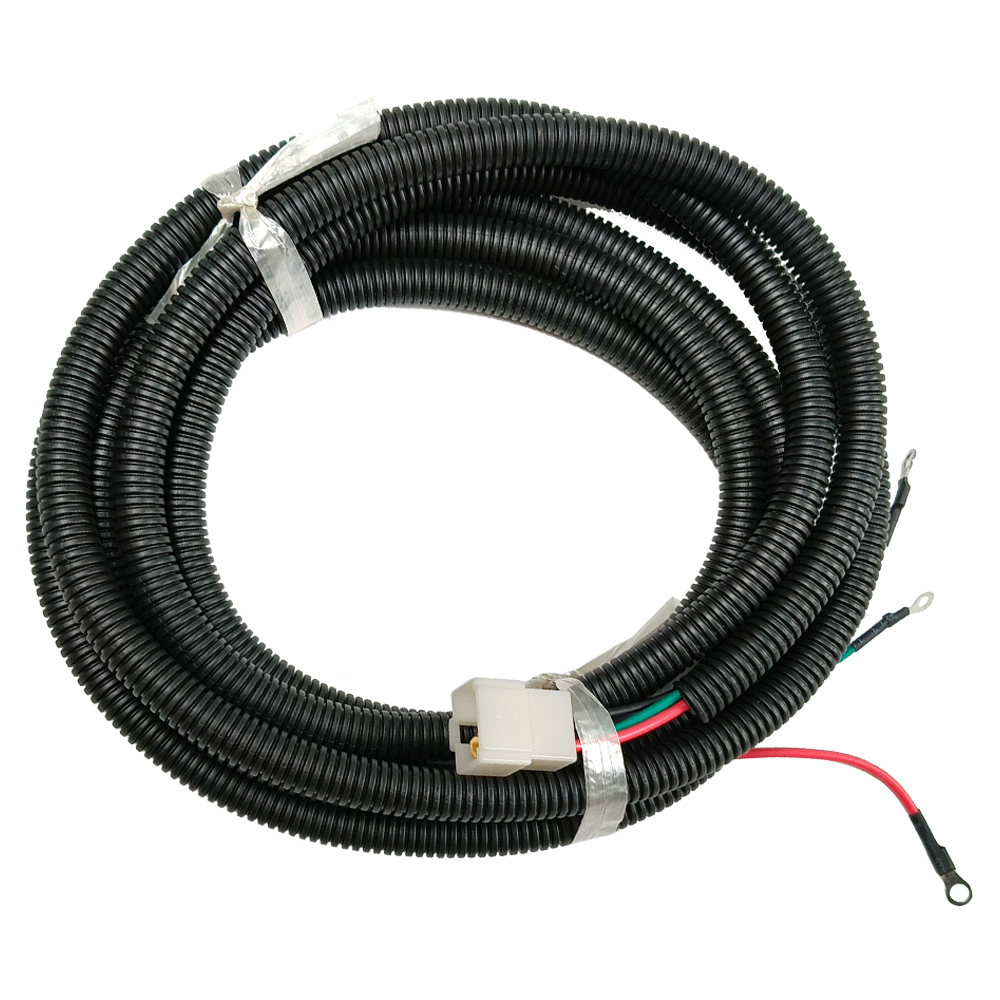

Electronic fan connection harness: 2 meters
Internal machine connection harness: 3 meters

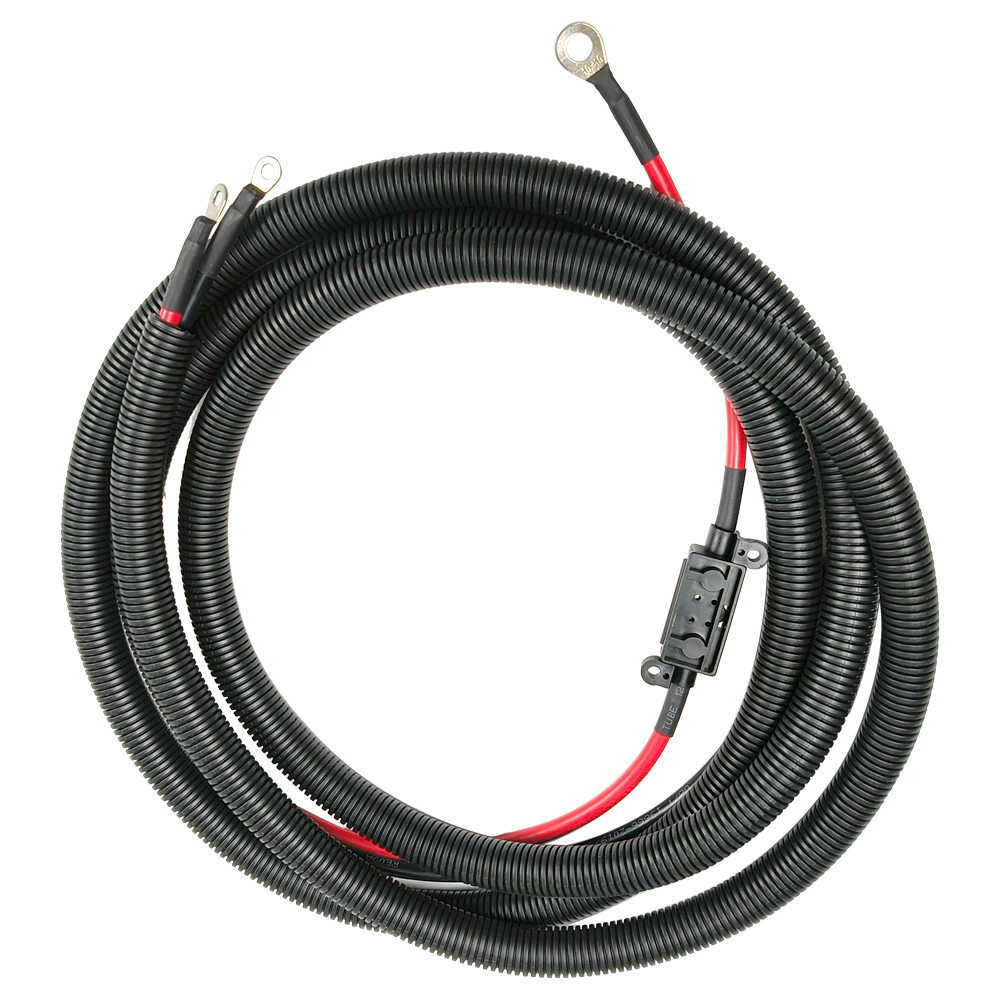

Main power harness: 3 meters

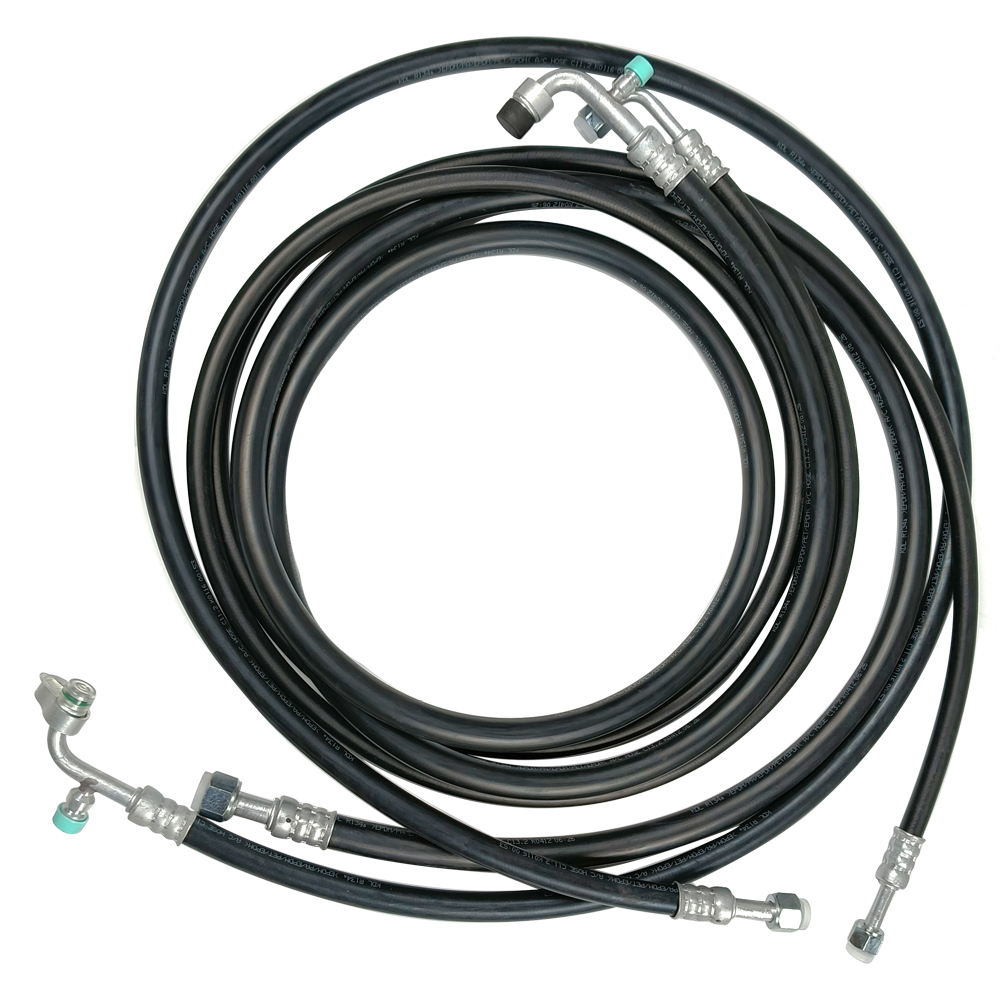

Fluorine-resistant hose:
3 points (thin tube) = 3 meters
4 points (thin tube) = 2 meters
5 points (thin tube) = 3 meters
Heating principle ：

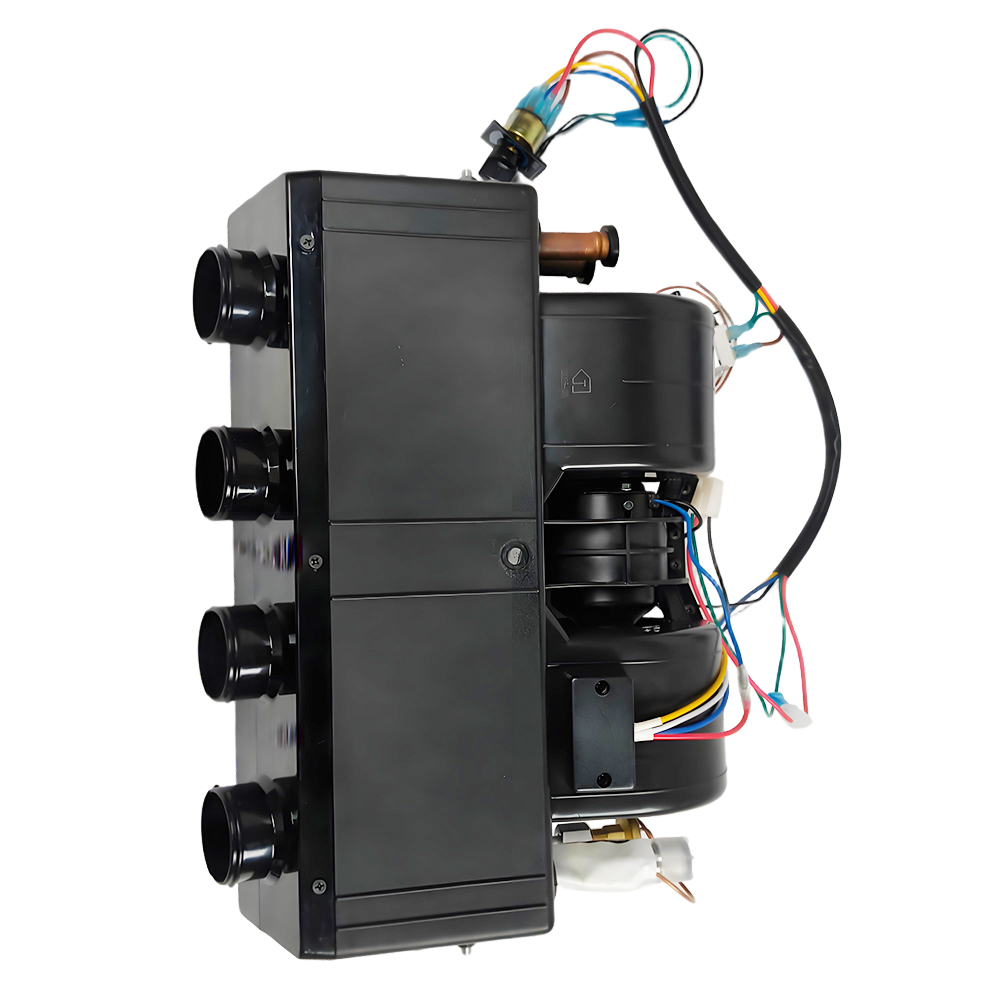

Using the engine coolant to heat the air vent core
Application:
Truck, Tractor, Digger, Trailer,Excavator, Agricultural vehicles, Pickup,etc.
WHAT IS PARKING AIR CONDITIONER ?
The
parking air conditioner is a kind of in-car air conditioner. It refers
to the equipment that uses the on-board battery DC power supply (12V)
to make the air conditioner run continuously when parking and waiting
and resting, and to adjust and control the temperature, humidity, flow
rate and other parameters of the ambient air in the car, so as to fully
meet the comfort cooling needs of the truck driver.
Normally drivers
leaving the engine running for hours to use the air conditioner during
parking or rest time at night, it is bad for the environment and tons of
fuel wasted, it also wears down the engine faster. Parking air
conditioner works with truck battery power without engine on which can
save energy and fuel and at same time provide safe and comfortable
environment for driver. Fuel,Energy And Money Saving.
Digital
frequency conversion control, more efficient and more energy saving.
Use energy saving mode when you sleep at night, it can run continuously 6
to 8 hours. Use super mode in hottest hours, cooling rapidly and
stronger air supply.
MULTI INSTALLATION WAYS
The
12V electric air conditioning system have multi installation ways to
ensure it can be suitable for most vehicles in the market. It
includes:
1) rooftop mounted air conditioner for van, truck,
commercial vehicles, special vehicle, trailer, earth-moving machine,
motorhome, RV (re creational vehicl e)
2) back - wall mounted air
condition er for truck, tractor, trailer, heavy duty truck, light truck,
truck cab, truck sleeper, sleeper cab.
The truck air con diti oner is divided into two types: Rooftop Air Conditioner/ split type model. Very easy to install.
The entire air conditioner is integrated, with compressors, condensers, blowers and other accessories inside.

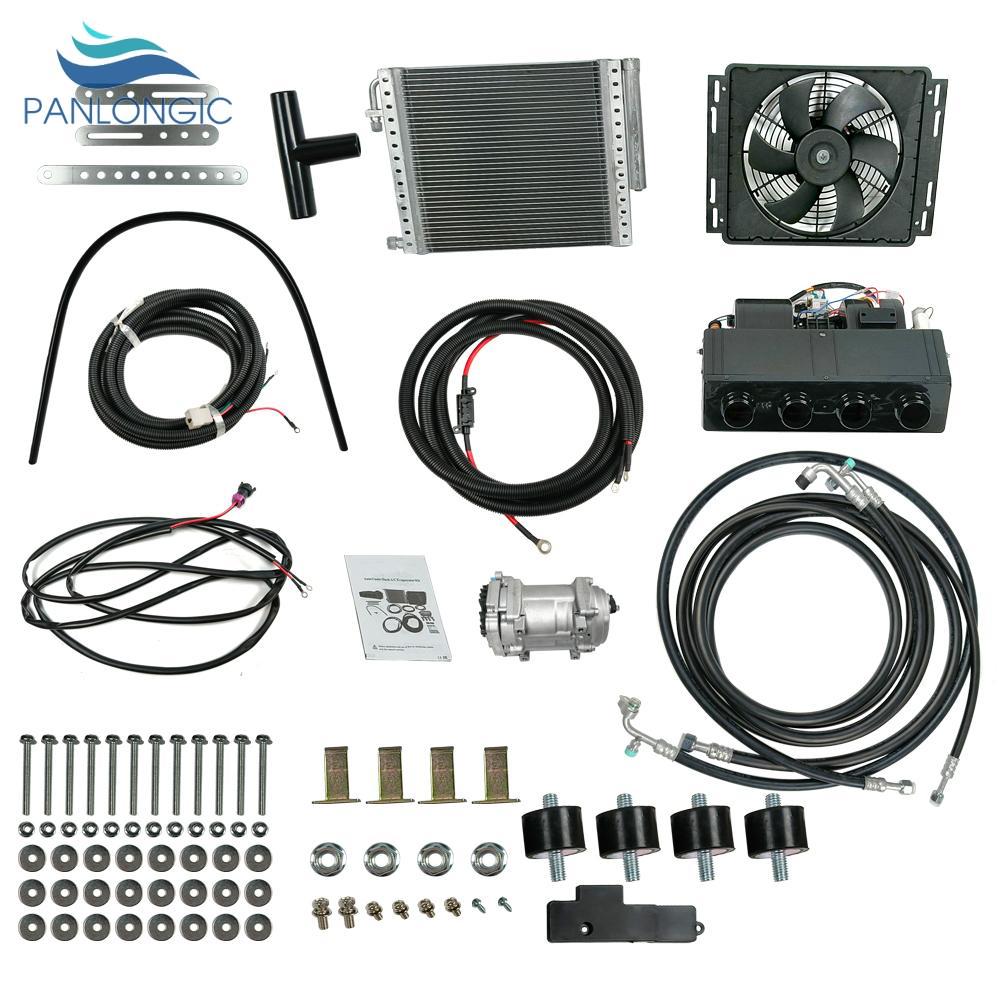

Package List:

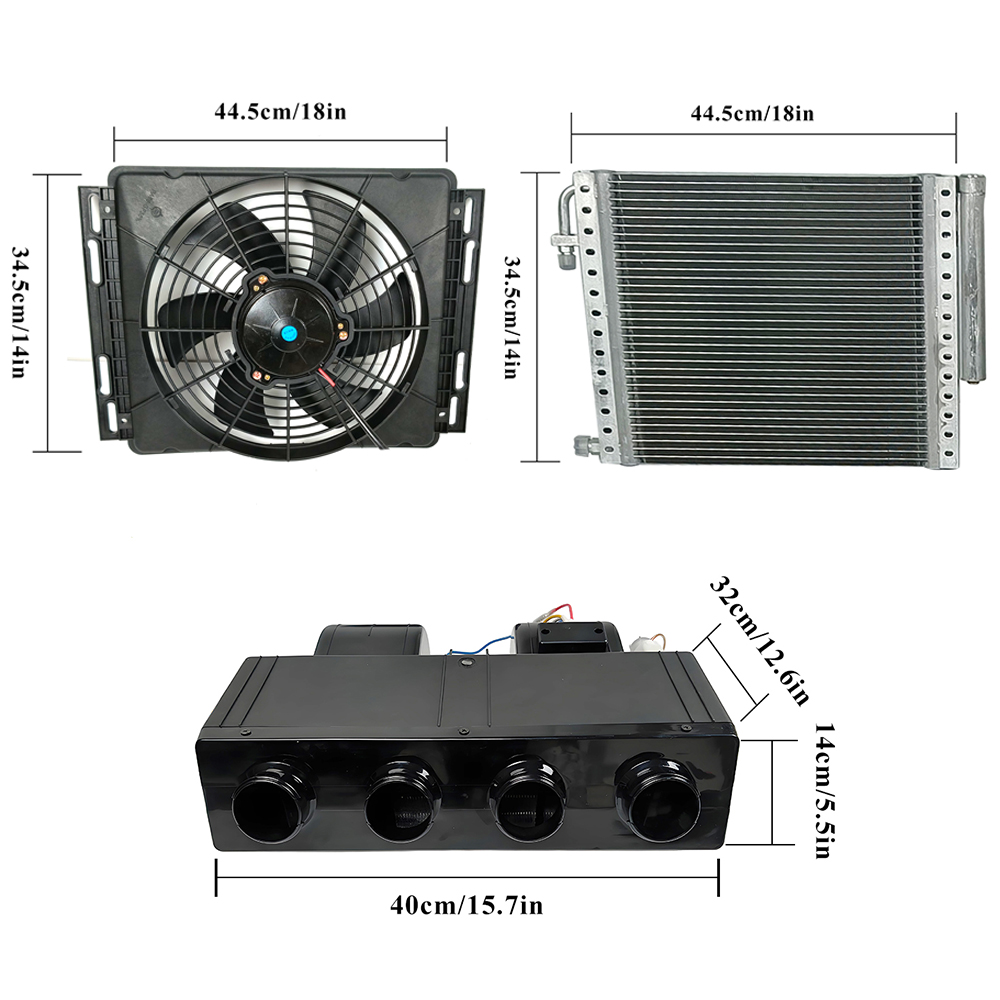

1.Condenser+Fan+Dryer Bottle（Dimension：14*18inch with bottle，OR interface）

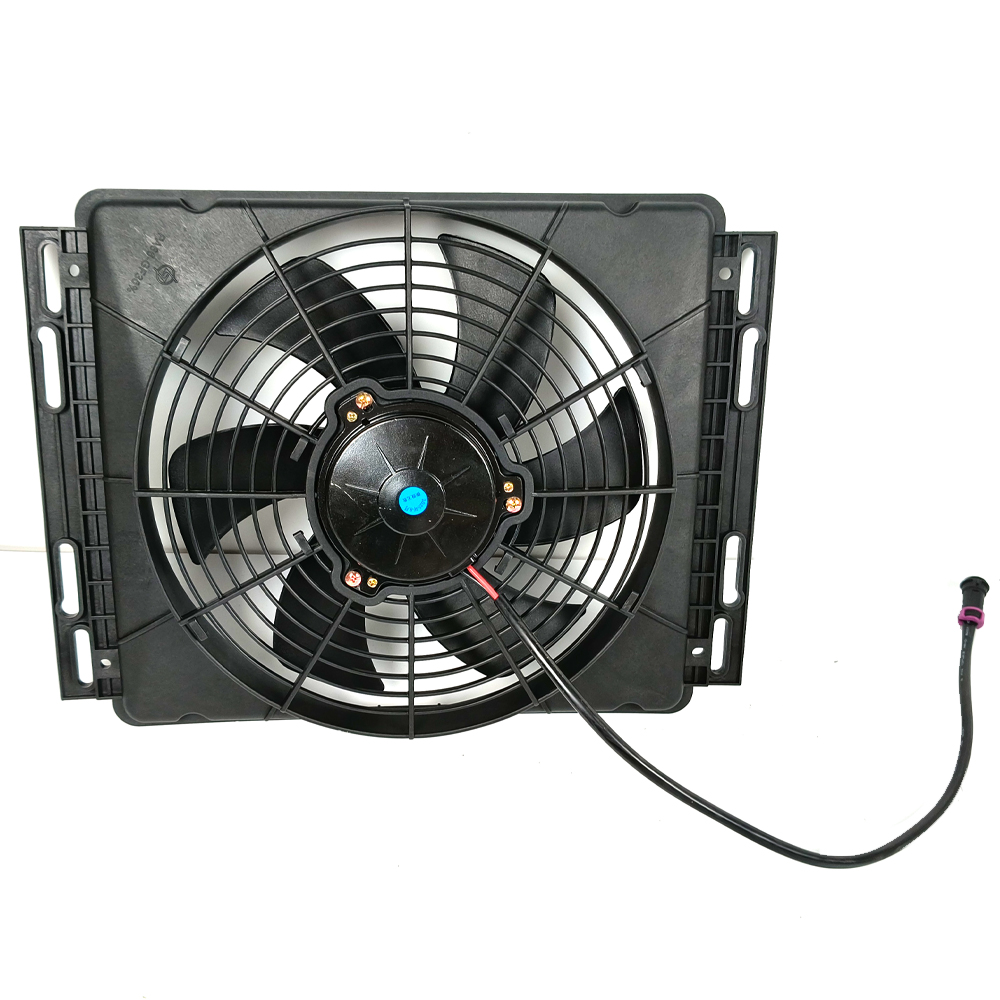

Fan（14*18inch-12V ，including 2P mother shell + 6.3 inserts)
2.Outlet
3.Integrated Electric Compressor

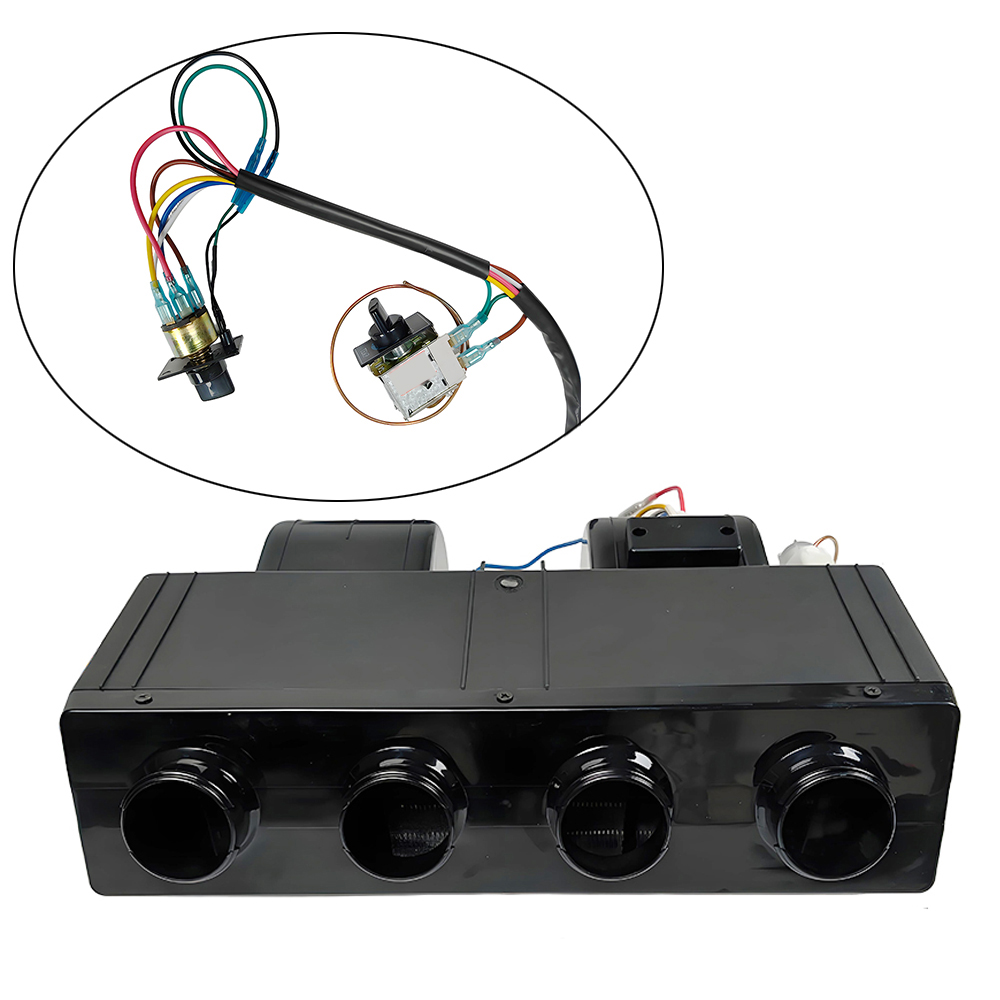

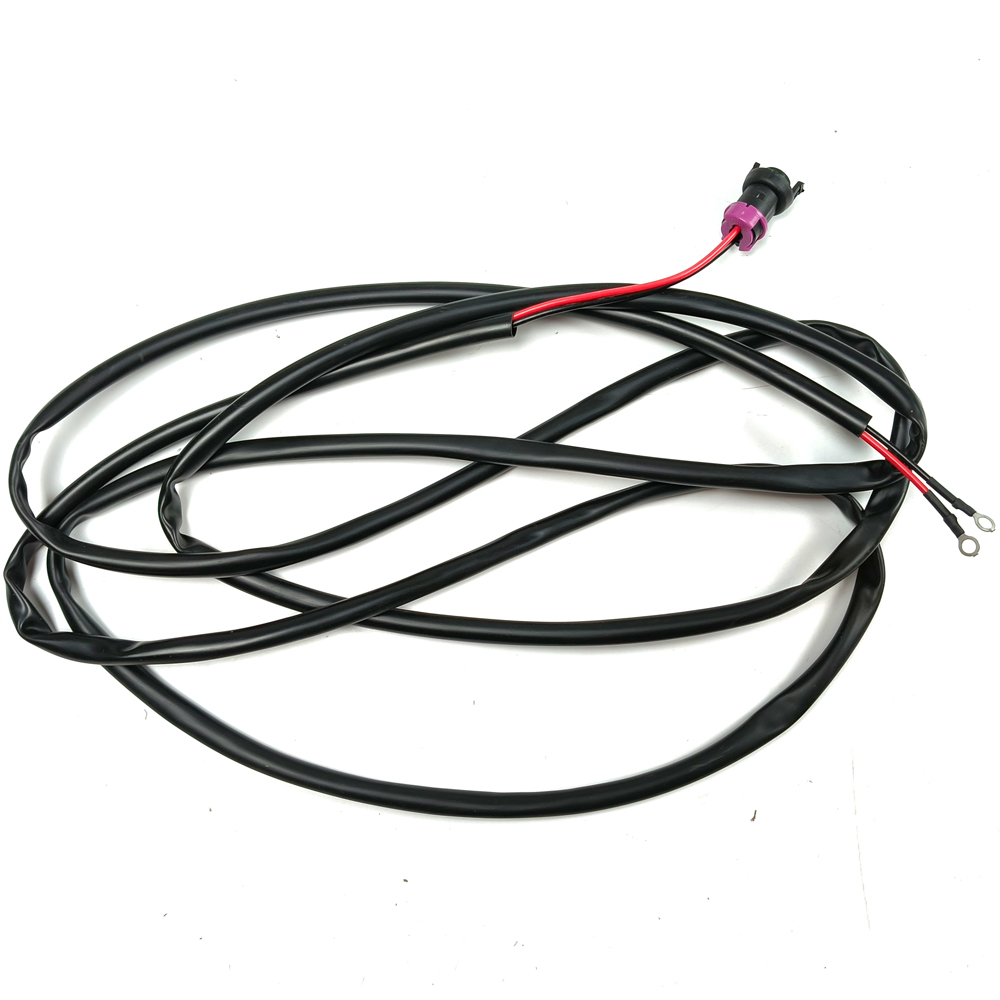

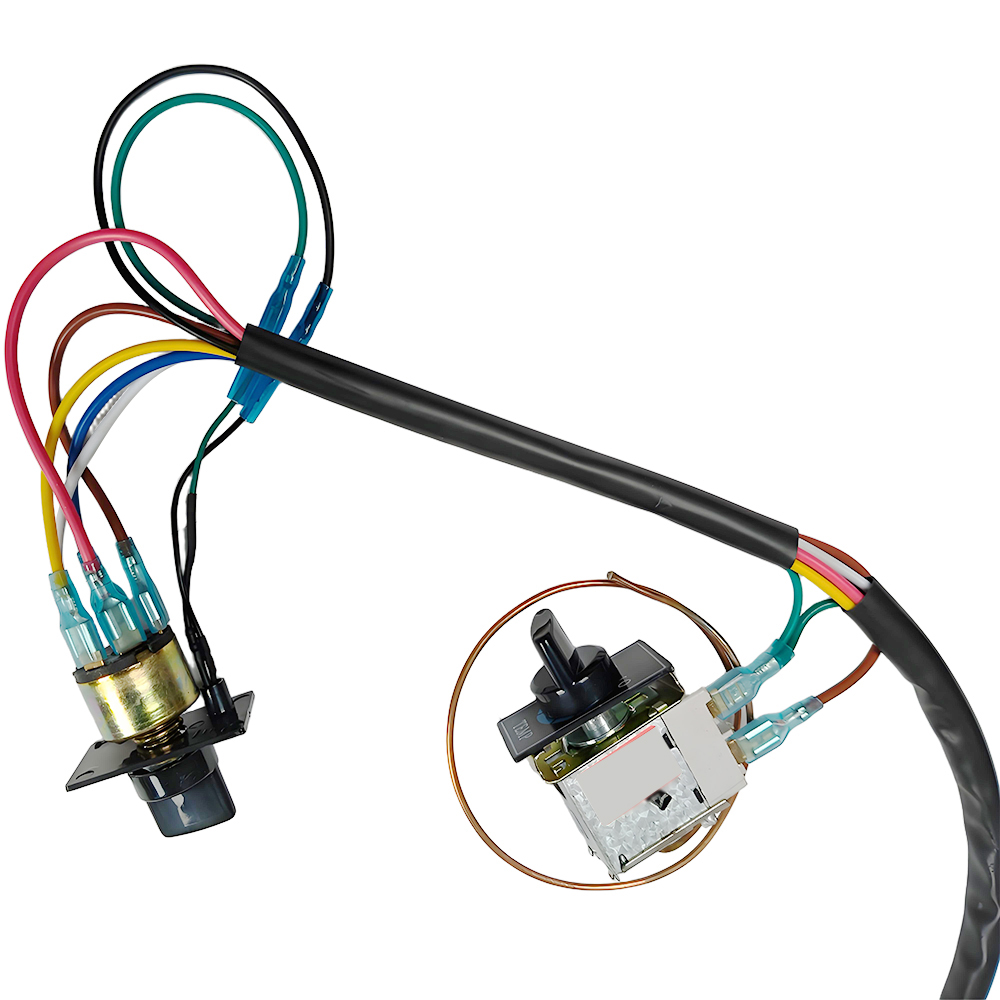

4.Wiring Harness

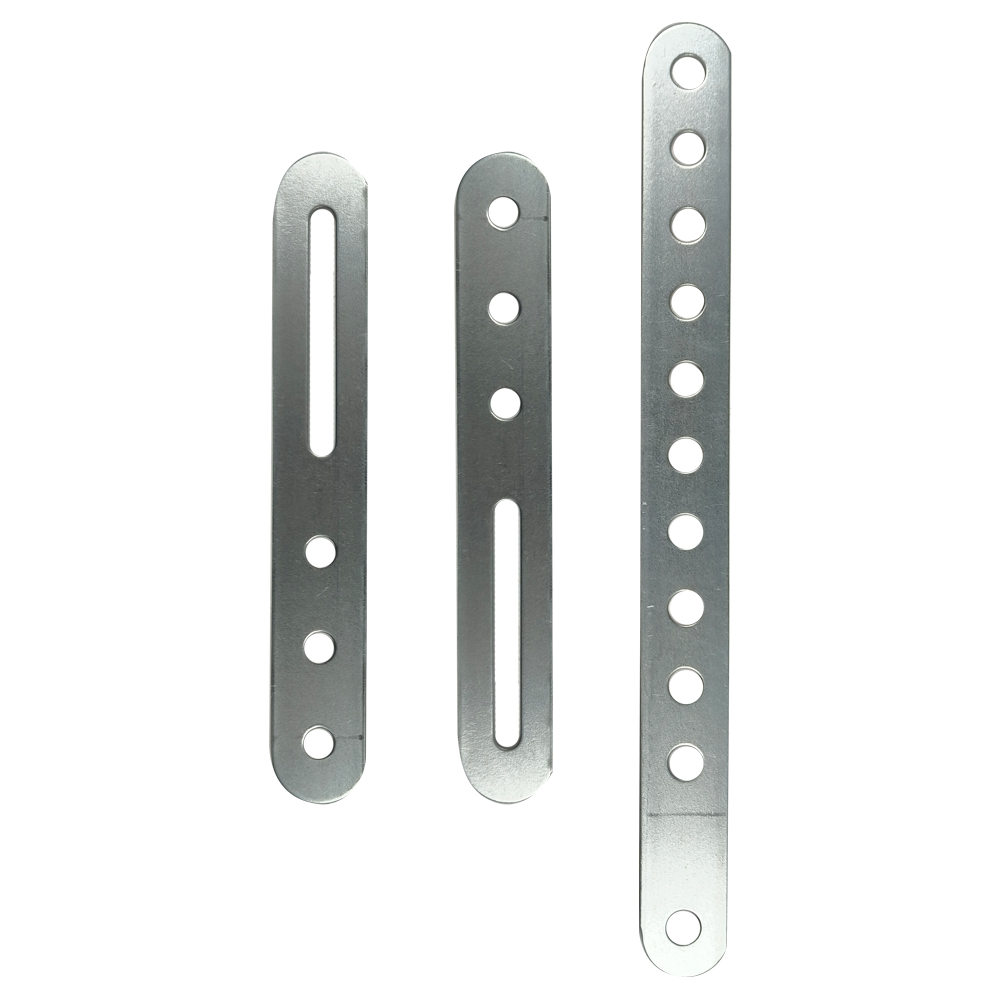

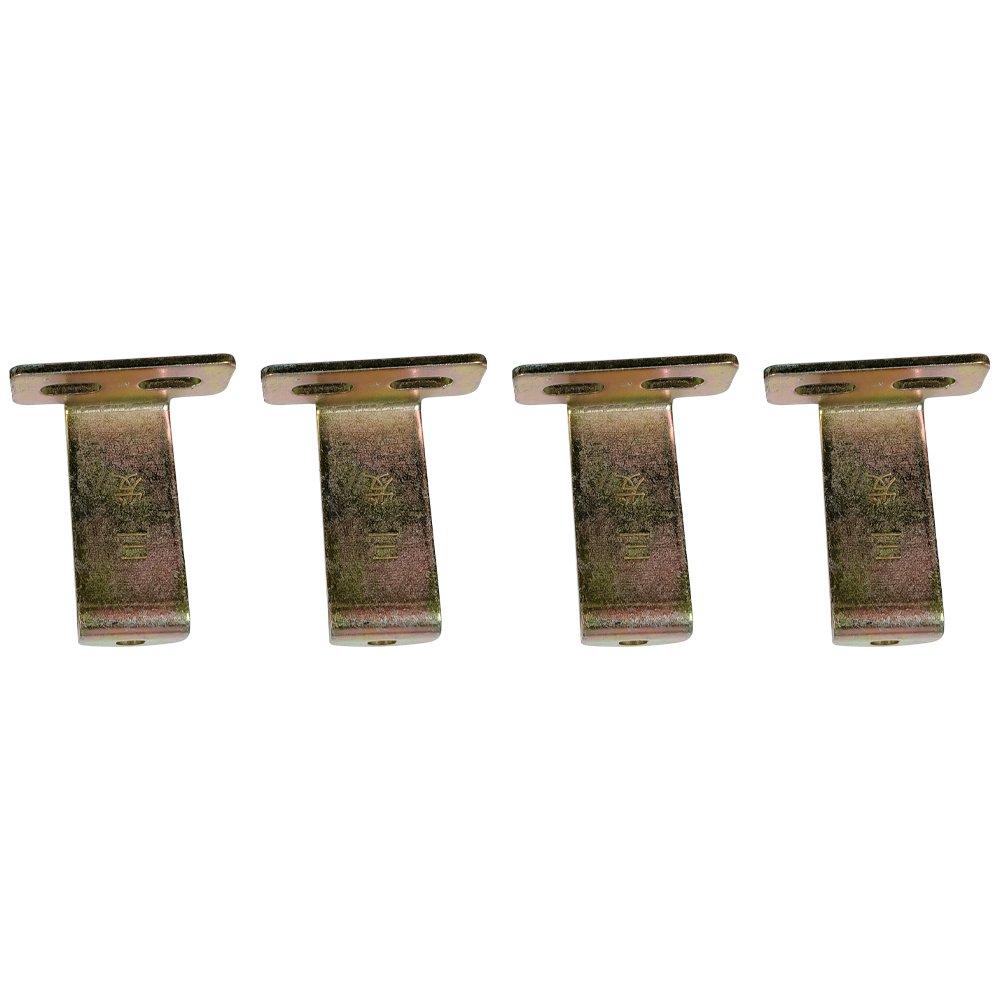

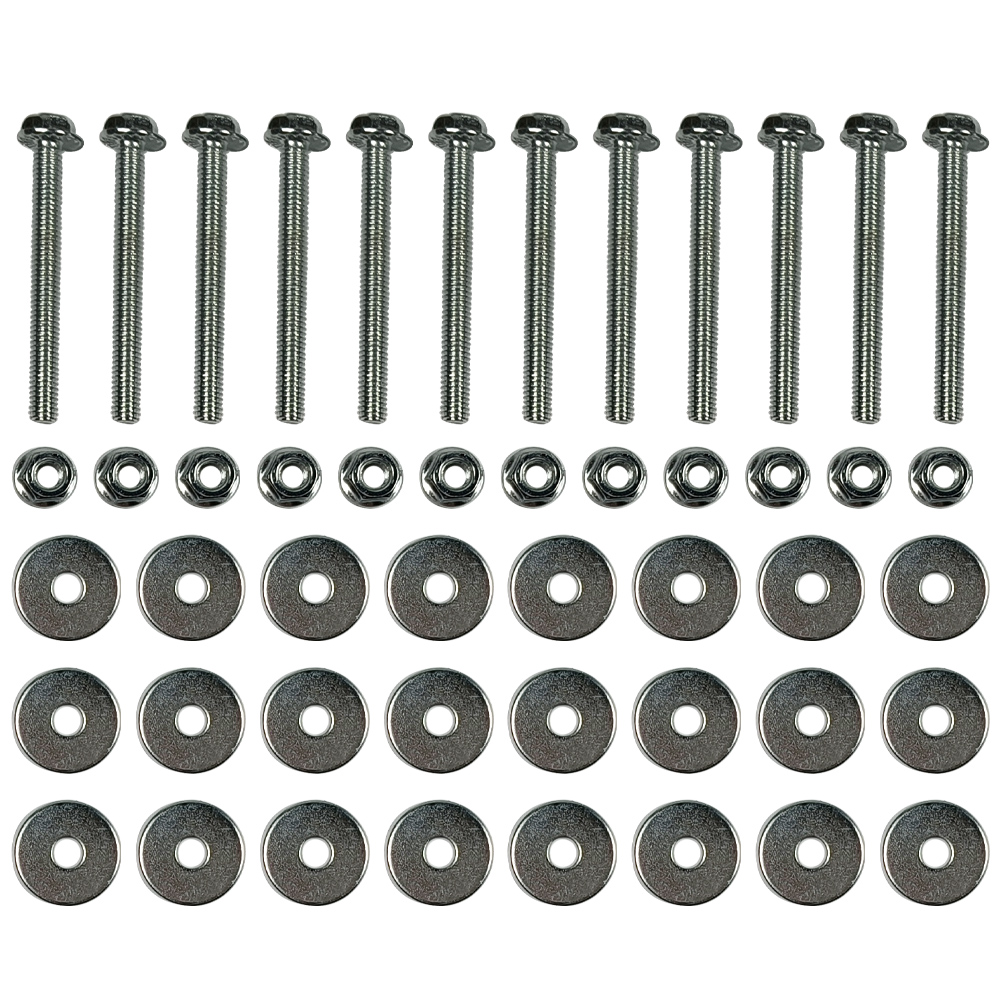

5.Fittings Kit
6.Installation Instructions
Note:
1.The total leakage of the compressor is not greater than 5g/year.
2.The noise is not greater than 74dB in rated speed.
3.Insulation resistance must be greater than 20MΩ .
4.The tolerance of None remarked dimensions may be accordance with GB1804-m.
5. The performance of all unmentioned are in accordance with GB/T 22068-2018.
