Specs:

• Size: 103X58X24mm

• Voltage:14-84V (4-20S)

• Continuous Current: 100A

• Peak Current: 250A

• Firmware: 5.02; firmware upgrade available (Phase filter needs to be turned off for firmware 5.03 or newer)

• BEC: 5V@1A

• Modes: DC，BLDC，FOC(sinusoidal)

• Control Interface Ports: USB,CAN,UART

• Supported Sensors: ABI，HALL，AS5047，AS5048A

• Input Set Support: PPM，ADC，NRF,UART

• Wire Size: 12AWG

• Programmable: Yes

• Regenerative Capacity: Yes

• Power Switch Button: Red

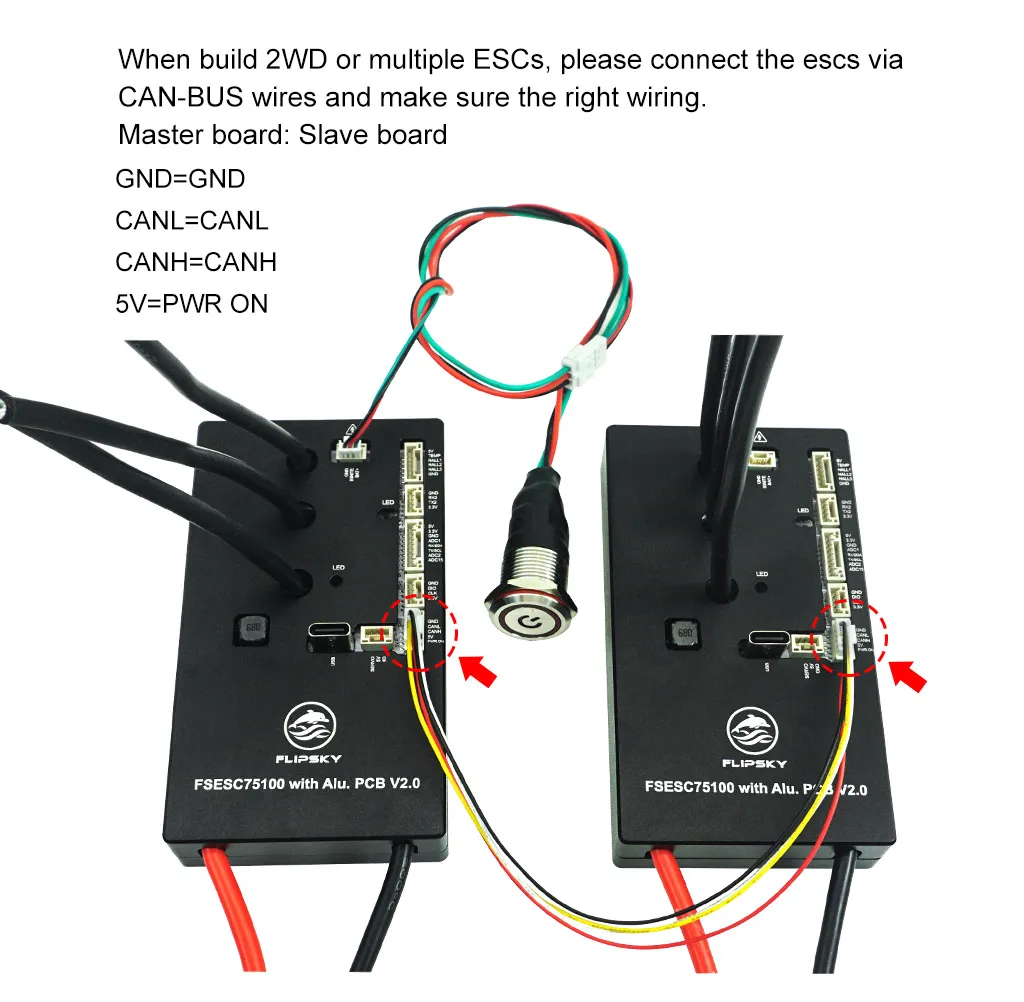

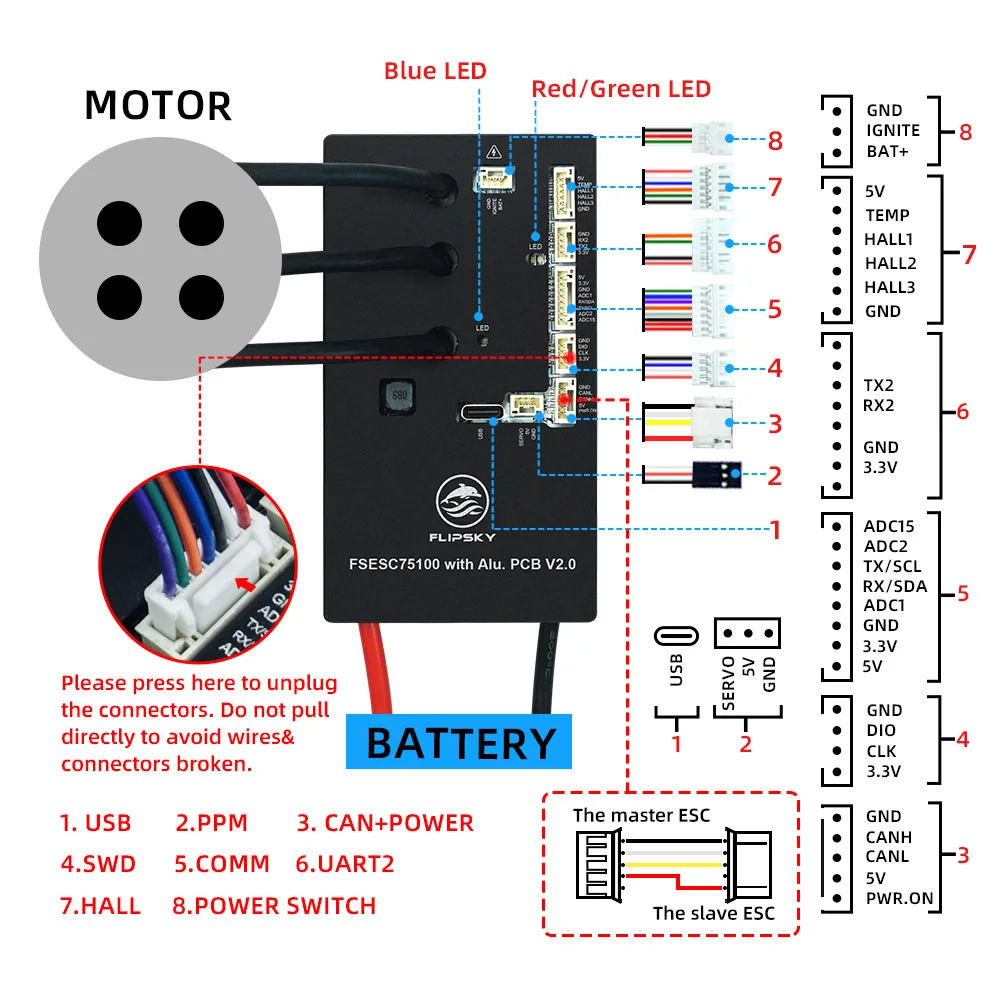

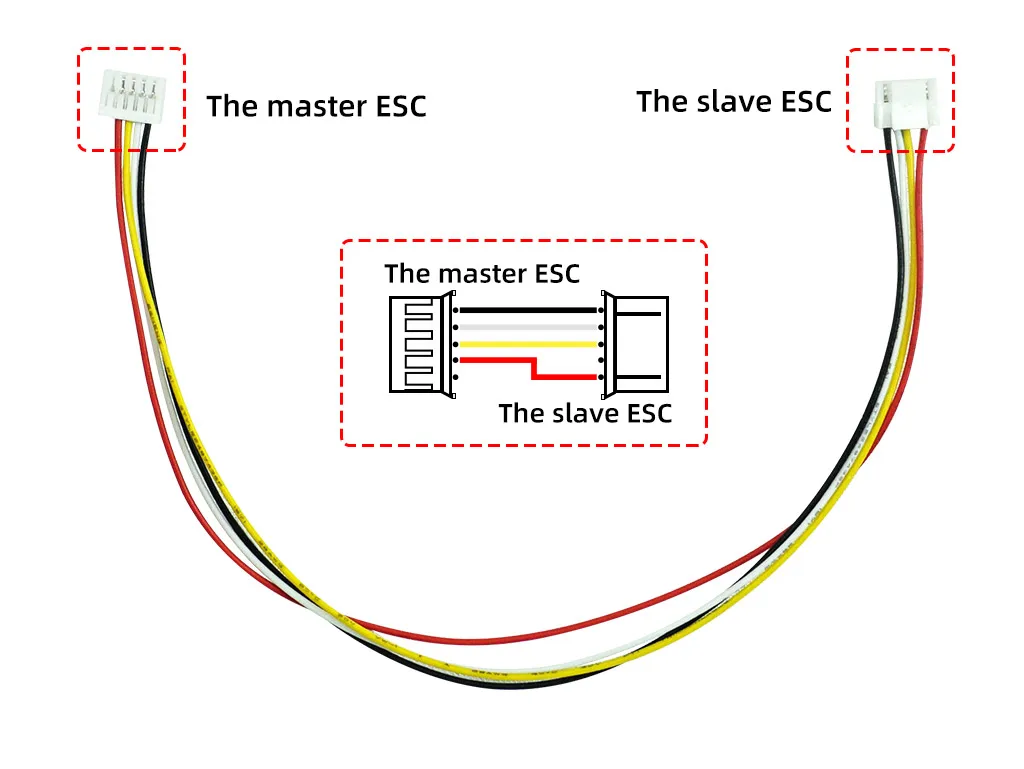

Wiring diagram:
