StageCore Empty Cable Reel Drum for 100M Microphone Cable

Product Description

Description

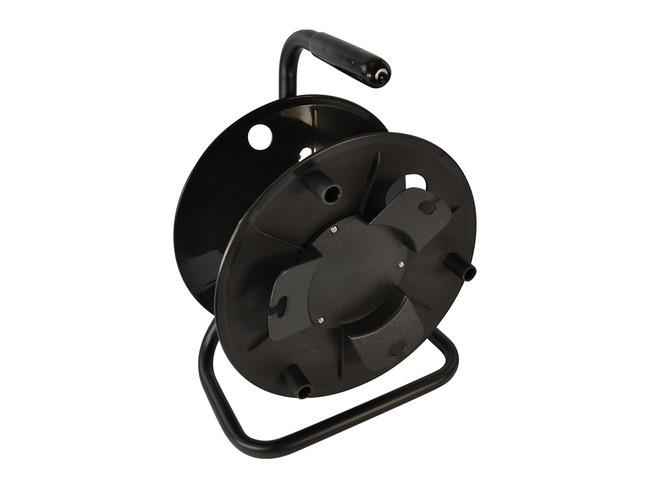

The Small Cable Drum is a compact, empty cable reel designed for storing, transporting and deploying a wide range of cables. It is suitable for power, audio, lighting, AV, data, speaker and network cabling, making it a practical choice for stage, event, installation and general cable management use.

Built with a tough metal frame and a strong impact-resistant plastic drum, it offers reliable performance for regular use. The rubber-coated handle provides a secure and comfortable grip, while the three outer hand grips allow the drum to be rotated easily when winding or unwinding cable.

The drum includes a 15 mm internal cable feed hole through the central metal blanking plate. The blanking plate can be removed using three screws, allowing sockets to be fitted if required. A spare cable collar helps keep excess cable neat, and the locking mechanism prevents the reel from rotating when not in use.

Note: When using with mains power, always fully unwind the cable before switching on to help prevent heat build-up caused by coiled cable.

Features

Compact empty cable reel ready to be fitted with cable
Suitable for power, audio, lighting, AV, data, speaker and network cabling
Ideal for smaller cable runs and portable cable management
Tough metal frame for reliable everyday use
Rubber-coated handle for secure and comfortable carrying
Strong impact-resistant plastic drum
Three outer hand grips for easy cable winding and unwinding
15 mm internal cable feed hole through the central blanking plate
Removable central metal blanking plate for adding sockets if required
Integrated collar for managing spare cable
Locking mechanism prevents the drum from rotating when not in use
Suitable for cables up to approximately 15 mm in diameter

Specifications

Product type: Empty cable reel
Size: Small
Spool diameter: 280 mm
Spool width: 120 mm
Cable capacity: 100 m of 6 mm cable
Cable capacity: 75 m of 7 mm cable
Cable capacity: 55 m of 8 mm cable
Cable capacity: 35 m of 10 mm cable
Cable capacity: 25 m of 12 mm cable
Maximum cable diameter: Approximately 15 mm
Frame material: Metal
Drum material: Impact-resistant plastic
Handle: Rubber-coated
Cable feed hole: 15 mm
Locking mechanism: Yes
Central blanking plate: Removable with three screws
Suitable cable types: Power, audio, lighting, AV, data, speaker and network cabling
