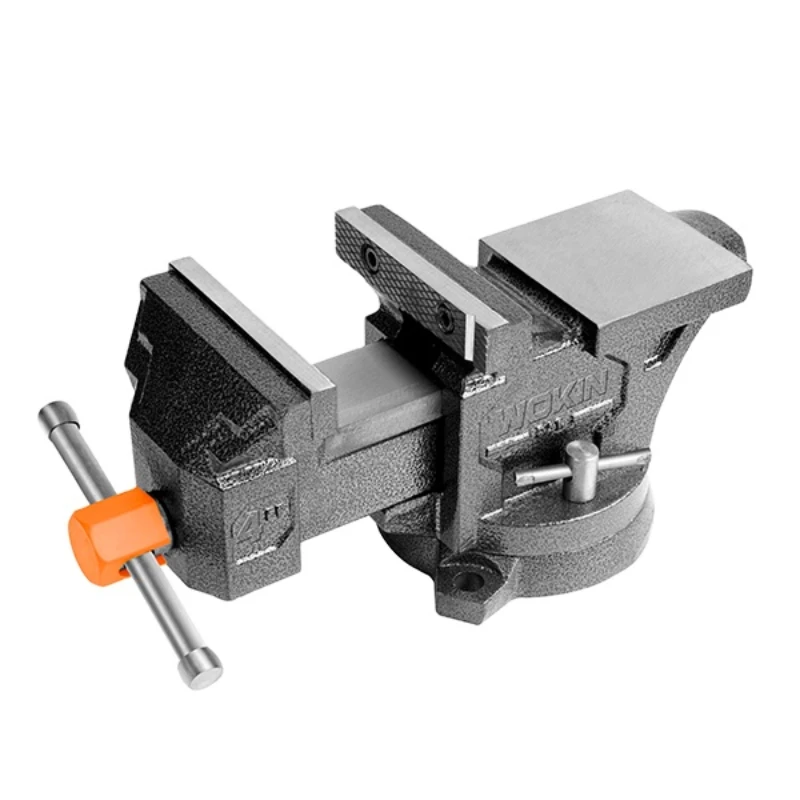

Heavy-duty Bench Vise Flat Vise Fixture Bench Vise Multi-function Bench Vise
Specifications
4-inch Heavy-Duty Bench Vise
Overall length: 320 mm
Overall height: 160 mm
Base dimensions: 80 × 65 mm
Throat depth: 58 mm
Maximum Opening: 120 mm
Jaw Width: 100 mm
Jaw Thickness: 10 mm
Net Weight: 8 kg
5-inch Heavy-duty Bench Vise
Overall Length: 380 mm
Overall Height: 180 mm
Anvil Dimensions: 100 × 85 mm
Throat Depth: 58 mm
Maximum Opening: 170 mm
Jaw Width: 120 mm
Jaw Thickness: 13 mm
Net Weight: 13 kg
6-inch Heavy-duty Bench Vise
Overall Length: 440 mm
Overall Height: 215 mm
Base Dimensions: 110 × 95 mm
Throat Depth: 75 mm
Maximum Opening: 190 mm
Jaw width: 145 mm
Jaw thickness: 13 mm
Net weight: 17 kg
8-inch Heavy-duty Bench Vise
Overall length: 530 mm
Overall height: 250 mm
Base dimensions: 140 × 130 mm
Throat depth: 90 mm
Maximum opening: 215 mm
Jaw width: 200 mm
Jaw Thickness: 16 mm
Net Weight: 32 kg
10-inch Heavy-duty Bench Vise
Overall Length: 560 mm
Overall Height: 275 mm
Base Dimensions: 155 × 145 mm
Throat Depth: 95 mm
Maximum Opening: 220 mm
Jaw Width: 250 mm
Jaw Thickness: 16 mm
Net weight: 42 kg
12-inch heavy-duty bench vice
Overall length: 720 mm
Overall height: 335 mm
Base dimensions: 160 × 155 mm
Throat depth: 135 mm
Maximum opening: 280 mm
Jaw width: 295 mm
Jaw thickness: 15.5 mm
Net weight: 73 kg
Features
The entire range features a heavy-duty structural design with robust materials, available in sizes from 4-inch to 12-inch. Dimensions and weight increase with size, catering to various industrial clamping and striking requirements.
The swivel base design allows for flexible operation, meeting multi-angle mach ining needs.
