NOTE:The LED light is a signal source light. It will light up only when the signal source is connected, not a power light!

Only when the power supply is connected, the output terminal is connected, and then the input terminal is connected, the LED light will light up.

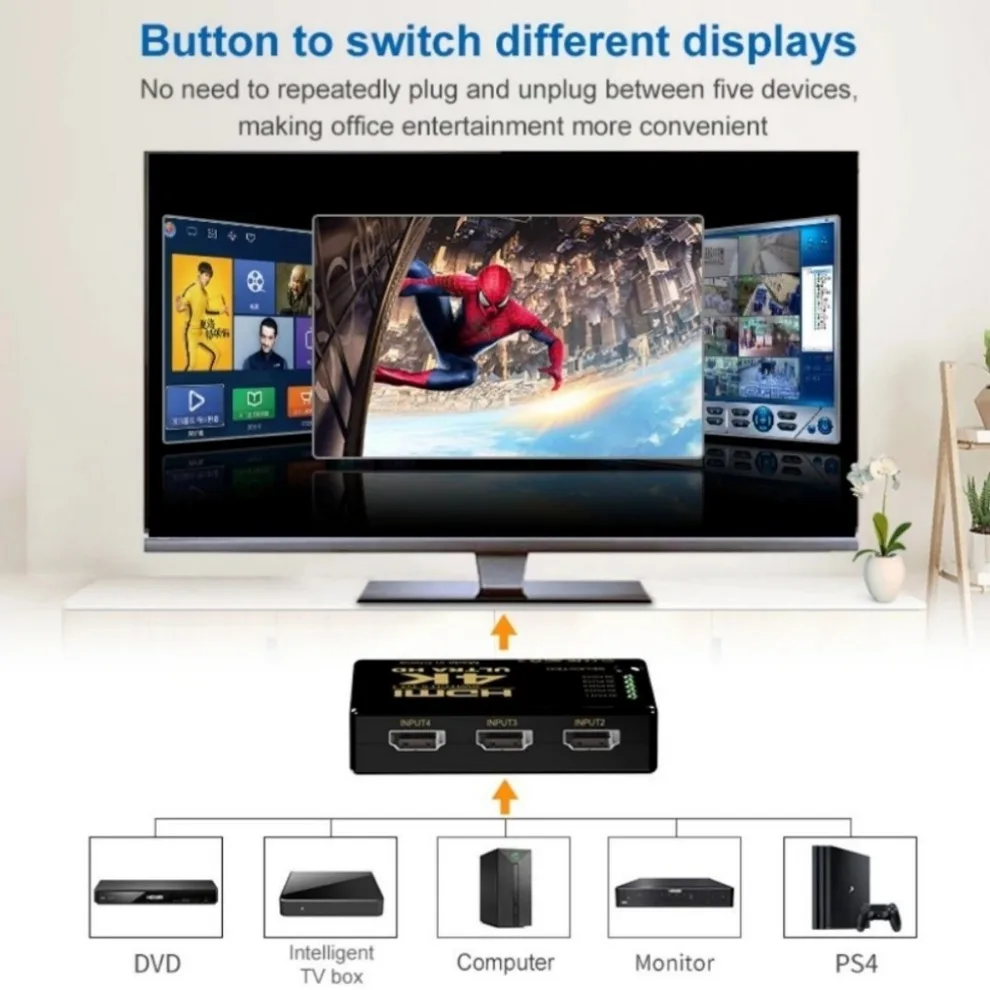

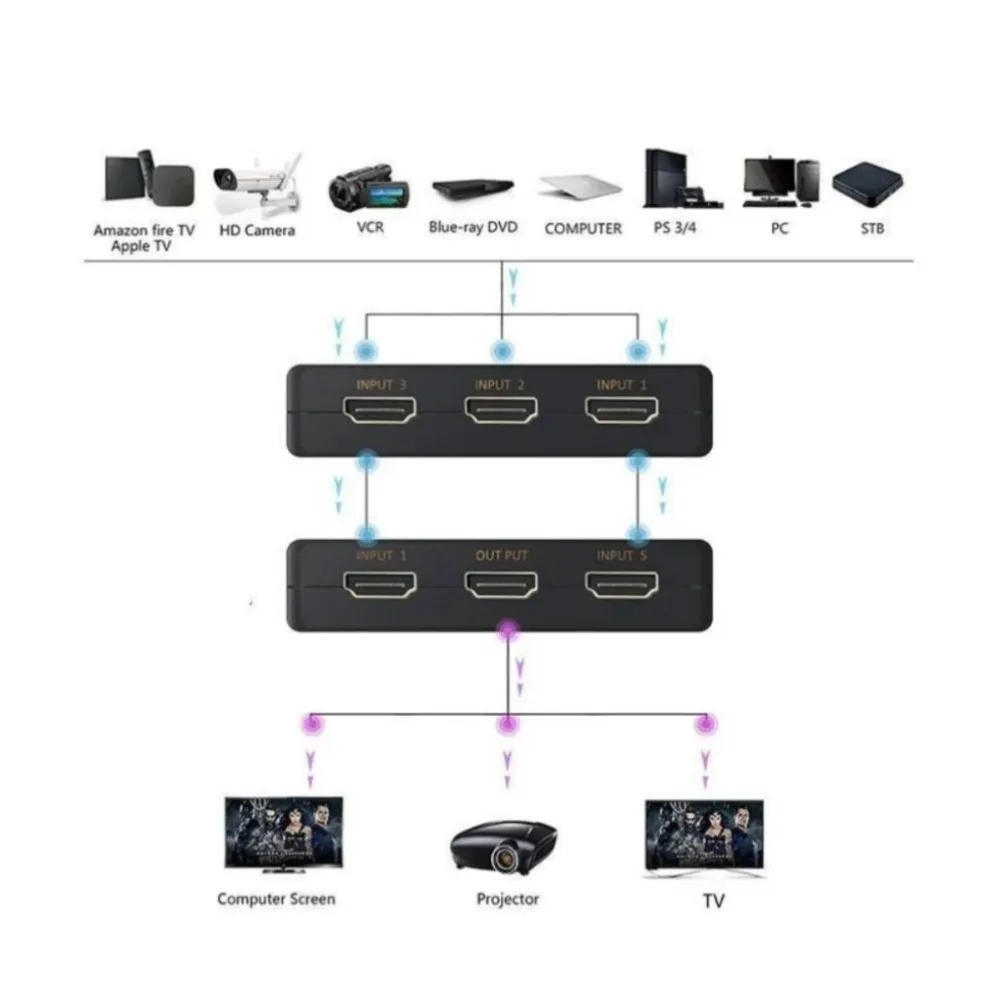

The input port is connected to the signal source, such as computer host, laptop, etc.;

the output port is connected to the device that receives the signal, such as monitor, TV, etc.

Product alias】HDMI video switcher, HDMI remote control switcher, 4K HDMI switcher (3 in 1 out / 5 in 1 out)

【Product Description】This HDMI switcher is connected to the 3-way / 5-way with multi-channel digital audio and video HD 4K video signal source, through the remote control or manual keys to switch the output to send high-definition audio and video signals to a high-definition display devices, high-performance HDMI switcher, the resolution up to 4K * 2K, downward compatible with the 1080 P. It is not only key cycle switching, but also includes the remote control Switching and intelligent recognition switching. This means that the switcher will automatically respond to any power switch you make on the source device. An infrared receiver is included as standard equipment for easy control.

【Applicable Equipment】Used for digital HDTV with HDMI interface, plasma display, LCD monitor, set-top box, DVD player, Blu-ray player, digital camcorder, audio/video receiver, home video recording, satellite system, Xbox 360, PS/3 player, projector system connection, signal amplification, multi-screen conversion, multi-screen selection.

【Product Performance】
1.Easily switch between any 3-way/5-way 4K HD HDMI signals;

2.Support 480p, 720p, 1080i, 1080p, 1920x1200, 3840*2160 resolution;

3.Support through the regeneration of HDMI signals, extend all HDMI devices;

4.Support HD video, high quality, clear, up to 4K * 2K resolution;

5.fully support HDMI1.4, compatible with HDMI version 1.3, compatible with HDCP;

6.Good compatibility for DVD,STB,PS3,PC,DV,DLP Video Projector and other HDMI devices with HDMI interface;

7.Status indicator, real-time understanding of each port movement.

8.quick installation, simple operation, plug and play, fashionable and trendy design, exquisite and compact, easy to carry.

【Intelligent function】
1.after the switcher is powered on, it will automatically select the source device that the power is on, and the priority of the selection is: Input 1>Input 2>Input 3>Input 4>Input 5

2.When the power of a source device is turned on or the source device is inserted into the switcher, it will automatically select this source device.

3.When the power of a source device is turned off or the source device is unplugged from the switcher, it will automatically select the next source device whose power is turned on, and the selection priority is: Input 1 > Input 2 > Input 3 > Input 4 > Input 5.

【Technical Specifications】
1.Video amplifier bandwidth: 2.5 Gbps;
2.input video signal level: 1.2 volts p-p;
3.input DDC signal level: 5 volts p-p (TTL);
4.single connection signal range: 2160p;
5.HDMI input and output interfaces: HDMI Class A 19-pin female connector
6.Power consumption: 5W

【Packing List】

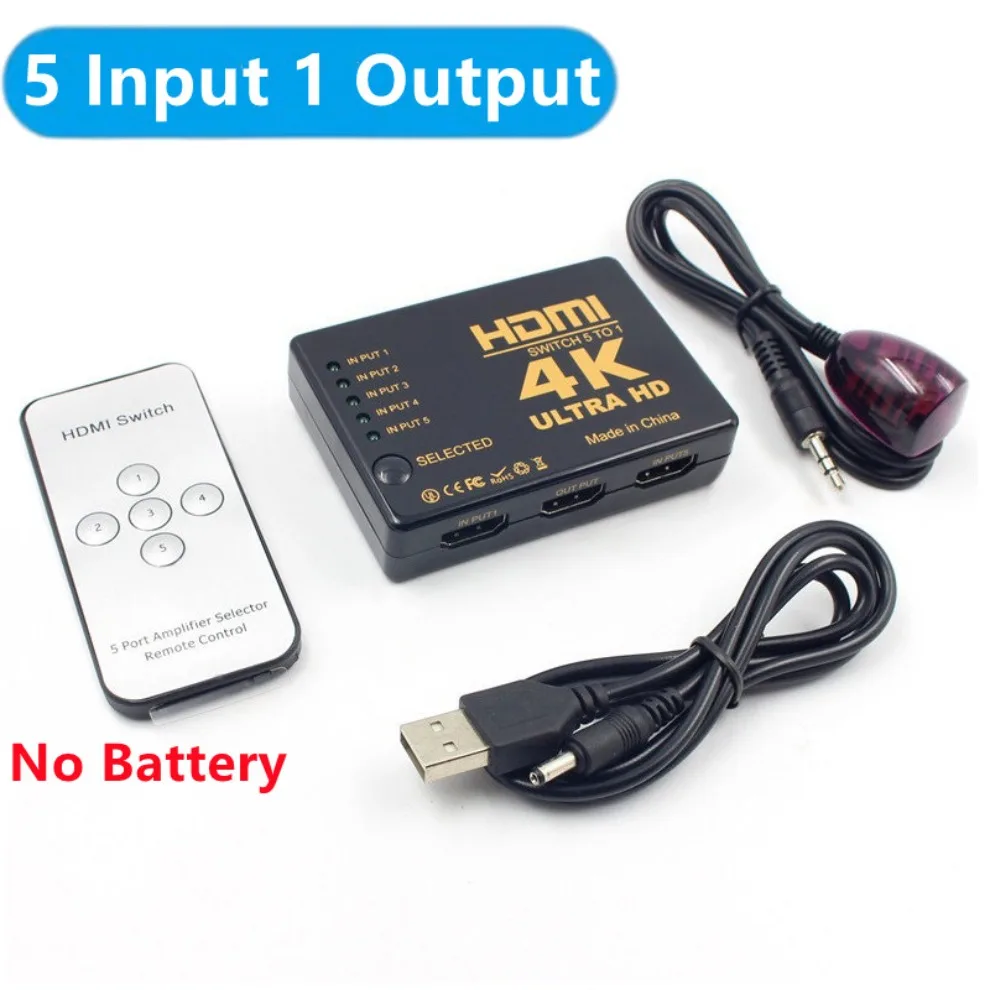

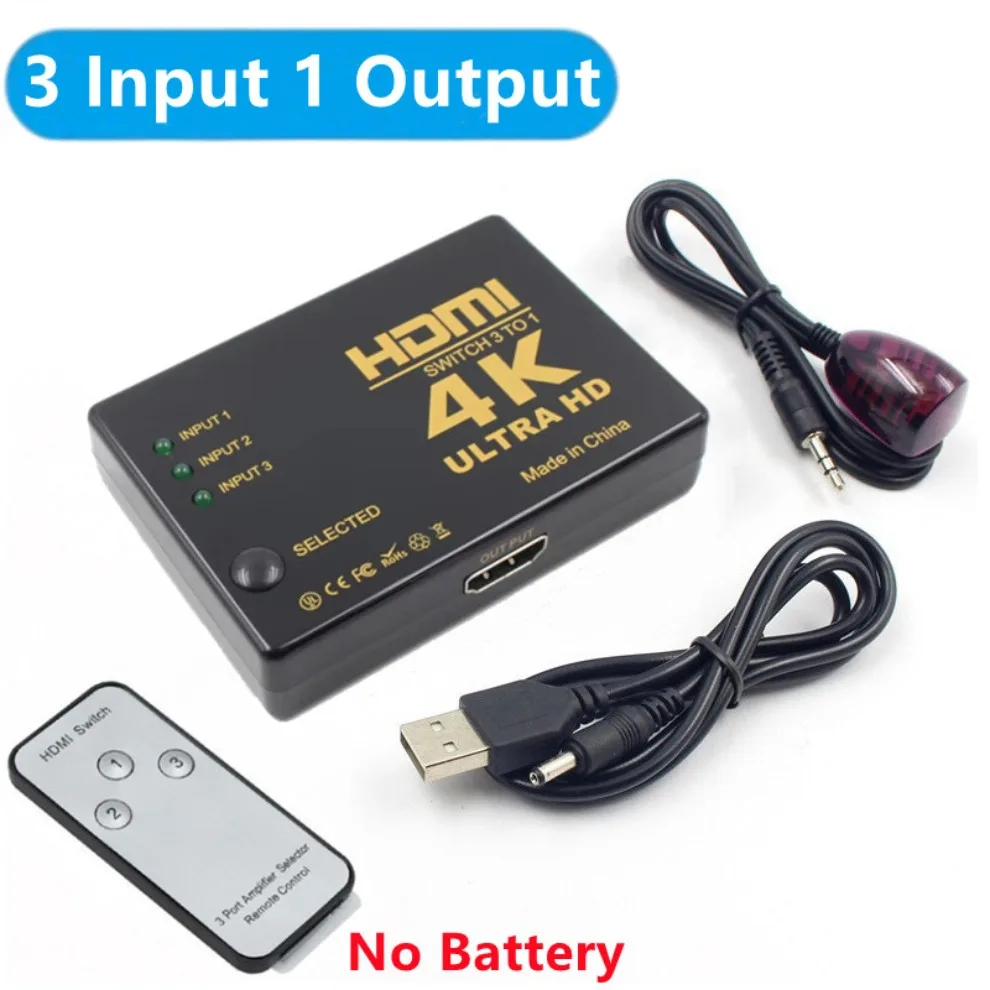

1 * HDMI-Compatible Switch （3 in 1 out / 5 in 1 out）
1 * IR Remote Control (button battery not included)
1 * Infrared Receiving Cable
1 * power cord



Feature1: 5 Ports HDMI SwitchernFeature2: 3D 4k 5 Port HDMI SwitchnFeature3: HDMI Switcher 5 in 1 outnFeature4: HDMI-Compatible Switcher With Remote ControlnFeature5: HDMI-Compatible Switch With Remote ControlnFeature6: HDMI-Compatible Selector Switch 4KnStorage: Compatible with Xbox, PS4, PC, DVD, HDTV, and morenOutput: HDMInInput: HDMInPerformance: Supports HD resolutions up to 4K * 2Knnn|5 In 1 Out Switch|5 In 1 Out Hdmi Switcher|nn**Versatile Connectivity and Performance**nThe 5 in 1 out HDMI Switch KVM Switcher is a versatile device designed to connect multiple HDMI sources to a single display device. With its 5-port HDMI switcher hub, this adapter allows you to easily switch between different HDMI devices, such as gaming consoles, Blu-ray players, or streaming devices, without the need for multiple HDMI cables. It supports a wide range of resolutions, including 4K * 2K, ensuring that your display is capable of delivering the highest quality video output possible.nn**Intelligent and User-Friendly Design**nThe HDMI switcher hub features a smart auto-switch function that detects power signals from your devices and automatically switches to the active source. This intelligent recognition switching capability eliminates the need for manual switching, providing a seamless and hassle-free experience. The switcher also includes a remote control, allowing you to easily switch between sources from a distance. Additionally, the device is equipped with an HDCP-compatible design, ensuring that your HD content is secure and protected.nn**Robust Compatibility and Ease of Use**nWhether you're a gamer, a professional, or simply looking to enhance your multimedia setup, this 5 in 1 out HDMI switch is the perfect addition. It supports a variety of devices including Xbox, PS4, PC, and more, making it a versatile tool for various applications. The plug and play design means no complicated setups; simply connect your devices, and you're ready to go. The device's compact and lightweight form factor makes it easy to carry, making it ideal for both home and office use. With its 5 in 1 out hdmi switch capabilities, you can enjoy a clutter-free and efficient connection solution for all your HDMI needs.
