72V 3000W 26" 27.5" 29" MTX39 Ebike Rear Motor Wheel Conversion Kits With 72V 26AH 60A BMS Triangle Battery

Wheel kit and battery will be shipped separately

Wheel Sizes Options: 26", 27.5", 29" MTX39 Wheel
Without Tire and tube

Motor Specification:
Magnet Width: 45mm
Magnet Quantity: 23 pairs (46 pcs)
Magnet Width: 45mm
Dual Hall Sensor (One for spare use)
High Motor Efficiency: 84.8%
Max Torque: 80.3 N.M.
Max Rotation: About  642RPM
Rated Rotation: About 600RPM

Max speed：75-80km/h

Weight: 10kgs
Wheel dropout:  135mm(Single Speed Freewheel)

Parts Including:
1. 72V 3000 26"/27.5"/29" MTX39 Rear Motor Wheel with Single Speed Freewheel (Without Tire and Tube)
2. 72V 60A Sine Wave Controlller
3. UKC1 Color Display

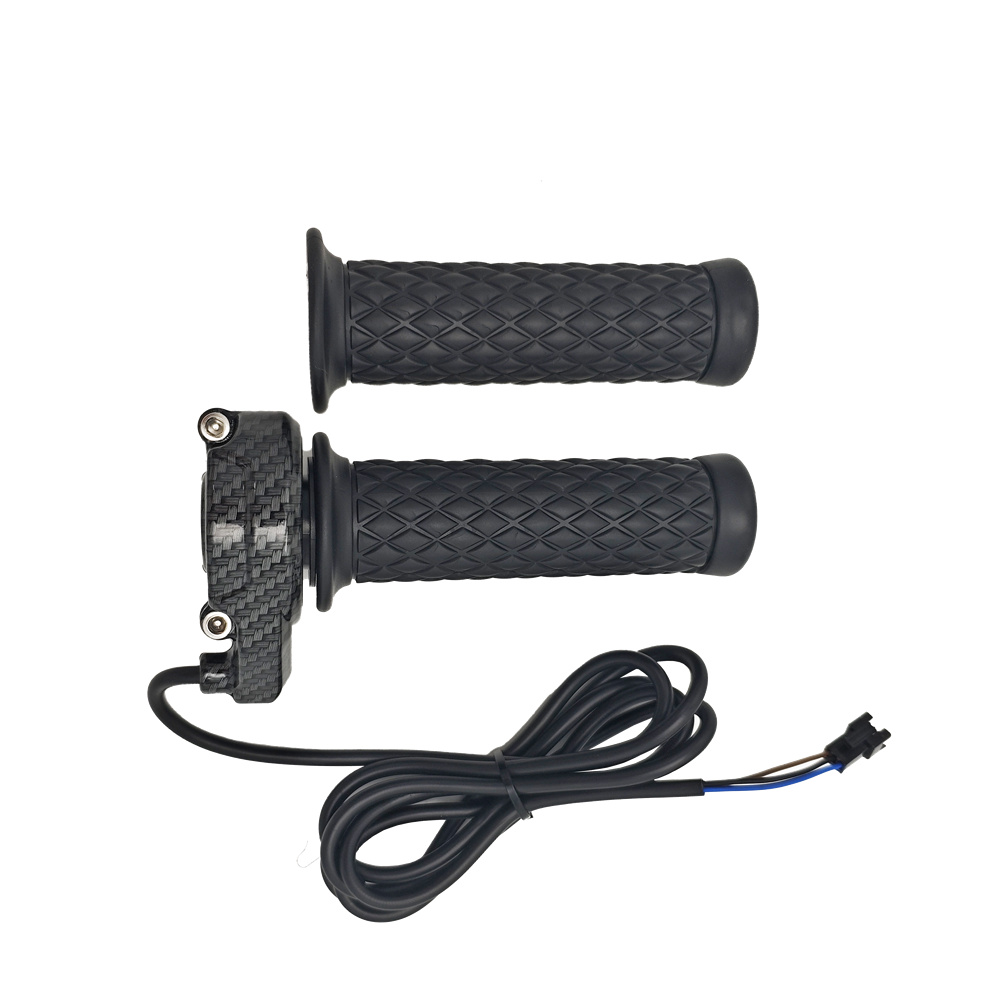

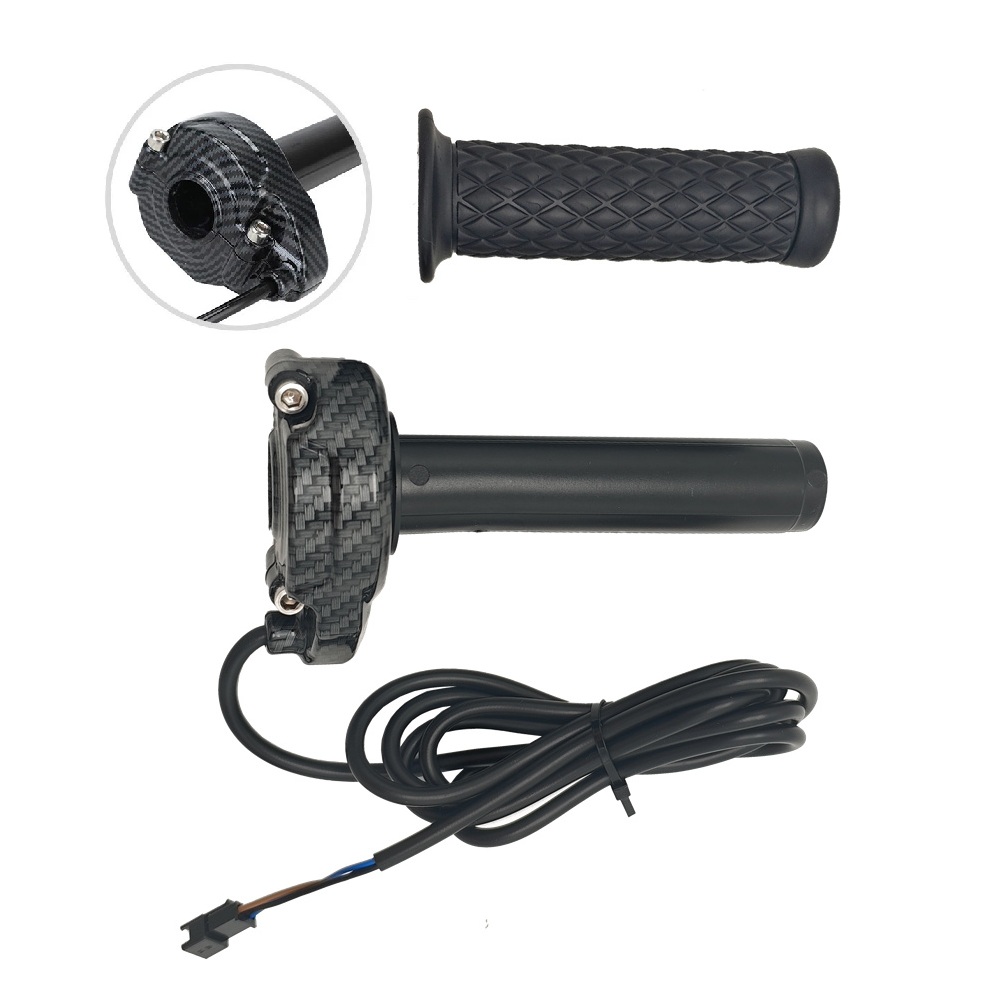

4. SurRon Style Twist Throttle with Hand Grips kit
5. Hydraulic Disc Brakes
6. PAS
7. Torque Arm

8. Alarm device

9. 72V 26AH Triangle Lithium Battery with Bag

10.84V 6A  battery Charger

Battery Specification:

Nominal Capacity (AH): 26Ah

Nominal Voltage (V): 72V

Source Resistance (mΩ）: <15

Cell Specification: 3.7V 5200mAH 3C Powerful LG INR21700-52E Cell

Cell Combination: 20-series, 5-parallels

Cell Size: 21700 Cylinder Cell

Diameter: 21mm, Height: 70mm

Cell Quantity (parallel*series): 100pcs

Discharge Cutoff Voltage (V): 60 +/- 1V

Charge Cutoff Voltage (V): 84V

Rated Discharge Current (A): 26A

Maximum Continuous Discharge Current (A): 60A

Maximum Continuous Charge Current (A): 12A

Charge Mode: CC/CV

Standard Charge Current (A): 6A

Charge Time under Standard Charge Current (Hours): 5h

Charge Temperature Range: 0 - 60 ℃

Discharge Temperature Range: -20 - 60 ℃

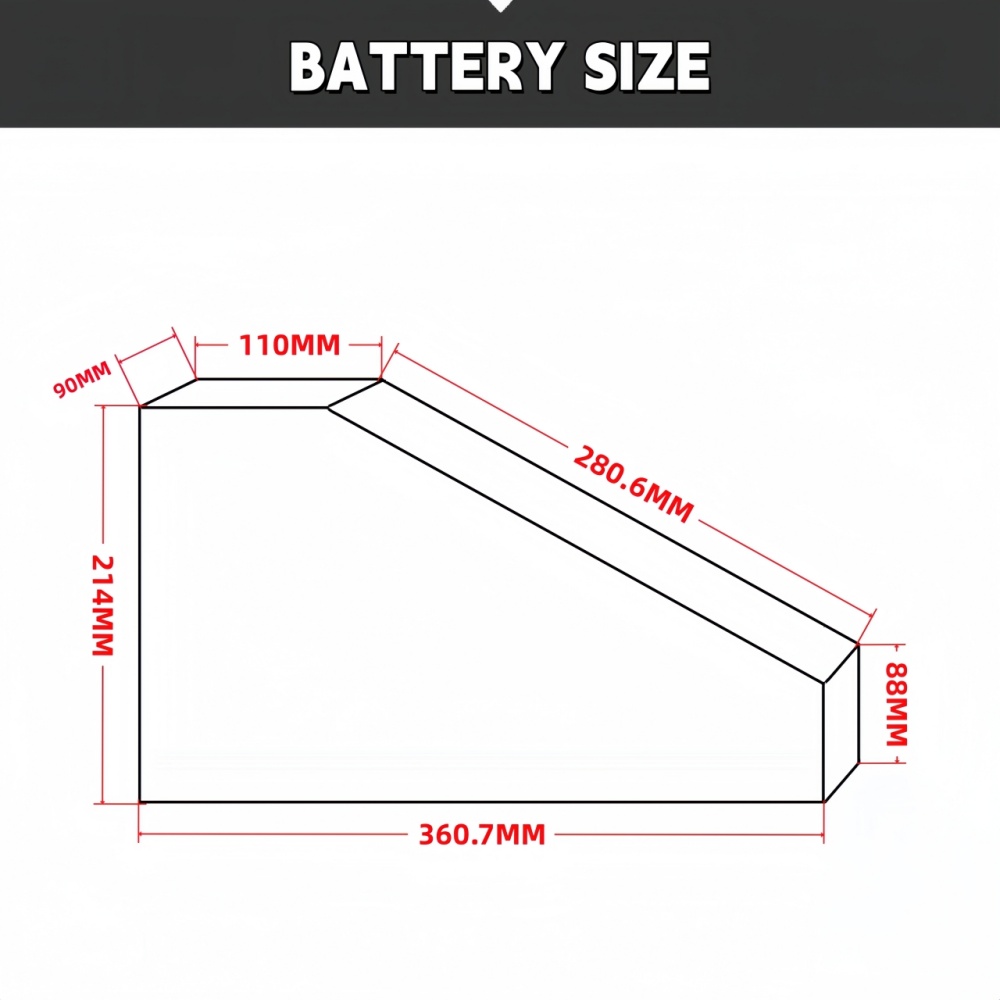

Battery Size: 360.7*214*110*280.6*88 mm (Size in Photo)

Charging Cycles > 1000 cycling times

Battery Net Weight: 9.2kgs

Battery Gross Weight(include charger,bag and packing): 12kgs

Battery Application: For less than 72V 3600 Motor and Controller (72V 60A)
