Application:

( Not for 4.1L, 6.2L, 6.5L or 7.4L Engine)

( Not for W/O Engine Oil Cooler)

( Not for W/ Not for 20 In. or 34 In.)

for 1988 - 1994 Chevrolet C1500 5.7L

for 1988 - 1999 Chevrolet C1500 5.0L

for 1994 - 1999 Chevrolet C1500 4.3L

for 1988 - 1994 Chevrolet C2500 5.7L

for 1988 - 1999 Chevrolet C2500 5.0L

for 1994 - 1995 Chevrolet C2500 4.3L

for 1988 - 1994 Chevrolet C3500 5.7L

for 1992 - 1995 Chevrolet C1500 Suburban 5.7L

for 1992 - 1995 Chevrolet C2500 Suburban 5.7L

for 1988 - 1994 Chevrolet K1500 5.7L

for 1988 - 1999 Chevrolet K1500 5.0L

for 1994 - 1997 Chevrolet K1500 4.3L

for 1988 - 1999 Chevrolet K2500 5.0L

for 1988 - 1994 Chevrolet K2500 5.7L

for 1994 - 1995 Chevrolet K2500 4.3L

for 1988 - 1994 Chevrolet K3500 5.7L

for 1992 - 1995 Chevrolet K1500 Suburban 5.7L

for 1992 - 1995 Chevrolet K2500 Suburban 5.7L

for 1988 - 1994 GMC C1500 5.7L

for 1988 - 1999 GMC C1500 5.0L

for 1994 - 1998 GMC C1500 4.3L

for 1988 - 1994 GMC C2500 5.7L

for 1988 - 1999 GMC C2500 5.0L

for 1994 - 1995 GMC C2500 4.3L

for 1988 - 1994 GMC C3500 5.7L

for 1992 - 1995 GMC C1500 Suburban 5.7L

for 1992 - 1995 GMC C2500 Suburban 5.7L

for 1988 - 1994 GMC K1500 5.7L

for 1988 - 1999 GMC K1500 5.0L

for 1994 - 1998 GMC K1500 4.3L

for 1988 - 1994 GMC K2500 5.7L

for 1988 - 1999 GMC K2500 5.0L

for 1994 - 1995 GMC K2500 4.3L

for 1988 - 1994 GMC K3500 5.7L

for 1992 - 1995 GMC K1500 Suburban 5.7L

for 1992 - 1995 GMC K2500 Suburban 5.7L

OE/Part number:

DPI 622, CU622, Q622, REA622, 1790, CU1790, Q1790, REA1790, 2458333, 52459680, 52469081, 52469085, 52469673, 52469674

Specification:

Condition: New

Fitment Type: Direct Replacement

Placement on Vehicle: Engine Compartment

Core Material：Aluminum

Tank Material：Plastic

Core Size：28.26 × 17.24 × 1.02 In

Inlet Diameter：Φ33

Inlet Location：Top Left

Outlet Diameter：Φ40

Outlet Location：Bottom right

Core Row Quantity：1

Down Flow Or Cross Flow Type：Cross Flow

Engine Oil Cooler Included：Yes

Transmission Oil Cooler Included：Yes

Transmission Type：AT

Package included:

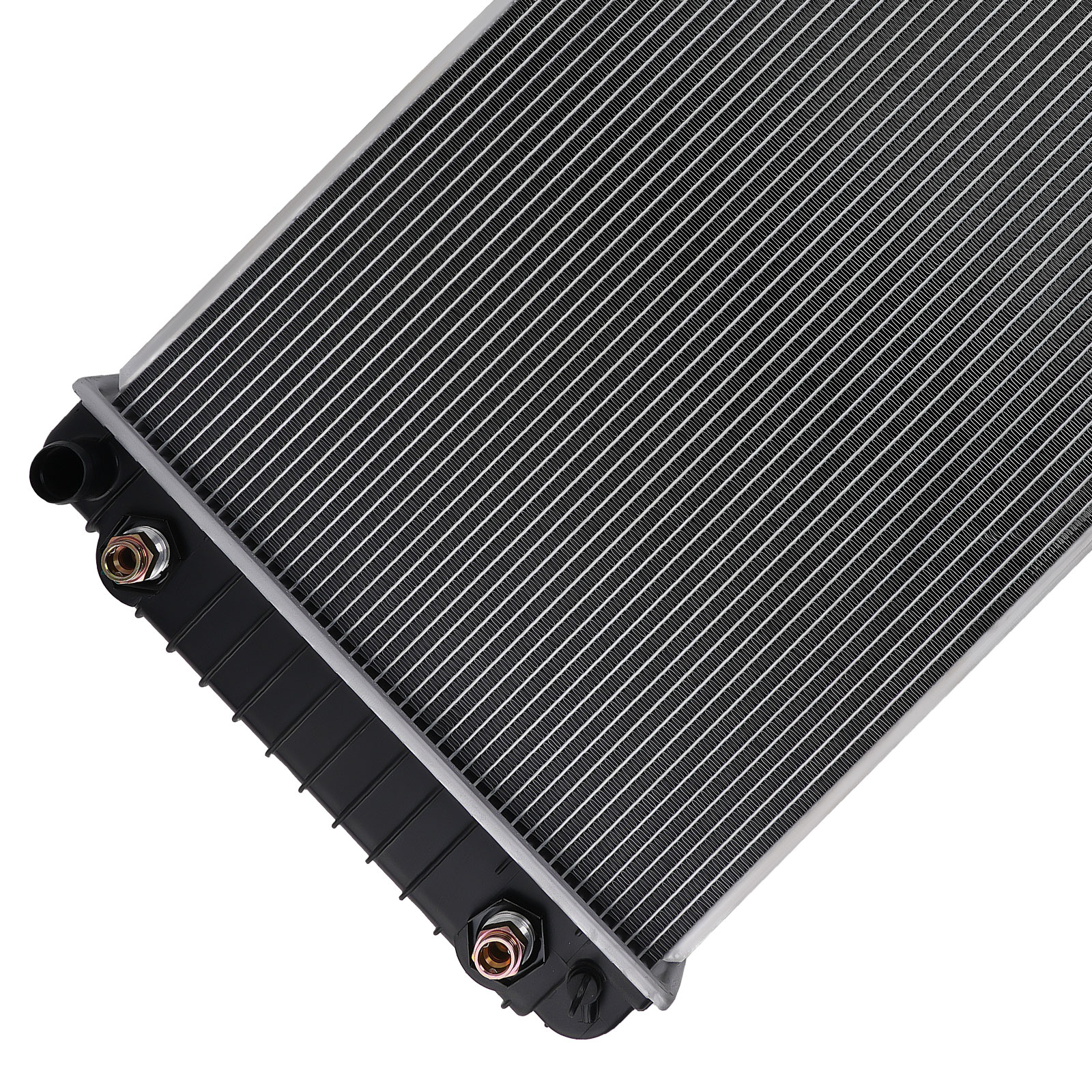

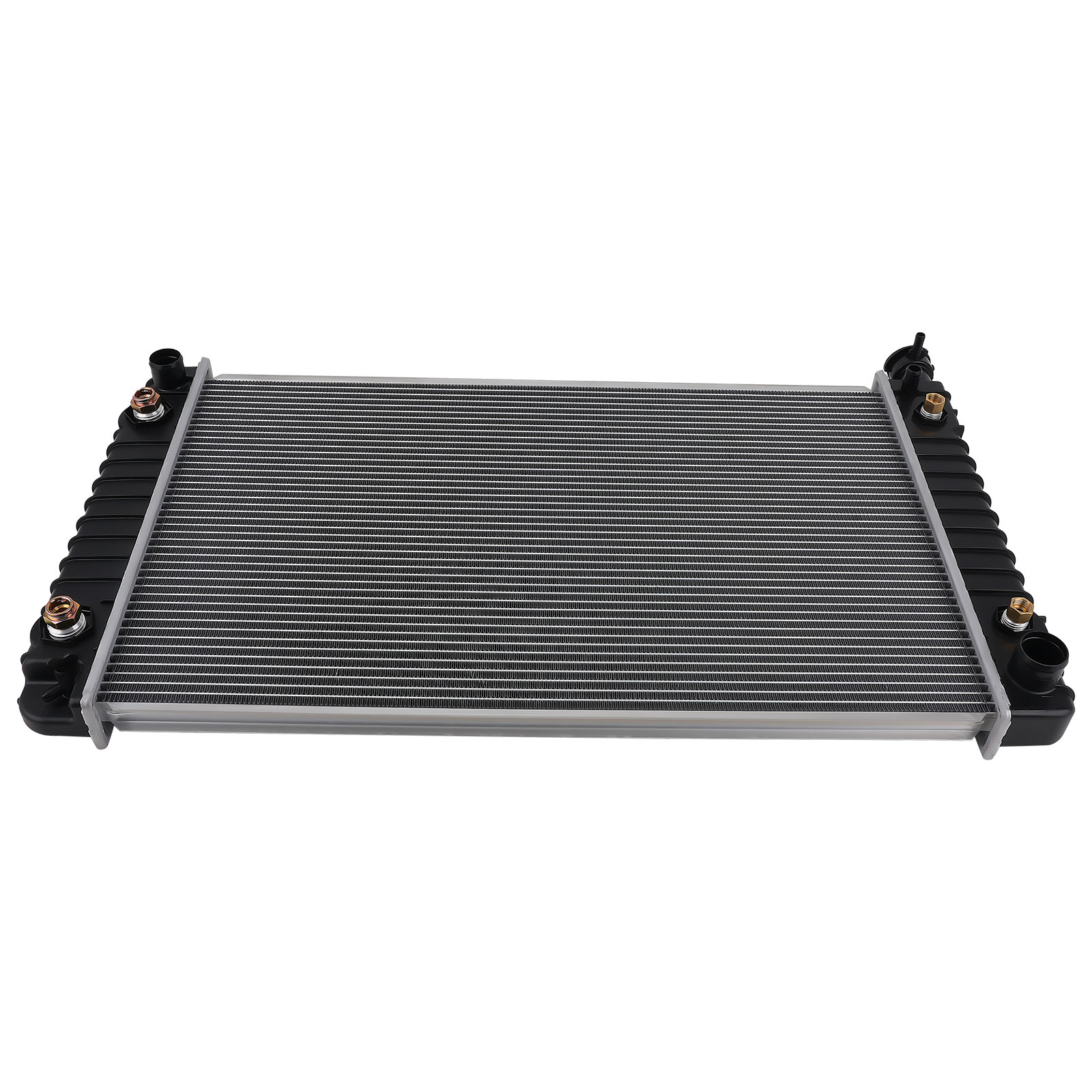

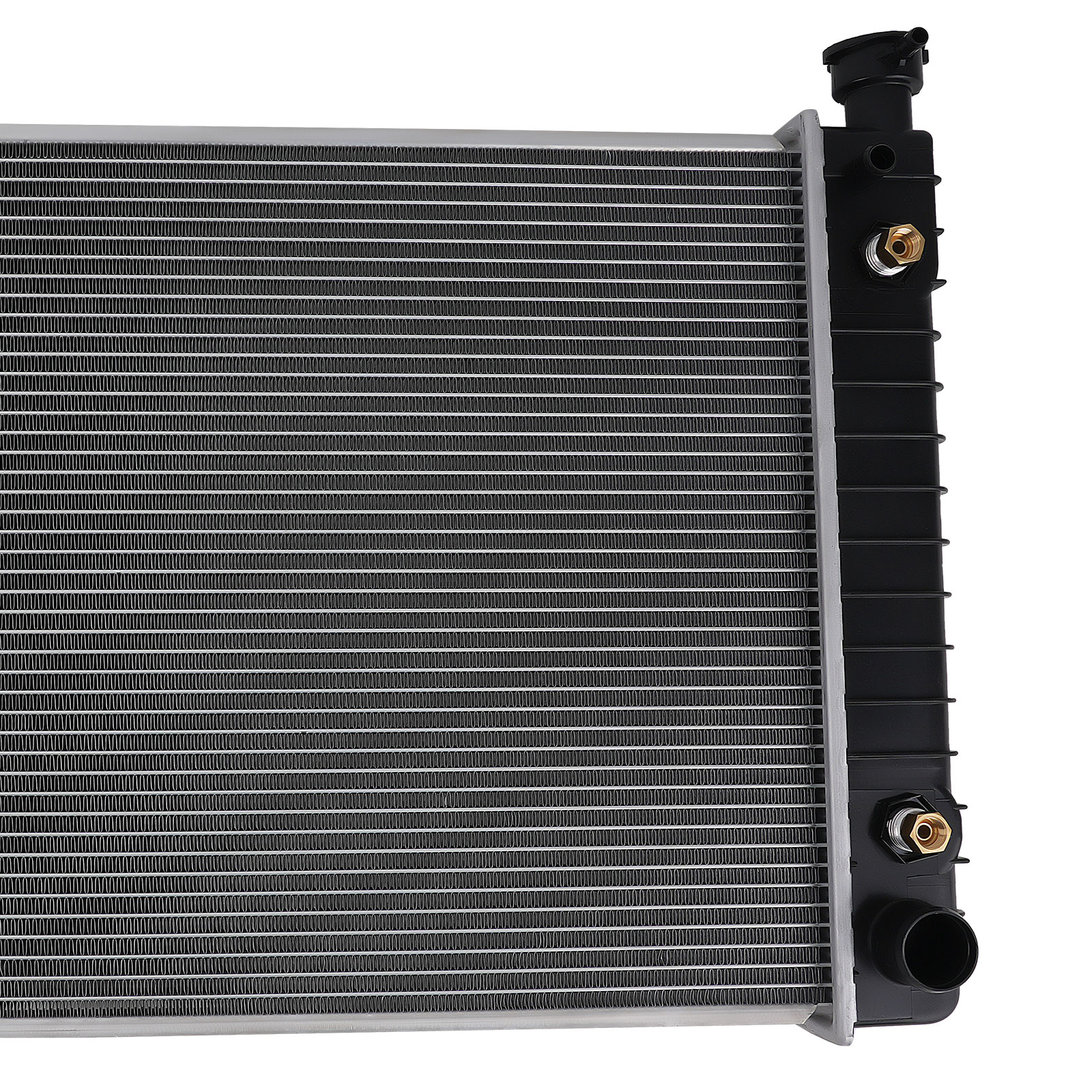

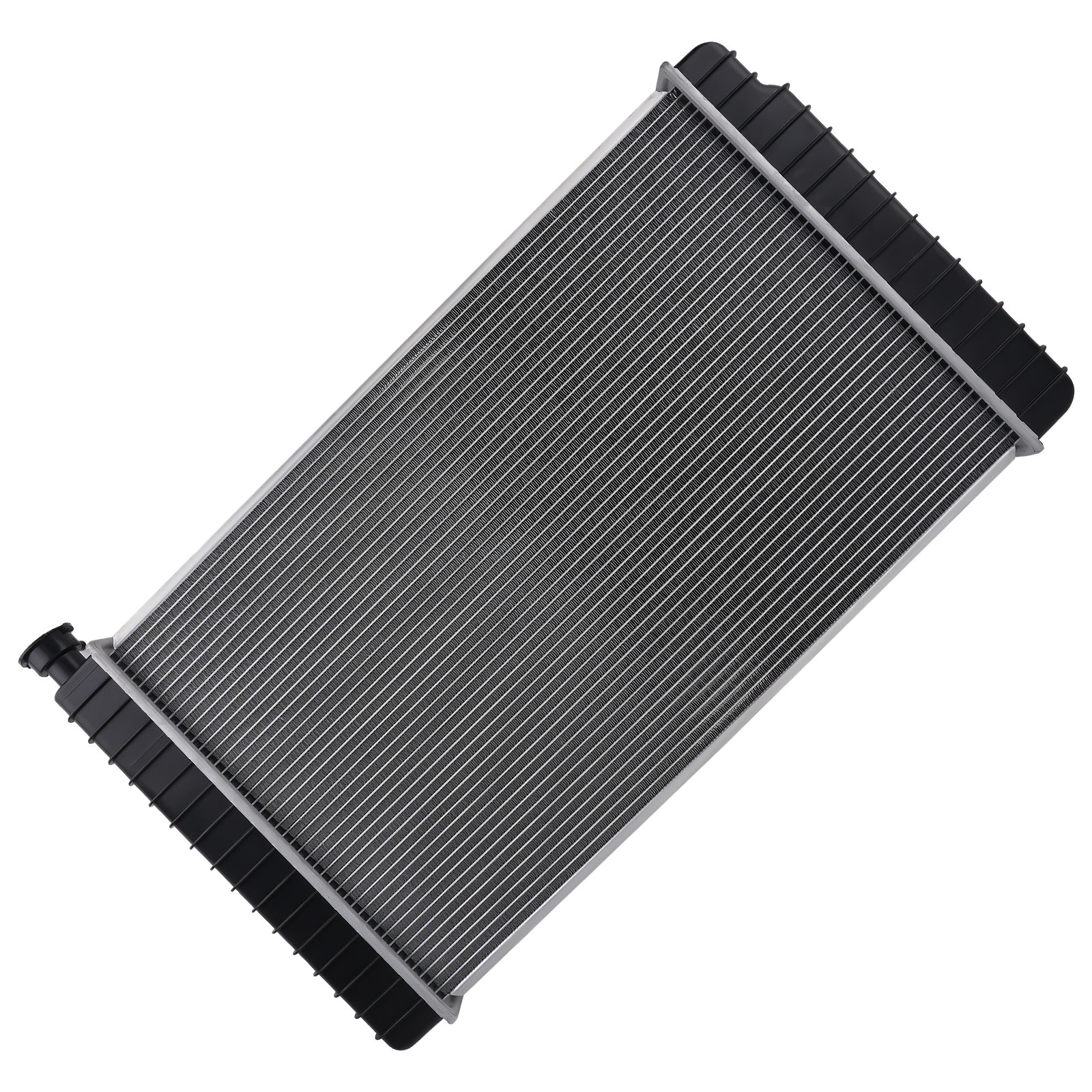

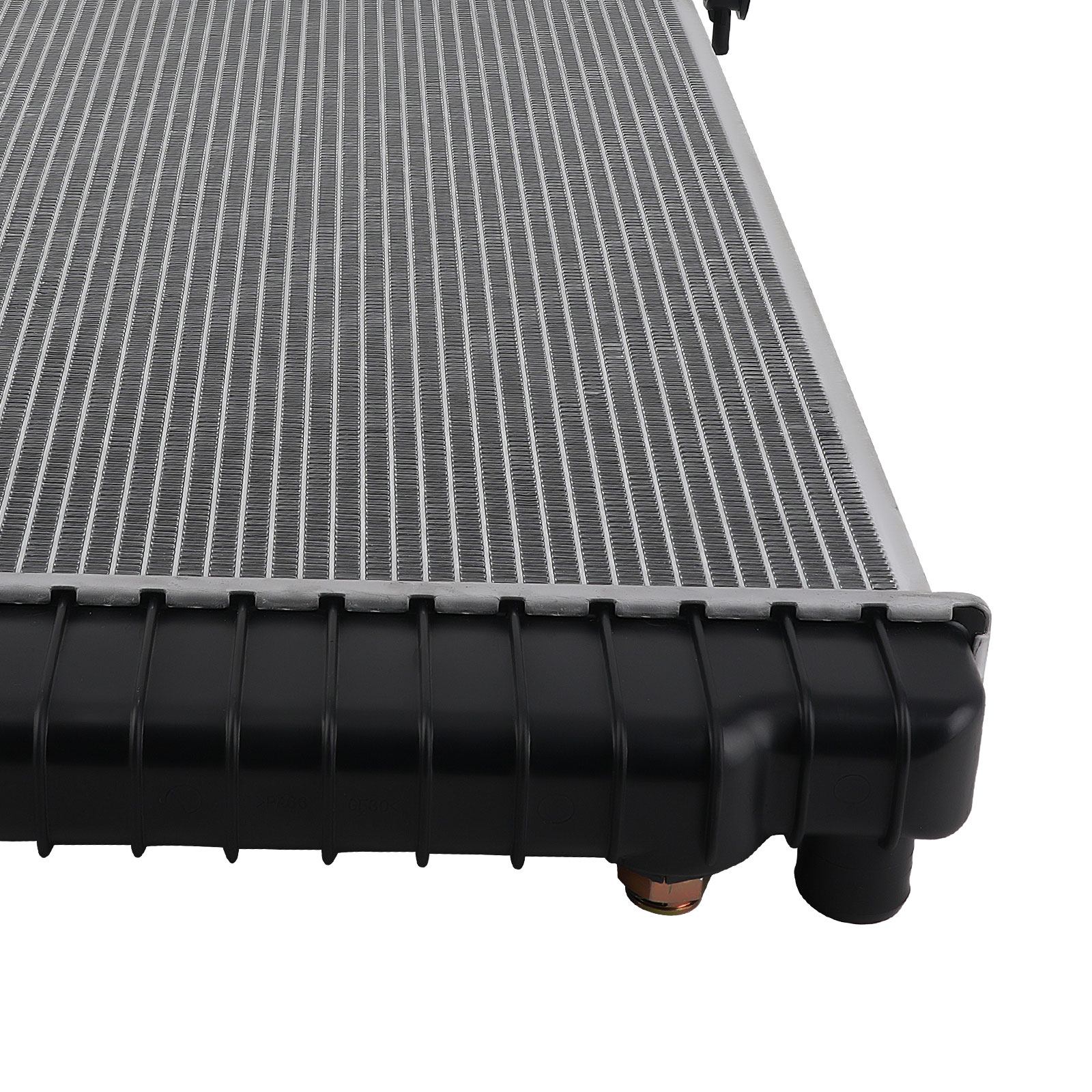

1 x Radiator (Showing as the picture)
