Application:
This Radiator Fits:
For Ford New Holland Tractor Radiator 1715
Replaces OEM Part Number SBA310100630

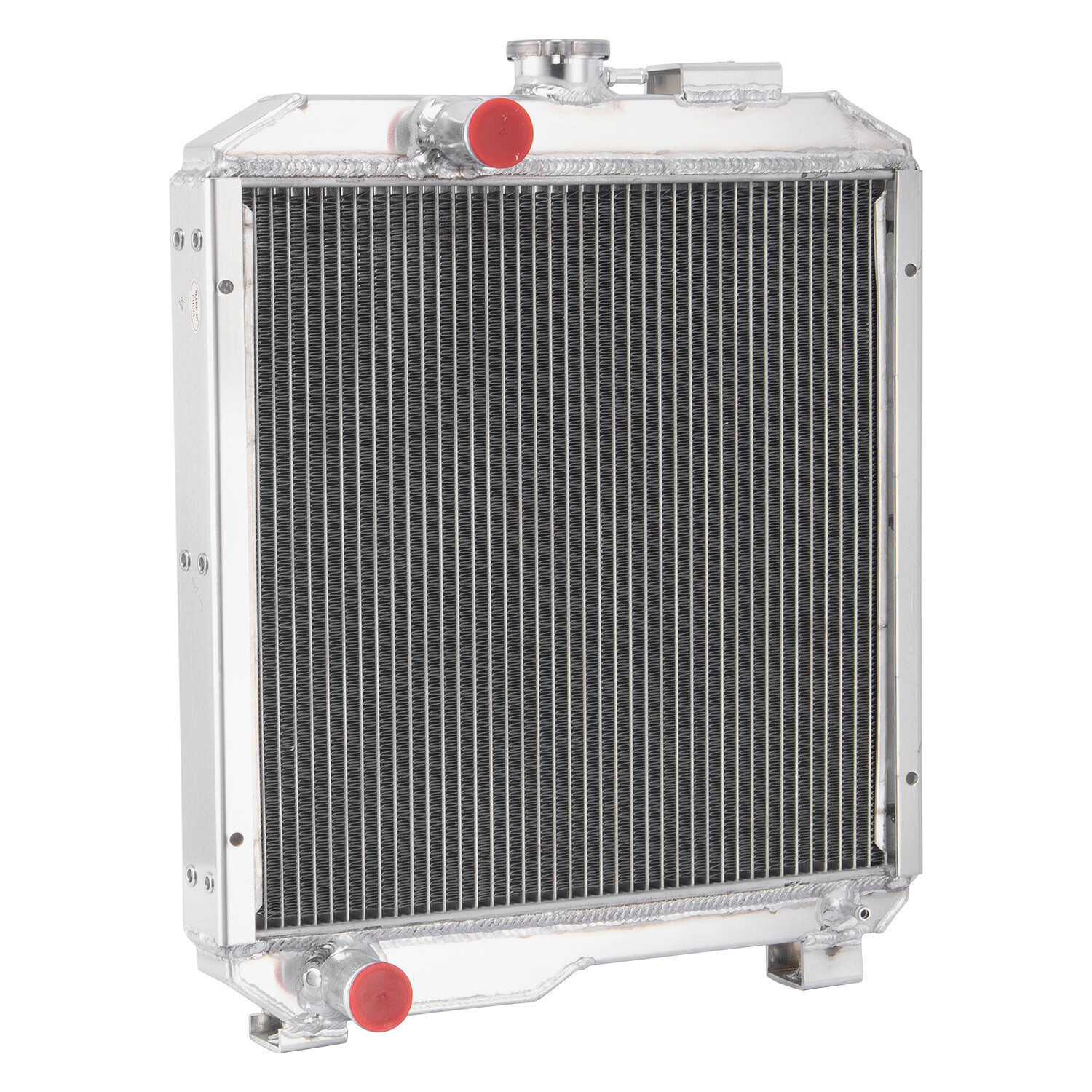

Radiator Configuration:
Material: Aluminium
High Performance Racing Spec.
2-Row of tubes Core Racing Design
Overall Dimensions: 20"Height x 17-1/4"Width
Core Dimensions: 15-3/4"Height x 16-1/2"Width
Inlet/Outlet: 1-3/8" / 1-3/8"
Depth: 1-3/16"
Fins Per Inch: 11
Fill Neck Height: 3/4"
Please Check The Dimensions Above Carefully Before You Buy!
Description:
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full Aluminum Construction.
This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
1 Higher density core: cooling rows are spaced 3/8" apart.giving you 25% more rows within the core than other aluminum radiators.
2 14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators,throws off much more heat.
