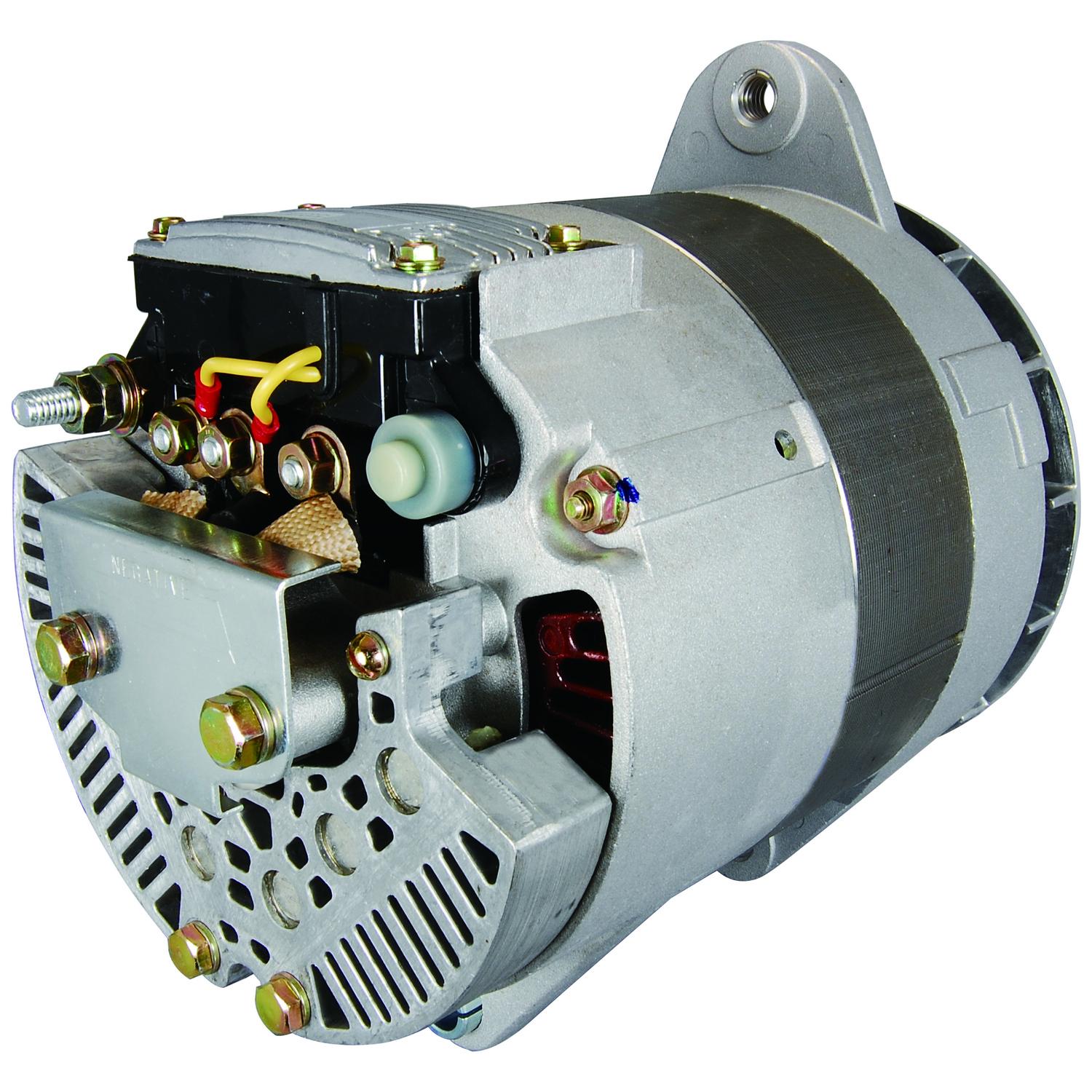

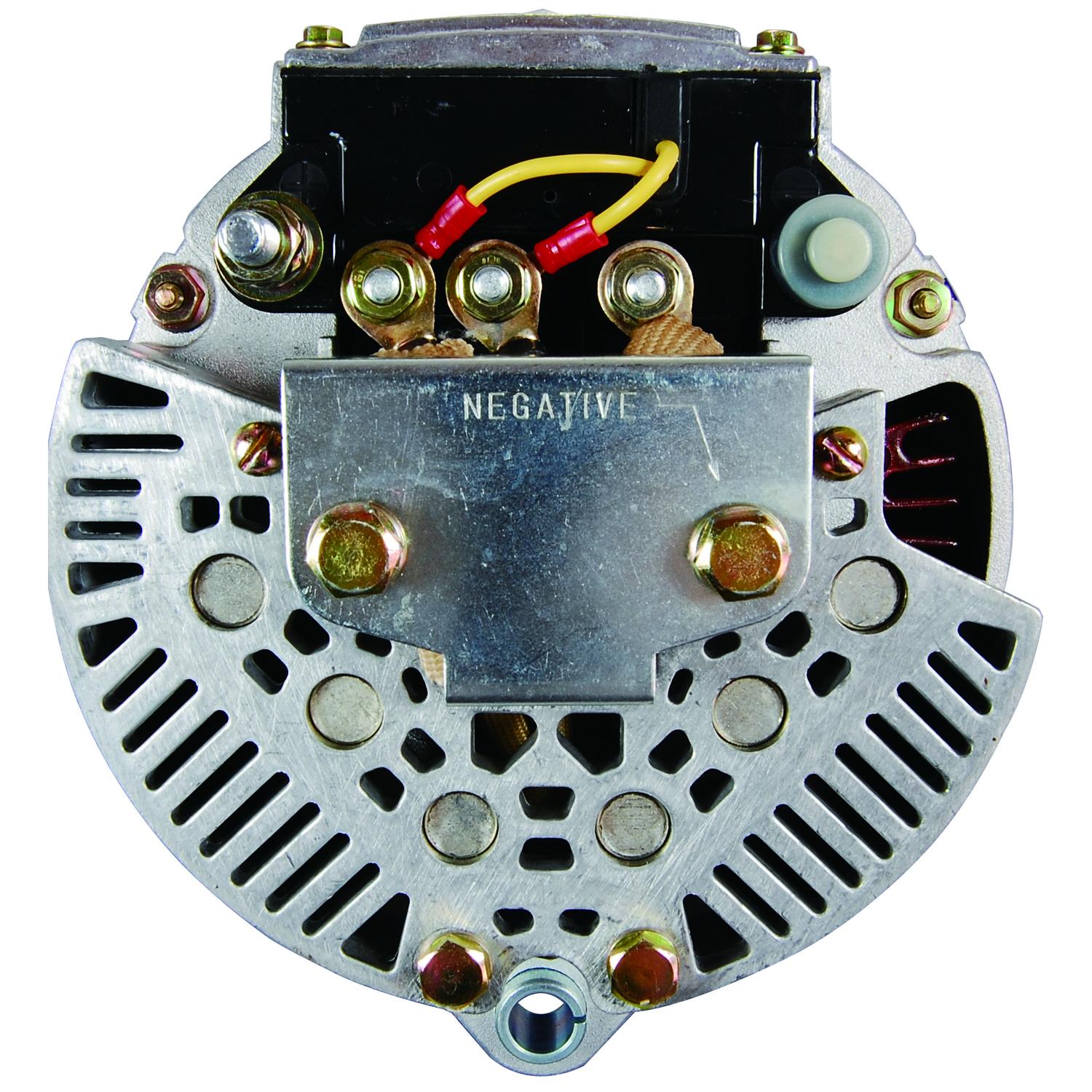

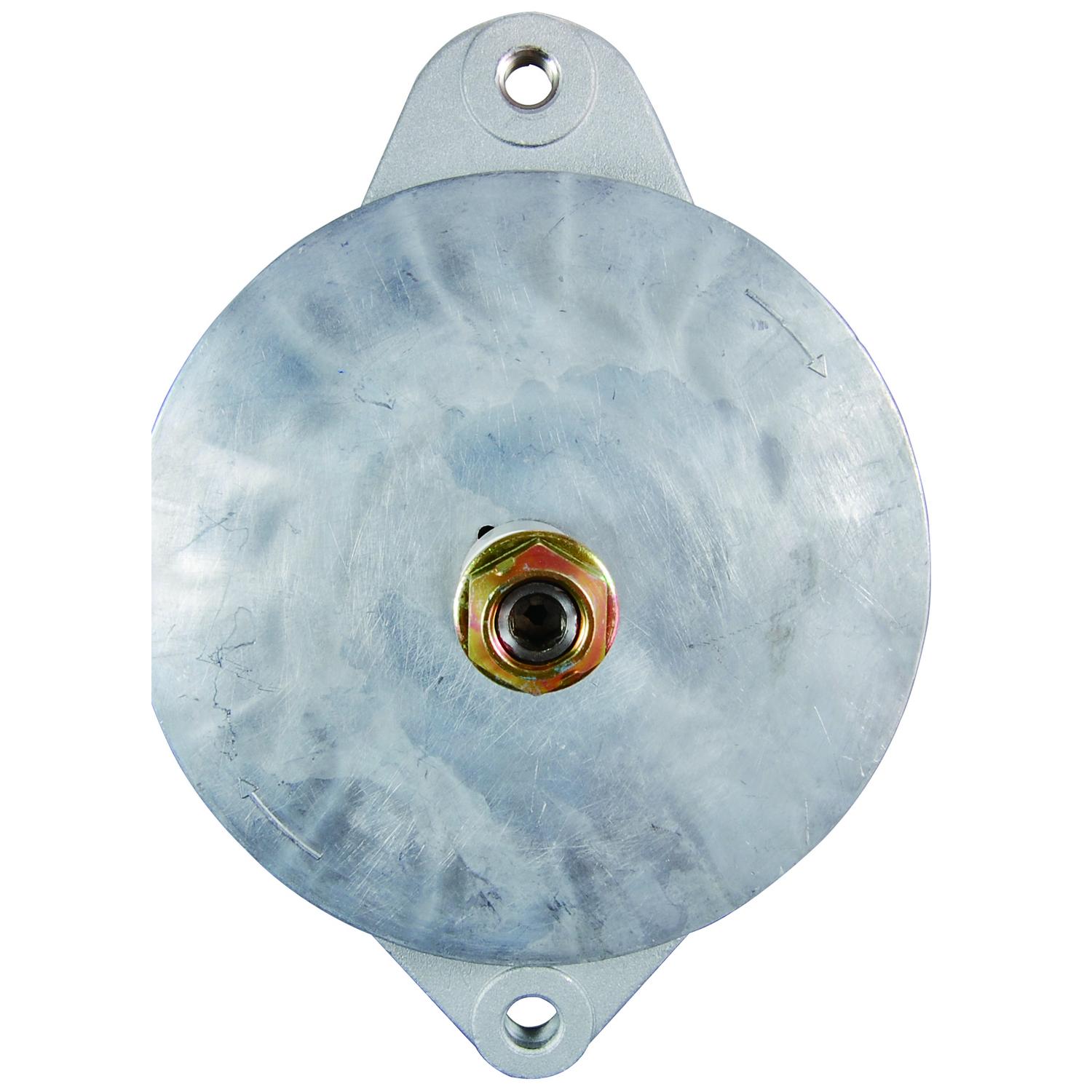

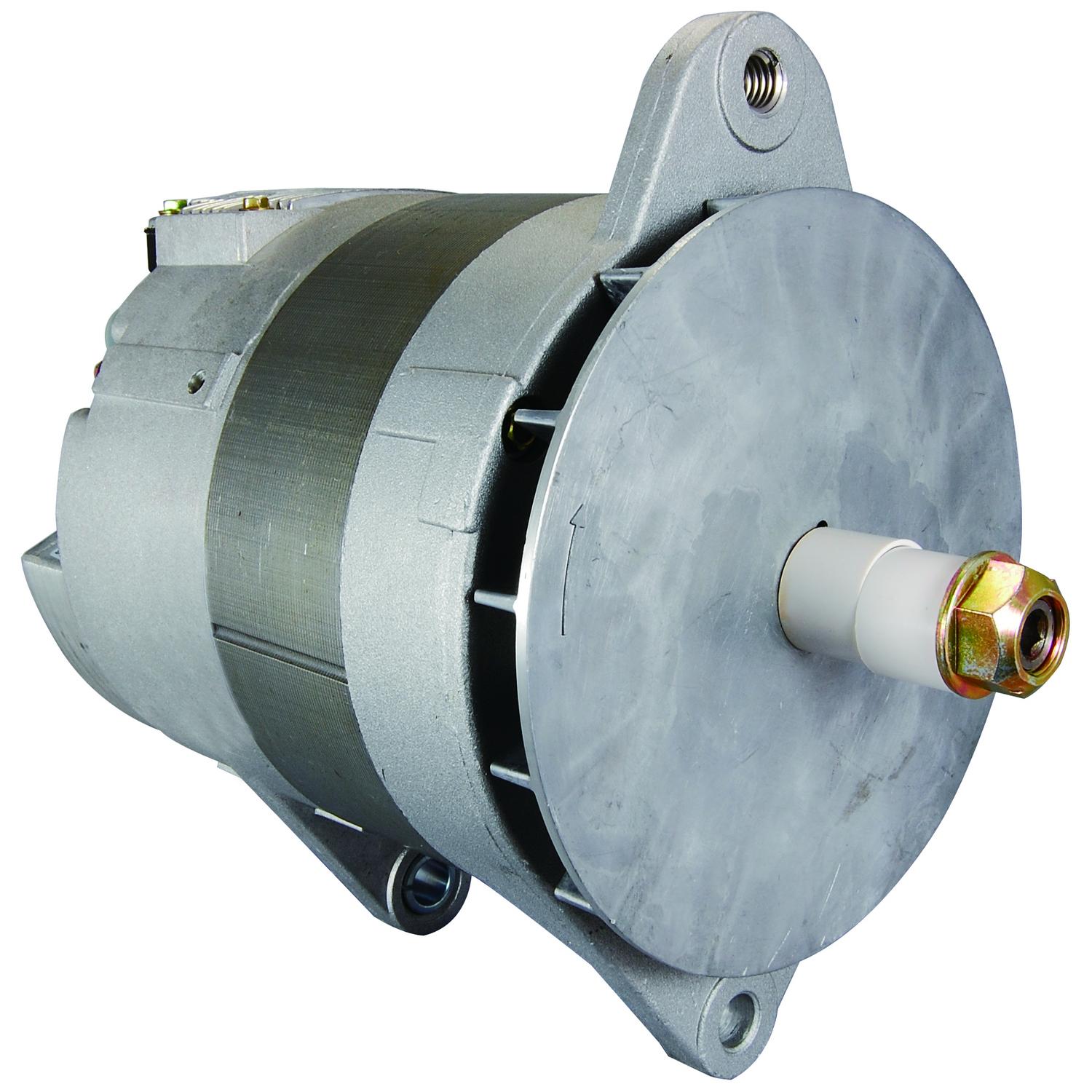

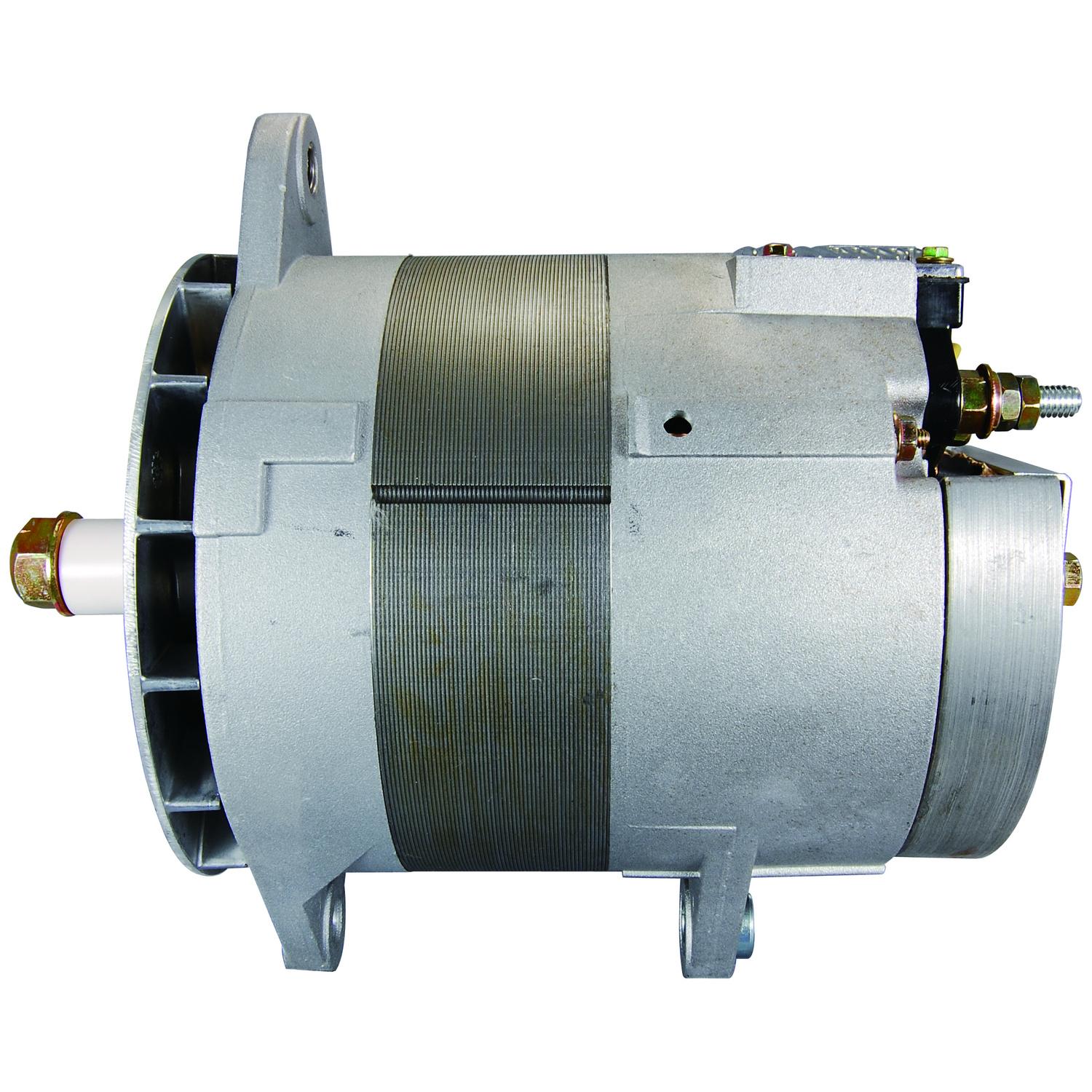

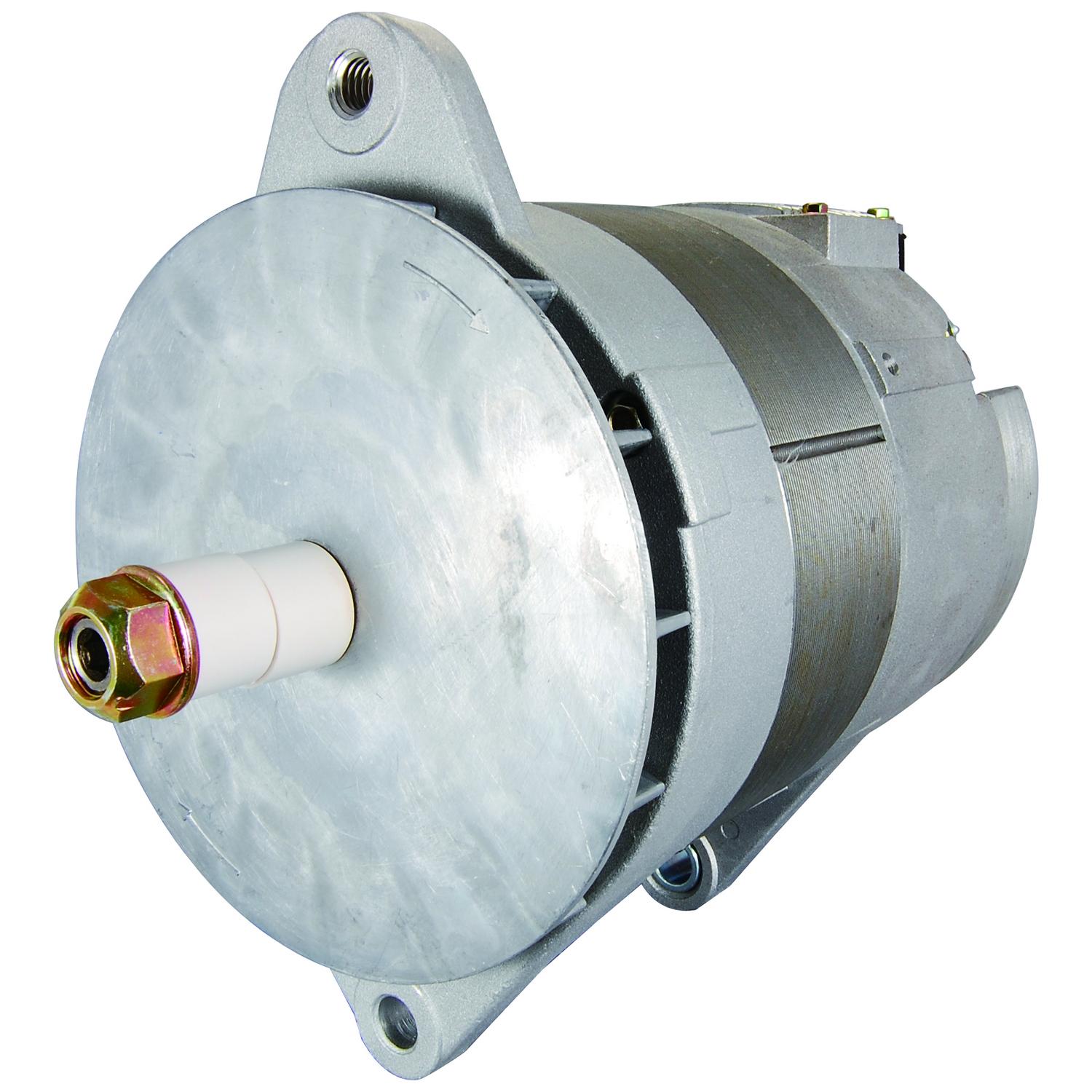

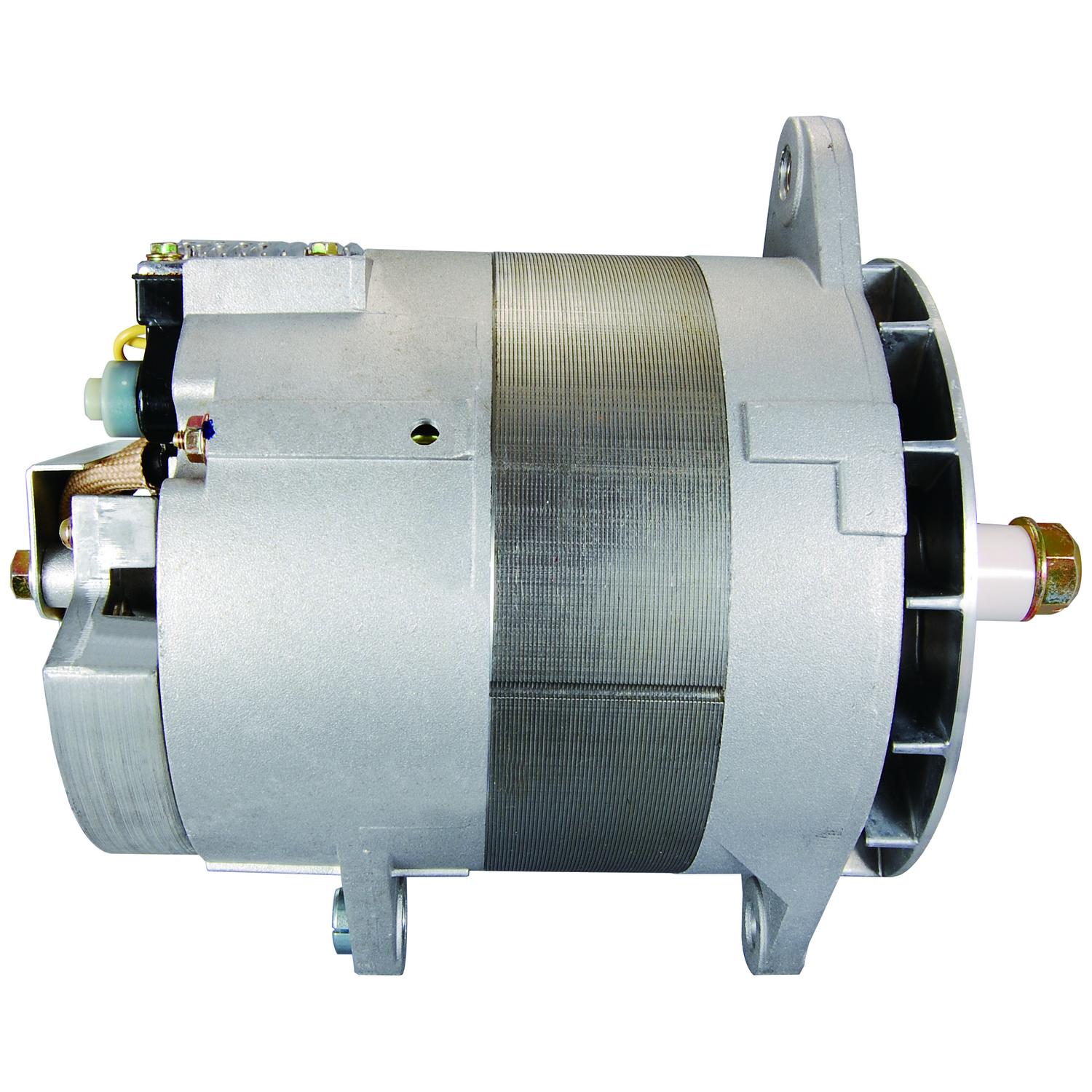

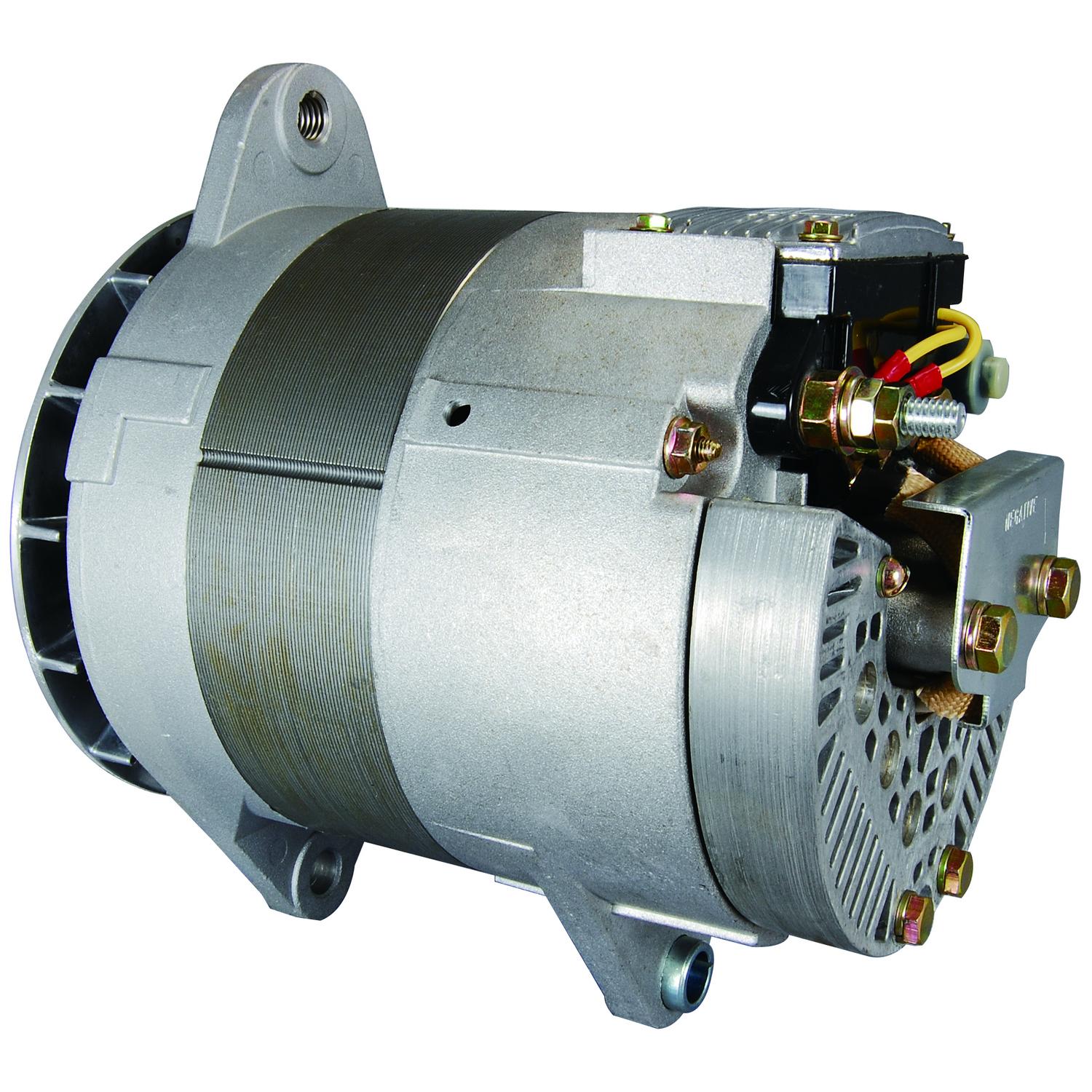

Product Type: Alternator; Condition: New; OE Manufacturer: Leece Neville; Unit Series: 4836LGH; Voltage: 12V; Amperage: 185A; Rotation: CW; Regulator/Fan: IR/EF; Pulley Class: Pulley Not Included; Mounting Hardware Included: No; Unit Finish: Same as OE; Number of Pieces: 1; Country of Origin: CN; Notes: PERMANENT MAGNET

New Alternator Compatible With Bluebird Bus Freightliner Caterpillar 3126 C7 ISB ISC IHC DT466 Compatible with John Deere 6081 Leece Neville 4836LGH 4836LGHRM A0014836LGH

Specifications

OE Manufacturer: LEECE NEVILLE
Product Type: Alternator
Weight: 31.0000
Condition: NEW
Unit Source:
Design / Type:
Design / Type:
Design / Type: 4836LGH
Starter Series:
Location - General:
Location - Specific:
Design Type:
Voltage: 12
Amperage: 185
kW:
Rotation: CW
Regulator/Fan: IR/EF
Tooth Count:
Spline Count:
Polarity:
Shaft Type:
Duty Cycle:
Horsepower:
RPM:
V-Set:
Circuit Type:
Plug Code:
Plug Orientation:
Pulley Class: w/o Pulley
Case OD (mm):
Overall Length (mm):
Gear OD (mm):
Pulley Belt Width (mm):
Pulley OD (mm):
Shaft Overall Length (mm):
Shaft OD (mm):
Clutch Type:
Operating Mode:
Pads Included:
Connection Type:
Piston Material:
Number of Pistons:
Piston Outside Diameter (in):
Piston Outside Diameter (mm):
Bleeder Port Measurement:
Inlet Port Measurement:
Ignition Type:
Housing Material:
Torque (ft. lbs):
Pulley OD (in):
Crankshaft OD (in):
Terminal Type:
Sensor Included:
Idle ACM Included:
Cage Wheel Included:
Wiring Harness Included:
Number of Pistons:
Caliper Pistion OD (mm):
Motor Overall Length (in):
Motor OD (in):
Wheel OD (in):
Bearing Inside Diameter (mm):
Bearing Outside Diameter (mm):
Bearing Width (mm):
Rotor Inside Diameter (mm):
Rotor Outside Diameter (mm):
Rotor Overall Length (mm):
Rotor Shaft Outside Diameter (mm):
Rotor Shaft Overall Length (mm):
Mounting Hardware Included: No
Installation Hardware Included:
Mounting Type:
Mounting Type:
Mounting Type:
Cap Design:
Plunger Type:
Includes:
Includes:
Number of Mounting Holes:
Number of Terminals:
Number of Wires:
ETB Inside Diameter (in):
Terminal Type:
Hose Inside Diameter:
Minimum Flow Rate:
Minimum Pressure:
Unit Finish: Same as OE
Unit Color:
Number of Pieces: 1
Country of Origin: CN
Country of Use:
Notes: PERMANENT MAGNET
Other Part #: 8658,270-471A,ALN0022,ALN0022-OE,90-04-7100

Customer Service Available 7 Days A Week

Blue Bird All American FE 2004-2005 L6 5.9L 359cid LN, IR / EF, 185A, B. Post-left
Blue Bird All American FE 1999-2006 L6 7.2L 441cid LN, IR / EF, 185A, B. Post-left
Blue Bird All American FE 2000-2005 L6 8.3L 8268cc 504cid LN, IR / EF, 185A, B. Post-left
Blue Bird All American RE 1999-2006 L6 7.2L 441cid LN, IR / EF, 185A, B. Post-left
Blue Bird All American RE 2000-2009 L6 8.3L 8268cc 504cid LN, IR / EF, 185A, B. Post-left
Blue Bird BB Conventional 2004-2006 L6 7.2L 441cid LN, IR / EF, 185A, B. Post-left
Blue Bird Commercial Bus 2004-2006 L6 5.9L 359cid LN, IR / EF, 185A, B. Post-left
Blue Bird Commercial Bus 2003-2006 L6 7.2L 441cid LN, IR / EF, 185A, B. Post-left
Blue Bird Commercial Bus 2000-2004 L6 8.3L 8268cc 504cid LN, IR / EF, 185A, B. Post-left
Blue Bird SHL All American 2004 L6 7.2L 441cid LN, IR / EF, 185A, B. Post-left
Blue Bird SHL Commercial 2004-2006 L6 7.2L 441cid LN, IR / EF, 185A, B. Post-left
Blue Bird SHL Commercial 2002-2004 L6 8.3L 8268cc 504cid LN, IR / EF, 185A, B. Post-left
Blue Bird TC2000 2004 L6 5.9L 359cid LN, IR / EF, 185A, B. Post-left
Blue Bird TC2000 1998-2000 L6 7.2L 441cid LN, IR / EF, 185A, B. Post-left
Blue Bird TC2000 2000-2002 L6 8.3L 8268cc 504cid LN, IR / EF, 185A, B. Post-left
Freightliner Argosy 2003-2008 All Caterpillar 3406, 14.6L LN, IR / EF 185 Amp, B. Post-left
Freightliner Argosy 2003-2006 All Caterpillar C12, 12.0L LN, IR / EF 185 Amp, B. Post-left
Freightliner Argosy 2003-2008 All Caterpillar C15, 15.2L LN, IR / EF 185 Amp, B. Post-left
Freightliner Argosy 2003-2006 All Caterpillar C16, 15.8L LN, IR / EF 185 Amp, B. Post-left
Freightliner Argosy 2003-2008 All Cummins ISX, 10.8L LN, IR / EF 185 Amp, B. Post-left
Freightliner Argosy 2003-2008 All Detroit DD60, 11.1L LN, IR / EF 185 Amp, B. Post-left
Freightliner Argosy 2003-2008 All MBE4000, 12.7L LN, IR / EF 185 Amp, B. Post-left
Freightliner Business Class M2 2003-2008 All Cummins ISC, 8.3L LN, IR / EF 185 Amp, B. Post-left
Freightliner Century Class 2003-2008 All C112 Caterpillar 3176, 10.3L LN, IR / EF 185 Amp, B. Post-left
Freightliner Century Class 2003-2008 All C112 Caterpillar C10, 10.3L LN, IR / EF 185 Amp, B. Post-left
Freightliner Century Class 2003-2008 All C112 Cummins ISM, 10.8L LN, IR / EF 185 Amp, B. Post-left
Freightliner Century Class 2003-2008 All C112 Cummins L10, 10.0L LN, IR / EF 185 Amp, B. Post-left
Freightliner Century Class 2003-2008 All C112 Cummins M11, 10.8L LN, IR / EF 185 Amp, B. Post-left
Freightliner Century Class 2003-2008 All C112 Cummins N14, 14.0L LN, IR / EF 185 Amp, B. Post-left
Freightliner FC80 2003-2008 All Cummins ISB, 5.9L LN, IR / EF 185 Amp, B. Post-left
Freightliner FC80 2003-2008 All Cummins ISC, 8.3L LN, IR / EF 185 Amp, B. Post-left
Freightliner FL, FLC 112 / 120 2003-2008 All Caterpillar 3306, 10.5L LN, IR / EF 185 Amp, B. Post-left
Freightliner FL, FLC 112 / 120 2003-2008 All Caterpillar 3408, 18.0L LN, IR / EF 185 Amp, B. Post-left
Freightliner FL, FLC 112 / 120 2003-2008 All Cummins 555, 9.1L LN, IR / EF 185 Amp, B. Post-left
Freightliner FL, FLC 112 / 120 2003-2008 All Cummins 855 LN, IR / EF 185 Amp, B. Post-left
Freightliner FL, FLC 112 / 120 2003-2008 All Cummins 8V-903, 14.8L LN, IR / EF 185 Amp, B. Post-left
Freightliner FL, FLC 112 / 120 2003-2008 All DD 6V-92, 9.0L LN, IR / EF 185 Amp, B. Post-left
Freightliner FL, FLC 112 / 120 2003-2008 All Detroit 8V-92, 12.1L LN, IR / EF 185 Amp, B. Post-left
Freightliner FL, FLC 112 / 120 2003-2008 All K Series LN, IR / EF 185 Amp, B. Post-left
Freightliner FL, FLC 112 / 120 2003-2008 All NTA LN, IR / EF 185 Amp, B. Post-left
Freightliner FL, FLC 112 / 120 2003-2008 All NTC LN, IR / EF 185 Amp, B. Post-left
Freightliner FL-90 2003-2008 All DD 50, 8.5L LN, IR / EF 185 Amp, B. Post-left
Freightliner FL-90 2003-2008 All Mercedes OM366, 6.0L LN, IR / EF 185 Amp, B. Post-left
Freightliner FL50 2003-2004 L6 6.4L 388cid LN, IR / EF 185 Amp; B. Post-left
Freightliner FL50 2003-2008 L6 7.2L 441cid LN, IR / EF 185 Amp; B. Post-left
Freightliner FL70 2003-2008 All Caterpillar C7, 7.2L LN, IR / EF 185 Amp, B. Post-left
Freightliner FLD 112 / 120 2003-2008 All Caterpillar C13, 12.5L LN, IR / EF 185 Amp, B. Post-left
Freightliner WF (C, P, T) Series 2003-2008 All 21000 LN, IR / EF 185 Amp, B. Post-left
Freightliner WF (C, P, T) Series 2003-2008 All Caterpillar 1674 LN, IR / EF 185 Amp, B. Post-left
Freightliner WF (C, P, T) Series 2003-2008 All Caterpillar 1693 LN, IR / EF 185 Amp, B. Post-left
Freightliner WF (C, P, T) Series 2003-2008 All Detroit 8V-71, 9.3L LN, IR / EF 185 Amp, B. Post-left
Freightliner WF (C, P, T) Series 2003-2008 All Detroit DD12V-71, 14.0L LN, IR / EF 185 Amp, B. Post-left
Freightliner WF (C, P, T) Series 2003-2008 All K6 LN, IR / EF 185 Amp, B. Post-left
Freightliner WF (C, P, T) Series 2003-2008 All NH Engs. LN, IR / EF 185 Amp, B. Post-left

*NOTE: "M.T" Indicates Manual Transmission / "A.T" Indicates Automatic Transmission*
Please Reach Out To Customer Service To Confirm Fitment, If Necessary.

Leece Neville: 4836LGH, 4836LGHRM, A0014836LGH
Lester: 8658
PIC: 270-471A
Arrowhead: ALN0022
Arrowhead Old: ALN0022-OE
Wilson Heavy Duty: 90-04-7100
Romaine Electric: 36-8658
Dixie Electric: A-795
