VLUUKE Digital Insulation Tester 10kv Insulation Resistance Meter

Function

Insulation resistance test, voltage test, DC current test, capacitance test

Basic condition

23℃±5℃，below 75%rh

KD2677E

Rated voltage

100V、250V、500V、1000V、2500V、5000V

Insulation resistance range

0.01MΩ～10TΩ

resolution：0.01MΩ

KD2677F

Rated voltage

250V、500V、1000V、2500V、5000V、10KV

Insulation resistance range

0.01MΩ～35TΩ

resolution：0.01MΩ

KD2677

Rated voltage

500V、1000V、2500V、5000V、10KV、15KV

Insulation resistance range

0.01MΩ～50TΩ

resolution：0.01MΩ

Test Voltage(V)

rated voltage×（1±10%）

DC Voltage Range

0～1000V

Resolution: 0.1V

AC Voltage Range

0～750V

Resolution: 0.1V

DC Current

0.1nA～6mA

Resolution: 0.1nA

Capacitance

10nF～50uF

Resolution: 10nF

Output short-circuit Current

≥6mA@15KV

Absorption Ratio and Polarization Index Measurement

Have

Filter test(FR)

10S 20S 30S 40S 50S

Oblique wave test（RAMP）

Target voltage %10 Step up to the final target voltage

Power Supply

12.6V rechargeable battery

Backlight

Controllable gray screen backlight, suitable for use in dim places

Dispaly mode

4-bit large LCD display, gray screen backlight

LCD display size

108mm×65mm

Instrument size

L/W/H：240mm×188mm×85mm

USB interface

With USB interface, software monitoring, storage data can be uploaded to the computer, save and print

Communication Line

USB communication line 1PC

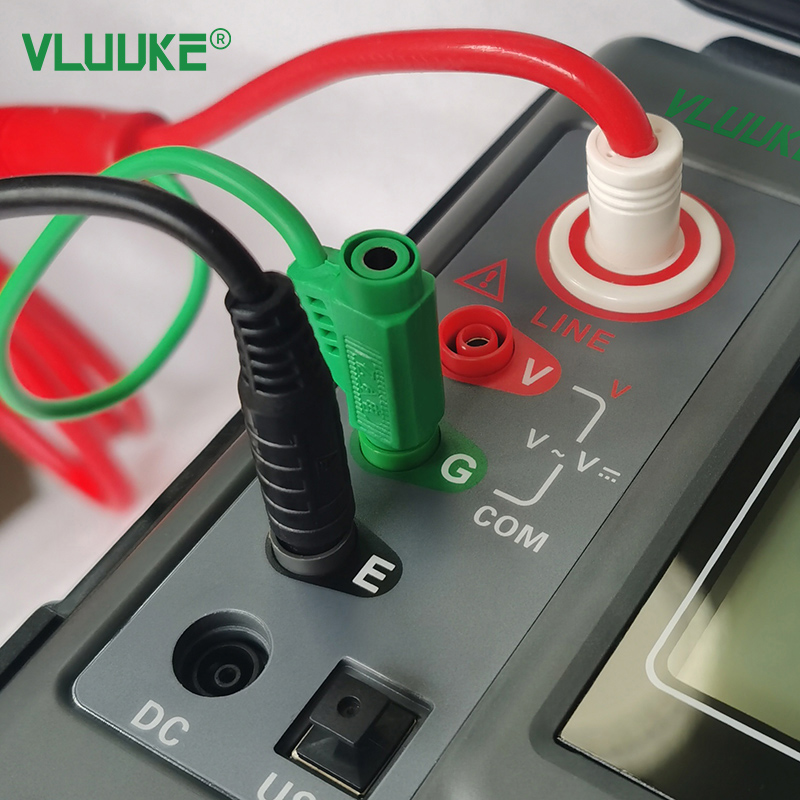

Test Line

High voltage rob red 3meter, high voltage test line black 1.5meter, green 1.5meter

Data Storage

500 groups, "FULL" symbol indicates that storage is full

Data Review

Data review function: "MR" symbol display

Overflow Display

Exceed measurement range overflow function: “> ” symbol display

Alarm Function

Alarm when the measured value larger or smaller than the alarm setting value

Power Consumption

Standby: 30mA Max(backlight off), Turn on backlight: 42mA Max

Measure：200mA Max(backlight off)

Instrument weight

2750g(including battery)

Battery voltage

When the battery voltage is low, low battery symbol “ ”will display

Automatic shut-down

automatic shutdown after 15 minutes boot

Insulation Resistance

≥50MΩ(between Measuring line and housing)

Pressure Resistance

AC3kV/50Hz 1min

Introduction
Shipping
Terms
Return Policy

Introduction

CONDITION: Brand New
QUANTITY: 1 set
COLOR: As The Picture (Picture is the real object you get)
NOTE: All the items come to you with the tracking number

Shipping

Delivery Time: 5-15 business days (Varies by Destination)
Shipping Carriers are responsible on the delivery time. If you have any questions or problems with delivery, please contact carrier directly
Standard Order Processing time:
All items will ship within 24 hours (Monday - Friday).
Payment cleared/received on Friday will be shipped on the next business days (Monday or Tuesday)
We are not responsible for carrier transit time. This information is provided by the carrier and excludes weekends and holidays. Note that transit times may vary, particularly during peak periods or in climate weather conditions, and that delivery times frames will need to be extended for any processing time frames in excess of 1-2 business days.

Terms

◆ 30 Day money back satisfaction guarantee
◆ 1 YEAR warranty covers manufactory defects

Return Policy

If your order has been received and it is not what you ordered, or if your item has a manufacturer defect, please contact us within 14 days from delivery date. And you must contact us to request an Return Merchandise Authorization Number (RMA). No return package will be accepted without a valid RMA number. All products are covered by our warranty against defects. If an item proves to be defective, please contact us to have the product repaired or replaced. All of our products are covered by a 90-Day warranty.

Function		Insulation resistance test, voltage test, DC current test, capacitance test
Basic condition		23℃±5℃，below 75%rh
KD2677E	Rated voltage	100V、250V、500V、1000V、2500V、5000V
	Insulation resistance range	0.01MΩ～10TΩ		resolution：0.01MΩ
KD2677F	Rated voltage	250V、500V、1000V、2500V、5000V、10KV
	Insulation resistance range	0.01MΩ～35TΩ		resolution：0.01MΩ
KD2677	Rated voltage	500V、1000V、2500V、5000V、10KV、15KV
	Insulation resistance range	0.01MΩ～50TΩ		resolution：0.01MΩ
Test Voltage(V)		rated voltage×（1±10%）
DC Voltage Range		0～1000V	Resolution: 0.1V
AC Voltage Range		0～750V	Resolution: 0.1V
DC Current		0.1nA～6mA	Resolution: 0.1nA
Capacitance		10nF～50uF	Resolution: 10nF
Output short-circuit Current		≥6mA@15KV
Absorption Ratio and Polarization Index Measurement		Have
Filter test(FR)		10S 20S 30S 40S 50S
Oblique wave test（RAMP）		Target voltage %10 Step up to the final target voltage
Power Supply		12.6V rechargeable battery
Backlight		Controllable gray screen backlight, suitable for use in dim places
Dispaly mode		4-bit large LCD display, gray screen backlight
LCD display size		108mm×65mm
Instrument size		L/W/H：240mm×188mm×85mm
USB interface		With USB interface, software monitoring, storage data can be uploaded to the computer, save and print
Communication Line		USB communication line 1PC
Test Line		High voltage rob red 3meter, high voltage test line black 1.5meter, green 1.5meter
Data Storage		500 groups, "FULL" symbol indicates that storage is full
Data Review		Data review function: "MR" symbol display
Overflow Display		Exceed measurement range overflow function: “> ” symbol display
Alarm Function		Alarm when the measured value larger or smaller than the alarm setting value
Power Consumption		Standby: 30mA Max(backlight off), Turn on backlight: 42mA Max Measure：200mA Max(backlight off)
Instrument weight		2750g(including battery)
Battery voltage		When the battery voltage is low, low battery symbol “ ”will display
Automatic shut-down		automatic shutdown after 15 minutes boot
Insulation Resistance		≥50MΩ(between Measuring line and housing)
Pressure Resistance		AC3kV/50Hz 1min
