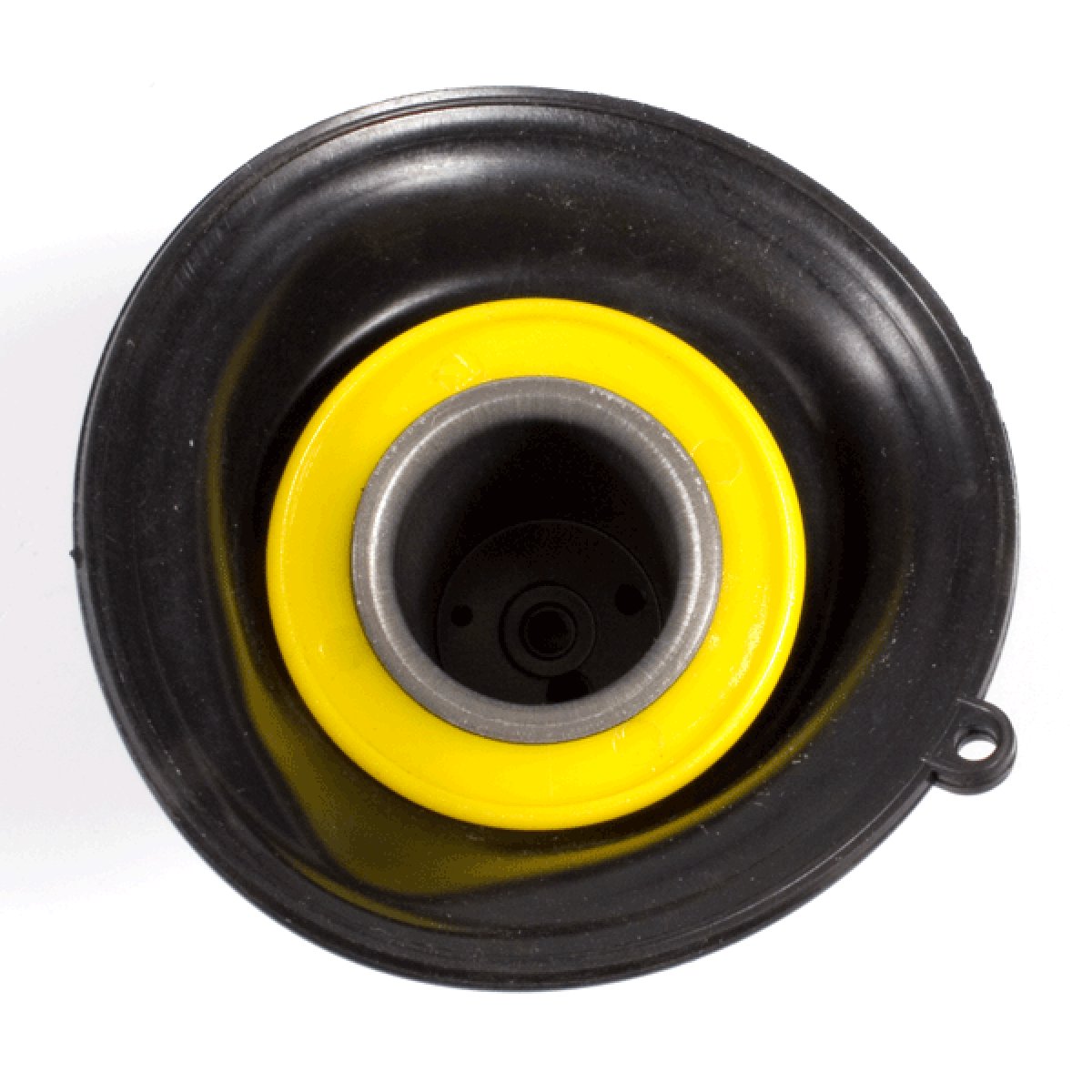

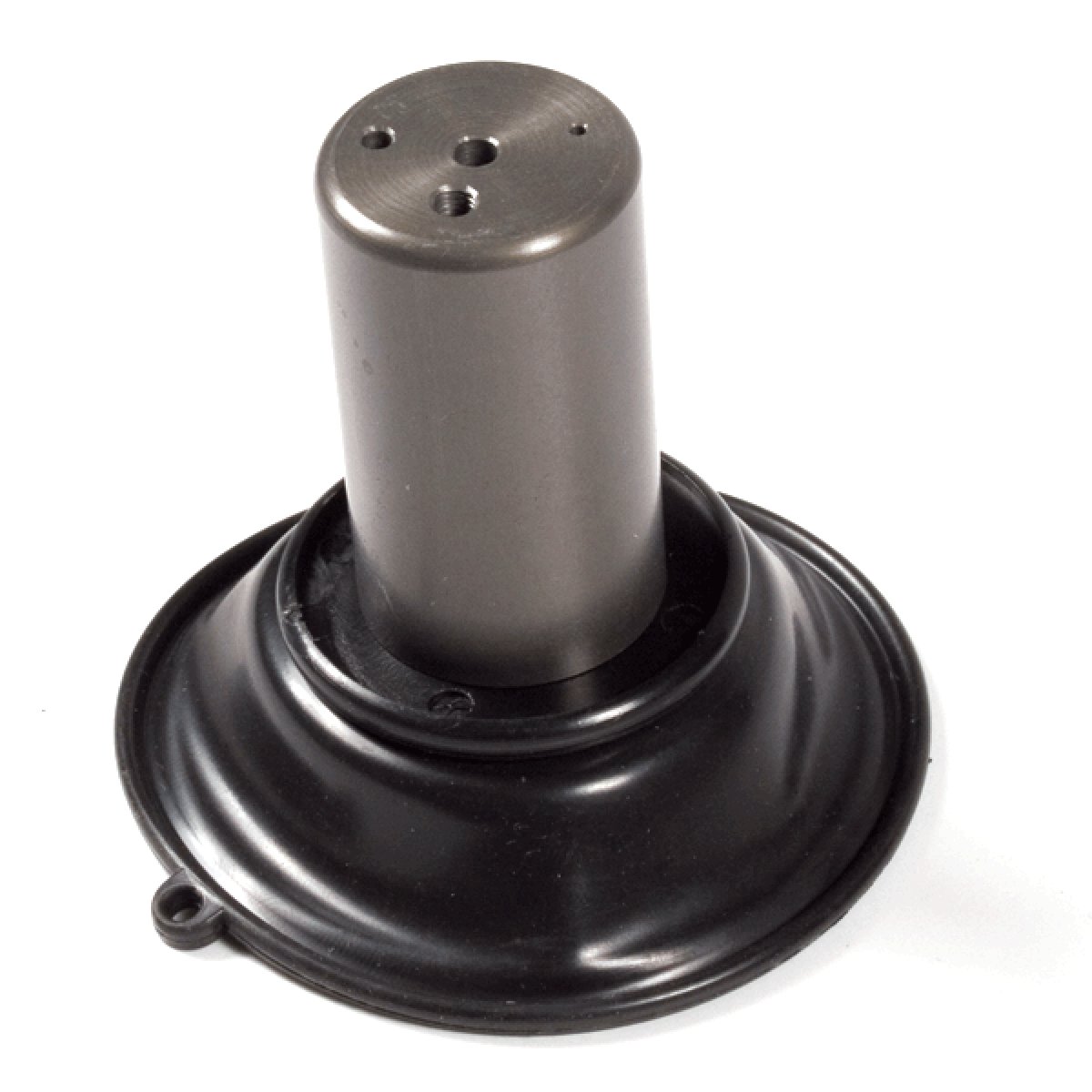

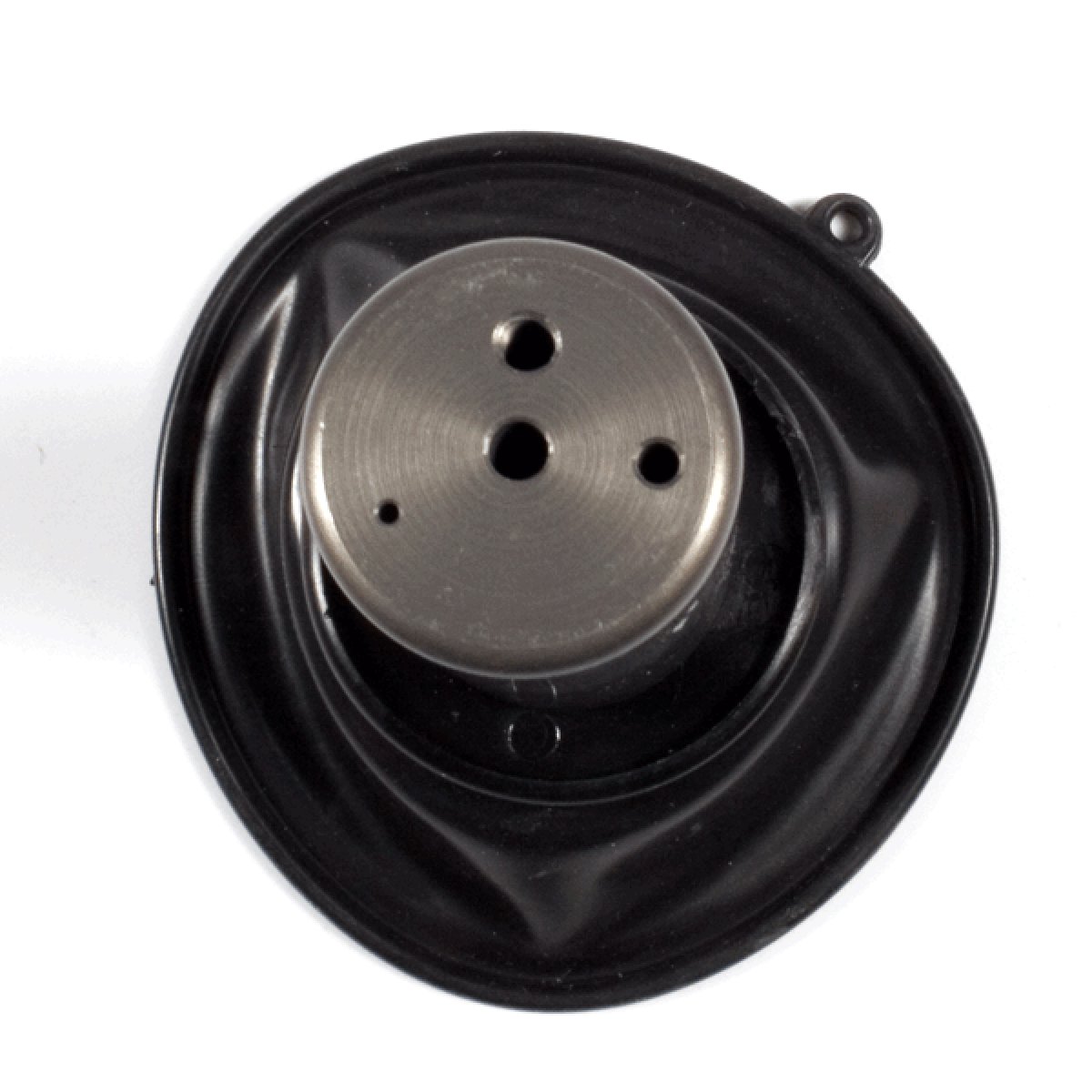

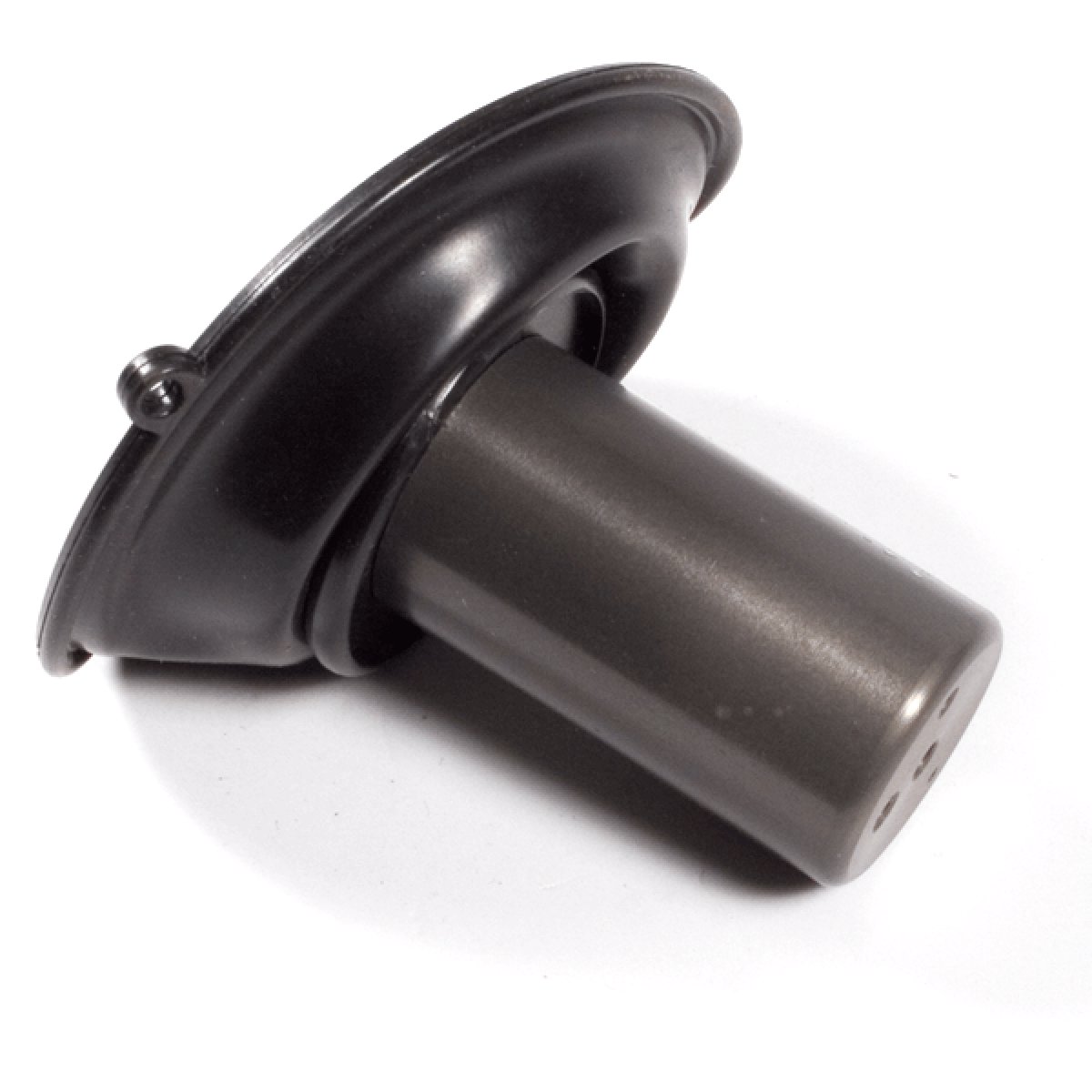

Carburettor Diaphragm 125cc Scooter for Sheng Wey, Kehin, Hong Lin, Huakai CARB
Supplier Order code: CRBD003
DESCRIPTION
This consists of a flexible diaphragm on one side of the fuel chamber, connected to a needle valve which regulates the fuel entering the chamber. As the volume of fuel in the chamber reduces, the diagphragm moves inward, which opens the needle valve to admit more fuel.
IMPORTANT: Suitable for 125cc scooters which have either a Sheng Wey, Kehin, Hong Lin or Huakai brand carburettor.
In the category of Fuelling, Air and Cooling > Carburettors and Carb parts > Carburettor Parts
You should buy this Carburettor Diaphragm
COMPATIBILITY
- AJS: Exactly 125 LJ125T-B(AJS), Modena 125 ZN125T-27
- Baotian: BT125T-9, Evolution 125 BT125T-12E1, Glow 125 BT125T-2, Hawk 125 BT125T-7, Monza 125 BT125T-21A3, Rebel 125 BT125T-12, Tanco 125 BT125T-12F
- Benzhou: YY125T-6, YY125T-11 YY125T-11(BENZHOU), YY125T-19 YY125T-19(BENZHOU), YY125T-31
- CPI: ARAGON 125, OLIVER 125
- Direct Bikes: 125cc Classic DB125T-F, 125cc Cobra DB125T-6, 125cc Cobra E3 DB125T-15D, 125cc Cruiser DB125T-12A, 125cc Cruiser E3 DB125T-7, 125cc Cruiser E3 DB125T-7H, 125cc Lynx E3 DB125T-10, 125cc Milan E3 DB125T-30A, 125cc Scorpion E3 DB125T-32A, 125cc Sports E3 DB125T-26, 125cc Spyder E3 DB125T-22, 125cc Tommy E3 DB125T-E, 125cc Viper DB125T-25, 125cc Viper E3 DB125T-32, DB125T-9, DB125T-13
- Eurocka: VIRTUALITY 125T JJ125T-13(EUROCKA)
- Flex Tech: Apollo 125 APOLLO125, Athena 125 JJ125T-3(FLEX TECH), Firenze 125 YY125T-19(FLEX TECH), Fun 125 YY125T-6(FLEX TECH), KVR 125 YY125T-11A, Panter 125 JL125T-13(FLEX TECH), Piacenza 125 YY125T-31(FLEX TECH), Topspeed 125 YY125T-11, VRR-125 YY125T-10C
- GRIP: Freestyle 125cc HT125T-25
- Giantco: Athena 125 JJ125T-3
- Haotian: Cobra 125 HT125T-4
- Huatian: City 125cc HT125T-25, Sport 125cc HT125T-21
- IMF Industrie: Twist 125 TWIST125
- Jack Fox: Apollo 125 APOLLO125(JACK FOX), Formula One YY125T-6(JACK FOX), Retro Cruiser YY125T-19(JACK FOX)
- Jiajue: Virtuality JJ125T-13
- Jinlun: 125cc Cobra Scooter JL125T-6, 125cc Cruiser Scooter JL125T-12A, 125cc Tommy Scooter E3 JL125T-10, Hornet 125 LK125GY-2, JL125T-13
- Jonway: Adventure 125 YY125T-12, Madness 125 YY125T-31(MADNESS)
- Leike: 125GY-2 LK125GY-2
- Lexmoto: Dart 125 WY125T-100, FMR 125 WY125T-74R, FMS 125 ZN125T-7H, FMX 125 WY125T-108, Firenze 125 ZN125T-F, Gladiator 125 SB125T-23B, Milano 125 FT125T-27, Tommy 125 E3 ZN125T-E, Tornado 125 SB125T-21(B08), Valencia 125 ZN125T-K, Verona 125 WY125T-41, Vienna 125 WY125T-121, Zoom II 125 SB125T-21(B10)
- Lifan: Aero 125 LF125T-26, LF125T-6, Retro LF125T-9A
- Lintex: HT125T-12
- Longjia: Alien 125 LJ125T-A, LJ125T-B, Raptor 125 LJ125T-A
- Mondial: 125 RT Akik RTAKIK
- Nipponia: Dion 125 DION125, Miro 125 MIRO125
- Nova Motors: Retro Cruiser YY125T-19(NOVA MOTORS)
- Pulse: Lightspeed 2 125 WY125T-74, Lightspeed 125 HT125T-25, Phantom 125 ZN125T-32A, Rage 125 LK125GY-2, Vijo 125 HT125T-9, Zoom 125 HT125T-21
- Qingqi: Sum-Up QM125T-10H
- Razzo: Tanco 125 BT125T-12F
- Rex: Imola 125 IMOLA125, Milano 125 MILANO125, Monaco 125 MONACO125, RS 125 RS125
- Romet: Retro 7 125 RETRO7
- Sanben: Gladiator 125 (06/07) SB125T-23, SB125T-23B, Tornado 125 (06/07) SB125-B08, Tornado 125 SB125T-21(B08), Zoom 125 (06/07) SB125-B09, Zoom II 125 SB125T-21(B10)
- Sinnis: Eagle 125 QM125T-10R, Eco City 125 QM125T-8G, Harrier 125 ZN125T-22(SINNIS), Matrix II 125cc QM125T-10H, Shuttle 125 ZN125T-7H(SINNIS), Spirit 125 ZN125T-E-S
- Skygo: Commander SG125T-6, Milan SG125T-9A
- Sukida: Alien 125 SK125T-14, Commander SK125T-18, Sportman 2 SK125T-21-SM, Viper 125 SK125T-21
- Superbyke: SMAX 125 SMAX125
- Tamoretti: Retro 125 E3, Stealth 125 STEALTH125
- WK Bikes: Bellissima 125 HT125T-12(WK)
- Wangye: WY125-B08, WY125-B09, WY125T-21(B08), WY125T-21(B10), WY125T-23A, WY125T-23B
- Xingyue: Cobra 125 LLX125T-11
- Yiben: Gladiator 125 YB125T-15(B), Hurricane 125 YB125T-22, Strider 125 YB125T-15, Striker 125 YB125T-22D, Zoom 125 YB125T-22C
- Yiying: Tommy 125 YY125T-19
- Zing Bikes: Beat 125cc LF125T-9A
- Znen: Firenze 125 ZN125T-F, Tommy 125 E3 ZN125T-E, ZN125T-22
SPECIFICATIONS
- Type: Scooter
- Diaphragm Piston Diameter: 22.0mm
- Diaphragm Piston Length : 37.0mm
- Holes on the end of the Diaphragm Piston: 3
