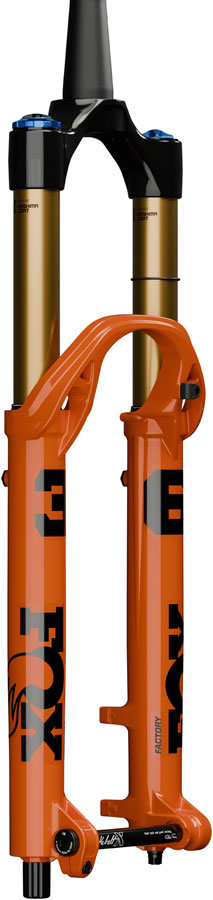

FOX 36 Factory Suspension Fork - 29", 160 mm, 15 x 110 mm, Kabolt-X, 44mm Offset, GRIP X Damper, 58HT, Shiny Orange
- We ship super fast! We have retail stores in California, Nevada & Pennsylvania that ship out product daily.
- This is an authentic FOX product with all retail packaging from a real bike shop with a 30 day return policy.
- We are authorized dealers for FOX and all FOX products come with the full warranty.
- You can trust us!
Packed with features to dominate the descents, the 36 answers the call from aggressive all-mountain riders. Available in both trail-focused GRIP X and gravity-focused GRIP X2 damper options.
- GRIP X damper exudes exemplary descent performance, refined for less weight, easier set up and an easy access firm mode for pedaling efficiency
- Generative design-assisted lower leg arch shape increases torsional stiffness by 20%, while reducing overall material
- Additional 30mm bushing overlap than the prior model 36, reduces chassis friction, increasing stiffness and boosting performance
- New compliant FLOAT EVOL air spring design allows for a slight misalignment under load, reducing chassis friction noticeably
- Lower leg bypass channels were relocated 90 inboard to a lower stress area, reducing dynamic friction under bending forces
- Double-butted stanchion (on damper side) shaves weight, helping us achieve goal of zero weight increase
- New air spring top cap for easier air volume adjustments, removable with cassette tool (Sold separately)
- Redesigned bleeders are sleeker and easier to operate
- Kabolt X axle shaves grams while increasing torsional stiffness via a sleeveless, single-sided pinch bolt design
- Kashima Coating on upper tubes for added smoothness and durability
| Item Specifications | |
|---|---|
| Axle to Crown Length | 576 |
| Brake Type | Post Mount 200 |
| Color | Shiny Orange |
| Crown Race | 40 |
| Defined Color | Orange |
| External Adjustments | High Speed Compression Damping |
| External Adjustments | Low Speed Compression Damping |
| External Adjustments | Rebound Damping |
| Front Axle | 15mm Thru x 110mm |
| keyword search | FOX Model Year 26 , FOX MY26 |
| Lockout Switch | Crown |
| Maximum Tire Width | 66 |
| Negative Spring | Air |
| Offset | 44 |
| Positive Spring | Air |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Stanchion Diameter | 36 |
| Steerer Tube Length (mm) | 264 |
| Steerer Type | Tapered |
| Travel (mm) | 160 |
| Wheel Size | 29" |
MPN: 910-21-352 - FOX - 36 Factory GRIP X/X2 Suspension Fork - Suspension Fork
