Description

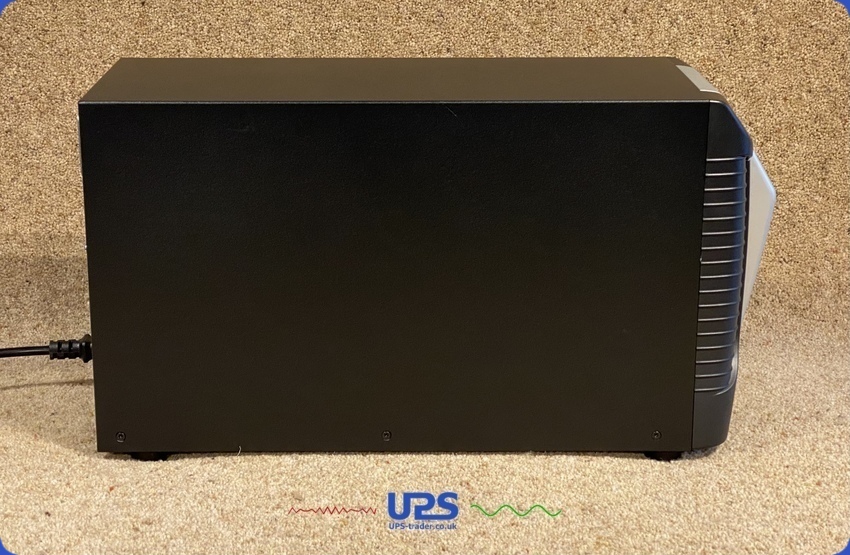

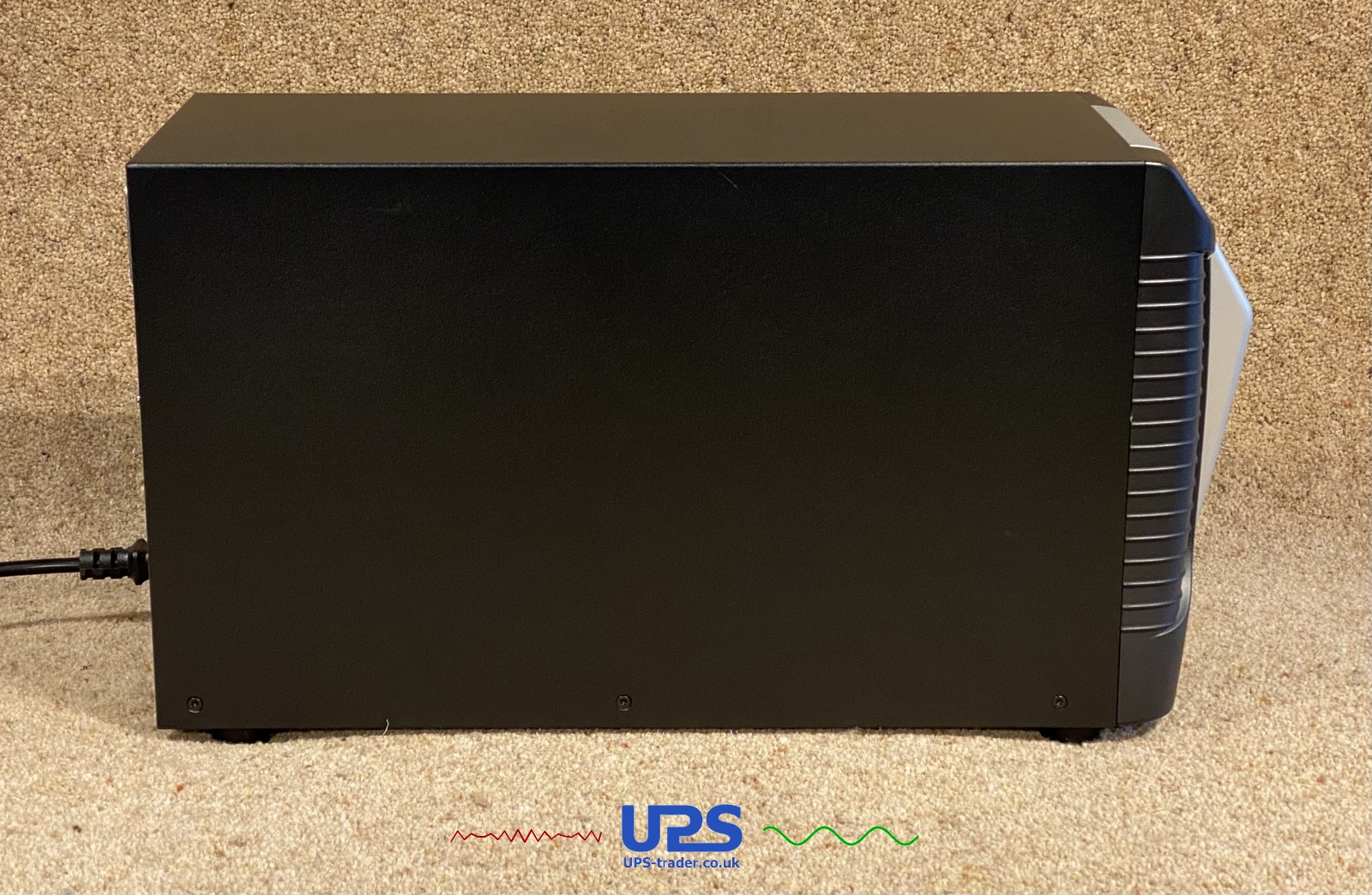

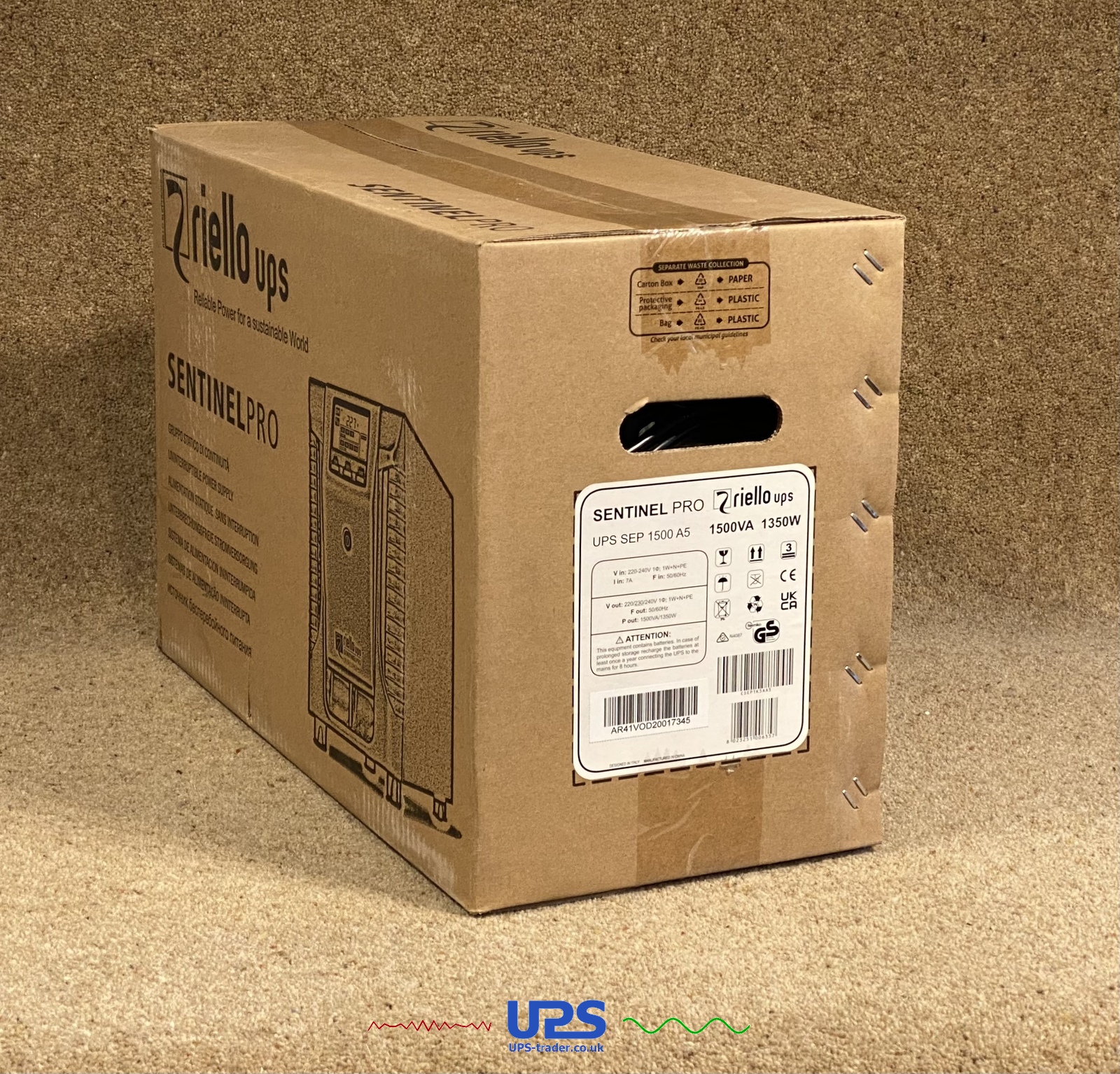

This Riello SEP1500 UPS is new and unused in its original box.
Brand new batteries have been installed, and the UPS has been thoroughly tested by our technicians.
This UPS is ready to install on delivery and carries our 12-month RTB warranty.
The UPS is an online design, which makes it suited to powering and protecting delicate electronic equipment..

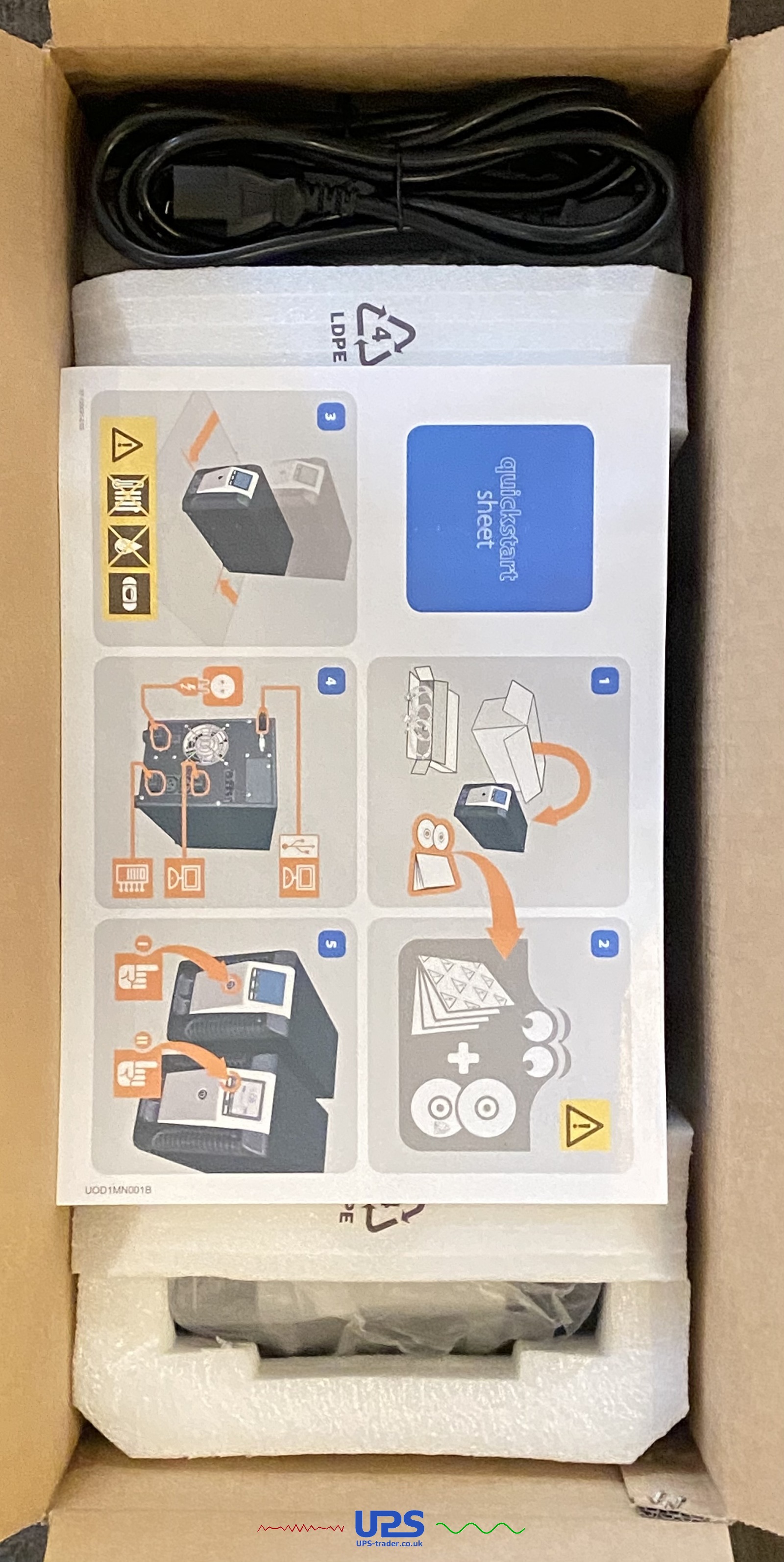

Included with the UPS are the following accessories:
• Quick-start guide
• USB cable
• Mains power input cable
• 2 x C13-14 output cables
Our products are comprehensively tested by UPS experts and are fully working.
We have been supplying UPS since 2002 and are the respected leader in the field, with the most used stock in Europe. Our experience reduces the occurrence of problems, and the availability of resources and stock we hold means we have the ability to quickly resolve issues when they do arise.
We set our same day dispatch times on eBay as a guide. This is a broad stroke estimation, as our items are of varying complexity. While simple orders can be packed and shipped quickly, large units or volume quantities may roll over to being dispatched the following working day. You can contact us if you need to be sure of when we can send an order and we can make a plan.
All of our consignments are sent fully insured on a 24 hour service with our carriers. We cover all problems that occur in transit. We can ship to the EU (transit time varies) and have experience packing and shipping to overseas destinations. The EU shipping costs are estimated and can be subject to surcharge. Large UPS may be palletised or shipped with the UPS in one box, and the cells in another. We have the packing materials to make sure that there are few problems in transit. Our warehouse is based in the UK.
When we process the order, we issue a dispatch notification via email. This will have a PDF invoice attached, and detail which courier we have shipped with, along with the tracking number and any pertinent information & guidance.

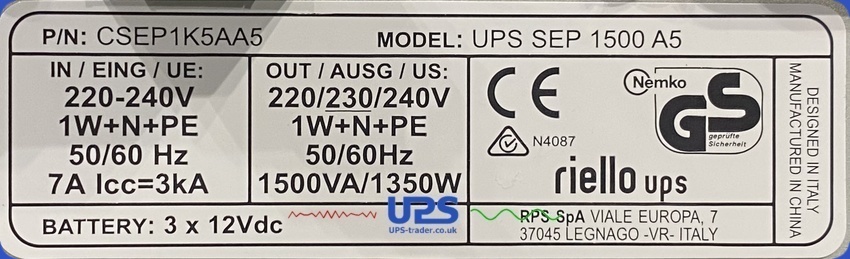

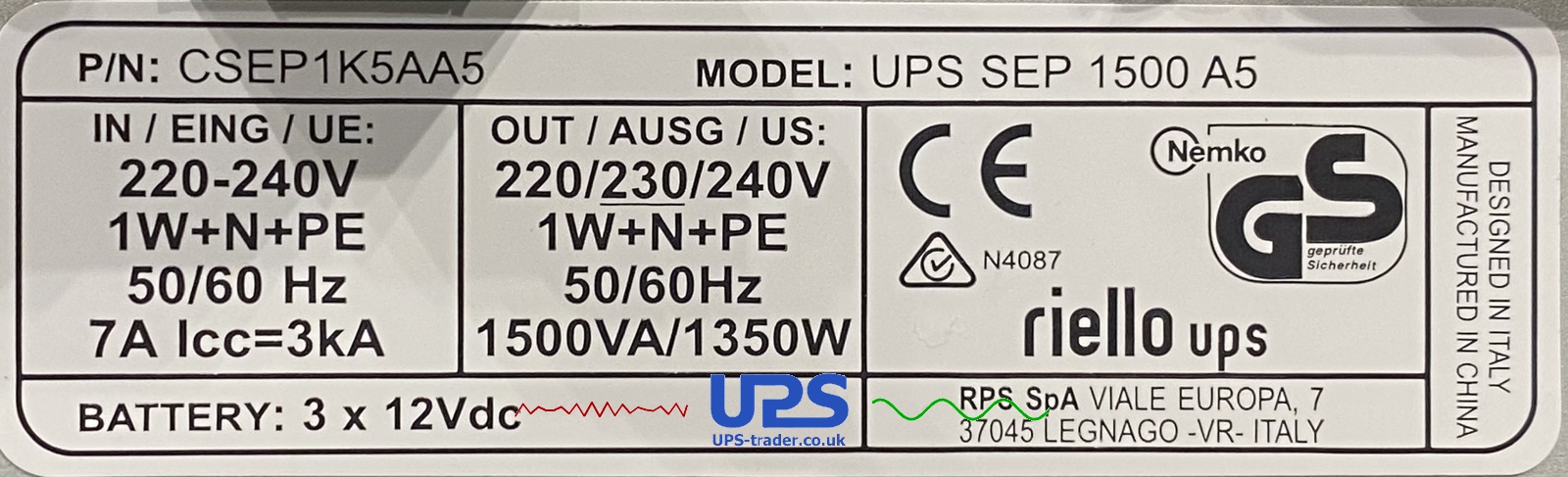

Specification
Input 220-240VAC
50/60HZ
Single Phase
6.5A Nominal at max load
Max power 1500VA / 1350W

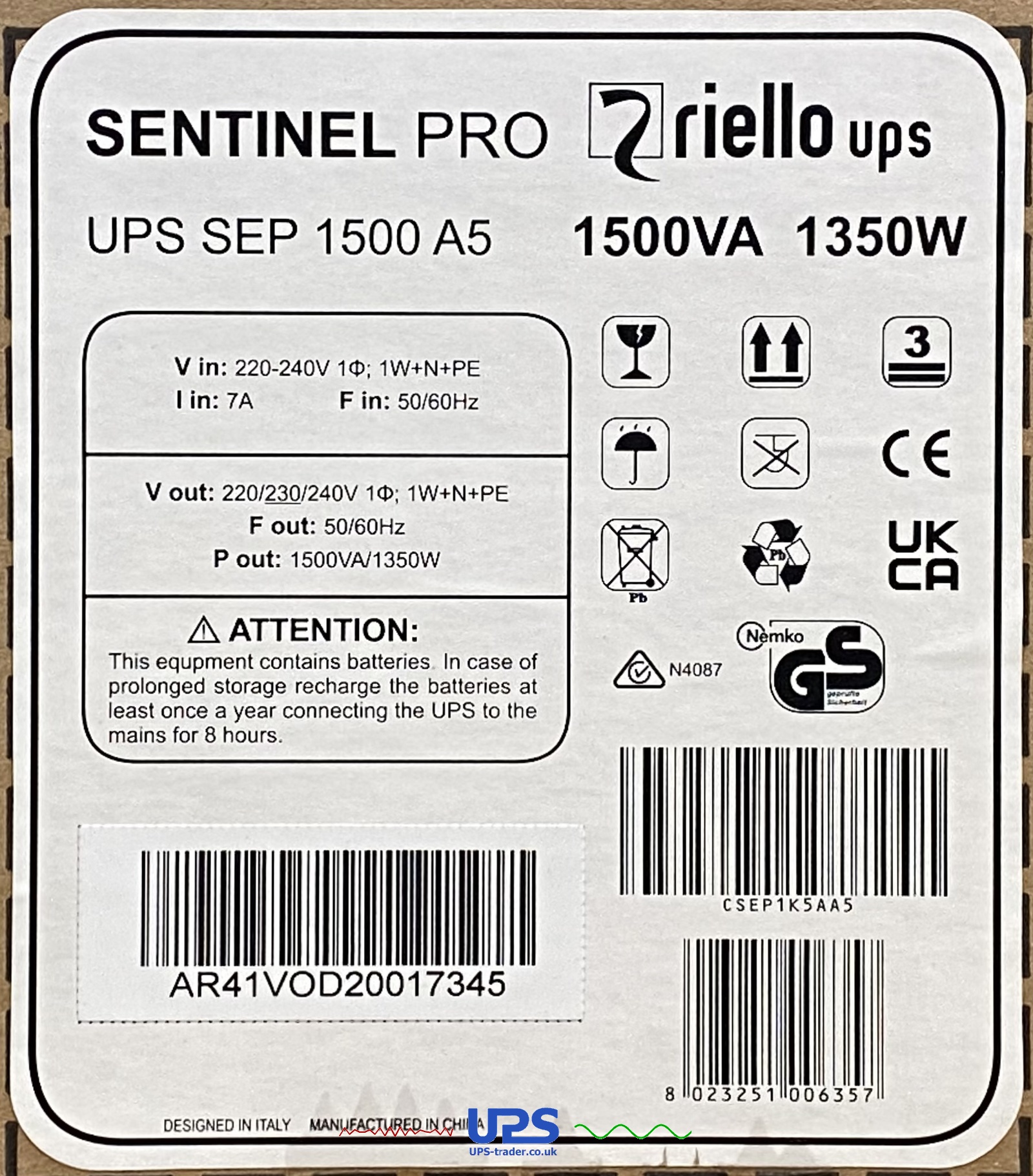

Models SEP 1500 A5
INPUT
Rated power 1500 VA
Voltage 220-230-240 Vac
Voltage tolerance 140 Vac < Vin < 276 Vac @50% LOAD / 184 Vac < Vin < 276 Vac @ 100% LOAD
Frequency 50/60 Hz
Frequency tolerance 50 Hz ± 5% / 60 Hz ± 5%
Power factor > 0.99
Current distorsion ≤7%
BY PASS
Voltage tolerance 180 - 264 Vac
Frequency tolerance Frequency selected (from ±0.Hz to ±5Hz configurable)
Number phases 1
OUTPUT and INVERTER OUTPUT
Rated power 1500 VA
Active power 1350 W
Number phases 1
Crest factor (Ipeak/Irms) 3 : 1
Waveform Sinewave
Frequency Can be selected: 50 Hz or 60 Hz or self-learning
Voltage distortion with distorcing load < 4%
Voltage distortion with linear load < 2%
OVERLOAD TIMES
100% < Load < 110% 2 minutes
125% = Load < 150% 5 seconds
Load > 150% 1 second
BATTERIES
Type VRLA AGM lead, maintenance-free
Typical recharge time 2-4 h
ENVIRONMENTAL
Altitude max 6000 m
Color Black

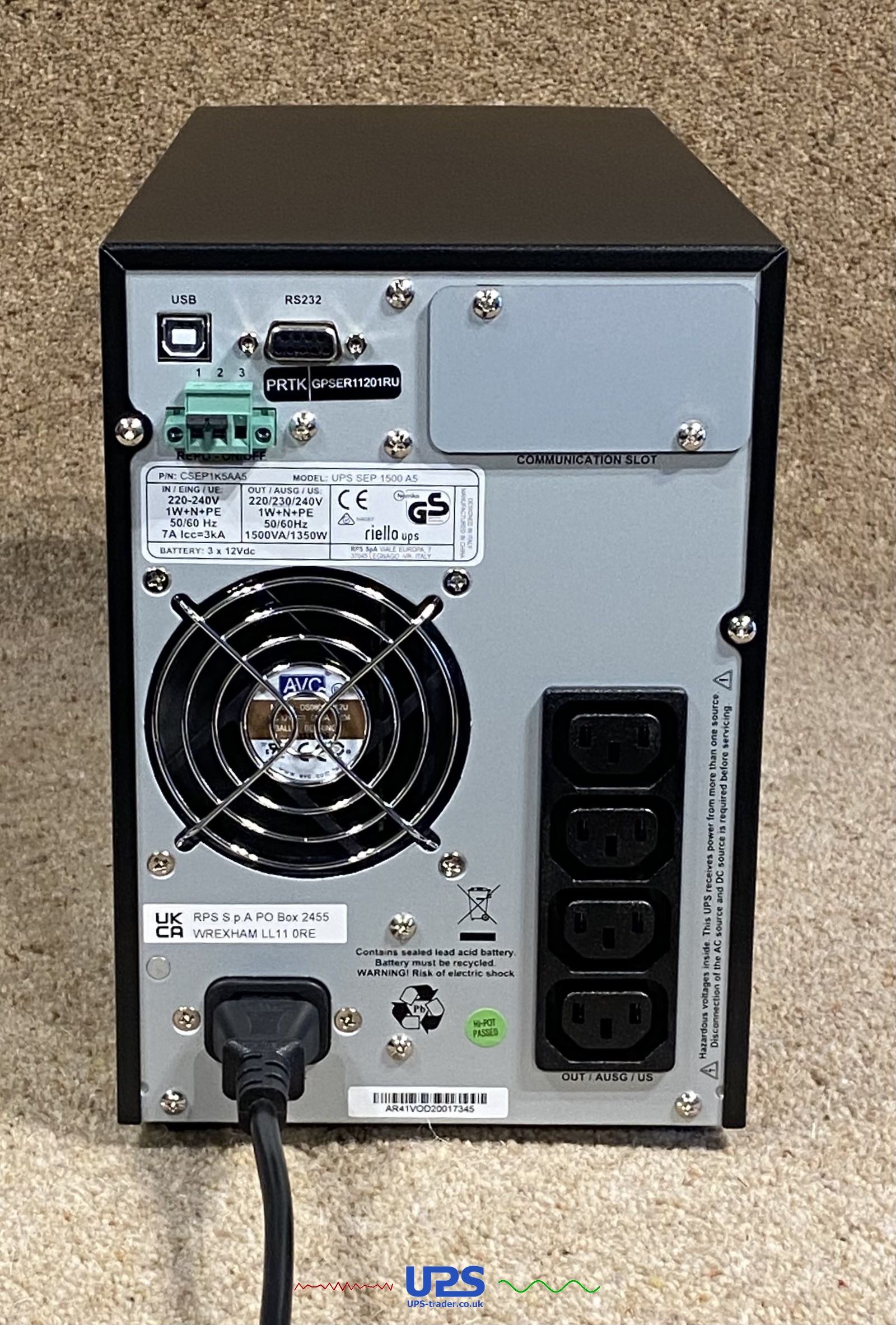

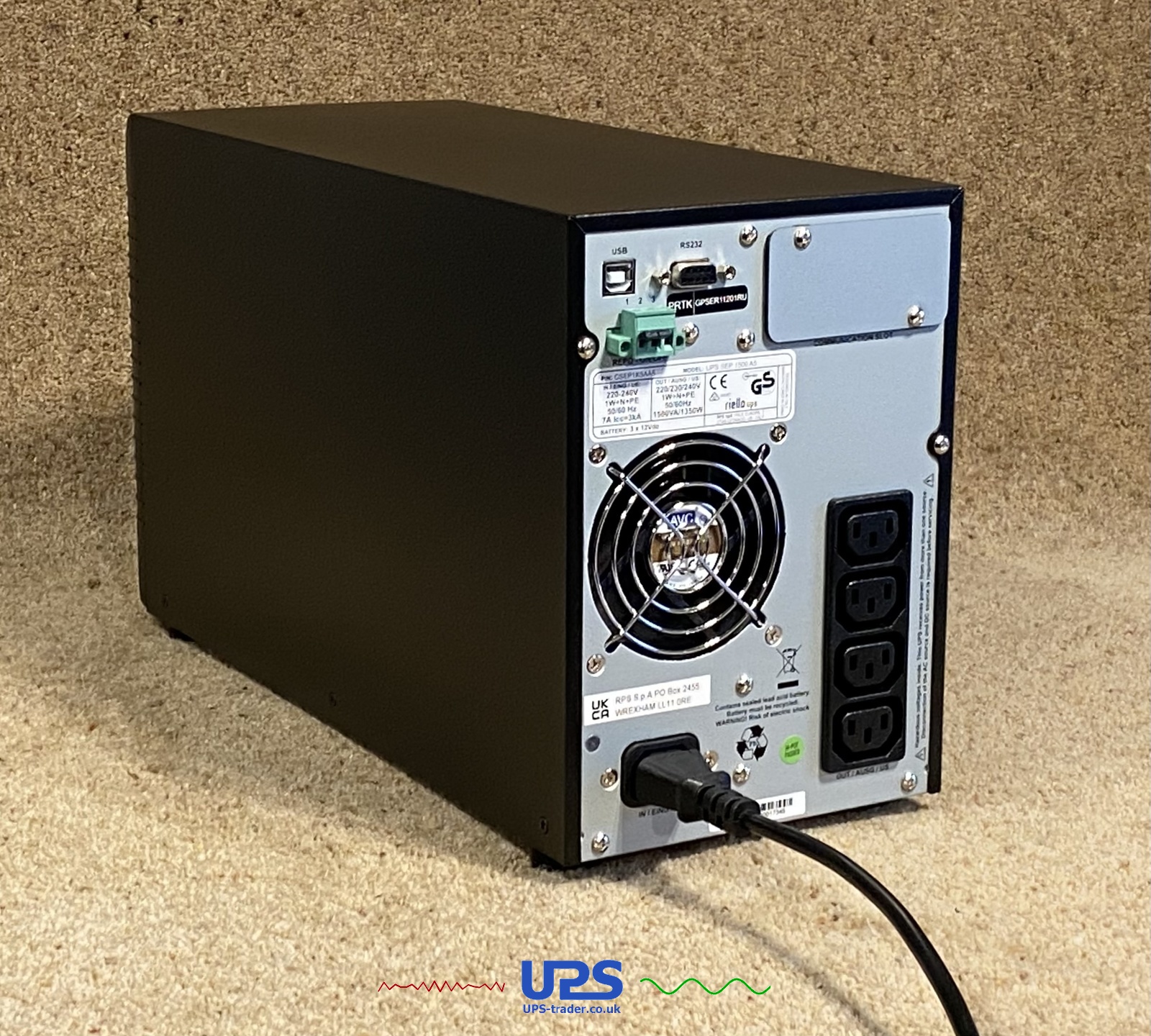

Communication USB / DB9 with RS232 and contacts / Slot for communication interface
Safety compliance EN 62040-1:2008; EN 62040-1/EC:2009; EN 62040-1/A1:2013 and Directive 2014/35/EU
EMC conformance EN 62040-2 and Directive 2014/30/EU
Accessories provided Power cable, IEC-IEC cable, serial cable, USB cable, safety manual, quick start
Protection rating IP20
Surge capability 300 joule
Marks CE, GS/NEMKO
Line-Interactive/Smart Active efficiency 98%
Noise (at 1 m) < 40 dBA @ 1 m
Operating temperature 0°C / +40°C
Relative humidity < 95% not condensed
DATA
Weight 14,8 kg
Dimensions (h w d) 158x422x235 mm
Manufactured using the latest inverter technologies, the Sentinel Pro is designed to protect critical loads such as servers, data processing IT systems, and telecoms networks.
This single-phase plug and play UPS employs dual conversion online technology to deliver a filtered, stabilised, and consistent output voltage.
Several programmable operating modes offer users great flexibility, including the maximum load protection of Online mode, optimum efficiency of 98% through Eco mode, and Smart Active mode which automatically selects depending on mains supply quality.
The Sentinel Pro delivers proven performance to protecting a wide range of critical servers and IT networks. This tower-style plug and play single-phase UPS is easy to install and use, but incorporates a whole host of sophisticated features.
With a fully microprocessor-controlled inverter, it uses double conversion technology to produce a consistent and reliable output voltage. With a power range of 700-3000 VA, optional more powerful battery chargers are available for the most critical environments requiring extended runtime lasting several hours. In-built battery efficiency testing also ensures optimal performance.
Users can choose from several operating modes to either boost performance or reduce energy consumption:
Online Mode: maximum load protection and output voltage quality
Eco Mode: maximum efficiency up to 98% as the load is powered by the mains only
Smart Active Mode: UPS automatically decides what mode to run depending on the stability of the incoming supply
Standby Off Mode: for loads such as emergency lighting, which don’t need power until the mains supply fails
Frequency Converter Mode: enables the output frequency to be different to the UPS input frequency
The Sentinel Pro is capable of handling a wide range of input voltages (140 V to 276 V), has a power factor of 0.9, and a high overload capacity of 150%. It incorporates both a Cold Start function, which means the UPS can power up without mains electricity, and an automatic shutdown feature (Eco line) that reduces energy consumption during sustained periods of inactivity.
Thanks to load-based fan speed control, noise levels are limited to less than 40 dBA, minimising any disruption in the working environment.

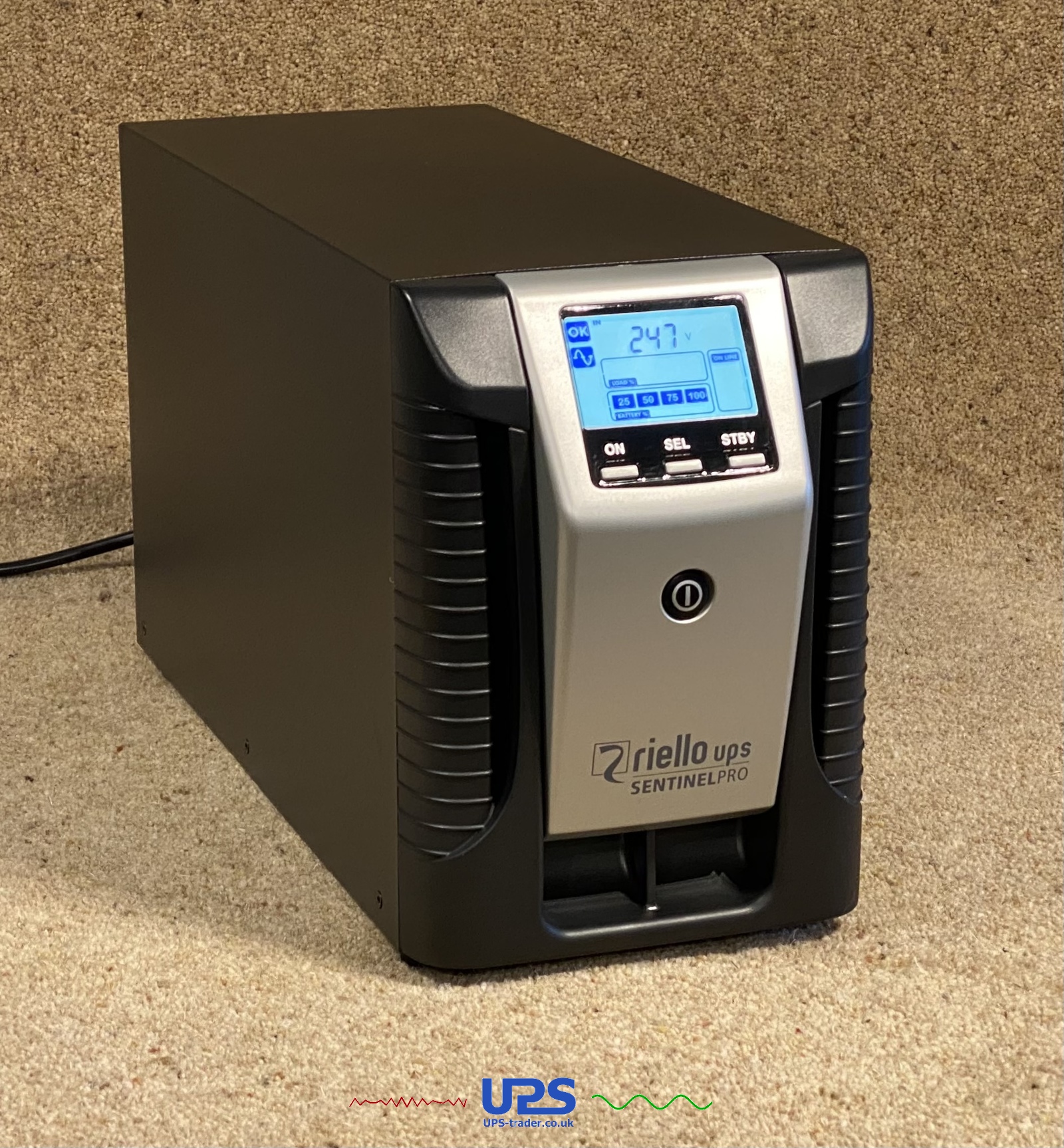

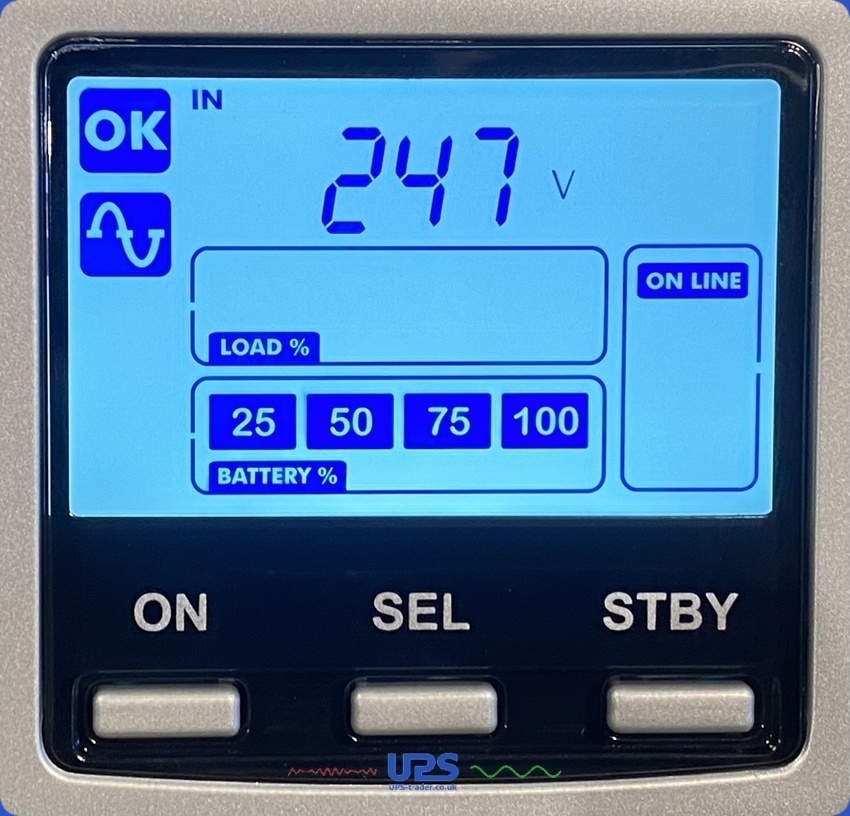

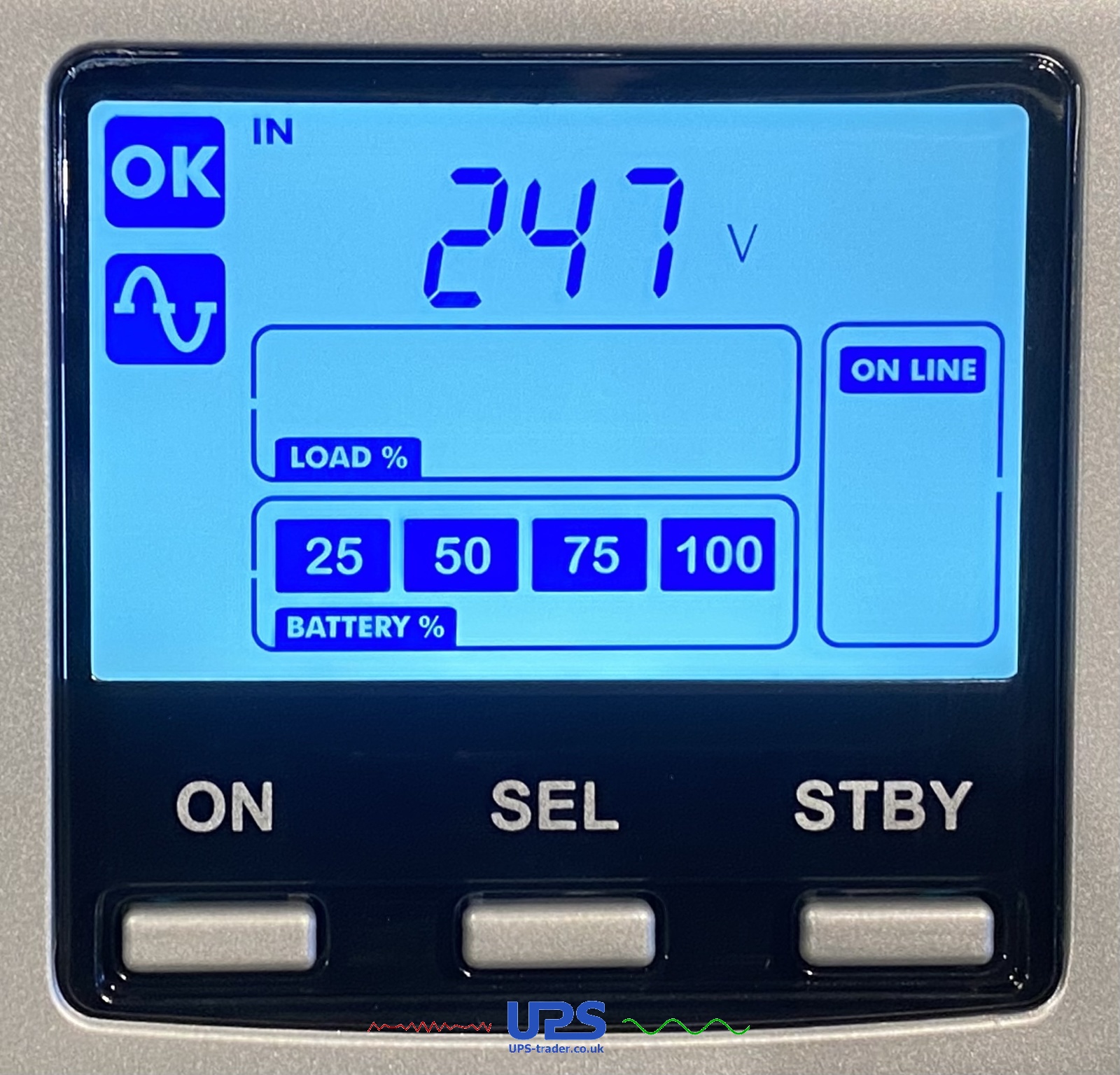

While the UPS also incorporates a completely revamped LCD display panel clearly showing all vital information, including input and output voltage, remaining battery charge, and the current UPS operating status.
Fully-compatible with the PowerShield3 advanced communications software, which enables the safe shutdown of any equipment connected to the UPS.
Designed for critical loads including servers, telecoms networks, and data processing IT systems
Range of programmable operating modes (i.e. Eco mode, Smart Active)
Available with additional battery boxes to deliver extended runtime
Load-based fan speed guarantees low noise levels (40 dBA)
|
|
