Fits International / Fits FARMALL Tractor / Case IH Models:
A - SN:41330 and up Fits FARMALL
AV - SN:41330 and up
Super A - up to SN: 336710
B - SN: 40193 and up
BN - SN: 40193 and up
Part Number: 58124DBX, 358104R93, 35847R92, 369644R91, 358105R91

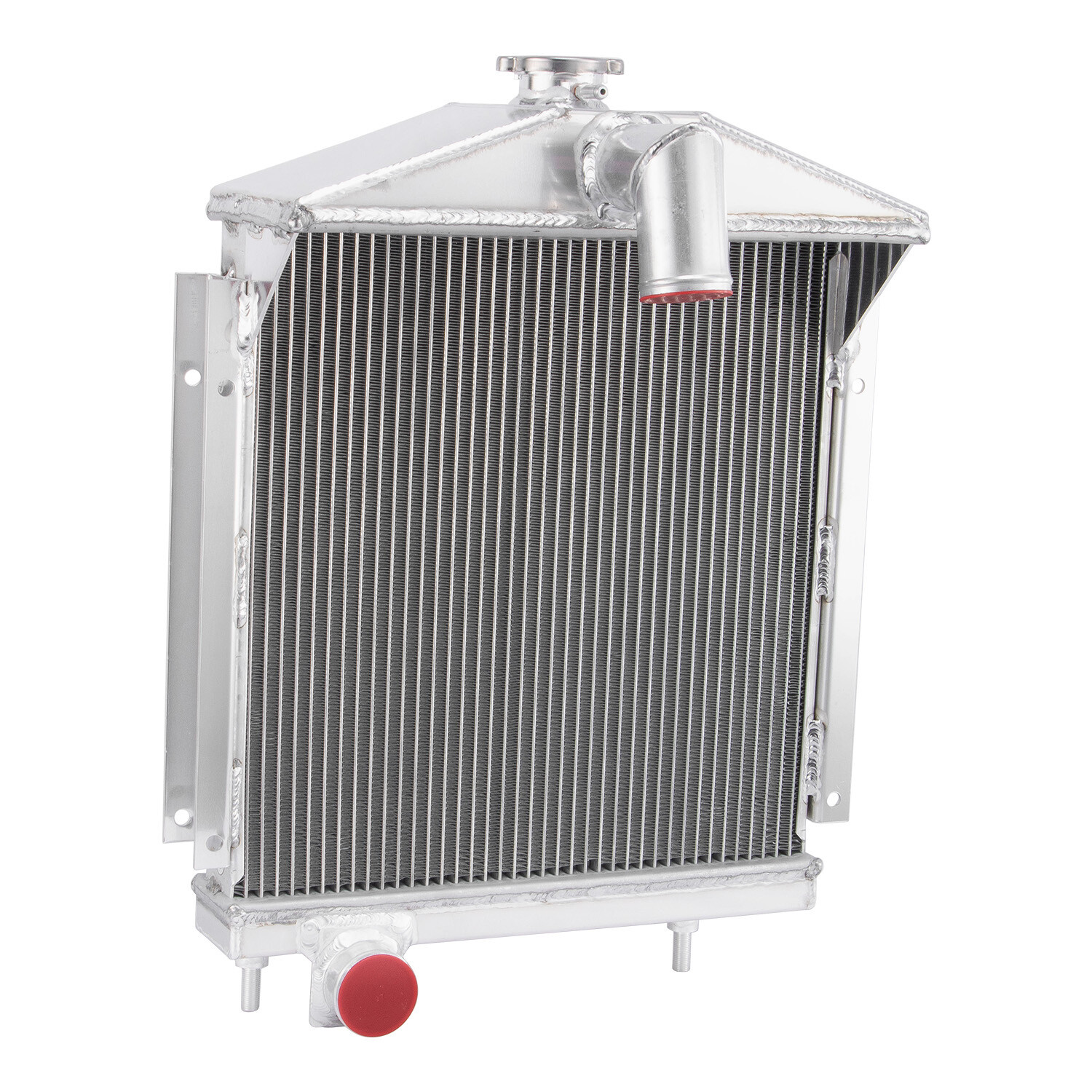

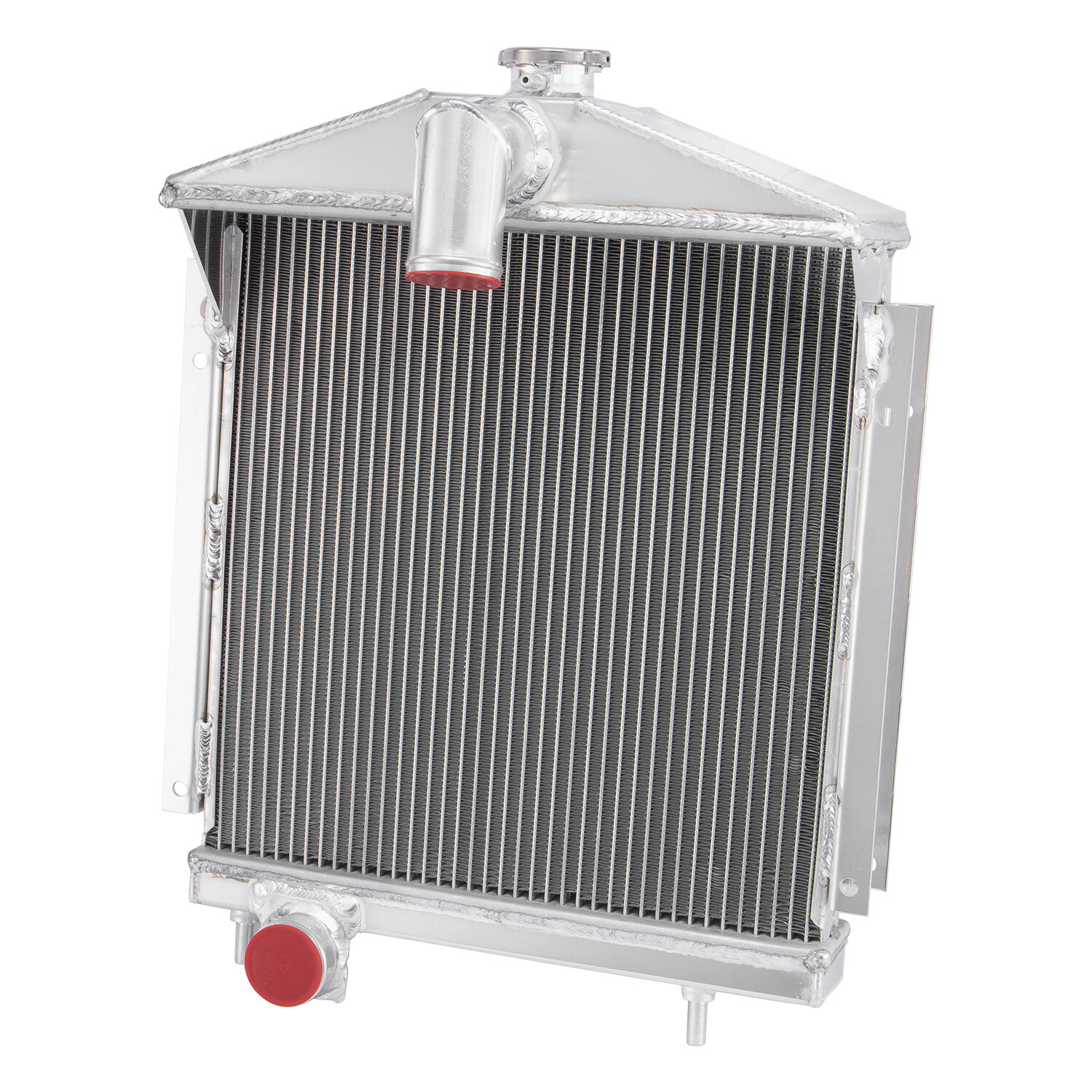

Radiator Configuration:
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Material: Aluminum
Overall Height: 21-1/2"
Overall Width: 17-1/2"
Core Height: 15-7/8"
Core Width: 16"
Inlet Size: 2"
Outlet Size:2"
Please Check the Size Before You Buy!
Description:

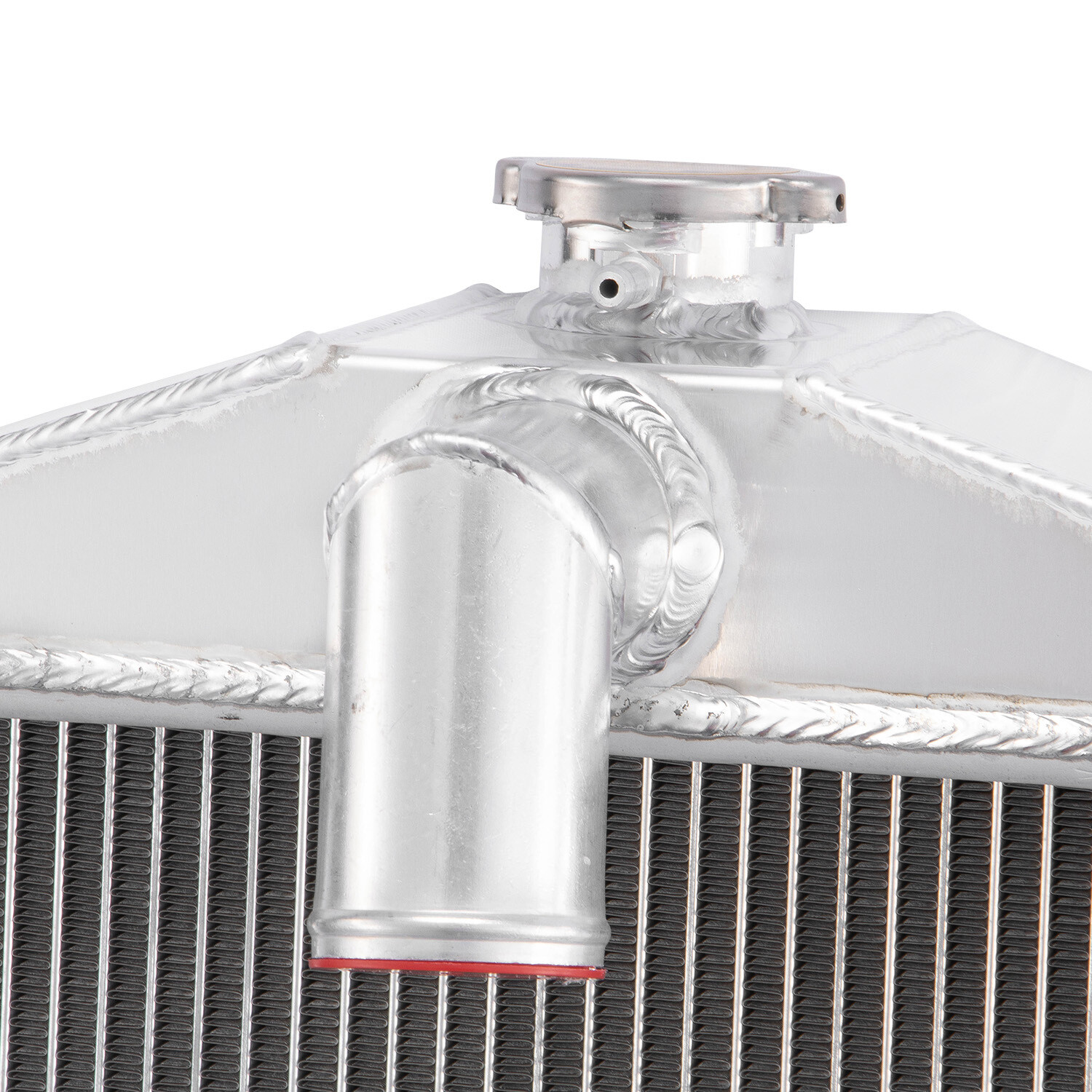

The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full Aluminum Construction.
This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
1 Higher density core: cooling rows are spaced 3/8" apart.giving you 25% more rows within the core than other aluminum radiators.
2 14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators,throws off much more heat.
