Product Description:

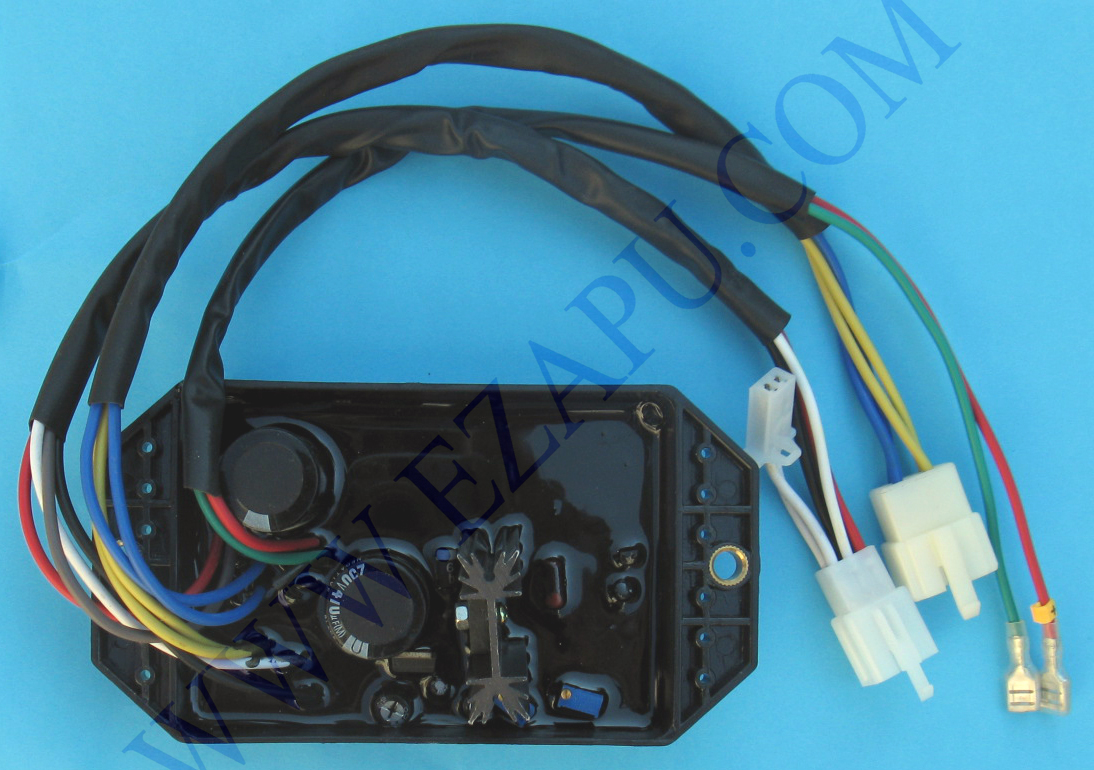

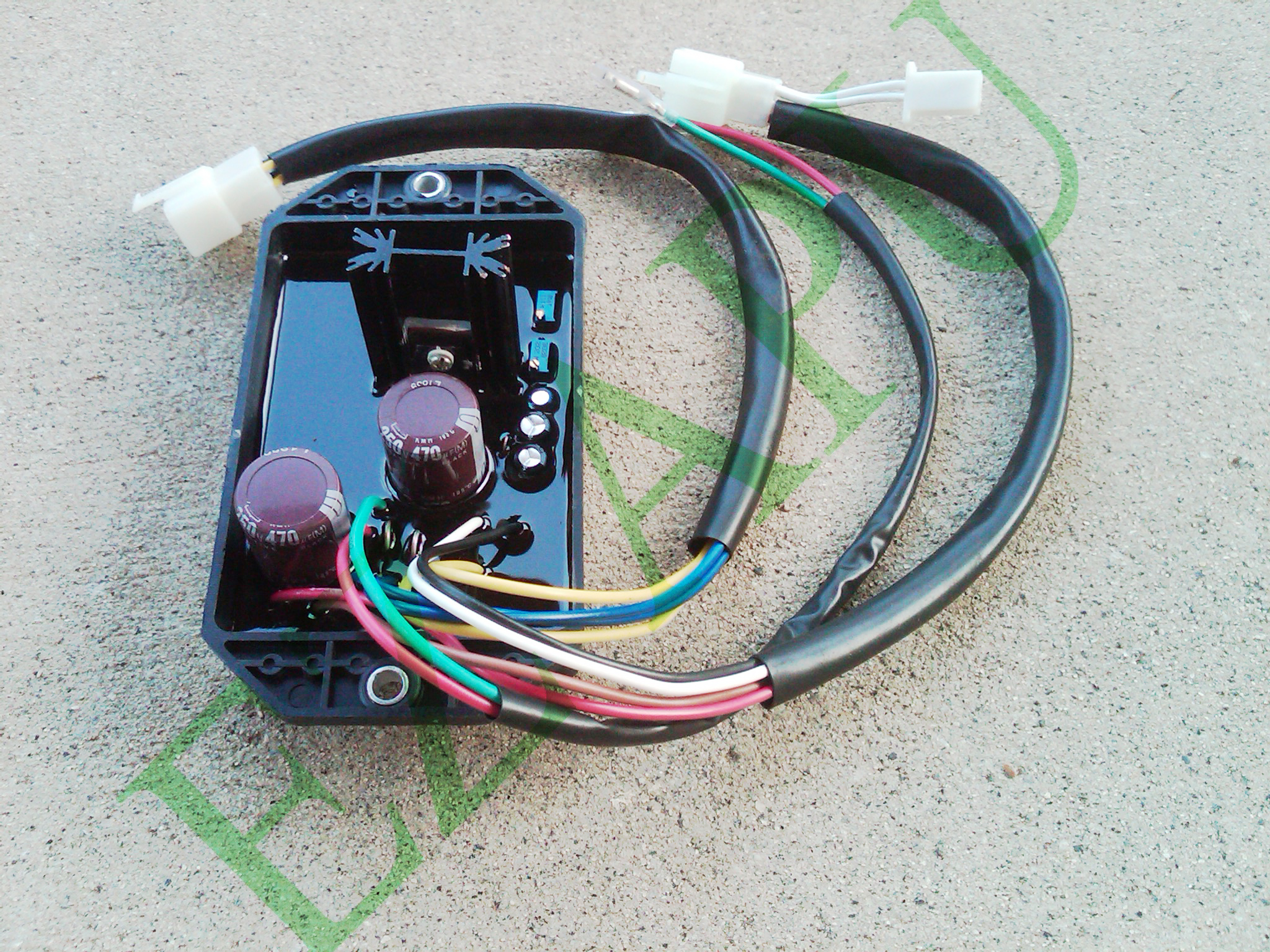

Premium Automatic Voltage Regulator(AVR) for Falcon Power Industrial Branded Diesel Generator Welder Model 8500ES.

Quality Product with Prompt Shipping & Solid After Sales Support! All our orders are shipped out of Atlanta, USA and EDT is about 1 to 3 business days for delivery in most areas of continental states.

Packing Contents: 1 X AVR-FALCON8500ES-00A.

Special Note:
1) A higher output AVR definitely works perfect on a generator of low power output while on the contrary, a low power output AVR CAN NOT be used for a generator of higher power output.
2) A different type of AVR may be used on your welder generator. please check your OEM AVR before you place an order with us.

Part Number:
AVR-FALCON8500ES-00A.

Product Features:
  1. Built-in Full-Wave Output Bridge Rectification.
  2. Voltage Output Increase with Loading.
  3. Stable Voltage Output with Negative Voltage Feedback.
  4. Over Voltage, Over Current, Over Load and Short Circuit Protection.
  5. Large Manual Adjustable Voltage Output Range of 160 ~ 260VAC for 240VAC Output or of 0 ~ 80VDC for Welding DC Output.
Technical Specifications:
  1. Model Name: AVR-DW4565
  2. Excitation Voltage Input (Auxiliary Winding Voltage): 110 ~ 120V (AC)
  3. Rated Exciting Current Output: 2.5A
  4. Exciting Voltage Output: 30V (DC, Idle) & 90V (DC, Full Load)
  5. Sampling Voltage: 18VAC
  6. Welding Current Range: 50 ~ 200A
  7. Frequency: 50/60HZ
  8. Application Scope: Full-Power Output Diesel Welder Generator (4KW ~ 6.5KW)
  9. AC Voltage Output: 120V/240V
  10. Rated Welding DC Voltage Output: 25 ~ 30V
  11. Idle Welding DC Voltage: 70 ~ 75V
  12. Continuous Welding Load Ratio: 60%
  13. Auto Voltage Adjusting Accuracy: ≤ ±1%.
  14. Maximum Temperature Rise: 130C or 266F.
  15. Continuous Working Time: ≥ 20 Hours.
  16. Installation-Center Distance: 134 ± 0.5 mm
Wiring Connections:
An old version AVR may be used with different color wires & connectors on your welder generator. Please refer to the following wiring information to rewire our AVR to fit your welder generator. If you are not sure of how to rewire it, please contact us for technical support.
  • 2 YELLOW wires in the 4-pin connector(Signal Sampling, No Direction)
  • 2 BLUE wires in the 4-pin connector(Auxiliary Winding Power Input, No Direction)
  • The individual (Separate) RED wire(Excitation Output, to the Positive Terminal of carbon Brush)
  • The individual (Separate) GREEN wire(Excitation Output, to the Negative Terminal of carbon Brush)
  • The WHITE and BLACK wires in the small 6-pin connector(Adjusting Welding Current, No Direction, to Rheostat/Potentiometer)
  • The RED and BROWN wires in the small 6-pin connector(Welding, RED to Positive Welding Terminal & Brown to Negative Welding Terminal)
