Q:Will this Support auto all systems scan for ford ?

Yes,It will auto scan all controlled modules, including ABS, SRS, Engine, Transmission, EWS, CAS, ECM, ASC, EGS, EKPS, GWS, and more.

Q:How to do software Update ?

1.Connect the FD500 with the computer via USB cable

2.Log on to the ANCEL website (anceltech) and enter to the Download Center.

3.Select the product model of FD500 ，Click to download and update the software. 4.click Update and complete.

Q:Why is the battery registration function not supported?

Please note that battery registration function fit for Most Ford Group vehicles and only can be used to register battery with the same parameters.such as original battery, same type with same or big capacity battery.

Get Your Ford Fixed !

ANCEL FD500 FORD OBD2 scanner is a specific version which design for Ford Group, including Ford, Lincoln, Mercury.For Ford Group vehicles, it has the functions of reading all systems' codes, obd2 functions also available at read and erase code, I/M Readiness,Data stream,Battery Voltage 12V test and Vehicle information. Further more, the ANCEL scanner tool FD500 also diagnose systems of ABS,SRS,Engine,Transmission ect. Special functions include Reset Throttle (KAM), Oil, EPB Maintenance Mode, Ford battery registration （BMS）and more. Dedicating to provide free lifetime updates to fix the latest errors or add new parameters and ensure that our obd2 scanner always has the latest fault code database.

All System Diagnostic Scan Tool for Ford/Lincoln/Mercury

 1.4 Main System:

 As the most common Trouble Codes come from the your Engine ABS SRS and Transmission ,This Ford code read can help you fix this Main problem, always keep your car in health condition.

2.SAS System:

 The steering angle sensor (SAS) determines where the driver wants to steer, matching the steering wheel with the vehicle's wheels,Our FD500 Ford Full diagnose tool can read and clear the fault codes of the SAS (Steering Angle Sensor) when the SAS MIL light illuminates on the dashboard. Please be noted that it doesn’t contain the SAS calibration function.

3.Headlight System:

 Diagnostic the condition of your headlight or called Headlamps,let you drive through dark tunnels, or low light parking garage without worry about the light will turn off Suddenly.

4.Audio System:

 Diagnostic your audio on your car,if with problem,just fixed it so that you can enjoy better sound all the time.

5.Immobilizer System:

 With the help of Immobilizer System, you can keep your car safe, secure and prevent it from being stolen.

6.4WD System:

 Help you monitor the condition of your Four-wheel drive (4WD) which is designed to send torque to all four of a vehicle's wheels to increase traction when needed.4WD might be the better choice for those who live in remote areas, need to work in extreme weather conditions, or enjoy off-road adventuring.

7.EKPS System:

 The electronic fuel pump control module (EKPS ) controls the fuel pump.EKPS module can fail to cause no start problem or cause issues under hard acceleration. Our Ancel FD500 Ford obd2 can help you erase the fault code.

8.HVAC System:

 Read and Erase any air-conditioning codes,Some issues relating to how the vehicle runs that could affect HVAC performance.

9.Window System:

 Help you to diagnose your window issue on your car and Protect the your property from being stolen.

Notice:

Each car model has different configurations, the system functions and special reset may vary. But Usually your Ford will support more than 4 special functions.

OBD II Functions for all car makes after 1996:

1.Read and Erase Code:

This Car Code Reader Allows you to Read and Erase Code for all Cars,Not Just for Ford Group Vehicles.

2.Battery Volts Test:

allows you to test your car battery volts.

3.Live Data Stream:

Reading the car data stream can detect the working status of the various sensors of the car, set the runing data,

4.I/M Readiness:

Which also means Inspection/Maintenance, ANCEL FD500 diagnostic code reader for ford will reflect the currenct status of diagnosis.

5.Vehicle Information:

Offering the related info of the vehicle such as VIN, CALID, CVN...

Muti-Special Reset Functions:

Allows you to reset your Throttle (KAM), Oil, Electronic Parking Brake (EPB) Maintenance Mode, Battery Registration (BMS) ect, some ford can support Service Routine (ABS Bleed Service) and only few ford can support Tire Pressure Monitoring System (TPMS) function.Because different car model has different control Module, the special reset functions also different.

1.KAM (Throttle Adaption) Reset:

The carbon deposits and impurities will affect the accuracy of the throttle if it has not been cleaned for a long time. And the air containing impurities may enter the combustion chamber and affect the normal operation of the engine.If you cleaned a throttle, remember to reset the codes, otherwise the car computer memorized the opening when there is carbon deposits, and caused engine unstable idling and excessively high speed.

2.Oil Reset:

Check the oil at regular intervals, and have the car serviced regularly. After draining the oil out of the engine, our FD500 Diagnostic code reader scanner for car can help you to reset the Oil service lamps on the instrument cluster.Furthermore, while changing your oil early might keep your vehicle’s parts fresh, which also good to the air.

3.EPB Maintenance Mode:

Electrical Parking Brake is a technology that realizes parking brake by electronic control.If your parking brake fails, you need to fixed the problem by Retracts calipers for brake pad replacement, and move back calipers after servicing to the original position.Our FD500 scan tool can help you complete the repairs after replacing brake pads or servicing calipers.

4.BMS Reset:

Battery Registration (BMS) function lets you register new replacement battery that have the same parameters on your car,( such as original battery, or same type with same or big capacity battery ), clear faults from the dashboard and display current battery details of your Ford/Lincoln/Mercury after you replace your old car battery.Our Ford battery Registration tool is happy to assist you and get you back on your way.

Battery Voltage Check and Battery Registration-Step by Step

BMS Reset: In fact, it’s much easier than imagination. Here is the process step by step for your demand of Battery Registration:

• 1. Remove old battery -Install new battery,and make sure it is well connected with your car.
• 2. Igintion on (key on),engine off .
• 3. Check the dashboard and confirm it is in a diagnostic mode.
• 4. choice the BMS function,follow the notice and process step by step to register new replacement battery.

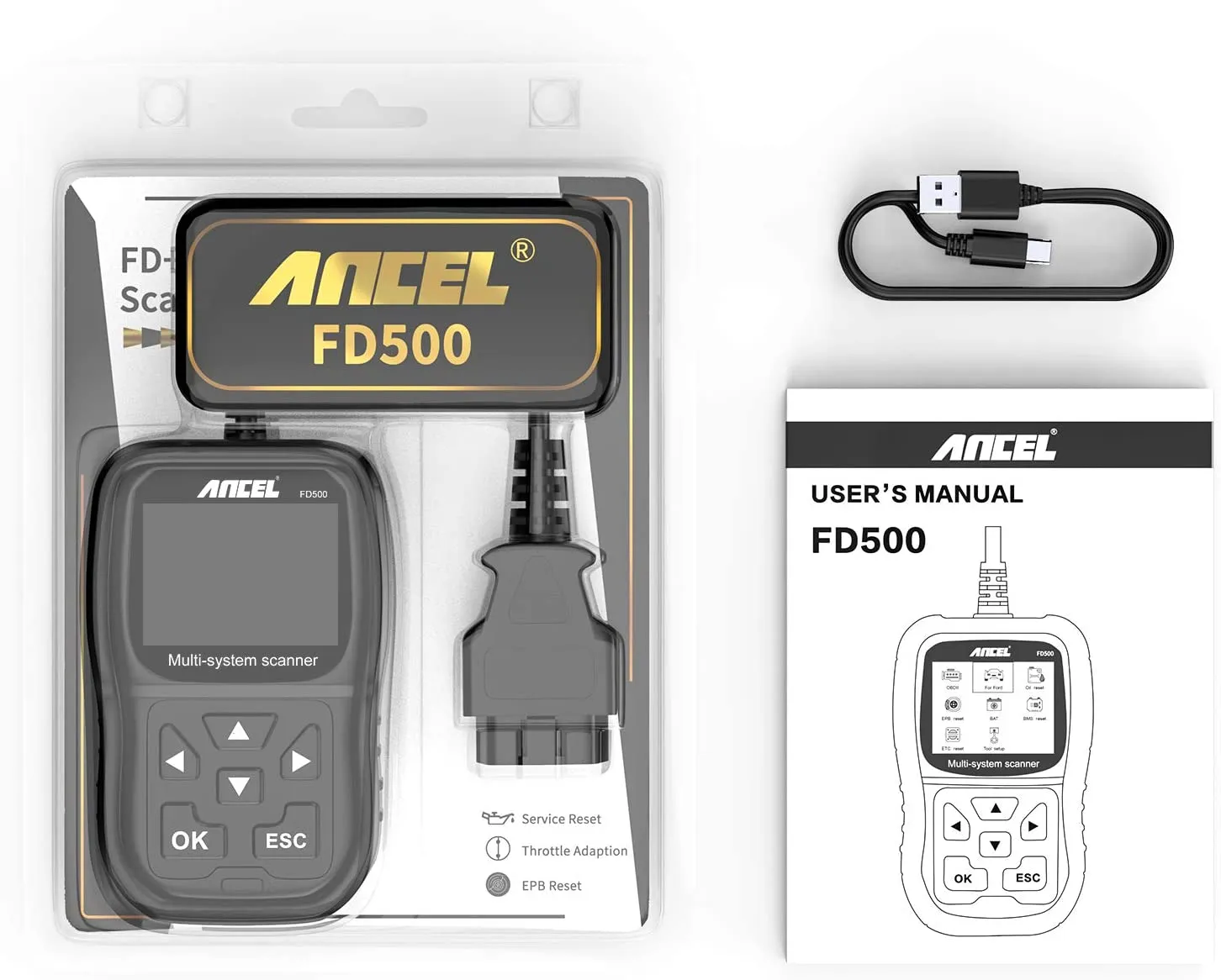

Package:

• 1* Ancel FD500 OBD2 Scanner
• 1* User Manual
• 1* USB Cable

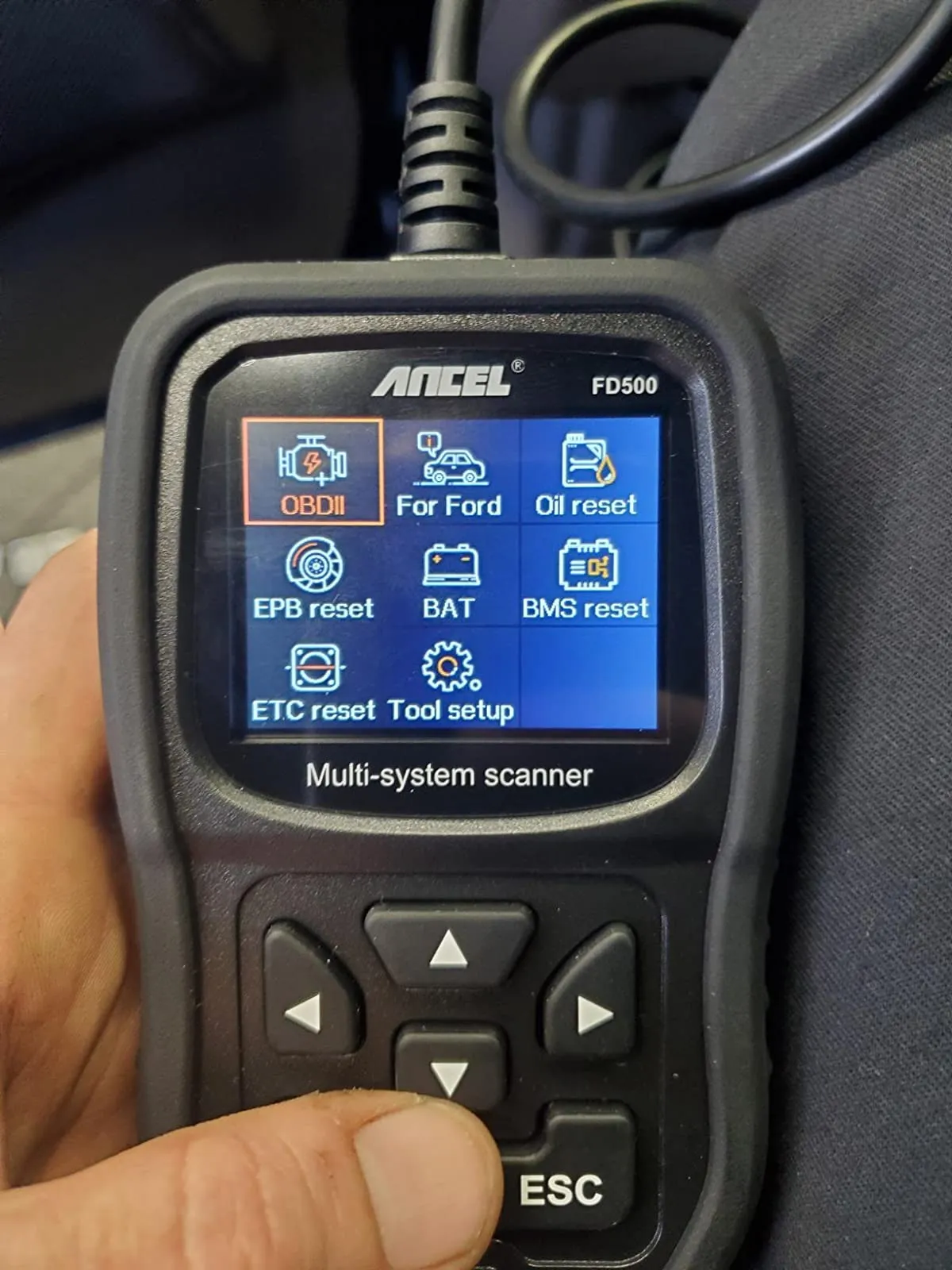

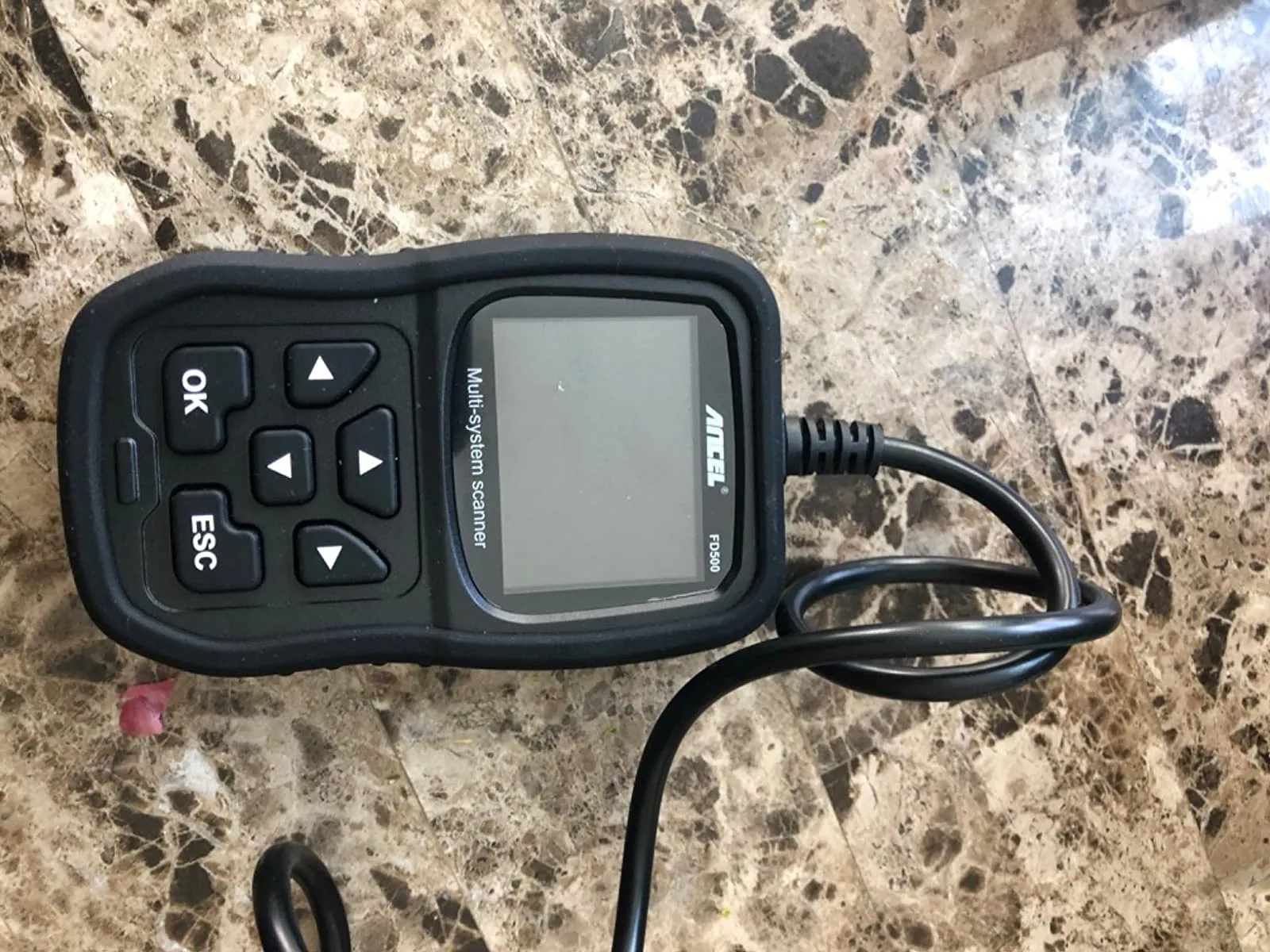

The Acture Photo From Buyers
