Product Description

Feature：

1. Active balance functionality, lose battery capacity no need to balance sales voltage difference, increase battery use efficiency for 95%

2. It has the protections of overcharging/overdischarging/overcurrent and short circuit, etc.

3. Single battery series voltage range is 1~5V, accuracy is 5mV

4. With coulomb meter function, the remaining power is very clear

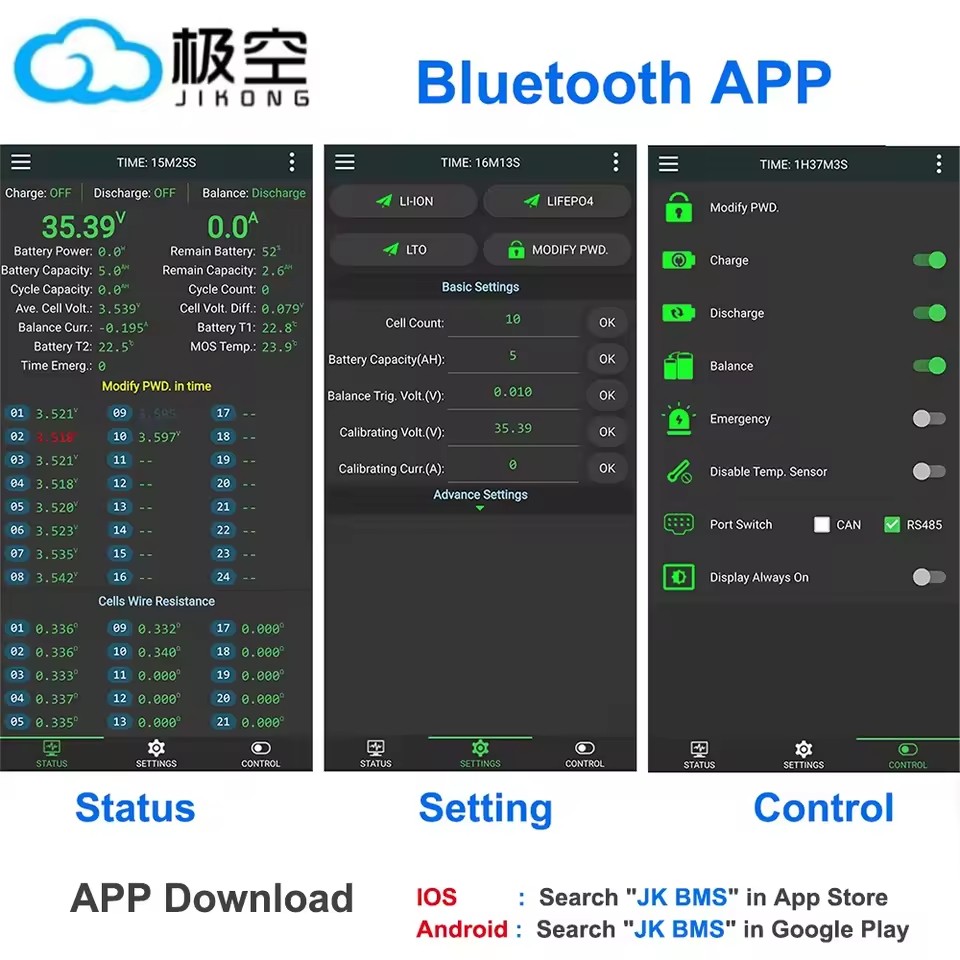

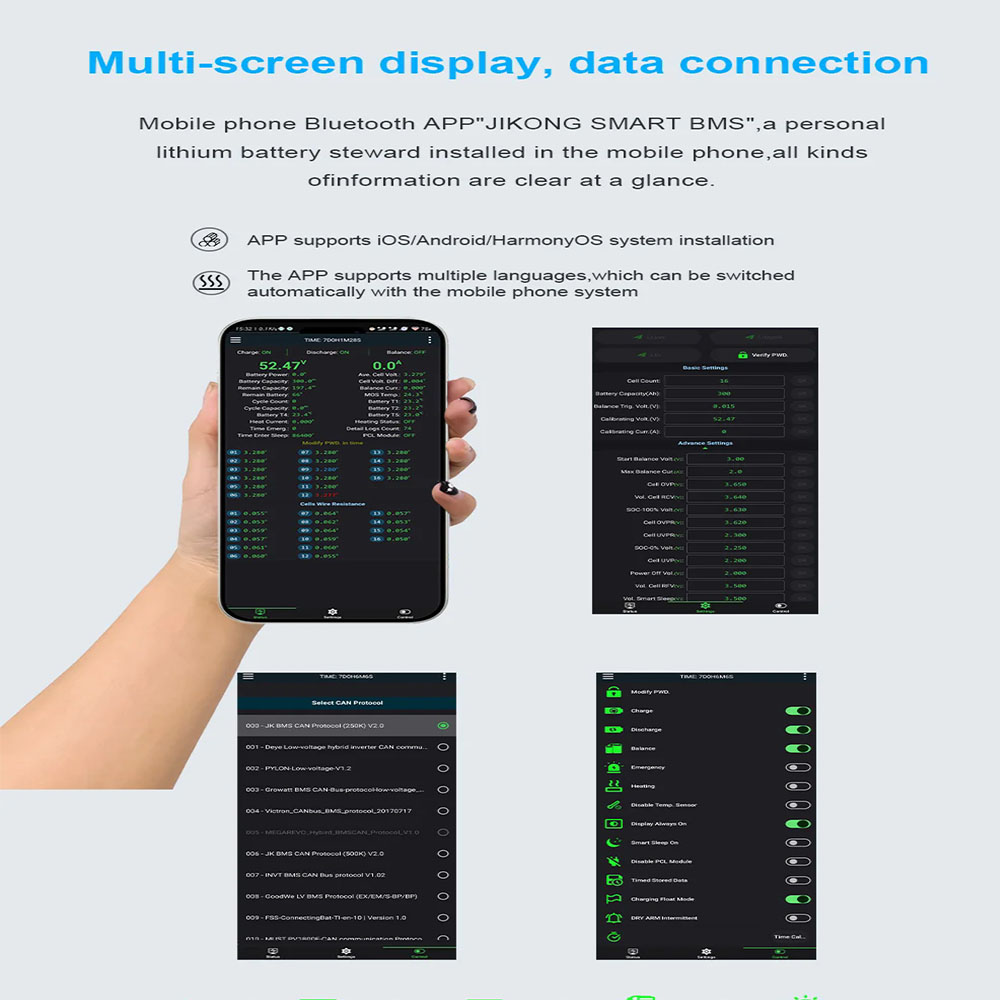

5. BT communication function, battery status can be displayed on APP

6.JK BMS, they are smart therefore with bluetooth and are equipped with a built-in active balancer, this will allow you to always have balanced cells and battery with full capacity

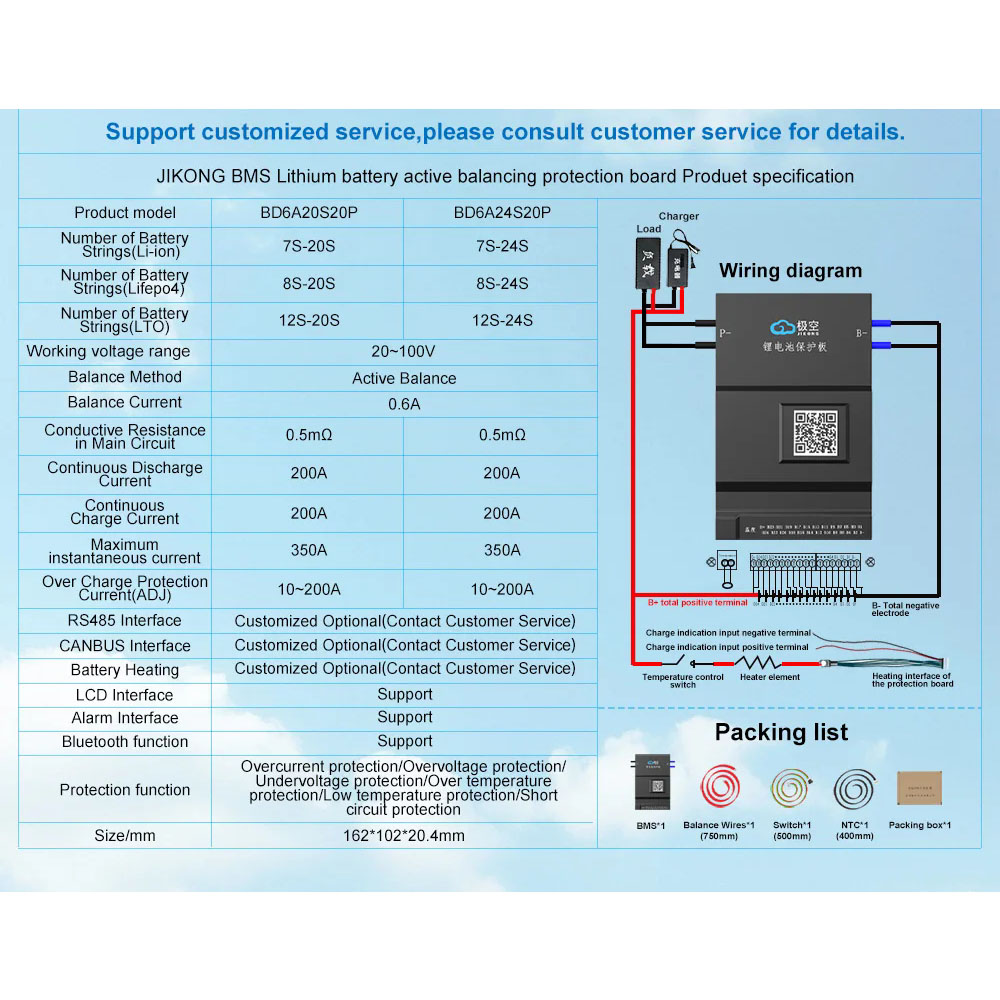

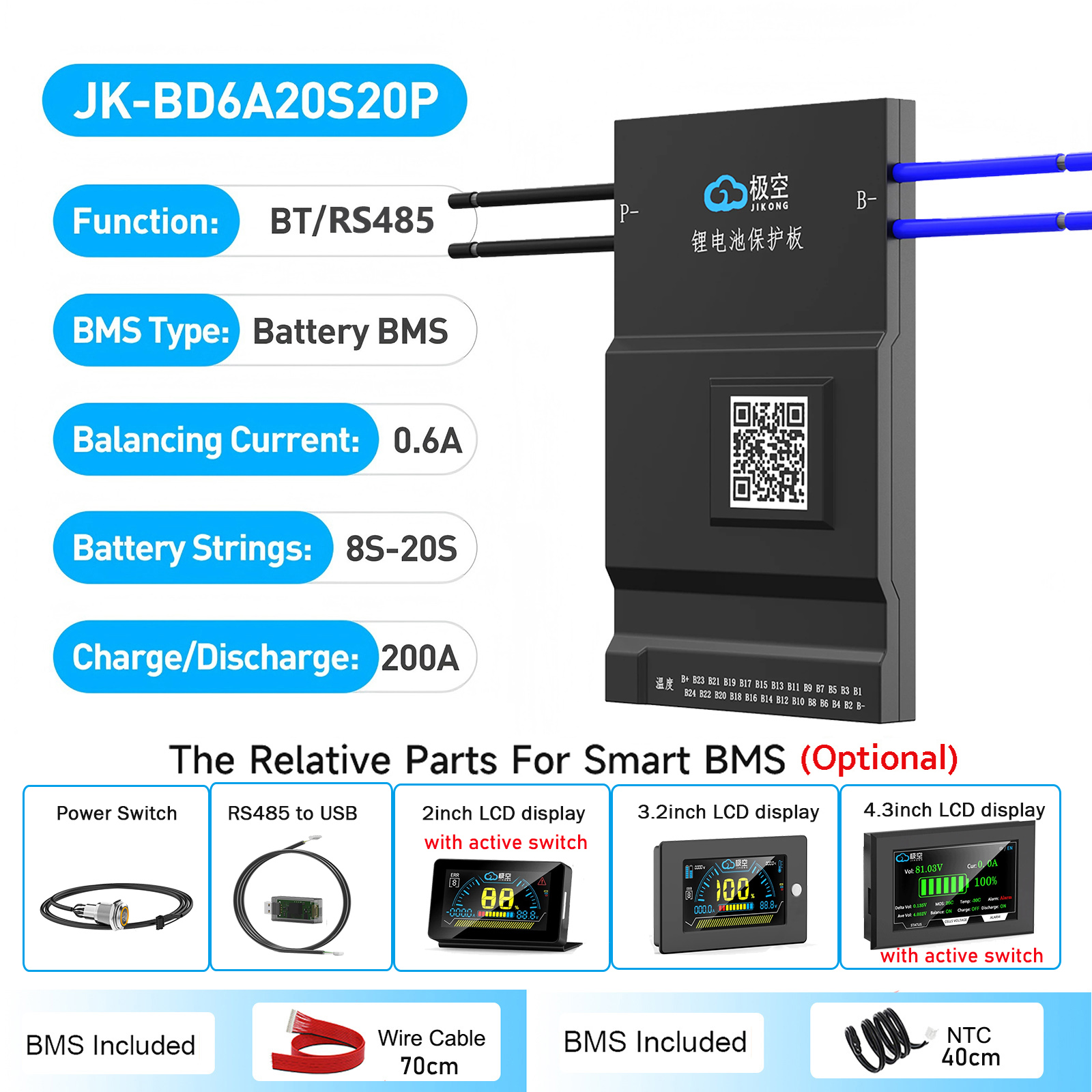

Specification：

Charging current: 1A - 200A

Balance current: 0.6A

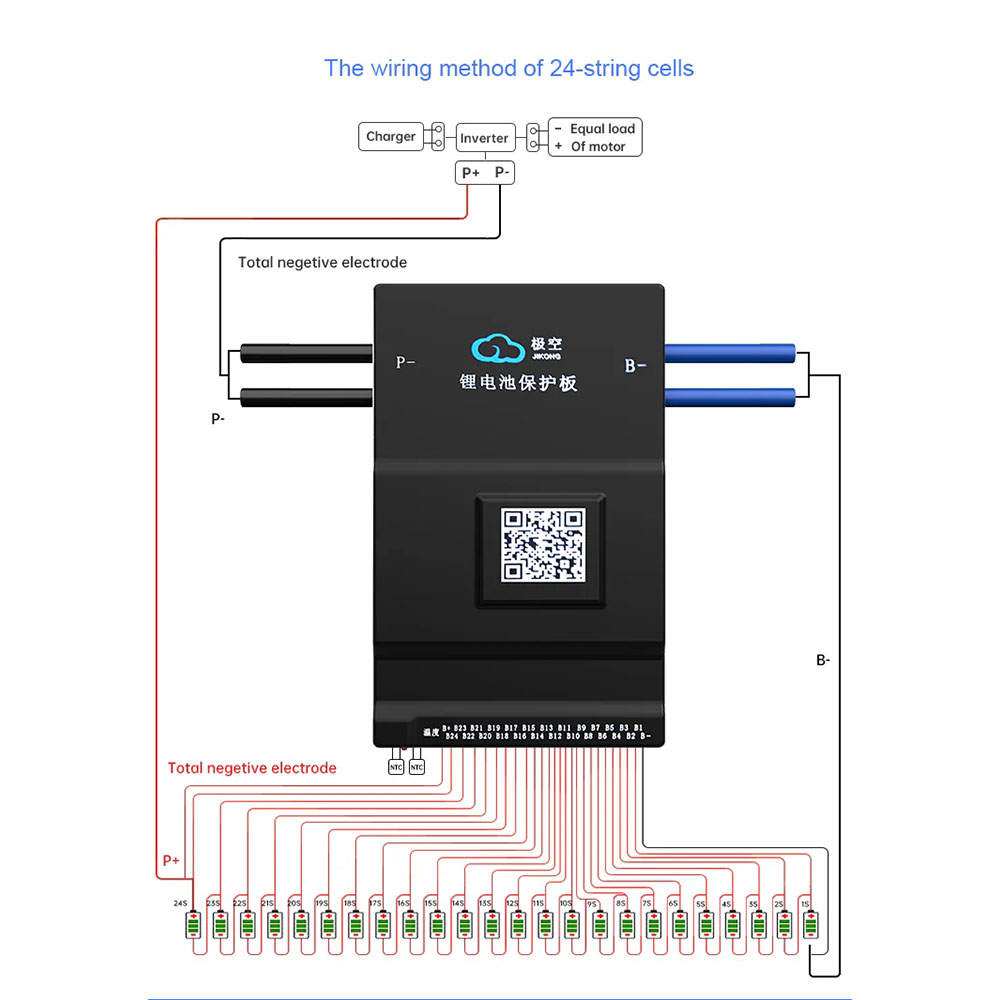

Wiring method: common port

Monomer voltage range: 1V-5V

Voltage acquisition accuracy: ± 5mV

Battery cell overcharge protection voltage: 1.2V-4.35V (adjustable)

Battery cell overcharge protection recovery voltage: 1.2V-4.35V (adjustable)

Applicable battery string quantity: 8S-20S (adjustable)

Battery cell over discharge protection voltage: 1.2V-4.35V (adjustable)

Battery cell over-discharge protection recovery voltage: 1.2V-4.35V (adjustable)

Number of temperature sensors: 2pieces

temperature: -20~70℃

Power requirements: 24V ~ 100V, can be powered by battery or external power supply

Download Link - IOS: Search (Seeds of JIKONG Camera BMS) in APP Store

Android download link:Please contact us for details

Instructions:Please contact us for details

BMS protocol to connect to other devices: Please contact us for details

VenusOS Driver: Please contact us for details

BMS Package including:

1*JK smart bms (Built-in Bluetooth)

1*Cable

1*Temperature Sensor

Other accessories:

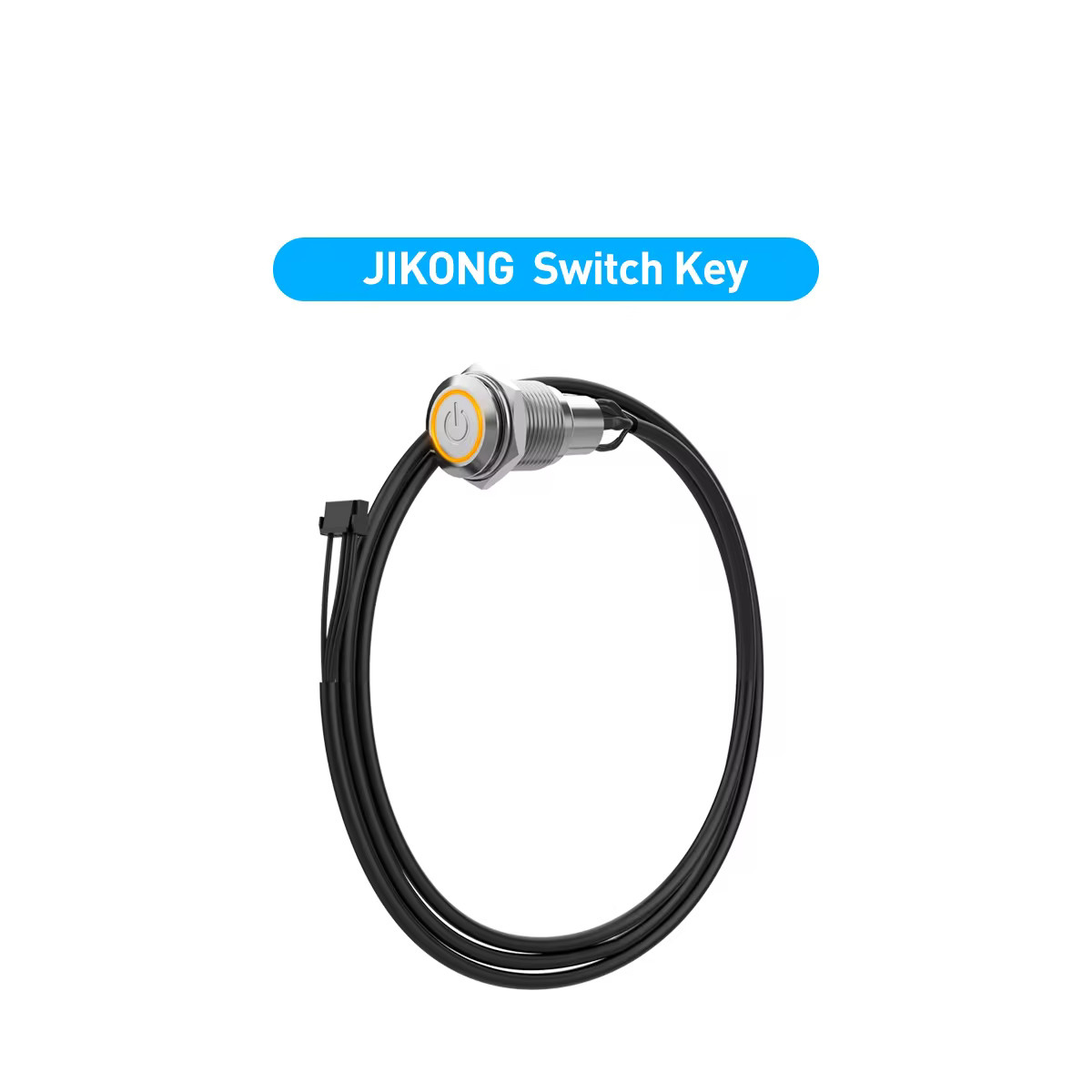

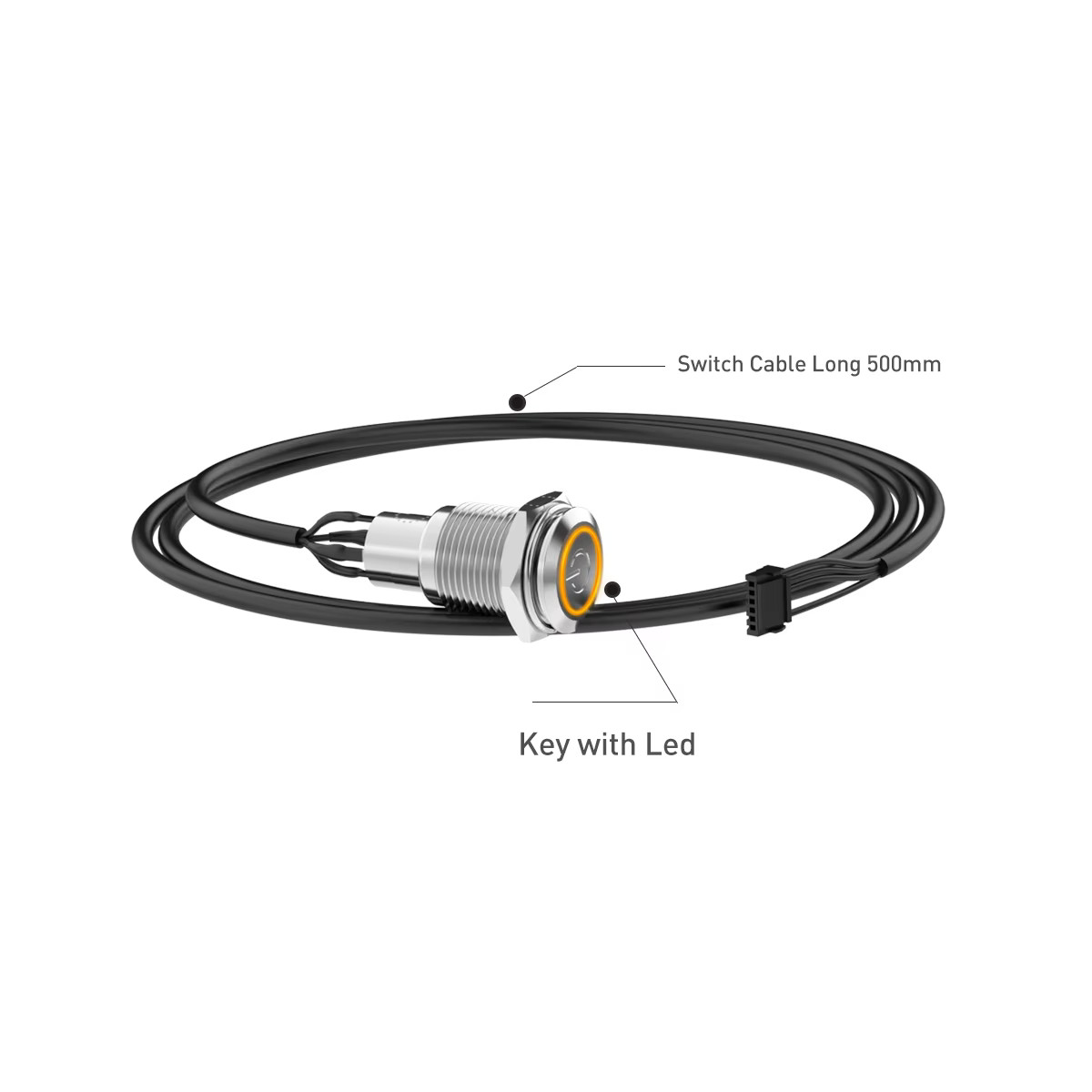

1*Power switch (optional)

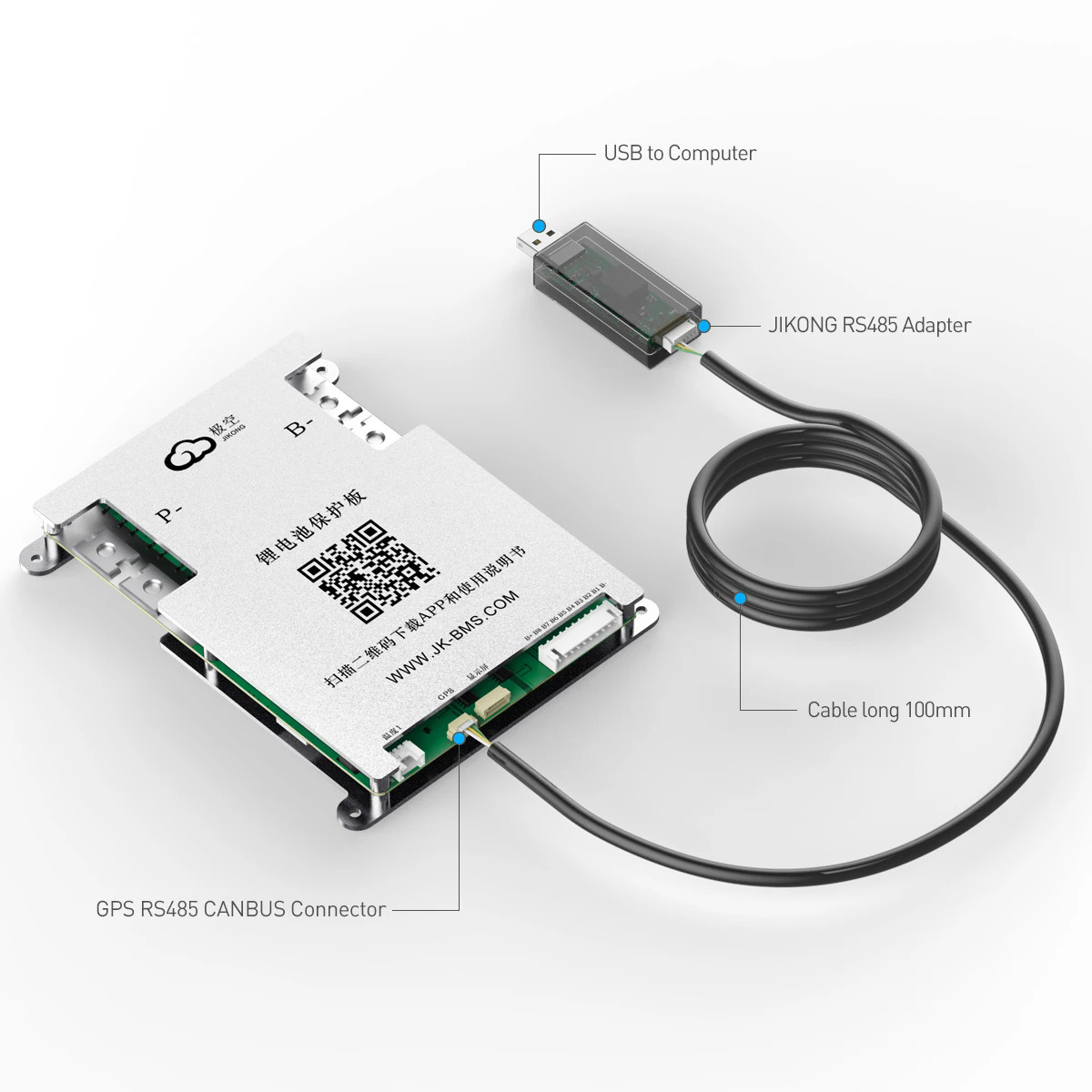

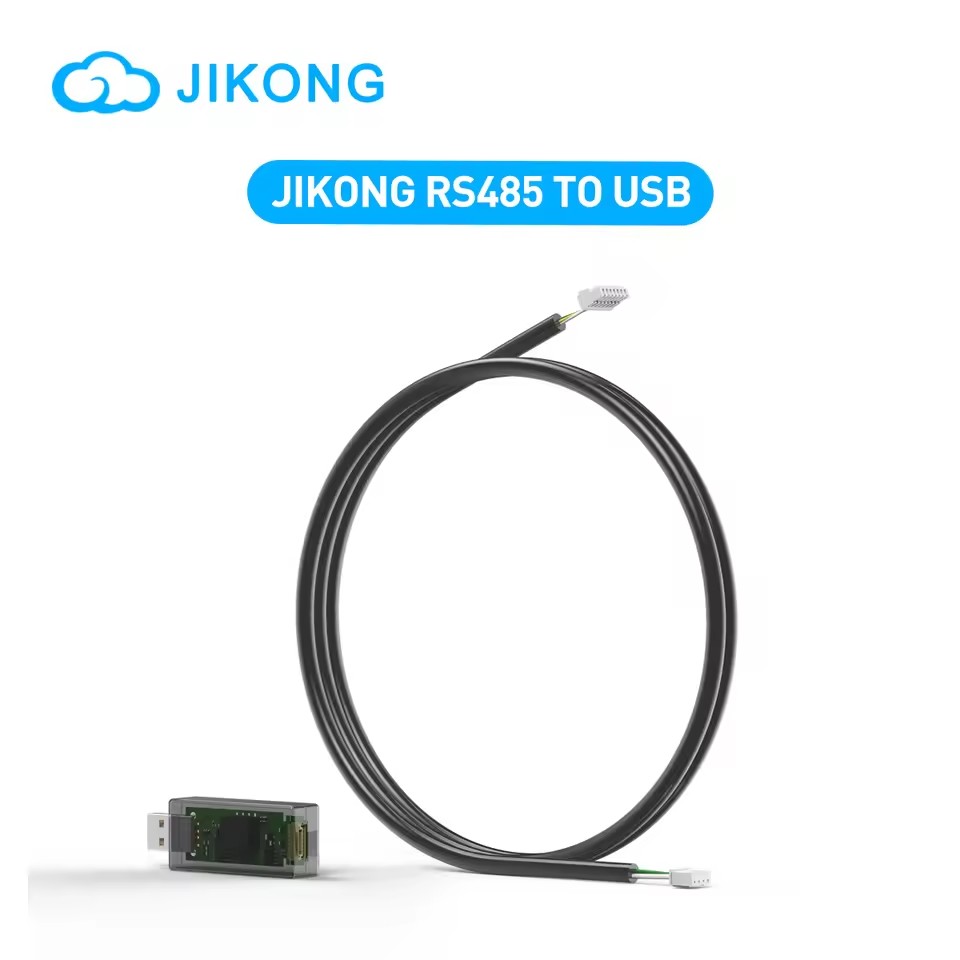

1*RS485 to USB cable (optional)

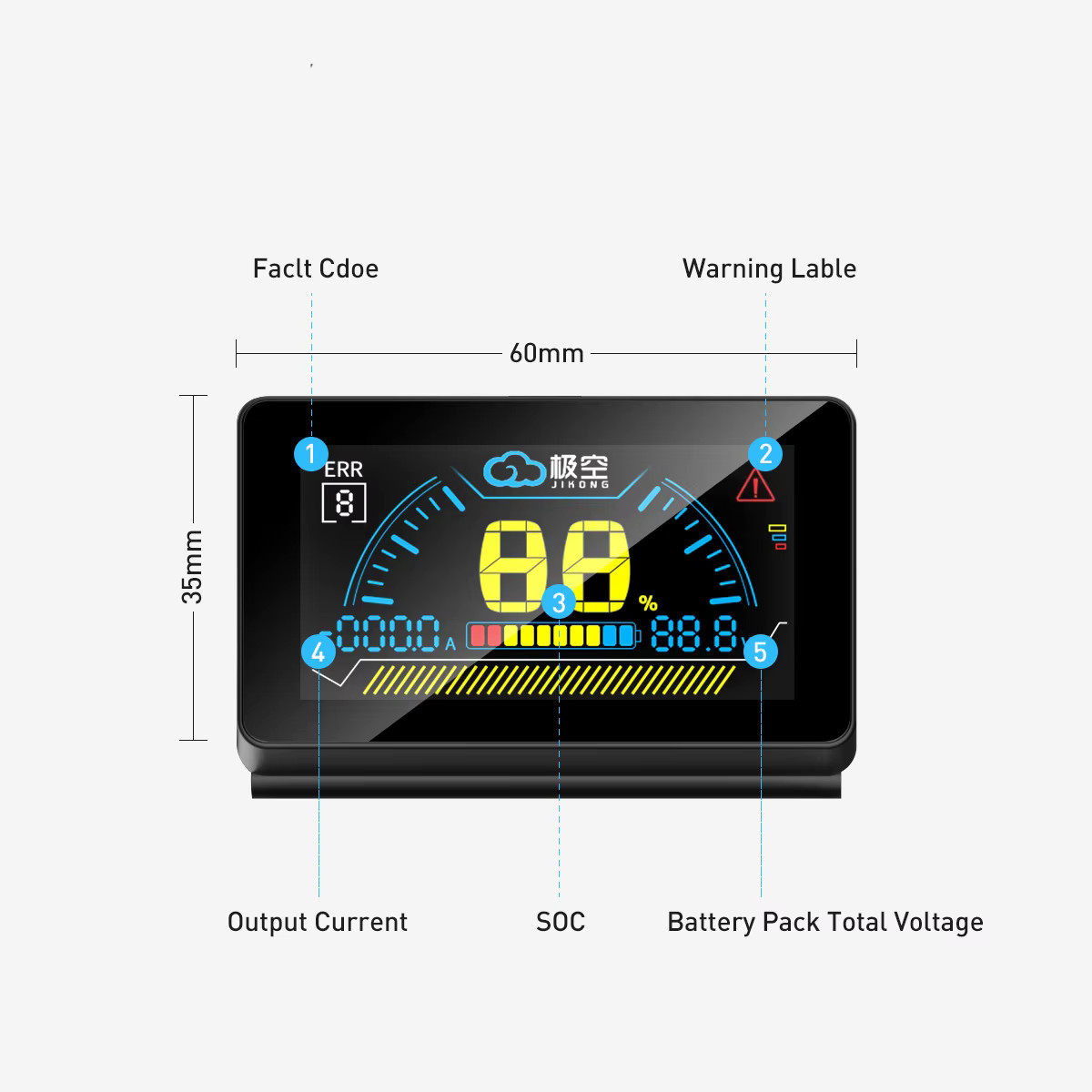

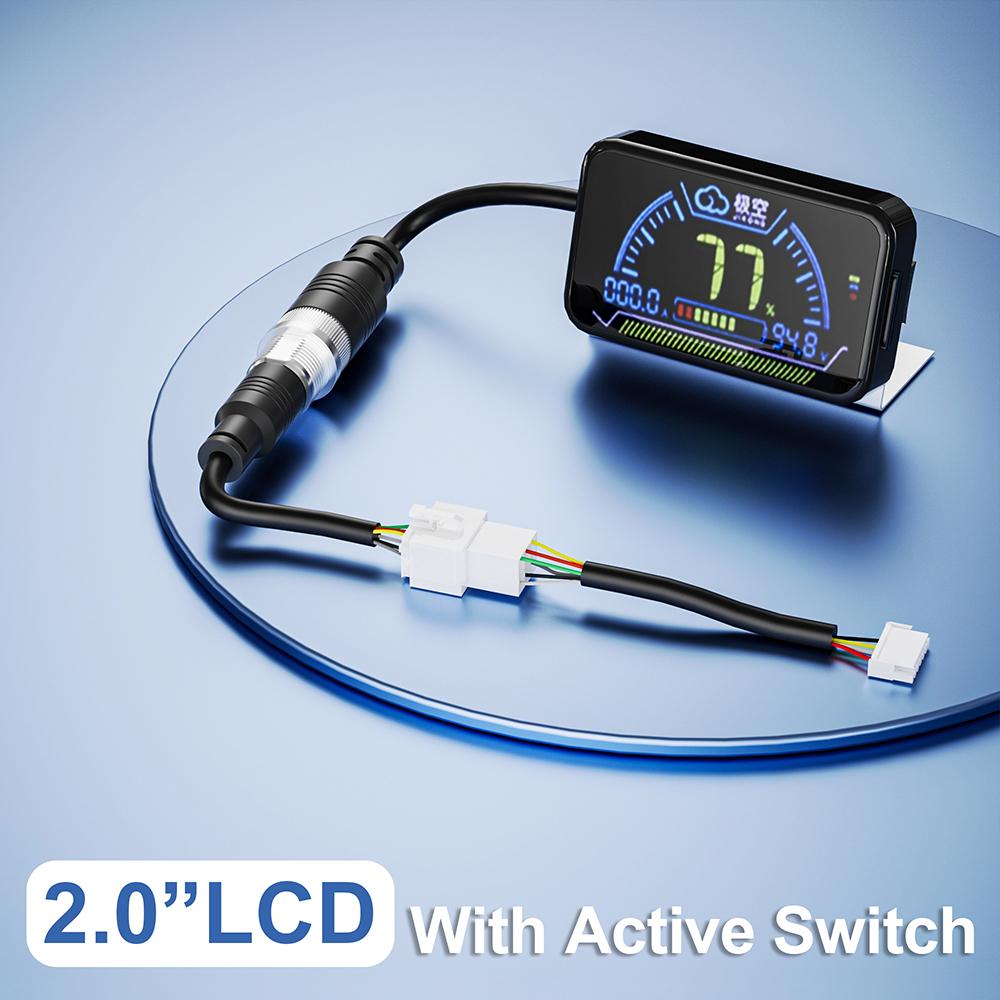

1*2inch LCD display (optional)

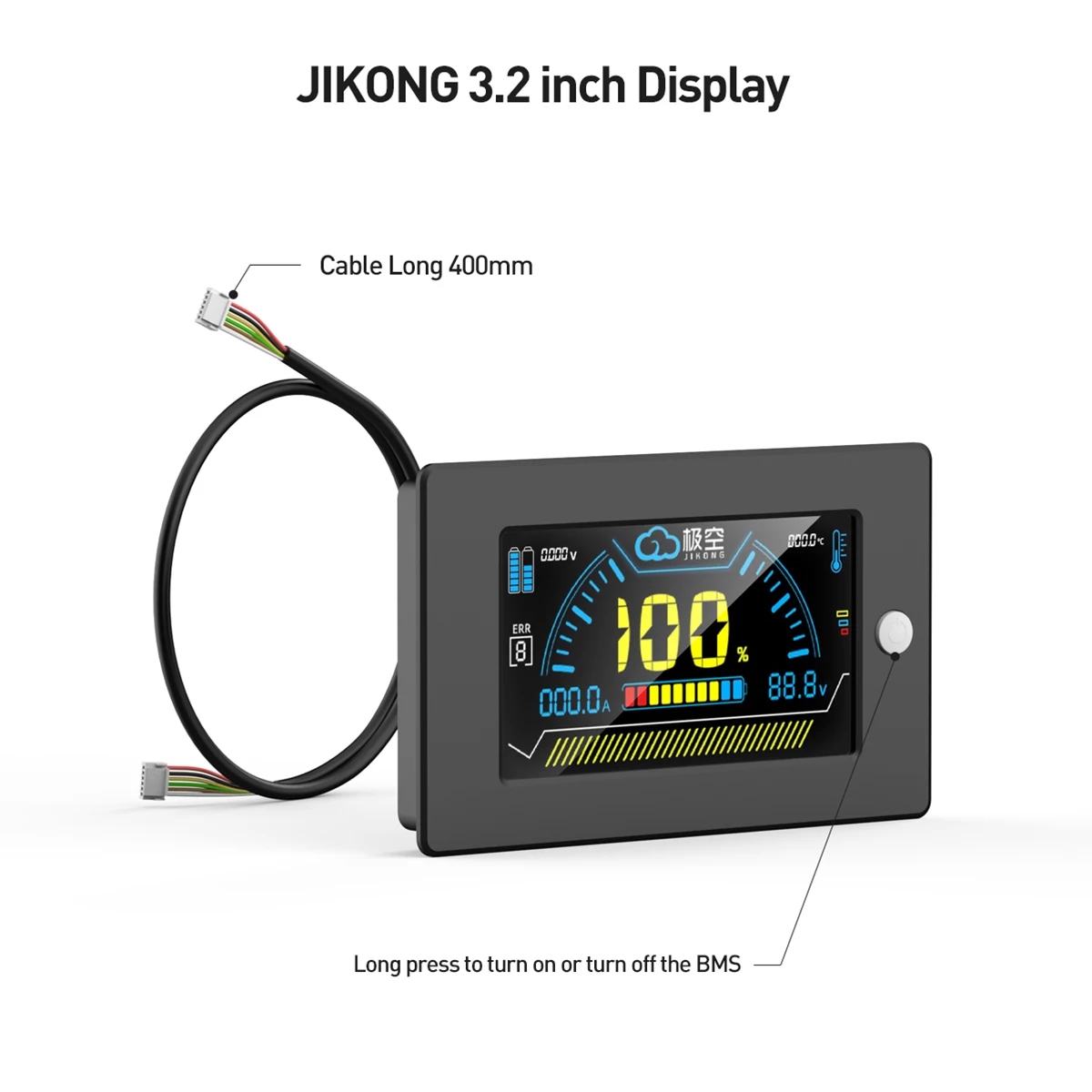

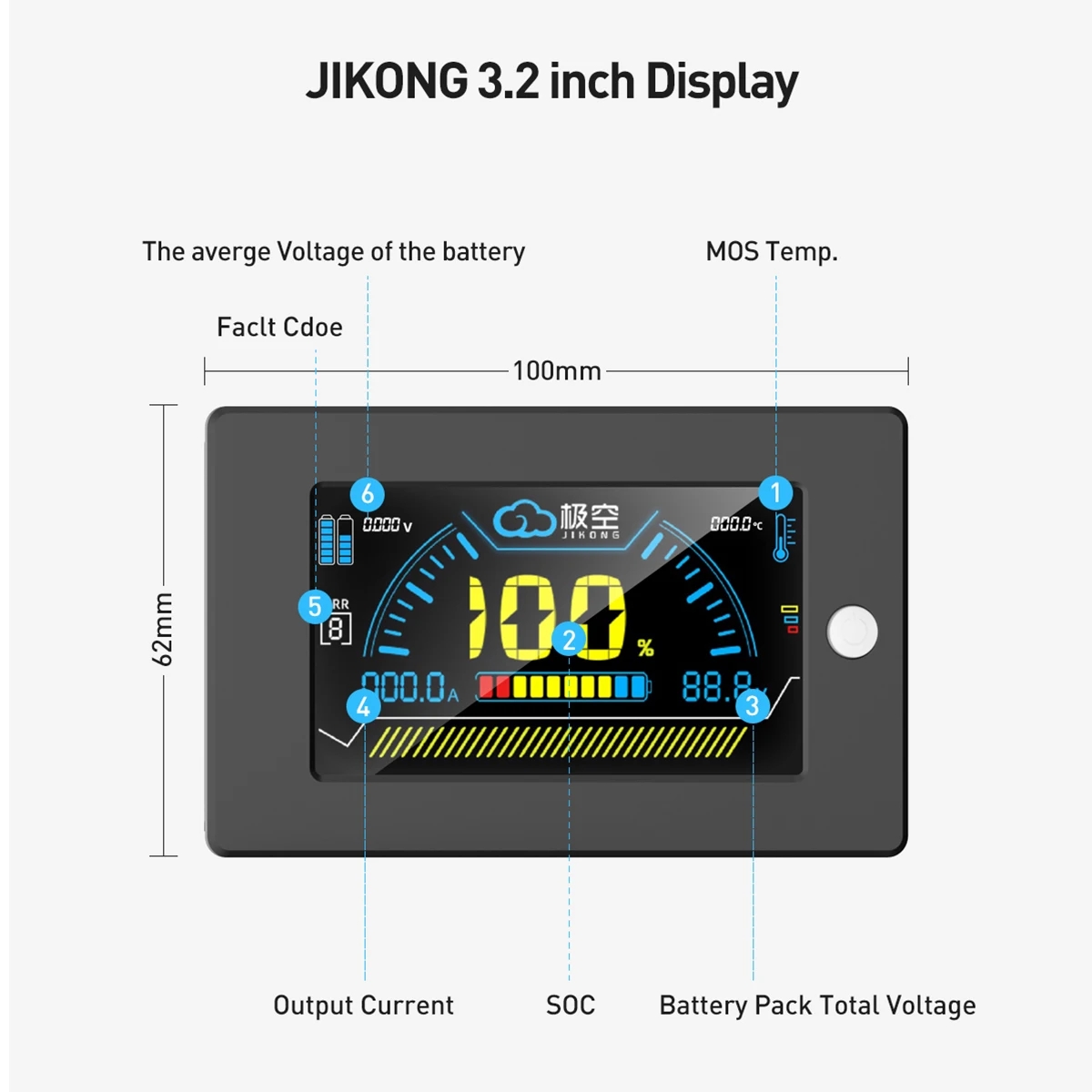

1*3.2inch LCD display (optional)

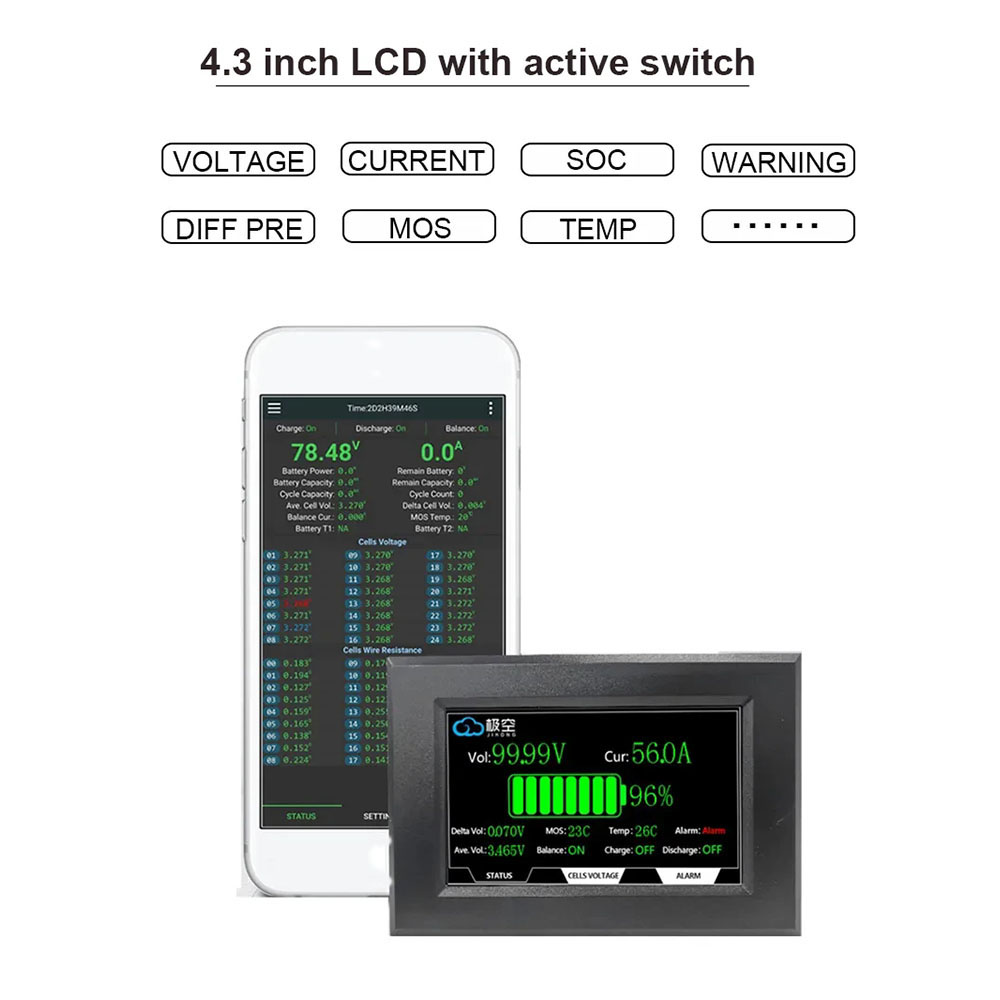

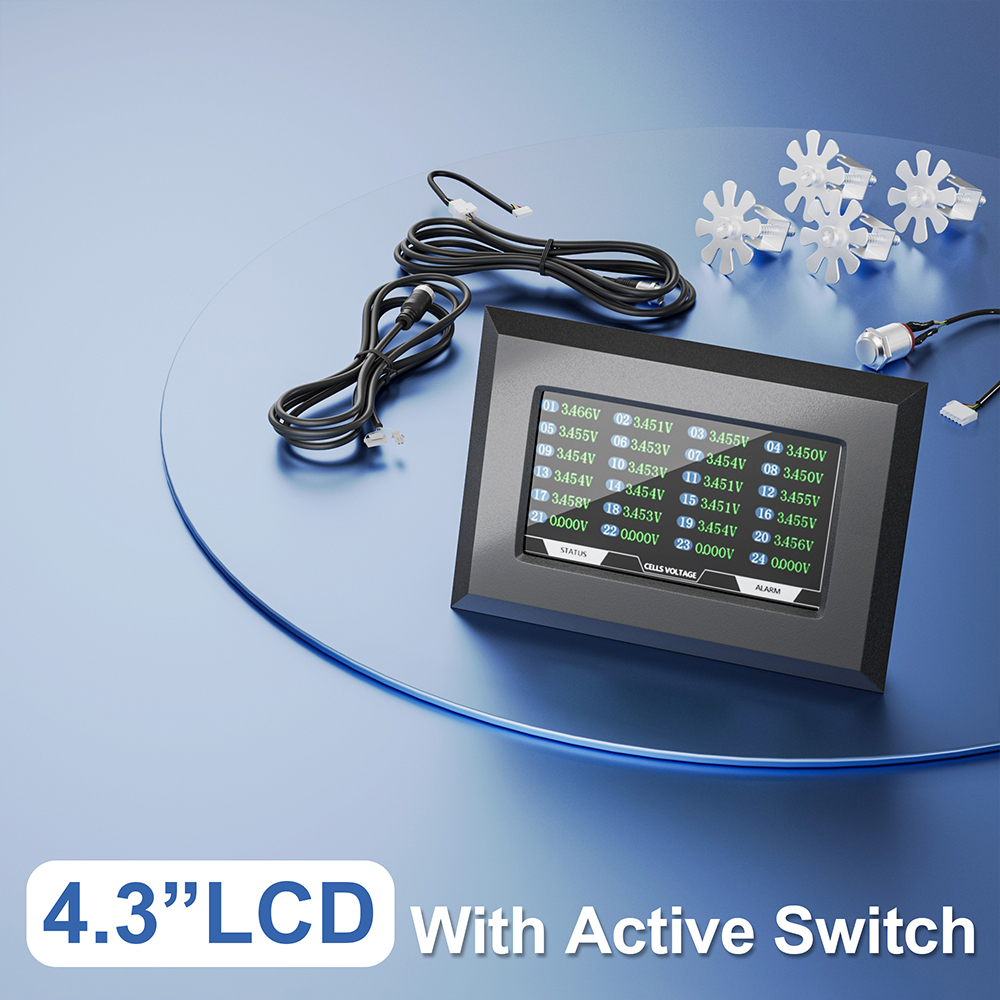

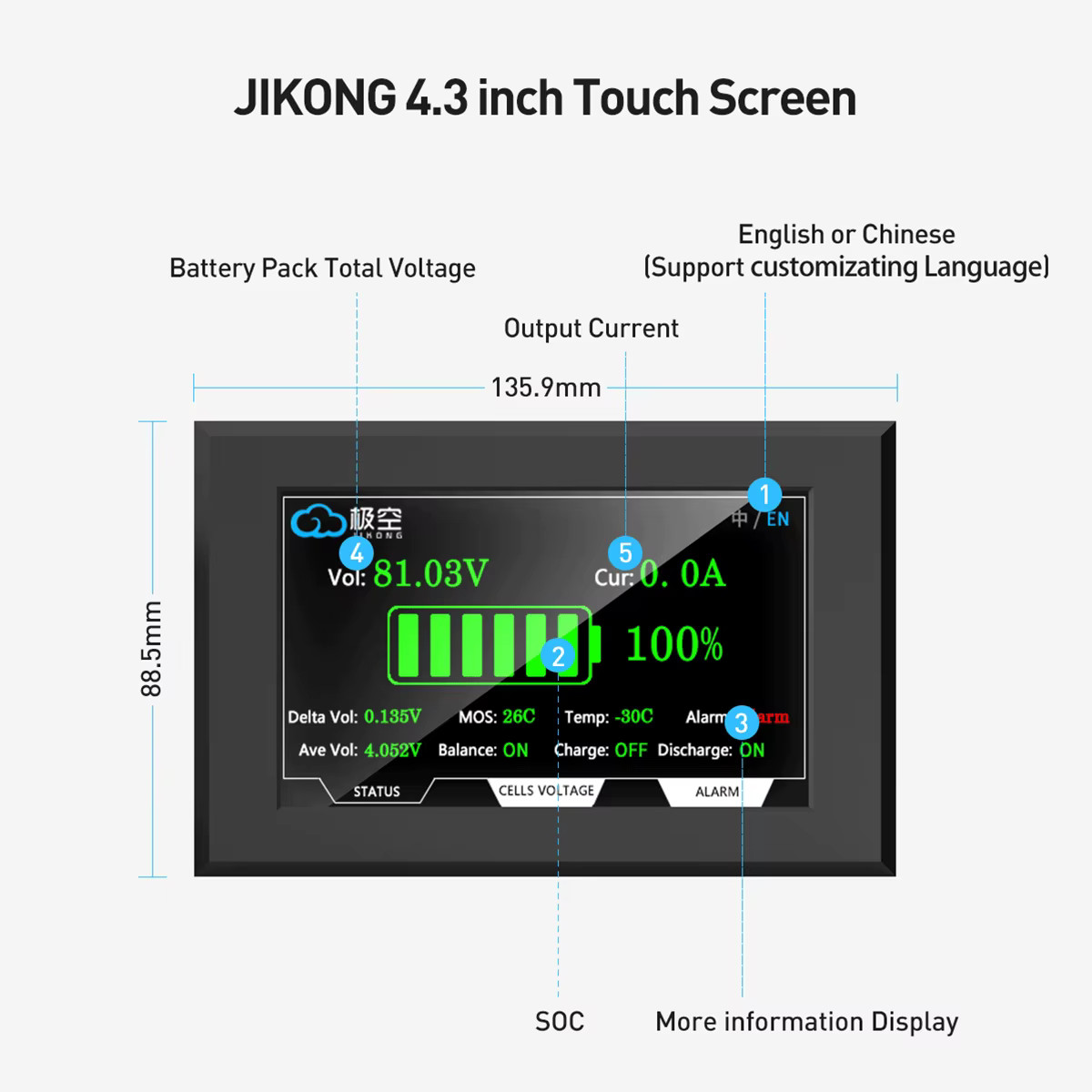

1*4.3inch LCD touch display (optional)

FAQ:

No power on

1. Ensure that the last "B +" line has been connected to the battery total positive pole.

2. Charge activation, make sure the charger voltage is more than 4V above the battery

pack voltage to activate.

3. Check whether the charger has voltage output.

voltage inaccuracy

Measure the actual total voltage of the battery pack with a multimeter, and fill in the actual

total voltage into the "Voltage Calibration" in the parameter setting page.

The current is not allowed

1. BMS B- and P- are two 7AWG wires, both need to be connected in parallel, otherwise it will

lead to current error.

2. Use a clamp meter to measure the actual current of the battery pack, fill in the actual current into

the parameter setting page "current calibration" inside; the larger the actual current, the higher

the calibration accuracy.

Capacity is not allowed

The first step, first set the battery capacity, the battery was how much, set how much capacity can

be set slightly larger, for example, the battery capacity of 100AH, can be set to 120AH or 150AH.

The second step, through the electric instrument to the battery discharge, the battery discharge,

put the protection board prompts the single under voltage protection.

The third step is to charge the battery, don't interrupt when charging, and keep charging until the

BMS prompts the single-unit over-voltage protection.

After doing the above steps, the capacity will be automatically updated, APP battery capacity

shown is the actual capacity of the battery, this time the SOC is also accurate, all the capacity-

related are accurate.

The number of designed strings does not match the actual number of strings

1. Check the parameter settings inside the "number of single unit" is set correctly.

2. If there is no voltage in the middle of a 2S or more strings, check whether the collection line is off.
