Hikvision 4ch 4PoE 4K 8MP Panoramic ColorVu Acusense IP Camera CCTV System Kit

>>> This camera and NVR is 100% Hikvision Original, support firmware upgrade
>>> All the items are with 3 years warranty, if there is any problem after purchased, please contact us for help.

💥 Phone APP: Hik-connect, Guard viewer
💥 PC Client: iVMS-4200
💥 Search Tool：SADP
💥 IPC Default IP：192.168.1.64
💥 NVR Default IP：192.168.254.X

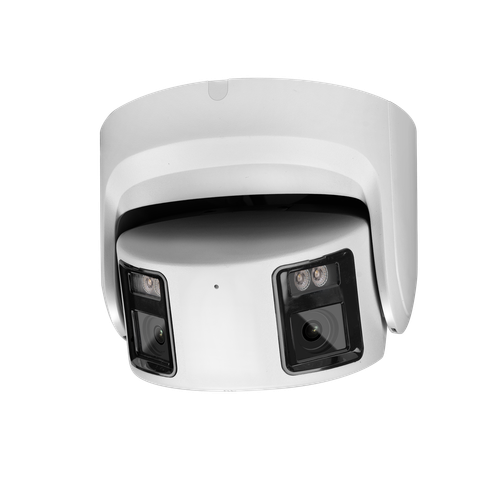

DS-2CD2387G2P-LSU/SL

8MP Panoramic ColorVu Fixed Turret Network Camera

  • High quality imaging with 4 MP resolution
  • One image that presents all the scenes covered by the camera
  • 24/7 colorful imaging
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 130 dB WDR technology
  • Focus on human and vehicle classification based on deep learning
  • Active strobe light and audio alarm to warn intruders off
  • Water and dust resistant (IP67)



  • DS-7604NI-Q1/4P 4-ch 1U 4 PoE 4K NVR

    • Up to 4-ch IP camera inputs
    • H.265+/H.265/H.264+/H.264 video formats
    • Up to 1-ch-8 MP/3-ch-4 MP/6-ch-1080p decoding capacity
    • Up to 40 Mbps incoming bandwidth


DS-2CD2387G2P-LSU/SL


  • Camera
  • Image Sensor2 × 1/1.8" Progressive Scan CMOS
  • Max. Resolution5120 × 1440
  • Min. IlluminationColor: 0.0005 Lux - (F1.0, AGC ON),0 Lux with light
  • Shutter Time1/3 s to 1/100,000 s
  • Angle AdjustmentPan: -30° to 30°,tilt: -75° to 75°
  • Lens
  • Lens TypeFixed focal lens, Dual lens: 4 mm
  • Focal Length & FOV4 mm, horizontal FOV: 180°, vertical FOV: 44°
  • Lens MountM16
  • Iris TypeFixed
  • ApertureF1.0
  • Depth Of Field3.6 m to ∞
  • DORI
  • DORI4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
  • Illuminator
  • Supplement Light TypeWhite Light
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • Video
  • Main Stream

    When WDR is On:

    50 Hz: 12.5 fps (5120 × 1440)

    60 Hz: 15 fps (5120 × 1440)

    When WDR is Off:

    50 Hz: 20 fps (5120 × 1440)

    60 Hz: 20 fps (5120 × 1440)

  • Sub-Stream

    When WDR is On:

    50 Hz: 12.5 fps (1920 × 536, 960 × 272)

    60 Hz: 15 fps (1920 × 536, 960 × 272)

    When WDR is Off:

    50 Hz: 20 fps (1920 × 536, 960 × 272)

    60 Hz: 20 fps (1920 × 536, 960 × 272)

  • Video Compression

    Main stream: 265+/265/H.264+/H.264

    Sub-stream: 265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • 265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Scalable Video Coding (SVC)H.264 and 265 encoding
  • Region Of Interest (ROI)1 fixed region(s) for main stream
  • Audio
  • Audio TypeMono sound
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
  • Network Storage

    NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),NVR,

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • ClientiVMS-4200,Hik-Connect,Hik-Central
  • Web Browser

    Plug-in required live view: IE 10, IE 11 ,

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

    Local service: Chrome 57.0+, Firefox 52.0+

  • Image
  • Image Parameters SwitchYes
  • Image Settingssaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night SwitchDay,Night,Auto,Schedule
  • Wide Dynamic Range (WDR)130 dB
  • SNR≥ 52 dB
  • Image EnhancementBLC,HLC,3D DNR
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
  • Built-In MicrophoneYes
  • Built-In SpeakerMax. power consumption: 1.2 W, max. sound pressure: 10 cm: 95 dB
  • Audio

    1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

    1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

  • Alarm1 input, 1 output (max. 24 VDC, 1 A)
  • Reset KeyYes
  • Event
  • Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),alarm input and output,flashing alarm light output, audible alarm output, exception
  • Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
  • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing
  • Deep Learning Function
  • Perimeter ProtectionLine crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))
  • General
  • Power

    12 VDC ± 25%, 0.79 A, max. 9.5 W,Ø5.5 mm coaxial power plug,

    PoE: 802.3af, Class 3, 36 V to 57 V, 0.29 A to 0.18 A, max. 10.5 W

  • MaterialBase: metal, cover: metal
  • Dimension



    Ø155 mm × 155.3 mm (Ø6.1 × 6.1\")"

  • Package Dimension230 mm × 230 mm × 230 mm (9" × 9" × 9")
  • Approx. 1110 g (2.4 lb.)
  • With Package WeightApprox. 1900 g (4.2 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General FunctionAnti-flicker, heartbeat, password reset via email, password protection, one-key reset
  • Flashing LightYes
  • Approval
  • EMC

    FCC: 47 CFR Part 15, Subpart B,

    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

    RCM: AS/NZS CISPR 32: 2015,

    IC: ICES-003: Issue 7

  • Safety

    UL: UL 62368-1,

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017

  • Environment

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006

  • ProtectionIP67: IEC 60529-2013




DS-7604NI-Q1/4P

  • Motion Detection 2.0
  • Human/Vehicle Analysis1-ch;4-ch
  • Recording
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
  • Video And Audio
  • IP Video Input4-ch
  • Incoming Bandwidth40 Mbps
  • Outgoing Bandwidth80 Mbps
  • HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz;1-ch, 4K（4096x2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz; ,HDMI/VGA simultaneous output,;1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; ,HDMI/VGA simultaneous output,;1-ch, 4K（4096x2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz ,HDMI/VGA simultaneous output,
  • VGA Output1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ;HDMI/VGA simultaneous output,;1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz;1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ;,HDMI/VGA simultaneous output,
  • Video Output ModeHDMI/VGA simultaneous output
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
  • Decoding
  • Decoding FormatH.265+,H.265,H.264+,H.264
  • Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Decoding Capability1-ch-8 MP (30 fps)/5-ch-1080p (30 fps)
  • Synchronous Playback4-ch
  • Network
  • Remote Connection32
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • PoE
  • Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power≤ 50 W
  • StandardIEEE 802.3 af/at
  • Auxiliary Interface
  • SATA1 SATA interface
  • CapacityUp to 8 TB capacity for each disk
  • USB Interface2 × USB 2.0
  • Alarm In/OutN/A (4/1 is optional)
  • General
  • Power Supply48 VDC, 1.35 A
  • Consumption≤ 10 W (without HDD, and PoE off)
  • Working Temperature-10 to +55º C (+14 to +131º F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
  • Weight≤ 1 kg (without HDD, 2.2 lb.)
  • Certification
  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Hikvision Original 8MP Panoramic ColorVu IP Camera DS-2CD2387G2P-LSU/SL 4mm
* 1 xDS-7604NI-Q1/4P 4-ch 1U 4 PoE 4K NVR

* 1 x Installation Accessories
