Car Auto Remote Window Close & Open Side Mirror fold unfold Kit Module For


 Mazda CX-5 Cx5 2012-2023

  • Material:ABS case and metal Chip board
  • Size: 10x5x3cm
  • Warranty: 12 months
  • Working power: DC12V
Fitment: For Mazda CX-5 / Mazda 6 Atenza 2014-23 . We have totall 3 different products fit for different version , pls confirm below :


1: Left hand drive with one driver window has "auto" button and electric mirror fold button
2: Left hand drive with four "auto" button and mirror button
3: Right hand drive with one driver window has "auto" button and electric mirror fold button

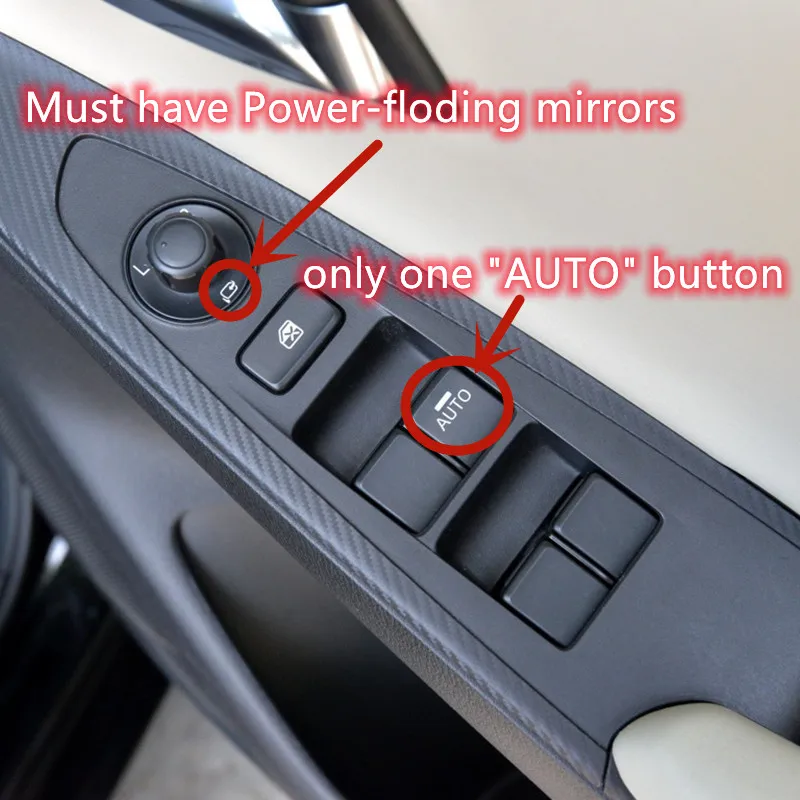

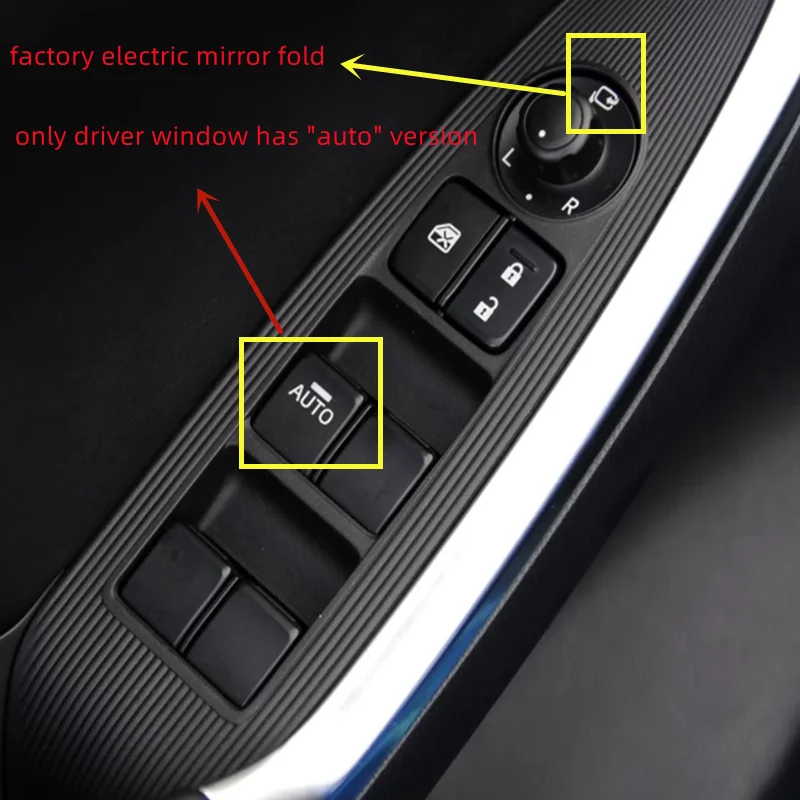

1 first version : Only driver window has "AUTO" button and electric mirror fold button:

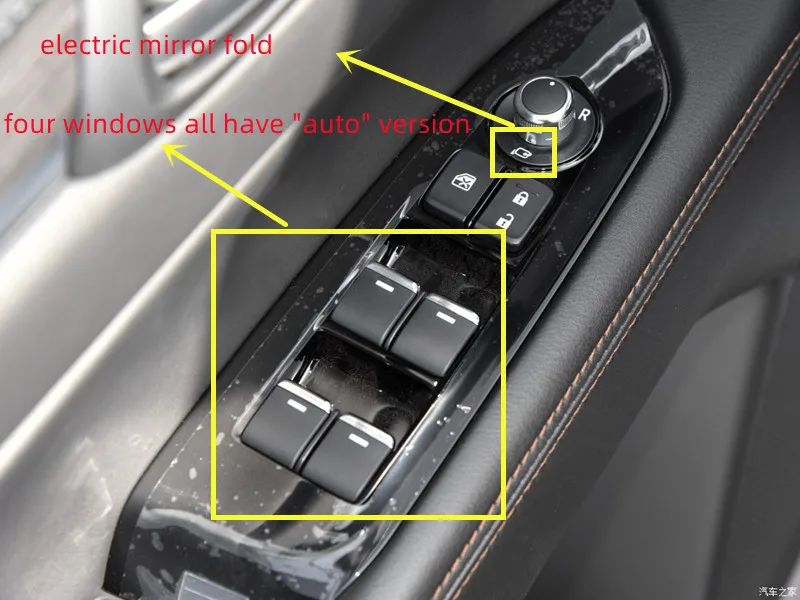

2:Four windows all have "Auto " up and down feature ,also have electric mirror fold button .

3 : Right hand drive model , Only driver window has "AUTO" button and electric mirror fold button:


1.After place order , please LEAVE MESSAGE about your car version ( VERY IMPORTANT)

1) your car is left hand drive or right hand drive ?
2) your car has one driver "auto" switch or four windows all have "auto" switch ?
2. If the item get into water, we will not guarantee it
3.Please make sure your car has electric fold mirror , if not , then the mirror don't work by remote .

4.Plug and play.







7 Functions:

Function 1

Locking car,the window will lift close automatically.


Press Original Remote key "LOCK" button after get off the car , Four Windows will close automatically .


Function 2

Remote to drop the windows.


When the car is power  off , Press Remote "unlock>lock>unlock"  continuously within three seconds ,Four windows will open automatically ,  You can open the window in advance to the car ventilation.


Function 3

Secondary window close again


When you press remote to open the window , then Press the"lock" button twice ( make sure press two times), windows will close automatically again .



Function 4

Remote key to fold the mirror and unfold the mirror


Press remote key fob " lock "  button , mirror will fold close , press " unlock" , mirror will unfold open .



Function 5

Remote control pauses when window is lifted.


Press the "unlock" button to pause the window during close ,  Protecting passengers from being injured by pinch.




Function 6

Remote control pauses when the window drops.


Press the "lock" buttton during window opening ,the window will stop .



Function 7


All four windows will upgrade elecric automatic up and down on the window switch panel .


Pull up the window button up 0.5 seconds, the window automatically lift to the top,Press the window control button,

the window will automatically down to the end.the original car function is not affected.

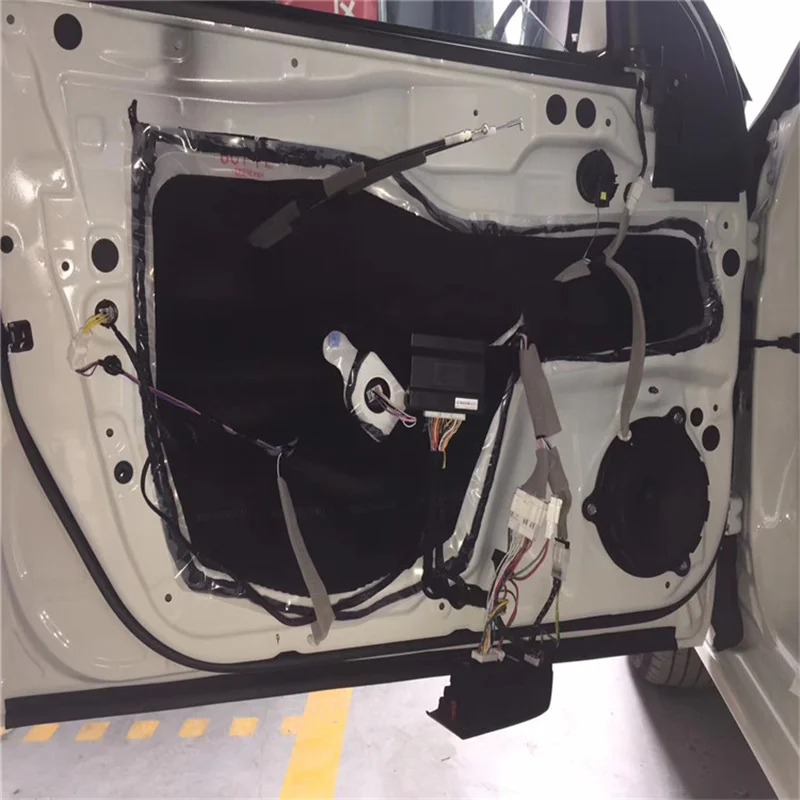

Installation: Install on the driver door , connect the plugs and harness wire . 15 minutes installation finish , is easy , can install by yourself .




Package including:

1 x Power Window Close kit  Product Size: 125*85*30MM , 0.5KG
1 x Wire Harness
1 x User Manual













Buyer Installed:
