Condition: Used
Dimensions: 12.00 x 12.00 x 12.00 inches (L x W x H)
Weight: 20.00 Lbs.

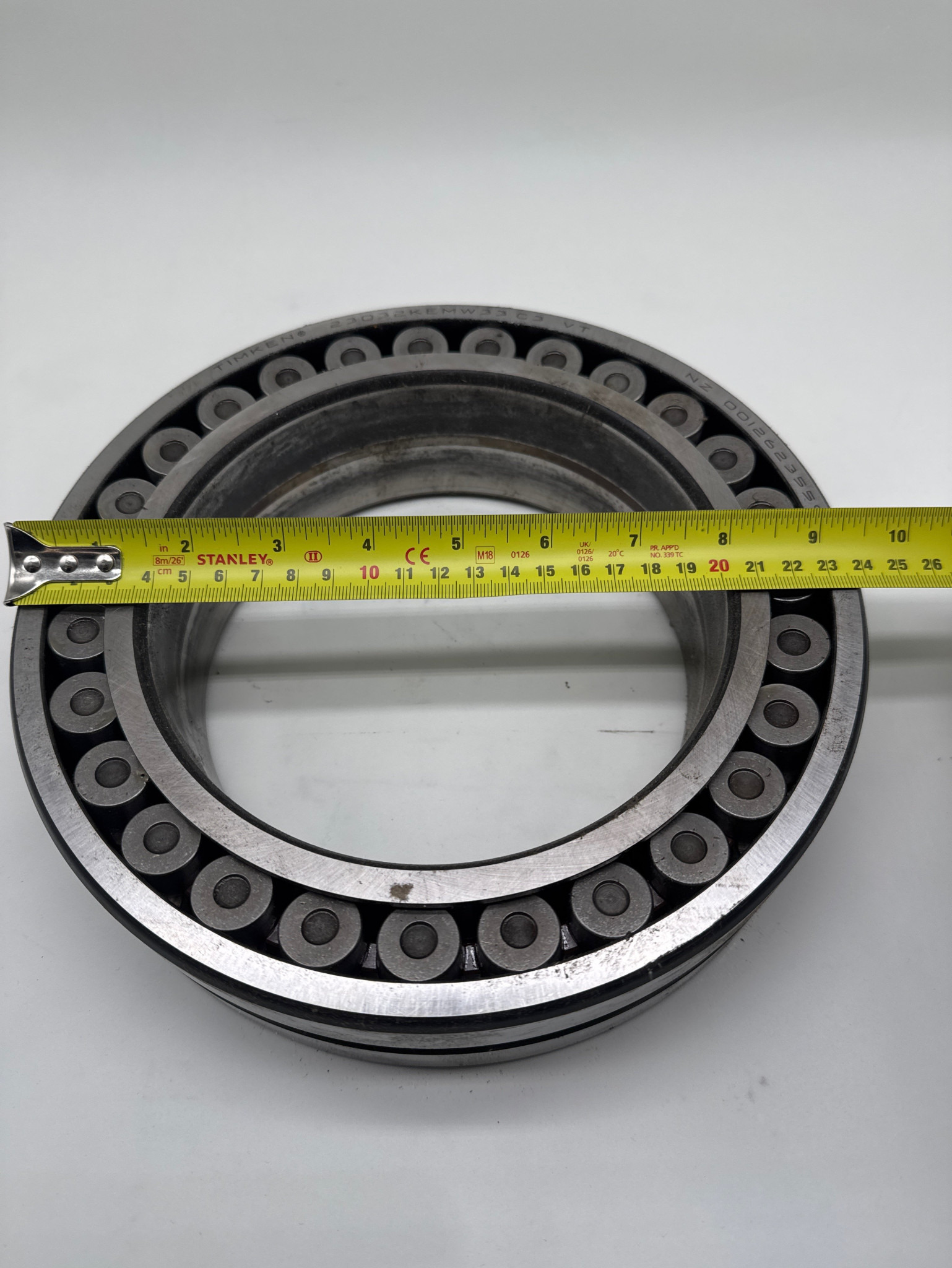

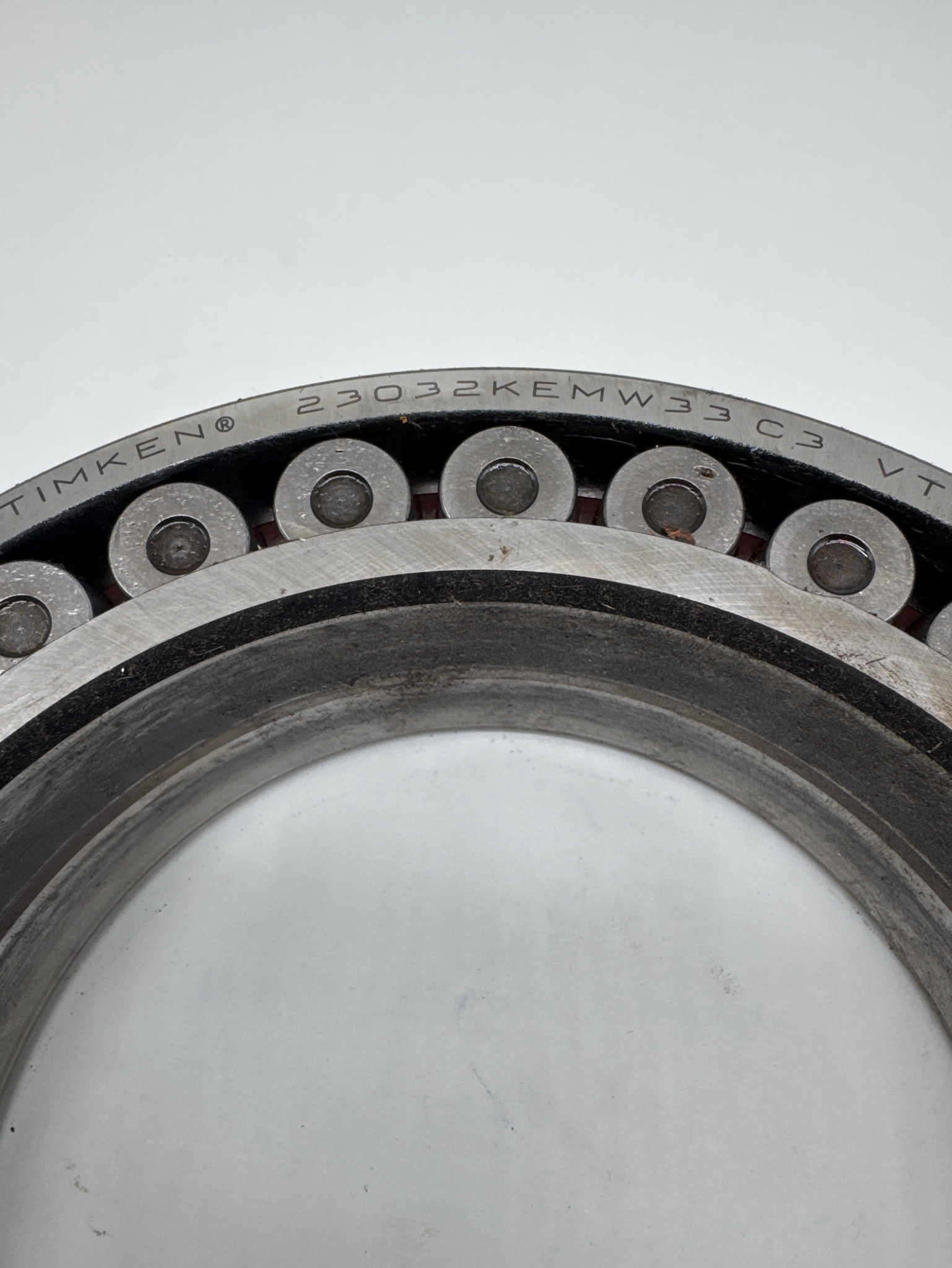

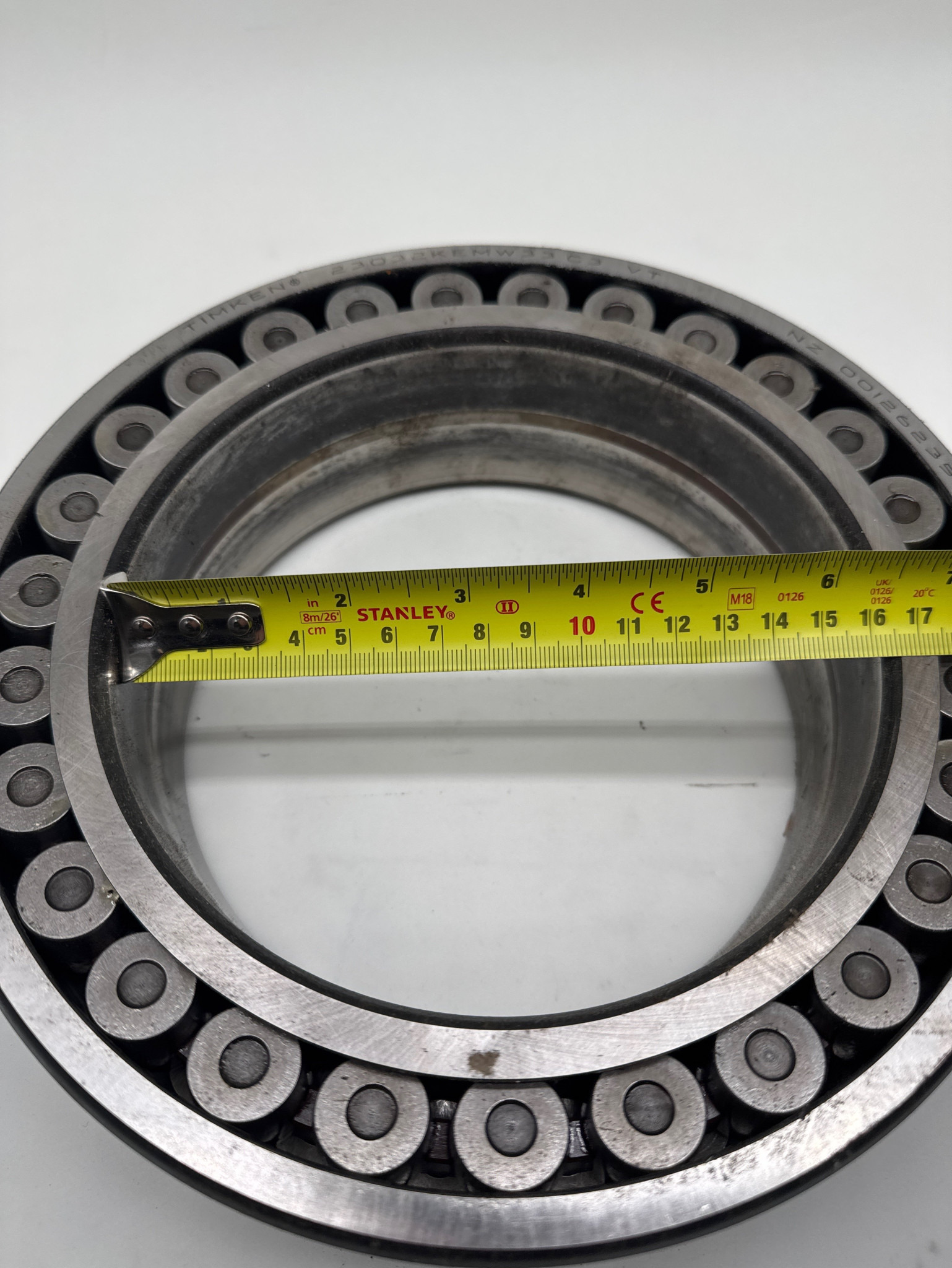

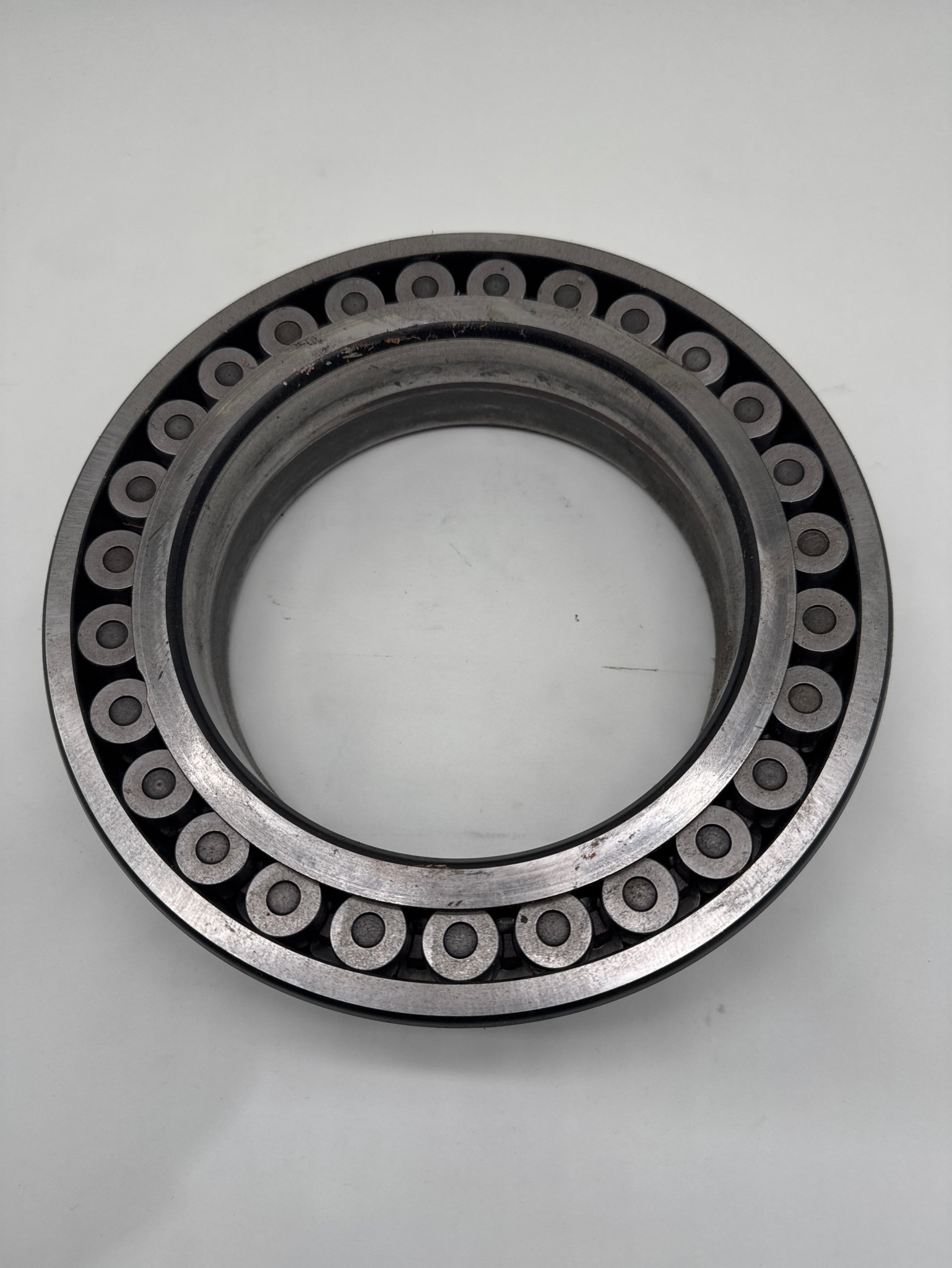

The Timken 23032KEMW33C3 VT is a spherical roller bearing designed for heavy-duty industrial applications where both radial and axial loads are present. It features high load capacity, self-aligning capability, and vibration-tolerant construction for extended service life in harsh environments. Manufacturer: Timken Company Model / Part Number: 23032KEMW33C3 VT Type: Spherical Roller Bearing Bore Diameter: 160 mm Outer Diameter: 240 mm Width: 60 mm Internal Clearance: C3 (greater than normal for thermal expansion and higher speeds) Design Features: • “K” – Tapered bore (1:12 taper) for adapter sleeve mounting • “EM” – Steel cage with high-strength brass guidance • “W33” – Lubrication groove and three lubrication holes in the outer ring • “VT” – Special vibration-tolerant design for rotating machinery Dynamic Load Rating (C): Approx. 750 kN Static Load Rating (C0): Approx. 710 kN Speed Ratings: • Reference Speed: ~2400 rpm (grease) • Limiting Speed: ~3200 rpm (oil lubrication) Material: High-grade bearing steel, precision ground Lubrication: Grease or oil (W33 feature enables relubrication during operation) Temperature Range: -40°C to +200°C (-40°F to +392°F) depending on lubricant type Mounting Type: Adapter sleeve or tapered shaft mount Applications: • Industrial gearboxes and electric motors • Mining and aggregate machinery • Pulp and paper processing equipment • Marine propulsion and heavy-duty drives Features: • Self-aligning design compensates for misalignment up to ±1.5° • Enhanced vibration and impact resistance (VT specification) • Precision-machined raceways for uniform load distribution • Extended service life under dynamic or shock loading conditions Approximate Weight: 9.5–10 kg (21 lb) Country of Manufacture: USA Please review pictures carefully and let us know if you have any questions!
