Condition: Used
Dimensions: 12.00 x 9.00 x 6.00 inches (L x W x H)
Weight: 2.00 Lbs.

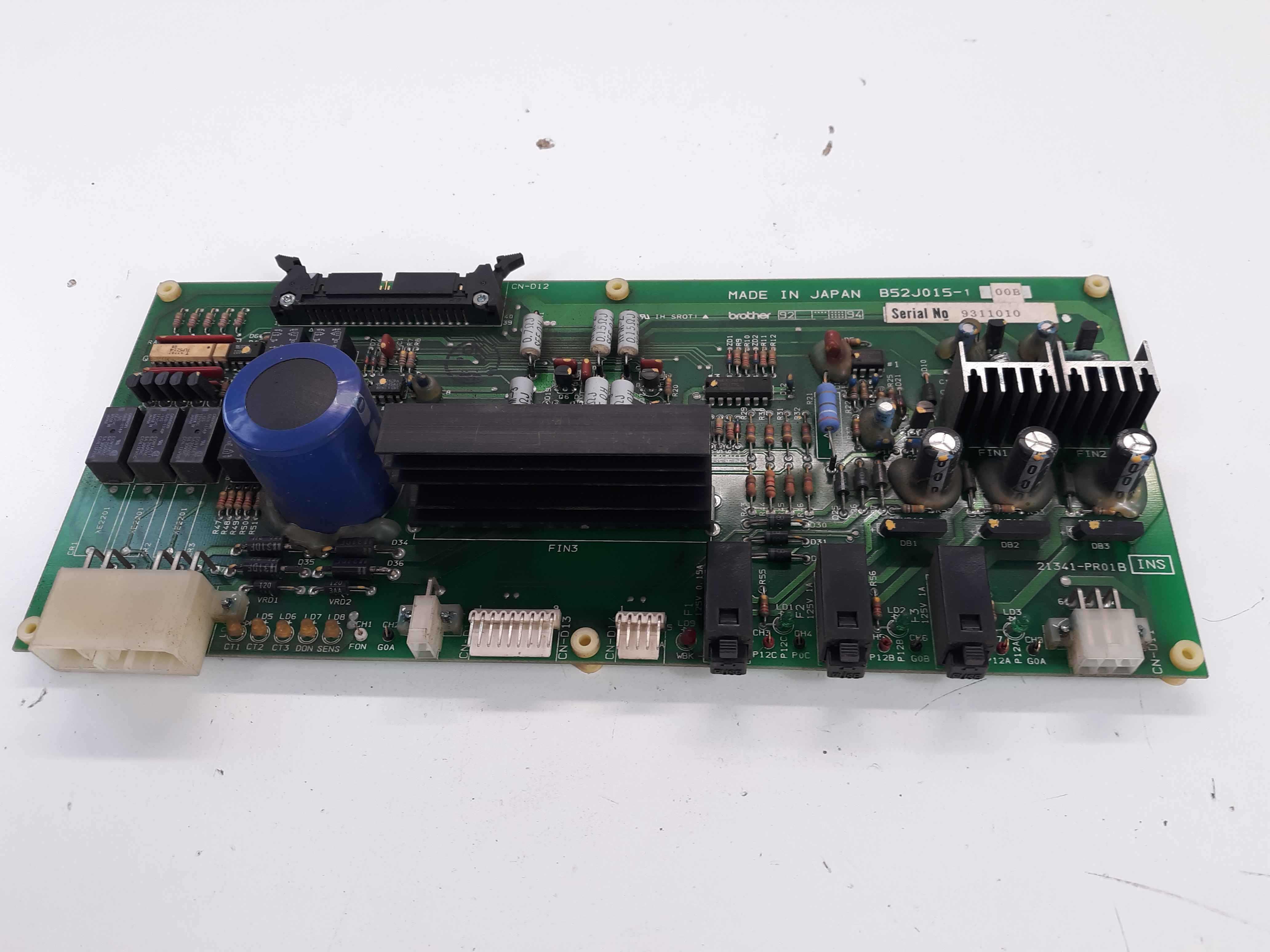

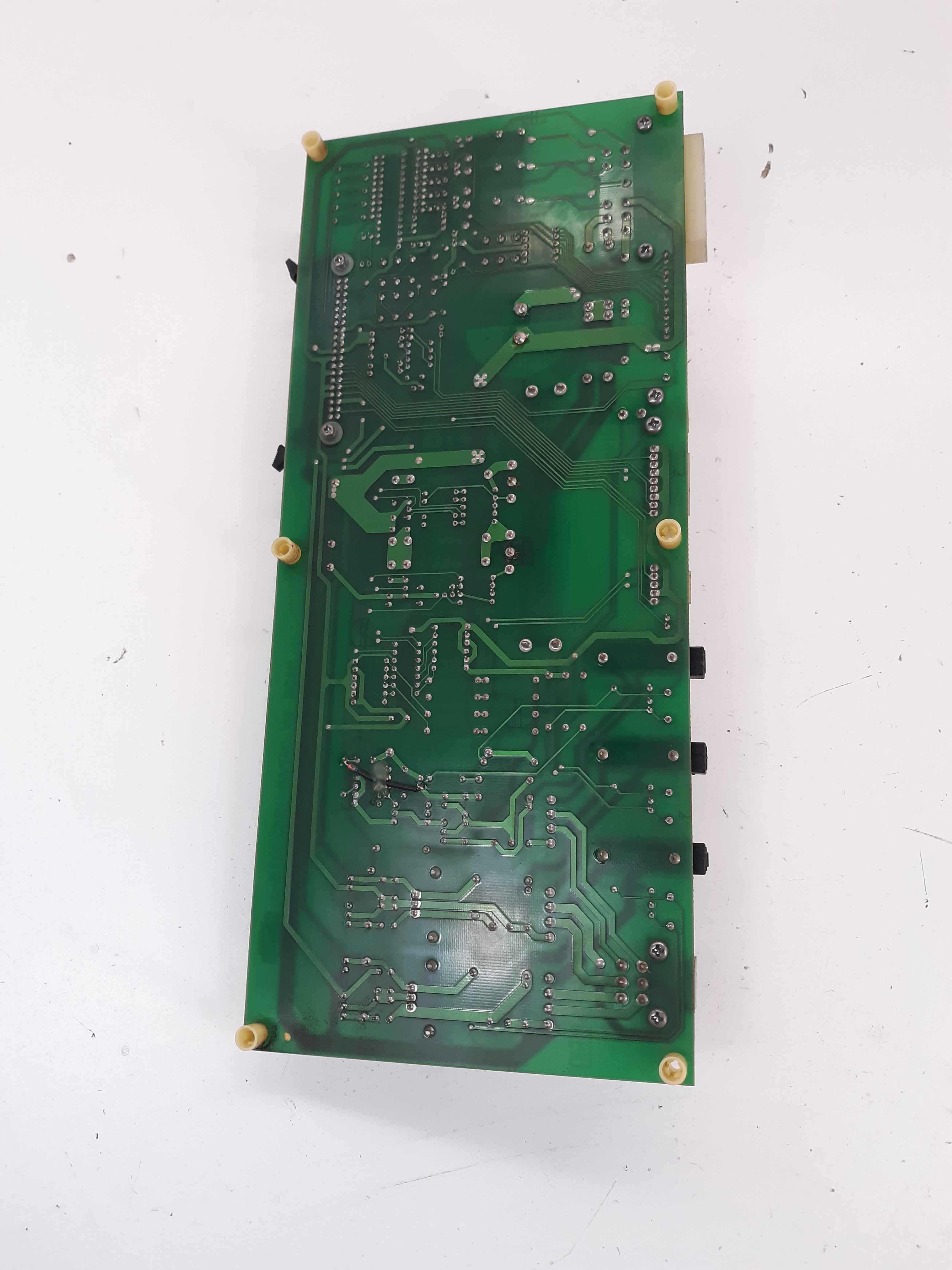

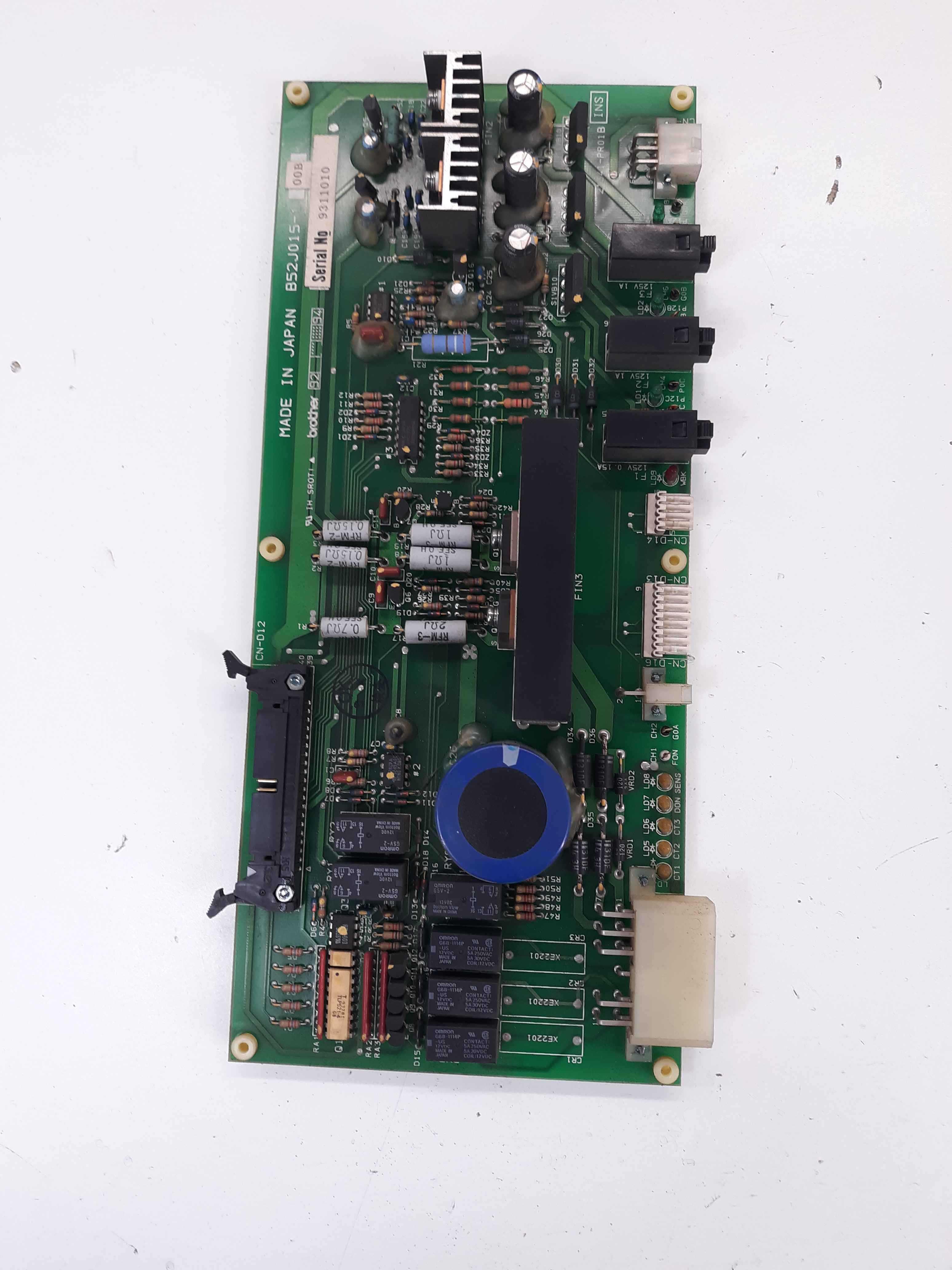

This is a Brother B52J015-100B Circuit Board Unit, a control module used in Brother EDM (Electrical Discharge Machining) or CNC equipment. Manufacturer: Brother Industries, Ltd. Model / Part Number: B52J015-100B Type: Control / Power Regulation Circuit Board Function: • Provides pulse generation and control for EDM or CNC systems. • Regulates timing, discharge current, and signal interfacing with other control boards. • Manages low-voltage DC power distribution to functional modules. Specifications: Operating Voltage: Typically +24VDC and ±15VDC supplied by the main power unit. Connectors: • Multi-pin edge connectors for data and control signal interfacing. • Power terminal block for high-current delivery. Key Components: • Large electrolytic capacitor for voltage stabilization. • Heat sink-mounted power transistors and regulators. • IC modules for timing and logic control. • Transformer and relay sections for circuit isolation. Construction: • Industrial-grade epoxy resin PCB with Brother labeling and terminal numbering. • Designed for high reliability and easy module replacement. Applications: • Used in Brother CNC and EDM systems. • Interfaces with other boards such as B52J012-100A and B52J014-100D. • Controls EDM discharge cycles, timing, and motor or servo power functions. Please review pictures carefully and let us know if you have any questions!
