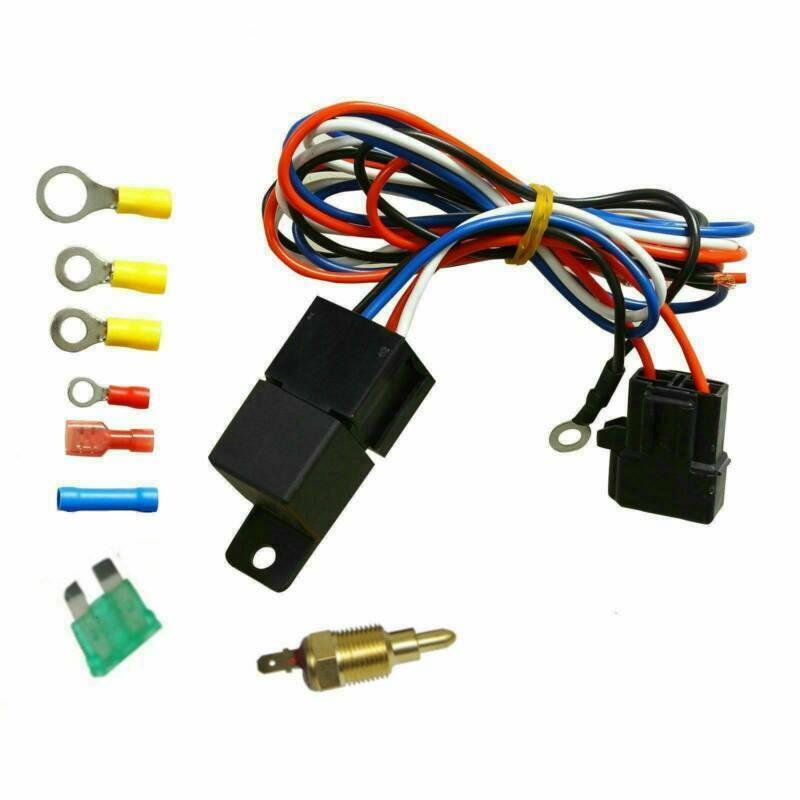

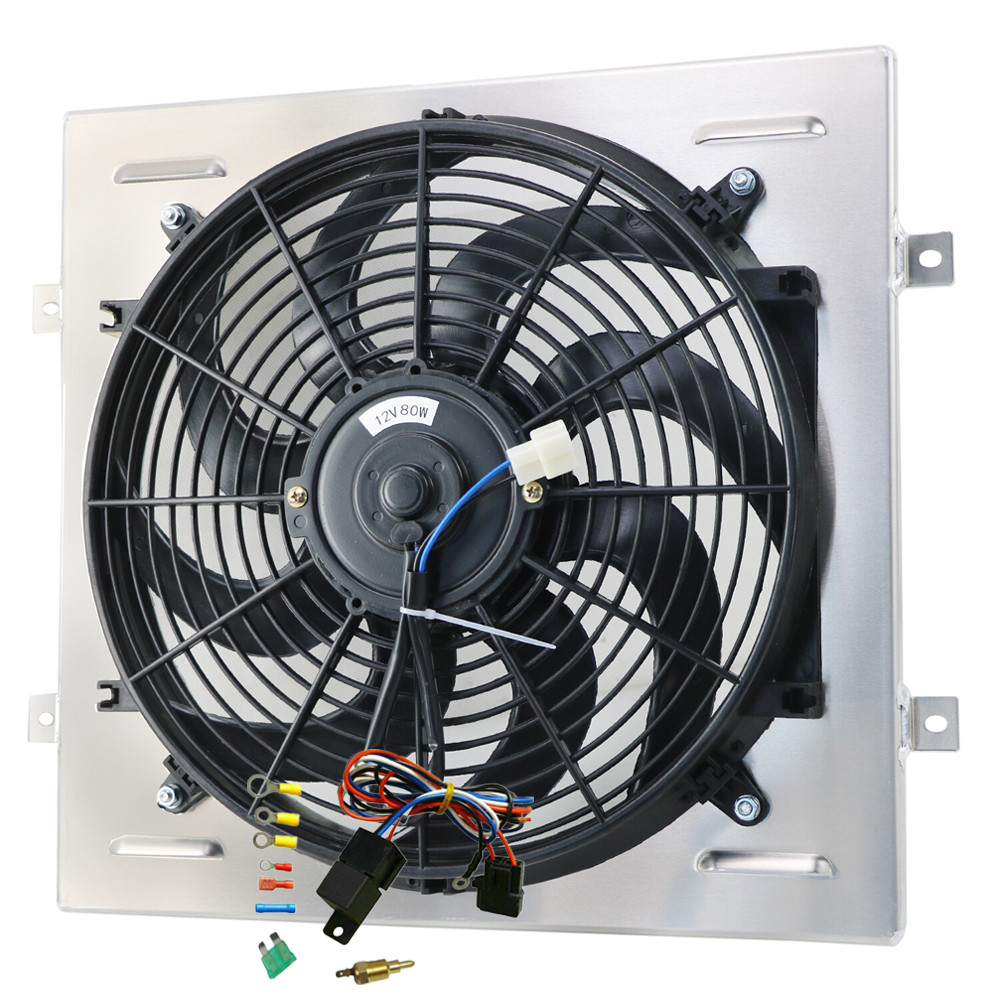

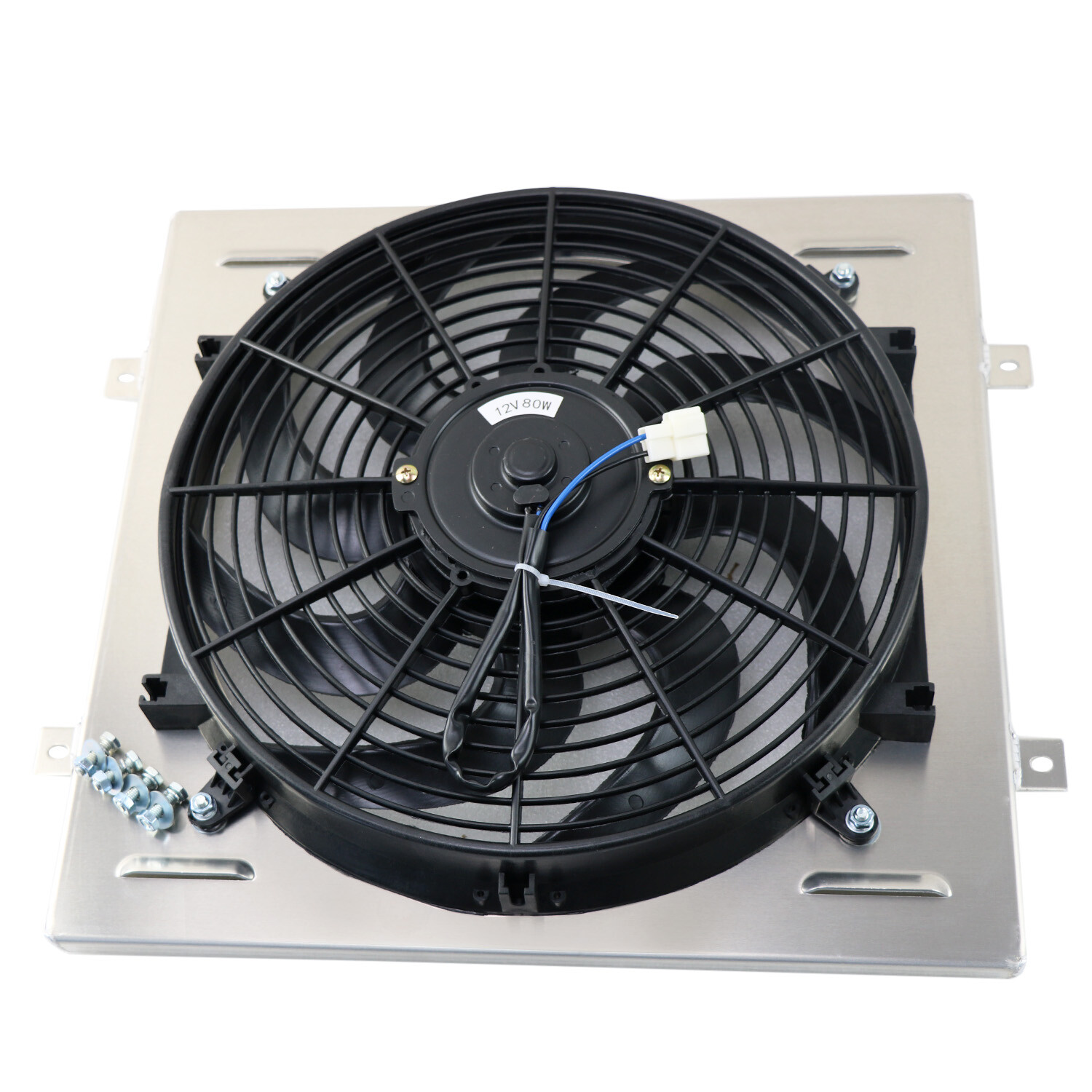

Package Includes: 1 X Aluminum Shroud 1 X 14" 90W Fan (Includes mounting kits) 1 X Thermostat Relay Kit Vehicle Fitment: For 1965 Ford Falcon Base/Futura 2.8L 3.3L 4.7L L6 V8 GAS For 1924 Ford Model T Base 2.9L l4 GAS For 1965 1966 Ford Mustang Base/Base Fastback 2-Door/Shelby GT-350/Shelby GT-350H 2.8L 3.3L 4.7L L6 V8 GAS For 1960-1965 Ford Ranchero Base 2.4L 2.8L 3.3L 4.7L L6 V8 GAS For 1964 1965 Mercury Comet Base 2.8L 3.3L 4.7L L6 V8 GAS The size of radiator which the shroud fan fits: Core Size: 17.00" x 16.50" Overall Size: 18.75" x 21.25" 14" Fan Size: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 14.050" Thickness (in): 2.500" Number of Blades: 8 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation AA5052 Aluminum Shroud and Fans: The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine. 1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect! 2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material. 3. Additional with thermostat,professional matching advice, consider for every detail and needed Thermostat Relay Kit: Universal fit for any automotive application. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe adapter included. Probe typically threads into radiator, water outlet hose or manifold. Thermostat Relay Kit Instructions: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Thanks for choosing super_engine_cooling_plaza. We are professional manufacturers of performance radiators, inter coolers, oil coolers,silicone hose, exhaust pipe and wheel spacer adapters. We have maintained a strong reputation in the industry for many years. Our products enjoy a great popularity in the world's aftermarket for stock replacement and performance upgrade. We pay high attention to customer service, and cherish every customer. So if you have any problem, please contact us. We will try our best to solve your problem and we also can advice you the most suitable item with best price!
