Manufacturer: Bio-Rad (Tecan)

Model: Bio-Plex Pro II Wash Station ELISA Washer

P/N: 30034377

S/N: 810006275

Description:

The Bio-Plex Pro Wash Station eliminates manual wash steps from Bio-Plex Assays, making them as easy as ELISAs. The wash station is specific designed to perform Bio-Plex Assay wash steps, but it is also compatible with any standard xMAP assay.

Features and Benefits of the Bio-Plex Pro Wash Station:

Improved lab productivity
Reliable and reproducible results
Optimized on-board protocols

The Bio-Plex Pro Wash Station incorporates a magnetic plate carrier for reliable, hands-free wash steps on magnetic bead-based assays (Bio-Plex Pro and MagPlex
assays). Preset wash programs have been optimized for Bio-Plex Assays. Using the Bio-Plex Pro Wash Station in an assay workflow reduces manual intervention and
decreases variability between independent experiments.

Specifications:

Input voltage range: 100-240V, 1.8A, 47-63Hz
Physical dimensions: 44 x 61 x 8 cm (W x D x H)
Weight: 14.4kg (32lb)
Communications interface: RS-232
Plate capacity: One 96 –well microtiter plate "=0.75"

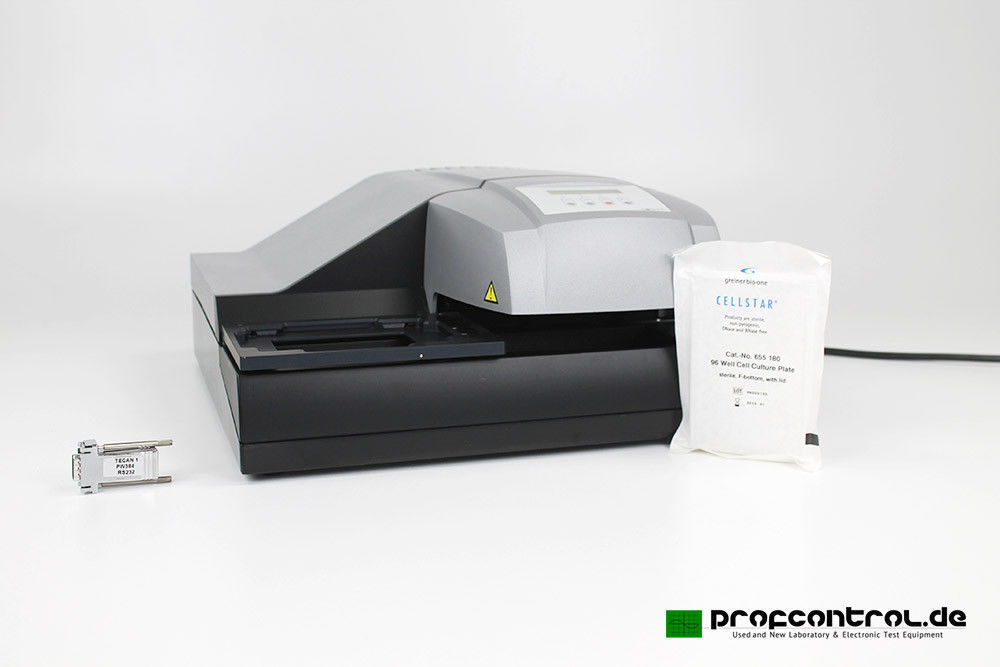

The Bio-Plex Pro II comes with the Vacuum Plate Carrier as installed in the pictures (also usable as a standard ELISA Plate Carrier).
The magnetic plate carrier is not included.

Options installed:

30021927 - Opt. Plate Carrier Std
30023217 - Opt. Plate Carrier MBS
30022335 - Opt. Manifold 8CH STD
30023425 - Opt. 2 input channels STD
30032418 - Opt. Low level vacuum filtration

Items Delivered:

- Bio-Rad Bio-Plex Pro II
- Power Cord
- Instruction manual

The washer is in used cosmetic condition and 100% functional tested.
