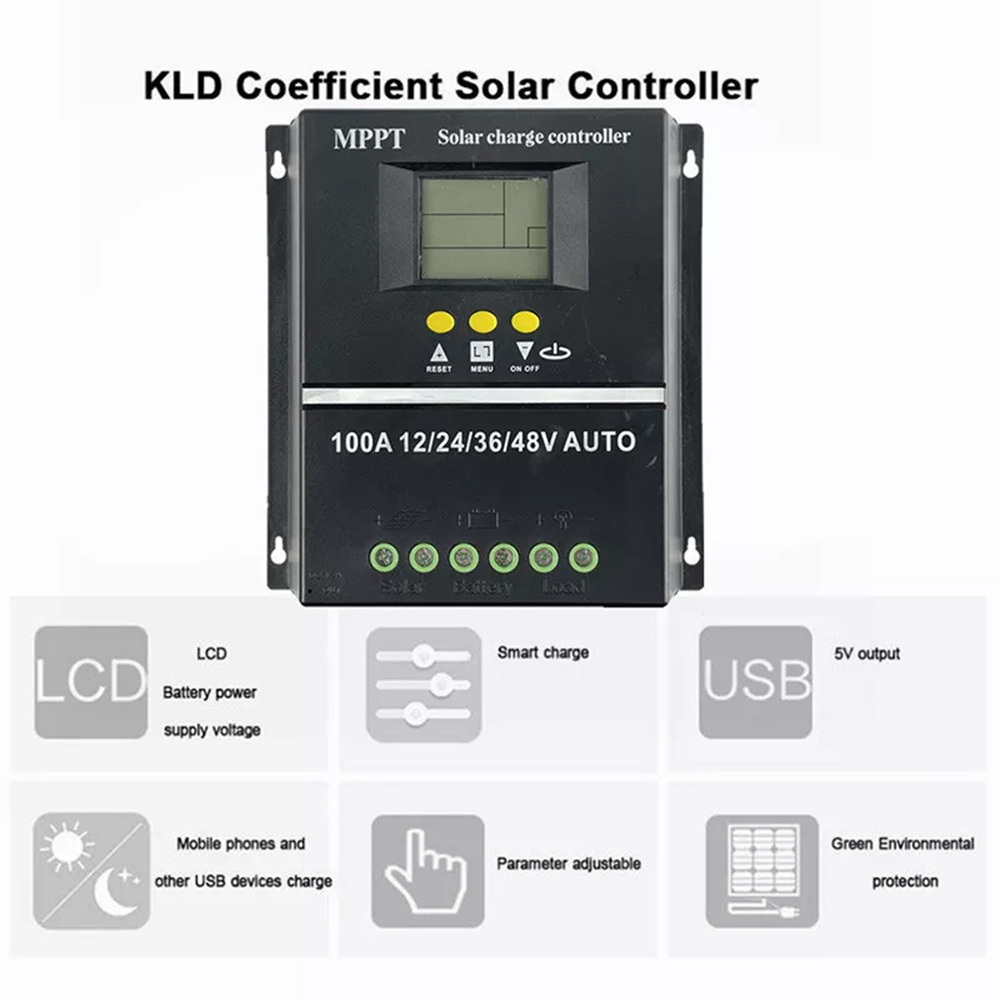

Features:
-

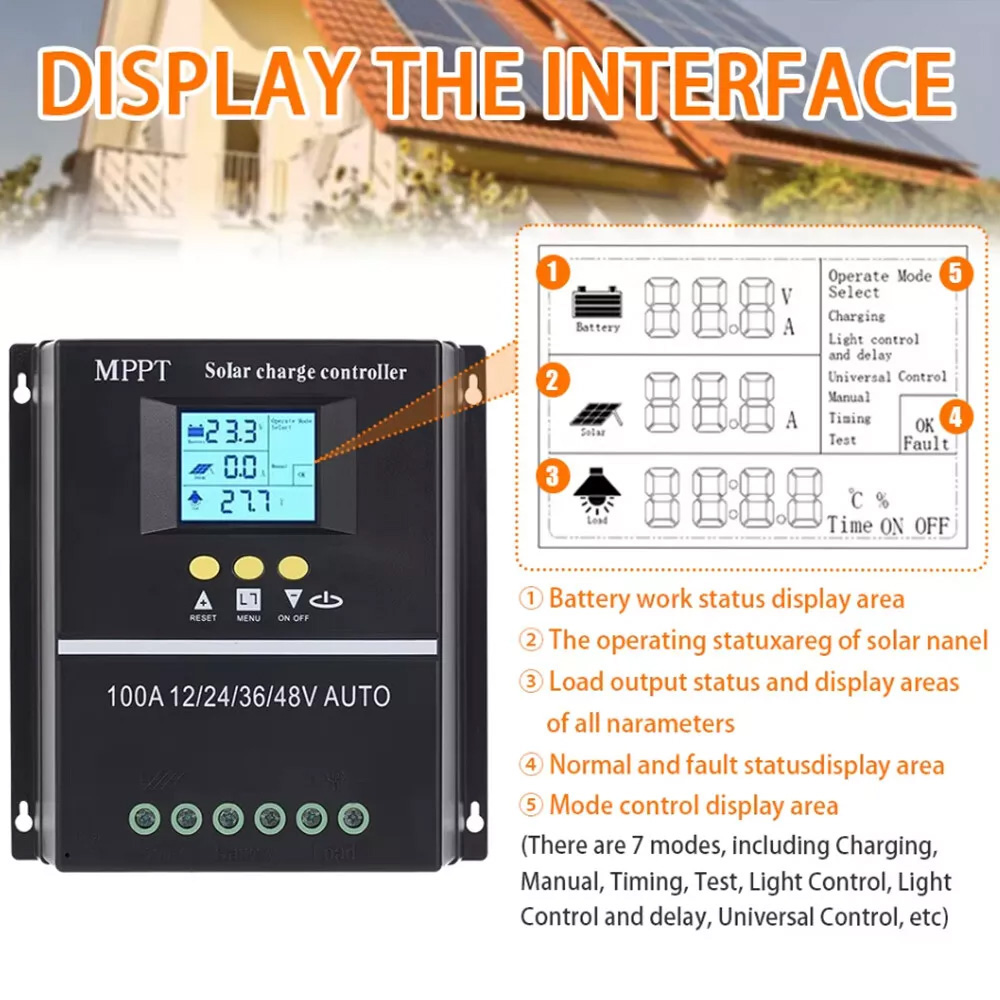

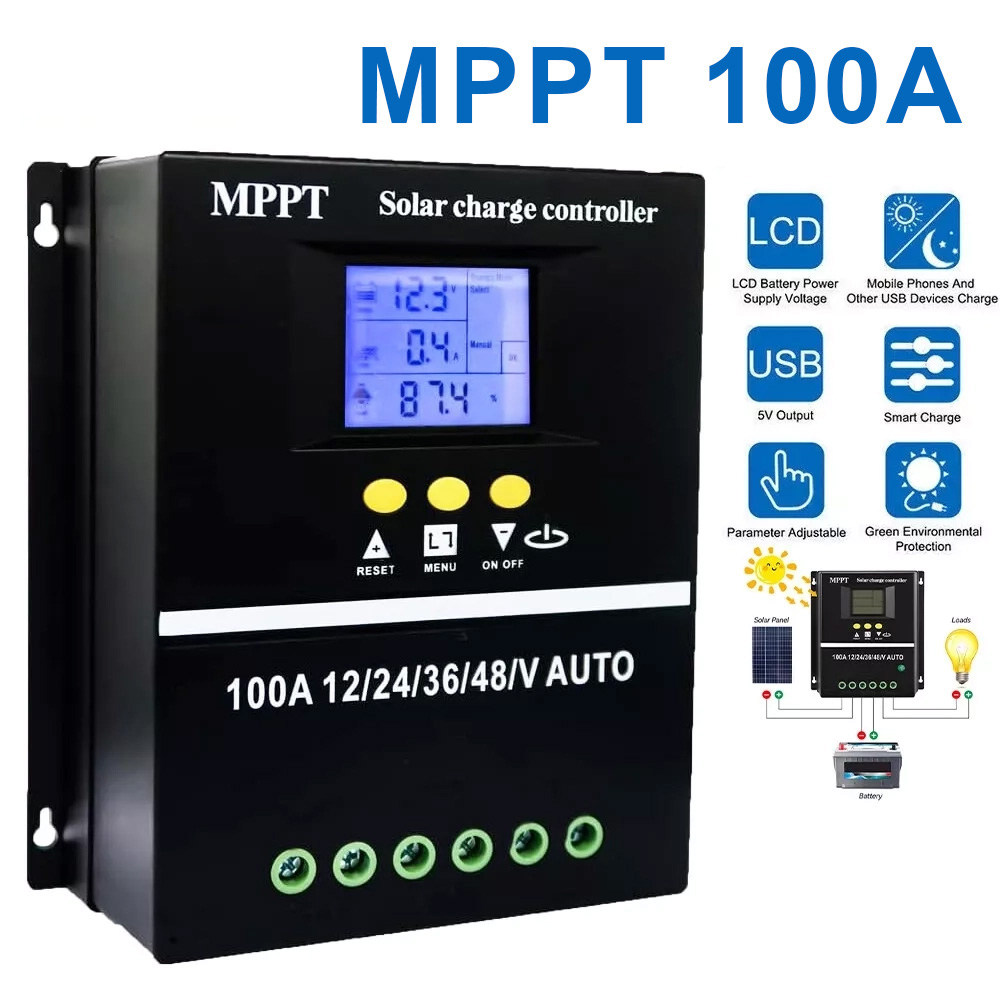

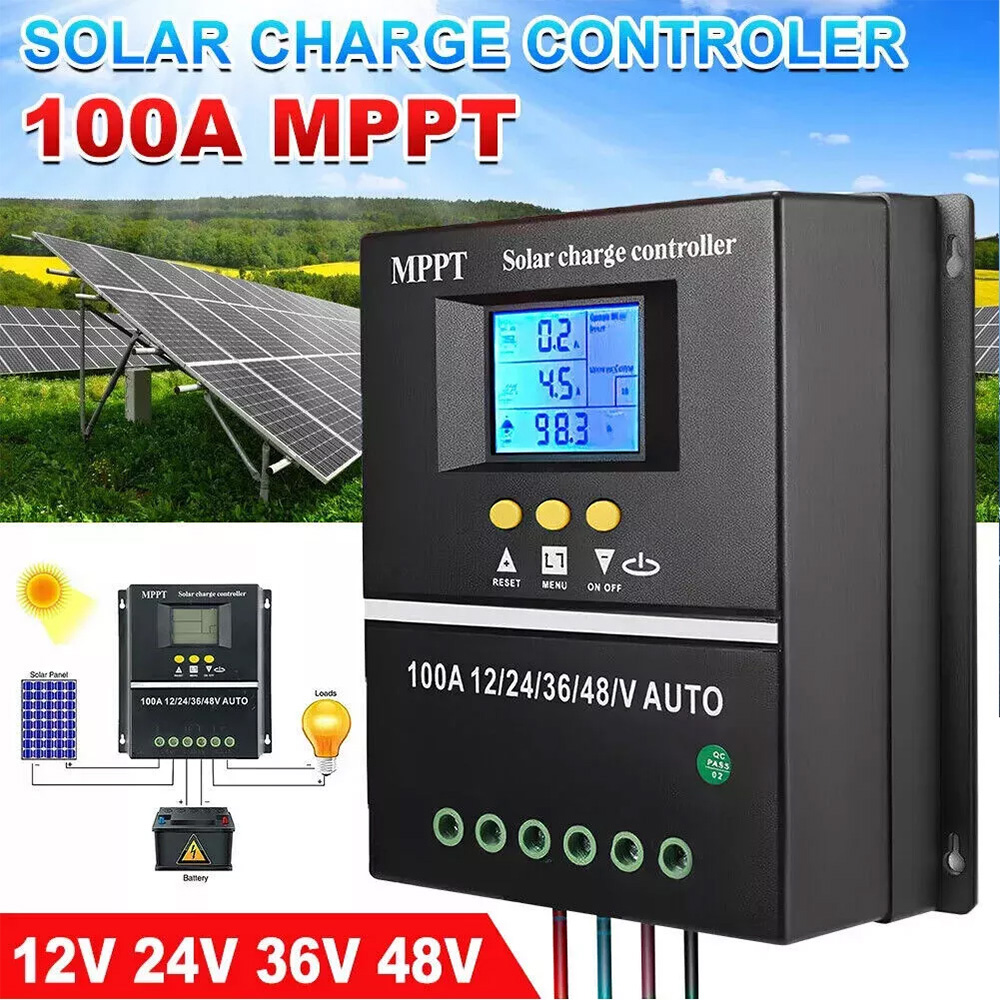

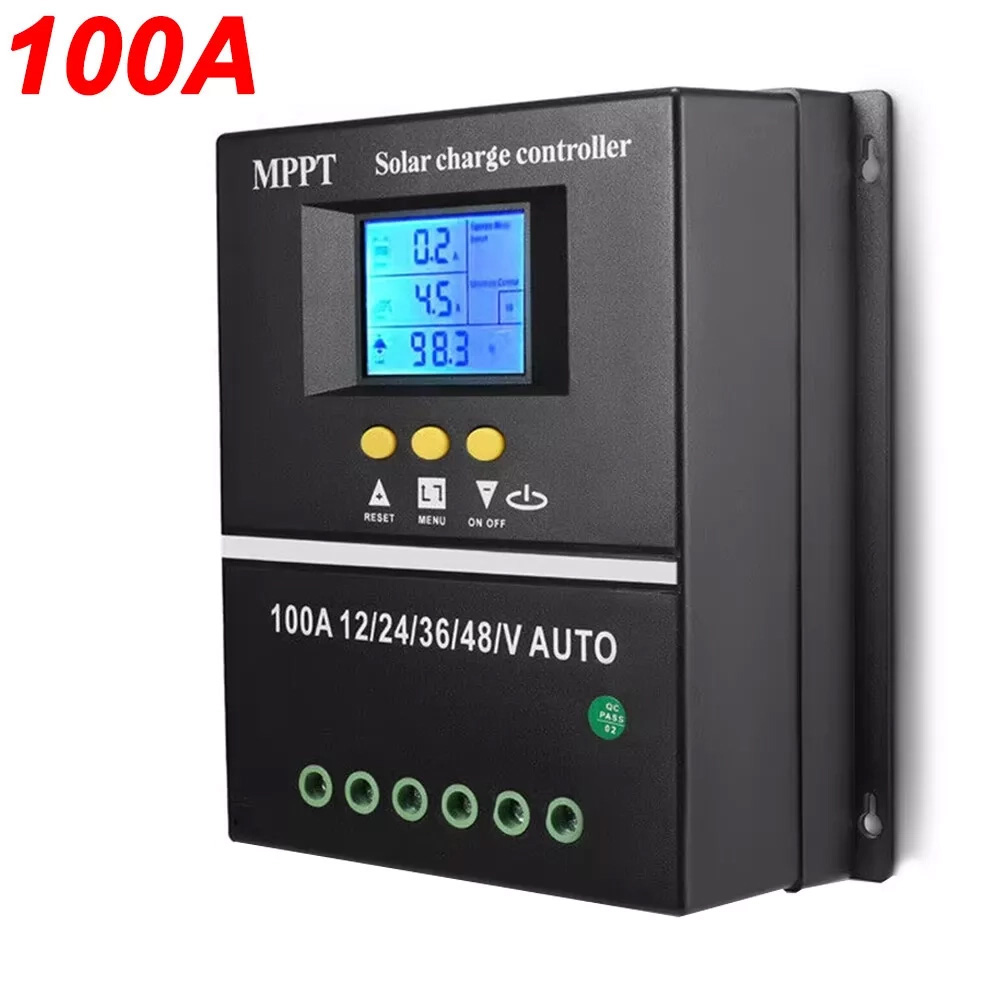

LCD Liquid Crystal Display: Large LCD screen displays the operational status of the battery, solar panel, mode control, load output status, and all parameters, including normal and error statuses.
-

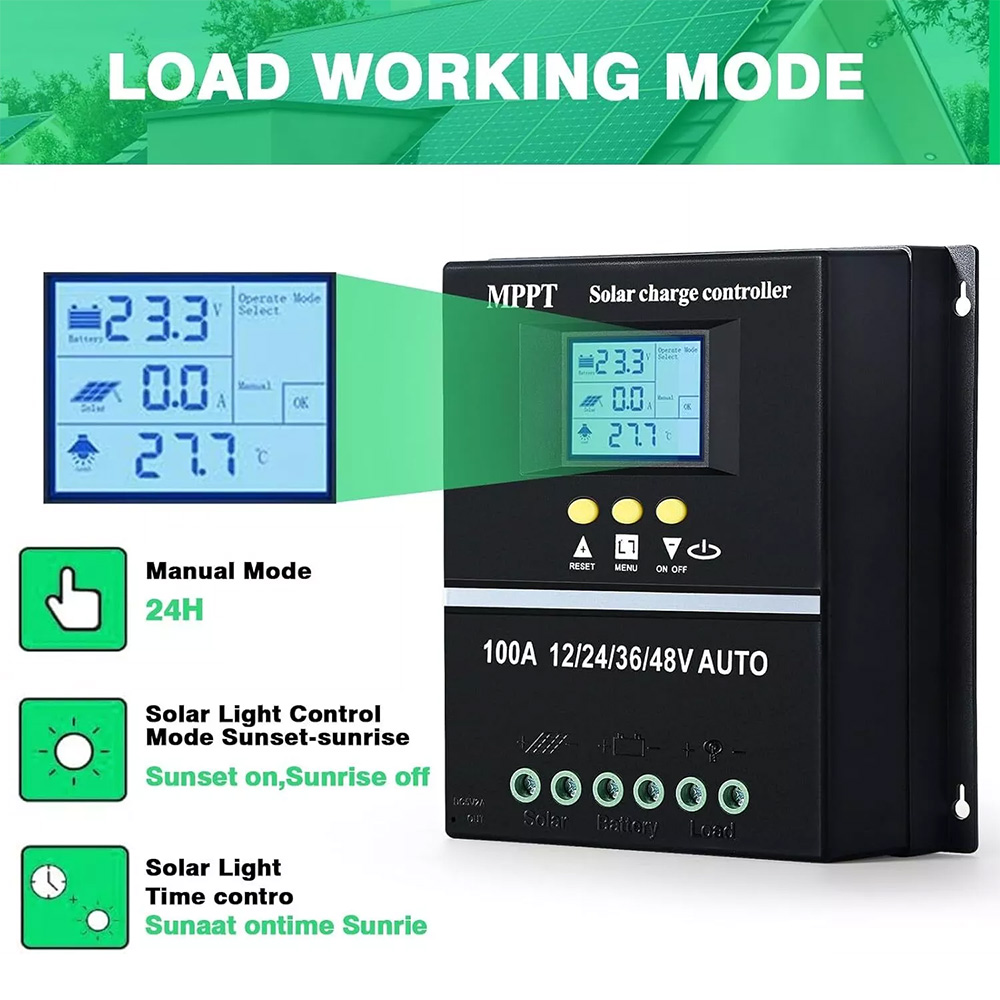

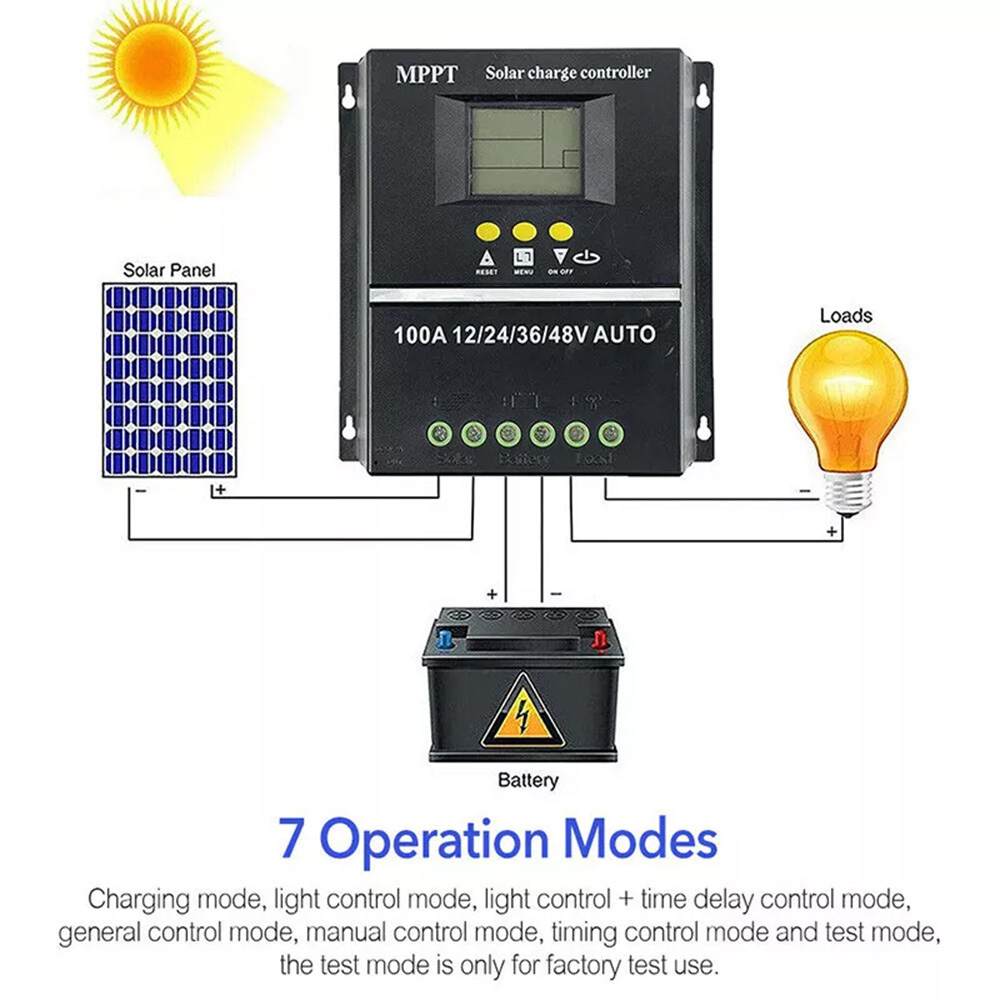

7 Operating Modes: Charging mode, light control mode, light control + time delay mode, general control mode, manual control mode, timer mode, and test mode (test mode is only for factory testing).
-
Automatic Detection of 4 Voltage Types: Automatically detects DC12V/24V, DC36V, DC48V.
-

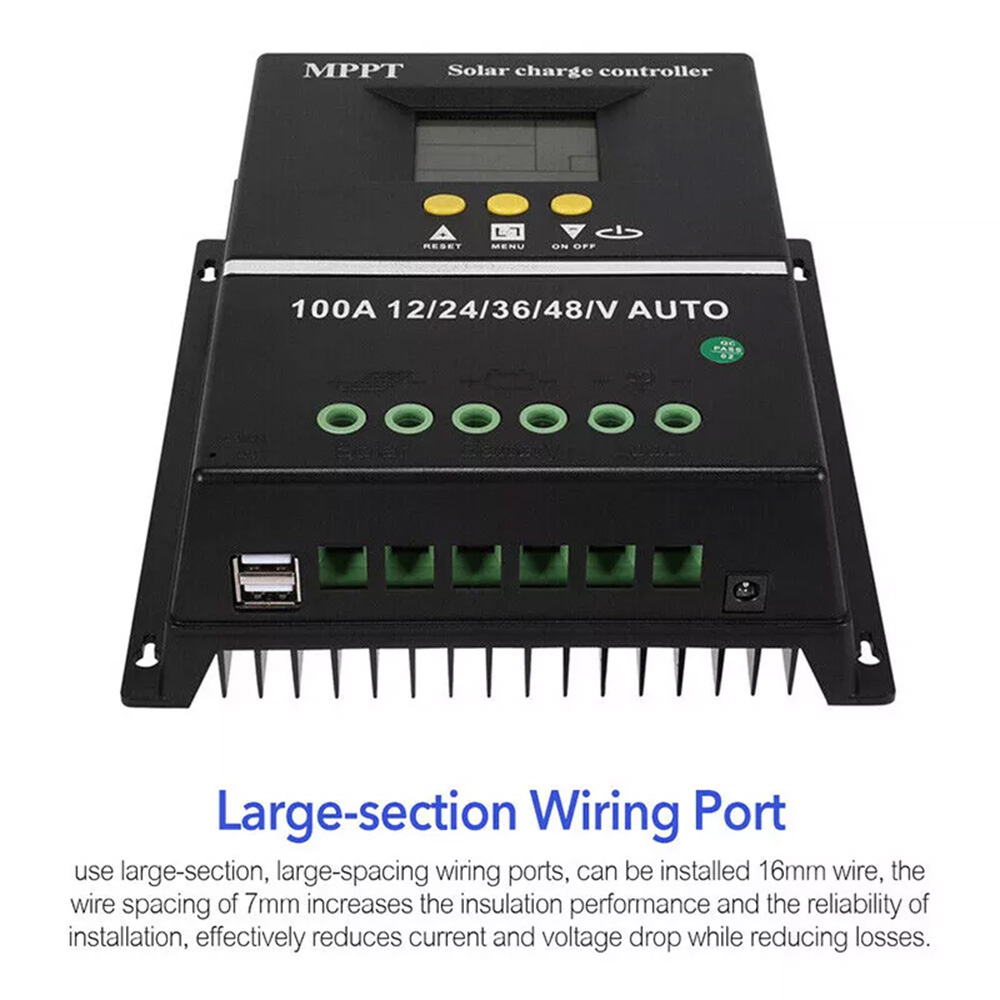

Large Cross-Section Cable Connection: Uses large cross-section and large-spacing cable connections, allowing installation of 16mm long cables. The 7mm cable spacing improves insulation performance and installation reliability, effectively reducing current and voltage losses.
-

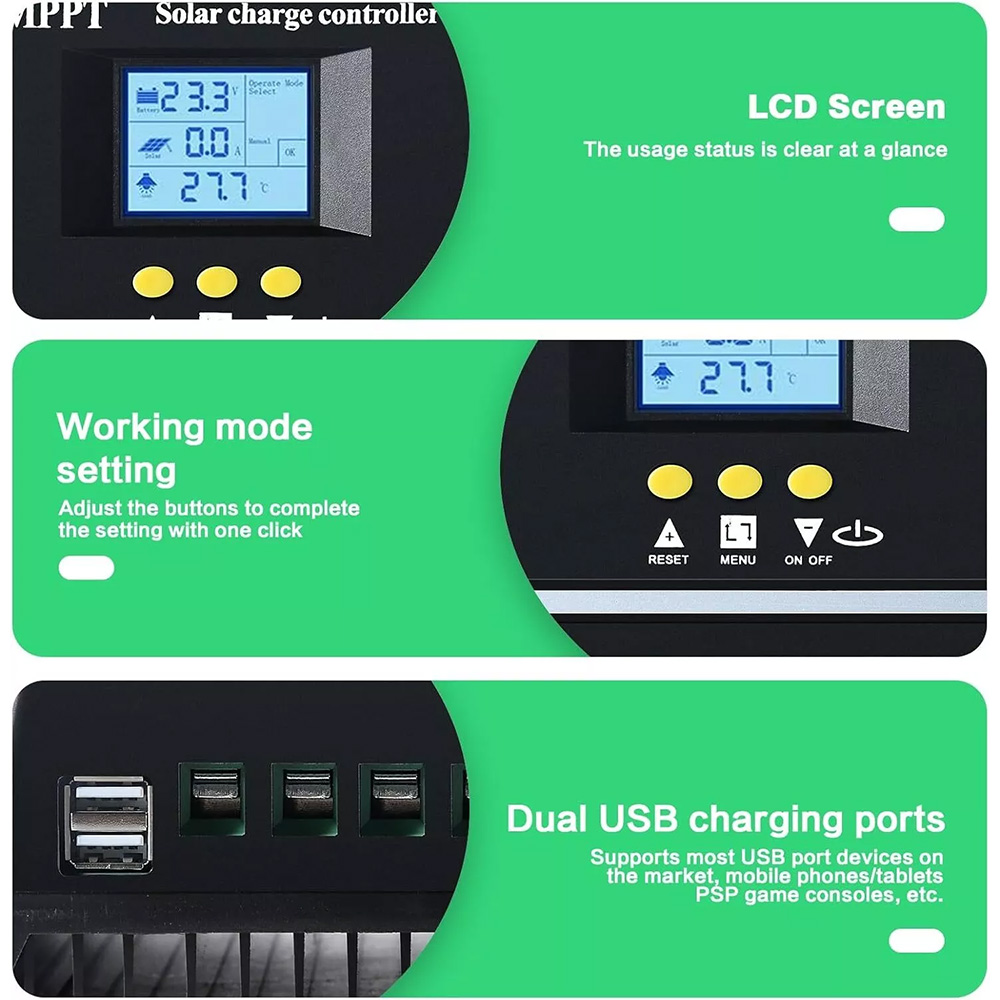

Dual USB Charging Ports: The solar charger features dual USB charging ports, enabling simultaneous charging of two devices. It supports most devices with USB ports, such as mobile phones, tablets, PSP gaming consoles, etc.
-

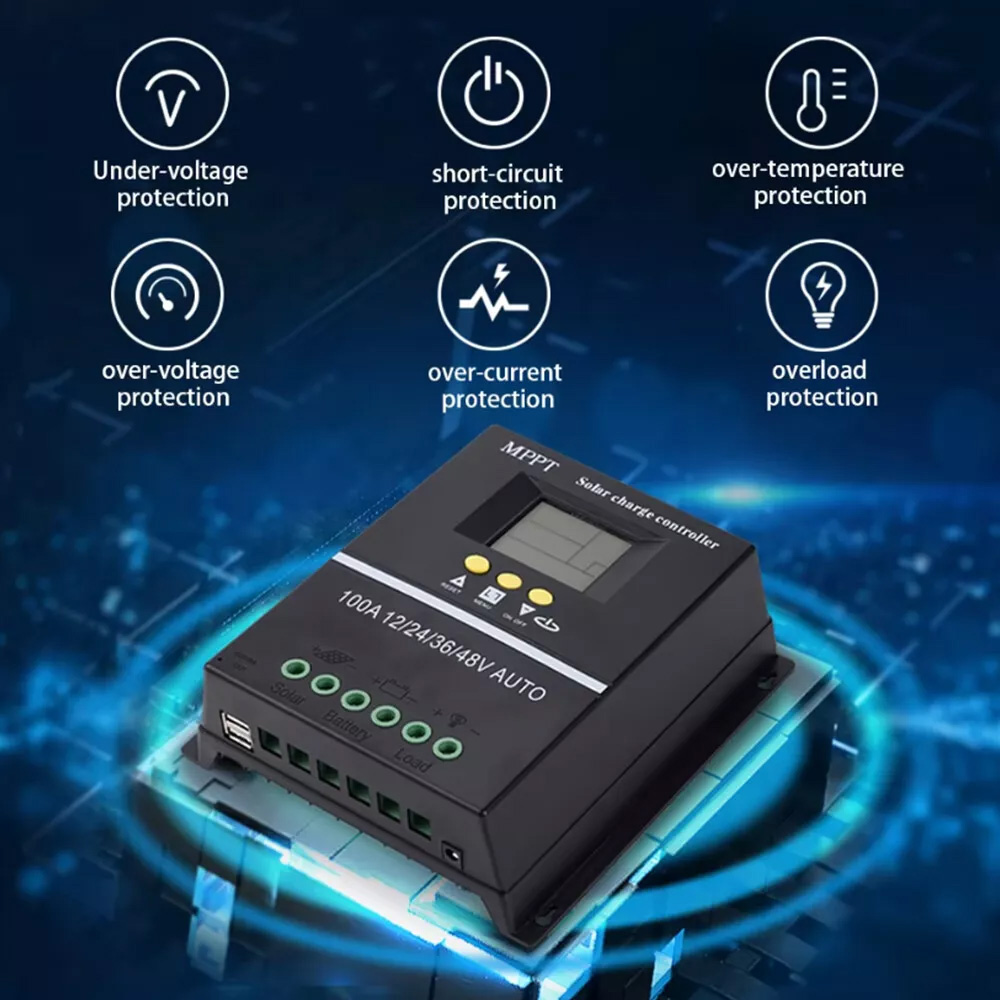

Thick Aluminum Alloy Heat Sink: The MOSFET is locked in the heat sink design, providing even heat dissipation and eliminating the risk of temperature rise caused by the MOSFET. The powerful heat dissipation capacity allows it to function normally in environments up to 55°C. It also includes protection against overloading, overvoltage, DC output undervoltage, high voltage, and reverse polarity.

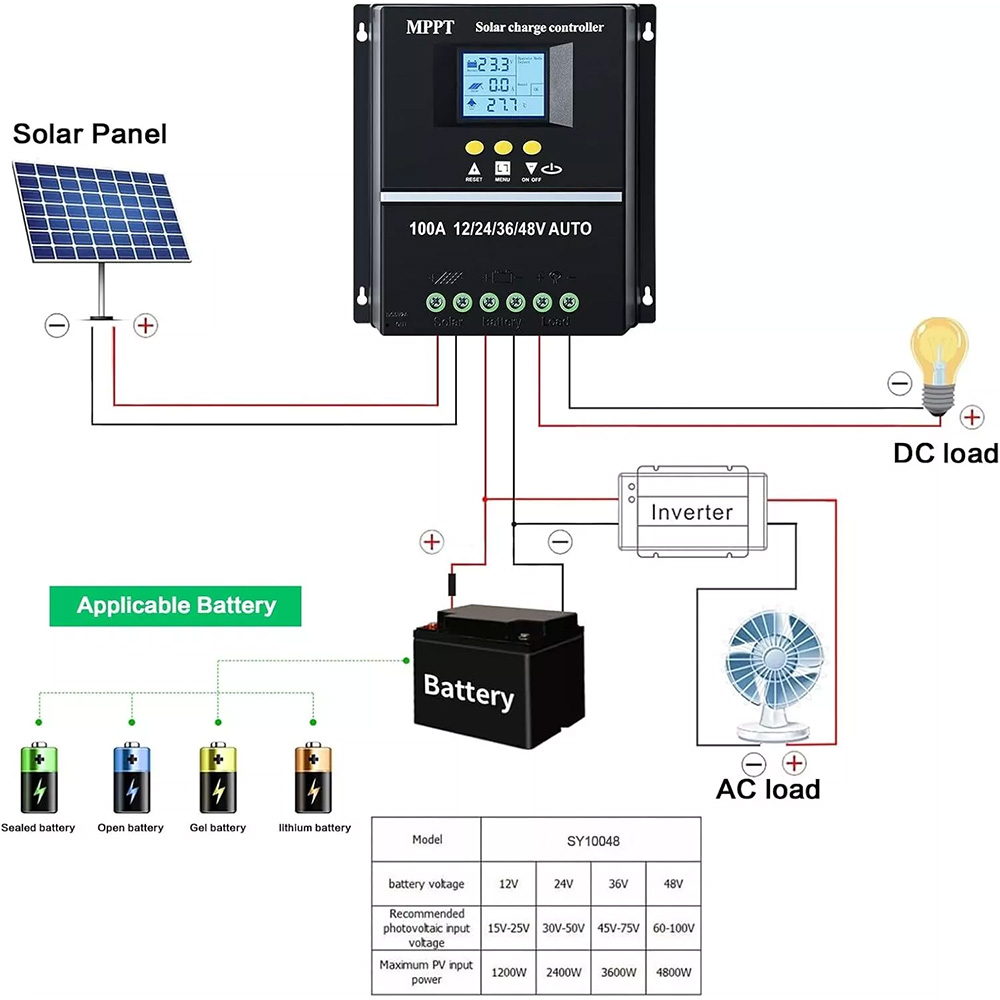

Setup Instructions:
-

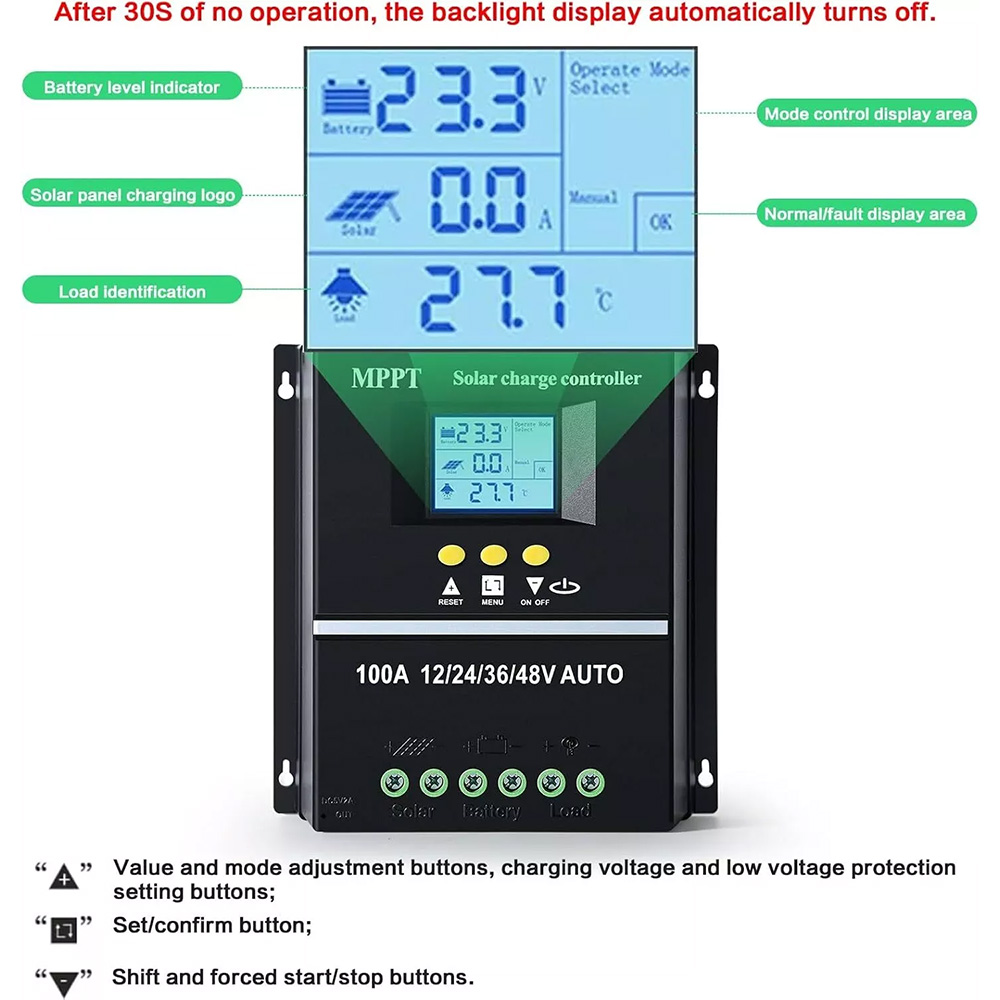

Clock Setting: After connecting the battery, press "▲" and "▼" to adjust the clock settings and press "■" briefly to save.
-
Charging Voltage Setting: After connecting the battery, setting the clock, and saving, press "▲" for 3-5 seconds. The screen will display LV (maintenance charging voltage), which can be adjusted using "▼". Press "▲" briefly again. HV is for increasing the charging voltage, which can be adjusted using "▼". Press "▲" briefly again. F**V is the undervoltage shutdown voltage for the DC load, which can be adjusted using "▼". After setting, press "▲" for 3-5 seconds to save and exit.

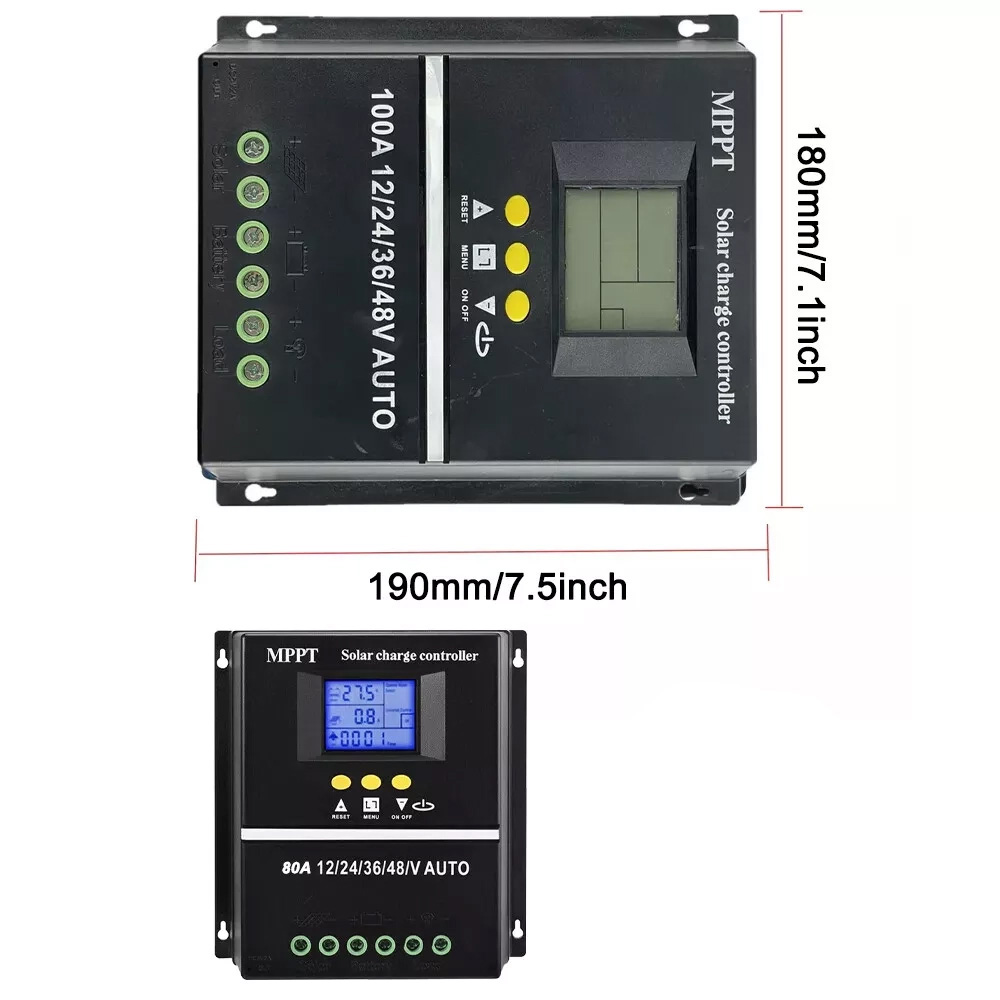

Specifications:
-
Type: Solar Charger
-
Maximum Charging Current: 100A
-

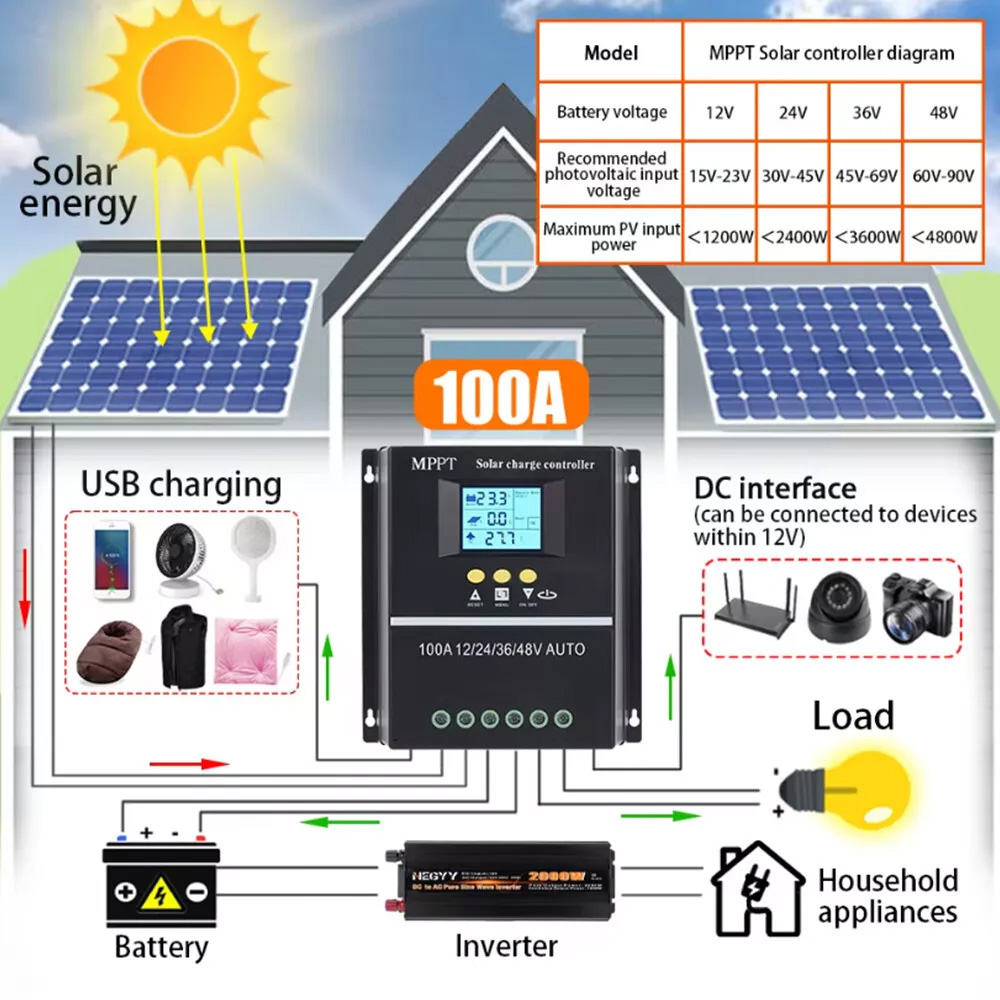

Maximum Input Voltage of Solar Panels:
-
12V: 15V-23V
-
24V: 30V-45V
-
36V: 45V-69V
-
48V: 60V-90V
-
-
Maximum Input Power of Solar Panels:
-
12V: 1000W
-
24V: 2000W
-
36V: 3000W
-
48V: 4000W
-
-
Output Voltage: DC 12V/24V/36V/48V; DC5V/1.5Ax2USB
-

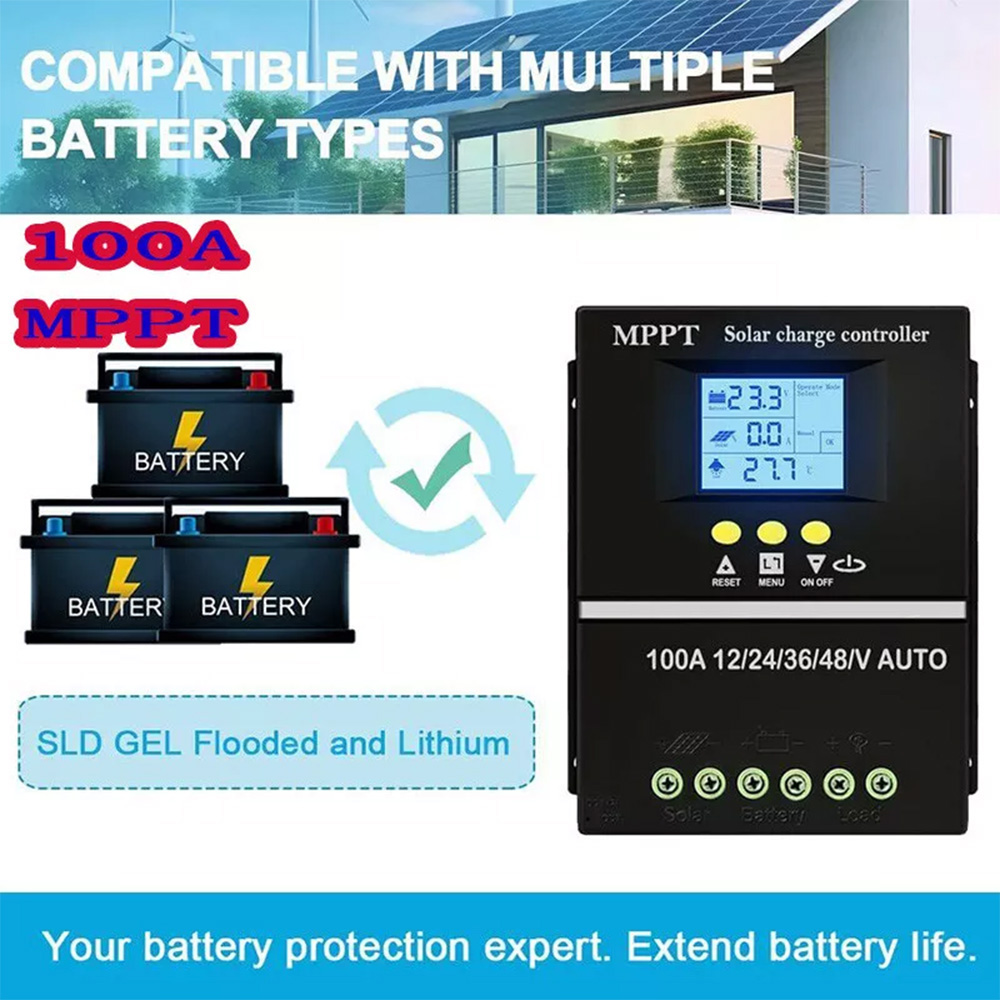

Supported Battery Types: Lithium batteries and lead-acid batteries
-
Operating Temperature: -25°C to 55°C
-
Cooling Method: Heat sink self-cooling
-

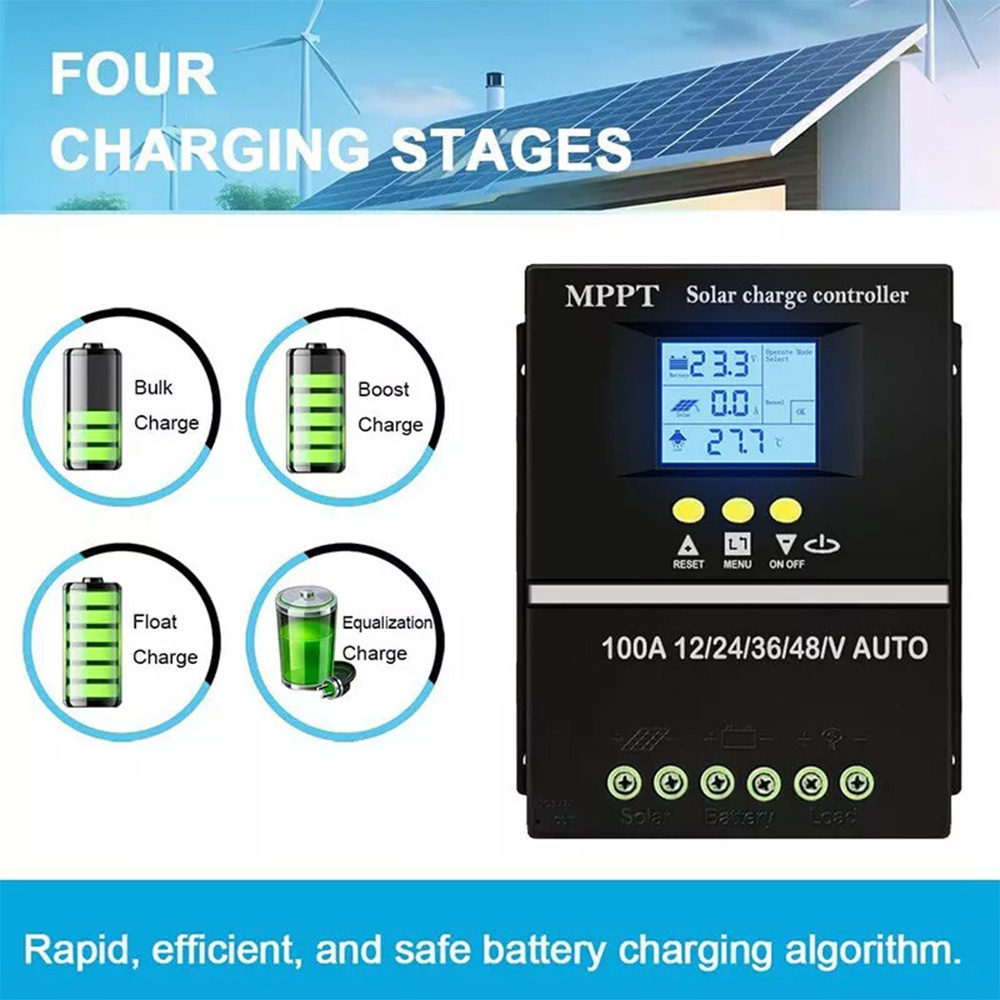

Charging Method: Focused MPPT modulation charging
-
Operating Modes: 7 modes
-
Protection Functions: Overload protection, overvoltage protection/DC output undervoltage protection, high voltage protection, reverse polarity protection, etc.
Package Contents:
-
Solar Charger × 1
-
User Manual × 1
Notes:
-

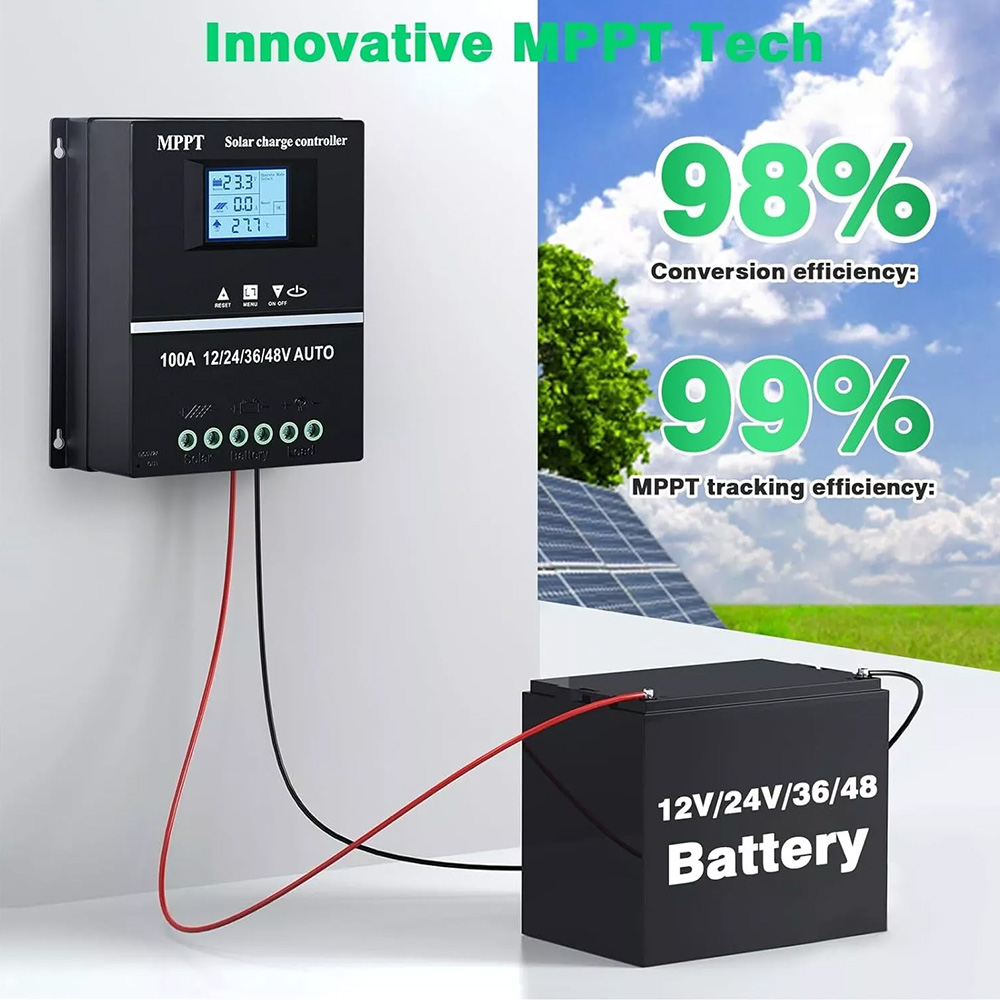

Please connect the battery to the controller first, then to the solar panel to ensure that the battery voltage is higher than (12V battery higher than 10V; 24V battery higher than 20V; 36V battery higher than 30V; 48V battery higher than 40V), otherwise a voltage detection error may occur.
-
This is a high-quality compatible MPPT and PWM solar controller, not 100% pure MPPT.
