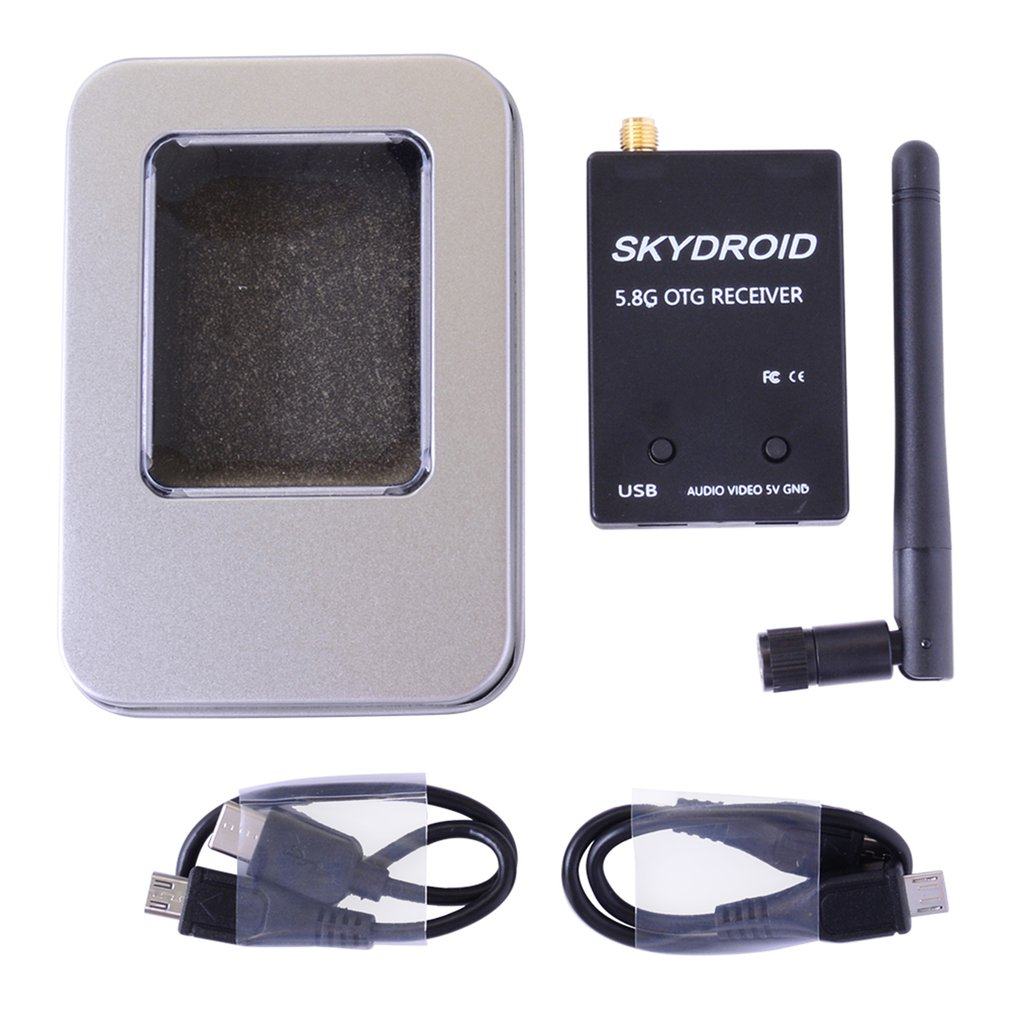

The UVC receiver needs to meet the following conditions:
1: Android phone
2: Mobile phone supports OTG function
3: All Qualcomm CPUs can support
4: Kirin 950CPU and higher CPU
5: MediaTek X20CPU and higher CPU
6: Apple mobile phones are not supported.
Note: The matching antenna is an inner hole antenna; OPPO and VIVO on BBK phones need to open OTG in the phone settings, otherwise the link cannot be connected
600MW image transmission with digital display
Video format: NTSC / PAL
Output impedance: 50 ohms
Transmitter frequency range: 5645-5945MHz
Antenna connector: RP-SMA connector
Working voltage: 7-24 V
Output voltage (VOUT): 5 V
Supply current: 280 mA
Working temperature: -10 +85 C
Video bandwidth: 0-8.0 MHz
Audio carrier frequency: 6.5 MHz
Video input level: 0.8, 1.0, 1.2 Vp-p
Video input impedance: 75 ohms
Audio input level: 0.5, 2.0 Vp-p
Audio input impedance: 10K ohm
Weight: 15 grams
Camera specifications:
Mechanical: 25 X 27 X 12 (lens) mm, 13.5 g (plastic case) + 5 g / 9 g cable.
-Working voltage: 4.5-5V
Power supply: 110mA @ 5V
-Working temperature: -10 to 60C
-Imager: 1/3 inch Sony CCD
-Resolution: 600 TVL
-Lens field of view: 125 degrees (diagonal)
-Working format: NTSC / PAL
Features:
1. Connect OTG to Android phone or tablet 2. Connect to computer via USB 3. Connect to AV monitor
Mobile phone usage:
1. Download the app on Android phones.
2. Turn on mobile phone developer debugging and OTG.
3. Connect the mobile phone and the receiver and open the app.
4. Press and hold the receiver button for 3 seconds to link the frequency.
How to use the computer:
1. Connect the USB cable to the computer.
2. (XP) turn on the camera (win7) install AMCP camera software (win10) to turn on the camera 3. Press and hold the receiver button for 3 seconds to link the frequency.
Quantity: 1pc
Warranty: 120 days
