Features:

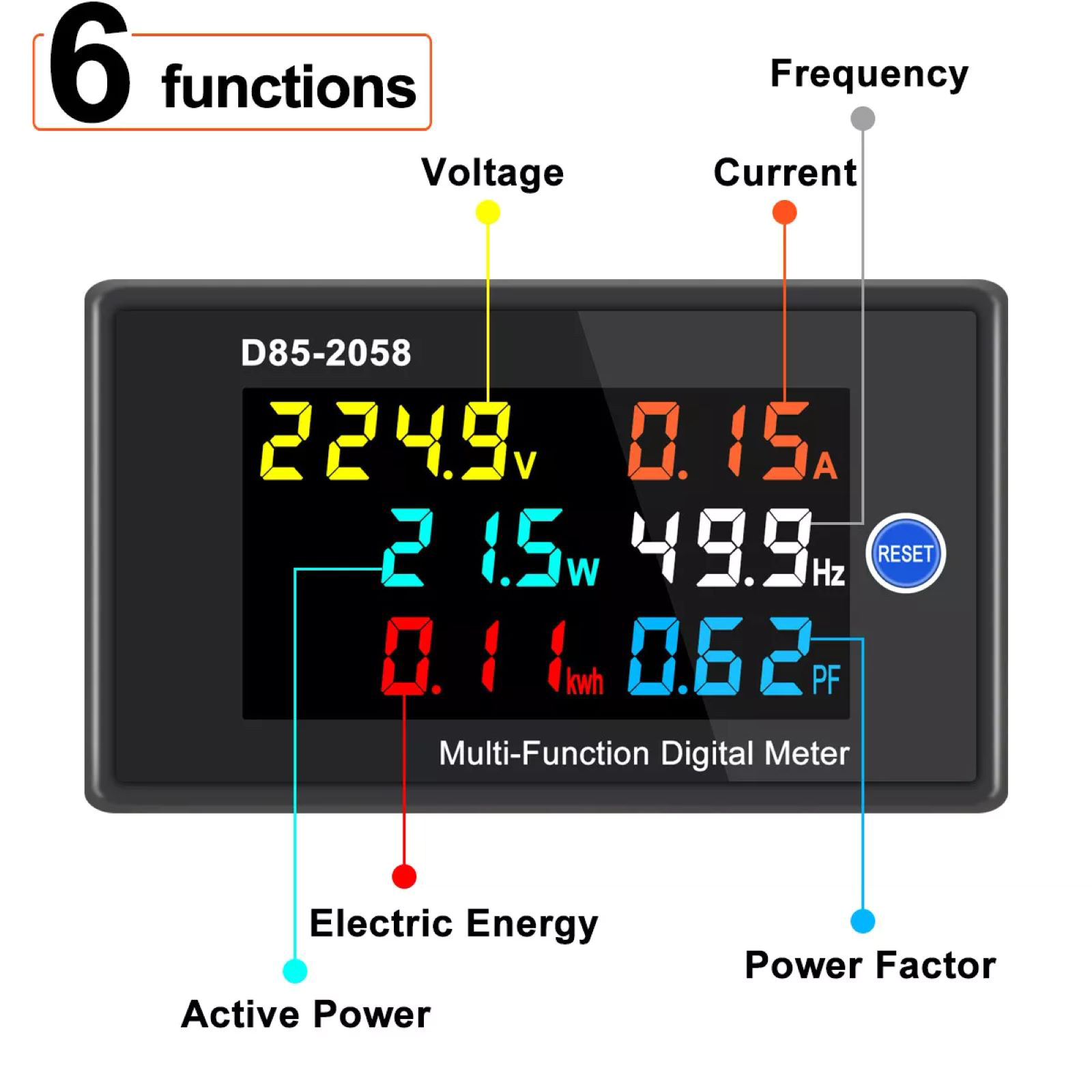

Comprehensive Multi-Parameter Measurement: This meter supports AC voltage, AC current, active power, power factor, frequency, and electric energy monitoring, meeting diverse power analysis needs for complex electrical systems.
High Precision and Dynamic Range Design: AC current resolution of 0.01A and adaptive energy display accuracy (0.01kWh to 1kWh) ensure reliable data.
Data Security and Continuity: Auto-save function preserves energy data during power outages, resuming cumulative values after restart to prevent data loss.
Compact, Durable and Easy Installation: Ultra-compact size with 68×38mm mounting holes saves space and fits various installations. Flame-retardant PC material, impact resistance, and clear labeling ensure safe, efficient operation.
Intuitive Control and Flexible Reset: A 5-second button press resets energy data for periodic consumption tracking, offering user-friendly simplicity.

Specifications:
Material: PC

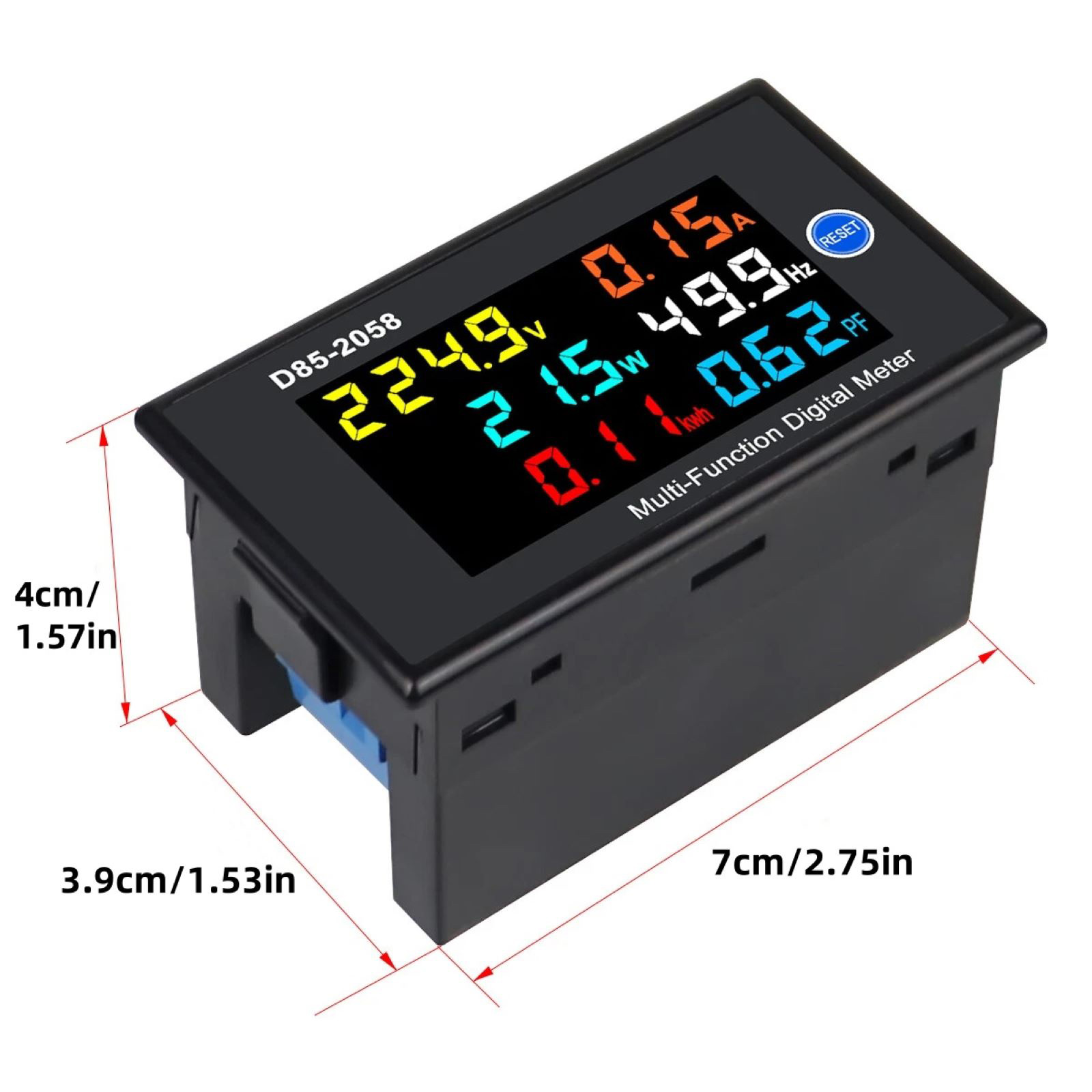

Size: 70*40*39mm
Color: Black

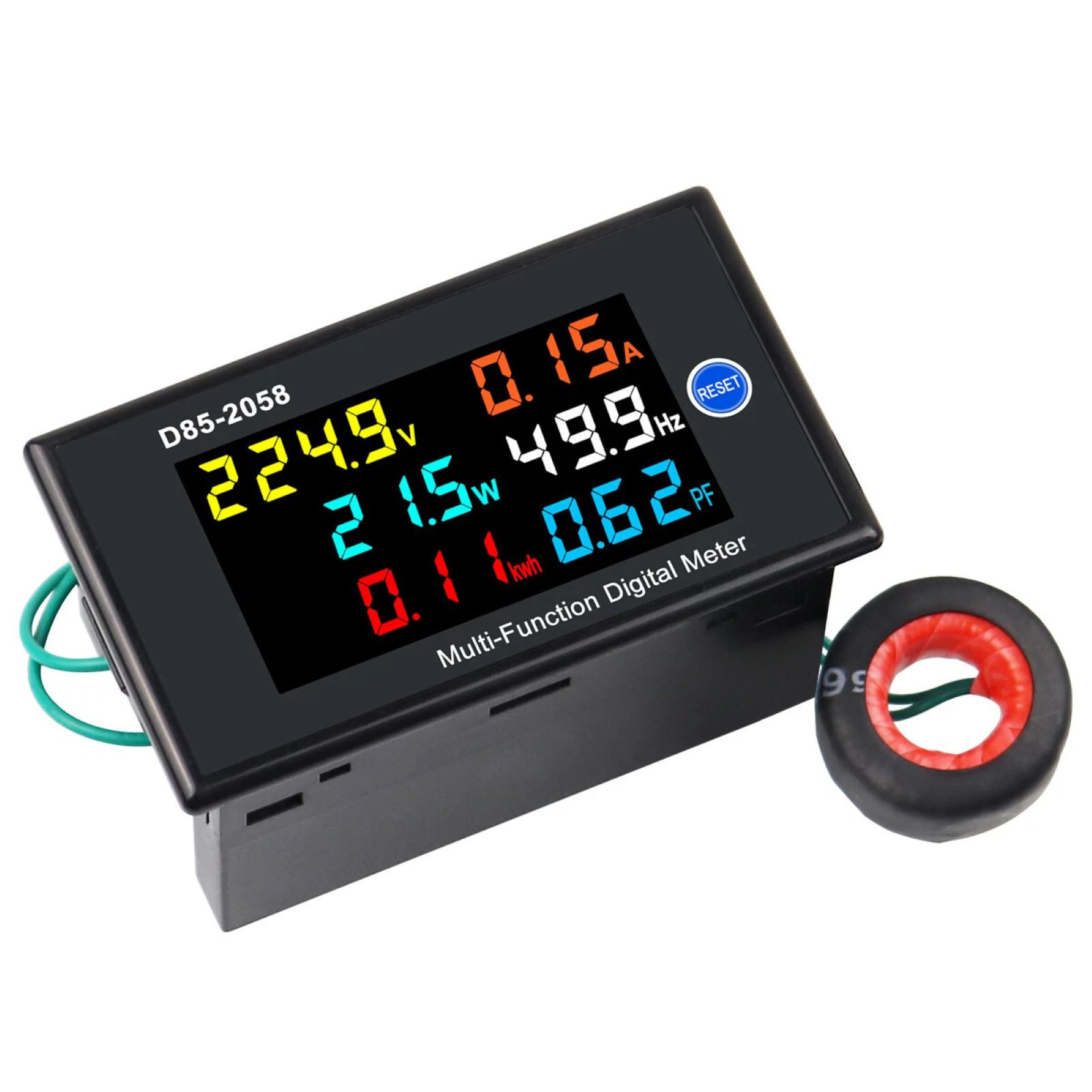

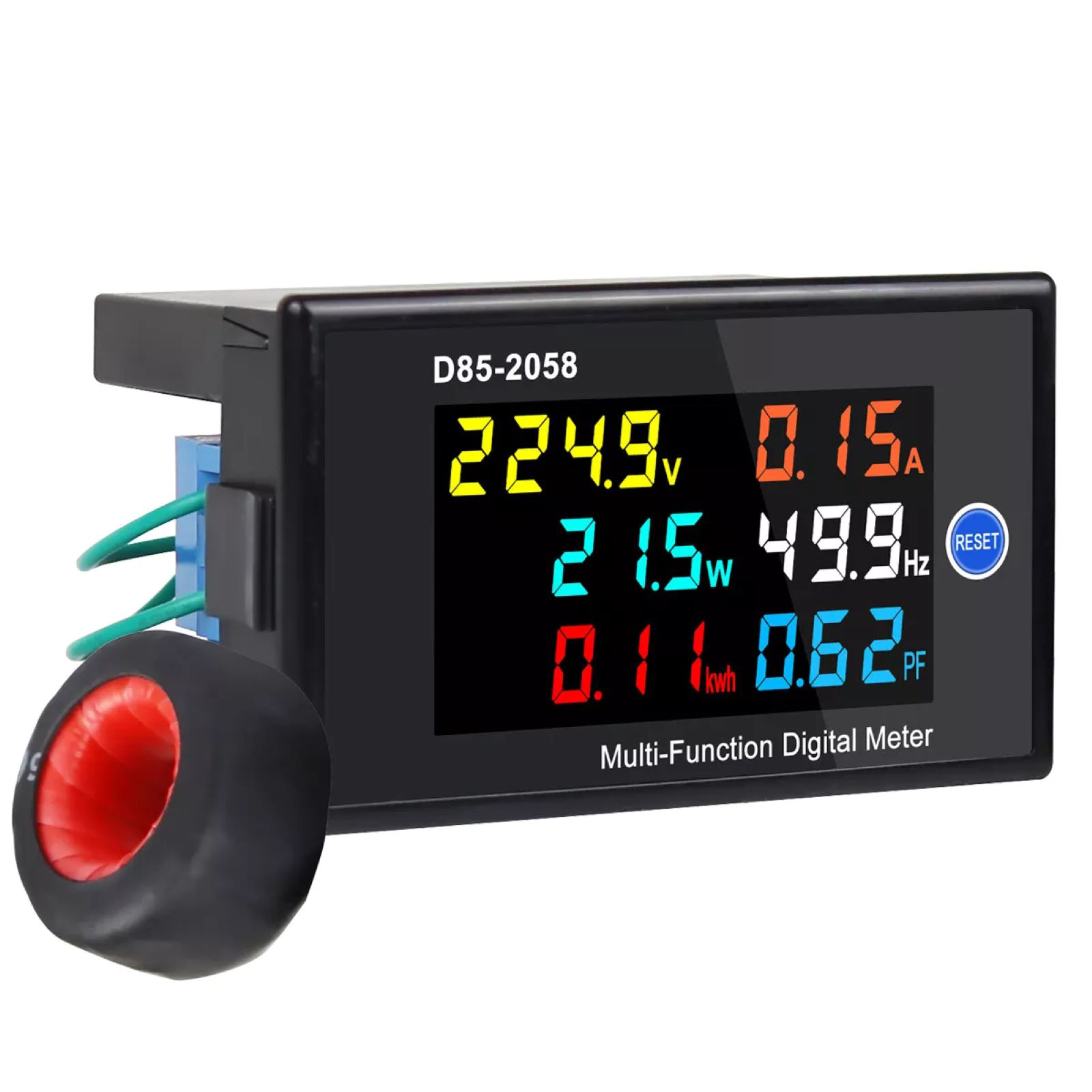

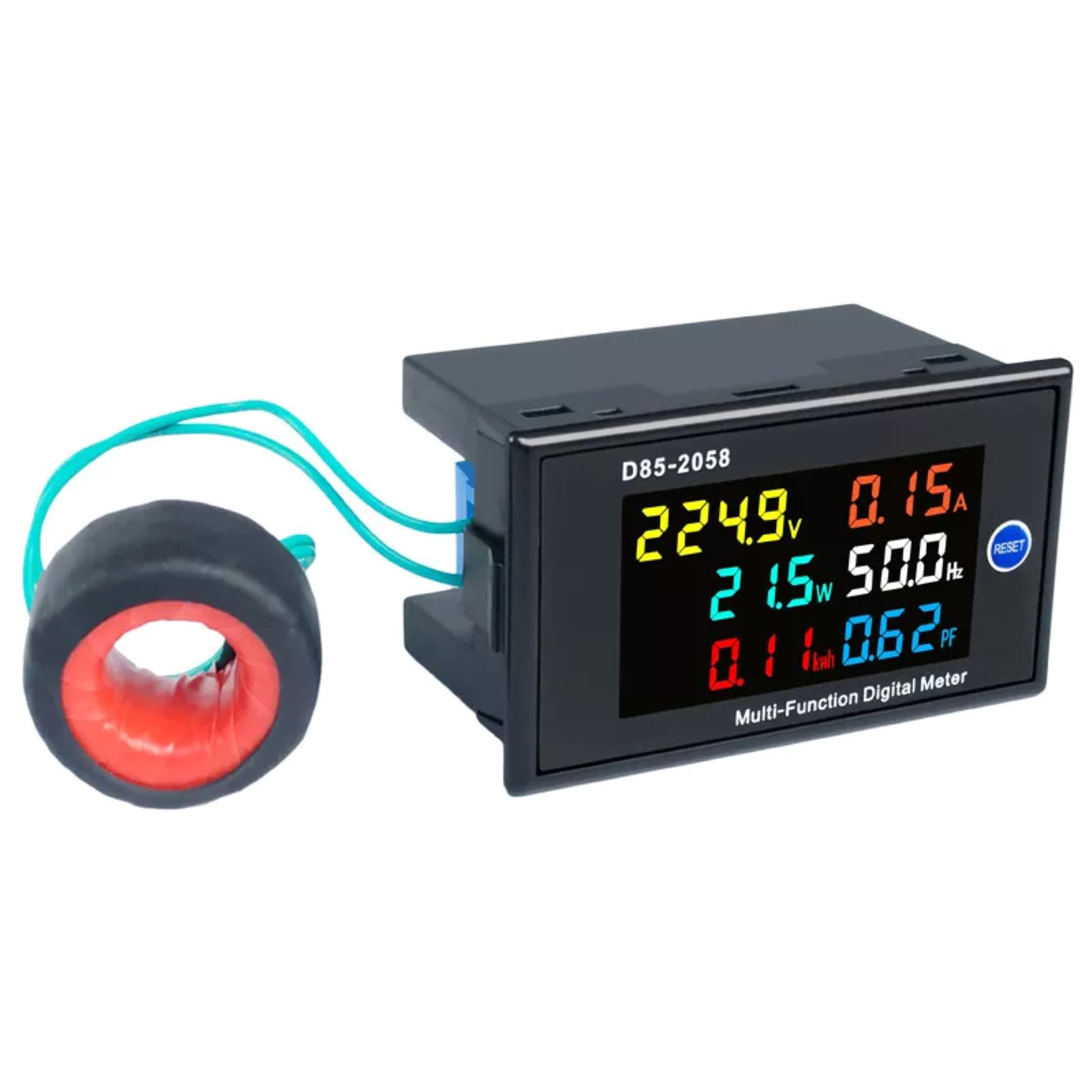

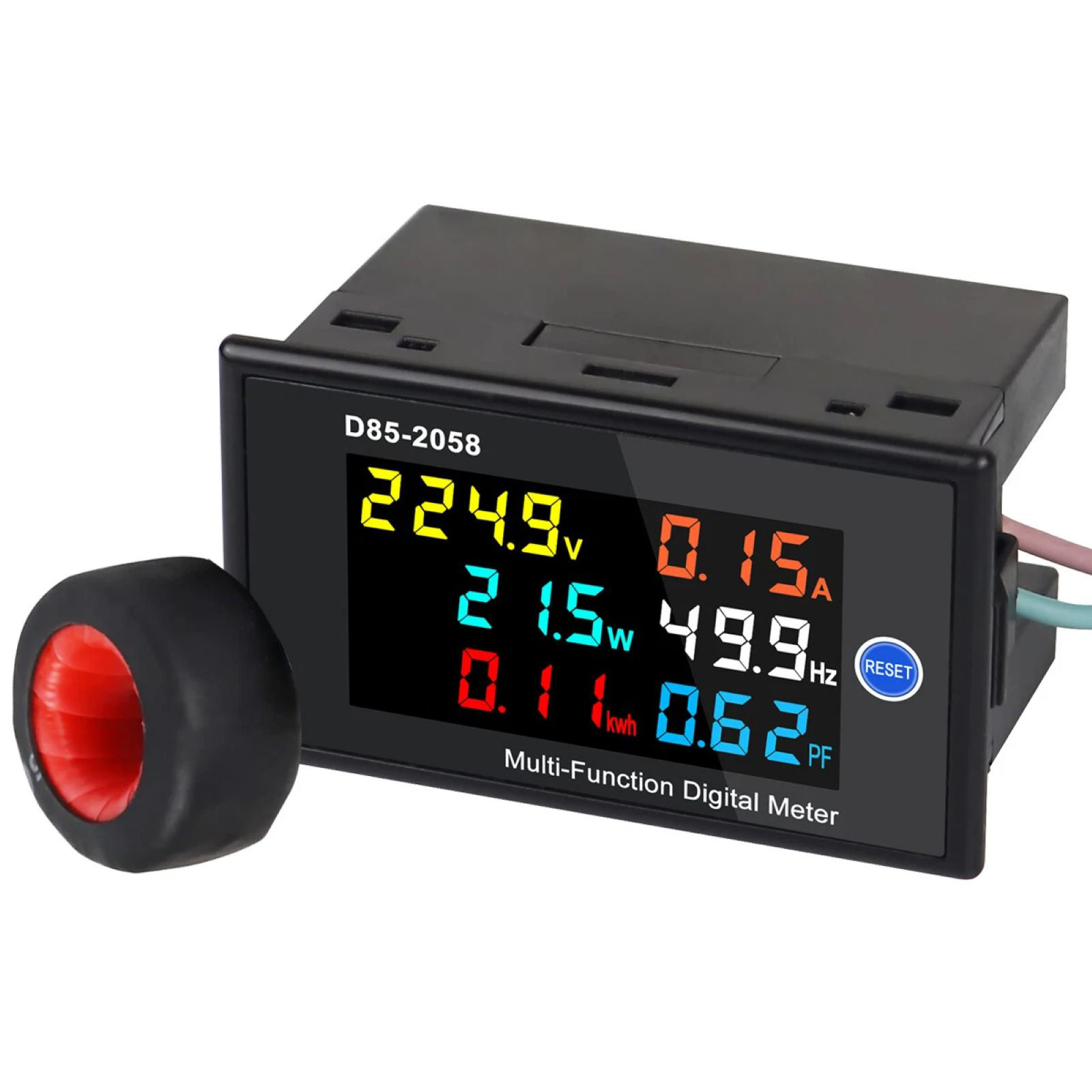

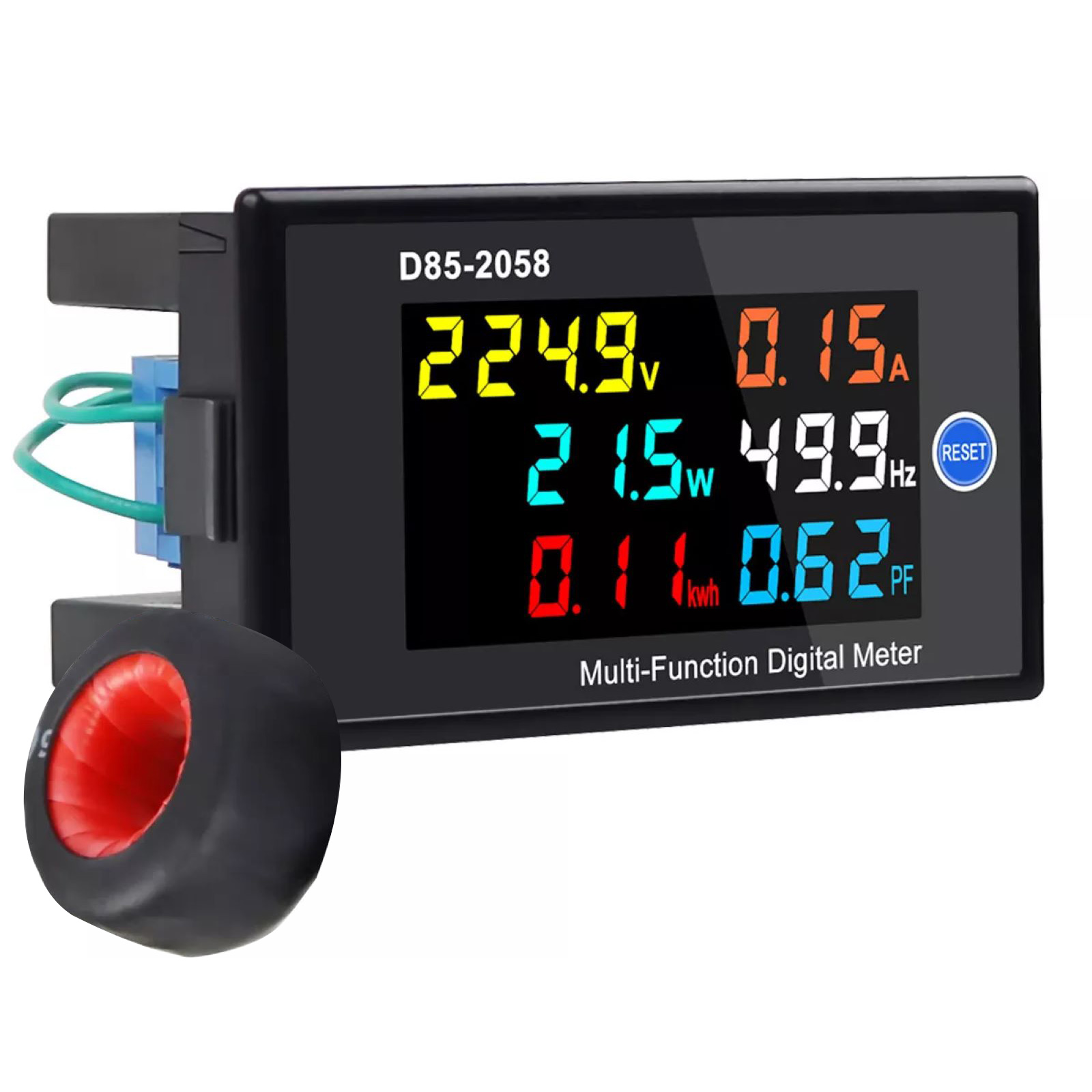

Model: D85-2058
AC voltage: AC 40.0-300.0V
AC current: AC 0-99.99A , minimum resolution is 0.01A
Power frequency: 45.0Hz-65.0Hz
Power factor: 0.00-1.00PF
Active power: 0-45000W when the electric power between 0 and 9999.9W, this display accuracy is 0.1W
Electric energy: 0-999999kwh, when the electric power between 0 and 999.99kwh, the display accuracy is 0.01kwh, when between 10000.0-9999.9kwh,the display accuracy is 0.1kwh, when between 10000.0 and 999999kwh, the display accuracy is 1kwh
Speed: 2 times per second
Operating temperature: -10 to +50℃
Working humidity: 10% - 80% (no condensation)
Working air pressure: 80 to 106kPa
Quantity: 1pcs

NOTE: To ensure optimal performance and safety of this product, we recommend installation and use by professionals with relevant expertise. Users may also refer to online installation tutorials for self-installation. In case of any issues, please feel free to contact the seller for support.

Package Included:
1 x AC panel meter
