DC 12-75V TO DC2. 5-50V，Control Voltage
Features:
1. Use high quality material, durable
2. Exquisite and compact appearance
3. Easy to use
4. Stable performance
5. Wide range of applications
1. Use high quality material, durable
2. Exquisite and compact appearance
3. Easy to use
4. Stable performance
5. Wide range of applications
Specification:
Name: DC-DC adjustable step-down module
Input: 12-75V
Output: 2. 5-50V adjustable
Current: 25A (MAX)
Efficiency: 95% highest (the smaller the pressure difference, the higher the efficiency)
Wiring: In the case of high power, the wiring should be as thick as possible.
Overview of voltage conversion:
12-75V to 5V
12-75V to 9V
14-75V to 12V
17-75V to 14.8V
19-75V to 16.8V
22-75V to 1 9V
24-75V to 21V
28-75V to 24V
35-75V to 30V
41-75V to 36V
48-75V to 42V
55-75V to 48V
Name: DC-DC adjustable step-down module
Input: 12-75V
Output: 2. 5-50V adjustable
Current: 25A (MAX)
Efficiency: 95% highest (the smaller the pressure difference, the higher the efficiency)
Wiring: In the case of high power, the wiring should be as thick as possible.
Overview of voltage conversion:
12-75V to 5V
12-75V to 9V
14-75V to 12V
17-75V to 14.8V
19-75V to 16.8V
22-75V to 1 9V
24-75V to 21V
28-75V to 24V
35-75V to 30V
41-75V to 36V
48-75V to 42V
55-75V to 48V

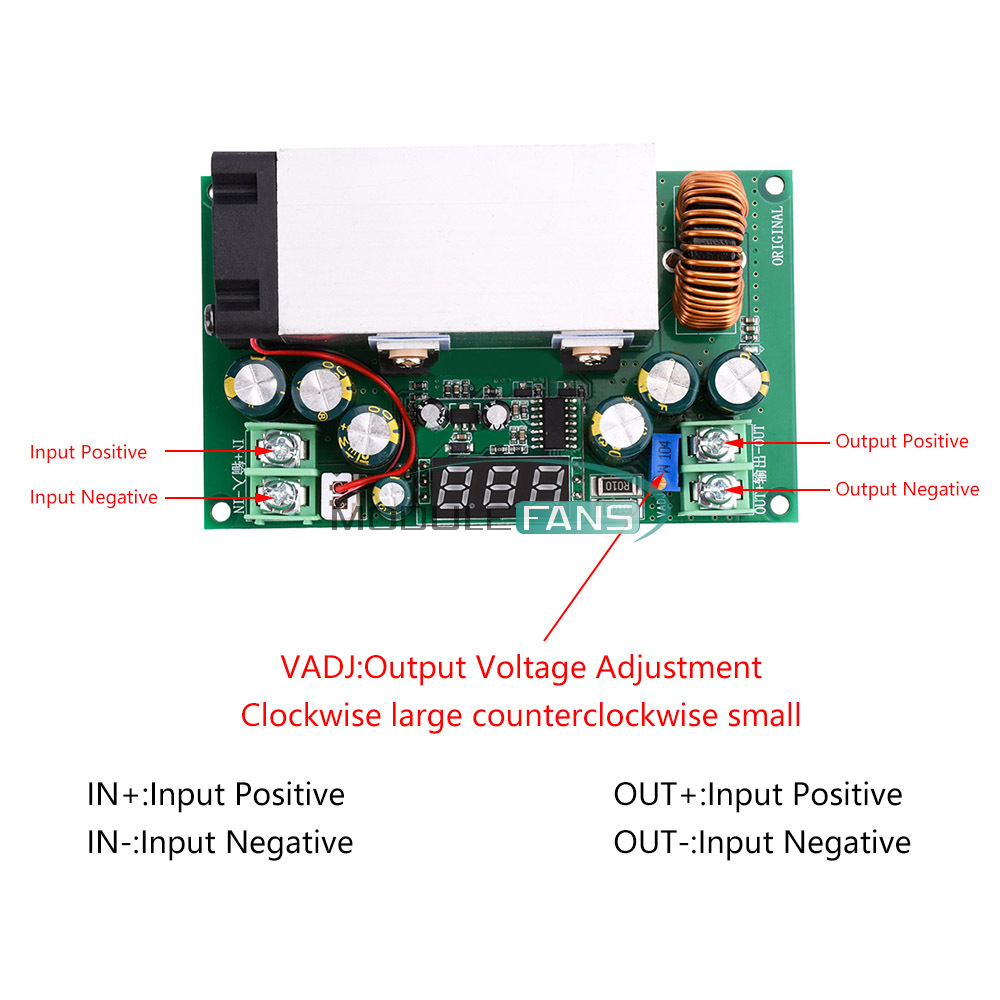

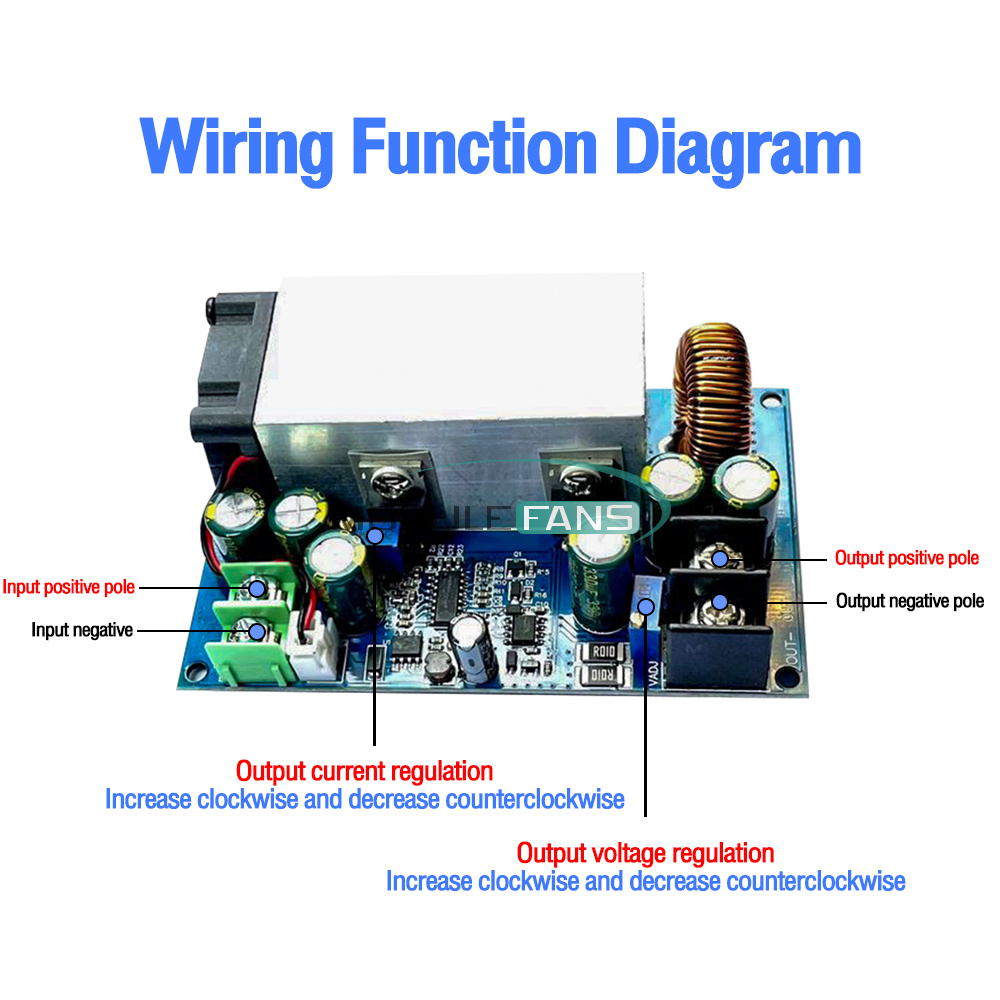

IN+: input positive
VADJ: output voltage regulation
0UT+: output positive pole
IN-: input negative polarity clockwise large counterclockwise small
OUT-: output negative pole
VADJ: output voltage regulation
0UT+: output positive pole
IN-: input negative polarity clockwise large counterclockwise small
OUT-: output negative pole
Note: To charge the battery and battery, please add a diode to the output to prevent backfilling!
Package list:
Adjustable step-down module*1
Adjustable step-down module*1

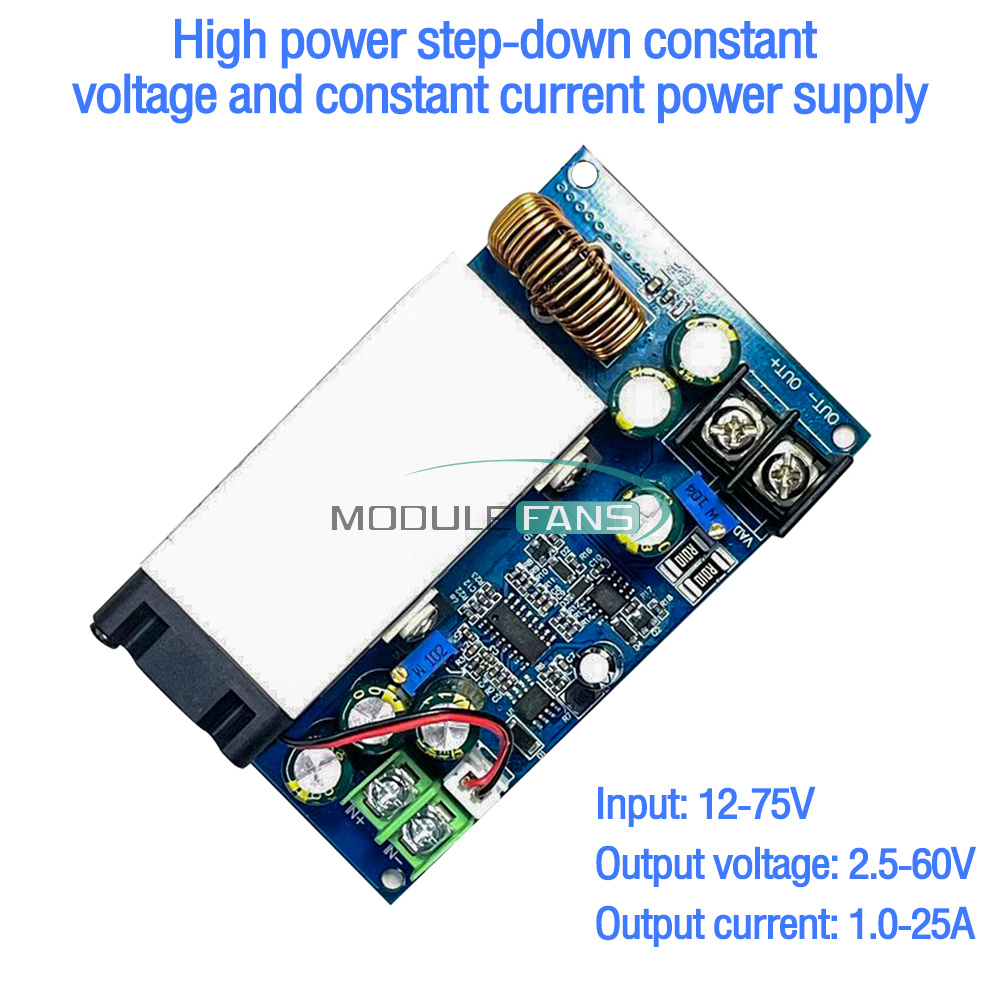

DC12-75V TO DC2. 5-60V，Control Current Voltage
Product Features:
Output voltage and current continuously adjustable
Easy to use
Easy to operate
Stable performance, input voltage up to 75 volts
Very high efficiency
Output voltage and current continuously adjustable
Easy to use
Easy to operate
Stable performance, input voltage up to 75 volts
Very high efficiency
Main features of power supply module:
*The module adopts step rectification scheme with high efficiency, the highest efficiency is up to 95%.
*Continuously adjustable output voltage and current
*Input voltage up to 75 volts, output voltage up to 60V (at input 75 volts) maximum current 25A.
Product parameters:
Product Model: SZ-8025CCCV
Module name: 600w buck constant voltage constant current adjustable power supply module
Module nature: non-isolated buck module (BUCK)
Input voltage:12-75V
Output voltage range: 2.5-60V (must meet the buck condition, IN input multiplied by 0.8)
Output minimum voltage: 2.5V
Output maximum voltage: approximately equal to the input voltage * 0.8 (for example, the input is 40V, 40V * 0.8 = 32V maximum output voltage is 32V.)
Output constant current: 1-25A (continuously adjustable,)
Maximum output power: 600W (working environment must be well ventilated)
Continuous maximum working power: 500W (ventilated environment)
Continuous maximum working current: 25A (under ventilated environment)
Heat dissipation mode: air-cooled heat dissipation
Input undervoltage protection: No
Input over-voltage protection: None (over-voltage prohibited)
Operating temperature: -10~+65 degrees
Operating frequency: 80KHz
Conversion efficiency: up to 95% (efficiency is related to input and output voltage, current and differential pressure)
Short circuit protection: Yes (constant current protection)
Input reverse connection protection: no
Output anti-reflow: no (to charge the battery, the output connected to inductive loads, such as connected to the motor must add anti-reflow diode)

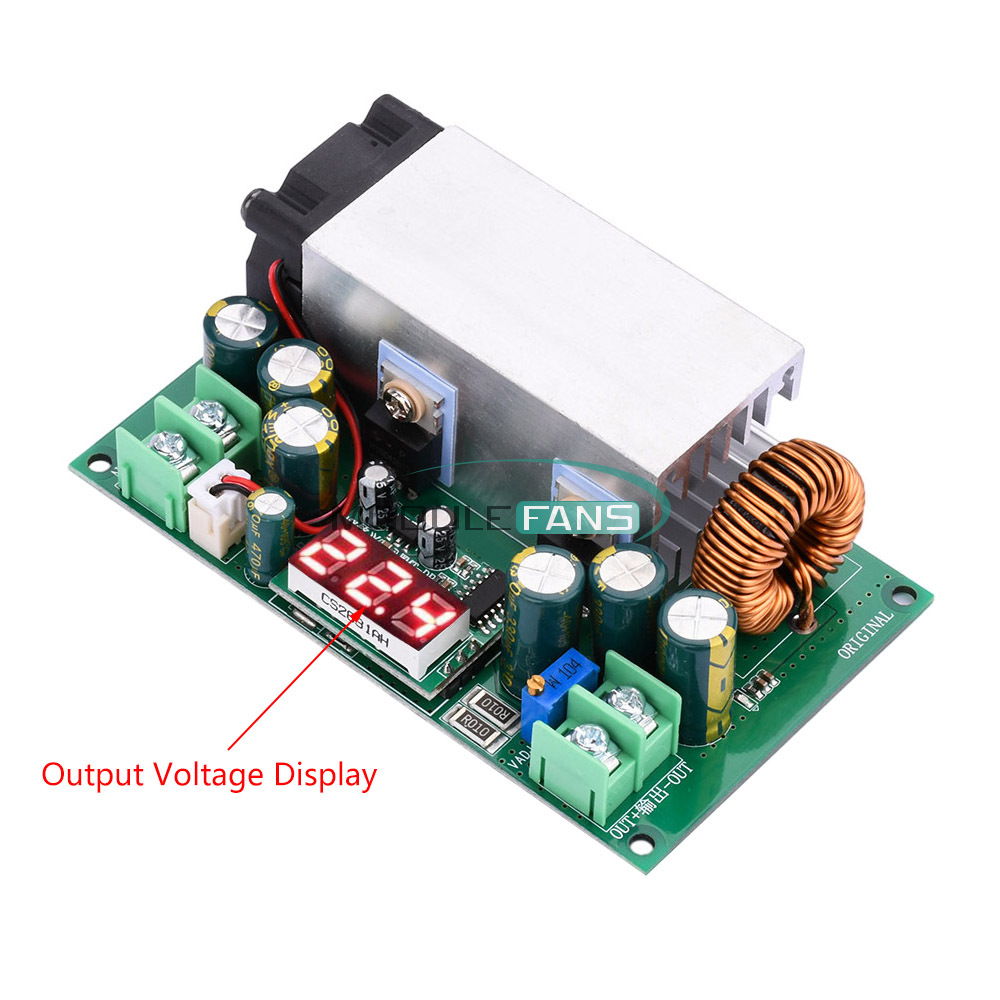

Work indicator: Yes (output voltage blue LED)
Wiring method: comes with no welding terminals

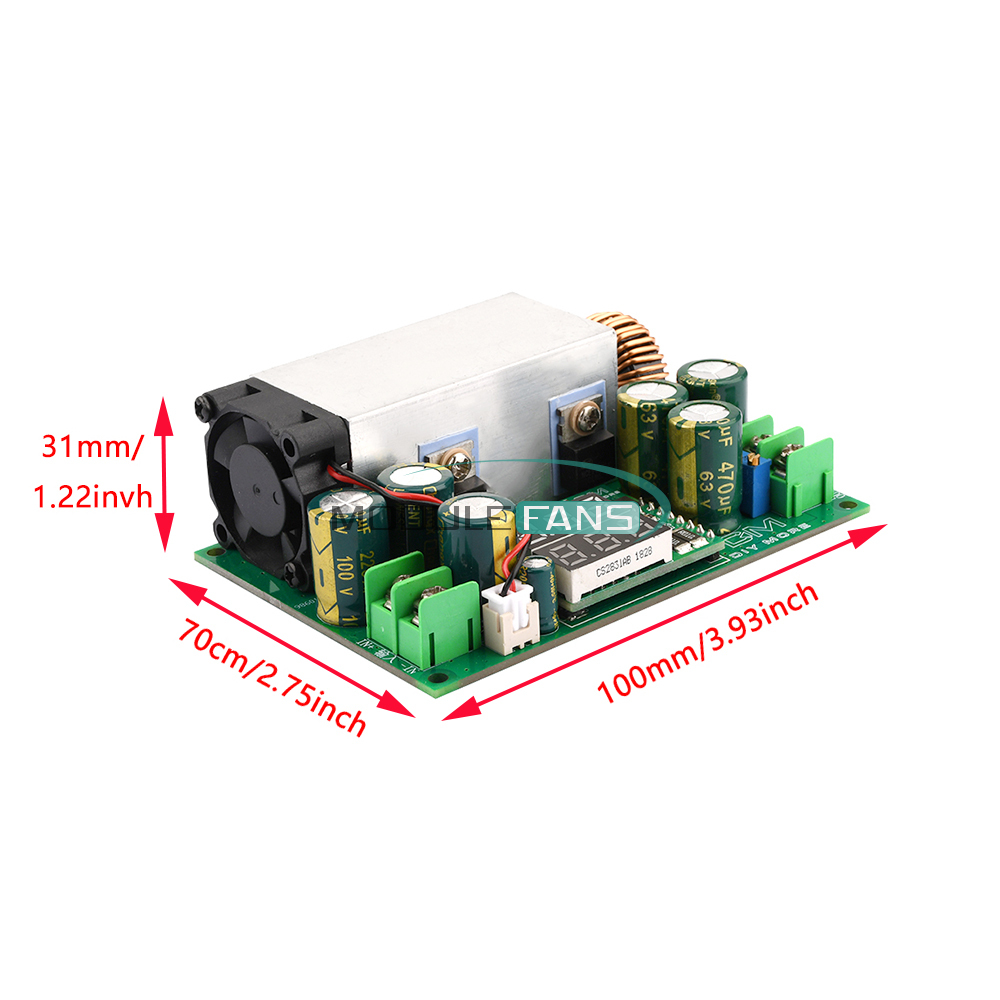

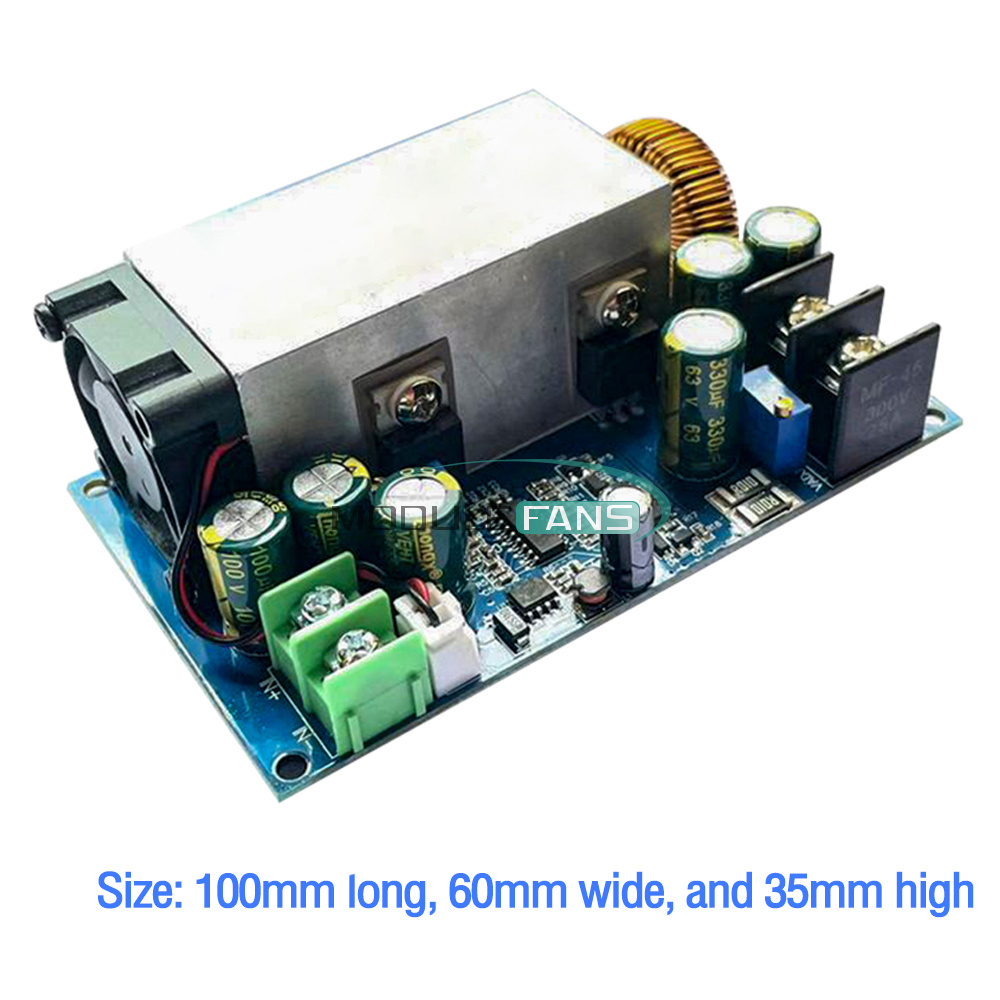

Module size: about 100mm long by 60mm wide by 35mm high
Net weight: about 140 grams
Wiring: "IN" for input.
"OUT" for output
Product list:
1* Power module

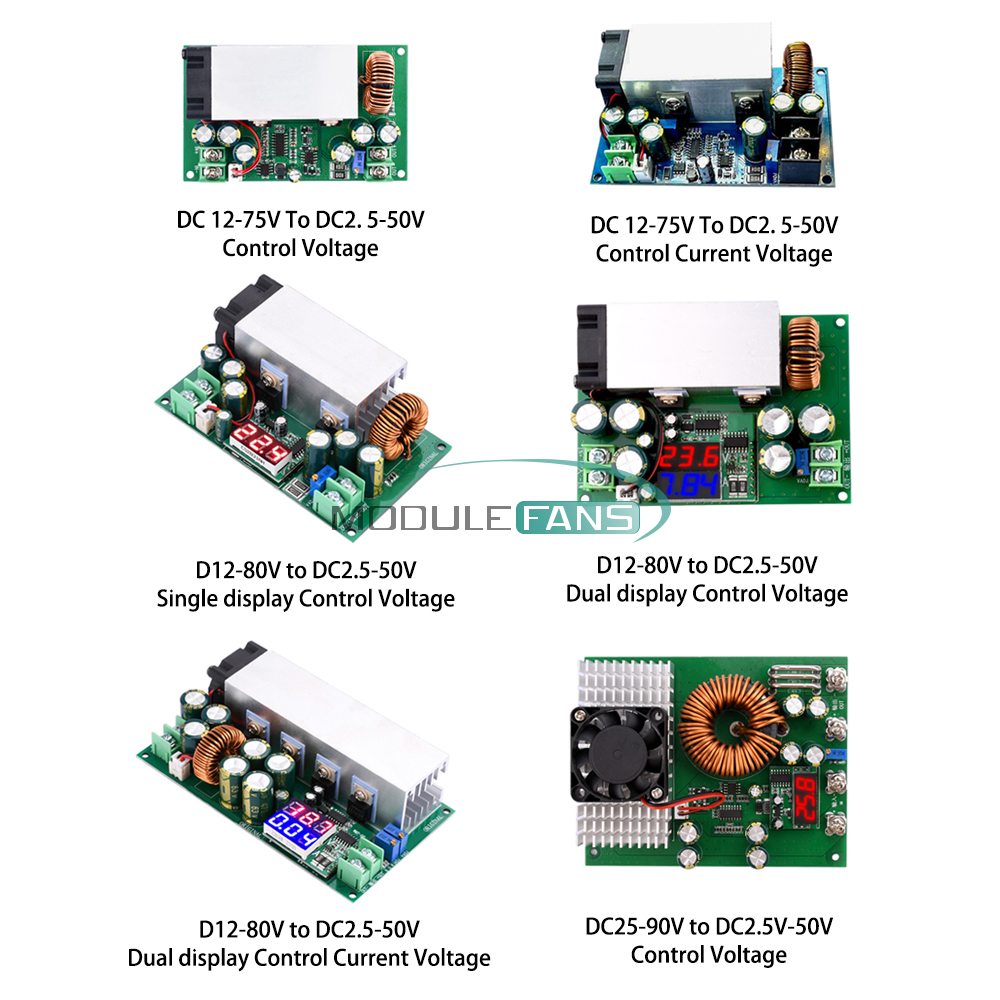

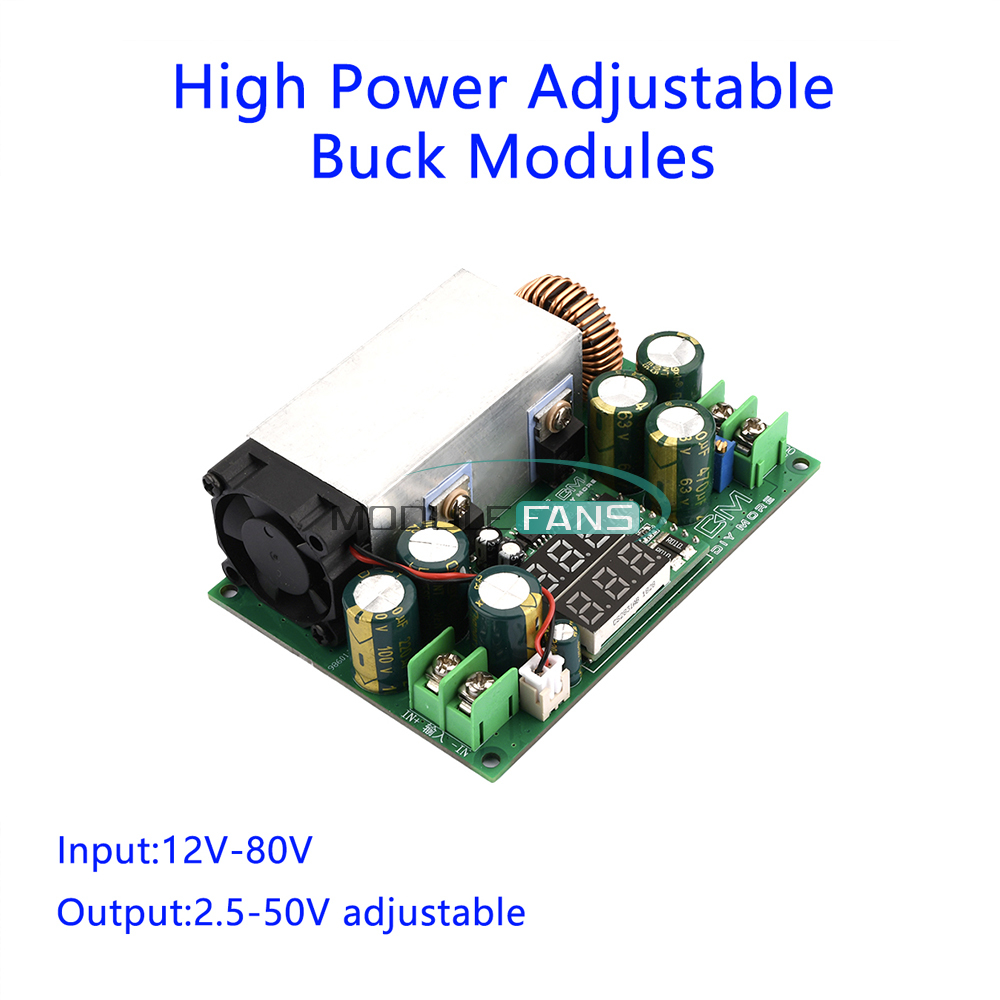

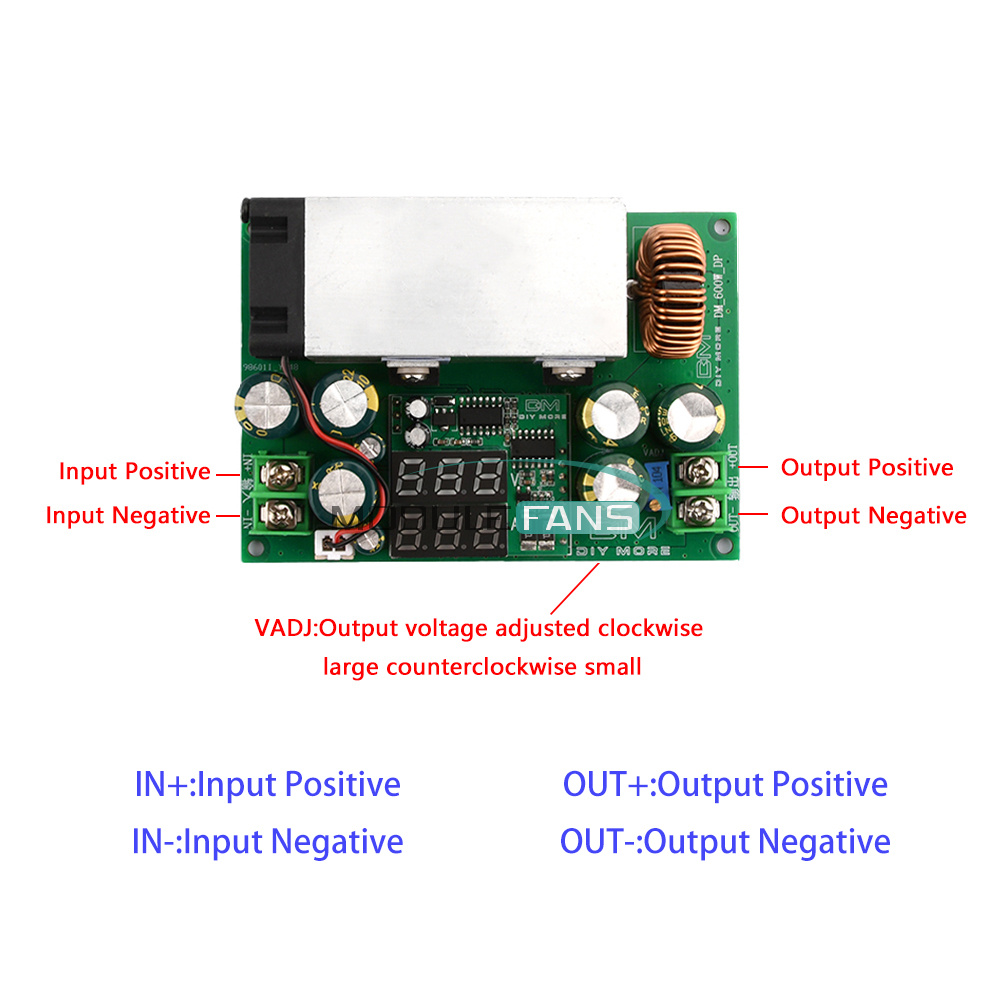

D12-80V to DC2.5-50V #1，Single display Control Voltage
D12-80V to DC2.5-50V #2，Dual display Control Voltage
D12-80V to DC2.5-50V #3，Dual display Control Current Voltage
Product features:
1. High performance, continuously adjustable output voltage and current;
2. Increase the digital display function, more convenient to use;
3. Simple operation, connected to the line can be used;
4. Using high quality materials, input voltage up to 90V;
5. Very high efficiency, up to 93%.
1. High performance, continuously adjustable output voltage and current;
2. Increase the digital display function, more convenient to use;
3. Simple operation, connected to the line can be used;
4. Using high quality materials, input voltage up to 90V;
5. Very high efficiency, up to 93%.
Product parameters:
Input voltage: DC25-80V (can not be used for 84V battery)
Output voltage: 2.5V-50V adjustable (only buck) (Maximum output voltage = input voltage * 0.8)
Output current: 50A (MAX), within 30A for long term operation.
Maximum power: 1000W (1000W for power tools)
Conversion efficiency: ≥93%
Protection: overcurrent protection 60A
Size: L120mm*W97mm*H40mm
Working Temperature: -40-85°C
Storage environment: -20℃-+50℃
Relative humidity: 65±20%
Wiring:High power situation, wiring as thick as possible.

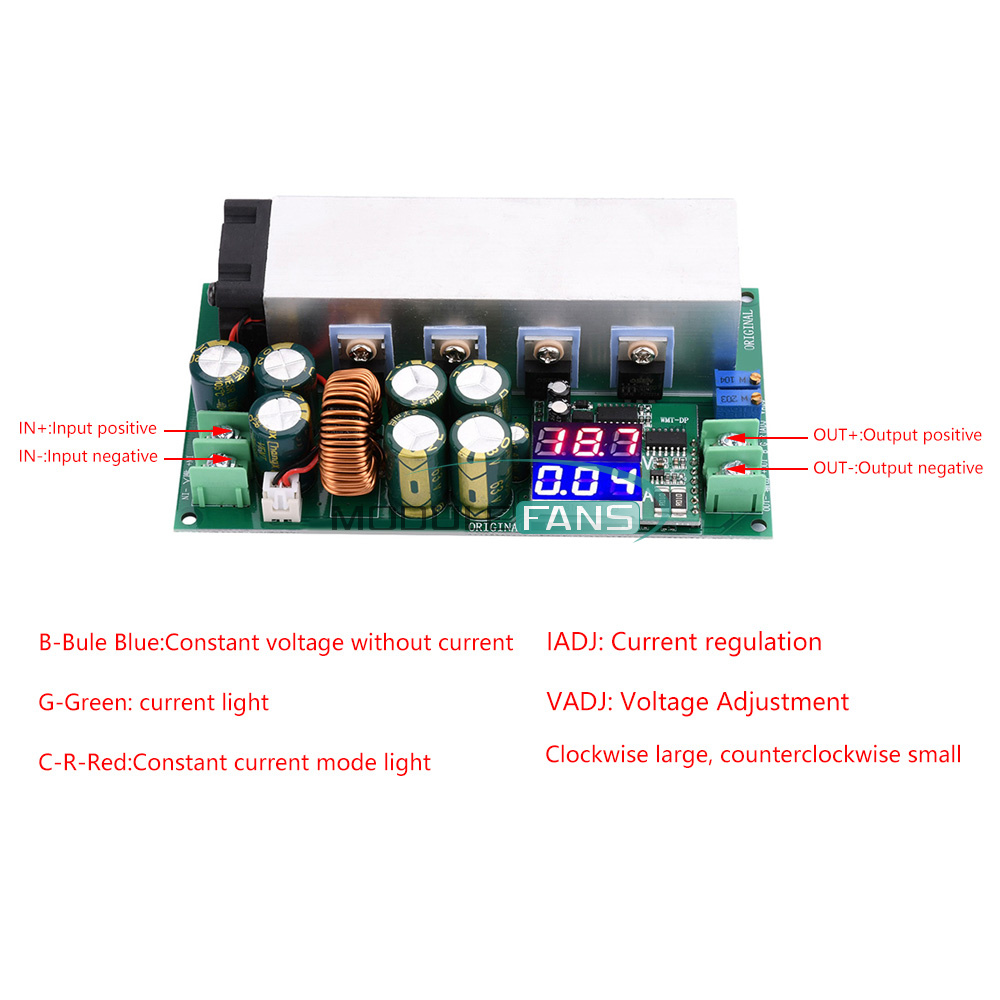

Interface description:
IN+:Input positive
IN-:Input negative
OUT+:Output positive
OUT-:Output negative
Note: Charge batteries, batteries, output, please add your own diode, anti-reverse irrigation!
Product list:
1X module
DC25-90V to DC2.5V-50V,Control Voltage
Product features:
1. High performance, continuously adjustable output voltage and current;
2. Increase the digital display function, more convenient to use;
3. Simple operation, connected to the line can be used;
4. Using high quality materials, input voltage up to 90V;
5. Very high efficiency, up to 93%.
1. High performance, continuously adjustable output voltage and current;
2. Increase the digital display function, more convenient to use;
3. Simple operation, connected to the line can be used;
4. Using high quality materials, input voltage up to 90V;
5. Very high efficiency, up to 93%.
Product parameters:
Input voltage: DC25-90V (can not be used for 84V battery)
Output voltage: 2.5V-50V adjustable (only buck) (Maximum output voltage = input voltage * 0.8)
Output current: 50A (MAX), within 30A for long term operation.
Maximum power: 1000W (1000W for power tools)
Conversion efficiency: ≥93%
Protection: overcurrent protection 60A
Size: L120mm*W97mm*H40mm
Working Temperature: -40-85°C
Storage environment: -20℃-+50℃
Relative humidity: 65±20%
Wiring:High power situation, wiring as thick as possible.
Interface description:
IN+:Input positive
IN-:Input negative
OUT+:Output positive
OUT-:Output negative
Note: Charge batteries, batteries, output, please add your own diode, anti-reverse irrigation!
Product list:
1X module
