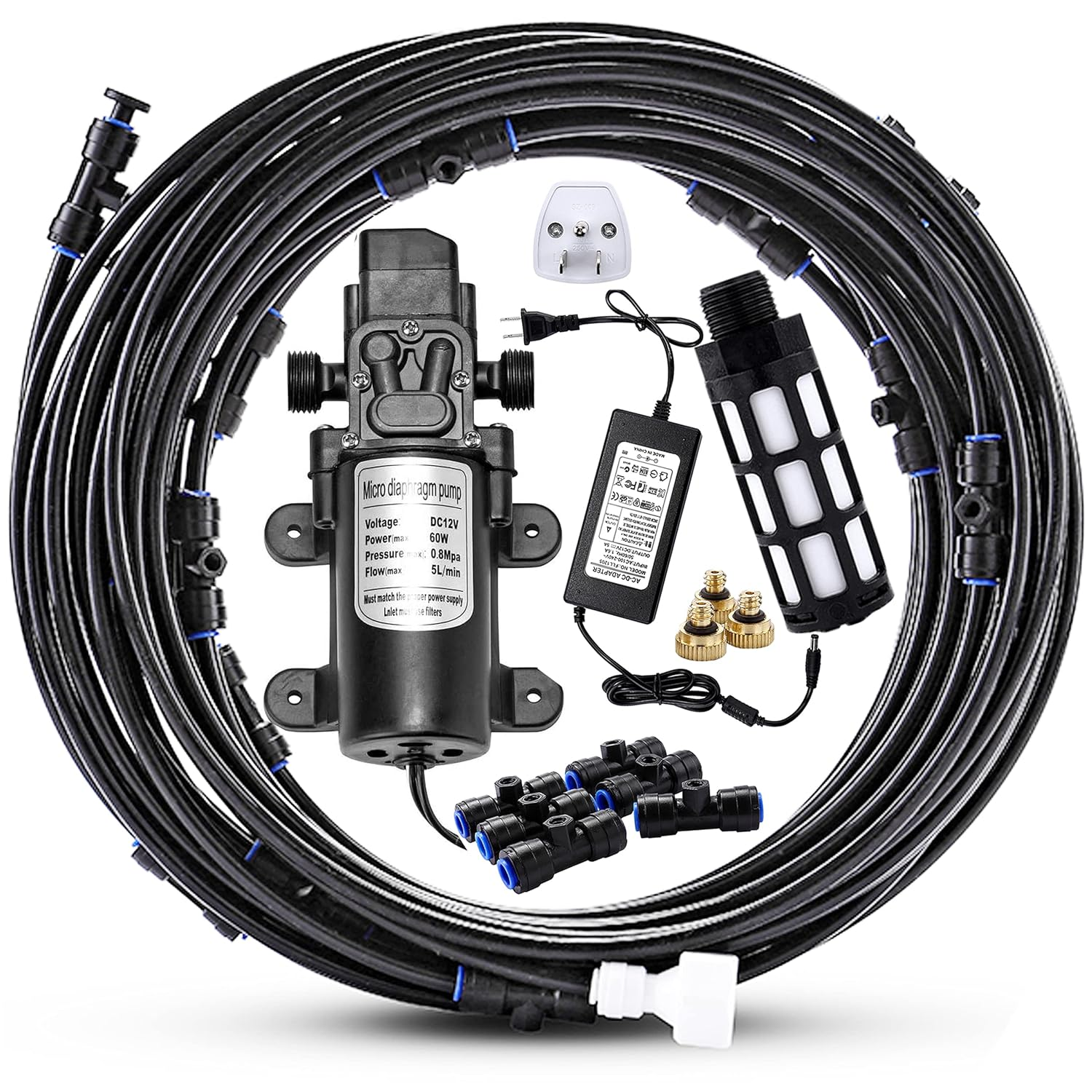

Outdoor Misting Cooling System with Pump Kit, 65.6FT(20M) Misting Line with Filter, 26 Brass Mist Nozzles, 1 Brass Adapter (3/4"), 12V DC 60W 5L/Min, Self Priming Sprayer Water Pump

Description

Item model number PPUS9076
Style Modern
Color (02) 20M Misting Line
Material Brass
Model Name PPUS9076
Size With Pump
Package Dimensions 10.16 x 9.84 x 4.49 inches; 3.92 Pounds

  • 【Misting System Product List 】: 1 Instruction, 12V DC 60W 5L/Min self priming sprayer water pump+ power supply, 23.5M/77FT misting line with filter (including 3.5M/11.5FT spray hose+20M/65.6FT spray line), 26 brass misting nozzles, 26 T-tube connectors , 60pcs Cable Ties, 60pcs saddle clamps, 3/4inch(25mm) Standard water tap adapter, 1 PTFE Tape.
  • 【Parameters of Pump】: Pump size: 16.5x10 x6cm(6.69x3.82x2.36inch). Equipped with 12V 5A 60W AC / DC power adapter; working pressure: 0.8MPa; flow rate: 5L / min. Atmospheric pressure 30PSI (2-3kg); maximum working pressure: 30bar (450psi).
  • 【Energy Conservation】: PE food grade materials, brass nozzle, American standard size, orifice nozzle diameter: 0.4mm (0.016"), thread size: UNC10-24, working pressure: 0.8MPa, flow rate: 5L / min. spray seat is sliding lock type fast push, can connect 3/4 inch (25mm) pipe. Normal working pressure is 30PSI (2-3kg). Limit pressure: 30bar (450psi), only use for outdoor cold water. No power consumption, less than the traditional watering water quantity.
  • 【With Pump Use & Without Pump Use】: These misting cooling system can be connected to water hose and use directly without pump. But if the water pressure is not enough and no water spraying out, pleas use the pump (the filter must be used with the pump) to improve water pressure. Please operate according to the instruction manual, and connect the pump to the water hose according to the marks on the outlet and inlet of the pump.
  • 【Wide Application】: Spray accessories are mainly used for spray cooling system, cooling, deodorization, humidification, watering, dust removal, gardens, irrigation systems, courtyards, gardens, swimming pools, playgrounds etc.. And these misting system is widely used in shopping mall, park, artificial landscape, factory, workshop dry area, can effectively suppress dust, deodorize and improve the environment.

Product description

  • Mornjina misting system is widely used in shopping mall, park, artificial landscape, factory, workshop dry area, can effectively suppress dust, deodorize and improve the environment.
  • Spray accessories are mainly used for spray cooling system, cooling, deodorization, humidification, watering, dust removal, gardens, irrigation systems, courtyards, gardens, swimming pools, playgrounds etc..

Installation Step:

  1. Take the 3M water hose and water inlet filter and put the filter into the water tank totally.
  2. Fit Misting Nozzles and end plug with Nozzle Fittings.
  3. Take the black pump, connecting one side with 3M water inlet and another side with 18M misting system.
  4. Connect power adapter with pump and turn on the power to operate the system for 1 minute to discharge the air inside.
  5. Check the whole system carefully to ensure there is no water leakage after the system start to work.
  6. Fix the misting lines by the cable ties and saddle clamps provided.
  7. Turn on the Power and then enjoy the misting cooling system.

Note : Water leakage proof tape is recommended if found anywhere with water leaking.

Specification

  • The Tubing Length between the first mister to the last mister: 65.62 FT / 20 Meter.
  • The tubing length between filter and pump: 11.48FT / 3.5 Meter.
  • The tubing Length Between Misters: 29.98inch / 76.15cm.

Misting Cooling System Accessories

  • UV-resistant Misting Hose
  • 65.62FT(20M) hard PE tubing is UV-resistant, leak-proof and anti-rust.
  • Water Pump with Power Adapter (Including U.S. regulatory 3-plug conversion head).
  • Equipped with 12V 5A 60W AC / DC power adapter; working pressure: 0.8MPa; flow rate: 5L / min. Atmospheric pressure 30PSI (2-3kg); maximum working pressure: 30bar (450psi).
  • Filter Szie: 8x3cm / 3.15x1.18inch.
  • 26Pcs T-tube Connectors.
  • 26Pcs Brass Misting Nozzles Heads, Removable.
  • Orifice Nozzle Diameter: 0.4mm (0.016"), thread size: UNC10-24, working pressure: 0.8MPa, flow rate: 5L / min.
  • Connect to 3/4 inch (25mm) pipe
  • 1Piece Pipe Cutter.
  • Cut the hose to any length you like.
  • 60pcs Cable Ties.
  • 60pcs Saddle Clamps
  • 1 Piece PTFE Tape.

Hose Installation

Step1

  • Cut the hose in the right length.

Step 2

  • Insert the the hose end to the faucet adapter.

Step 3

  • Insert the hose end to the Tee-nozzle.

Step 4

  • Insert the misting nozzles on the T-tube pipe.

Wide Application

  • Dust Removal in Artificial Landscape
  • Watering in Courtyards, Gardens.
  • Cooling Outdoor.
  • Cooling in Playground, Swimming Pool.

Outdoor Misting Cooling System with Pump Kit, 65.6FT(20M) Misting Line with Filter, 26 Brass Mist Nozzles, 1 Brass Adapter (3/4
