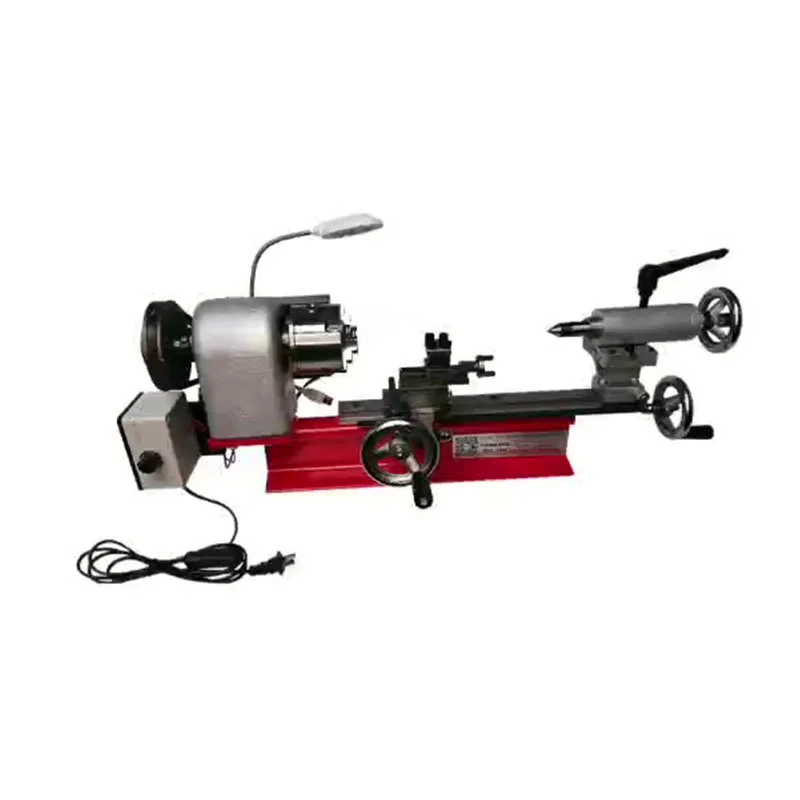

Mini Miniature Desktop Small Lathe/DIY /metal/clock/woodworking/wenwan Home Instrument Lathe

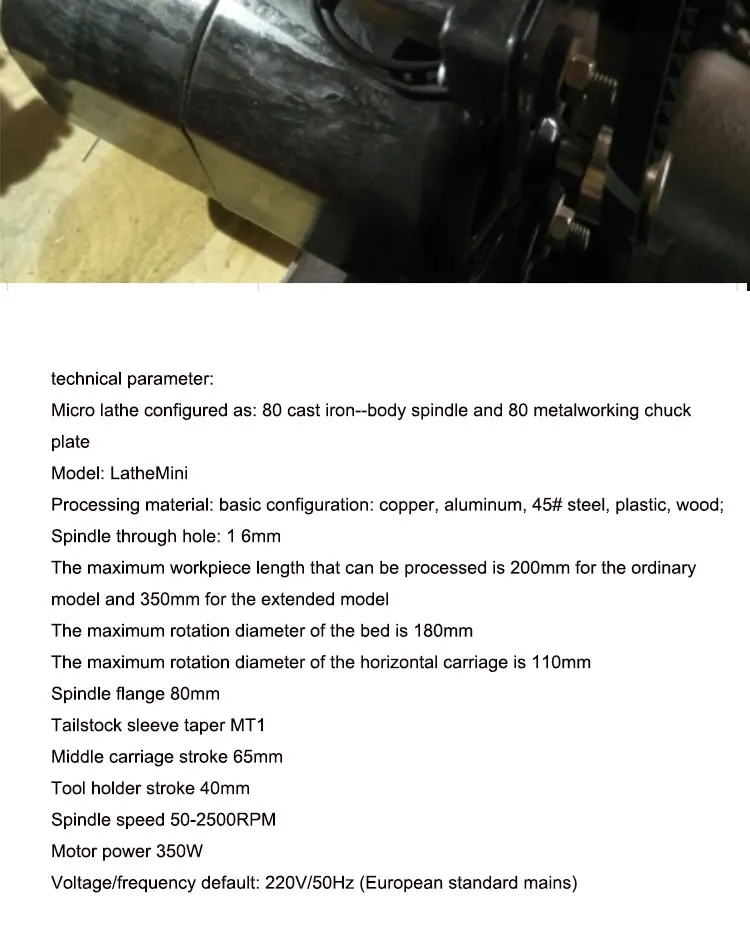

technical parameter:

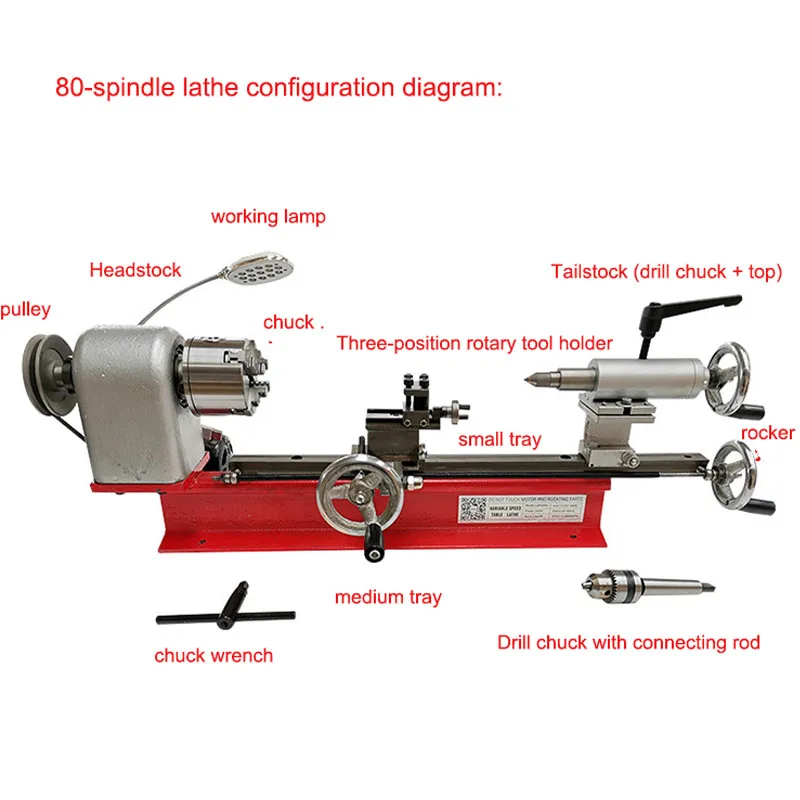

Micro lathe configured as: 80 cast iron--body spindle and 80 metalworking chuck
plate
Model: LatheMini
Processing material: basic configuration: copper, aluminum, 45# steel, plastic, wood;
Spindle through hole: 1 6mm

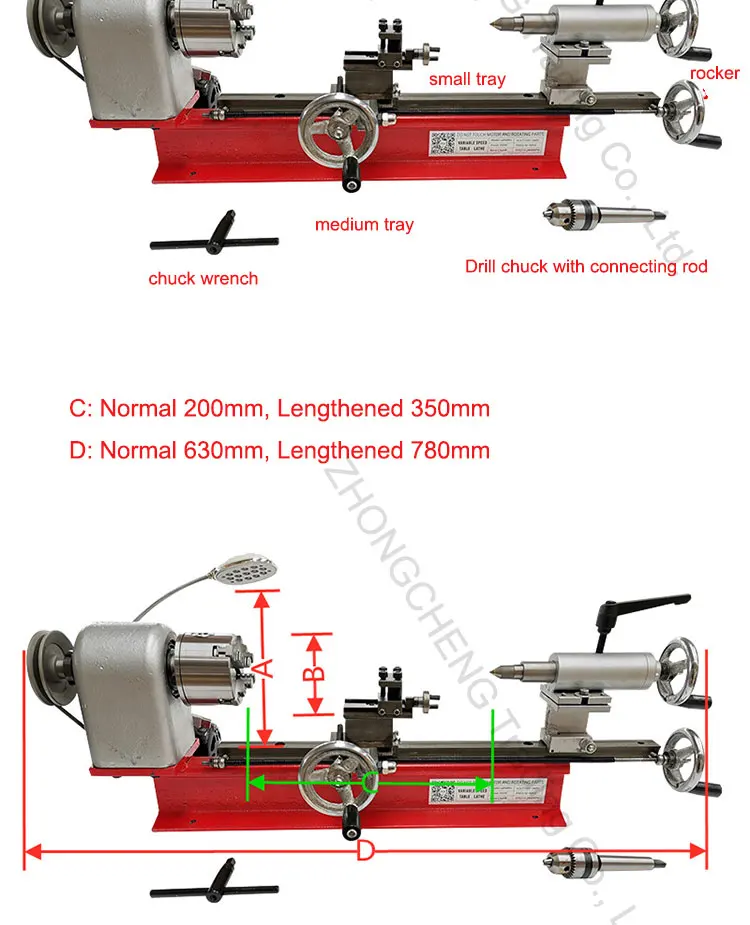

The maximum workpiece length that can be processed is 200mm for the ordinary model and 350mm for the extended model

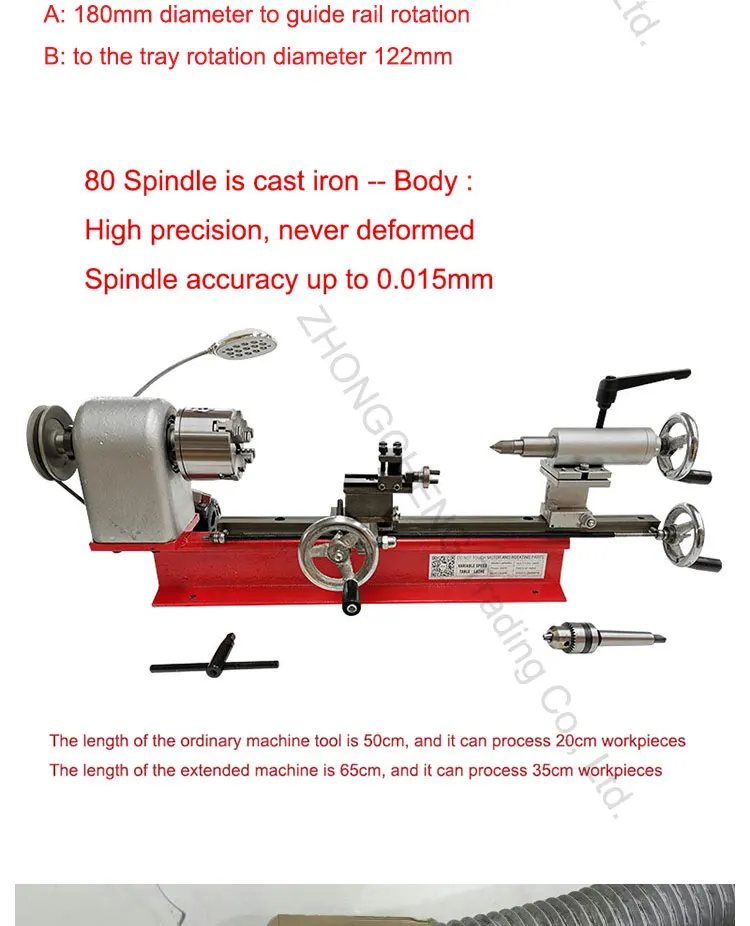

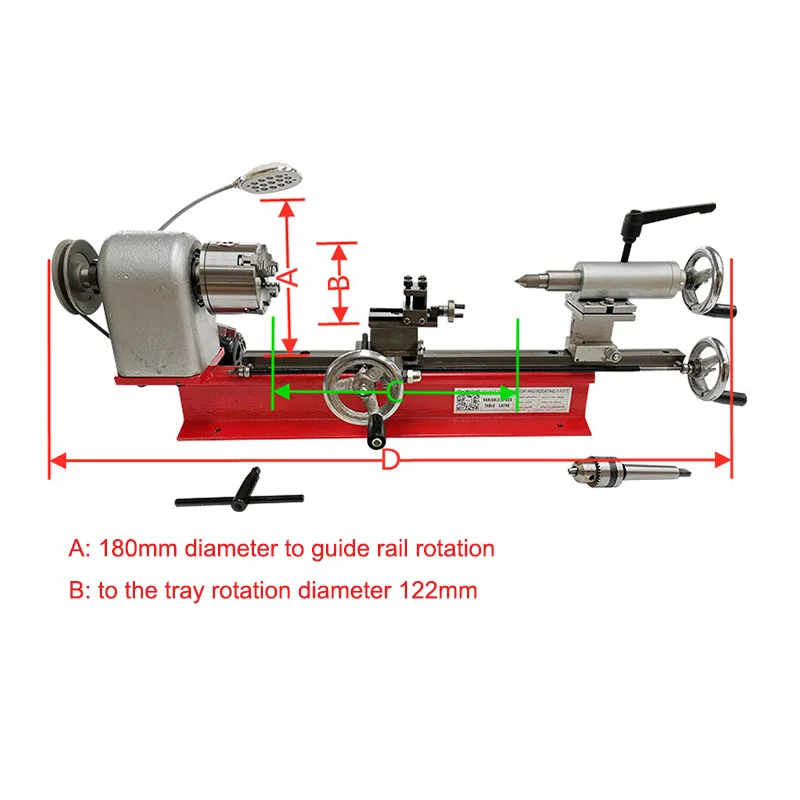

The maximum rotation diameter of the bed is 180mm
The maximum rotation diameter of the horizontal carriage is 110mm
Spindle flange 80mm
Tailstock sleeve taper MT1
Middle carriage stroke 65mm
Tool holder stroke 40mm
Spindle speed 50-2500RPM
Motor power 350W
Voltage/frequency default: 220V/50Hz (European standard mains)
