General characteristics：

  • Infrared motion&presence sensor is used for automatic sliding door,folding door and curve door.
  • Have function of background self-learn. Can learn background automatically when power on. Suit all kinds of occasions.
        Always self-correcting once be influenced by quake, distortion, omve, dark and sunshine. Ensure the sensor can work durable.



Technical parameters：

Power input

AC/DC12-24V

Length of the line

2.5m

Sinnal output

Relay, 1 for motion,1 for presence

Max installation height

3000mm

Static current

30mA(DC12V)

Dimension

110mA(DC12V)

Cover

ABS

RAY type

Reflect infrared

RAY source

Infrared 940nm

Quantity of ray

1 line for presence,4 emits,16 spots

3 lines for motion,12 emits,48 spots

Self-learning time

10s

Operation indicate

Standy by green LED,motion by yellow LED

Presence by red LED

Temperature

-40℃-60℃0

Detection range

1600(W)x 800(D)mm

Output time

Anti-pinch 500ms,  Start-up 2s

Respond

<=100ms



Package Included:

1 x Motion & Presence Safety Sensor

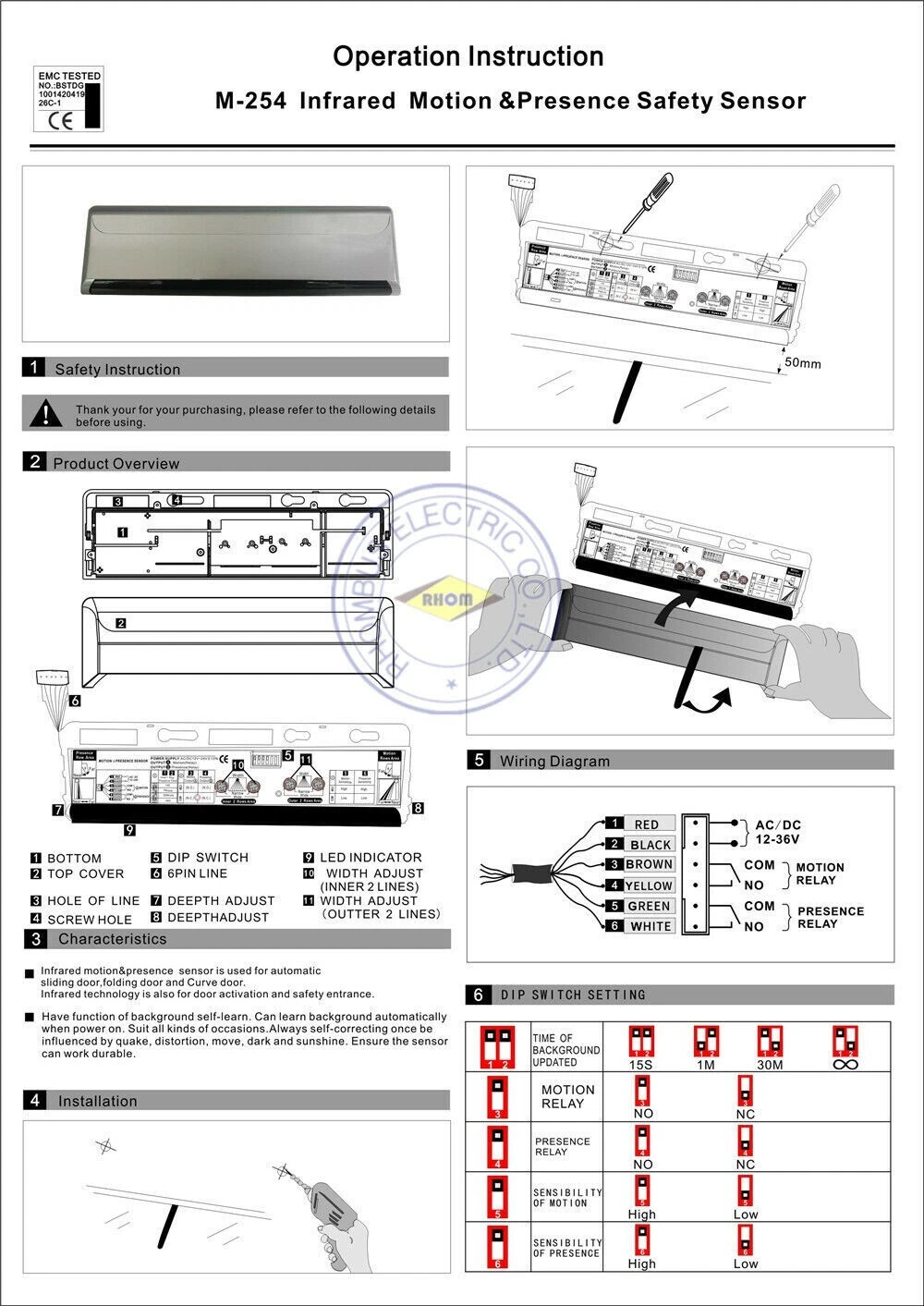

Motion&Presence Safety Sensor for Automatic Sliding Door/FoldingDoor/Curve Door - Picture 11 of 13

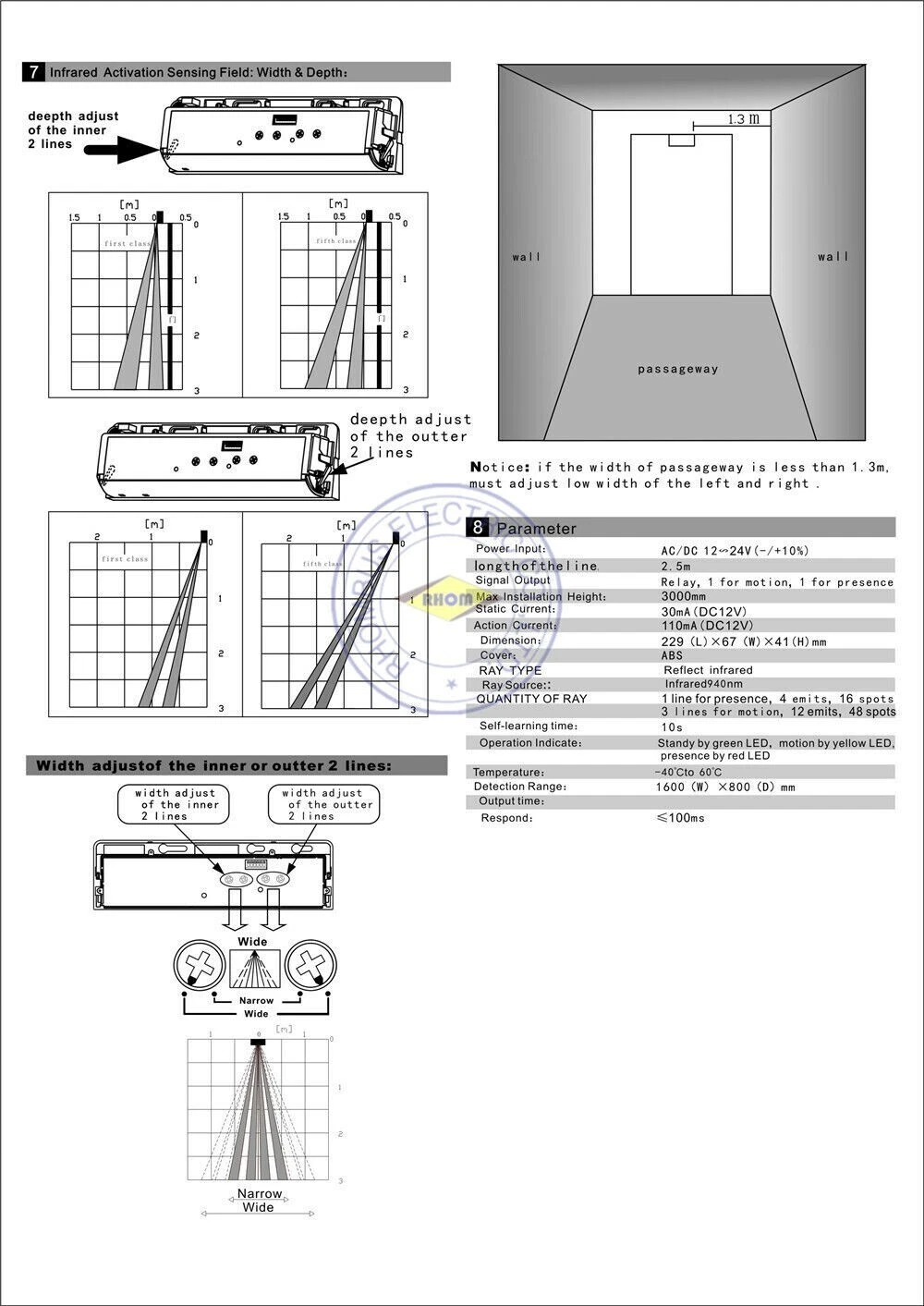

Motion&Presence Safety Sensor for Automatic Sliding Door/FoldingDoor/Curve Door - Picture 12 of 13
