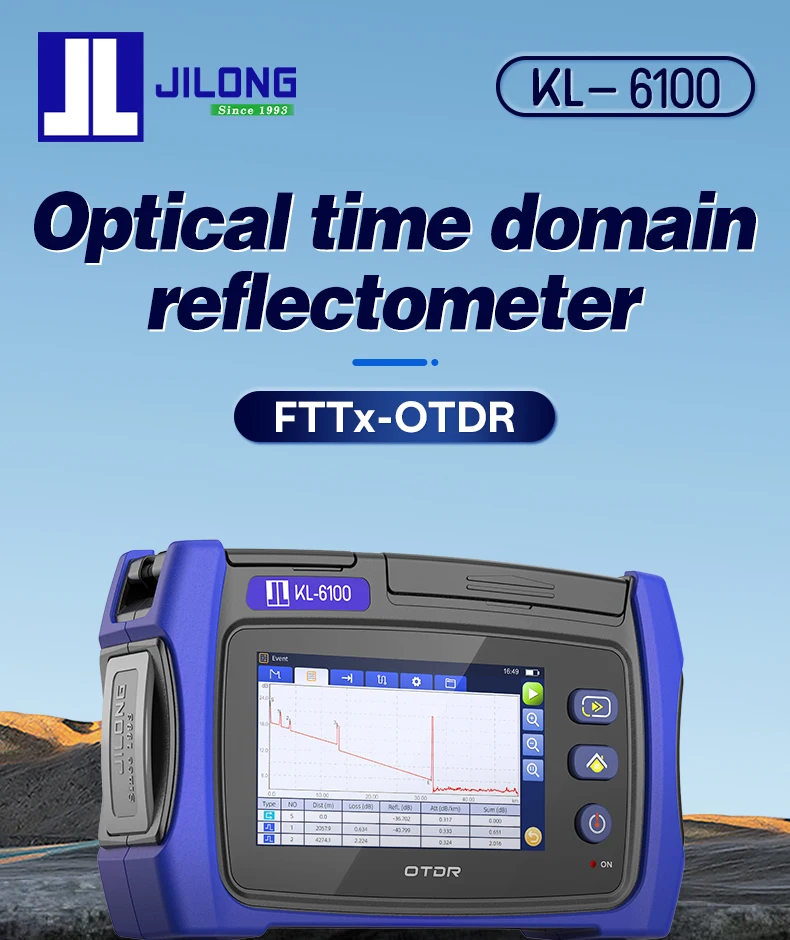

KL-6100 OTDR features :

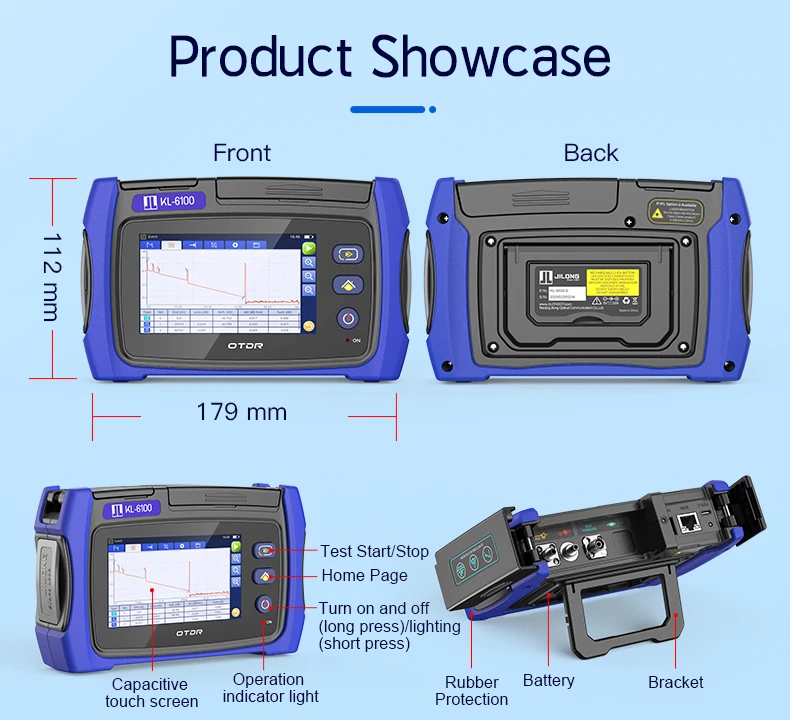

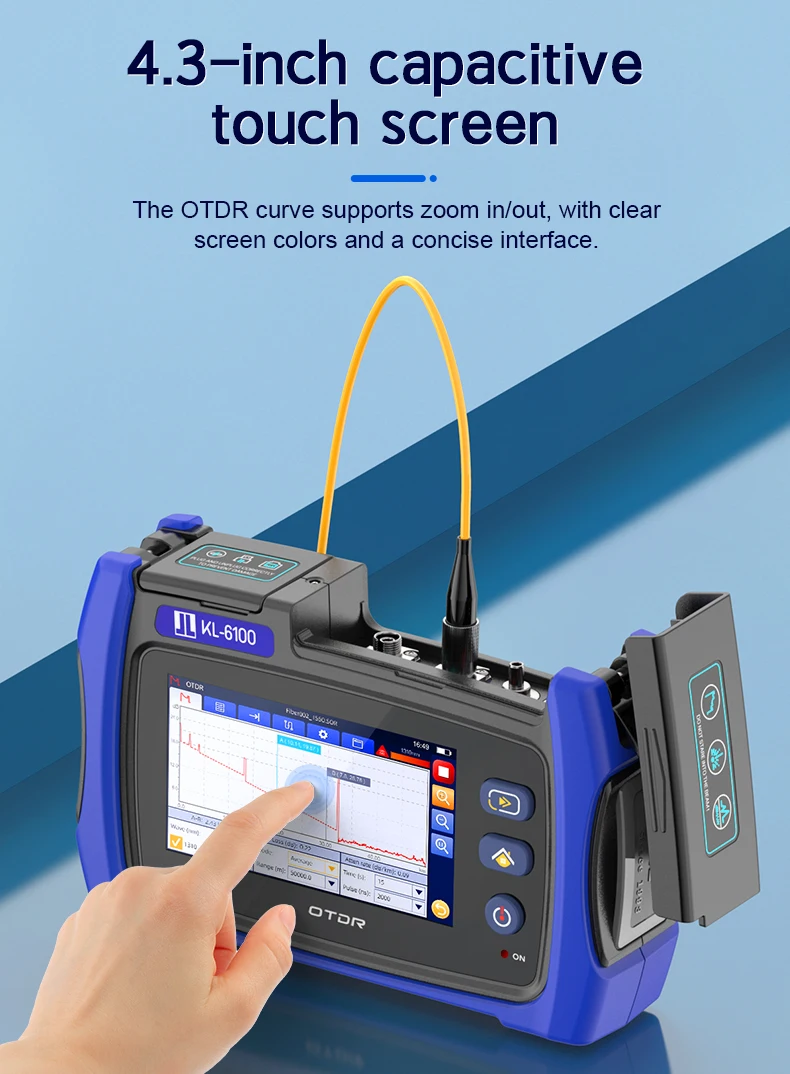

--- 4.3 inch touch screen LCD color display

--- 6000mAh large capacity battery .

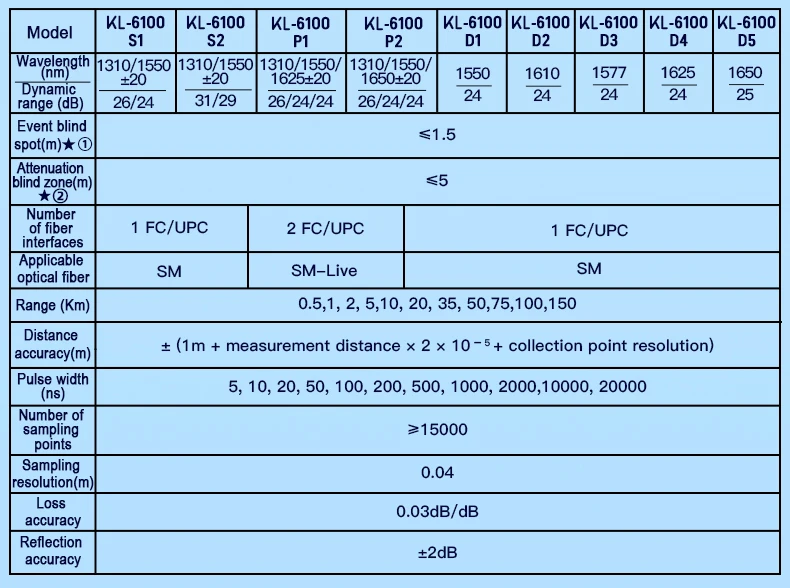

--- Up to 9 OTDR models available

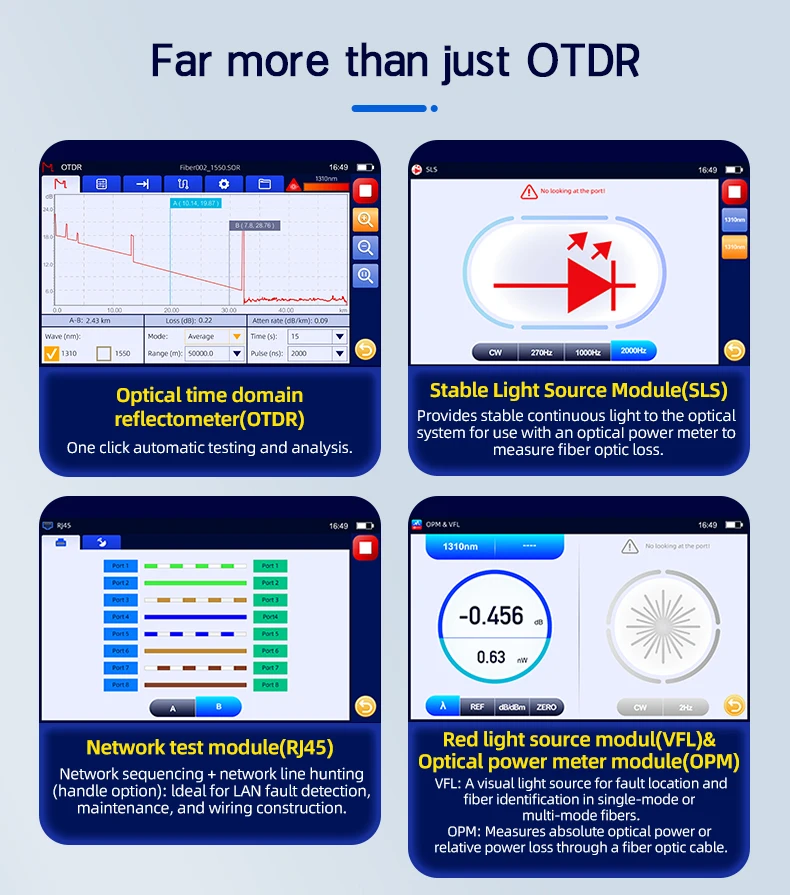

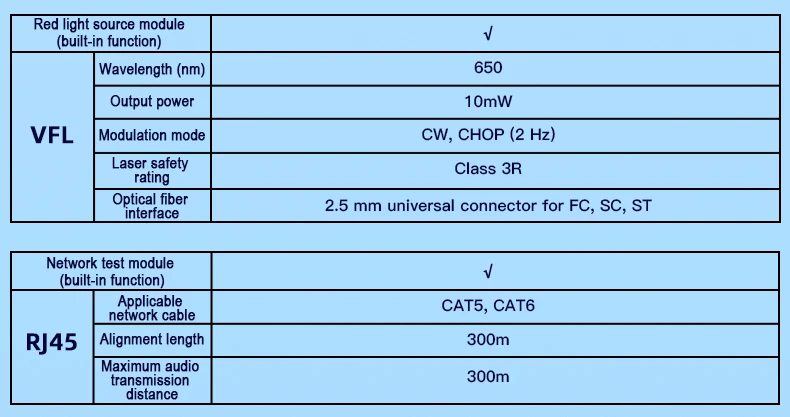

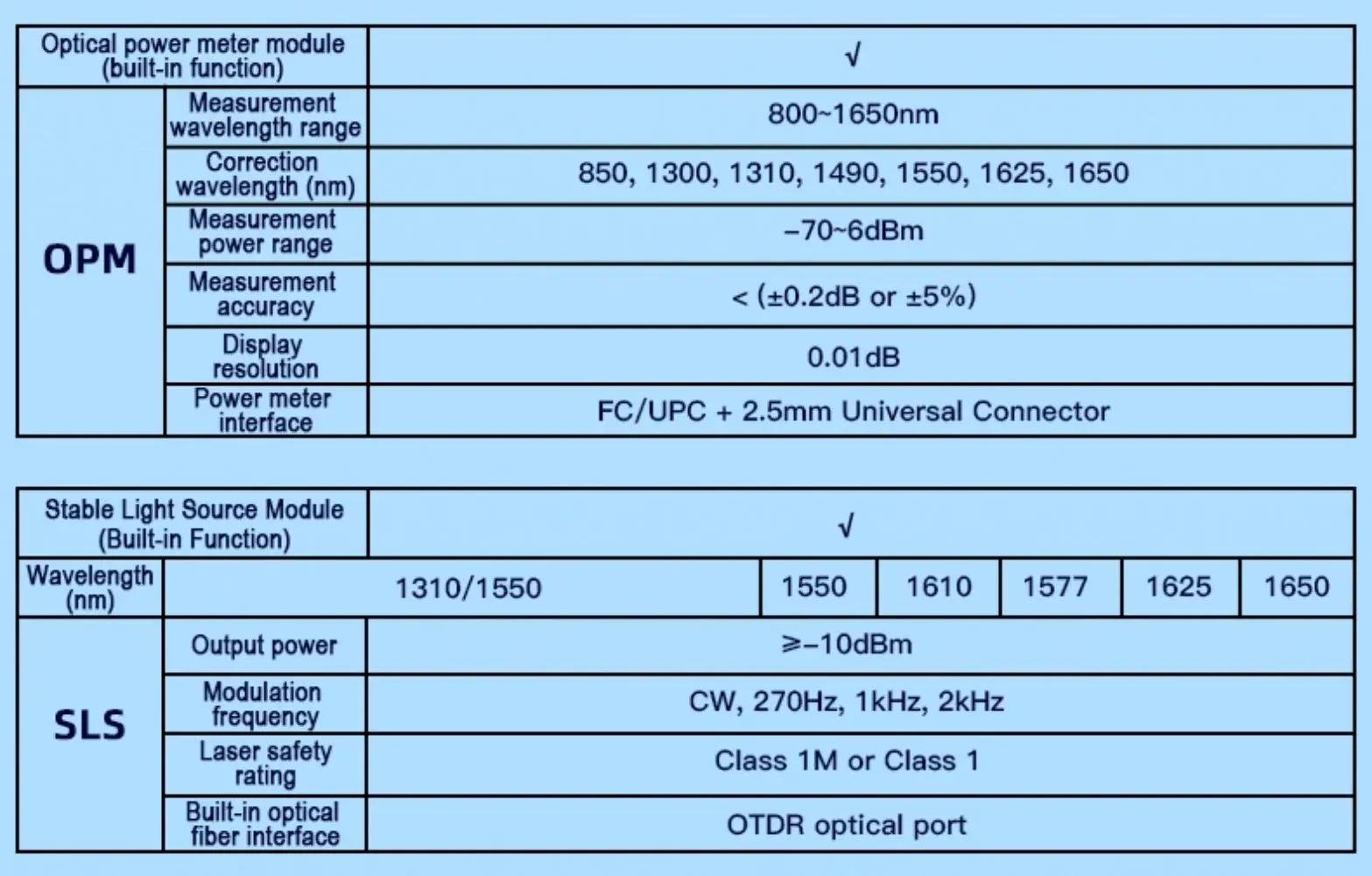

--- Far more than just OTDR : OPM/SLS/VFL/RJ45

--- Built-in link diagram , simplifying the interpretation of OTDR curves.

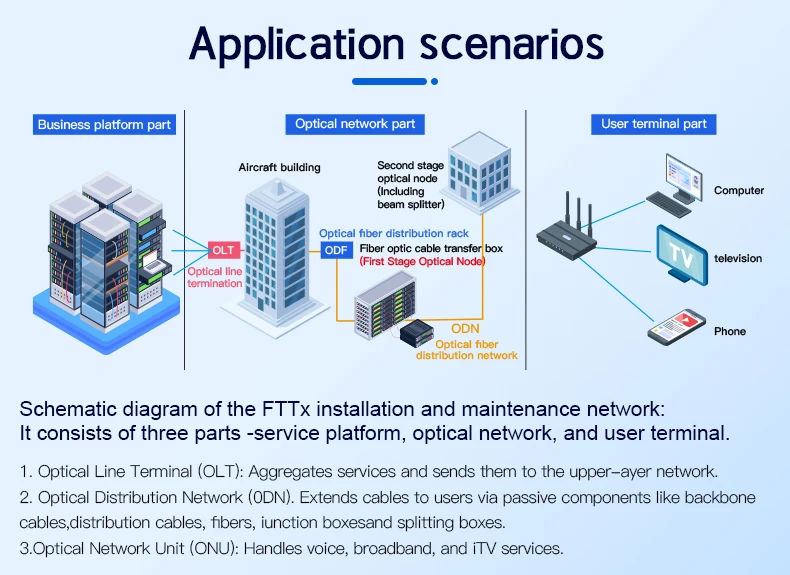

--- It's used for FTTx network , communication construction , weak current , installation and maintenance works , broadband construction in residential area , monitoring construction , troubleshooting

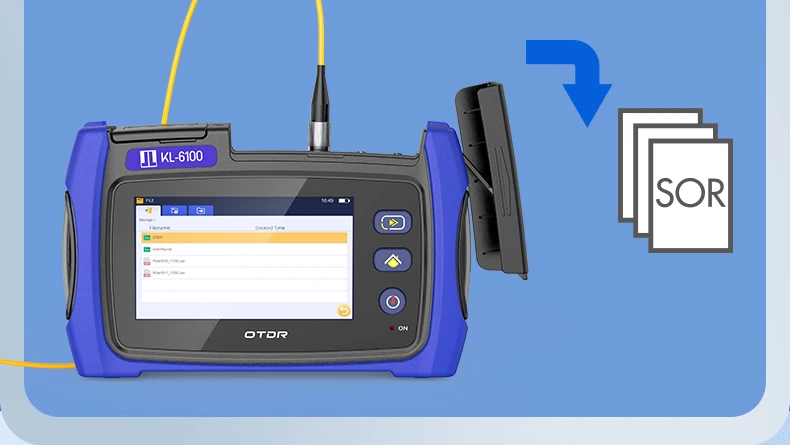

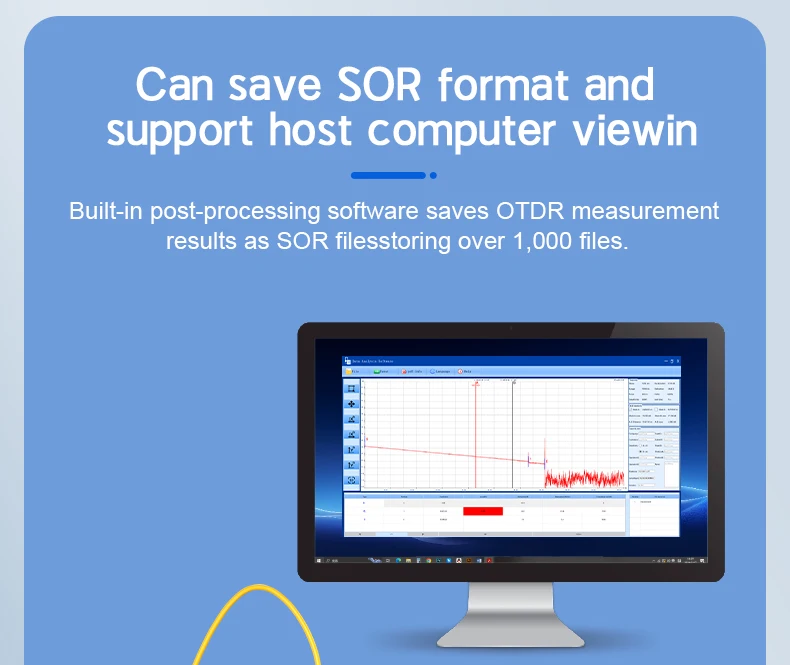

--- Can save SOR format and support host computer viewin, could storing over 1000 files

--- One click cleaner measurement makes testing simple . Allowing any technician to perform tests easily without navigating through layers of menu options .

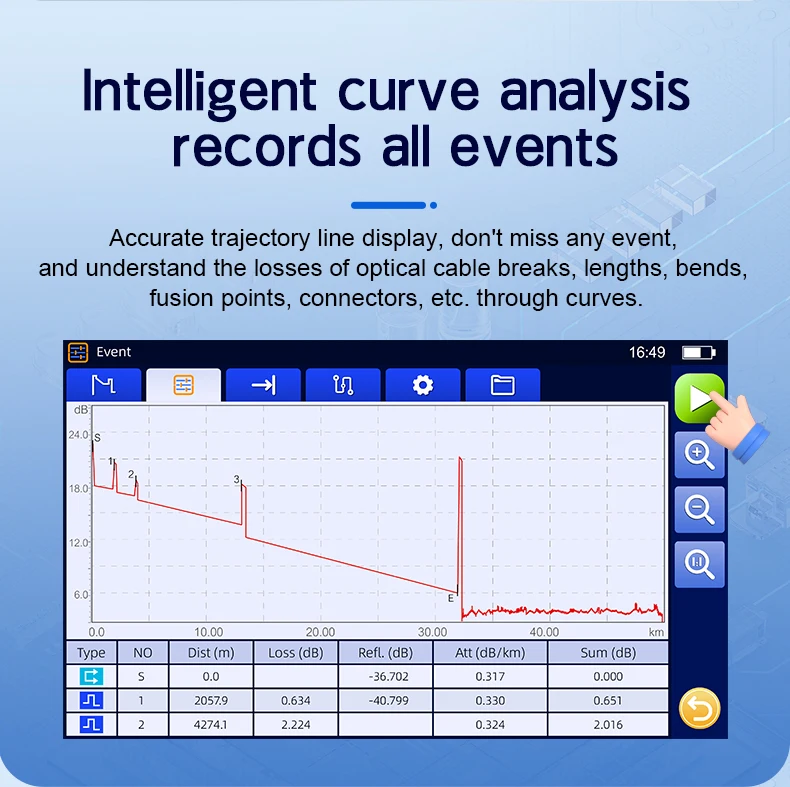

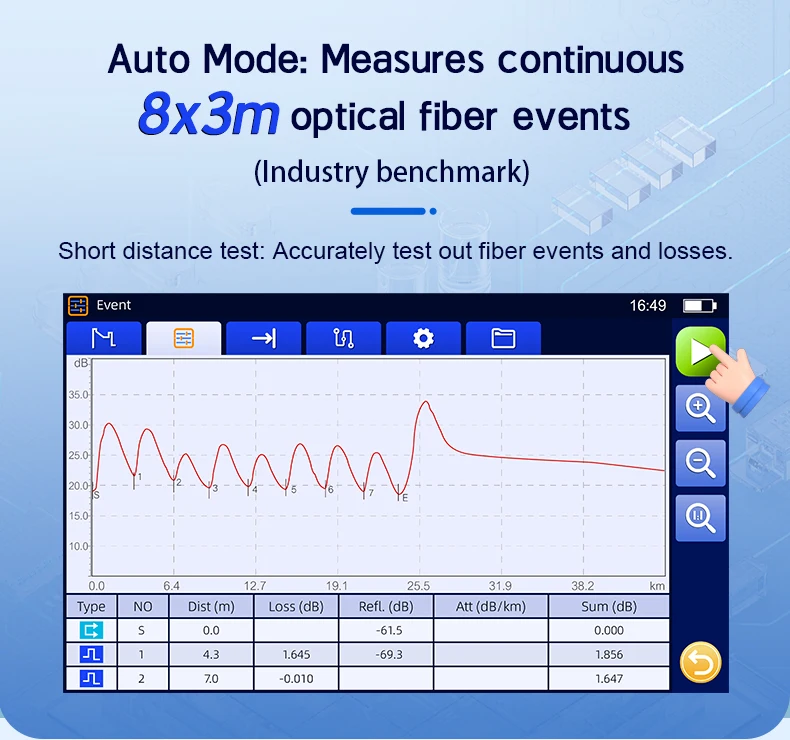

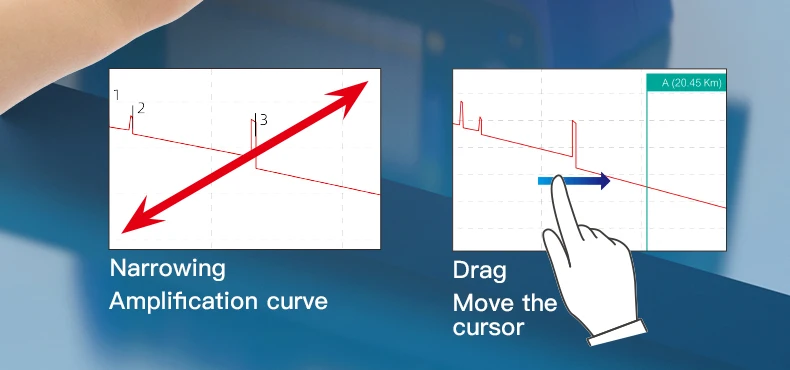

--- Intelligent curve analysis records all events . understand the losses of optical cable breaks , lengths , bends , fusion points , connectors , etc . through curves .

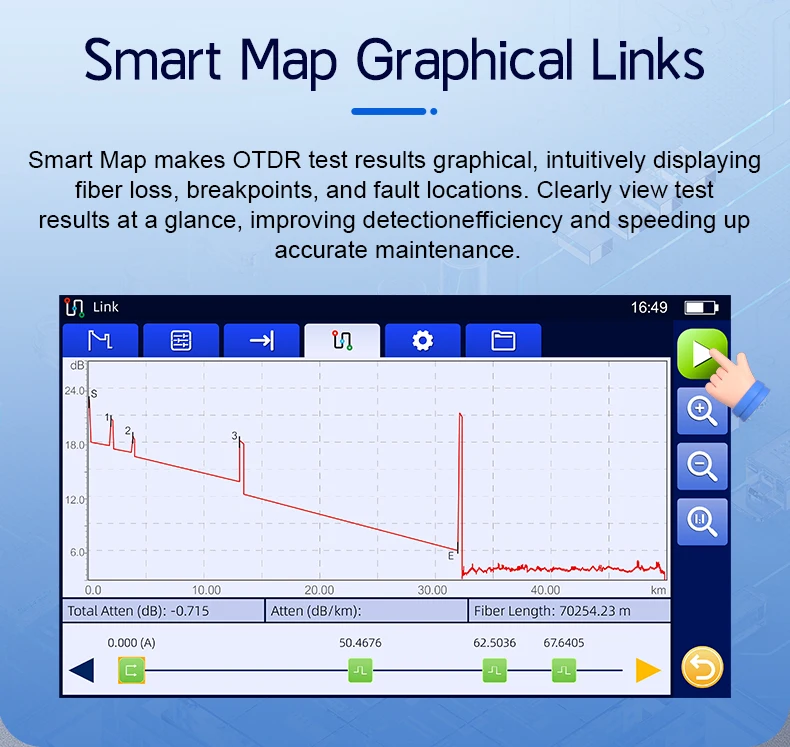

--- Smart Map makes OTDR test results graphical , it could display fiber loss , breakpoints , and fault locations . Clearly view test results at a glance , improving detection efficiency and speeding up accurate maintenance .

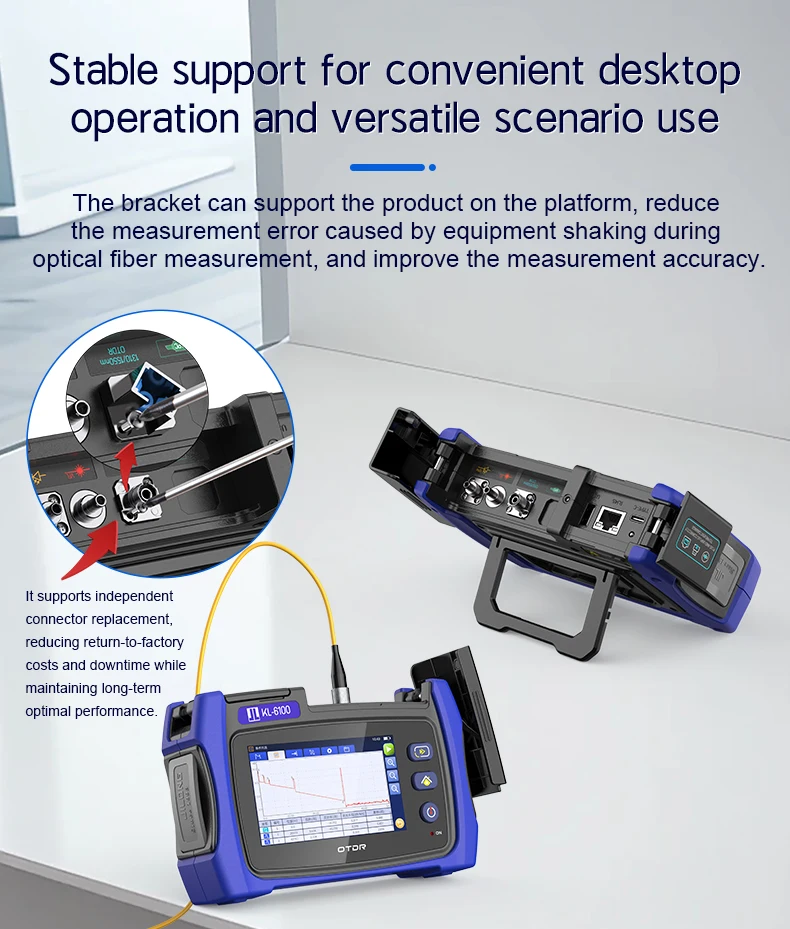

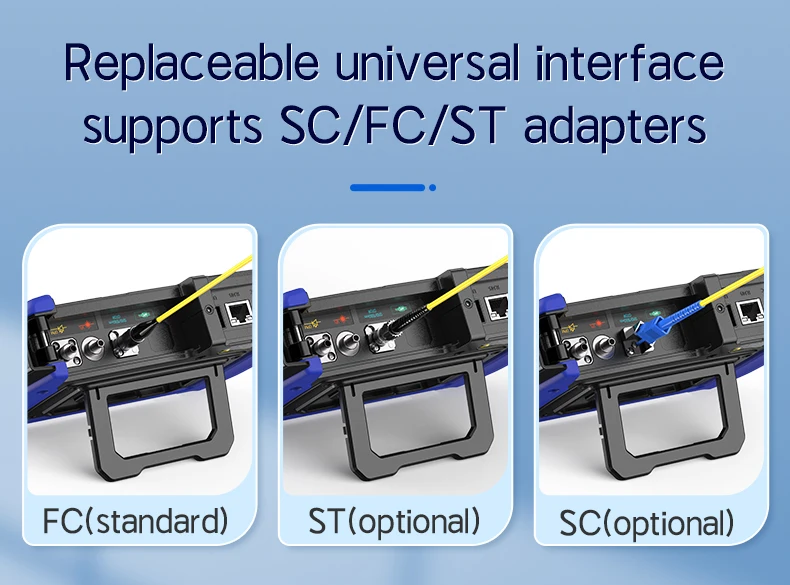

--- Replaceable universal interface supports SC/FC/ST adapters .
