Wood gap drill Ø 80 mm

Cone for building a screw splitter with replaceable tip SWK2P™! RIGHT-HAND THREAD!

Brand : forsplit®

Model: S080K2P

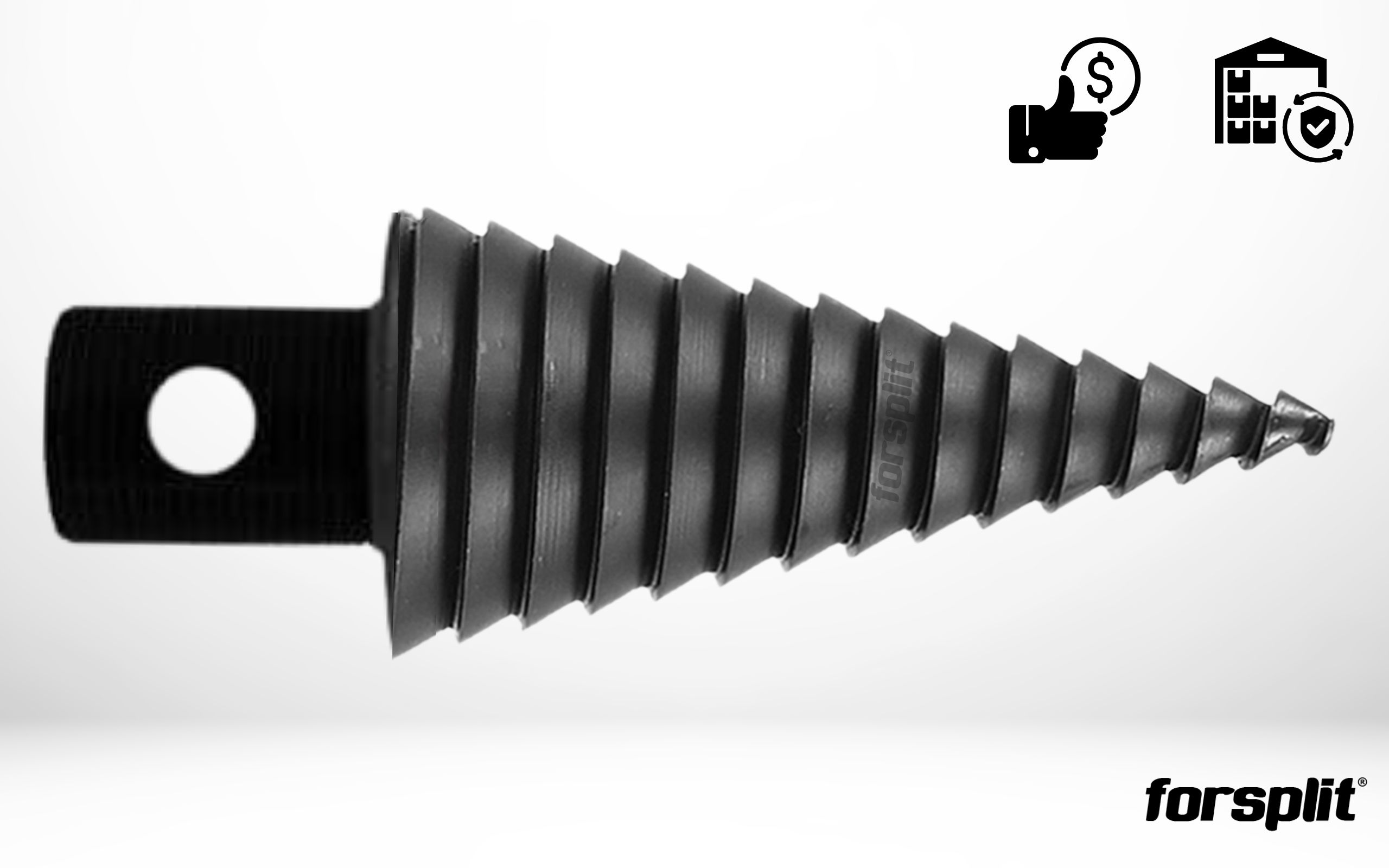

The item for sale is a SWK2P™ interchangeable (pin attached) tip drill with a diameter of 80mm - for splitting wooden clamps.

➡️Specifications

Drill [S080K2P]:

✔️ Drill Diameter: Ø 80mm

✔️ Drill Length: 230mm

✔️ Working Area Length: 175mm

✔️ Shaft Hole Diameter [D1]: 230mm

✔️ Drill Bit Assembly with Shank: to choose from the table below

✔️ Thread: right

✔️ Interchangeable Tip: SWK2P™

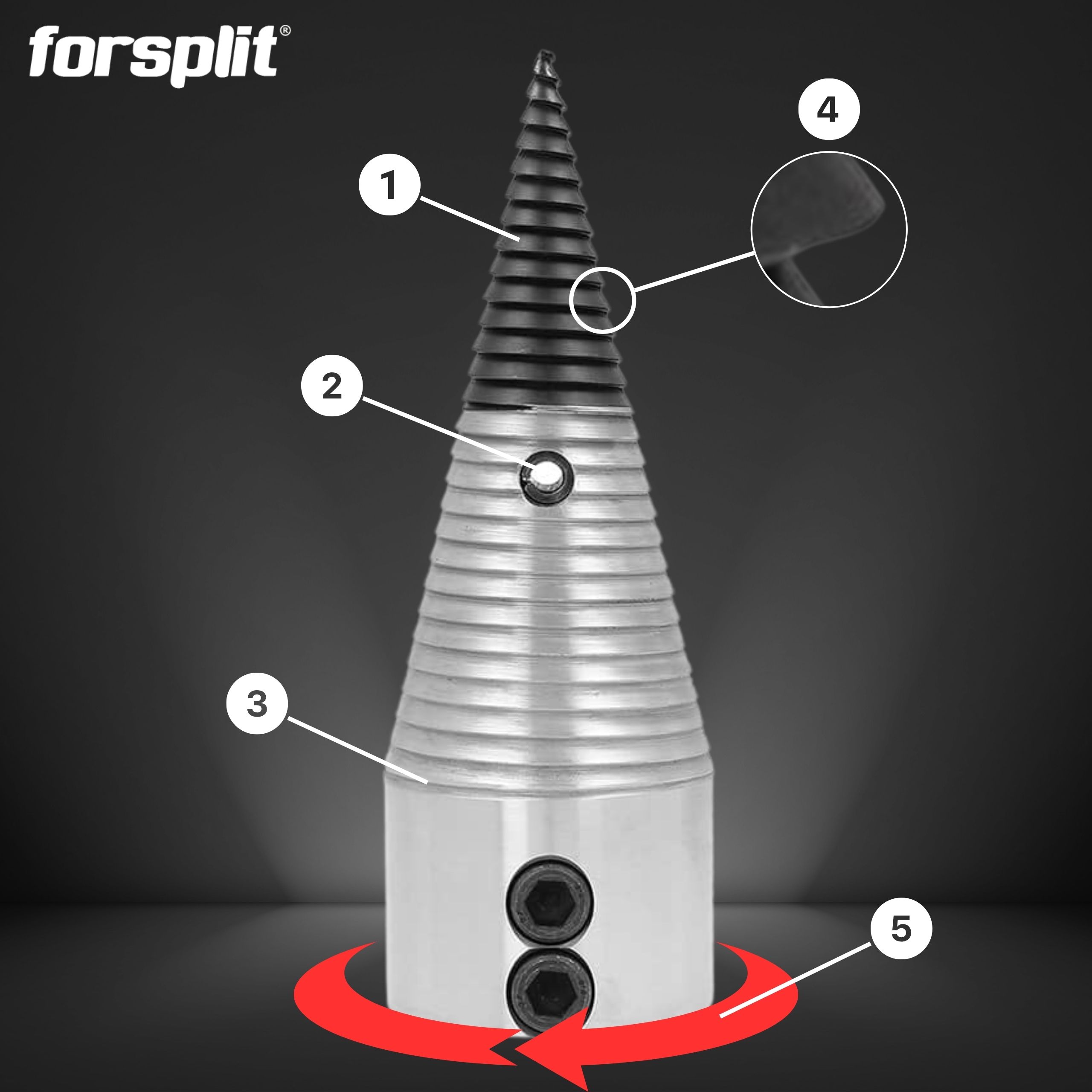

(1) REASONABLY HARDENED TIP - Guarantees high durability and longevity ♨️

(2) The tip is connected by a tension pin with a diameter of 12mm❗ secured, which ensures the necessary strength of the connection. ✴️ PATENTED SOLUTION ✴️

(3) Material Type: Proven high quality CHROME STEEL with high strength ⭐⭐⭐⭐

(4) Deep Thread with saw-like shape ensures easy screwing into the wood

(5) Recommended Drill Rotation: 400-600 RPM

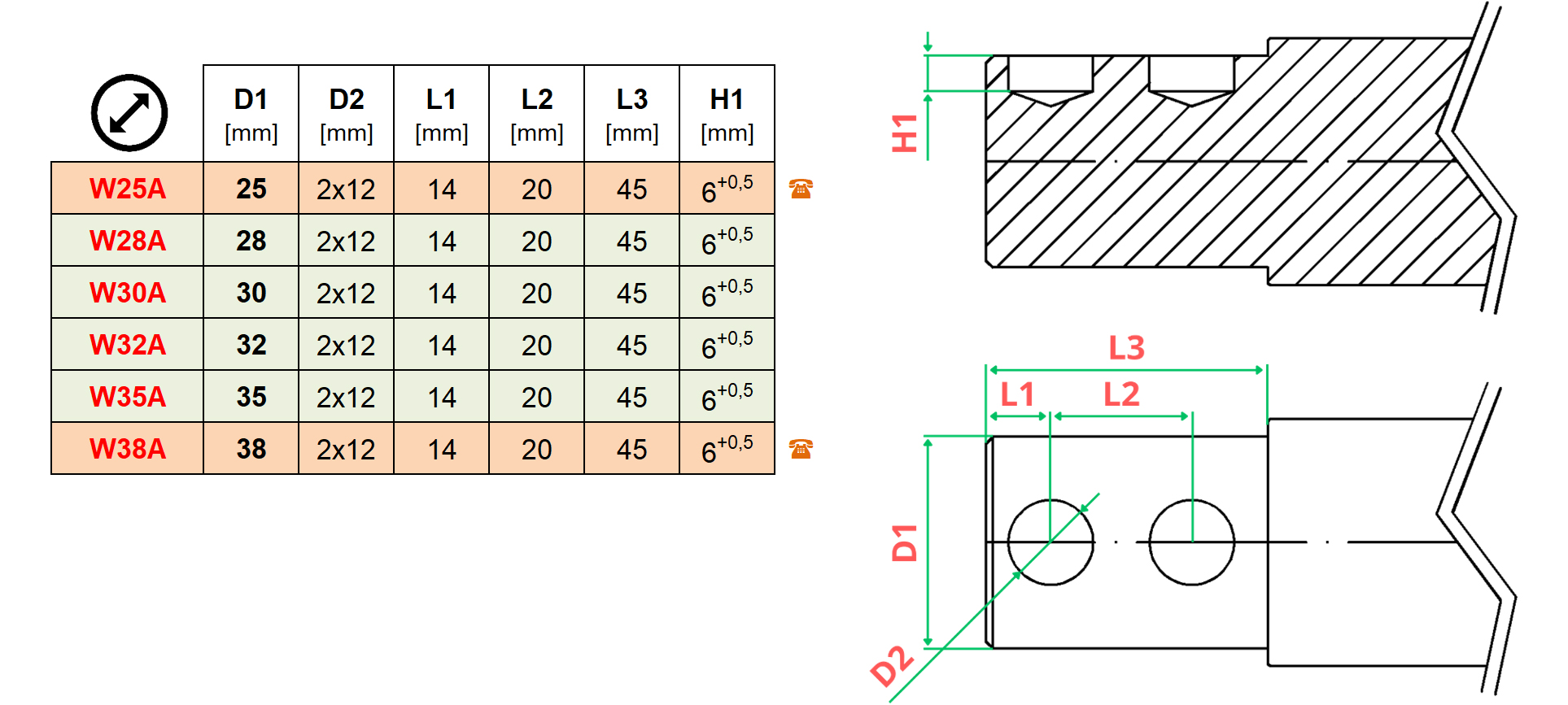

➡️ Choose the right size for the shaft

Sizes marked "Phone" are available by special order only!

➡️ Patent Protected System of Interchangeable Tips SWK2P™

➡️ Why our drills are the most popular

⭐ Direct from Manufacturer ⭐

✅ Known Polish Quality: We have been helping our customers since 2008 in woodworking❗ The statistics show that at least 5 of our drills are in use within a 10km radius of each point on the map! See card next to it >

✅ Save Money: Buy direct from manufacturer at best market price.

✅ Supporting Polish Economy: Our products are completely manufactured in a Polish company using European materials.

⭐ High build quality ⭐

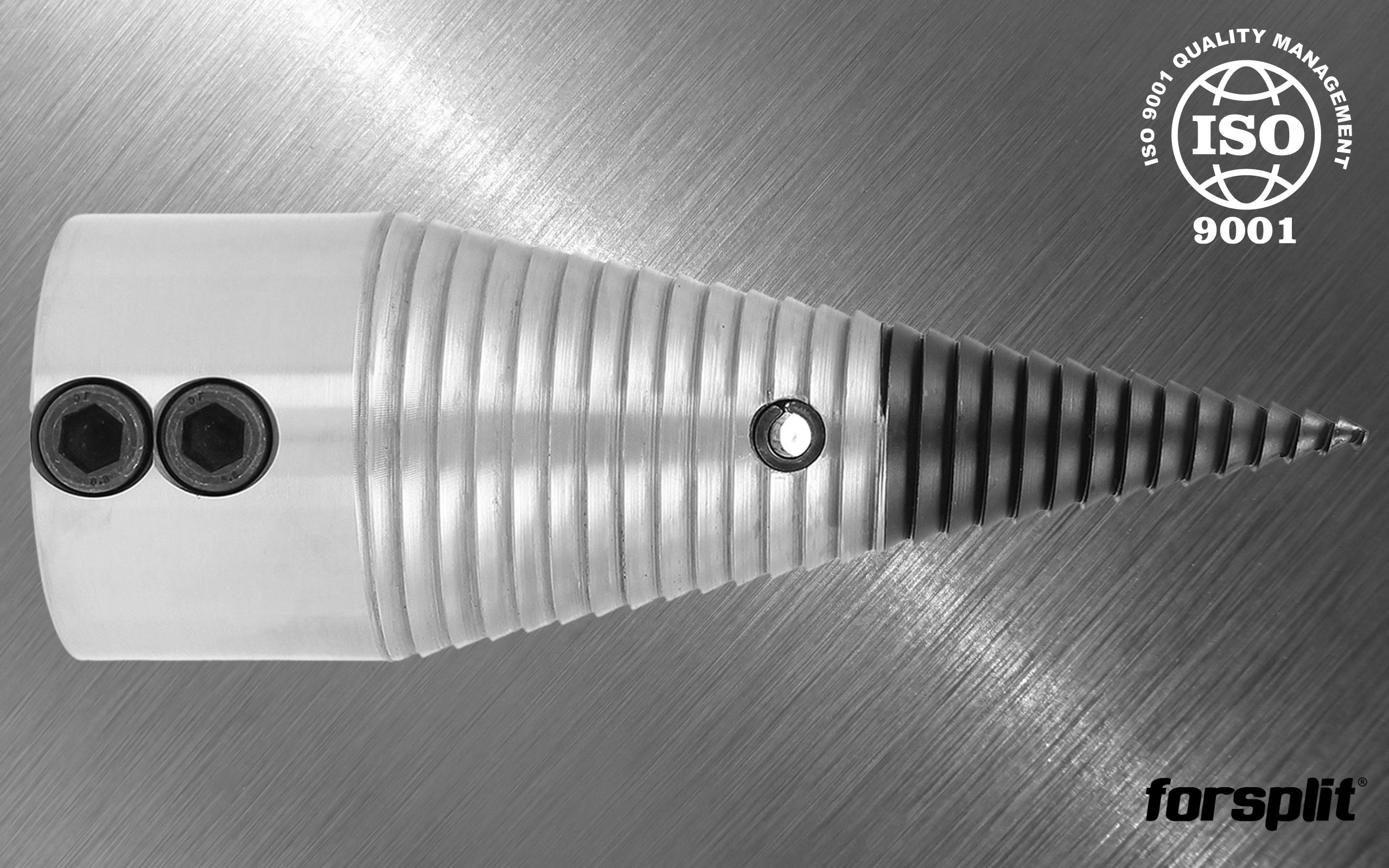

✅ Modern Manufacturing: Our company uses the latest technologies and machinery. We work according to the Quality Policy ISO 9001, so you get the top product.

✅ High Strength Materials: The proven chrome steel with high strength makes our drill extremely efficient and durable.

✅ Complete Satisfaction: We are confident in our products and guarantee 100% satisfaction or money back!

⭐ Advanced Design ⭐

✅ Easy Splitting: The deep, saw-shaped thread makes it quick and effortless to screw into the wood, saving you time and effort.

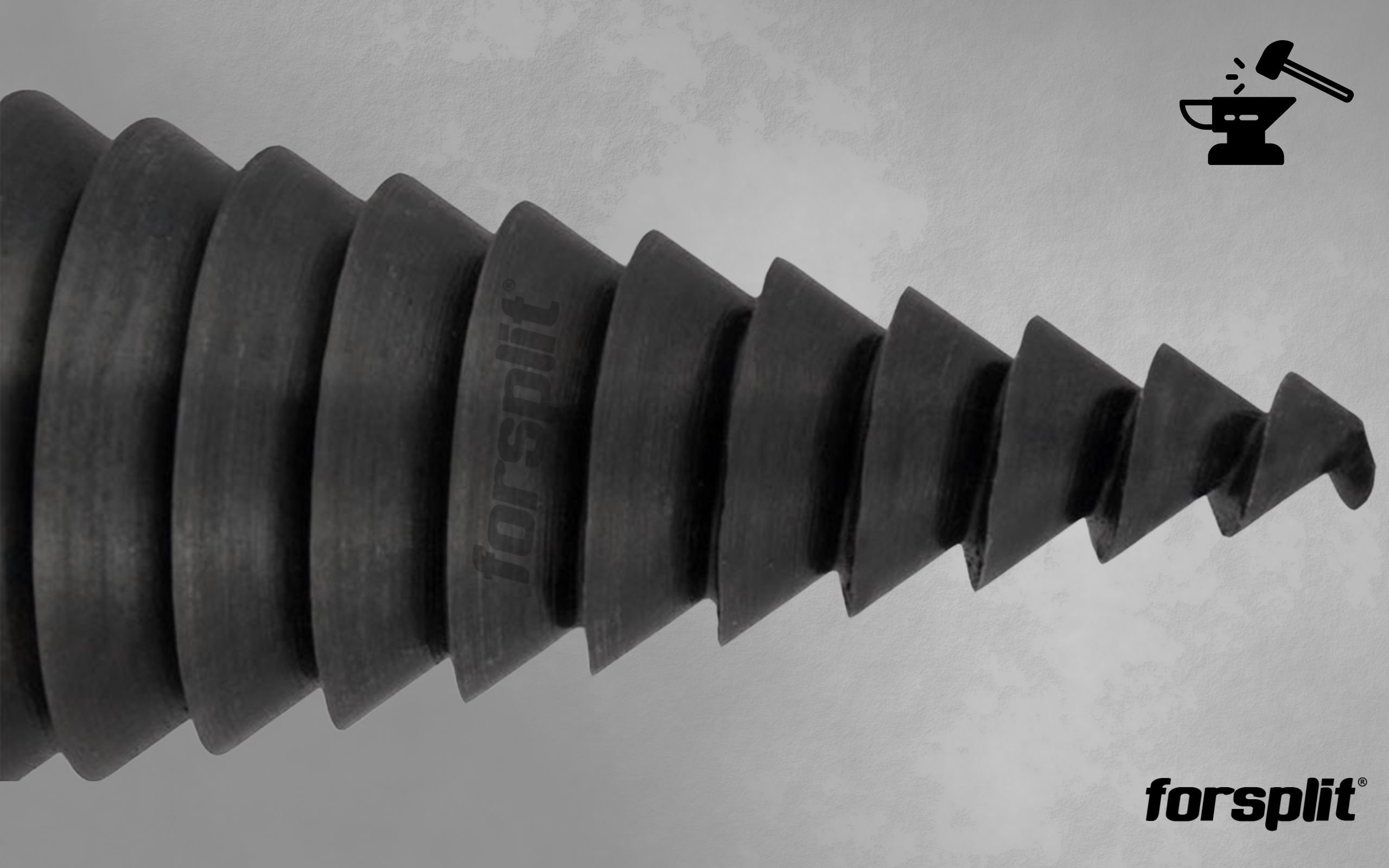

✅ Reliable Durability: Proper ♨️ hardened ♨️ tip withstands heavy use, which extends the life of the tool.

⭐ Economy ⭐

✅ Excellent Value: We offer the highest quality at an affordable price, our drill bit is an excellent investment.

✅ Low Operating Cost: In case of damage to the drill bit, only change the tip, which greatly reduces operating costs.

✅ Availability: Replacement tips are readily available, ensuring a continuous flow of work without unnecessary interruptions.

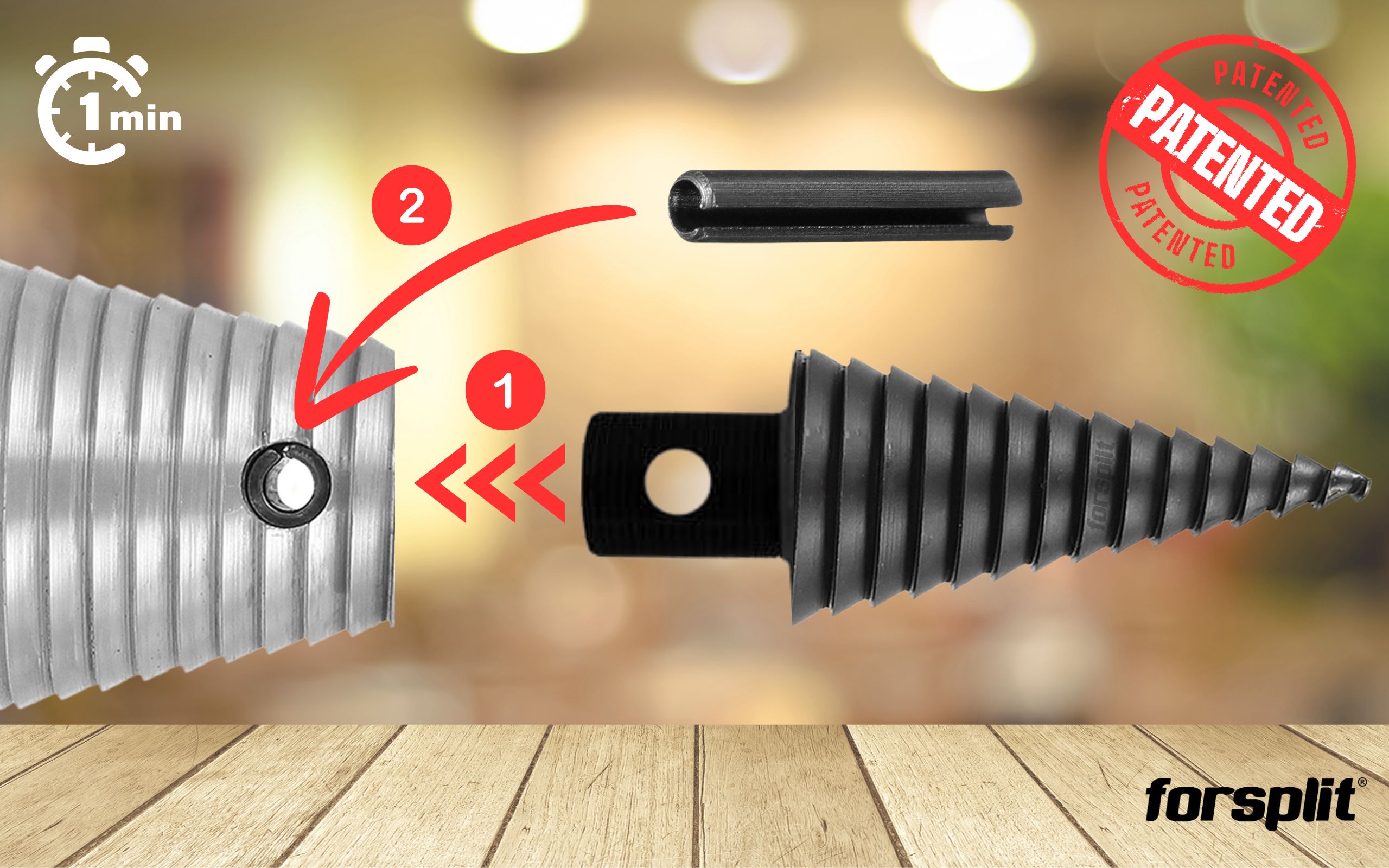

✳️ Interchangeable Tips SWK2™ ✳️

✔️ Opatented Solution: Our unique drill design is ✴️ Patent Protection ✴️

✔️ Connection Security: The tip is fitted with a spreader pin measuring 12mm secured, ensuring a strong and secure connection.

❗ Rotation Change Possibility: The tip does not come loose when the direction of rotation changes, e.g. when pulling out a stuck wooden block.

Become part of our satisfied customers and enjoy efficient, reliable work for many years.

We ship our goods worldwide! Ask for details.

➡️ Customer Reviews

✴️ "Great. Solid, solid, replaceable drill bit. Guaranteed 100% satisfaction. Highly recommended."

✴️ "One of the most meaningful issues of my life. Using the right technique, I split clamps 90cm in diameter."

✴️ "The splitter is very solidly made, works very well and can easily handle roots up to 40cm in diameter, so I recommend purchasing."

✴️ "Excellent execution, I've put everything together and tried it, I've put the axe aside for the time being."

✴️ "Super quality and finish. Very well packaged and secured."

➡️ FAQ - Frequently Asked Questions

❓ 1. How do you choose the right drill bit for wood?

MONOLITHIC DRILLS:

  • Drill 60mm (S060M1) - very small drill bit for occasional splitting of small clamps up to 10-15cm Diameter

REPLACEABLE TIP DRILL:

  • Drill 80mm (S080K2) - Standard size for typical home applications, is great for splitting clamps to 30cm diameter, a motor with 3kW
  • Drill 90mm (S090K2) - a medium size between 80 and 100mm, is good for splitting clamps up to 40cm diameter, a motor with 3-4kW
  • Drill 100mm (S100K2) - most chosen drill bit for agriculture, where more wood is to be split and versatility is required, splits clamps to 50cm and larger, an engine with 4kW or larger

REPLACEABLE TIP DRILL - TWO STAGE:

  • Drill 80mm + 125mm (S125K2) - consists of an 80mm drill bit + 125mm extension with different angle, supports splitting the 80mm drill bit on difficult types of wood
  • Drill 80mm + 150mm (S150K2) - consists of an 80mm drill + 150mm extension with a different angle, is longer than its predecessor and is even better suited for splitting difficult types of wood, metre wood
  • Drill 100mm + 170mm (S170K2) - consists of a 100mm drill + 170mm extension with a different angle, which provides excellent support for the work of the 100mm drill for difficult types of wood, metre wood

Each of the above drills can be successfully applied with a tractor

❓ 2. I have an electric motor, which drill is suitable?

  • Motor 2.2kW = Drill 60mm, possibly 80mm if the clamps are split small and rarely
  • Motor 3kW = Drill 80mm, is the best choice for continuous operation
  • Motor 4kW = Drill 100mm, is the optimal choice for continuous operation
  • Motor 5kW or more = You can use any of our drills up to 170mm

❓ 3. I have a tractor with PTO, which drill should be chosen?

You can use any of our drills ranging from 80 - 170mm

❓ 4. How to choose a drill for the clamp diameter?

  • Clamp up to 15 cm = Drill 60mm or larger
  • Clamp up to 30 cm = Drill 80mm or larger
  • Clamp up to 40cm = Drill 90mm or larger
  • Clamp over 40cm = Drill 100mm or larger

Of course these are recommended diameters, you can use a different size - but splitting might be less efficient

❓ 5. What speeds of the drill bit are appropriate?

Recommended Drill Speeds: 400-600 RPM

❓ 6. Why are drills with "pinned" replaceable tip SWK2™ so popular?

The main advantage is the patent-protected tip attachment system, which holds the tip perfectly in the drill, allows quick replacement without unnecessary interruptions, and secures the tip when changing the direction of rotation. The pinned tip has no thread so it does not jam after a long time of work

❓ Any further questions? Use our consultants ☎️

➡️ Additional Information

We constantly stock all the necessary parts for building screw splitters and spares, including:

  • Drill bits in sizes: 60 / 80 / 90 / 100 / 125 / 150 / 170 mm
  • Wedges for Drill Bits
  • Interchangeable Tips
  • Extensions: 80mm to 125/150mm and 100mm to 170mm
  • Complete packages for tractors in the version: LIGHT, STRONG and SUPER STRONG
  • Complete packages for electric motors in the version: LIGHT, STRONG and SUPER STRONG
  • Universal complete packages in the version: LIGHT, STRONG and SUPER STRONG
  • Pulleys: 80 / 90 / 100 / 110 / 120 / 130 / 140 / 150 / 160 / 170 / 180 / 190 / 200 / 250 mm
  • Shafts
  • Bearings
  • Accessories

❗WE GUARANTEE CONSTANT AVAILABILITY OF SPARE PARTS❗
