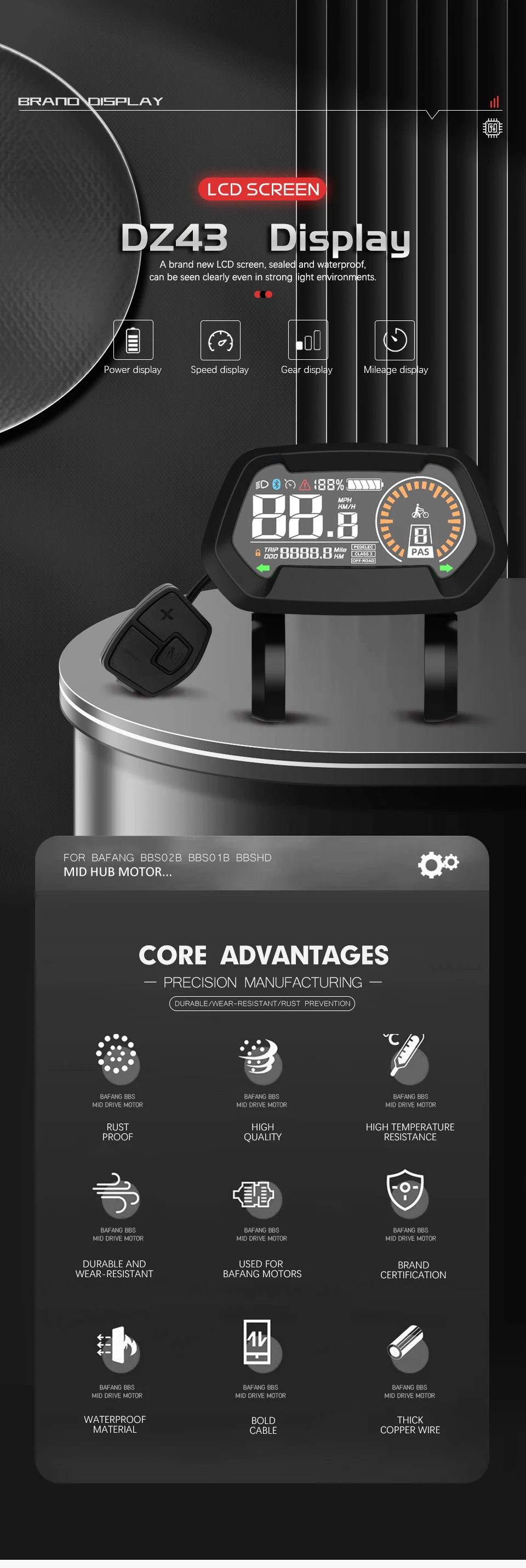

Electric Bike LCD Display,Waterproof Electric Bicycle LCD Instrument DZ43 8 Fun Display Mini Meter Ebike Screen Intelligent LCD Display Panel for BAFANG BBS01 BBS02 BBSHD Mid Drive Motor
About this item
●[ COMPATIBILITY ] This small-sized ebike display DZ43is only compatible with BAFANG elctric bike motor with UART 5.0~5.8 protocol . If you are not sure , please message us before purchasing
●[ INTELLIGENT DZ43 ABS & PC DISPLAY ] The3.0inch screen offers exceptional visibility , even in bright sunlight , allowing you to easily monitor your ride
●[ EASY INSTALLATION ] The DZ43can be installed on the left side of the horizontal tube with a handlebar size of φ22.2mm , making installation a breeze

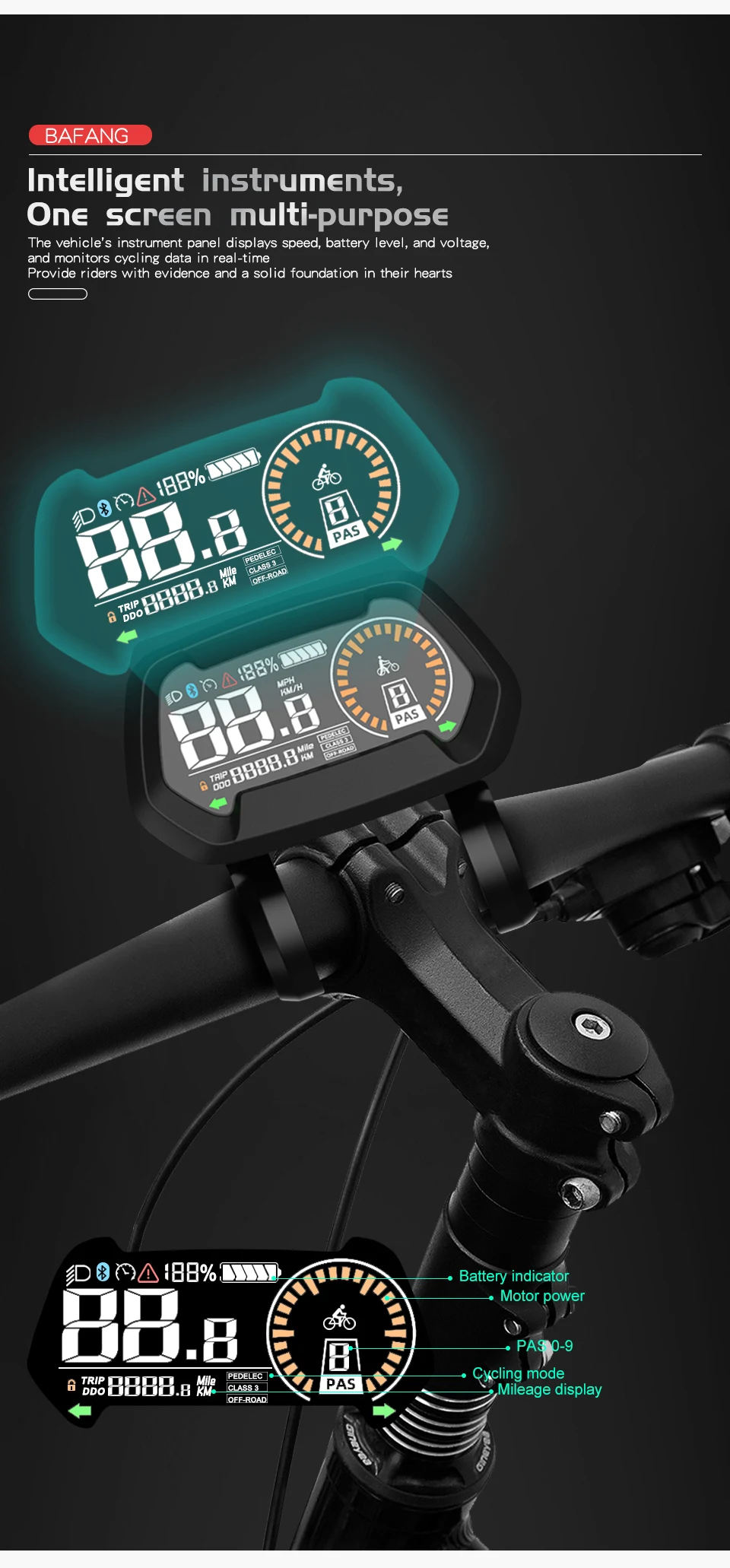

●[ Comprehensive Data Display ] The DZ43displays a variety of important data , including speed , headlight , battery indication , helping you stay informed and safe during your ride .
Function Introduction

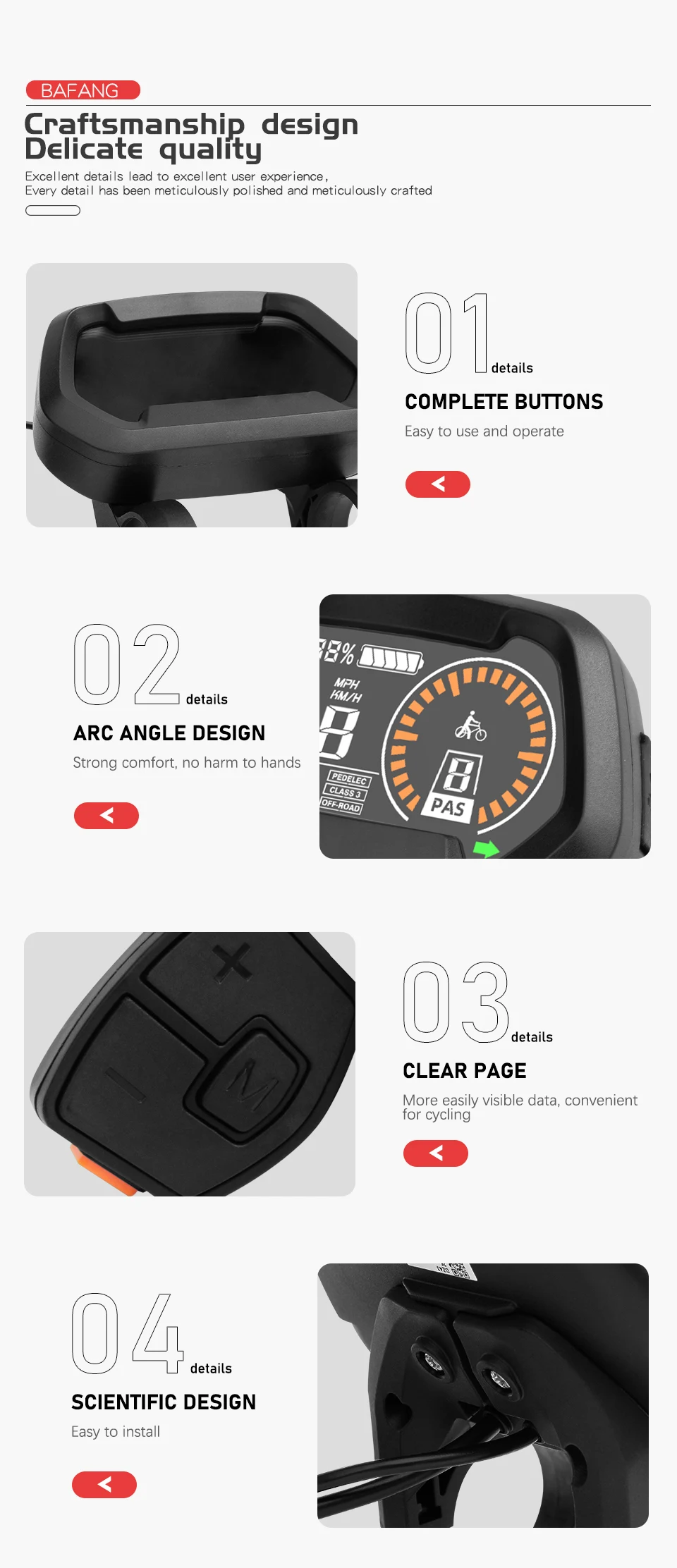

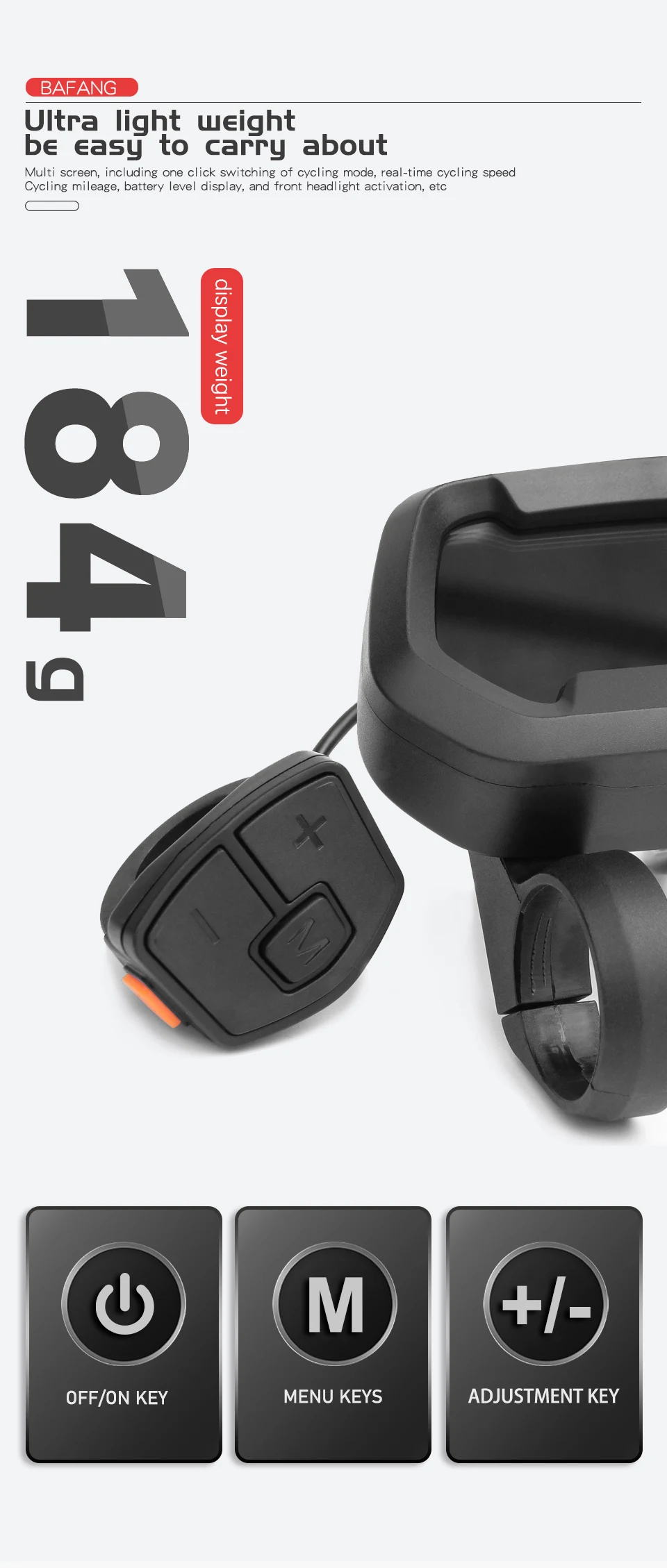

① Four buttons, easy to operate
② Support power-on password, cruise control and automatic headlights.
③ Metric/English switching selection
④ Mileage display: subtotal mileage (TRIP) and total mileage (ODO)
⑤ Gear control: the default gear is 0-5 (the maximum gear is 9, and the number of gears is optional).
⑥ Level 6 power indicator: 1-5 power levels, and under-voltage prompt.
⑦ Headlight indication: Headlight switch status indication (supported by controller)
⑧ Motor power display: real-time display of motor output power (segmented display)

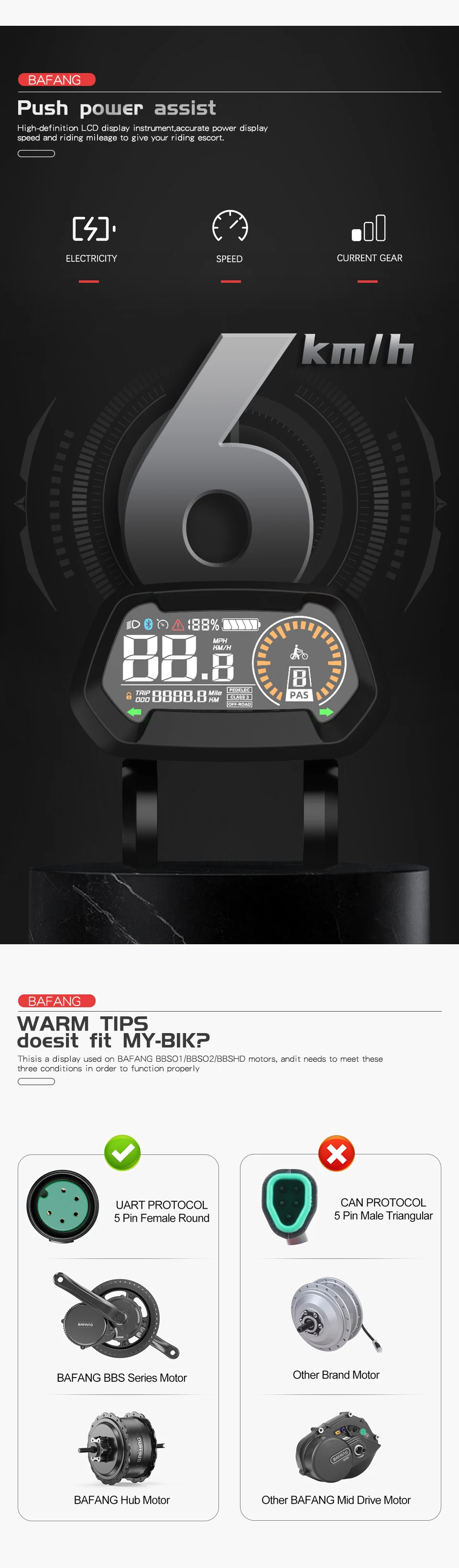

⑨ 6km/h boost implementation function
Attending cycling mode switching

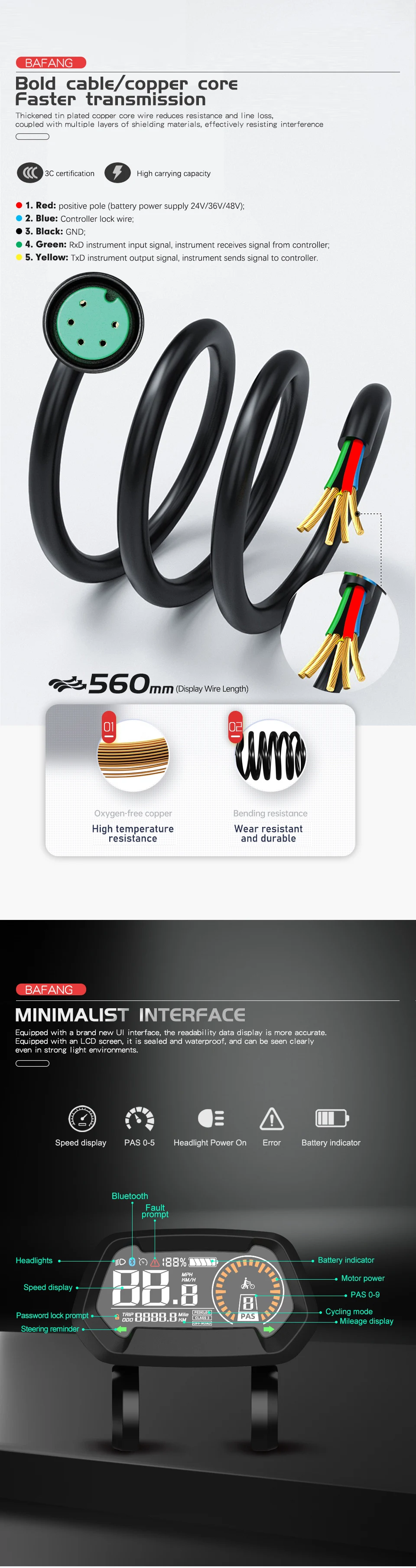

Communication interface, convenient for system maintenance and parameter setting.
Fault code indication

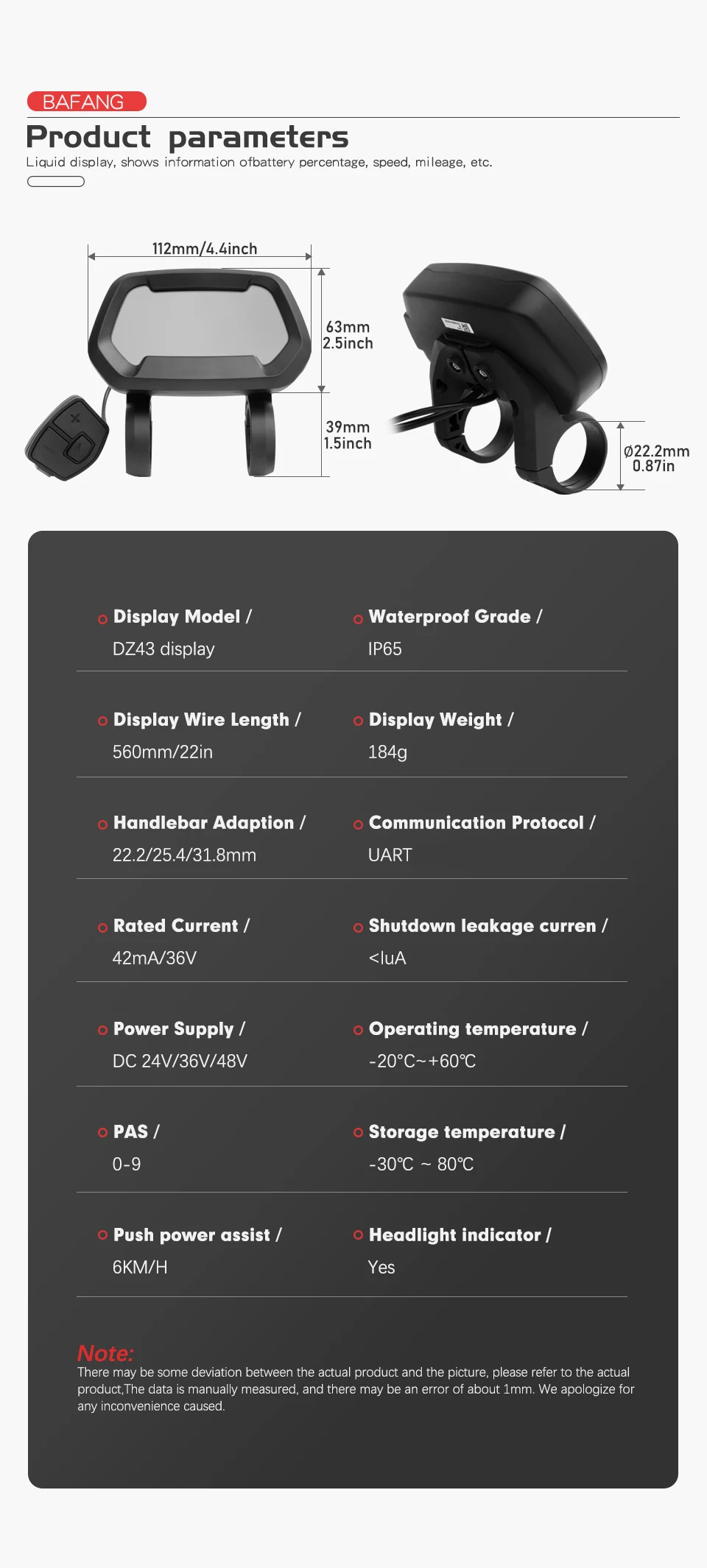

Specification:
• Power supply: DC 24V/36V/48V
• Rated current:90mA/36V
• Weight:184g
• Support levels mode: 0-9
• Shutdown leakage current: < 1uA;
• Screen specifications: LCD digital tube
• Communication mode: UART
• Screen size: 3.0” LCD(VA)
• Operating temperature: -20 C ~ 60 C
• Storage temperature: -25 C ~ 75 C
• Waterproof grade: IP65
• Storage humidity: 30%-70%
• Only suitable for Bafang engine
