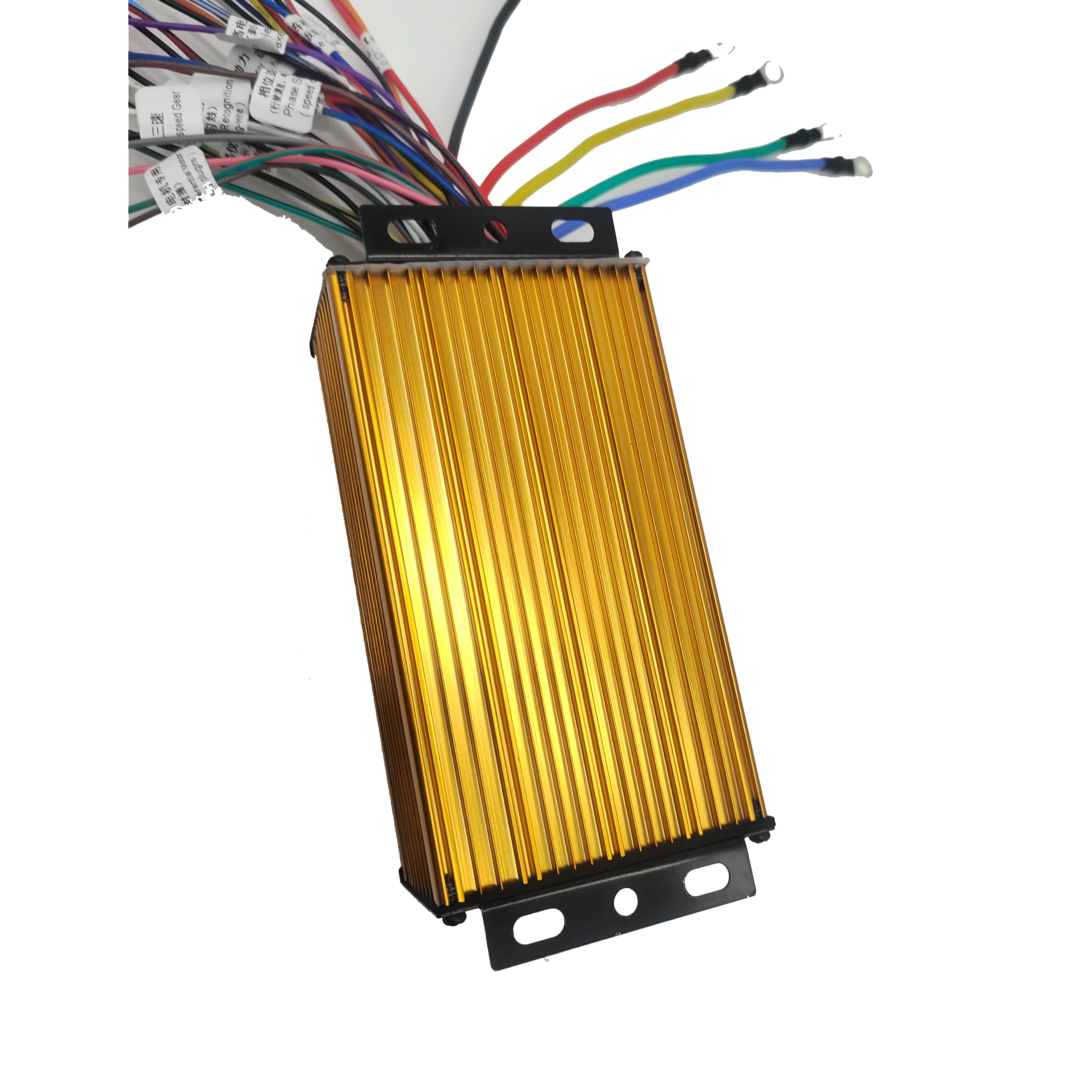

Intelligent brushless sine wave controller for electric bike/electric scooter/brushless motor
if motor not have hall wire，not connect hall wires also can work

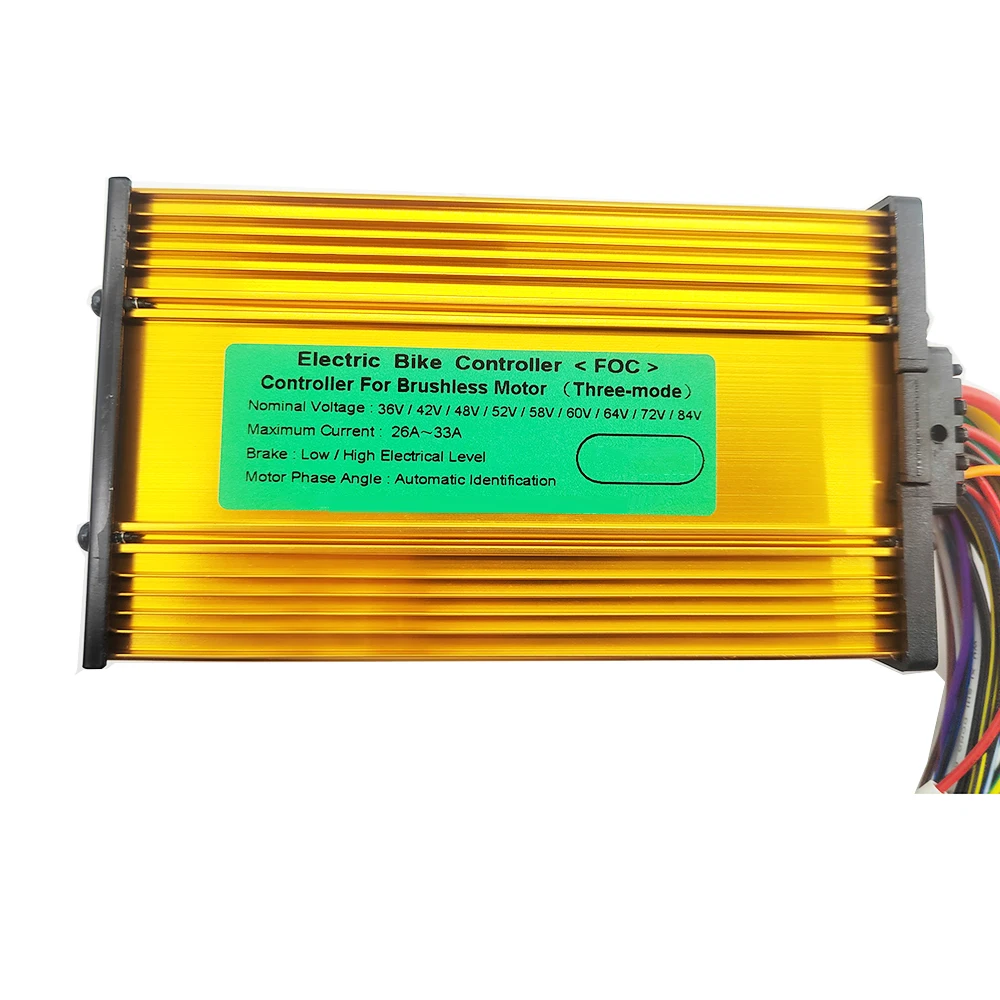

Voltage：36V/42V/48V/52V/60V/72V/84V universal
Current：26A-33A
Transistor: 12
Phase angle: 60 °/120 ° all can be used
Rated power：500W-800W-1000W all can work

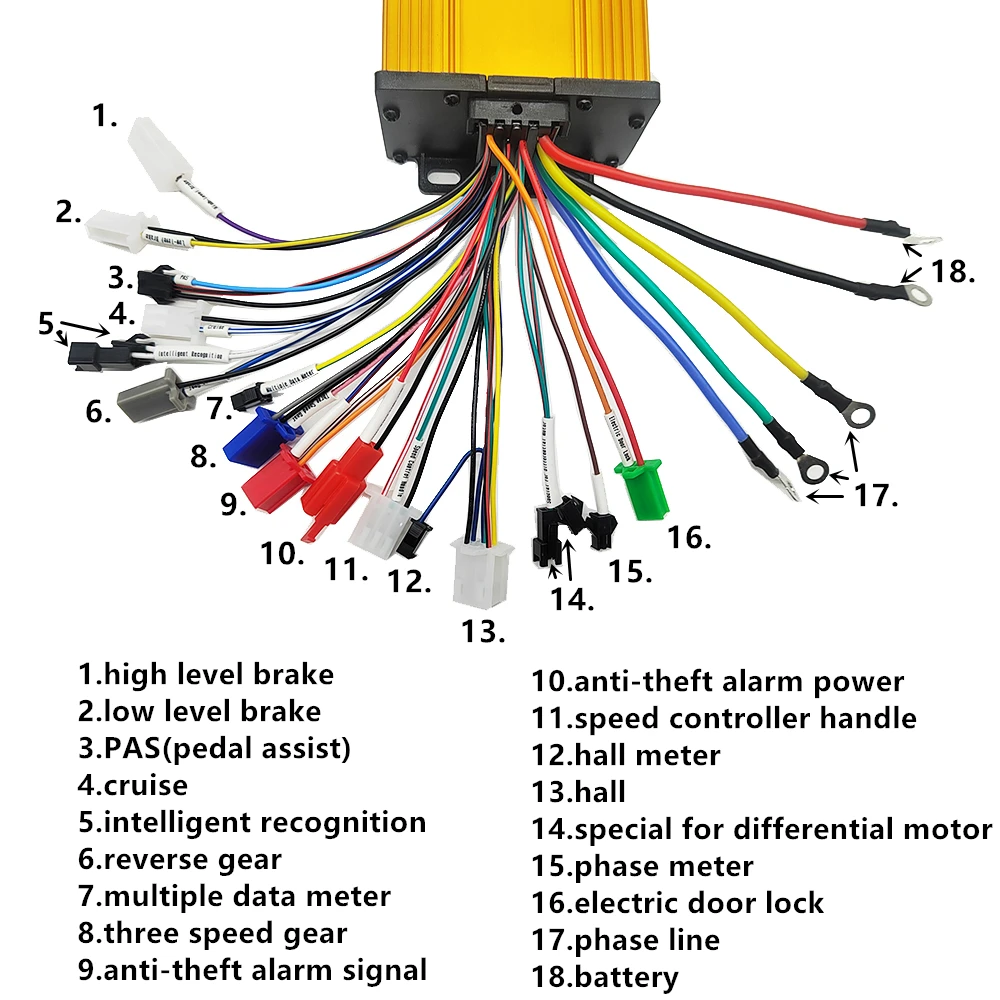

1.high level brake
2.low level brake
3.PAS(pedal assist)
4.cruise
5.intelligent recognition（self-learnig line ）
6.reverse gear
7.multiple data meter
8.three speed gear
9.anti-theft alarm signal
10.anti-theft alarm power
11.speed controller handle（throttle）
12.hall meter
13.hall
14.special for differential motor
15.phase meter
16.electric door lock
17.phase line
18.battery
how to connect ？
1.connect the phase line(color to color）
2. connect the battery line(red wire :battery + , black:battery-)
3. connect the controller throttle line（color to color），connect electric door lock
（if your throttle not have electric door lock，controller electric door lock can be shorted）
4. connect the hall line(if motor without hall line, don't need connect)
5.docking the two self-learning lines, the wheel will forward or reverse.
(1.if wheel forward ,Separate the self-learning line.
2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again，
if wheel forward ,Separate the self-learning line.)
6.other functions can be connected as needed.

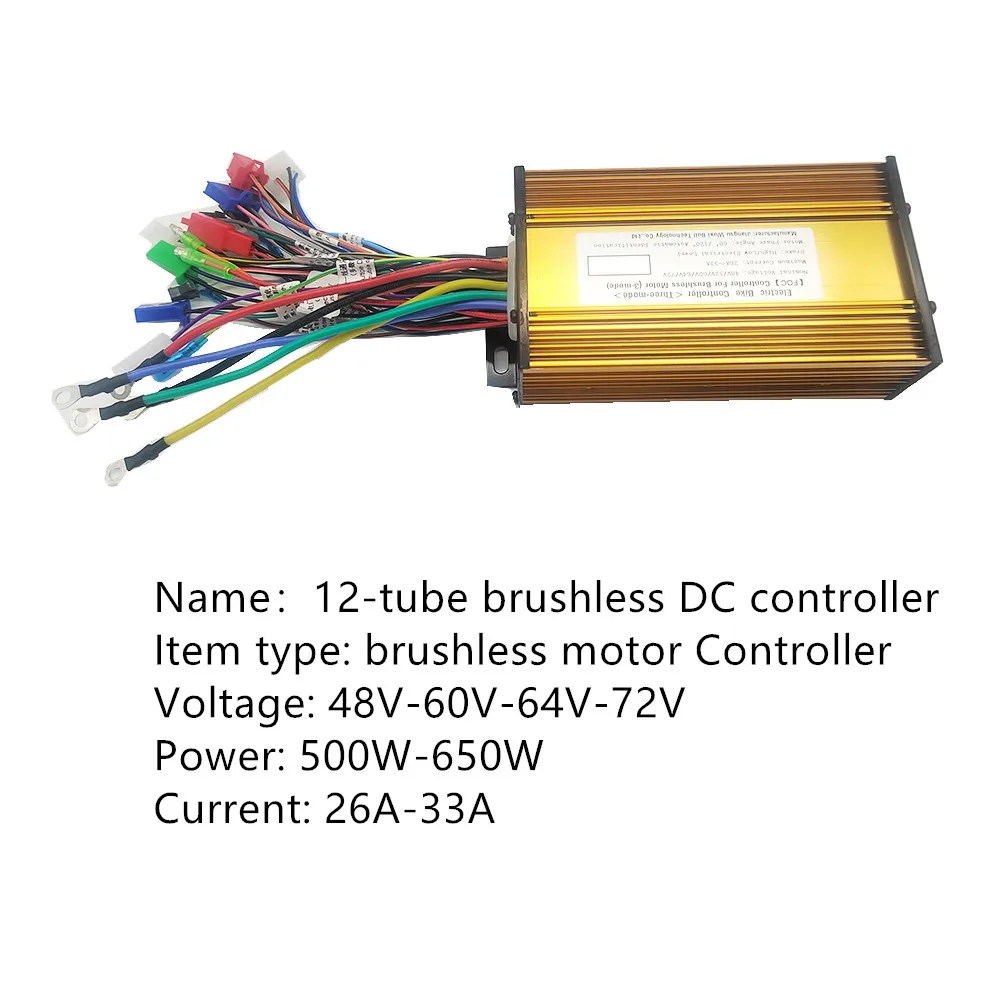

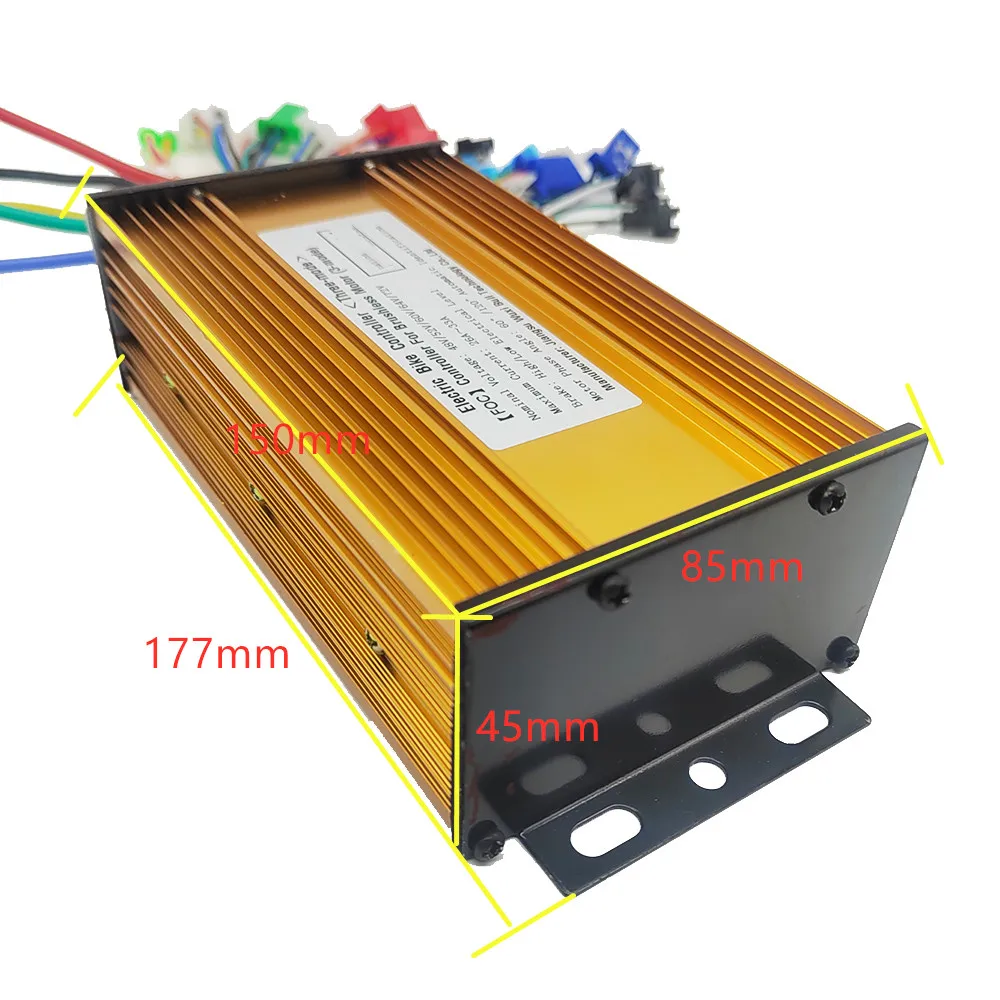

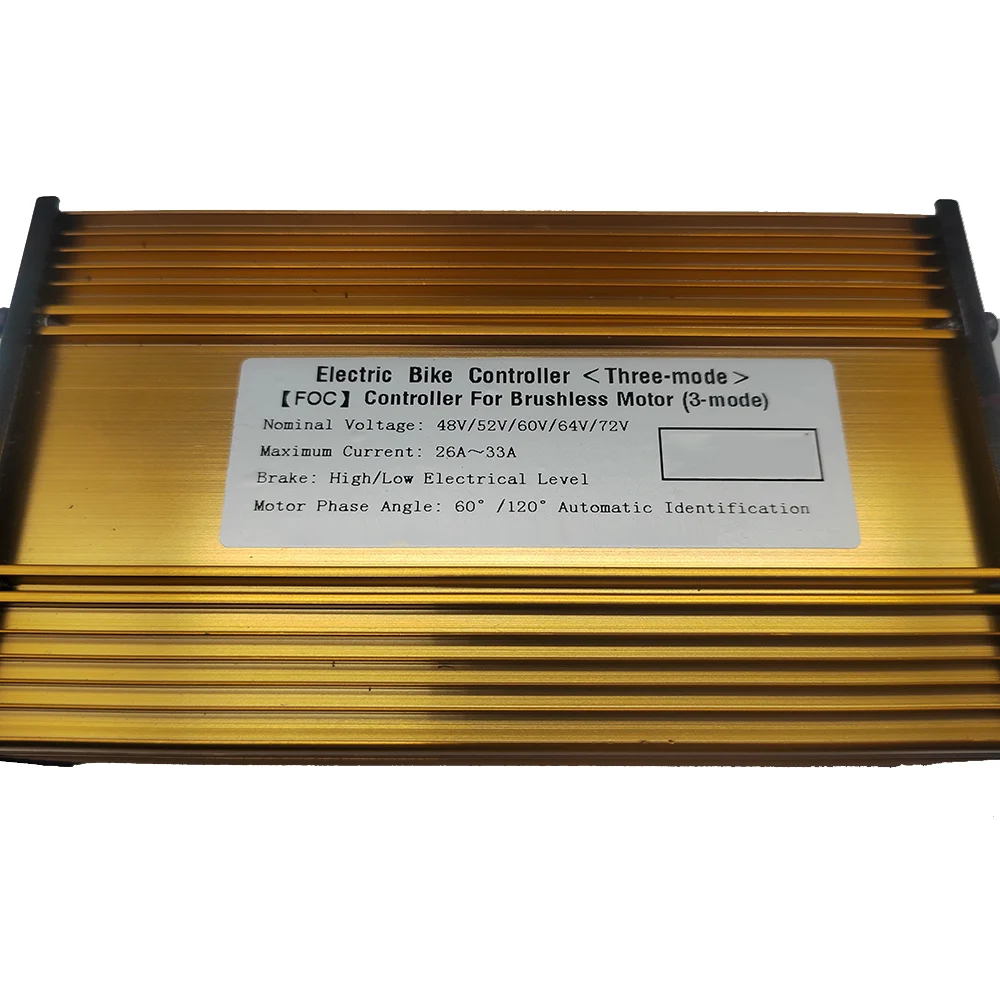

48V/52V/60V/64V/72V 26-33A 500-1000W 60°/120° Phase Angle Universal Brushless Controller

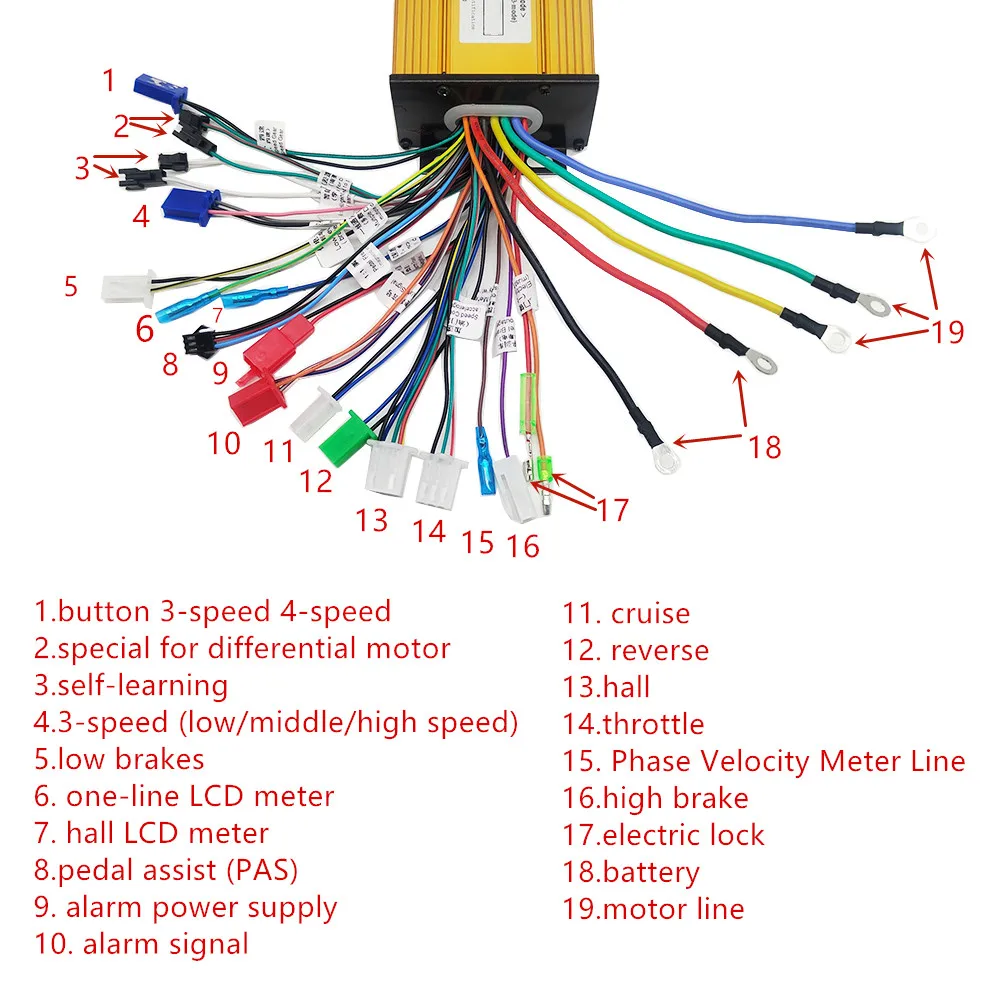

1.button 3-speed 4-speed (generally not used)
2.special for differential motor (generally not used)
3.self-learning
4.3-speed (low/middle/high speed)
5.low brakes
6. one-line LCD meter
7. hall LCD meter
8.pedal assist (PAS)
9. alarm power supply
10. alarm signal
11. cruise
12. reverse
13.hall
14.throttle
15. Phase Velocity Meter Line
16.high brake
17.electric lock
18.battery
19.motor line
How to connect controller？
1.connect the motor line (color to color)
2. connect the battery line(red:+ , black:-)
3. connect the controller throttle line, electric lock（if throttle not have electric lock,controller electric lock docking,if controller electric lock is 1 wire,can connect to battery + ）
4. connect the hall line(if motor without hall line, don't need connect)
5.docking the two self-learning lines, the wheel will forward or reverse.
(1.if wheel forward ,Separate the self-learning line.
2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again,if wheel forward ,Separate the self-learning line.)
6.other functions can be connected as needed.
