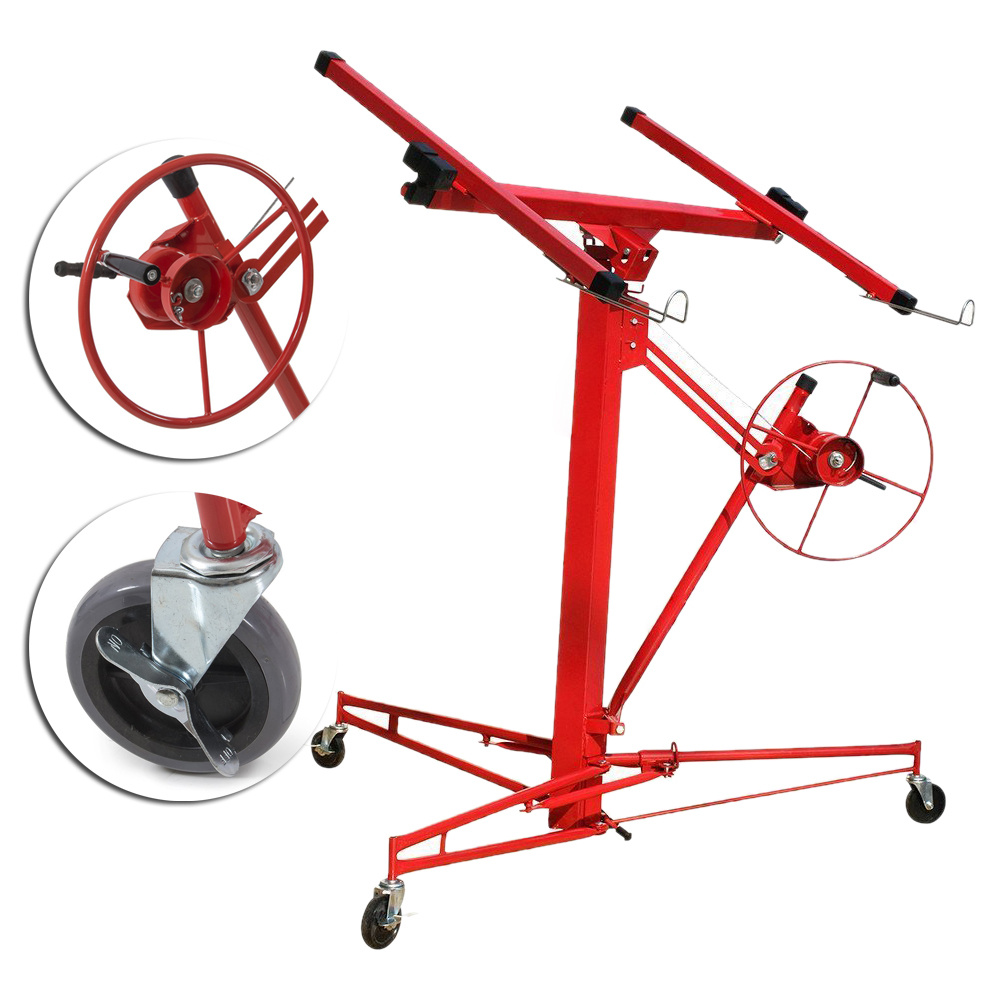

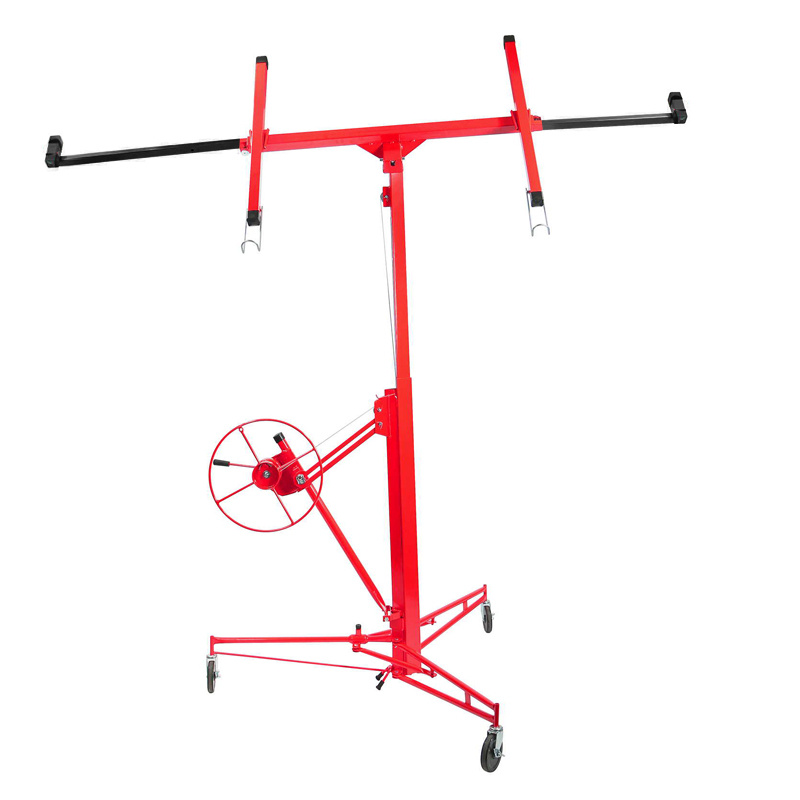

Drywall Hoist Plaster Board Panel Sheet Heavy Duty Lifting Lifter Tool

Description：

• The Drywall lift allows one person to lift drywall panel that is up to 4FT x12FT in size, without assistance.

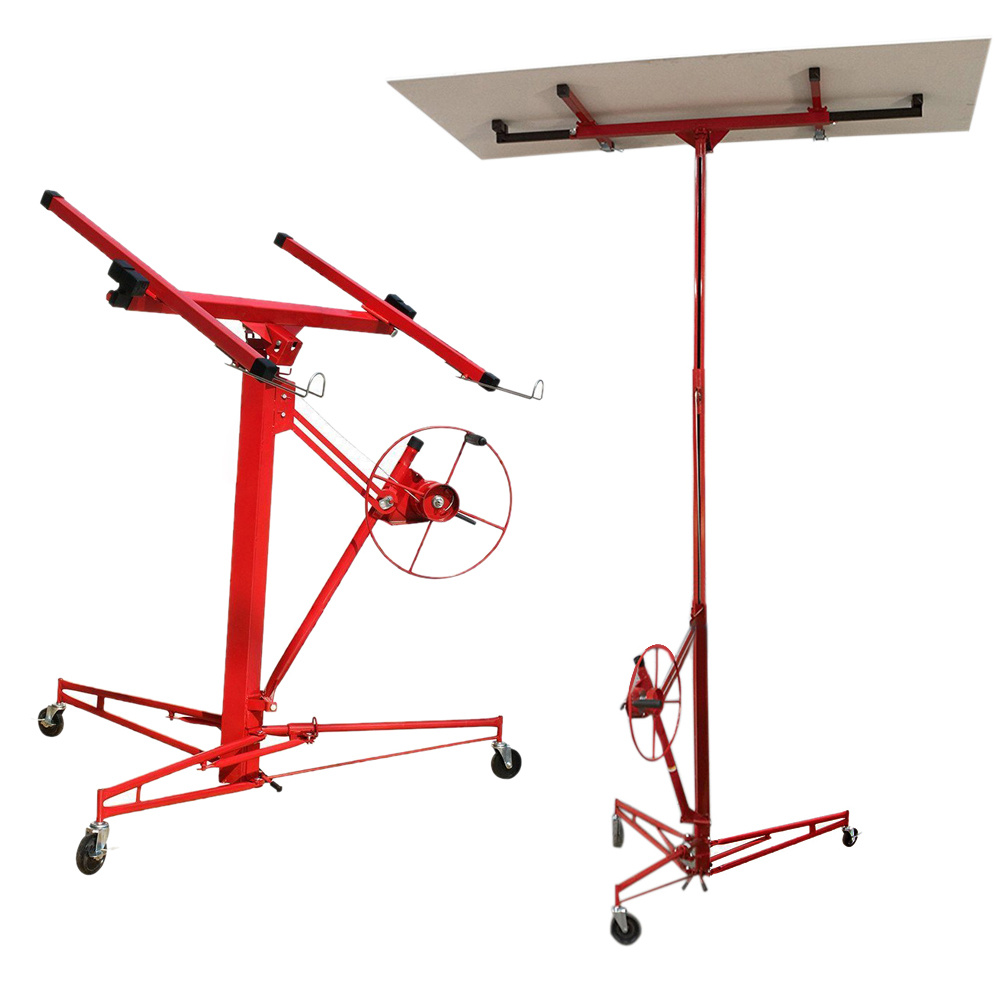

• The panel can be raised to height of 15ft for attachment to level ceilings or (with the lift’s cradle tilted) to sloped ceilings or side walls.

• The Lift’s cradle could lower to 1.4m off the floor for easy panel loading.

• Foot Stops to keep the lift in place for safety and can support up to 68kg.

• Disassemble no tools required.

• Perfect For Both Home & Commercial Use.

• Hoist tilting for ceilings and walls.

• Built-in winch with brake.

• Foot Stops To Keep The Lift In Place For Safety.

• Easy assembly.

Feature:

• Apply various Drywall panels up to 4ft*12ft.

• Durable welded steel construction with powder coating

• Base contains three wheels and helps keep the system balanced.

• Locking outriggers to add stability and security.

• Large 18" 360 degree swivel cradle.

• 4-3/4" rolling casters with brake for both easy mobility & additional safety.

• Easy operation, this drywall lift allows one person to lift a drywall panel without assistance, reduce artificial, save effort, save time, good helper.

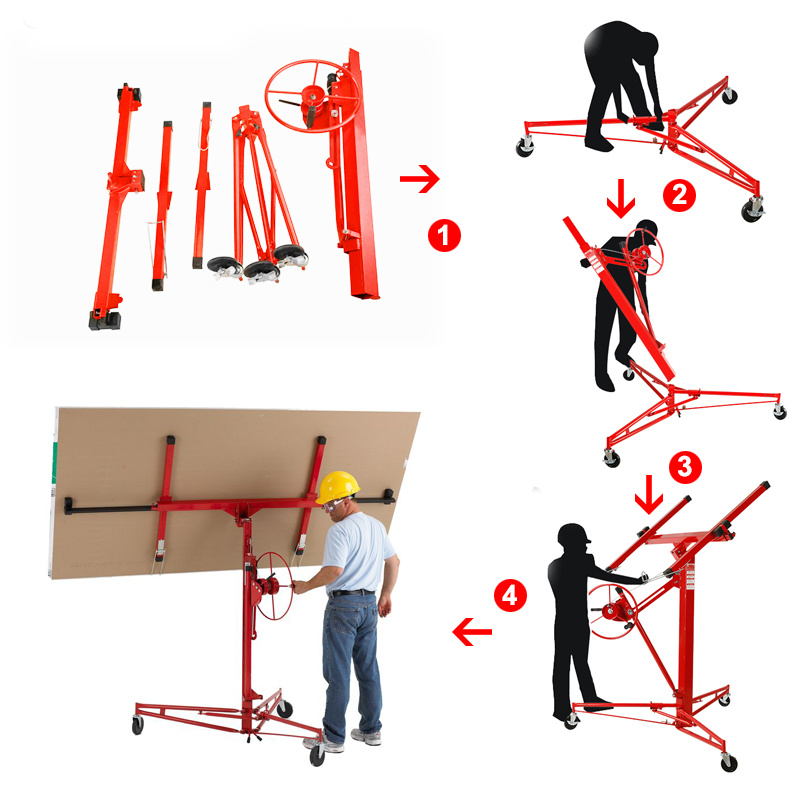

The Drywall lift has following components which must be assembled before use:

• Tripod base assembly.

• Frame assembly, which includes a winch assembly and standard telescoping lift sections.

• Cradle assembly, without its detachable cross arms.

• Two cradle cross arm assemblies.

• User's Manual Included.

Notice:

ALWAYS study these instructions before operating, and pay close attention to all warnings.

ALWAYS wear a hard hat when operating this Lift.

ALWAYS watch for overhead obstructions when lifting the drywall panel.

NEVER use the Lift for any purpose other than lifting a drywall panel.

NEVER lift more than one sheet of drywall at a time. Never lift more than 68kgs

Specifications:

• Material: Steel

• Product height: 140cm(Foldable) to 335cm(Unfolded)(From floor to top)

  Product Width:155cm

• Max single sheet capacity: up to 4ft to 9.5ft (122cm to 290cm);     Width:104cm

• Load capacity:  max 68kgs ( 150lbs)

• Max Reach for walls: 15ft (determined by the 11ft max lift and half the length of a standard drywall sheet)


• Power source : Hand Chain

• 10CM Caster Wheels For Easy Rolling.

Package:

• 1Set x Drywall Lift

• 1x Manual
