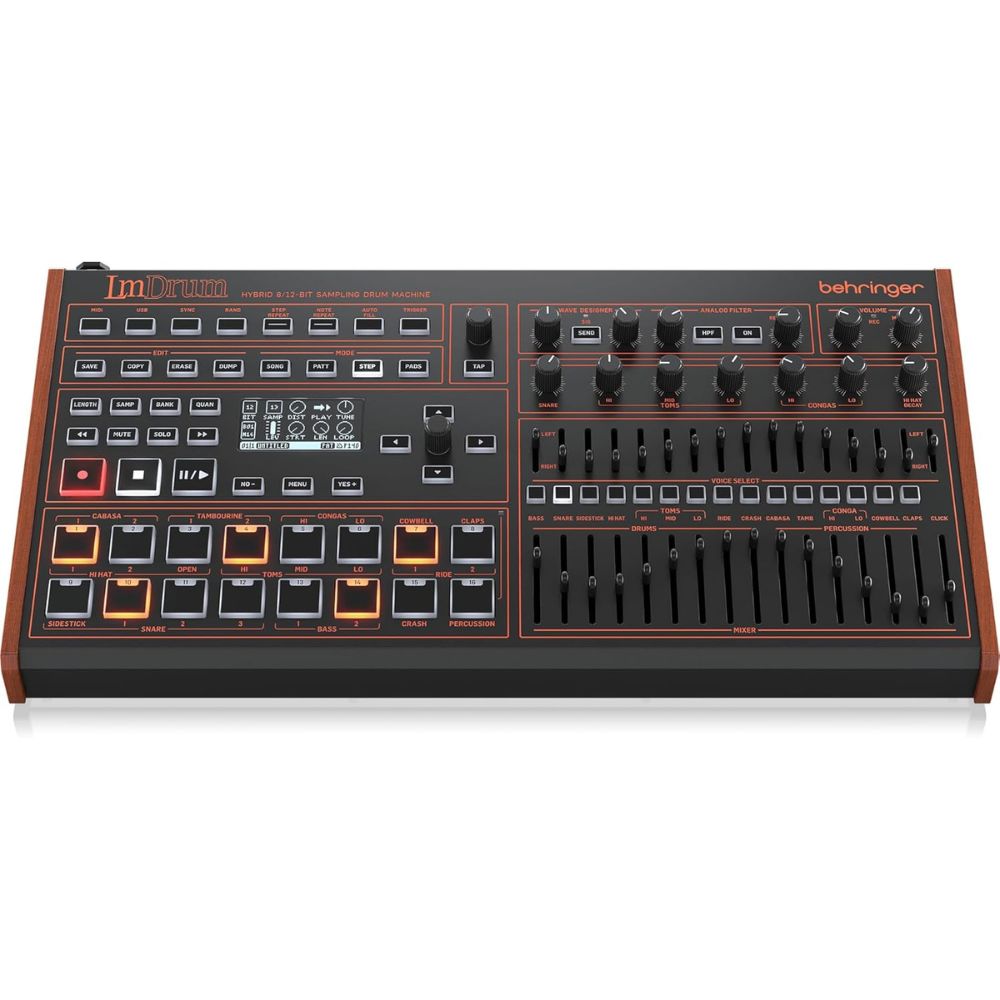

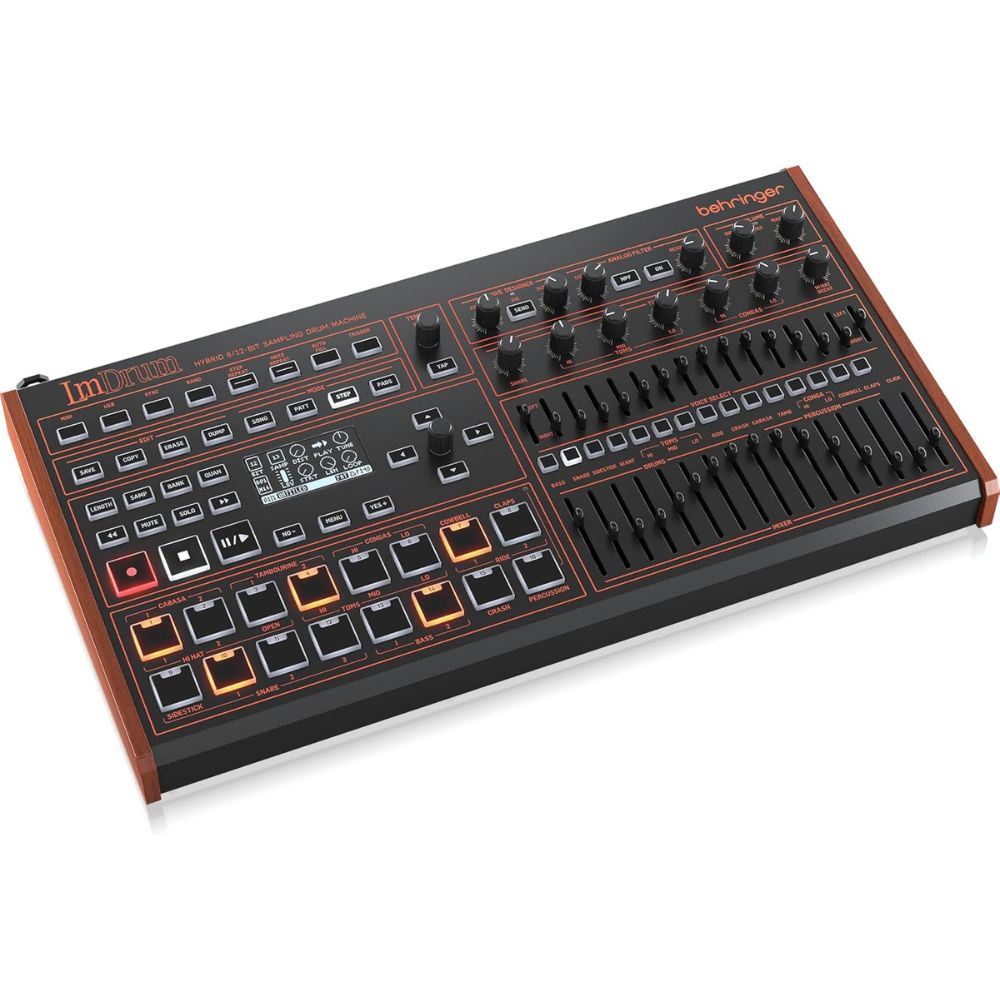

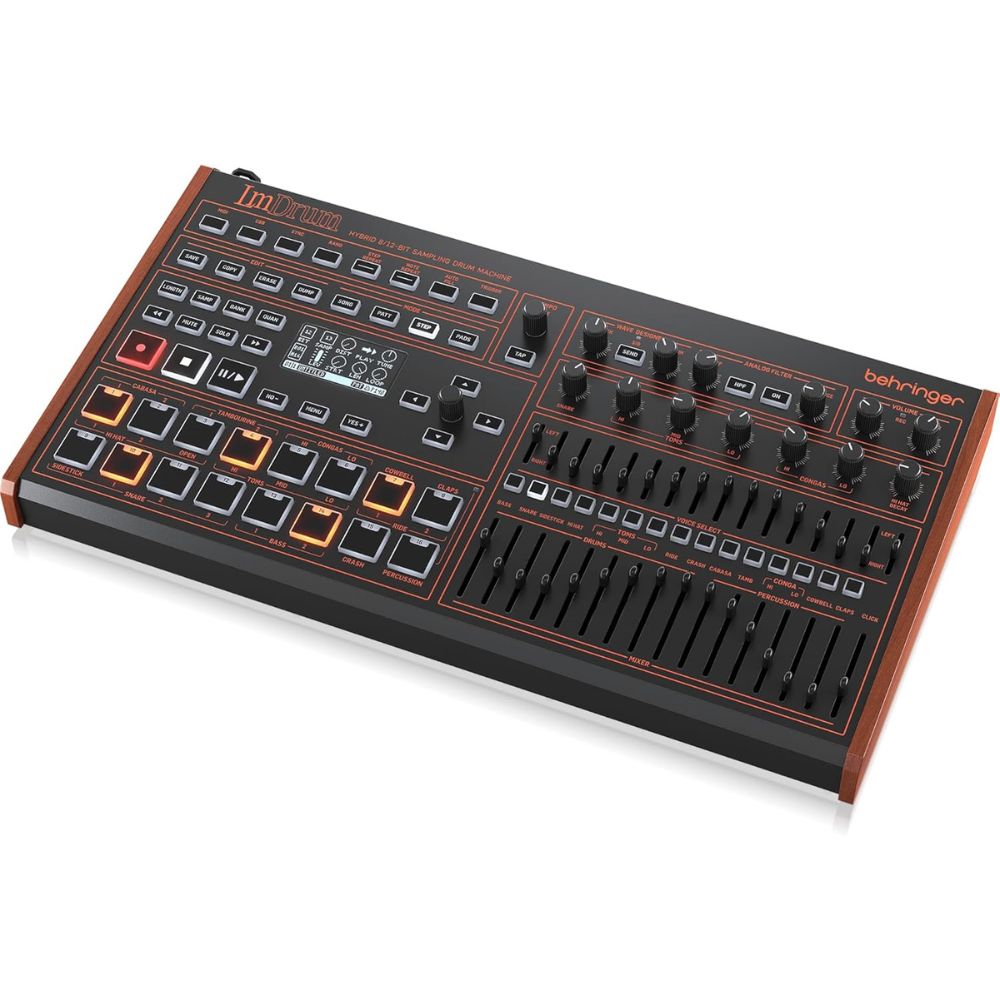

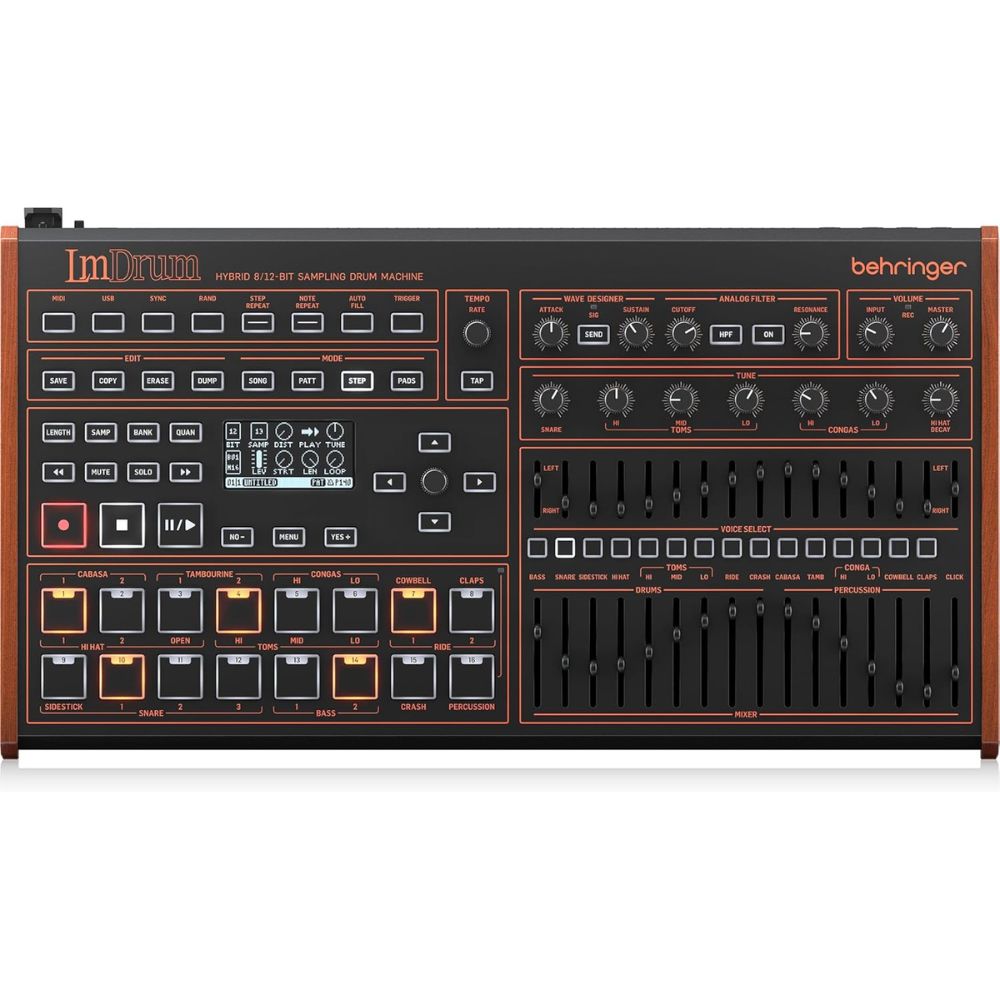

Recreate your favorite rhythms from the '80s with the Behringer LM DRUM, a recreation of the Linn Drum (LM1, LM2, LM9000) that captures the essence of legendary drum sounds designed by Roger Linn. With its 24 kHz sampling resolution and 8-/12-bit DAC, the LM DRUM generates the same famous drum and percussion sounds utilized by the likes of Prince, Phil Collins, and more.

The LM DRUM features the original analog circuitry for warmth and flexibility. It includes the 3320 VCF (LPF and HPF) and the 2164 VCA, which provides a rich, organic character. With 16-voice architecture and independent level and pan controls for each voice, you can create complex and dynamic drum arrangements with ease.

At a Glance

• Amazing drum machine with authentic 8-/12-bit sampling sound engine to create classic sound performance
• 109 authentic drum sounds including LM1, LM2, LM9000, and more iconic '80s drums
• Line input allows for live recording and storage of your own samples
• Analog circuitry including original 3320 VCF and 2164 VCA for unsurpassed warmth
• 16 DACs with variable sample rate and authentic 8-/12-bit resolution
• 16-voice architecture with independent level and pan controls for each voice
• Powerful 64-step drum sequencer supports poly-meter, step-repeat, note-repeat, real-time triggering, track-mute and track-solo

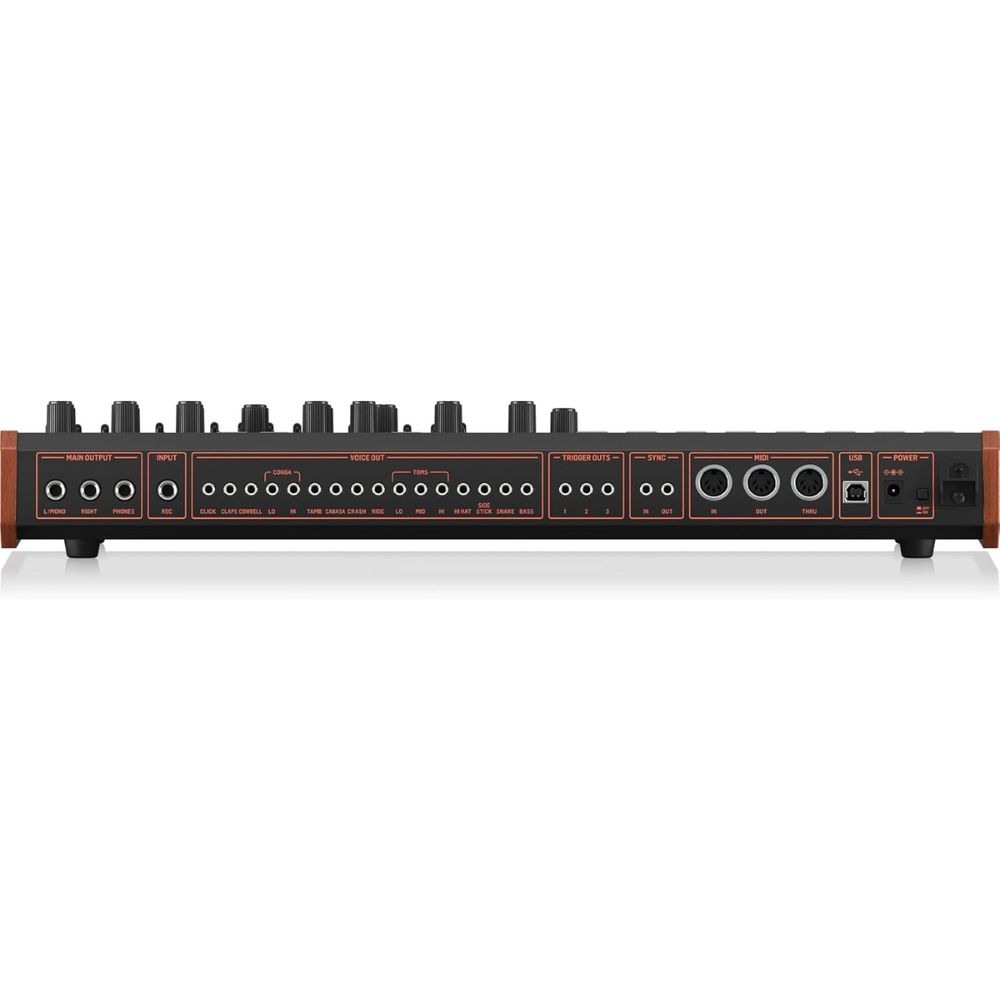

• 16 independent analog outputs for external processing or recording your rhythms as multitrack audio
• Integrated FX bus features Wave Designer and dual-mode Analog Filter with per voice assignment
• 16 velocity-sensitive drum pads with after touch for real-world experience

More Features

• Live recording, editing and playback of analog filter cutoff via automation
• Storage of up to 8 songs and 128 patterns, all of which can be imported/exported during playback for unlimited songs and patterns
• Pattern Mode allows arrangement of patterns into full songs and setting number of repeats per song part
• Song Mode allows chaining songs together for live sets and expanded compositions
• Unique Auto Scroll feature enables improvisation in all modes
• Comprehensive MIDI In/Out/Thru plus USB implementation for synchronization and connection to external devices
• Sync options include USB, MIDI, Clock, and Internal, for maximum versatility
• Encoder for editing parameters such as Tempo, Swing, Probability, Flam, and Random
• High-visibility 128x64 LCD graphic display for easy editing of program parameters
• Powerful headphone and main outputs on 1/4" connectors

Complete Control
LM DRUM also features a powerful 64-step drum sequencer that supports poly-meter, step-repeat, note-repeat, real-time triggering, track-mute and track-solo. You can create intricate patterns and grooves with the 16 velocity-sensitive drum pads with after touch or use the encoder to edit parameters such as Tempo, Swing, Probability, Flam and Random. You can also record, edit, and playback the analog filter cutoff via automation, adding movement and expression to your drums.

Great in the Studio
LM DRUM is not only a great drum machine, but also a versatile studio tool. It has 16 independent analog outputs for external processing or recording your rhythms as multitrack audio. It also has an integrated FX bus that features Wave Designer and a dual-mode analog filter with per voice assignment, giving you more sonic options and creative control.

Amazing Onstage
Up to 8 songs and 128 patterns can be stored on LM DRUM and can be imported/exported during playback. You can also use the Pattern Mode and Song Mode to arrange your patterns into full songs and chain your songs together for live sets and expanded compositions. The unique Auto Scroll feature enables improvisation in all modes, letting you tweak your drums on the fly and surprise the crowd at every show.


Box Contains

Behringer LM DRUM Classic Hybrid Sampling Drum Machine

• 1 x AC Adapter

Box Contains

Behringer LM DRUM Classic Hybrid Sampling Drum Machine

• 1 x AC Adapter

Brand	Behringer
Model	Behringer LM DRUM
MPN	BELMDRUM
Type	Sampling Drum Machine
Sound Generation	Analog/Digital Hybrid
Number of Pads	16x Velocity-Sensitive Backlit Pad with Aftertouch
Number of Sounds, Kits, or Samples	11x Sound Preset
Audio I/O	16x 1/8 / 3.5 mm TS Unbalanced Line Output 2x 1/4 TS Unbalanced Main/Headphone Output 1x 1/4 TRS
MIDI I/O	1x DIN 5-Pin Input 1x DIN 5-Pin Output 1x DIN 5-Pin Thru
Transport Controls	Yes
Display	LCD
Standalone Operation	Yes
Drum Sounds	1x Kick/Bass Drum 1x Rim Shot 1x Snare Hi-Hat (Closed) Hi-Hat (Open) 1x Crash Cymbal 1x Ride Cymbal
Number of Rhythm Pattern Presets	128x Pattern
Tempo Range	20 to 240 BPM
Number of Song Presets	8
Set Lists & Kit Chaining	Yes
Maximum Polyphony	16 Voice
Built-In Effects	1x Master FX: HPF, LPF
Built-In Speaker	No
Sequencer	Number of Steps: 64x Step Number of Sequencer Patterns: 128
Number of Recorder Tracks	16x Sequencer
Trigger Device & Pedal Inputs	No
CV/Gate I/O	3x 1/4 Trigger Output
Sync I/O	1x 1/8 / 3.5 mm Sync Input 1x 1/8 / 3.5 mm Sync Output
Network I/O	No
USB I/O	1x USB-B (Class-Compliant , Host Connection, MIDI)
Media/Memory Card Slot	No
Internal Drive Bays	No
Wireless	No
OS Compatibility	Windows 7 or Later / macOS 10.6 or Later
Included Software	No
Internet Connection	Required for Registration
Power Requirements	AC Input
AC/DC Power Adapter	12 VDC at 2000 mA (Included)
