Low Power Fingerprint Identification Module Push Finger Detection/Capacitive Touch Semiconductor Fingerprint Sensor ZW20/ZW3020

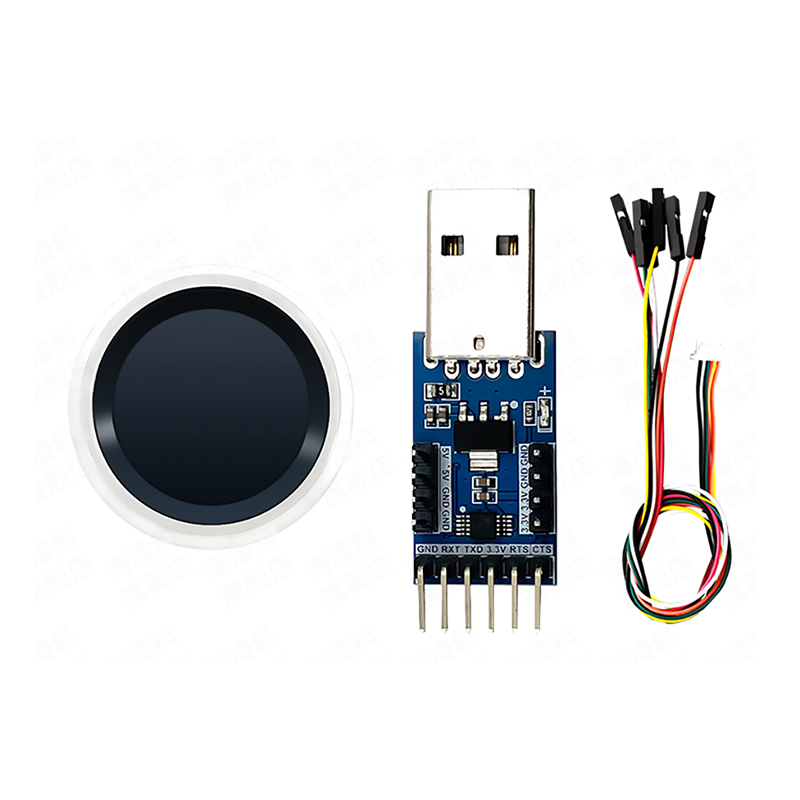

ZW20:

Product Description

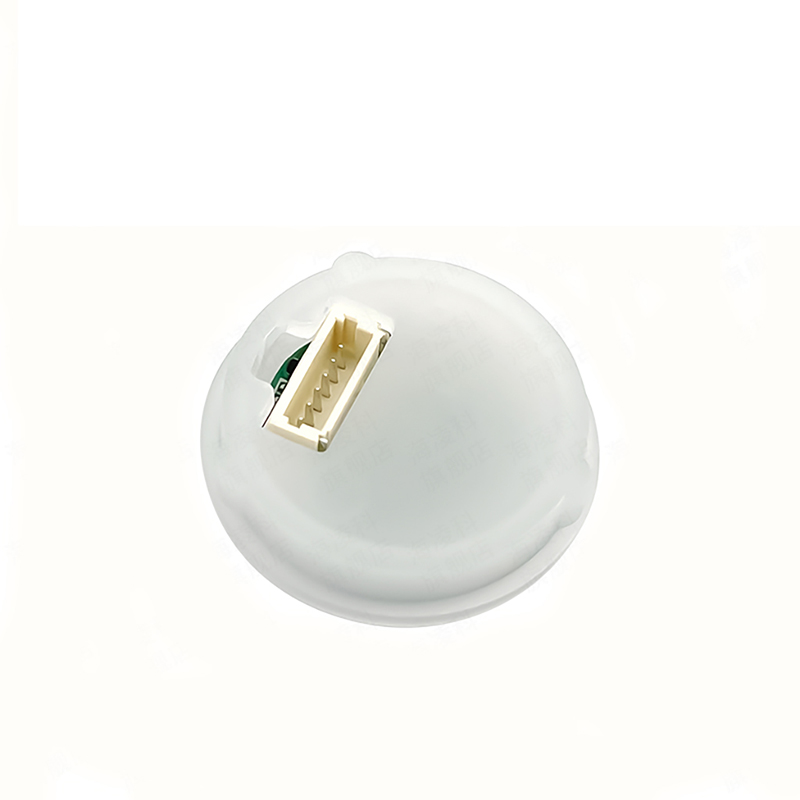

ZW20 is a low-power capacitive fingerprint identification module,
which consists of an active semiconductor fingerprint acquisition SENSOR

It is composed of active semiconductor fingerprint acquisition SENSOR and
fingerprint identification processing chip.

Adopting LGA package, it supports 360° arbitrary direction recognition
with 508DPI resolution.

High signal-to-noise ratio, low power consumption, fast response,
ultra-low rejection rate and false recognition rate, can be applied to smart door locks,

safes, POS machines and identity authentication systems.

Product Parameters

Module size: φ21mm

Recording times: 3~8 times

Resolution: 108×108pixel

Resolution: 508DPI

Interface protocol: TTL serial port

Communication Baud Rate: Default Baud Rate 57600bps/1 Start Bit/1 Stop Bit 3.3VTTL level

Interface and wire sequence: 1.0mm × 6Pin horizontal paste

Fingerprint library capacity: 100

Storage temperature and humidity: -40℃~+125℃; 45%~95%RH

Operating temperature and humidity: -40℃~+85℃; 45%~85%RH

False recognition rate: <0.001%

Rejection rate：<=5%

Comparison mode: 1:N

Standby current(sensor)~luA

Operating current (algorithm MCU): ~14mA

ESD level: non-contact discharge ~15KV / contact discharge ~8KV
