This product is for using on the following machines:
Case-IH TRACTOR: HYDRO 186 (W/ & W/O AIR CAN BE USED AS HEAVY DUTY)
Case-IH TRACTOR: 100 (W/O AIR COND CAN BE USED AS HEAVY DUTY W/ APPLICATIONS)
Case-IH TRACTOR: 1066 (CAN BE USED AS HEAVY DUTY W/ APPLICATIONS)
Case-IH TRACTOR: 1086 (W/ & W/O AIR COND CAN BE USED AS HEAVY DUTY W/ APPLICATIO
Case-IH TRACTOR: 1466 (W/O AIR COND CAN BE USED AS HEAVY DUTY W/ APPLICATIONS)
Case-IH TRACTOR: 1486 (W/ & W/O AIR COND CAN BE USED AS HEAVY DUTY W/ APPLICATIO
Case-IH TRACTOR: 1566 (W/ AIR COND CAN BE USED AS HEAVY DUTY W/ APPLICATIONS)
Case-IH TRACTOR: 1586 (W/ & W/O AIR COND CAN BE USED AS HEAVY DUTY W/ APPLICATIO
Case-IH TRACTOR: 766 (DSL, CAN BE USED AS HEAVY DUTY W/ APPLICATIONS)
Case-IH TRACTOR: 886 (CAN BE USED AS HEAVY DUTY W/ APPLICATIONS)
Case-IH TRACTOR: 966 (GEAR DRIVE OR HYDRO, CAN BE USED AS HEAVY DUTY)
Case-IH TRACTOR: 986 (CAN BE USED AS HEAVY DUTY W/ APPLICATIONS)
(Part Numbers :71611C1, A121725C1, A71611C1, 121725C1, 121723C1, 533586R2, 71610C1)

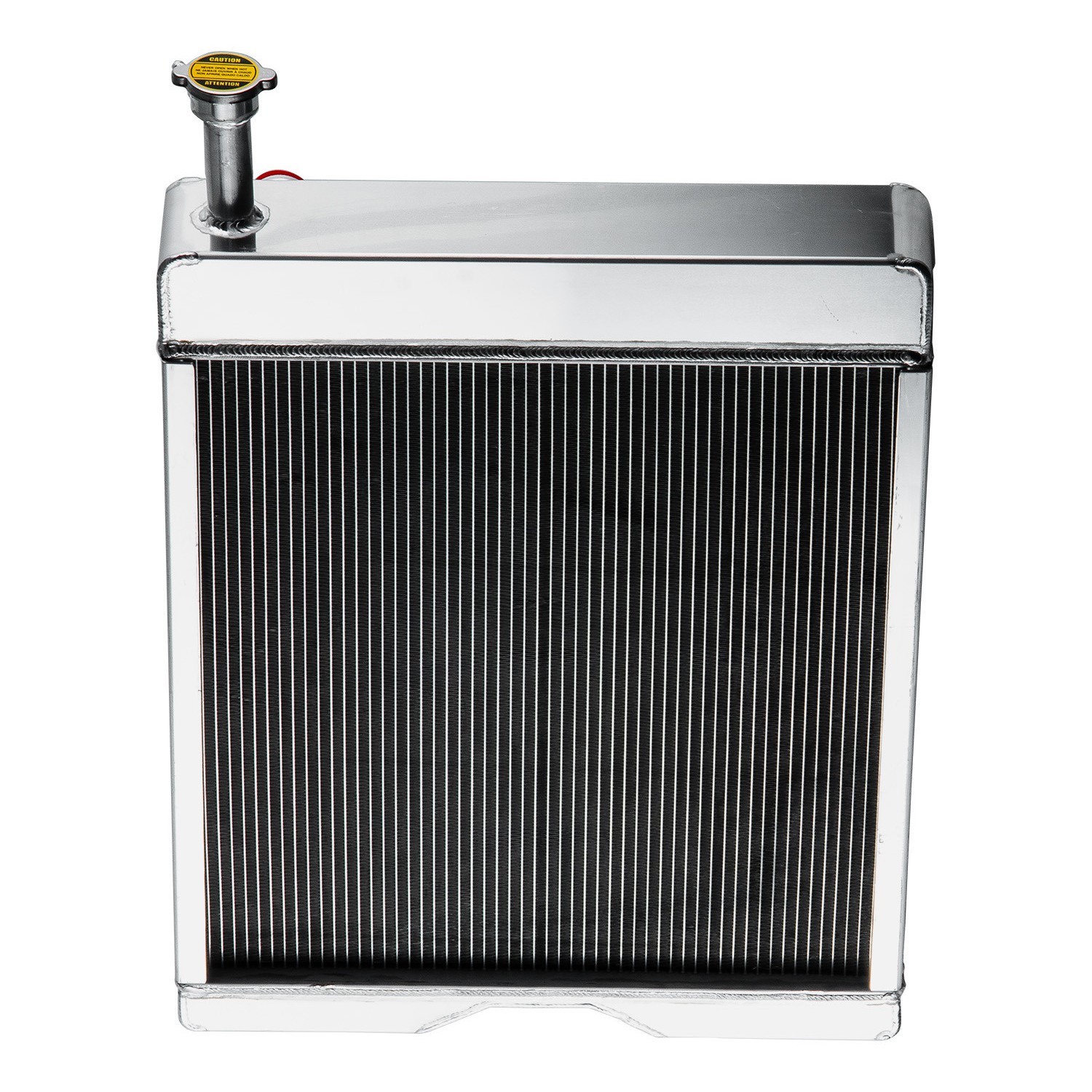

Specifications:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
OVERALL HEIGHT: 30"
OVERALL WIDTH: 23 3/8"
CORE HEIGHT: 24"
CORE WIDTH: 22 1/2"
DEPTH: 3 7/8"
FILL NECK HEIGHT: 4 1/2"
INLET: 2"
OUTLET: 2 1/2"
Description:

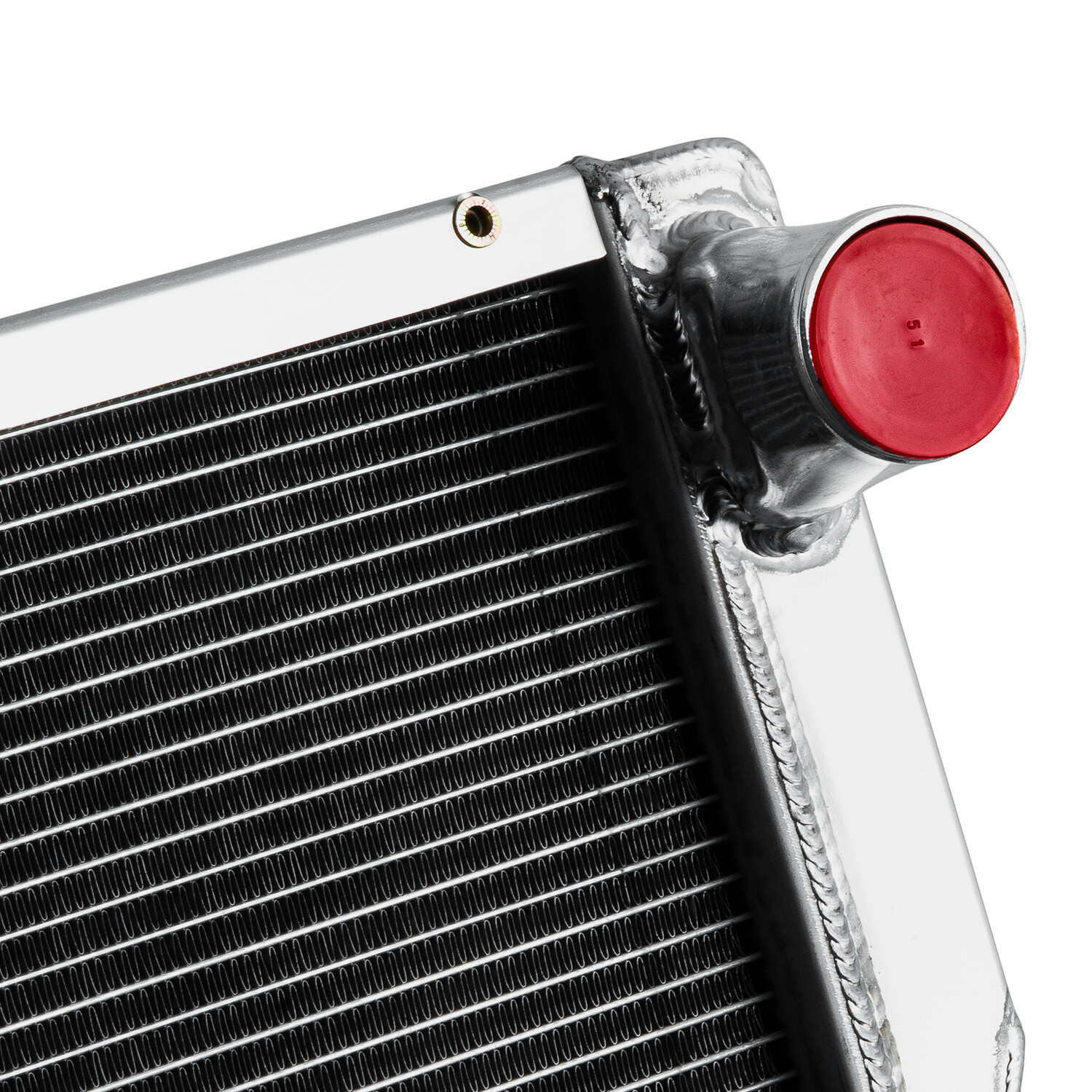

The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full Aluminum Construction.
This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
1 Higher density core: cooling rows are spaced 3/8" apart.giving you 25% more rows within the core than other aluminum radiators.
2 14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators,throws off much more heat.
