The monitor features JBL's Image Control Waveguide technology for accurate audio reproduction and JBL's Slip Stream port design for improved bass response. The 306P MkII is equipped with a boundary EQ for controlling the low frequency response when placed near a wall, as well as a 3-position HF trim switch. To ensure flexible connectivity, JBL included a balanced XLR input and a balanced 1/4" TRS input, both of which feature dented level control. Other features include a selectable input sensitivity switch that ensures compatibility with a range of signal sources. The JBL 306P MkII ships with a power cord.
- Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
- High-quality JBL transducers for optimized transient response and improved linearity
- Patented Slip Stream low-frequency port for superior bass performance at all playback levels
- Dual integrated, custom Class-D amplifiers provide 112W of power for high output and dynamic range
- Boundary EQ settings compensate for low-frequency variants introduced by the environment
- HF Trim switch adjusts high-frequency output to room acoustics or personal preferences
- Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4 dBu / -10 dBV input-sensitivity switch and adjustable volume control
- Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
- Strenuous JBL 100-hour full-power test ensures years of reliability
- Sleek, modern design provides a visual upgrade to any studio
-

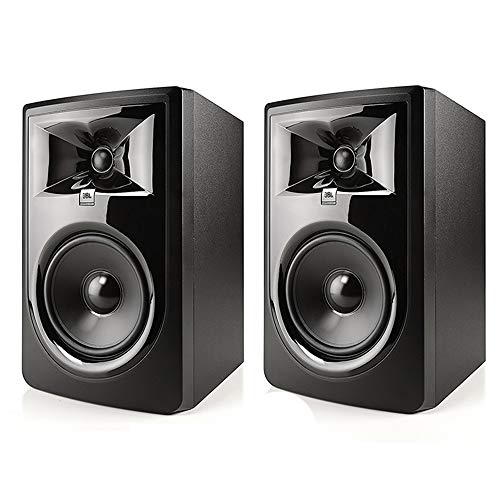

2 x JBL 306P MkII - Powered 6.5" Two-Way Studio Monitor
- Power Cord
- Limited 2-Year Warranty
| Brand | JBL |
| Connectivity | Wired |
| Model | 306P MKII |
| MPN | 306P MKII |
| Type | Studio Monitor |
| Drivers | LF Driver: 6.5" / 165.1 mm HF Driver: 1.0" / 25.4 mm HF Driver Type: Soft dome |
| Crossover | 1425 Hz 4th order acoustic Linkwitz-Riley |
| Magnetic Shielding | Yes |
| Input Sensitivity | 92 dB at 3.3' / 1 m (-10 dBV input) |
| Power Configurations | Bi-amplified |
| HF Driver Power Amp | 56 W, Class-D |
| LF Driver Power Amp | 56 W, Class-D |
| Frequency Response | 47 Hz to 20 kHz (±3 dB) |
| Frequency Range | 39 Hz to 24 kHz (-10 dB) |
| Low Frequency Extension | 39 Hz |
| SPL | Continuous: 92 dB Peak: 110 dB |
| Maximum Input | Maximum Peak Input Level (-10 dBV / +4 dBu): +6 dBV / +20.3 dBu |
| Signal to Noise Ratio | 75 dBA (A-weighted), 70 dBr (unweighted), relative to 2.83 VRMS output |
| Dispersion | H x V: 120° x 90° |
| Inputs | 1 x XLR female (balanced) 1 x TRS female (balanced) |
| Enclosure Type | Ported |
| Construction Material | MDF: 0.6" / 15.0 mm |
| Finish | Matte black PVC |
| Baffle | Injection-molded structural ABS |
| Power | 100 to 240 VAC (±10%), 50 / 60 Hz |
