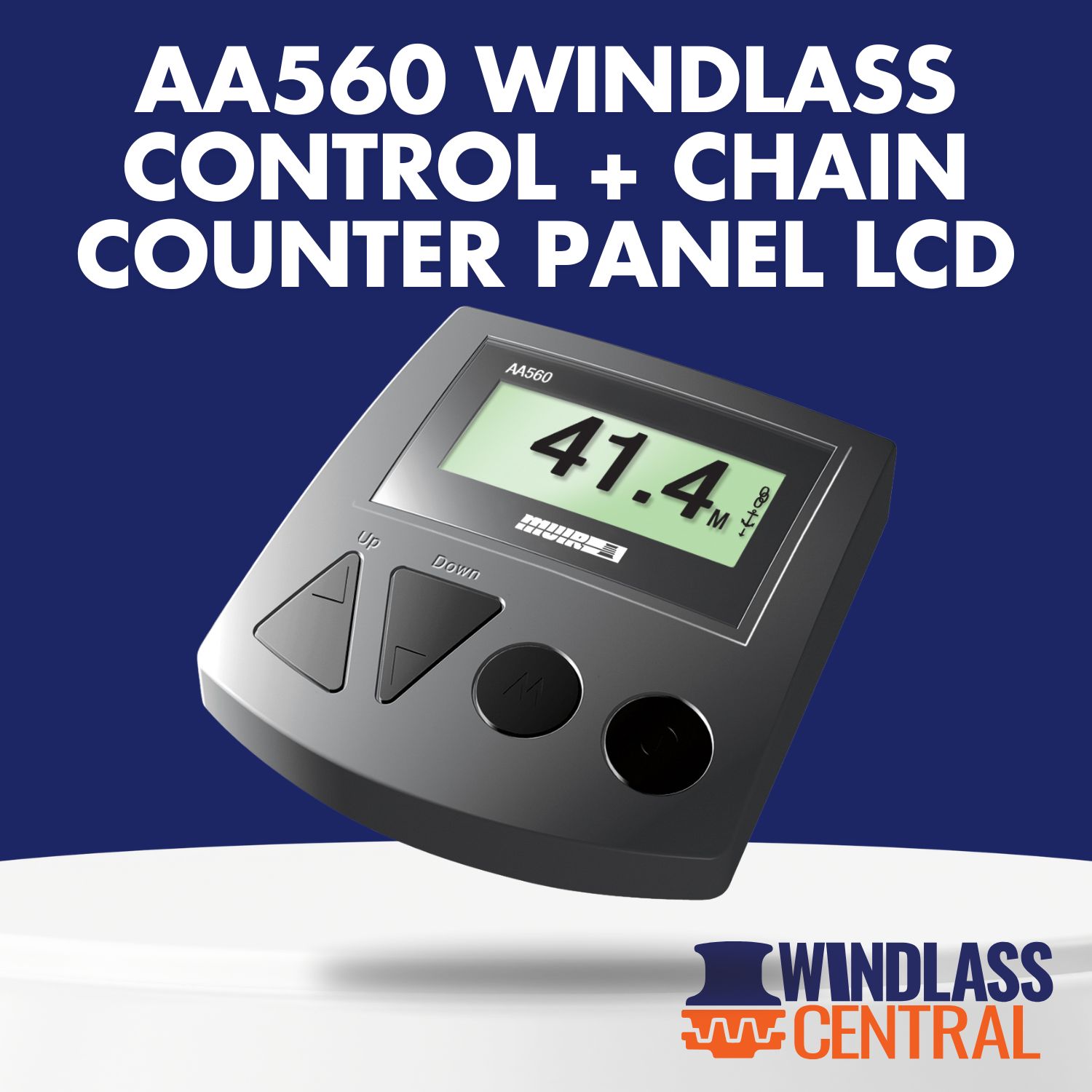

The Auto Anchor 560 is a surface-mounted windlass control panel, allowing boaters to deploy and retrieve their anchor with the push of a button from the helm. With a user-friendly digital display, it accurately tracks and displays the length of anchor rope and chain deployed.
Features
- Adjustable backlighting ensures clear night operation
- Surface panel mount installation
- Easy plug-and-play installation
- Auto drop and retrieval function
- Docking alarm and pre-set stopping point help protect the boat during anchor retrieval
- Inbuilt diagnostics tool for troubleshooting and maintenance support, including voltmeter and windlass hours
- Safety lock prevents unwanted use of the windlass
- Connect to DC, AC and hydraulic systems
- Allows installation of multiple controllers and counters in parallel
- Counts in meters, feet or fathoms
- Drum winch counting capability
- Weather cover to protect console unit
Technical Specifications
| Power Supply | 12/24V DC |
| Temperature Range | -5�C to 60�C (23�F to 140�F) |
| Current Consumption | 70mA |
| Solenoids | Max 4 Amp draw |
| Maximum Voltage | 30V |
| EMC/Protection/CE | EN60945 |
| Dimensions | 140mm/5.51?(w) x 130mm/5.12?(h) |
