Specification

Type: Lift leveling kit

Lift height: 2.5" level the front with the rear

Finish: Powder coated

Bushing material: Rubber

Diameter of piston rod: F&R 18mm/0.70"

Piston diameter：F&R 32mm/1.25"

Outer cylinder diameter: F&R 50mm/1.95"

Travel: F: 250mm/9.84"    R:  250mm/9.84"

Extended length: F: 700mm/27.55inch  R: 680mm/26.77"

Collapsed length:F: 450mm/17.71"   R: 430mm/16.92"

Nitrogen charged：yes

Spring rate: F 3kg/mm (167.992lbs/inch)      R   4kg/mm(223.99 lbs/inch)

Spring length:  F 500mm/19.68"    R 400mm/15.74"

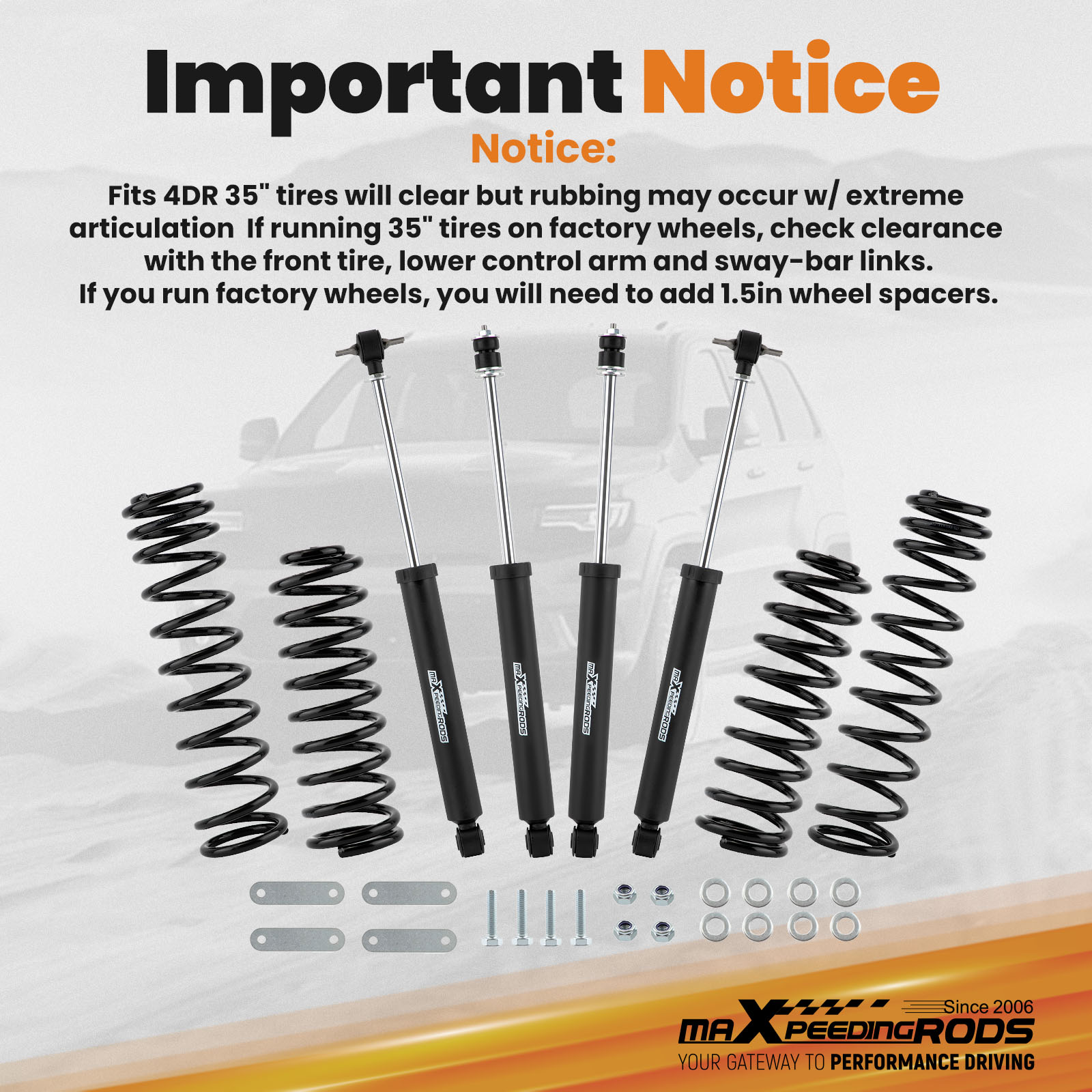

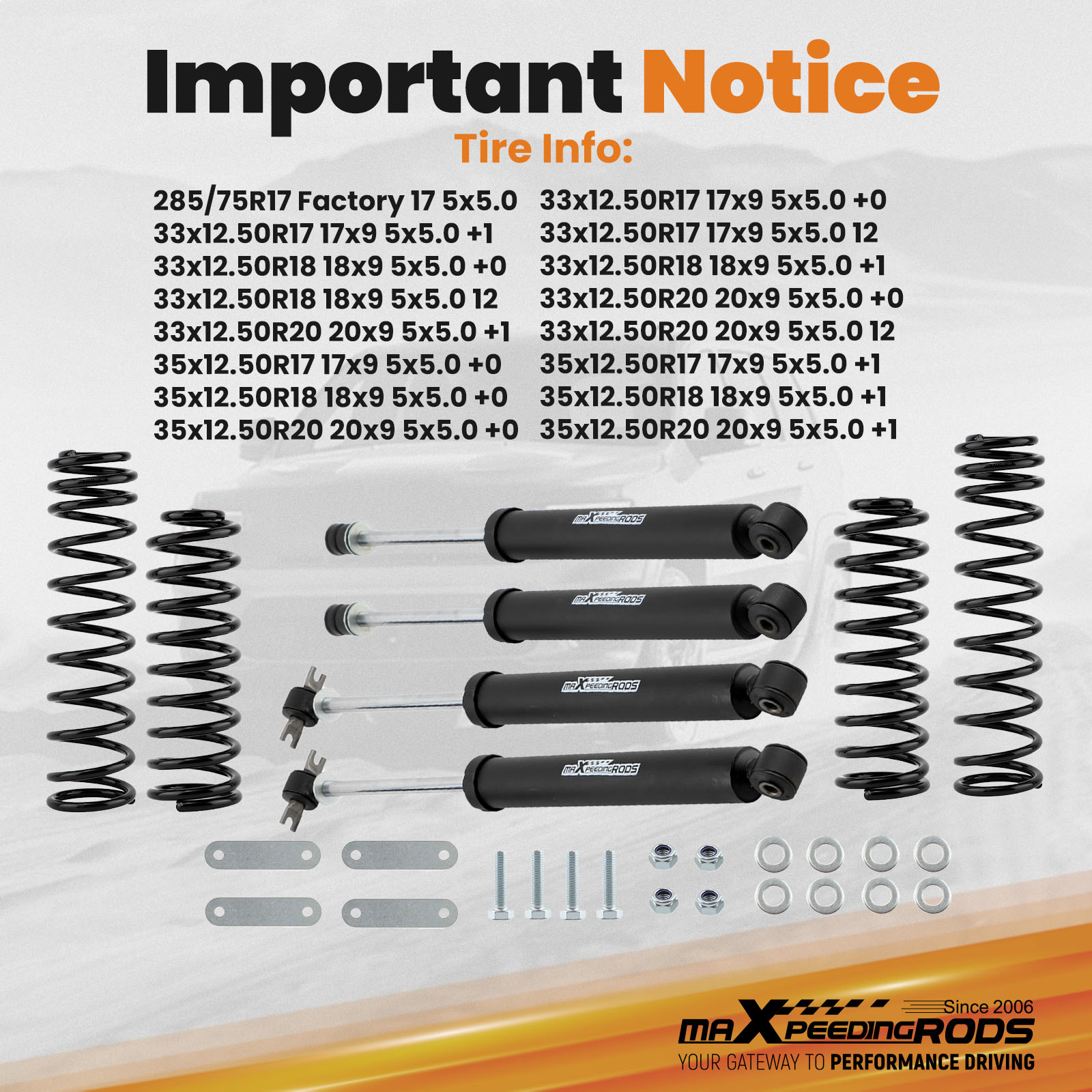

Package included

2x Front shocks

2x Rear shocks

2x Front coils

2x Rear coils

4x Brake line extenders

Application

Note

Note:

35" tires will clear but rubbing may occur w/ extreme articulation

 If running 35" tires on factory wheels, check clearance with the front tire, lower control arm and sway-bar links.

If you run factory wheels, you will need to add 1.5in wheel spacers
