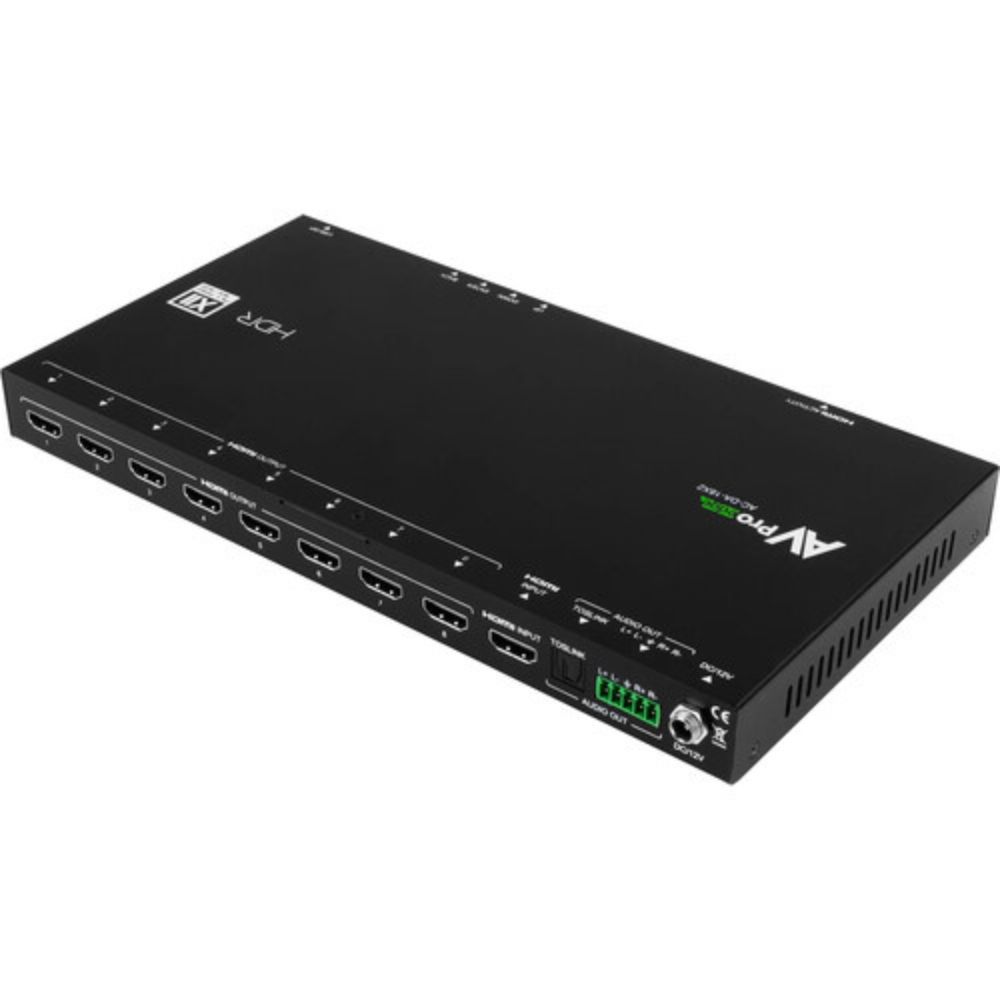

The AVPro Edge AC-DA-18X2 is a one-input to eight-output, 48 Gbps HDMI 2.1b distribution amplifier that flawlessly divides incoming HDMI signals up to 8K/60 fps into eight separate output streams. Though designed as a next-gen 48 Gbps device, this does not preclude using the AC-DA-18X2 for large legacy system applications where installation stumbling blocks may be immediately remedied. Generationally dated but functioning displays intersecting in systems with overlapping HDMI and HDCP versions can handcuff a system into resolution downscaling all displays for compatibility. The AC-DA-18X2 enables mixed-display systems to coexist at their native rates, with plenty of available dynamic headroom. An AC-DA-18X2 output may be scaled to provide a 3D immersive audio format signal to a decoding audio playback device still viable for that purpose, though dated for video signal passthrough, allowing the AVR or Pre-processor to remain operational for as long as required.


Box Contains

AVPro Edge AC-DA-18X2 48Gbps 1x8 HDMI Distribution Amplifier

• 1 x 12V Power Supply
• 1 x 5-Pin Terminal Block
• 1 x Set of Mounting Brackets

Box Contains

AVPro Edge AC-DA-18X2 48Gbps 1x8 HDMI Distribution Amplifier

• 1 x 12V Power Supply
• 1 x 5-Pin Terminal Block
• 1 x Set of Mounting Brackets

Brand	AVPro Edge
Model	AVPro Edge AC-DA-18X2
MPN	AVACDA18X2
Type	Distribution Amplifier
Video Resolutions	Up to 8K 60Hz 4:4:4/8K 30Hz 4:4:4/4k 120Hz
HDR Formats/Resolutions	HDR Formats/Resolutions
Color Space	YUV (Component), RGB (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
Chroma Subsampling	4:4:4, 4:2:2, 4:2:0 Supported
Deep Color	Up to 16 bit
Scaling (resolution, Output 2 & 4 only)	8k to 4k or 8k/4k to 1080p
Audio Formats Supported HDMI	PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master
Audio Formats Supported Extracted (TOSLINK)	LPCM up to 5.1 96KHz 24 Bit, Dolby Digital 5.1, DTS HiRes Audio
Audio Formats Supported Extracted (2CH Port)	PCM 2 CH
HDMI In/Out (4k60 4:4:4)	UP TO 50 FEET (USING BULLET TRAIN HDMI)
HDMI In/Out (W/ AOC Cable) (4k60 4:4:4)	UP TO 130 FEET (USING BULLET TRAIN AOC)
Bandwidth	48 Gbps (FRL 6)
HDCP	HDCP 2.3 and Earlier
HDMI	Type A
Audio (Extracted Digital)	Toslink
Audio (Extracted Analog)	5 PIN Terminal Block (Balanced)
Firmware	USB C
Operating Temperature	23 to 125°F (-5 to 51°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Humidity Range	5-90% RH (No Condensation)
Power Consumption (Total)	3 watts max
Power Supply	Input: AC 100-240V ~ 50/60Hz Output: DC 12V 3A
