72V 40AH/45AH/49AH 150-200A Most Powerful Fat Body Stealth Bomber Lithium Battery with 6A or 10A Charger
Parts included:
72V 40AH/45AH/49.5AH 150-200A Most Powerful Fat Body Stealth Bomber Lithium Battery with 10A Charger;
84V 6A/10A Charger with Linko Male Plug;
Battery discharge with QS8/QS10 Female Plug, charge with Linko Female Plug;
Battery Discharge Extension Cable: QS8/QS10 Male----"O" ring.
150A-200A BMS board
Please use this battery maximal for 72V 10000W Motor and Controller (Max 150A/200A Controller)
| Specification: | |
| Battery Model | 72V 40AH/45AH/49.5Ah |
| Nominal Capacity (AH) | 40Ah/45Ah/49.5Ah |
| Nominal Voltage (V) | 72V |
| Source Resistance (mΩ） | <15 |
| Cell Specification | 3.7V 2900mAh or 3500mAH 5C Powerful EVE INR18650-32S Cell |
| Cell Combination | 20-series, 14-parallels |
| Cell Size | 18650 Cylinder Cell Diameter: 18mm, Height: 65mm |
| Cell Quantity (parallel*series) | 280pcs |
| Discharge Cutoff Voltage (V) | 60 +/- 1V |
| Charge Cutoff Voltage (V) | 84V |
| Rated Discharge Current (A) | 40A/45A/49.5A |
| Maximum Continuous Discharge Current (A) | 150A/150A/200A |
| Maximum Peak Discharge Current (A) | 200A/200A/300A |
| Maximum Continuous Charge Current (A) | 20A |
| Charge Mode | CC/CV |
| Standard Charge Current (A) | 6A |
| Charge Time under Standard Charge Current (Hours) | 8h/9h/9.8h |
| Fast Charge Current (A) | 10A |
| Charge Time under Fast Charge Current (Hours) | 4.8h/5.4h/5.8h |
| Charge Temperature Range | 0 - 60 ℃ |
| Discharge Temperature Range | -20 - 60 ℃ |
| Battery Size | Size in Photo |
| Charging Cycles | > 1000 cycling times |
| Battery Net Weight | 16.3kgs |
| Battery Gross Weight(include charger,bag and packing) | 21kgs |
| Battery Application | For less than 72V 10000W Motor and Controller (72V 150A) For less than 72V 14000W Motor and Controller (72V 200A) |
Battery size:

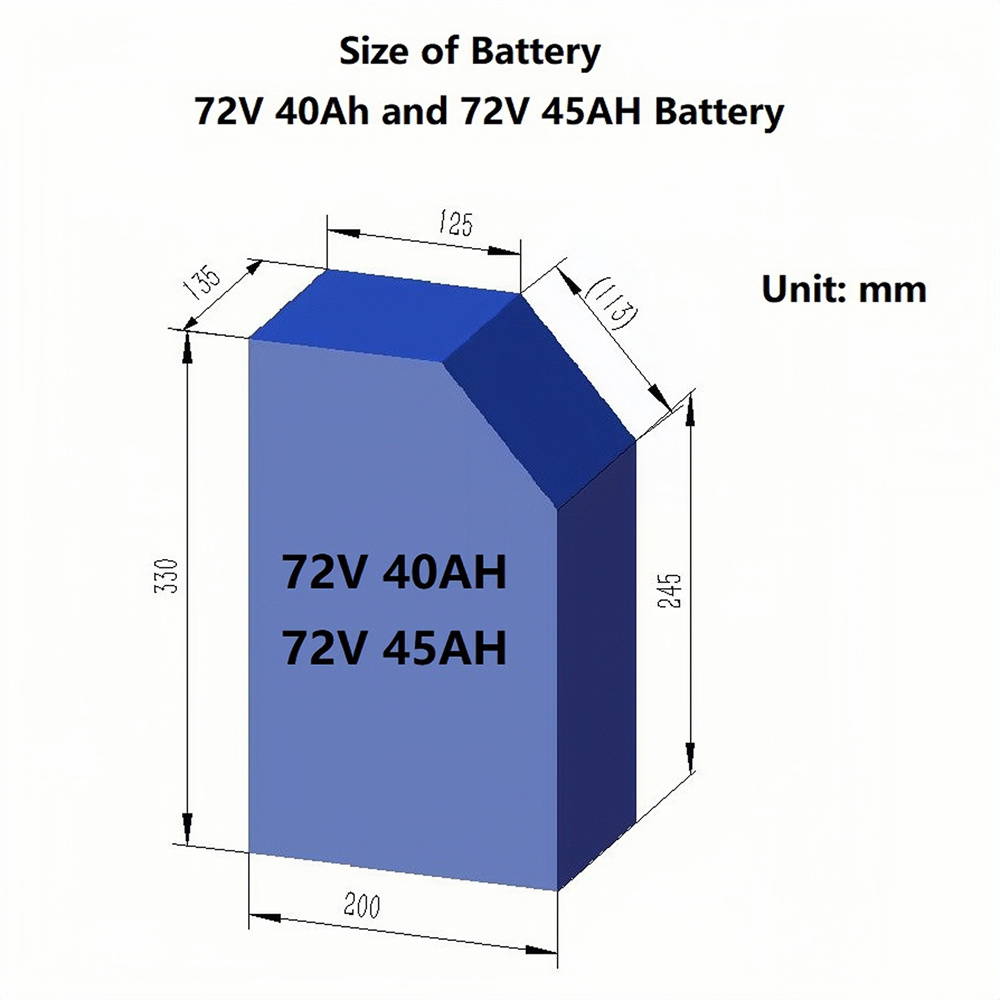

1. 72V 40AH/45AH Battery Size:

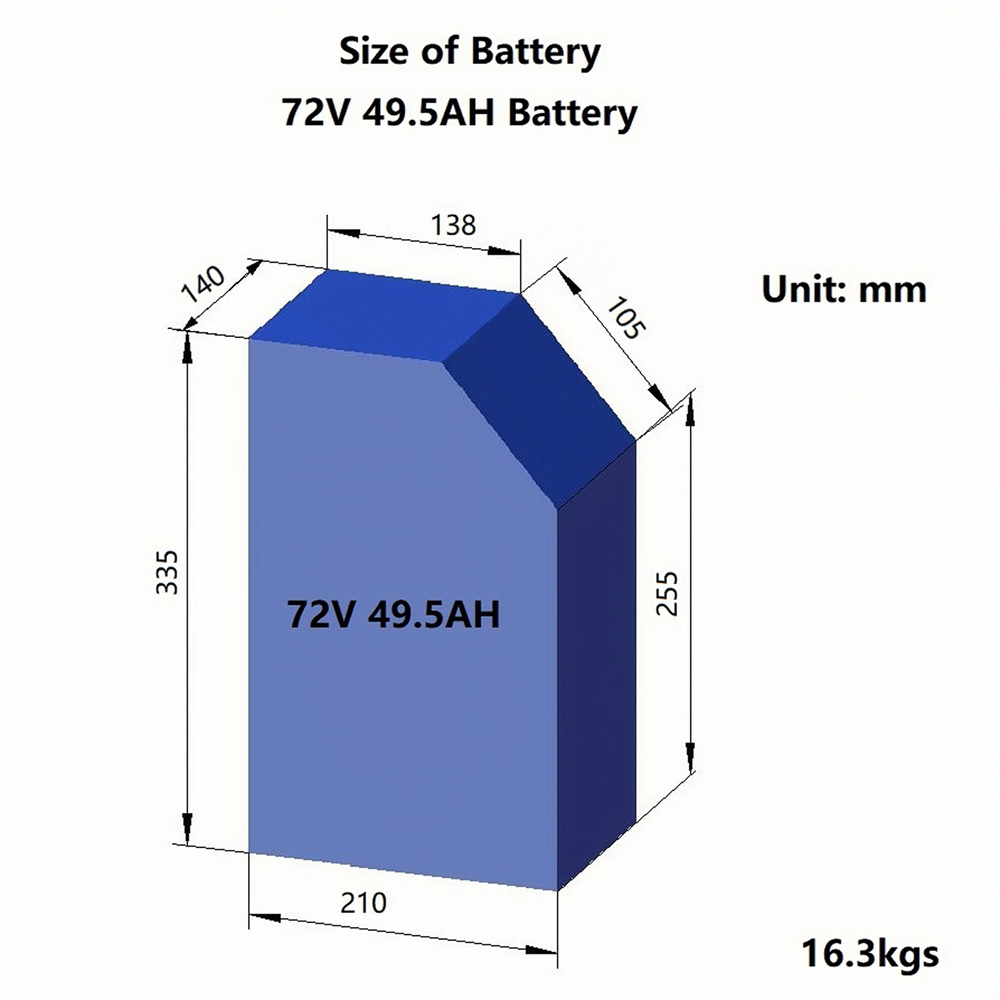

2. 72V 49.5AH Battery Size:
